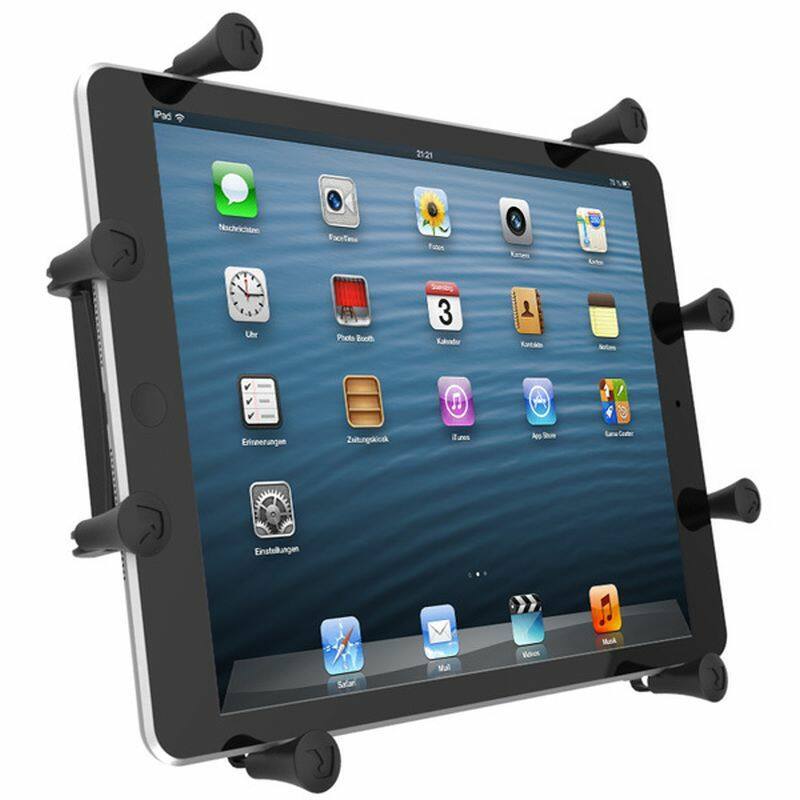

RAM-HOL-UN9U RAM® Universal X-Grip® Cradle for 9" - 10" Large Tablets
Features
* Spring-loaded 'X' design with rubber caps sports great holding power without hiding your tablet; fits most 9"-10" tablets

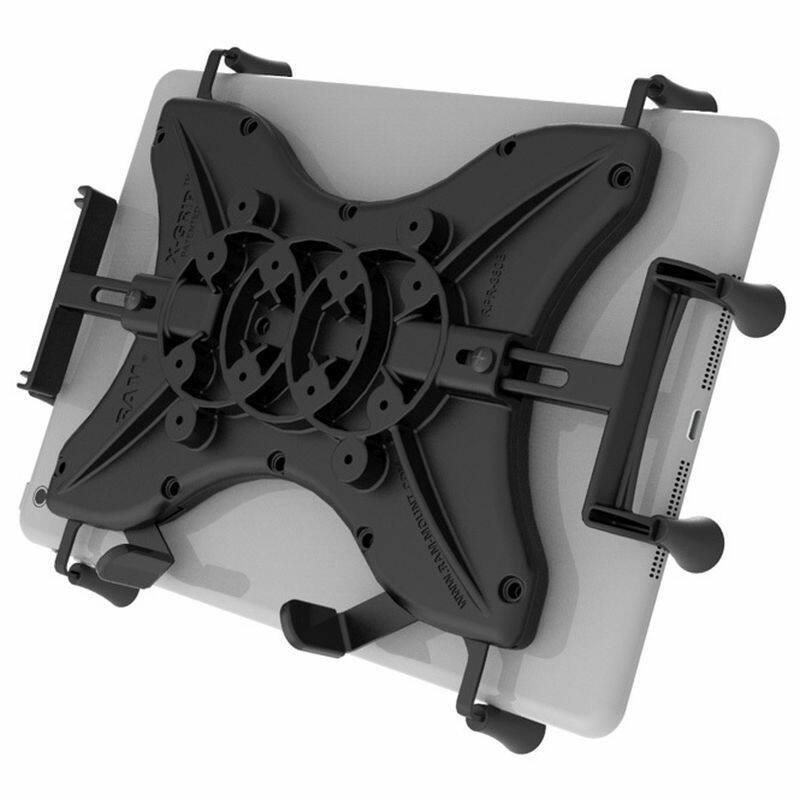

* Easy access grip knobs on the back of the holder allow for the quick release of your tablet
* Made of high-strength composite and steel components for durability and reliability in the most demanding environments
* Backed by a lifetime warranty

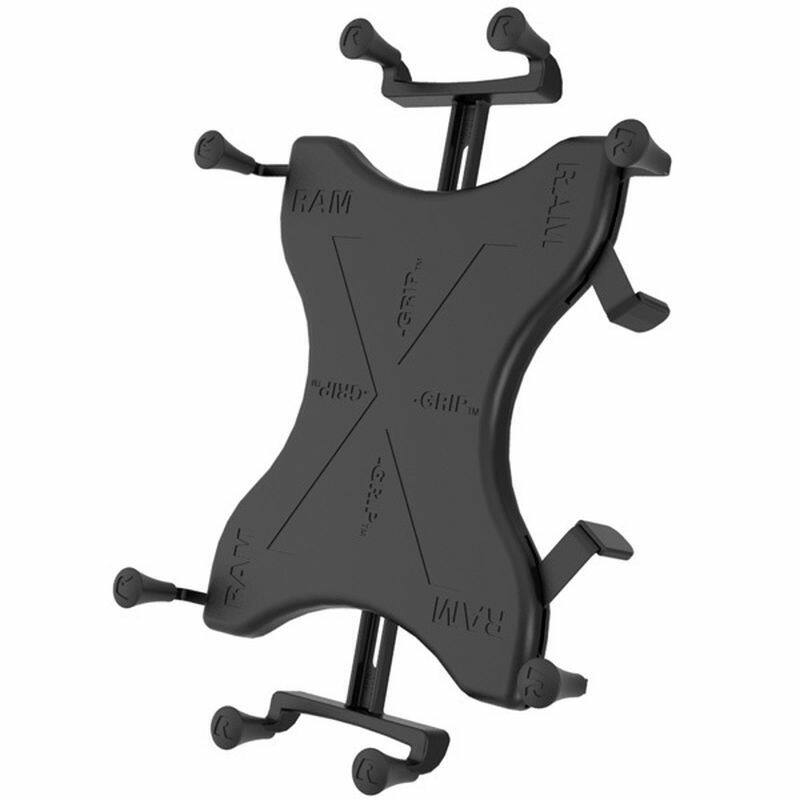

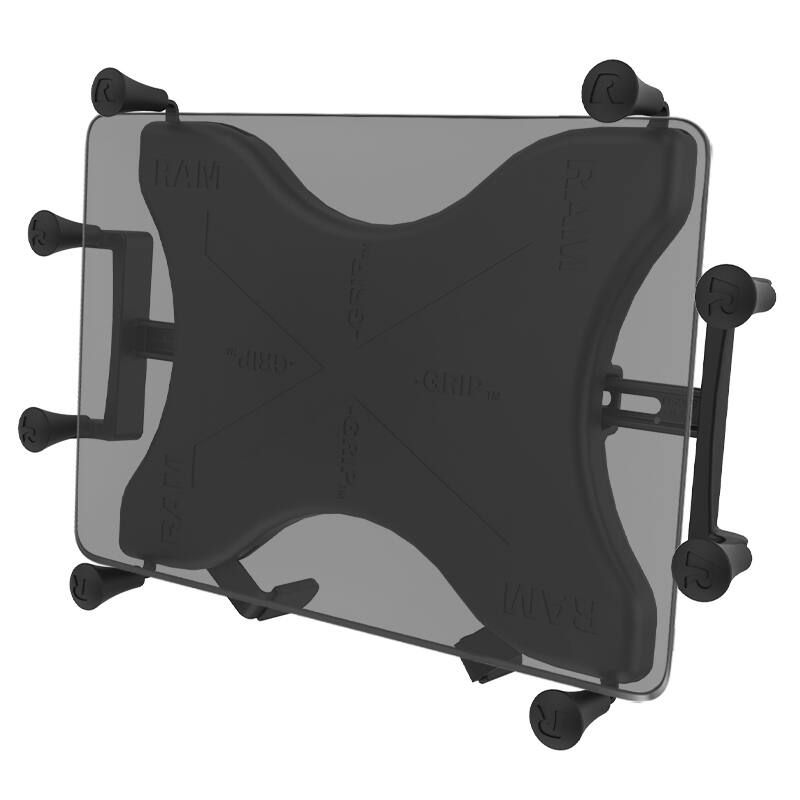

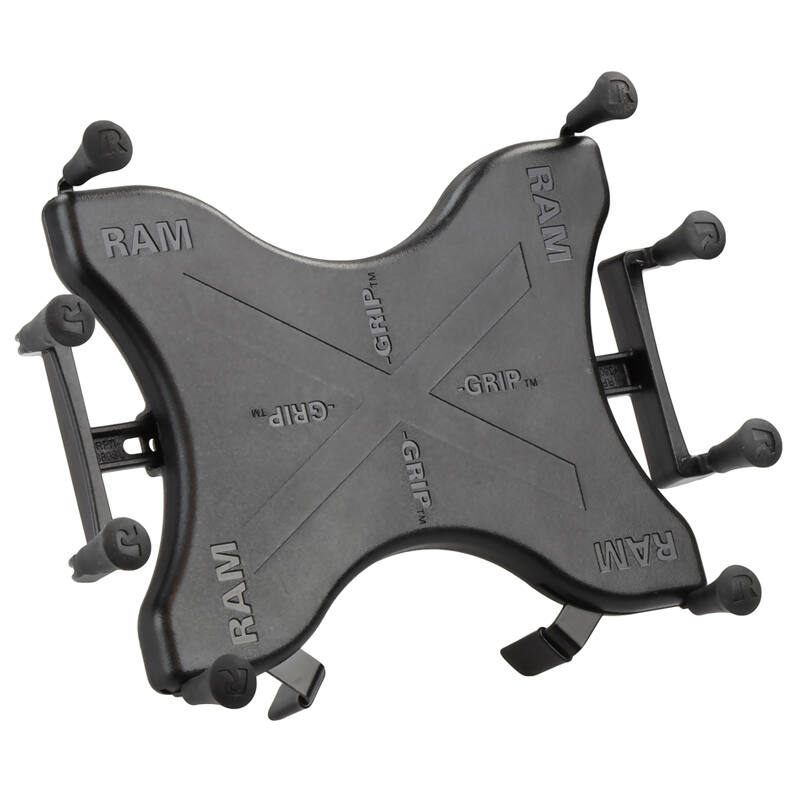

This consists of a composite spring loaded cradle, expandable grip arms and additional bottom support keeper. Included are extra easy access grip knobs, located on the back of the cradle for quick release of your tablet. The RAM-HOL-UN9U expands and contracts for perfect fit of most 10" tablets with or without sleeves, as well as some smaller tablets.
The X-Grip holder is compatible with tablets devices that will fit the dimensions listed below. It is important to verify the dimensions of your tablet with a case/sleeve/skin when determining the overall size.

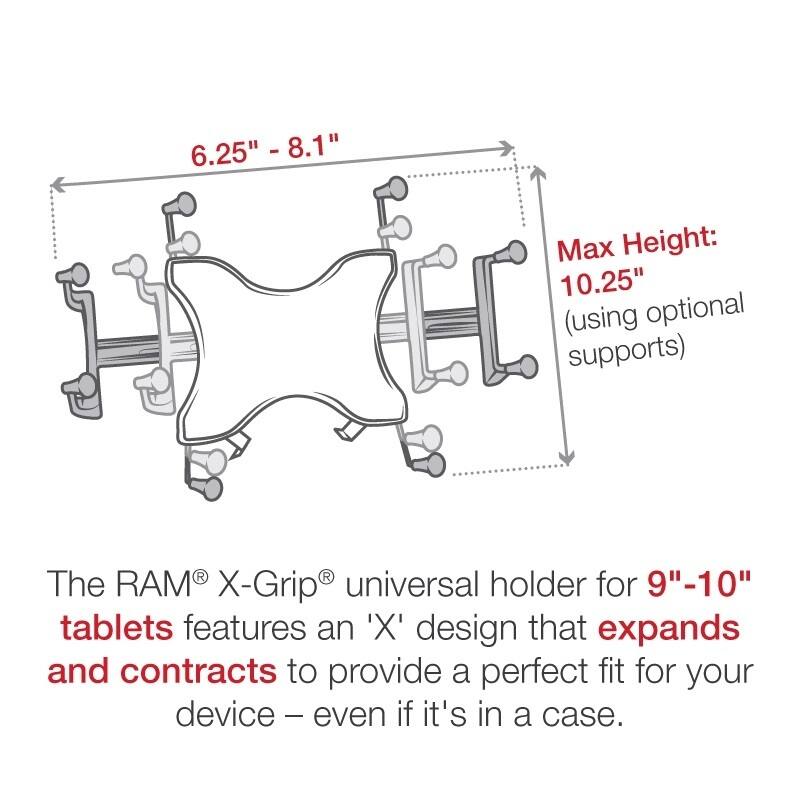

Cradle Dimensions:
Min Width = 158.75mm (6.25”)
Max Width = 205.7mm (8.1”)
Max length = 260.4mm (10.25”) with support - unlimited without supports
Max Thickness = 22.2mm (0.875")
Compatible Devices - 9"-10" Tablets including
Amazon
Fire HD 10
Apple
iPad (1st Generation)
iPad (3rd Generation)
iPad (4th Generation)
iPad (5th Generation)
iPad (6th Generation)
iPad (7th Generation)
iPad (8th Generation)
iPad (9th Generation)
iPad (10th Generation)
iPad 2
iPad 9.7 (2017)
iPad 9.7 (2018)
iPad Air
iPad Air 2
iPad Air 3
iPad Air 4
iPad Air 5
iPad Pro 9.7 (1st Generation)
iPad Pro 10.5 (2nd Generation)
iPad Pro 11"
iPad Pro 11" (2020)
iPad Pro 11" (2021)
iPad Pro 11" (2022)
ASUS
MeMO Pad FHD 10
Transformer Pad
ZenPad 10
ZenPad 3S 10
ZenPad Z10
Dell
Venue 10 7000
Venue 11 Pro
Venue 11 Pro 7000
Google
Nexus 10
Pixel C
HP
ElitePad 900
ElitePad 900 G1
Pro 610
Pro Slate 10.1
Huawei
MediaPad M2 10.0
MediaPad M3 Lite 10.0
MediaPad T3 10
Lenovo
Miix 3
S6000
Tab 2 A10-70
Tab 4 10
Tab 4 10 Plus
Tab A10
Tab3 10 Business
ThinkPad 10
ThinkPad Tablet 2
Yoga Book
Yoga Tab 3 10
Yoga Tab 3 Pro
Yoga Tablet 10
Yoga Tablet 10 HD+
Yoga Tablet 2 (10 inch)
LG
G Pad 10.1
G Pad II 10.1
G Pad X 10.1
G Pad X II 10.1
Microsoft
Surface 2
Surface Pro
Surface Pro 2
Samsung
Galaxy Book 10.6
Galaxy Tab 10.1
Galaxy Tab 2 10.1
Galaxy Tab 3 10.1
Galaxy Tab 4 10.1
Galaxy Tab A 9.7
Galaxy Tab A 10.5
Galaxy Tab A8 10.5
Galaxy Tab Active Pro
Galaxy Tab Active4 Pro
Galaxy Tab Pro 10.1
Galaxy Tab S 10.5
Galaxy Tab S2 9.7
Galaxy Tab S3 9.7
Galaxy Tab S4 10.5
Galaxy Tab S5e
Galaxy Tab S6
Galaxy Tab S7
Galaxy Tab S7 FE
Galaxy Tab S7 Plus
Galaxy Tab S8
Galaxy Tab S8 Plus
Galaxy Tab S9
Galaxy Tab S9 FE
Galaxy Tab S9 FE Plus
Galaxy Tab S9 Plus
Sony
Vaio Tap 11
Xperia Tablet S
Xperia Tablet Z
Vankyo
MatrixPad Z4 10"
Zebra
ET50 10"
ET55 10"
HARDWARE INCLUDED
Assembly Hardware
(4) #8-32 x 1/2" Sheet Metal Screws
(2) #8-32 x 5/8" Sheet Metal Screws
HOLE PATTERN
(3) 4-Hole AMPS: 1.181" x 1.496"
75 x 75mm VESA
Material:
Marine Grade Stainless Steel Components
High Strength Composite

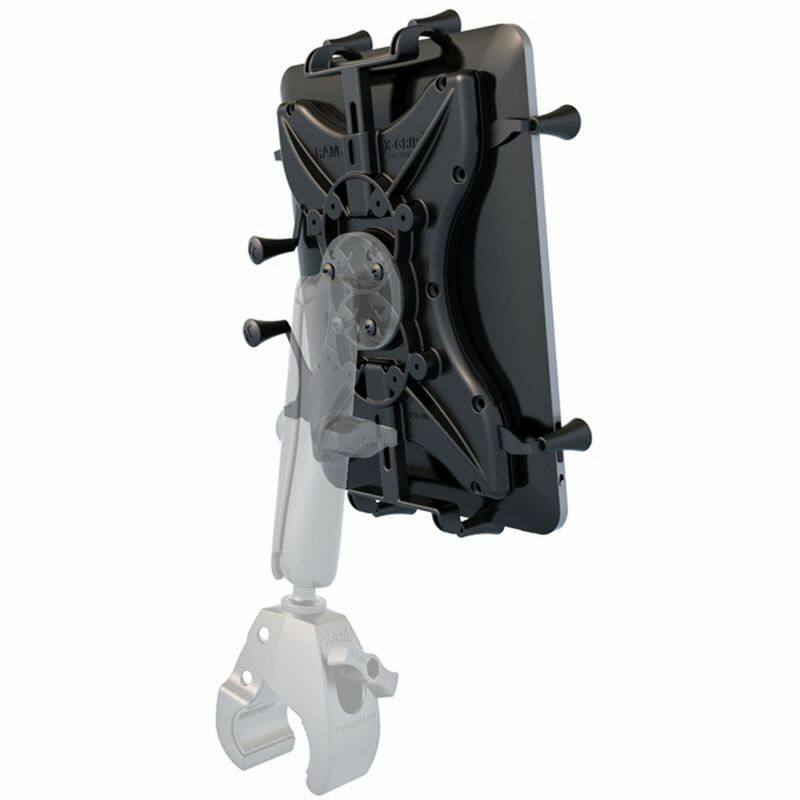

Note: Round ball base for back is RAM-B-202U (B size), RAM-202U (C size) or RAM-D-254U (D size)
YouTube:
https://www.youtube.com/watch?v=EC-bdR3KAww
QUESTIONS & ANSWERS
Q: Will this holder not work if the additional side supports do not fit my tablet?

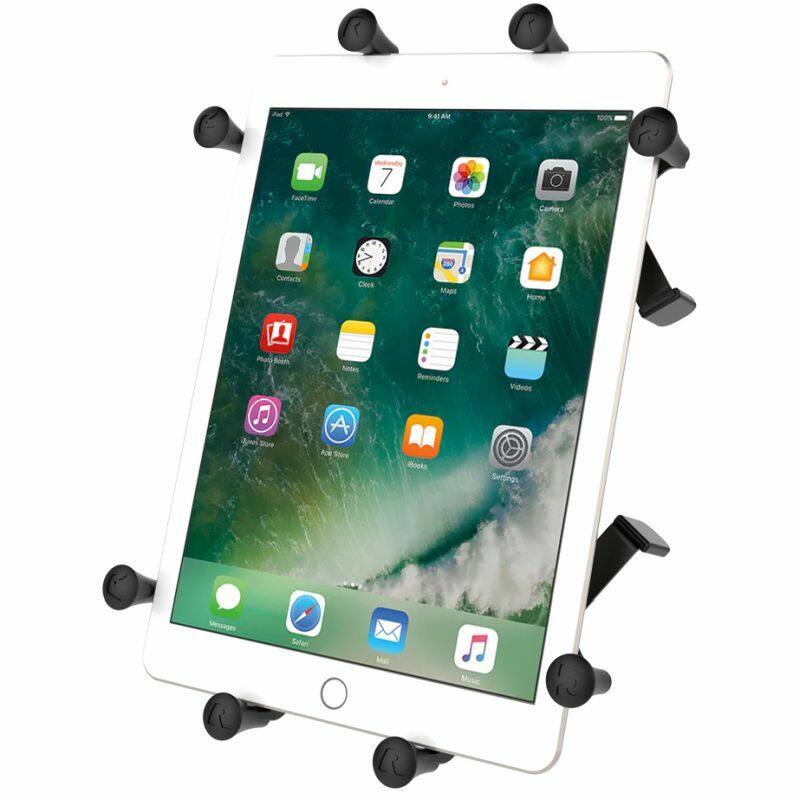

A: In most cases this should not be an issue. The additional side supports are optional to keep your tablet secure in extreme, high vibration environments; or if you are supporting the tablet in portrait mode, it is recommended to install one of the supports to hold the bottom of the tablet.
Q: How is it that this holder fits 9" - 10" tablets, yet it can also hold the iPad Pro 11"?
A: The 11 in iPad Pro 11 refers to the diagonal dimension of the screen display. Overall dimensions of this tablet are 9.74" x 7.02" x .23", which fits the dimension ranges of this holder. For all universal holders including the RAM® X-Grip®, it is a matter of cross referencing overall dimensions (L x W x D) when determining compatibility. Case dimensions will need to be taken into account if your tablet is in a case.
Q: What size screws are needed for the holes on this ball plate?
A: The most common screw sizes are #8, #10, M4 and M5 screws. However, if you are pairing this with any RAM® Holder, the holder will come with the necessary hardware to connect to your mount.
Q: I don't see my tablet listed in the compatibility section for this cradle. How can I make sure my tablet is compatible before placing an order?
A: You can find a list of compatible dimensions for this cradle in the product information section. If you want to make sure your tablet will fit in this cradle you can measure your tablet to make sure it falls within the compatible dimensions.
Q: This says it has a maxium height of 10.25". Is it possible to use this cradle with a tablet that is taller than that?
A: Yes, the maximum height that is listed only applies if you are using the option side support arms. If you leave at least one of those arms off of the mount it will be able to support taller tablets.
Q: Will this holder not work if the additional side supports do not fit my tablet?
A: In most cases this should not be an issue. The additional side supports are optional to keep your tablet secure in extreme, high vibration environments; or if you are supporting the tablet in portrait mode, it is recommended to install one of the supports to hold the bottom of the tablet.
