RAM-B-189-PIV1-A-UN9U – RAM® X-Grip® with Twist-Lock™ Pivot Suction for 9"–11" Tablets, Short Arm
The RAM-B-189-PIV1-A-UN9U pairs the RAM® X-Grip® cradle for 9"–11" tablets with a dual articulating Twist-Lock™ suction base and a short double socket arm, for a lower-profile mount where reach isn't needed.
Key Features
- Spring-loaded X-Grip® cradle grips most 9"–11" tablets without hiding the screen
- Easy-access grip knobs on the back release the tablet quickly

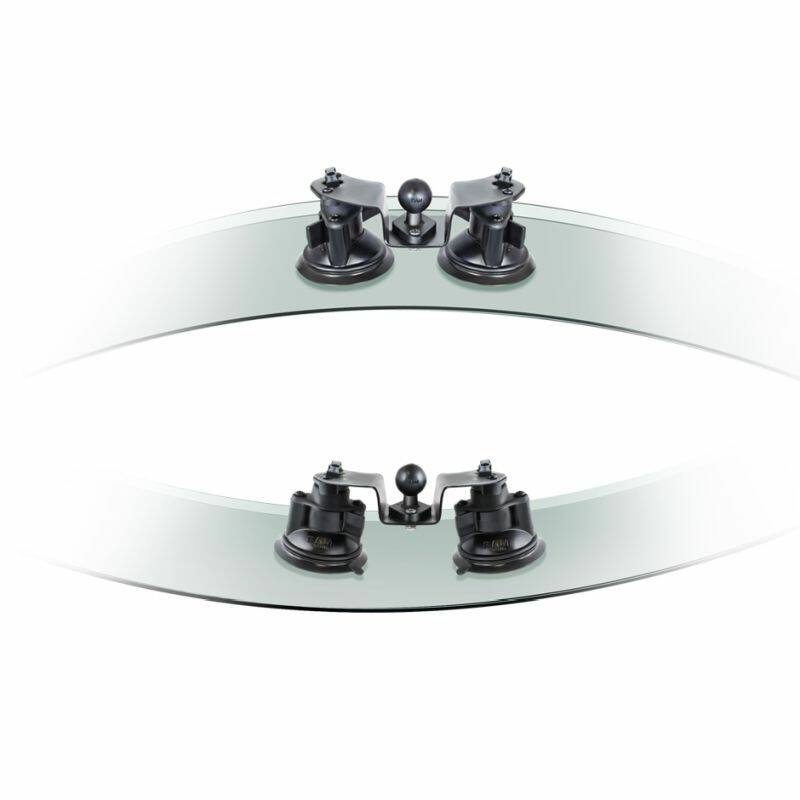

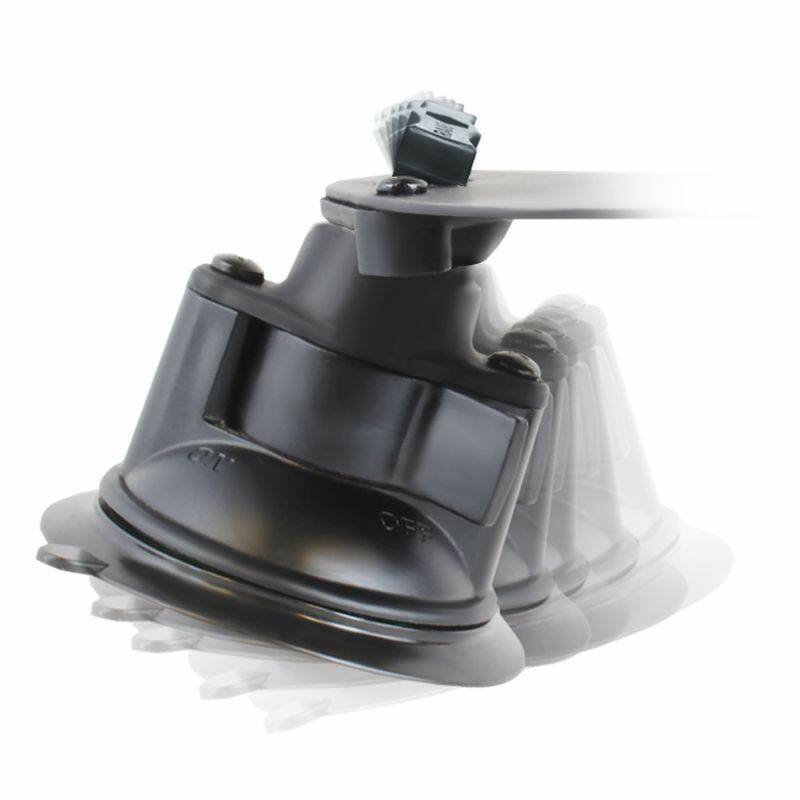

- Dual articulating suction base — each cup pivots independently to suit curved windows and surfaces
- Cups reposition to suit convex or concave surfaces
- Short double socket arm for a compact, lower-profile mount; RAM ball-and-socket design allows near-infinite adjustment
- High-strength composite, powder-coated aluminium alloy and steel; lifetime warranty on the mount hardware, with the suction cups excluded as a wear item
Works With
Most 9"–11" tablets that fit the cradle dimensions below, with or without a sleeve. Each cup articulates independently and can be repositioned to suit convex or concave surfaces, so the base follows curves a fixed twin-cup base cannot; on flat or gently curved glass the fixed version, the RAM-B-189-C-UN9U, does the same job for less.
Dimensions & Specifications
- Cradle minimum width: 158.75mm (6.25")
- Cradle maximum width: 205.7mm (8.1")
- Cradle maximum length: 260.4mm (10.25") with support, unlimited without
- Cradle maximum thickness: 22.2mm (0.875")
- Suction cup base diameter: 83.8mm (3.3")
- Arm overall length: 60.5mm (2.38"); socket-to-socket 51mm (2")
- Weight capacity: 907g (2 lbs) standard use; 454g (1 lb) heavy-duty use
- Weight: 1.12kg (2.48 lbs)
- Materials: powder-coated steel, high-strength composite, aluminium alloy
Compatible Devices
This kit uses the RAM-HOL-UN9U X-Grip® cradle — see the full compatible device list on the RAM-HOL-UN9U listing.
What's Included
-

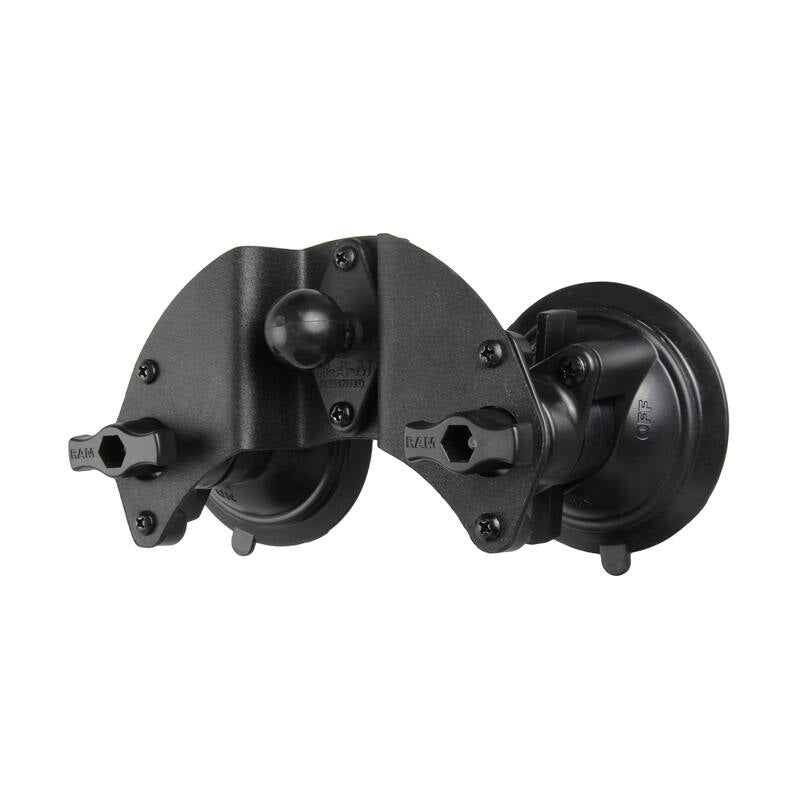

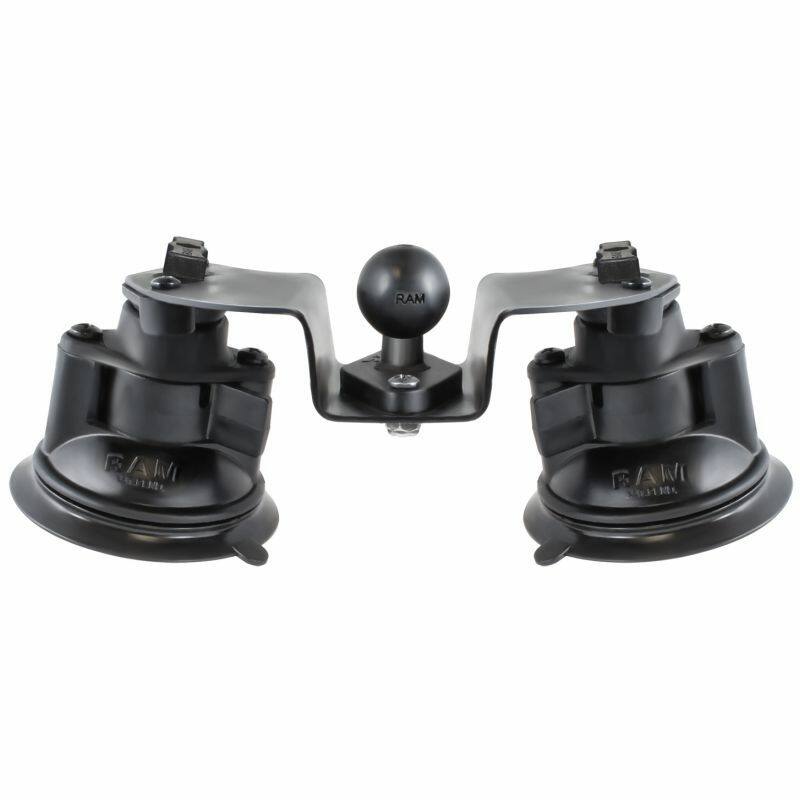

RAM-B-189B-PIV1U dual articulating suction cup base
-
RAM-B-202U round base plate
-
RAM-HOL-UN9U X-Grip® cradle for 9-11" tablets
-
RAM-B-201U-A short double socket arm
Care & Warranty
- Smooth, non-porous surfaces only — anything rough or textured lets air past the seal and the cups will not hold.
- Clean the surface thoroughly before you apply the cups.
- If the vehicle is left sitting in extreme heat or cold, release the cups and stow the mount rather than leaving it loaded.
- RAM® classes suction cups as a general wear item, so the cups are excluded from warranty cover. The base, arm and cradle hardware are covered as normal.
Videos
FAQs
Why choose the short arm over the medium? The short arm keeps the mount compact and lower-profile — worth it where you don't need the extra reach of the medium-length version, the RAM-B-189-PIV1-UN9U.
How is this different from the standard dual suction version? Each suction cup articulates independently and can be repositioned to suit convex or concave surfaces, so the base follows a curve that a fixed twin-cup base cannot sit flat against. On flat or gently curved glass the fixed version, the RAM-B-189-C-UN9U, does the same job for less.
Will it fit my tablet? It suits most 9"–11" tablets within the cradle dimensions above. Measure your device with its case on to be sure.
Are the suction cups covered by the warranty? No. RAM® treat suction cups as a general wear item, so they sit outside the lifetime warranty. The rest of the mount hardware is covered as normal.
