RAM X-Grip Universal Cradle for 9-11" Tablets - with B Series Ball

RAM-B-202-UN9U RAM® X-Grip® Holder with Ball for 9"-11" Tablets

The RAM-B-202-UN9U is a spring-loaded X-Grip® cradle that holds most 9"-11" tablets, with or without a sleeve, paired with a 63mm round base and B Size 1" ball for any RAM double socket arm.

Key Features

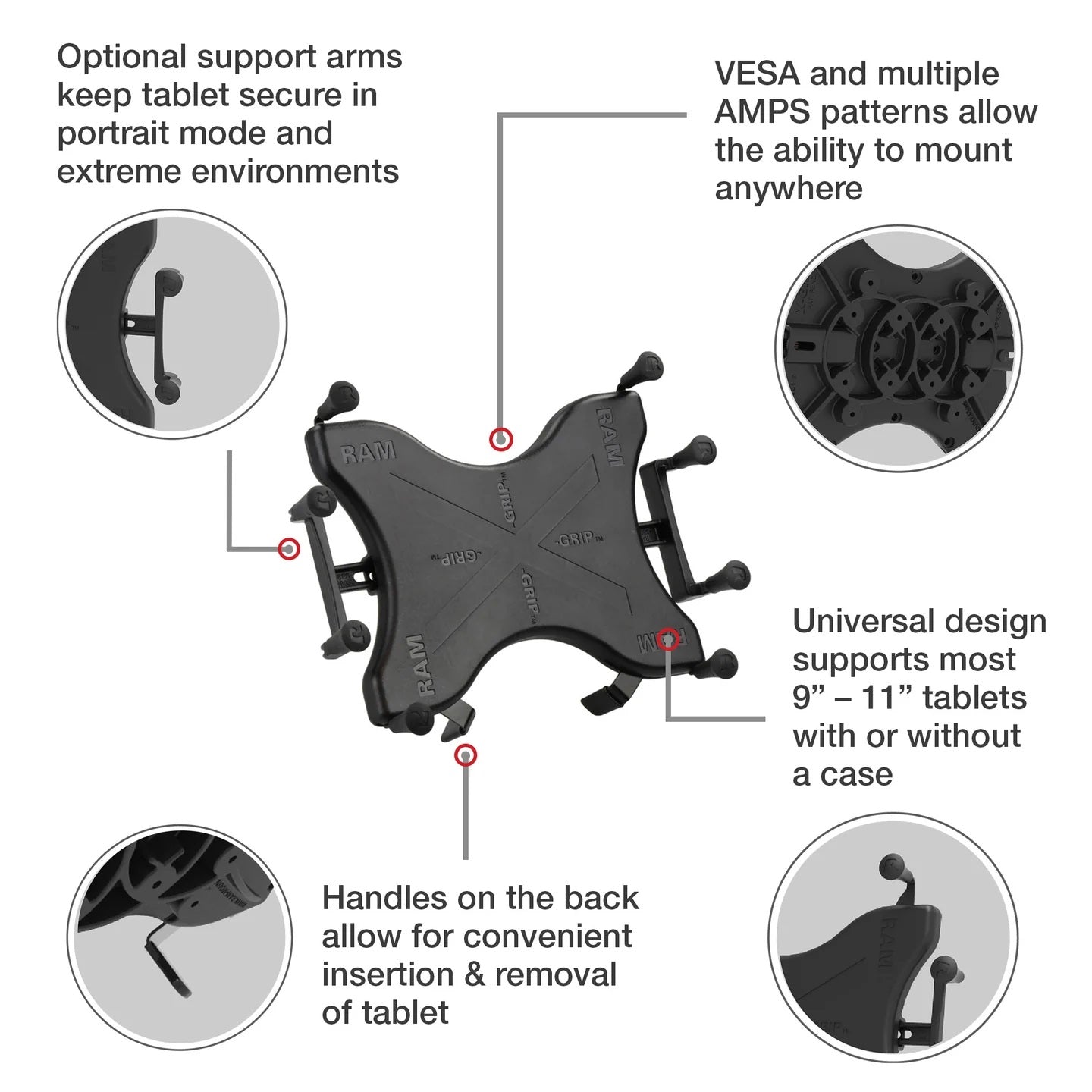

• Spring-loaded 'X' design with rubber caps grips firmly without covering the tablet screen or buttons
• Expandable grip arms and an optional bottom support keeper for a precise fit
• Easy-access grip knobs on the rear of the cradle for quick release
• Included round plate with B Size 1" rubber ball connects to any B Size double socket arm
• Marine-grade stainless steel components, high-strength composite, and powder-coated marine-grade aluminium construction
• Backed by RAM Mounts' lifetime warranty

Works With

Compatible with tablets that fall within the dimensions listed below — measure your tablet including any case, sleeve, or skin to confirm fit. See it in action: youtube.com/watch?v=EC-bdR3KAww

What's Included

• RAM-HOL-UN9U – X-Grip® spring-loaded cradle for 9"-11" tablets

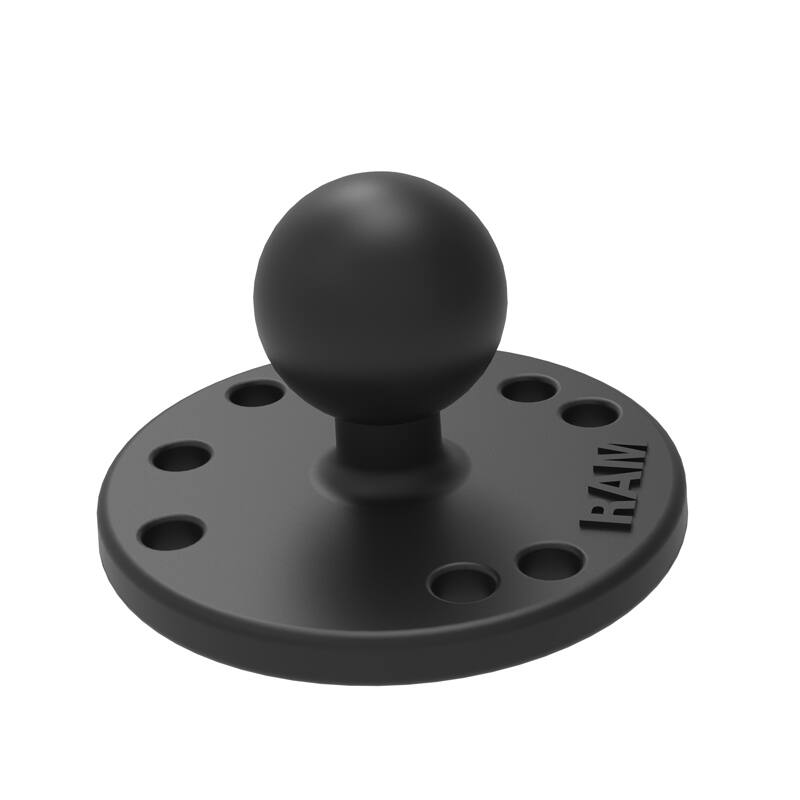

• RAM-B-202U – 63mm round plate with B Size 1" ball

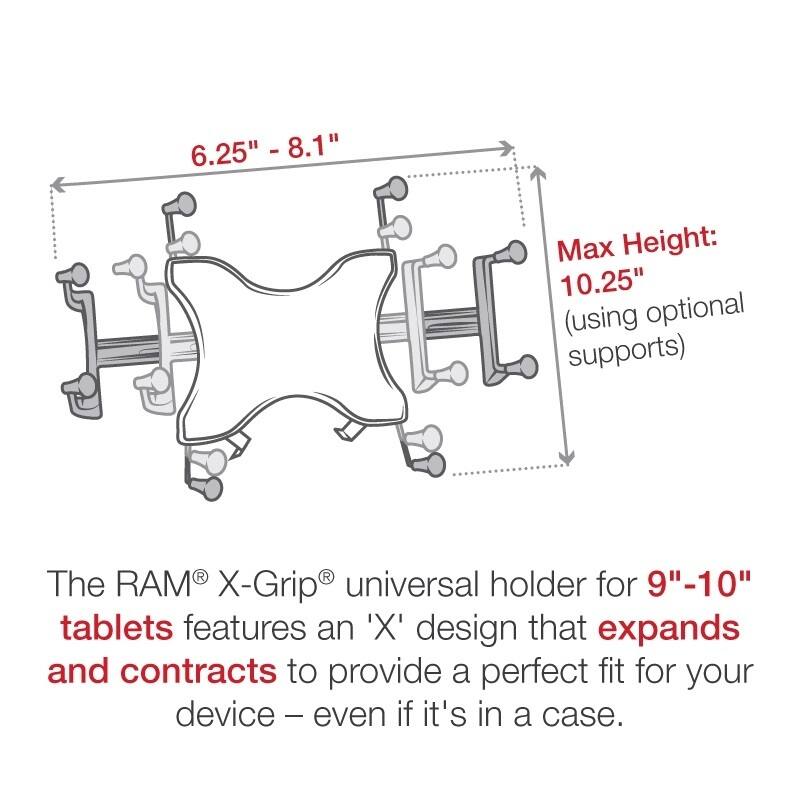

Dimensions & Specifications

• Min width: 158.75mm (6.25")
• Max width: 205.7mm (8.1")
• Max length: 260.4mm (10.25") with support; unlimited without supports
• Max thickness: 22.2mm (0.875")
• Ball size: 1" rubber ball, B Size
• Material: Marine-grade stainless steel components, high-strength composite, powder-coated marine-grade aluminium
• Weight: 553g (1.22 lbs)

What's Included (Hardware)

• (4) #8-32 x 1/2" sheet metal screws
• (2) #8-32 x 5/8" sheet metal screws

Compatible Devices

9"-11" tablets including:

FAQs

I don't see my tablet listed. How can I check compatibility before ordering? Measure your tablet's overall length, width, and thickness (including any case or sleeve) and compare against the dimensions listed above.

The max length is listed as 10.25". Can it hold a taller tablet? Yes — that maximum only applies if you use the optional side support arms. Leaving at least one arm off allows the cradle to support taller tablets.

Will the holder still work if the side supports don't fit my tablet? In most cases, yes. The side supports are optional, mainly recommended for extreme, high-vibration environments or when supporting a tablet in portrait orientation.

This fits 9"-11" tablets — how does it also hold an iPad Pro 11"? The "11" in iPad Pro 11" refers to the diagonal screen size, not the overall tablet dimensions. The iPad Pro 11" measures 9.74" x 7.02" x 0.23" overall, which falls within this cradle's size range. As with any universal holder, compatibility comes down to matching the tablet's overall length, width, and depth (including any case) to the cradle's dimensions.
