RAM X-Grip Universal Cradle for 9-11" Tablets - with D Series Ball

RAM-D-254-UN9U RAM® X-Grip® Holder for 9-11" Tablets with D Series Ball

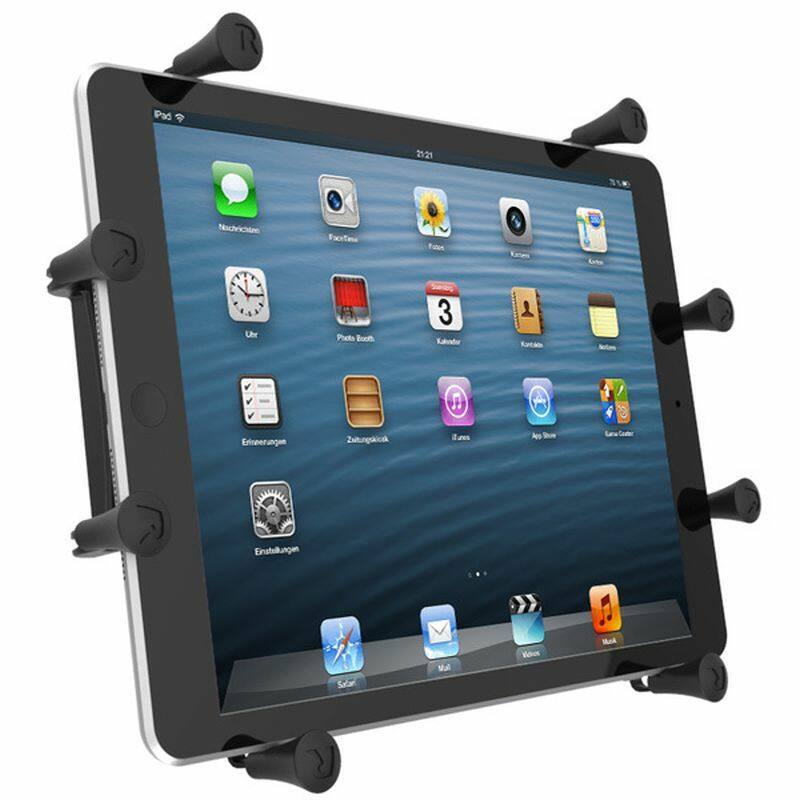

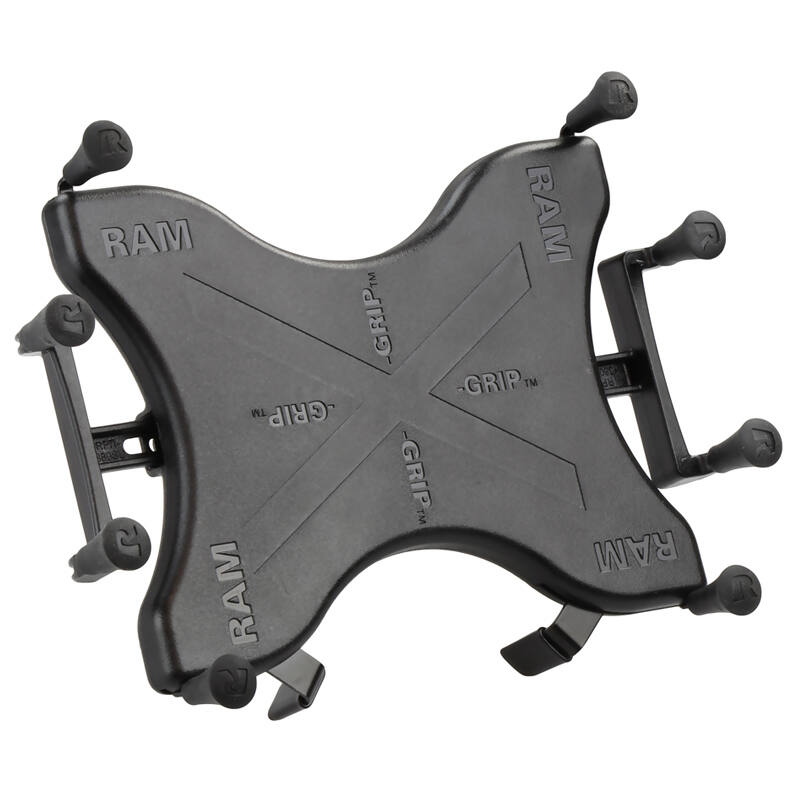

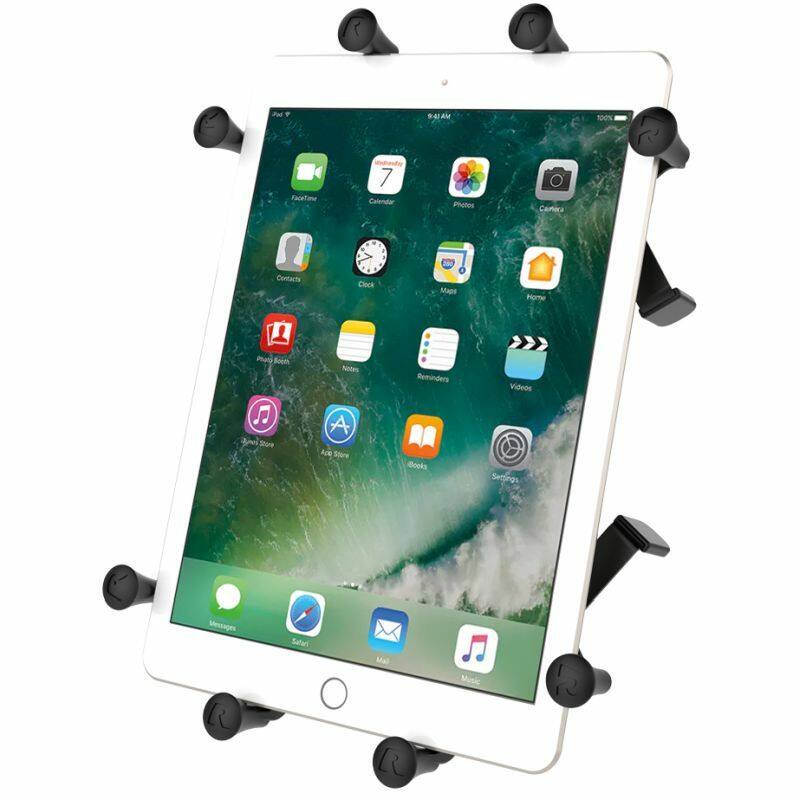

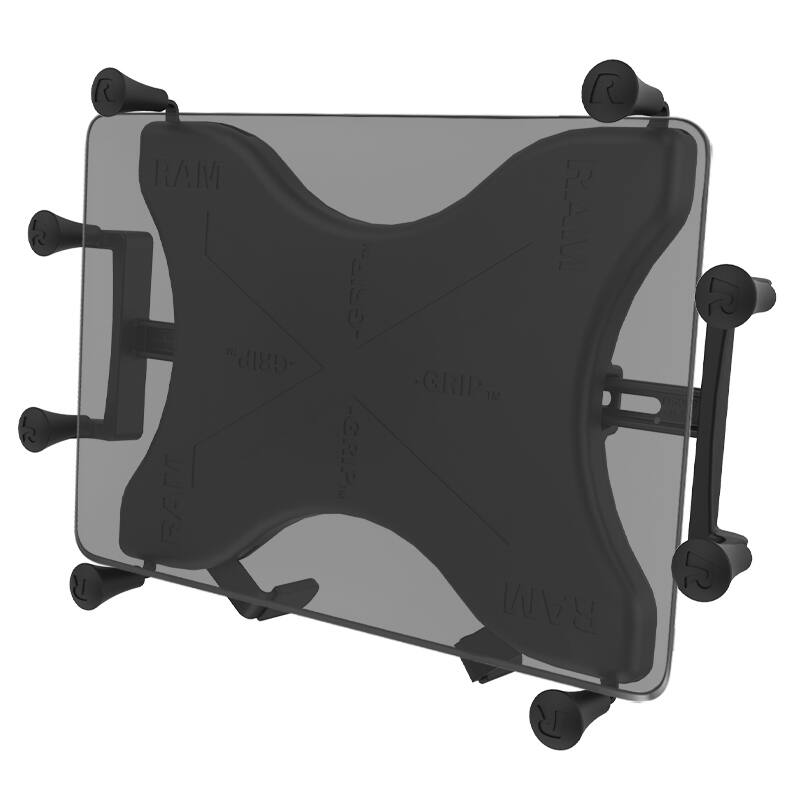

The RAM-D-254-UN9U is a spring-loaded X-Grip® cradle for 9-11" tablets, fitted with a round base and D Series 2.25" rubber ball. The expanding 'X' design holds your tablet securely without covering the screen, even with a case on, and connects to any D size RAM® double socket arm.

Key Features

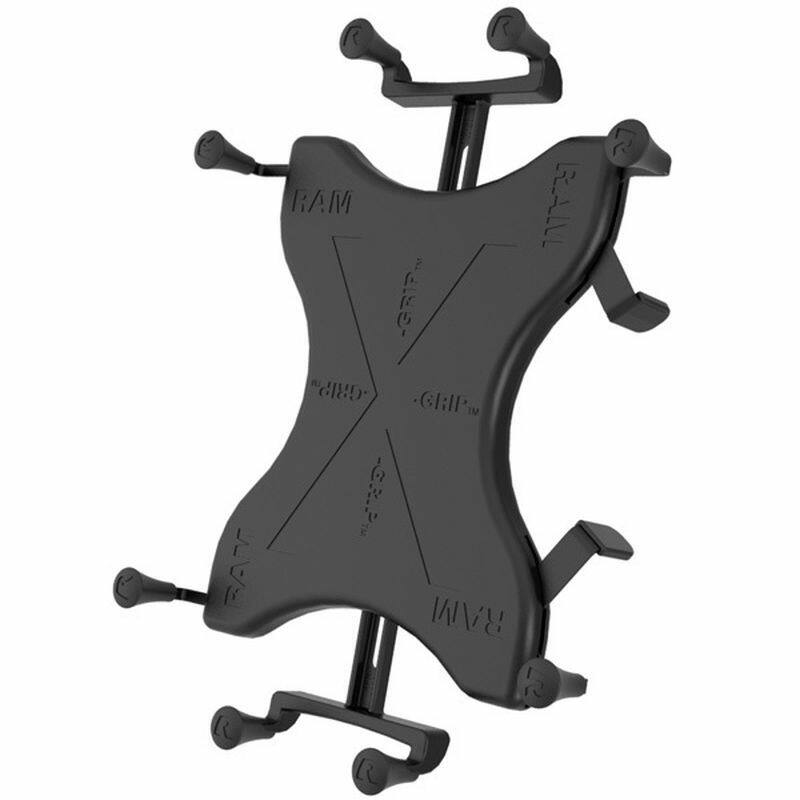

• Spring-loaded X-Grip® design with rubber caps, fits most 9-11" tablets without hiding the screen

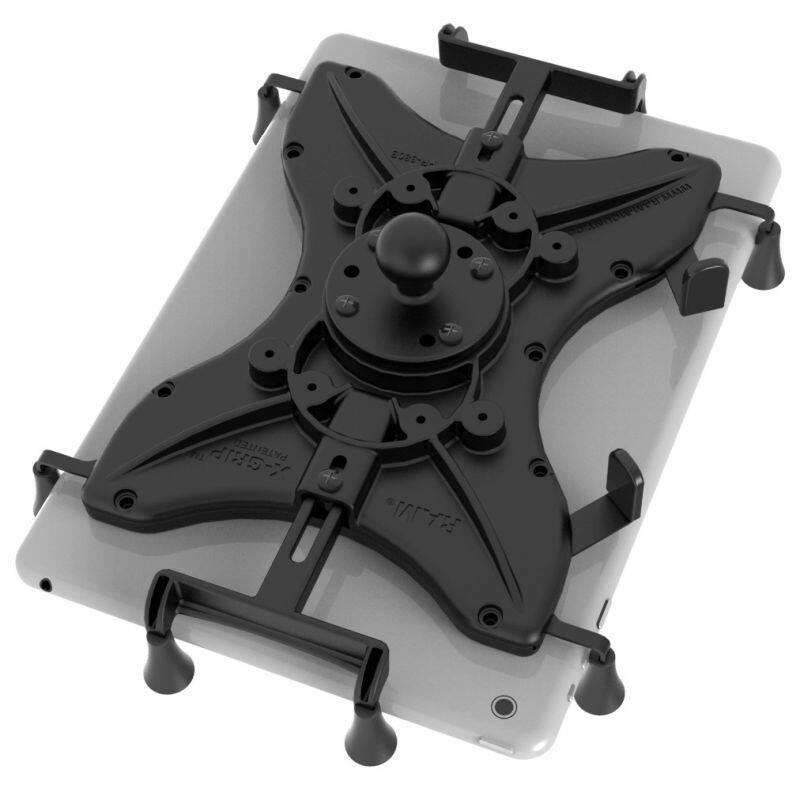

• Easy-access grip knobs on the back of the holder for quick tablet release
• Bottom support keeper and expandable grip arms for extra security
• Round base with D Series 2.25" ball connects to any D size RAM® double socket arm
• RAM® ball-and-socket technology for near-infinite adjustability, with shock and vibration damping
• Powder-coated marine-grade aluminium, marine-grade stainless steel components and high-strength composite
• Backed by a lifetime warranty

Dimensions & Specifications

• Min width: 158.75mm (6.25")
• Max width: 205.7mm (8.1")
• Max length with supports: 260.4mm (10.25"); unlimited without supports
• Max thickness: 22.2mm (0.875")
• Ball size: D Series 2.25"
• Material: high-strength composite, marine-grade aluminium, marine-grade stainless steel
• Weight: 757 grams (1.67 lb)

Hardware Included

• (4) #8-32 x 1/2" sheet metal screws
• (2) #8-32 x 5/8" sheet metal screws

Compatible Devices

Check your device's dimensions, including any case, sleeve or skin, against the measurements above before ordering.

Amazon

• Fire HD 10

Apple

• iPad (1st–9th Generation)
• iPad 2
• iPad 9.7 (2017, 2018)
• iPad Air, Air 2, Air 3, Air 4
• iPad Pro 9.7 (1st Gen)
• iPad Pro 10.5 (2nd Gen)
• iPad Pro 11" (original, 2020, 2021)

ASUS

• MeMO Pad FHD 10
• Transformer Pad
• ZenPad 10
• ZenPad 3S 10
• ZenPad Z10

Dell

• Venue 10 7000
• Venue 11 Pro
• Venue 11 Pro 7000

Google

• Nexus 10
• Pixel C

HP

• ElitePad 900, 900 G1
• Pro 610
• Pro Slate 10.1

Huawei

• MediaPad M2 10.0
• MediaPad M3 Lite 10.0
• MediaPad T3 10

Lenovo

• Miix 3
• S6000
• Tab 2 A10-70
• Tab 4 10, Tab 4 10 Plus
• Tab A10
• Tab3 10 Business
• ThinkPad 10
• ThinkPad Tablet 2
• Yoga Book
• Yoga Tab 3 10, Yoga Tab 3 Pro
• Yoga Tablet 10, Yoga Tablet 10 HD+
• Yoga Tablet 2 (10")

LG

• G Pad 10.1
• G Pad II 10.1
• G Pad X 10.1
• G Pad X II 10.1

Microsoft

• Surface 2
• Surface Pro
• Surface Pro 2

Samsung

• Galaxy Book 10.6
• Galaxy Tab 10.1, Tab 2 10.1, Tab 3 10.1, Tab 4 10.1
• Galaxy Tab A 9.7, Tab A 10.5
• Galaxy Tab Active Pro
• Galaxy Tab Pro 10.1
• Galaxy Tab S 10.5
• Galaxy Tab S2 9.7, S3 9.7, S4 10.5, S5e
• Galaxy Tab S6, S7, S7 FE, S7 Plus, S8, S8 Plus

Sony

• Vaio Tap 11
• Xperia Tablet S
• Xperia Tablet Z

Vankyo

• MatrixPad Z4 10"

Zebra

• ET50 10", ET55 10"

FAQs

How fast does it ship? If it's shown in stock here, it ships from our Auckland warehouse, normally within one business day. If it's shown as out of stock, get in touch and we may be able to get it in for you.

I don't see my tablet listed. How do I check it will fit?
Measure your tablet (with any case, sleeve or skin) against the dimensions in the Dimensions & Specifications section above. If it falls within that range, it will fit.

The maximum length is listed as 10.25". Can I use a taller tablet?
Yes — that limit only applies when using the optional side support arms. Leave at least one arm off and the holder can support taller tablets.

Will this holder still work if the side supports don't fit my tablet?
In most cases, yes. The side supports are optional and mainly useful in high-vibration environments, or to hold the bottom of the tablet when used in portrait mode.

How does a "9-11 inch" holder fit something like the iPad Pro 11"?
The "11" in iPad Pro 11" refers to the diagonal screen measurement, not the case footprint. Its overall dimensions are 247.6mm x 178.5mm x 5.9mm (9.74" x 7.02" x 0.23"), which falls within this holder's compatible range. For any universal holder, what matters is the overall length, width and depth of the device (with its case, if used) compared to the dimensions listed above.
