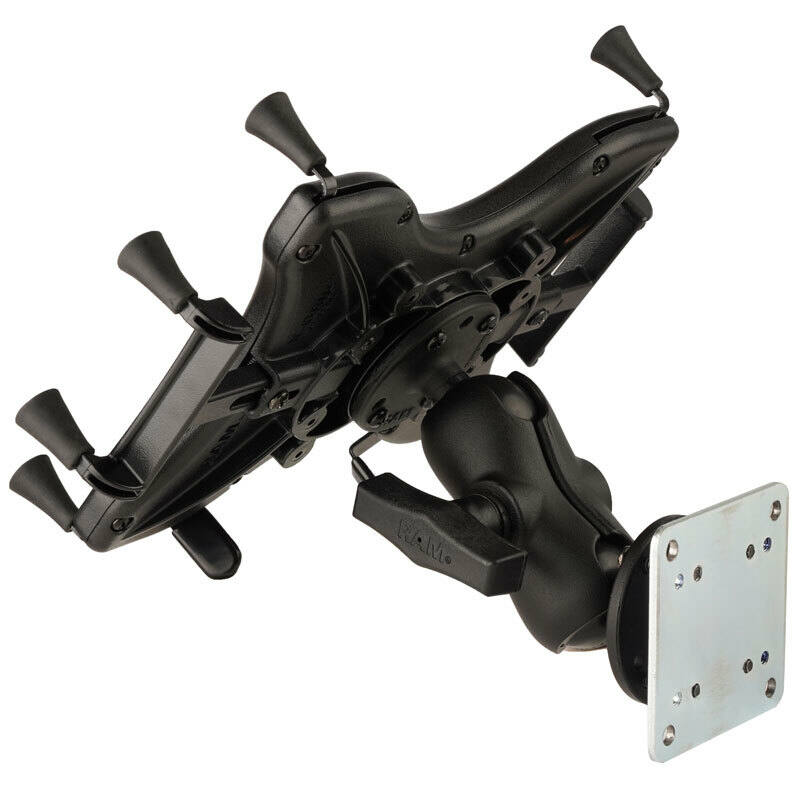

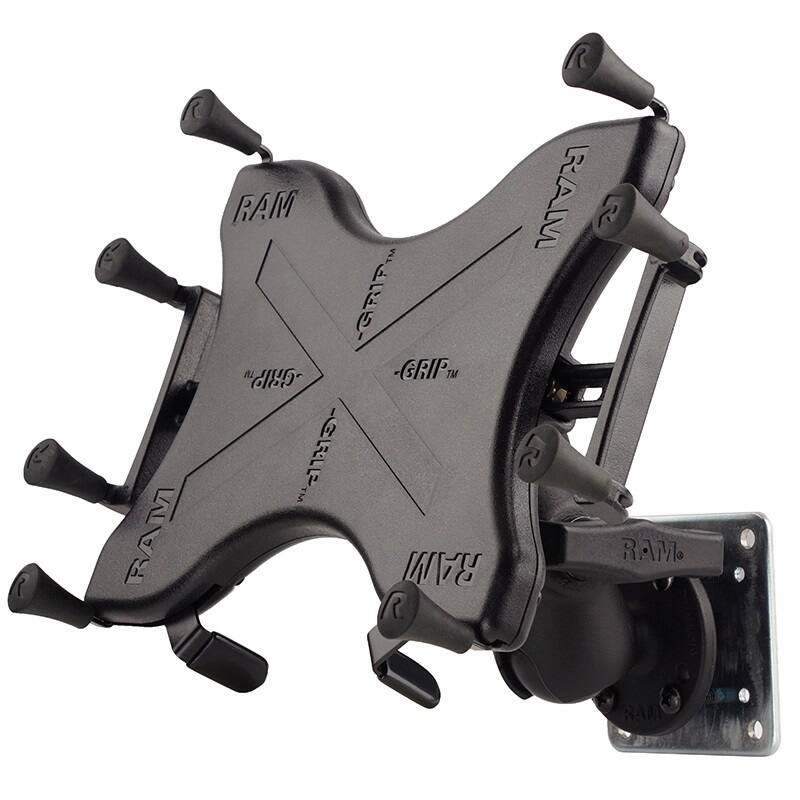

RAM-101B-UN9U RAM® X-Grip® Dashboard Mount with Backing Plate for 9"-10" Tablets
Features
* Spring-loaded 'X' design with rubber caps sports great holding power without obstructing your tablet; fits most 9"-10" tablets
* Drill-down mounting solution; choose either round plate featuring the AMPS hole pattern for attachment to compatible device holders
* 76 x 76mm steel backing plate attaches to a variety of RAM® Mounts ball bases
* Made of high-strength composite and steel components for durability and reliability in the most demanding environments
* Backed by a lifetime warranty
The short double socket arm and two 2.5" diameter round bases have a rubber ball and socket system with adjustment points at both socket ends of the arm. Rubber ball and socket technology allows for almost infinite adjustment angles. The included 76mm x 76mm (3” x 3”) steel backing plate has #10-24 threaded holes.

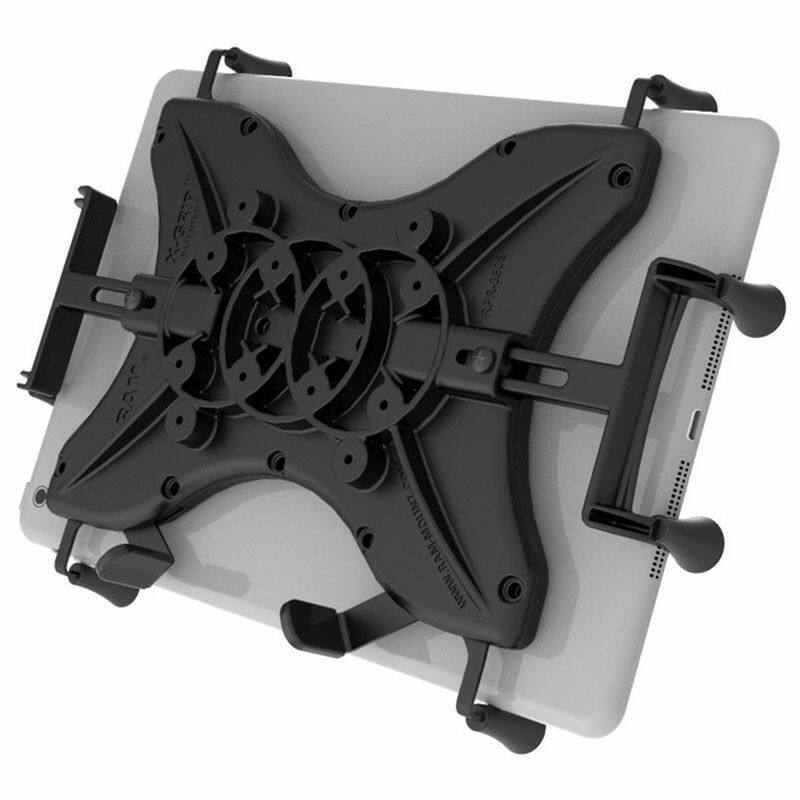

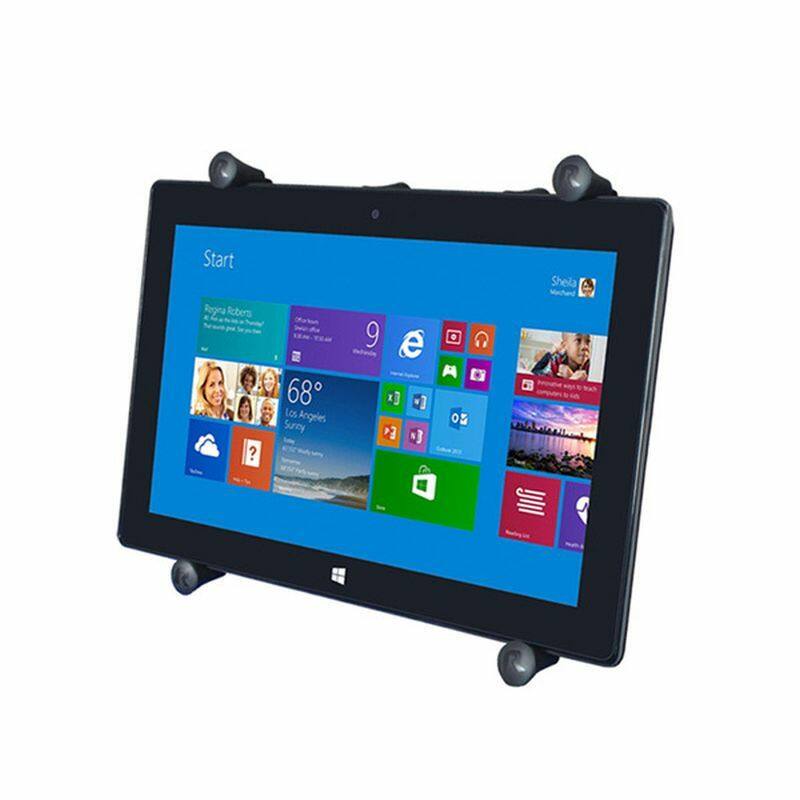

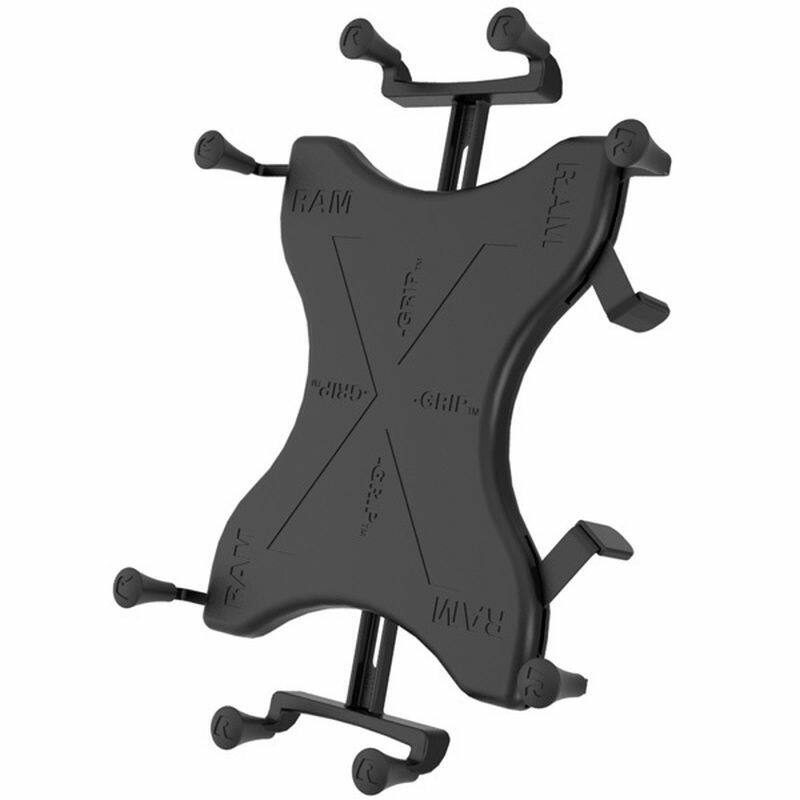

The -UN9 X-Grip composite spring-loaded cradle has expandable grip arms and additional bottom support keeper. Included are extra easy access grip knobs, located on the back of the cradle for quick release of your tablet. It expands and contracts for perfect fit of most 10" tablets with or without sleeves, as well as some smaller tablets.
The cradle is compatible with devices that will fit the dimensions listed below. Check the dimensions of your device with a case/sleeve/skin when determining the overall size.
Cradle Dimensions
Min Width = 158.75mm (6.25”)
Max Width = 205.7mm (8.1”)
Max length with supports 260.4mm (10.25”) (unlimited without supports)
Max Thickness = 22.2mm (0.875")
Compatible Devices
For a list of many of the compatible devices for this cradle go to our listing for the RAM-HOL-UN9U

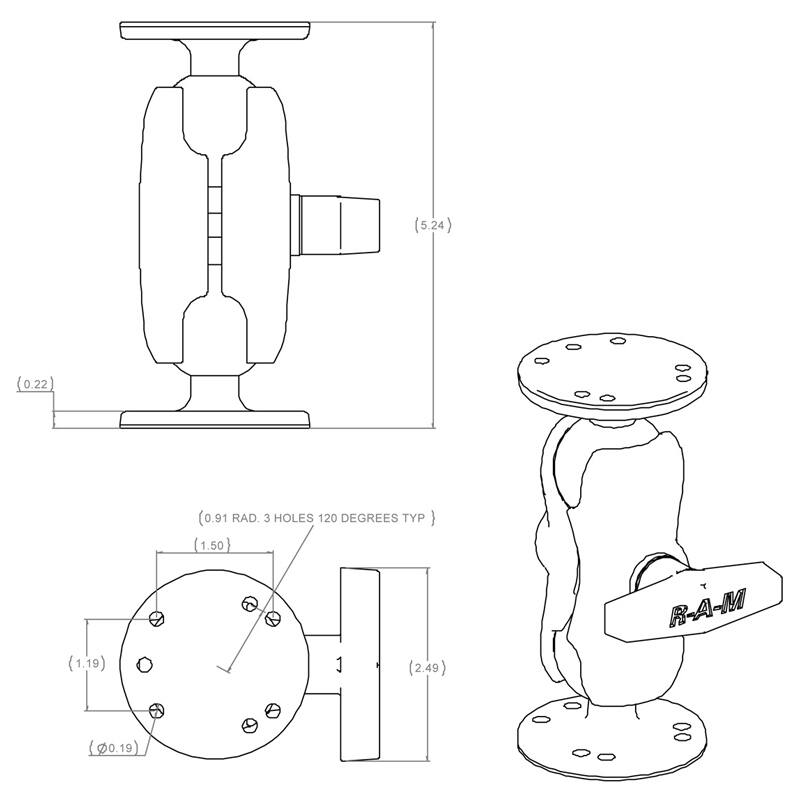

Overall Base Height
132.7mm (5.225")
Base Hole Pattern
4-Hole AMPS: 1.181" x 1.496"
1.5" x 2"
Ball Size:
1.5" (C size) Rubber Ball Size
Materials:
Marine Grade Stainless Steel Components
Powder Coated Marine Grade Aluminium
High Strength Composite
Components:

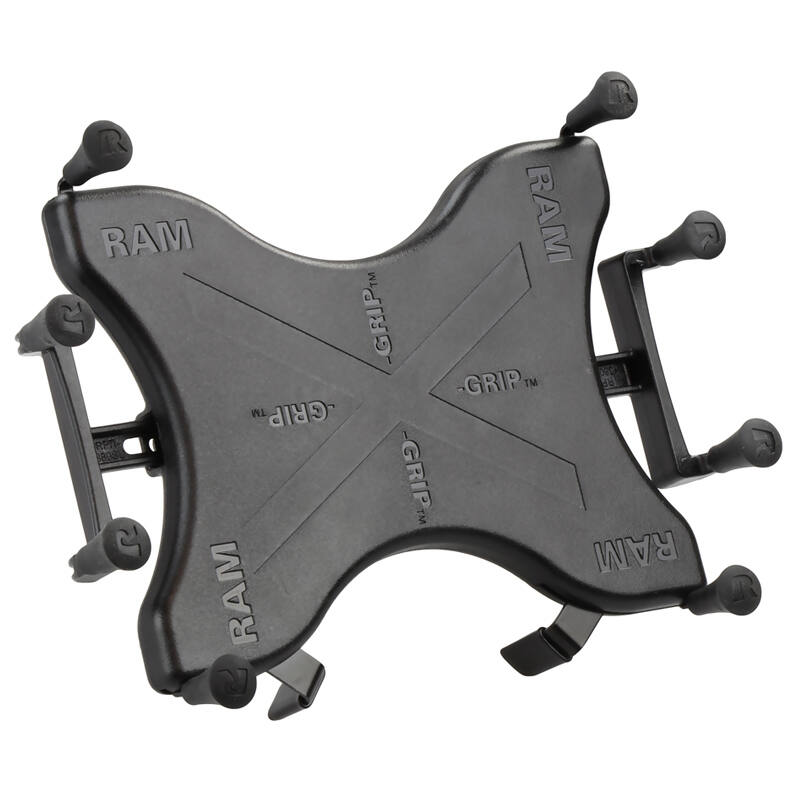

RAM-HOL-UN9U X-GRIP UNIVERSAL 10" TABLET HOLDER

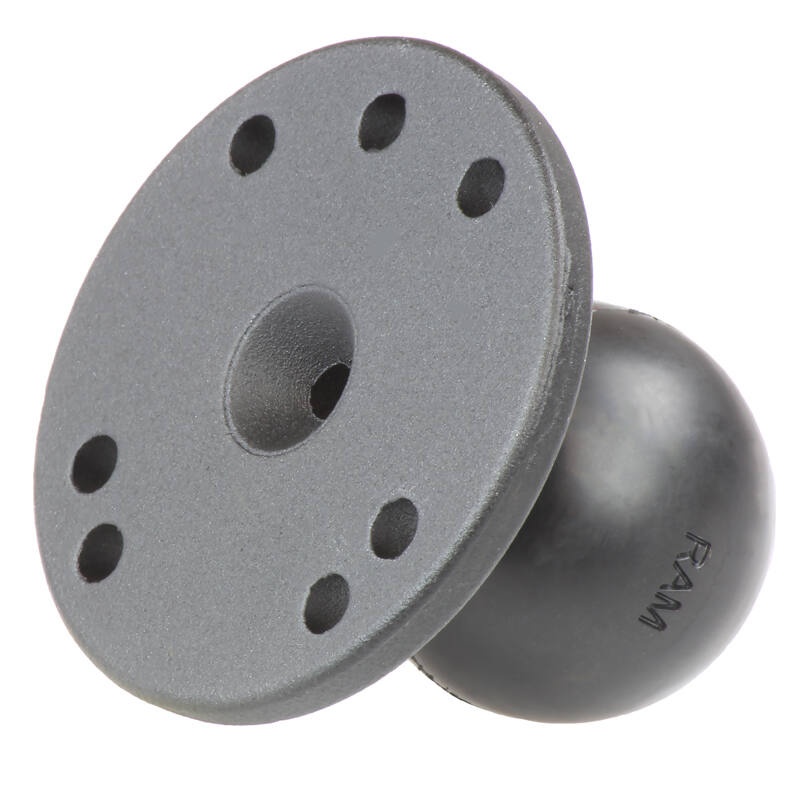

RAM-202U 2.5" / 63mm DIA. BASE

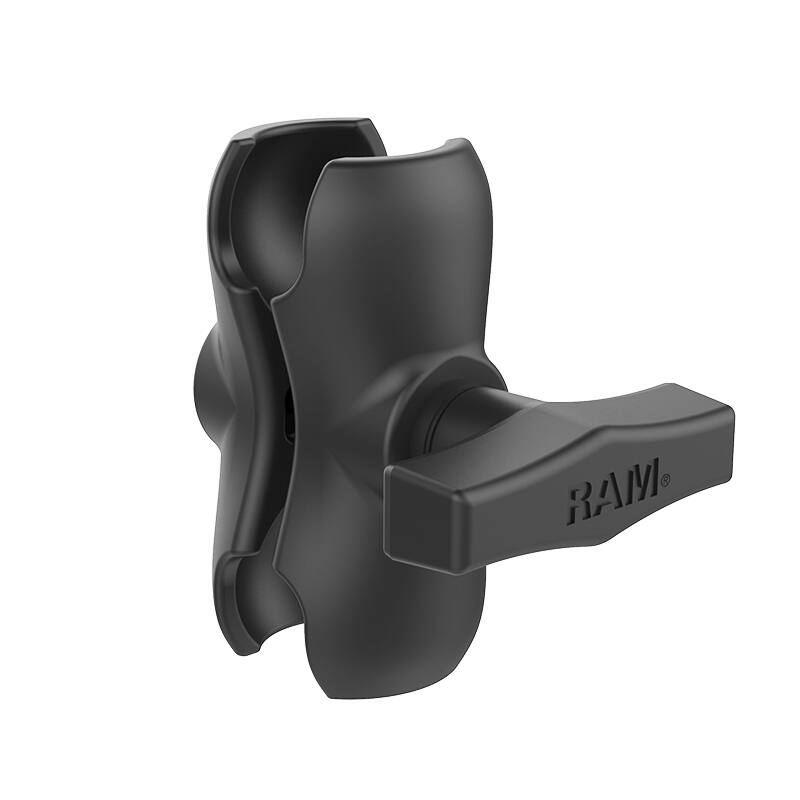

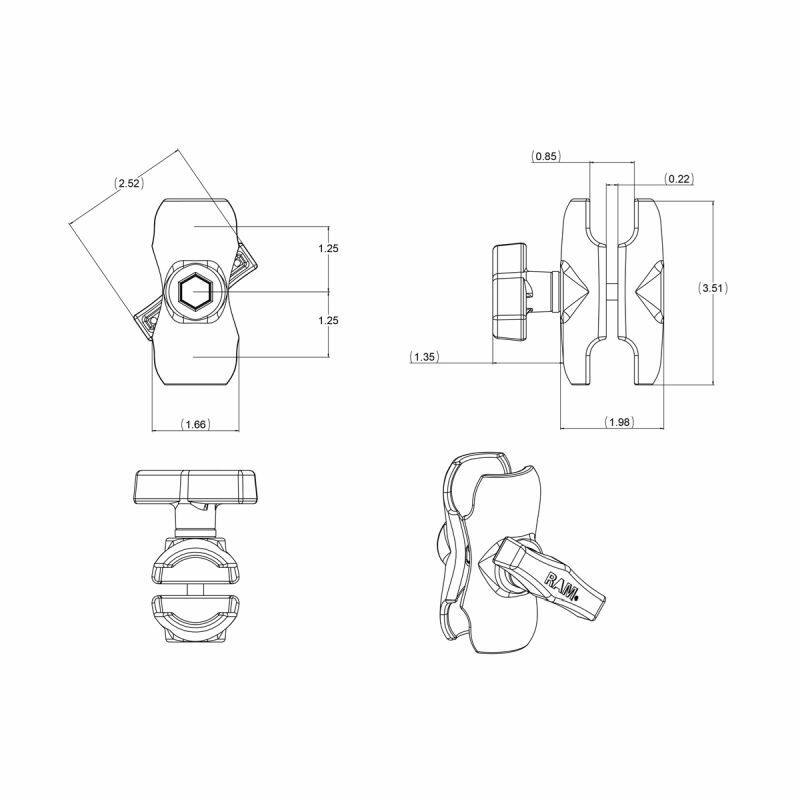

RAM-201U-B short Alloy Arm

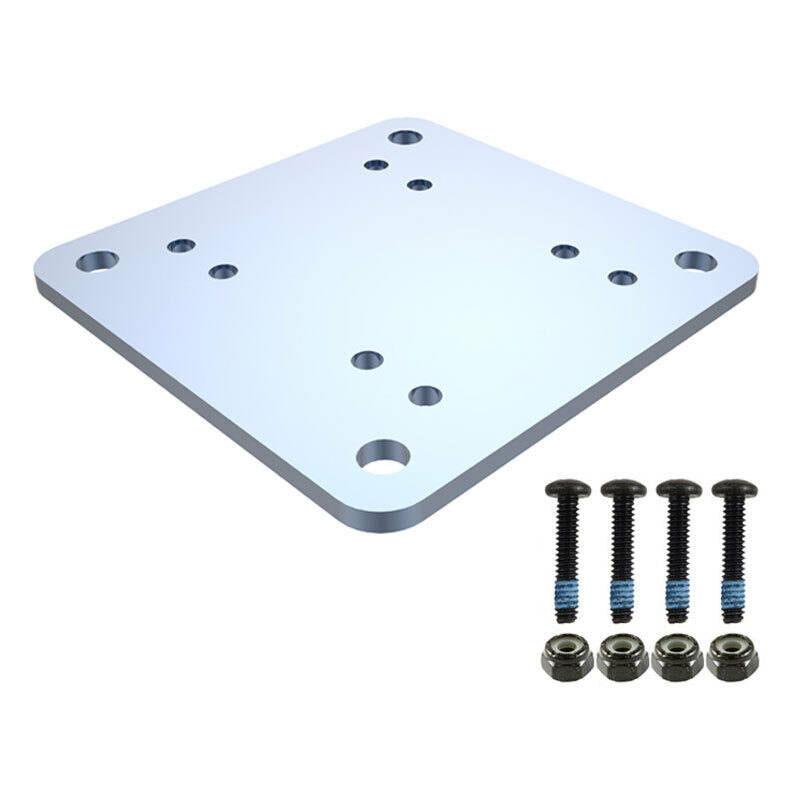

RAM-202-225BU Backing Plate Adaptor
YouTube:
https://www.youtube.com/watch?v=EC-bdR3KAww
