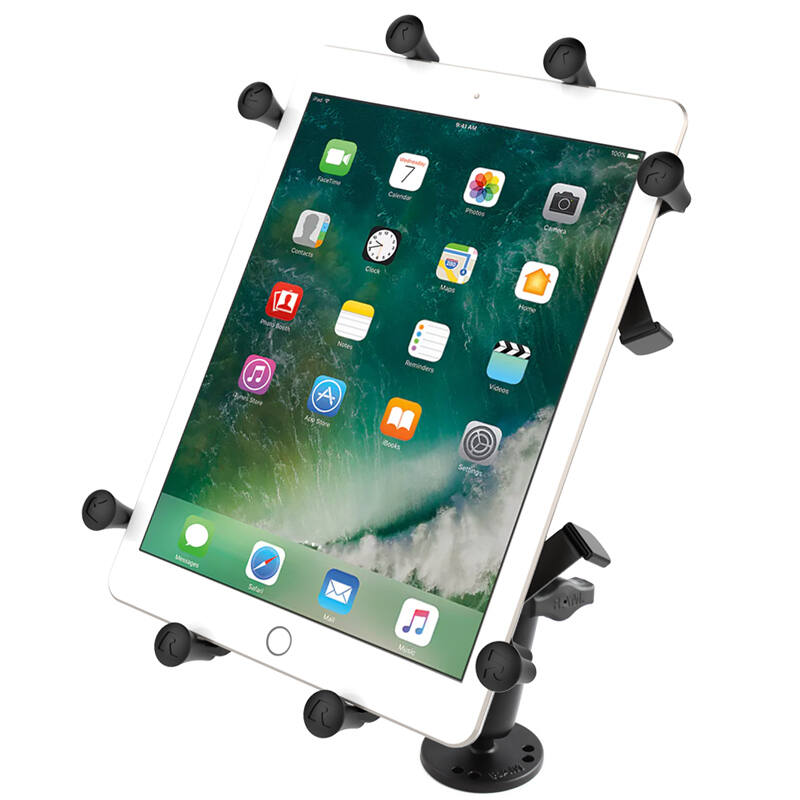

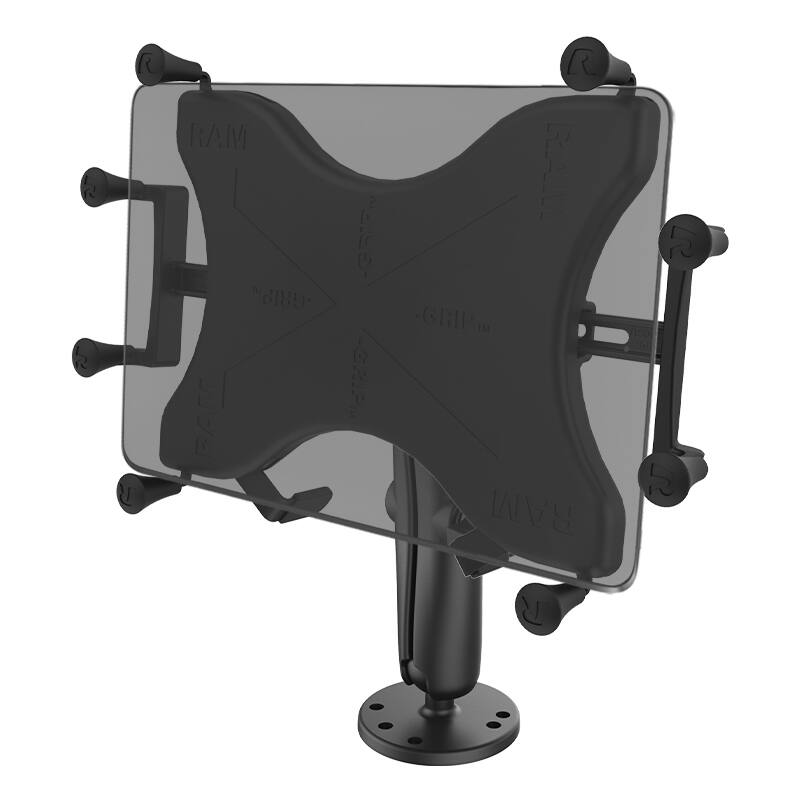

RAM-B-101-C-UN9U RAM® X-Grip® Drill-Down Double Ball Mount for 9"-10" Tablets
Features
* Complete flat surface, drill-down mounting solution for the RAM® X-Grip® 9"-10" tablet holder
* Spring-loaded 'X' design with rubber caps sports great holding power without hiding your tablet
* Easy access grip knobs on the back of the holder allow for the quick release of your device
* Made of powder-coated, marine-grade aluminium, stainless steel components, and high-strength composite for durability and reliability in the most demanding environments
* Backed by a lifetime warranty

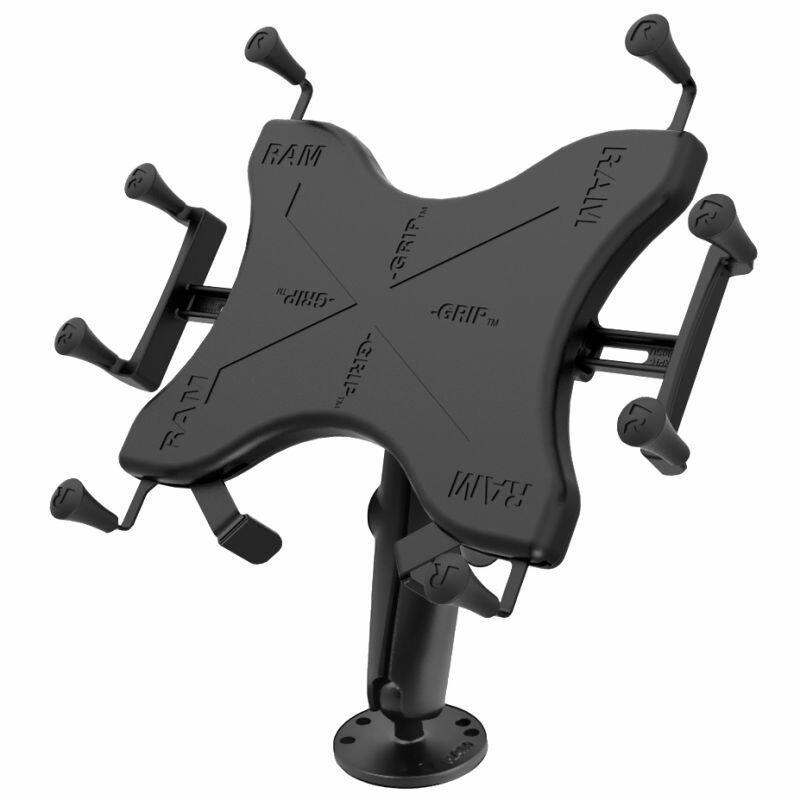

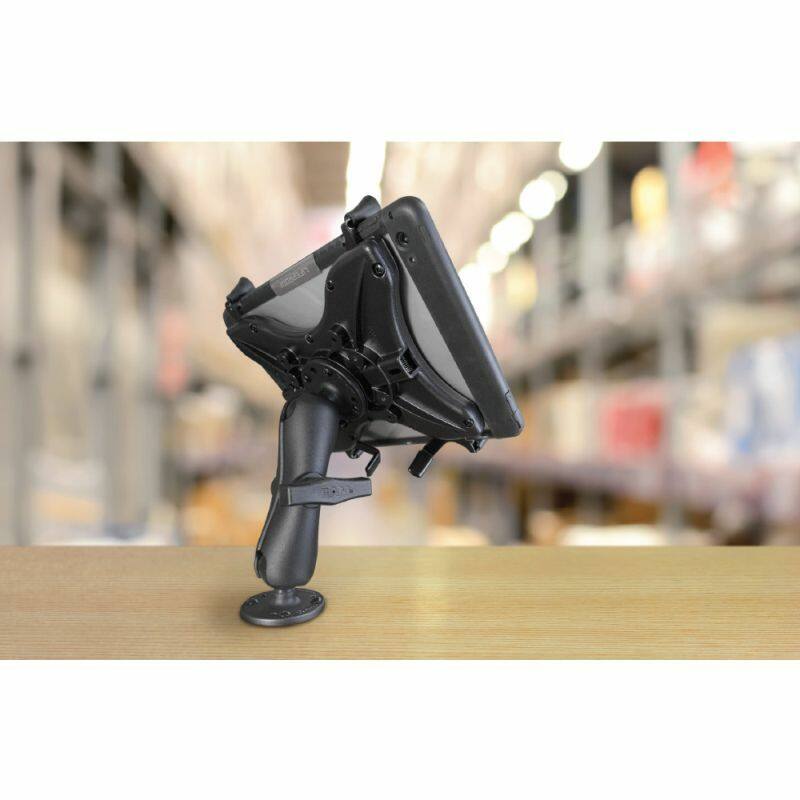

This mounting solution consists of a LONG double socket arm with 2 round plates and the -UN9 X-Grip. The long arm length allows the tablet to be viewed in either portrait or landscape modes.

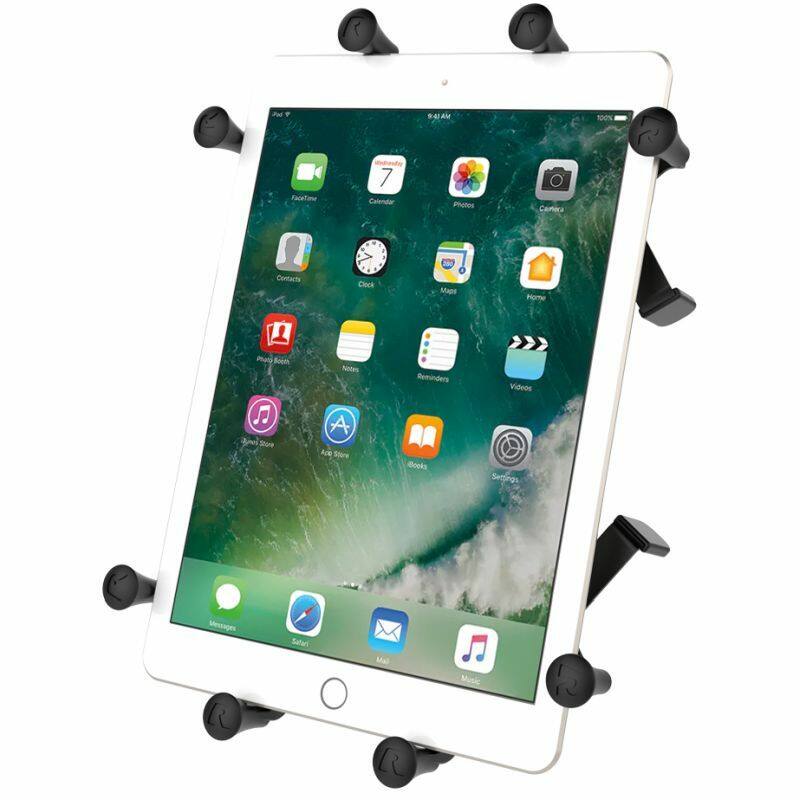

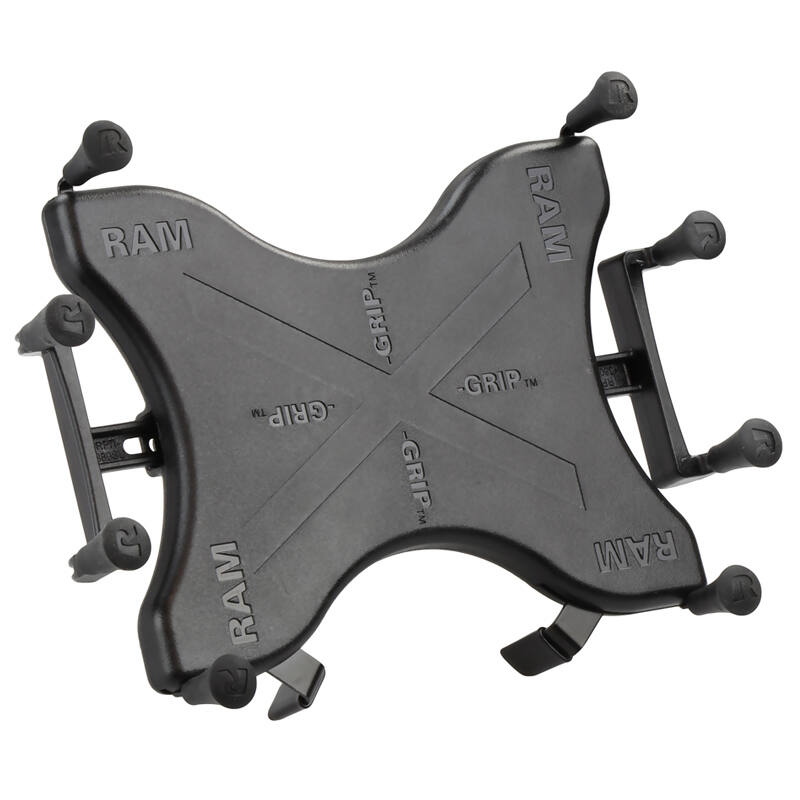

The X-Grip composite spring-loaded cradle has an additional bottom support keeper. The cradle expands and contracts for perfect fit of most 10" tablets with or without sleeves, as well as some smaller tablets. The cradle is compatible with devices that will fit the dimensions listed below. Check the dimensions of your device with a case/sleeve/skin when determining the overall size.
Cradle Dimensions
Min Width = 158.75mm (6.25”)
Max Width = 205.7mm (8.1”)
Max length with supports 260.4mm (10.25”) (unlimited without supports)
Max Thickness = 22.2mm (0.875")
Compatible Devices
For a list of many of the compatible devices see the RAM-HOL-UN9U
Base Dimensions
63.5mm (2.5") diameter

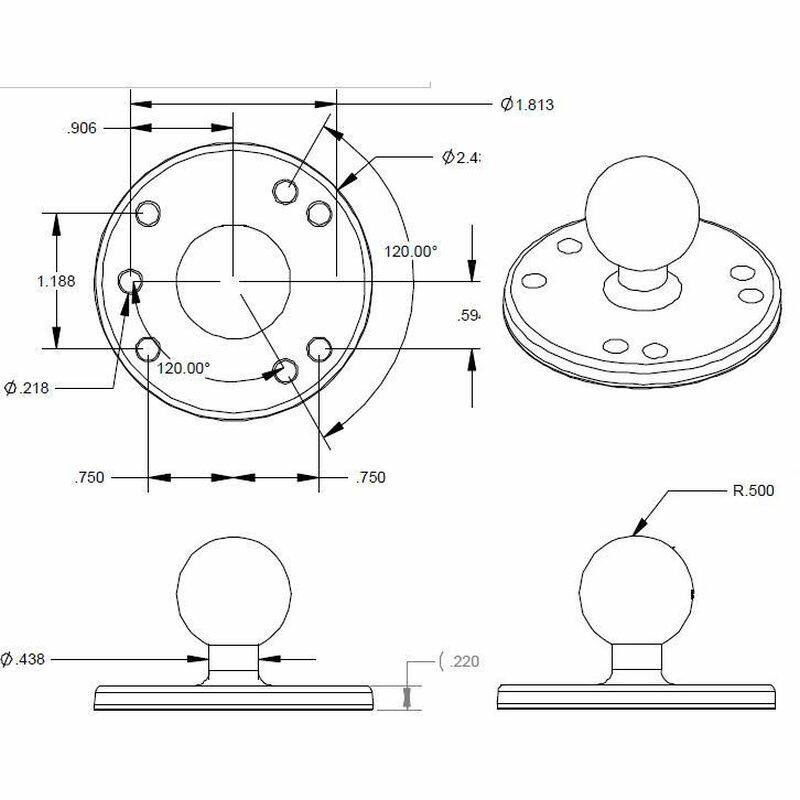

BASE HOLE PATTERNS
4-Hole AMPS:
1.181" x 1.496" (30mm x 38mm)
3-Hole AMPS 120- Degree
1.812” (46.0mm)
Base and Arm Overall Height:
18.57cm (7.31" )

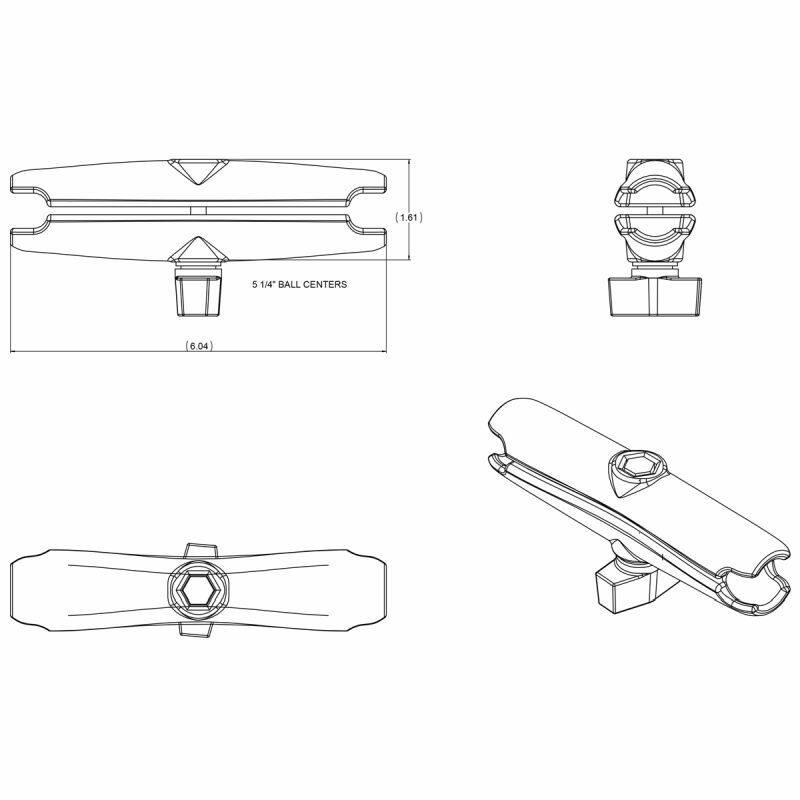

Arm Dimensions:
Overall:
152 mm (6")
Socket-To-Socket:
134 mm (5.25")
Ball Size
1" "B" Ball Size
Weight
830 grams (1.85lbs)
Weight Capacity
907 grams (2 lbs)
Materials
Powder-coated, marine-grade aluminium
Stainless steel components
High-strength composite

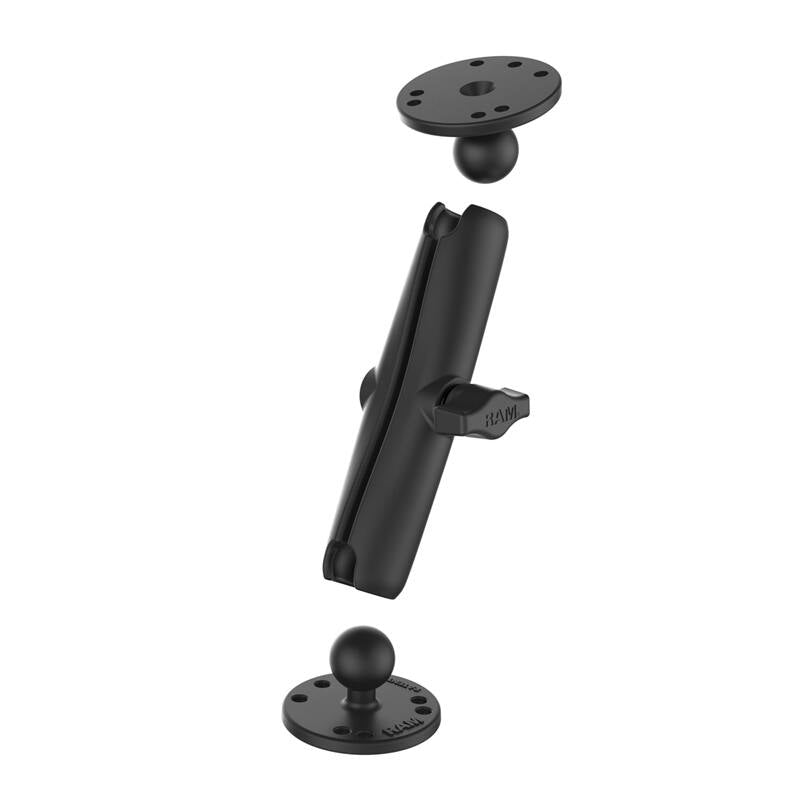

Components:

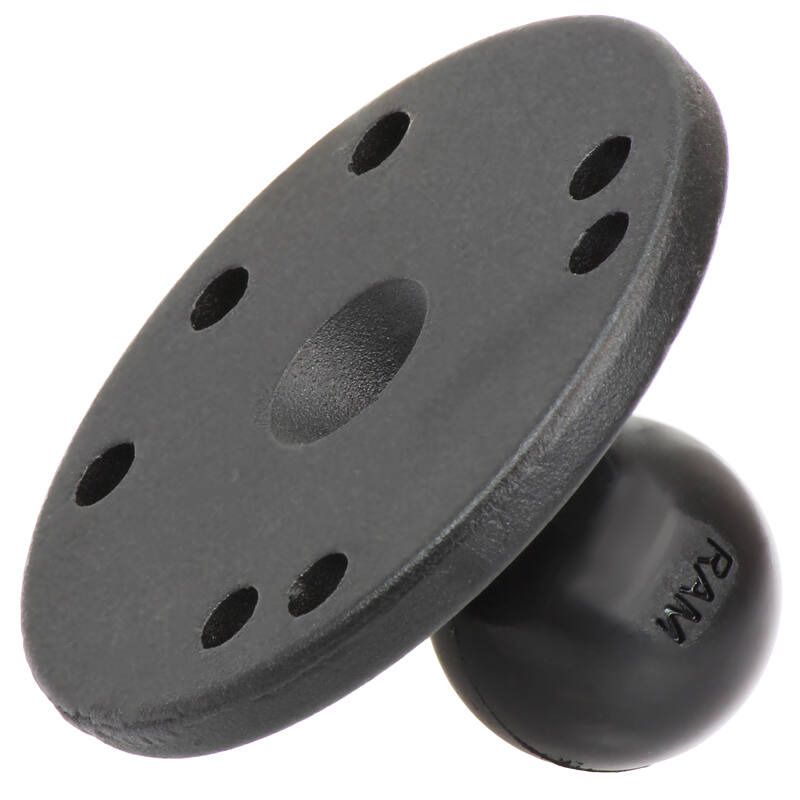

RAM-B-202U 2.5" Round Plates (x2)

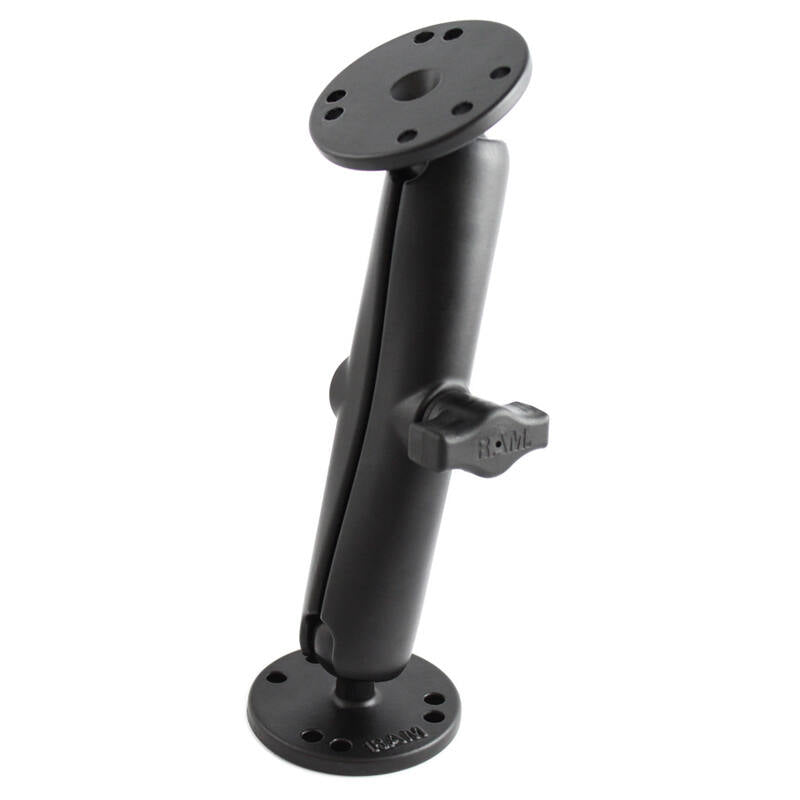

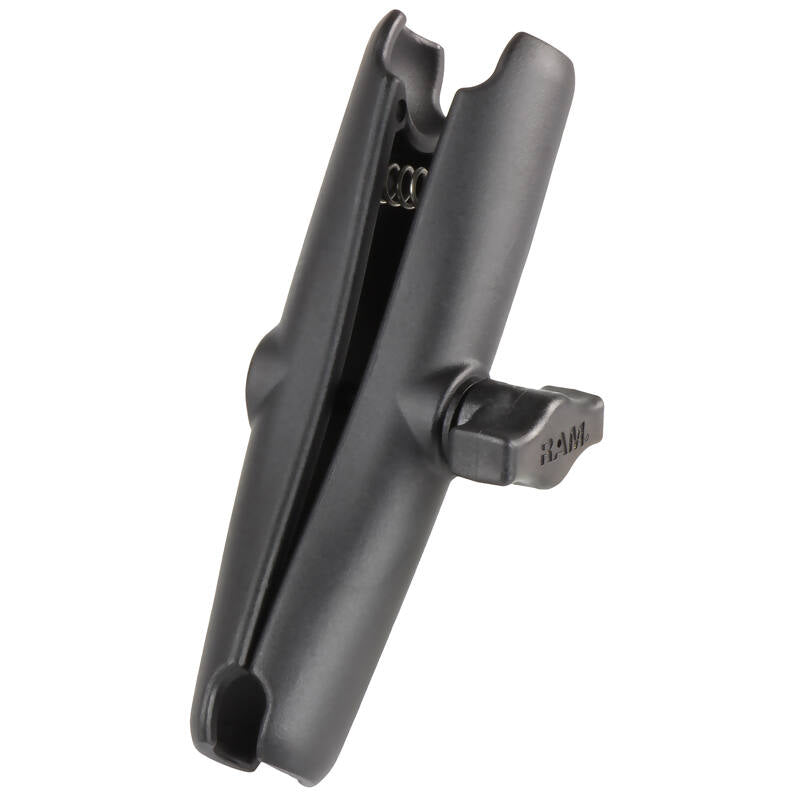

RAM-B-201U-C Long Double Socket Arm
RAM-HOL-UN9U X Grip
YouTube:
https://www.youtube.com/watch?v=EC-bdR3KAww
QUESTIONS & ANSWERS
Q: Will this holder not work if the additional side supports do not fit my tablet?
A: In most cases this should not be an issue. The additional side supports are optional to keep your tablet secure in extreme, high vibration environments; or if you are supporting the tablet in portrait mode, it is recommended to install one of the supports to hold the bottom of the tablet.
Q: How is it that this holder fits 9" - 10" tablets, yet it can also hold the iPad Pro 11"?
A: The 11 in iPad Pro 11 refers to the diagonal dimension of the screen display. Overall dimensions of this tablet are 9.74" x 7.02" x .23", which fits the dimension ranges of this holder. For all universal holders including the RAM® X-Grip®, it is a matter of cross referencing overall dimensions (L x W x D) when determining compatibility. Case dimensions will need to be taken into account if your tablet is in a case.
Q: What size screws are needed for the holes on this ball plate?
A: The most common screw sizes are #8, #10, M4 and M5 screws. However, if you are pairing this with any RAM® Holder, the holder will come with the necessary hardware to connect to your mount.
