RAP-B-365-224-C-UN9 RAM® Universal X-Grip® Cradle for 9" - 10" Large Tablets with Twist-Lock™ Triple Suction Cup Ball Base
Features
* Spring-loaded 'X' design with rubber caps sports great holding power without hiding your tablet; fits most 9"-10" tablets

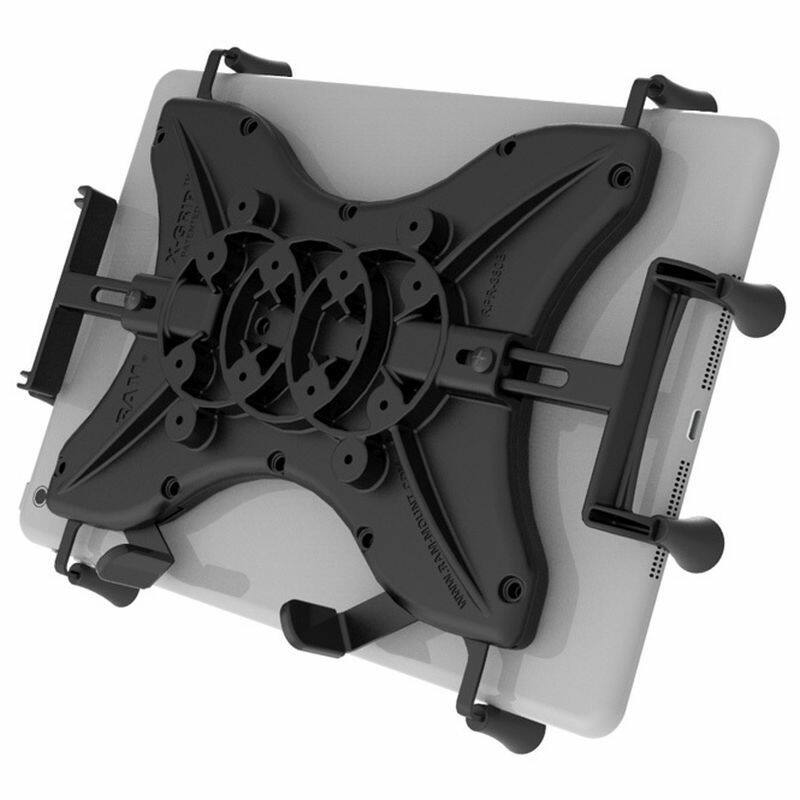

* Easy access grip knobs on the back of the holder allow for the quick release of your tablet
* RAM® Triple Twist-Lock™ suction cup base is ideal for high vibration environments
* Includes B series ball base compatible with any B size RAM® double socket arm
* RAM ball and socket technology allows for near-infinite adjustability
* Made of high-strength composite and powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
* Backed by a lifetime warranty
An ideal solution for aircraft or vehicle / tractor use where a single or double suction cup won't withstand the vibrations

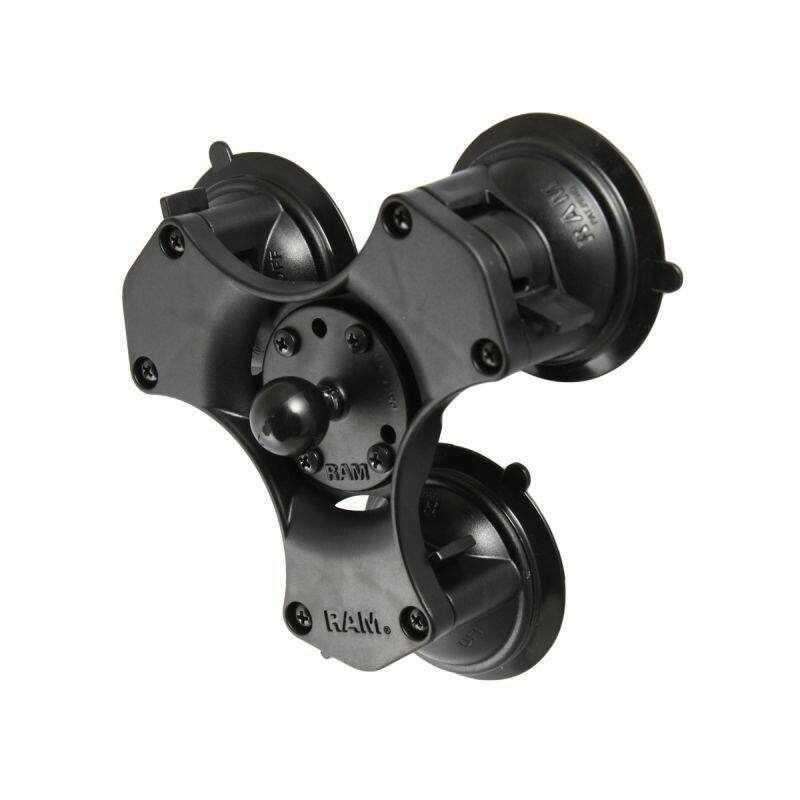

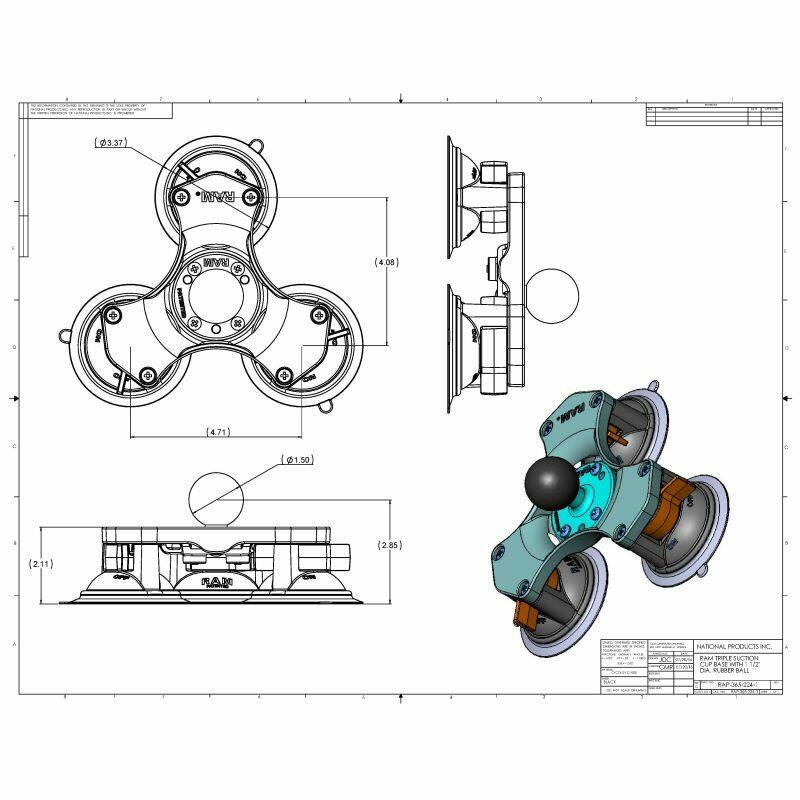

The Triple Suction Cup Base consists of a 1" ball base connected to a high strength composite base with three 84mm / 3.3" diameter suction cup bases at each end. This base has a suction grip, allowing for the connection with 1" double socket arms to any non-porous surface, like a windshield, with confidence.

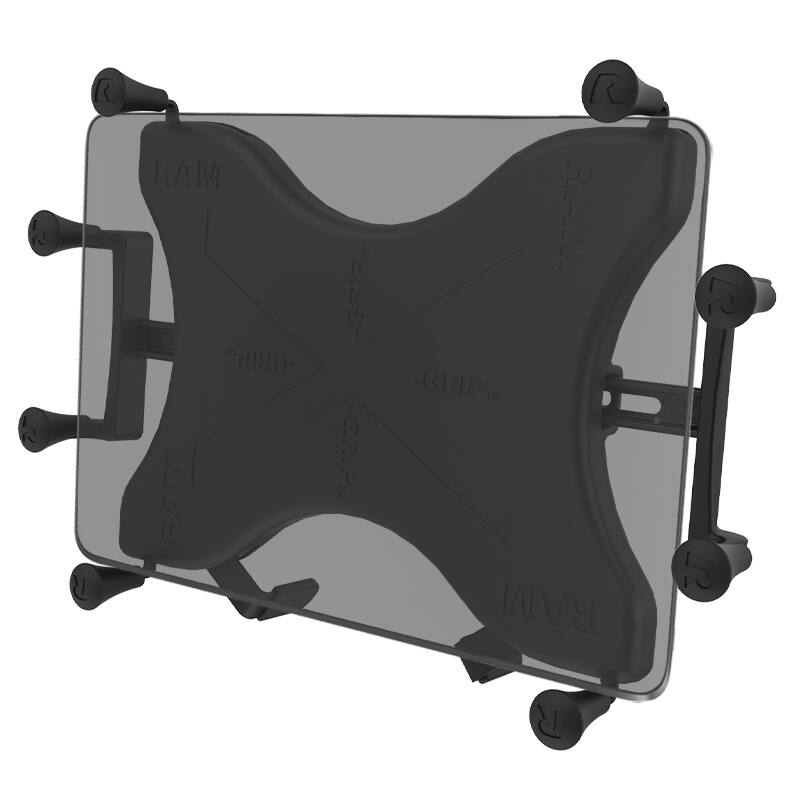

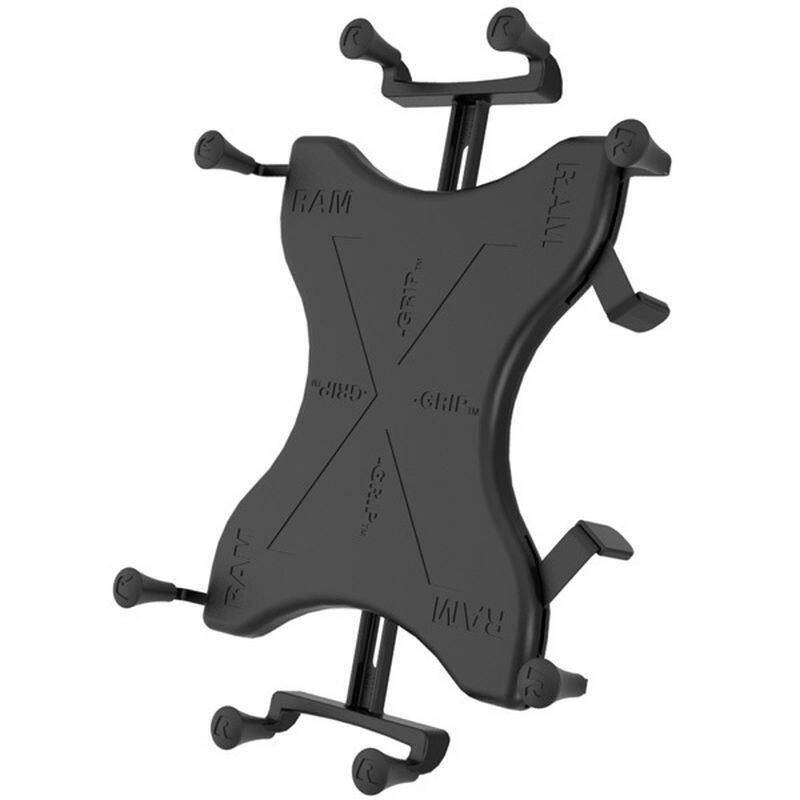

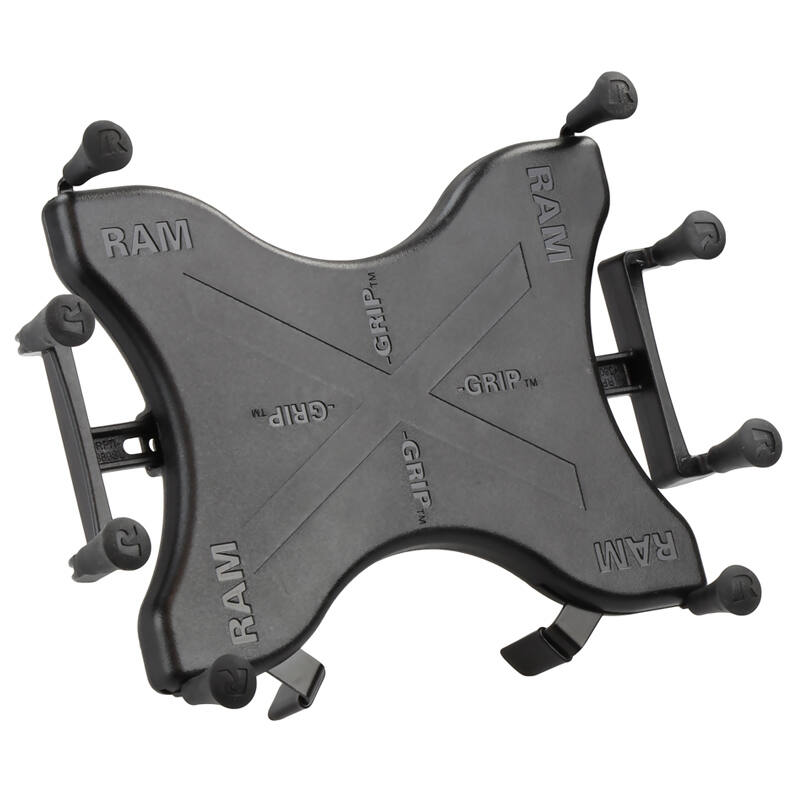

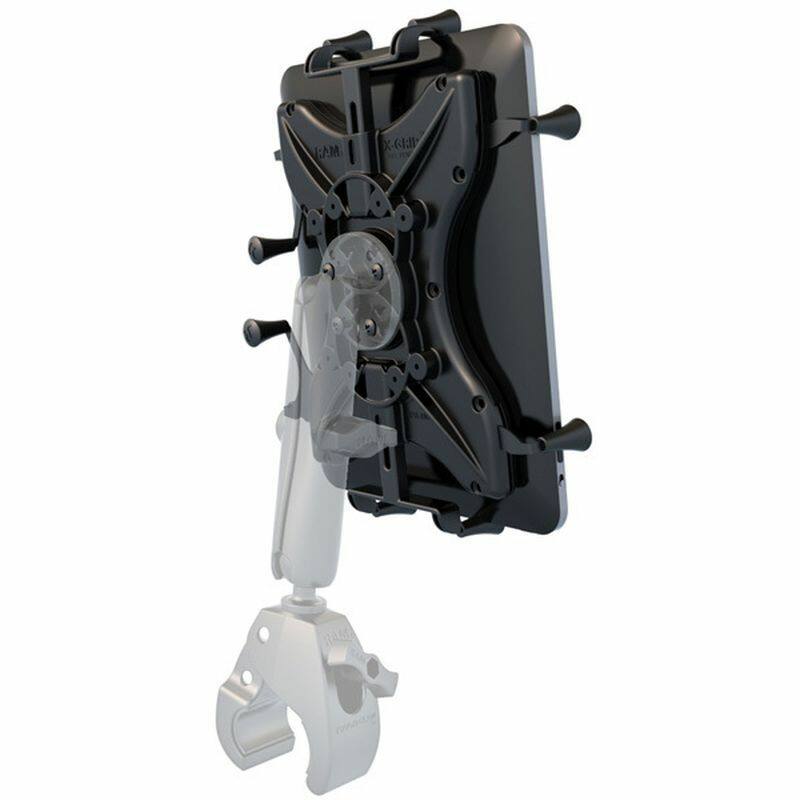

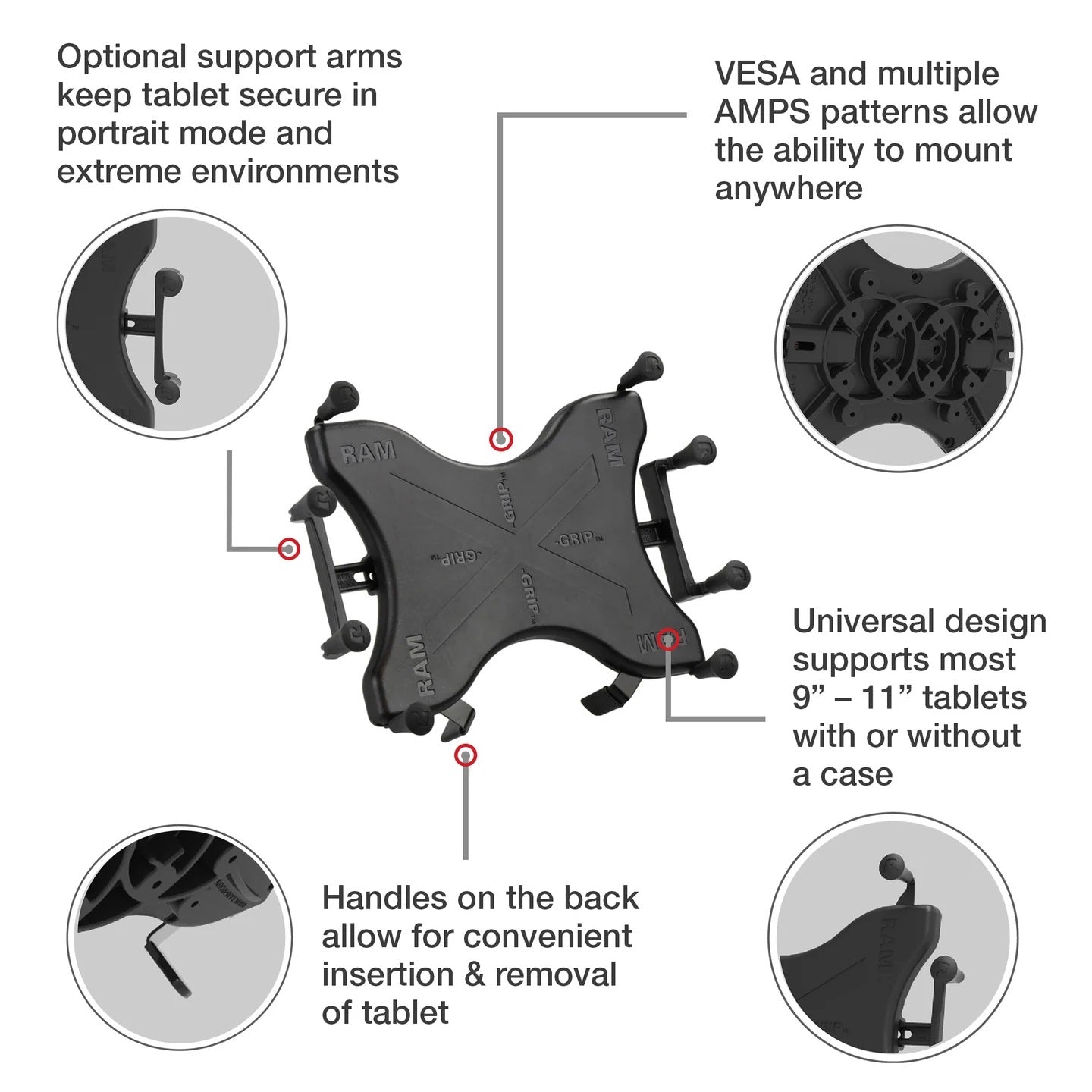

The X-Grip consists of a composite spring-loaded cradle, expandable grip arms and additional bottom support keeper. Included are extra easy access grip knobs, located on the back of the cradle for quick release of your tablet.

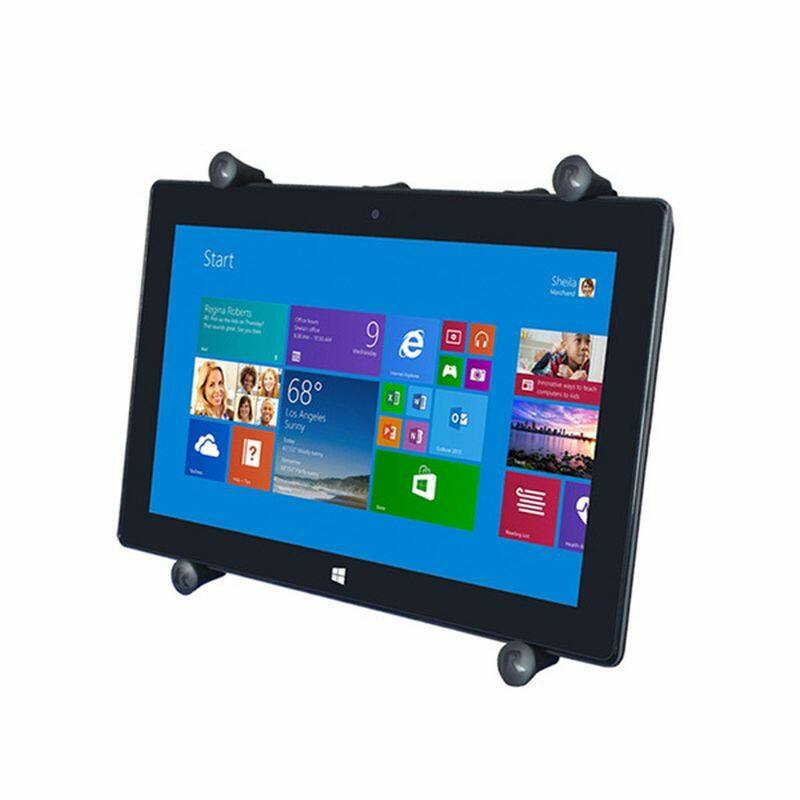

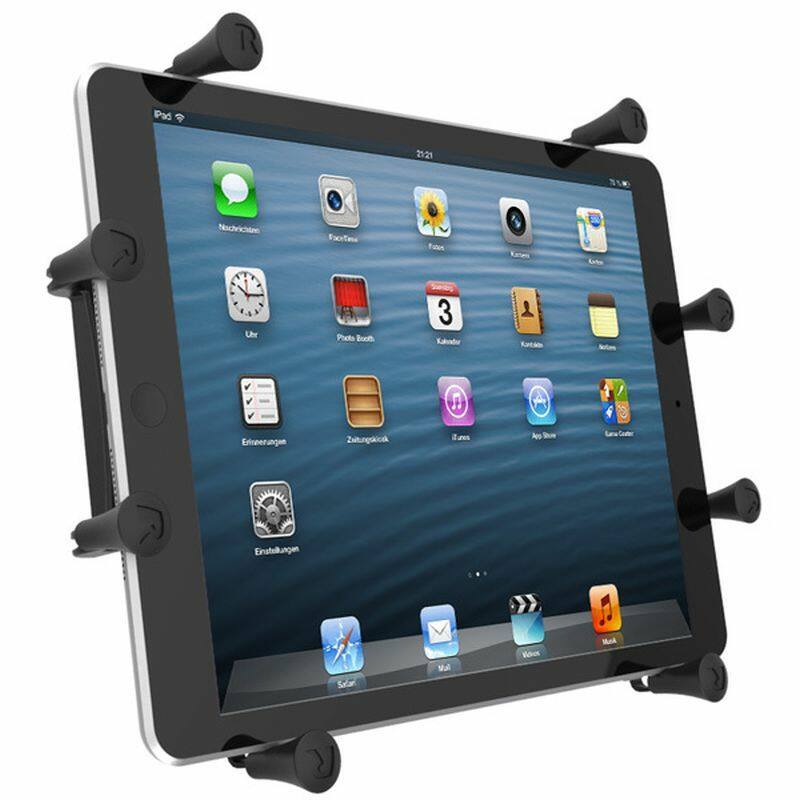

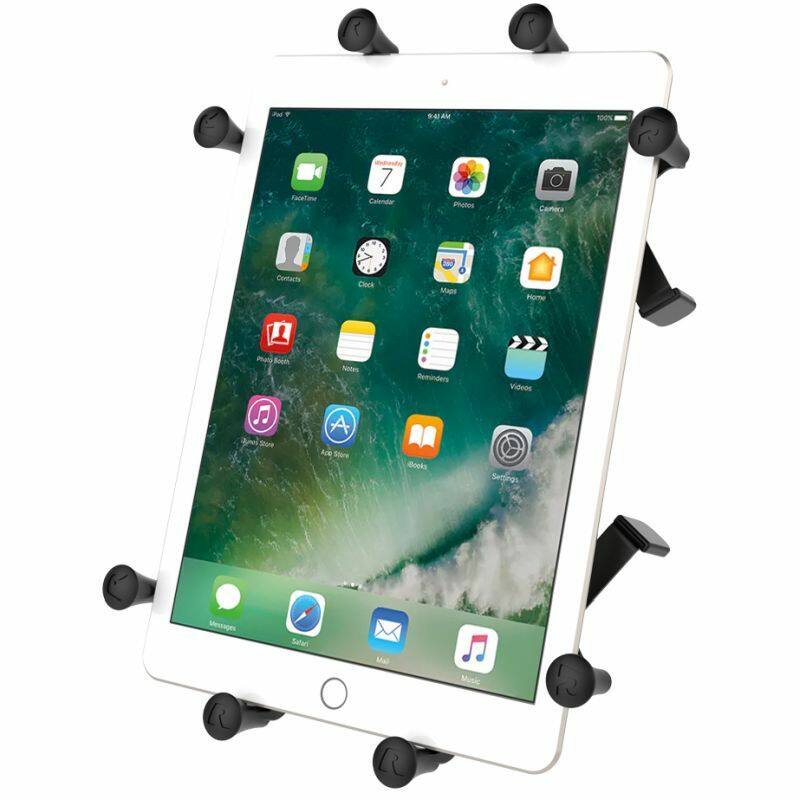

The RAM-HOL-UN9U expands and contracts for perfect fit of most 10" tablets with or without sleeves, as well as some smaller tablets.
The cradle is compatible with devices that will fit the dimensions listed below. It is important to verify the dimensions of your device with a case/sleeve/skin when determining the overall size.
Cradle Dimensions
Minimum Width = 158.75mm (6.25”)
Maximum Width = 205.7mm (8.1”)
Max length with supports 260.4mm (10.25”) (unlimited without supports)
Maximum Thickness = 22.2mm (0.875")
Compatible Devices
For a list of many of the compatible devices for this cradle go to our listing for the RAM-HOL-UN9U
Suction Cup Size
(3) x 84mm (3.3") Diameter Bases, Total Width 201.9mm (7.95")
Arm Dimensions:
Overall Length:
152 mm (6”)
Socket-To-Socket Length:
134 mm (5.25”)

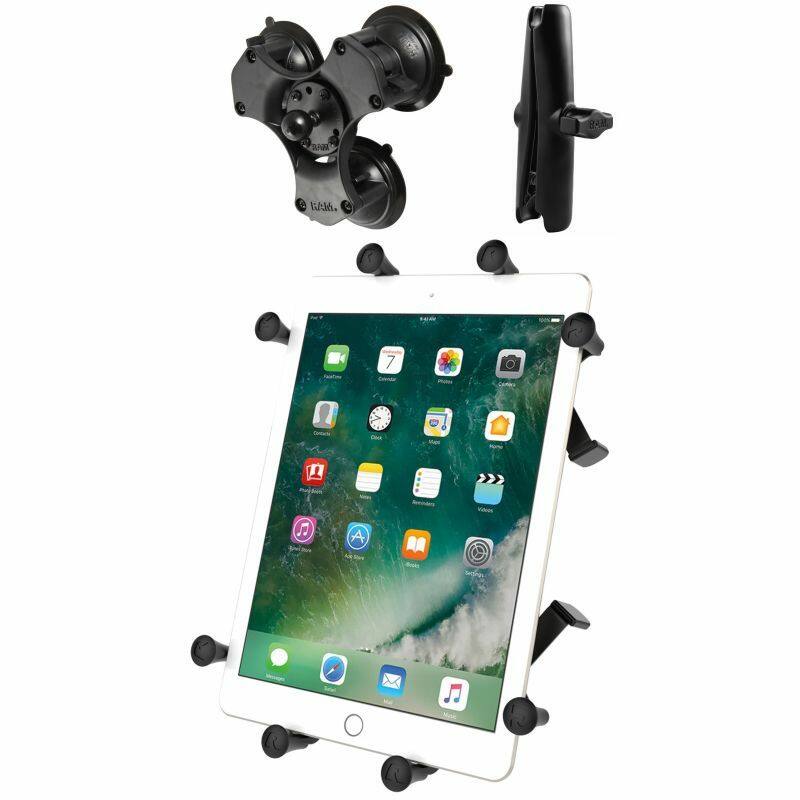

Components:
RAP-365-224-1BU RAM Triple Suction Cup Base
RAM-B-201U-C RAM DBL SOCKET ARM
RAM-HOL-UN9U RAM UNIVERSAL X GRIP
RAM-B-202U RAM 62mm Base (x2)
