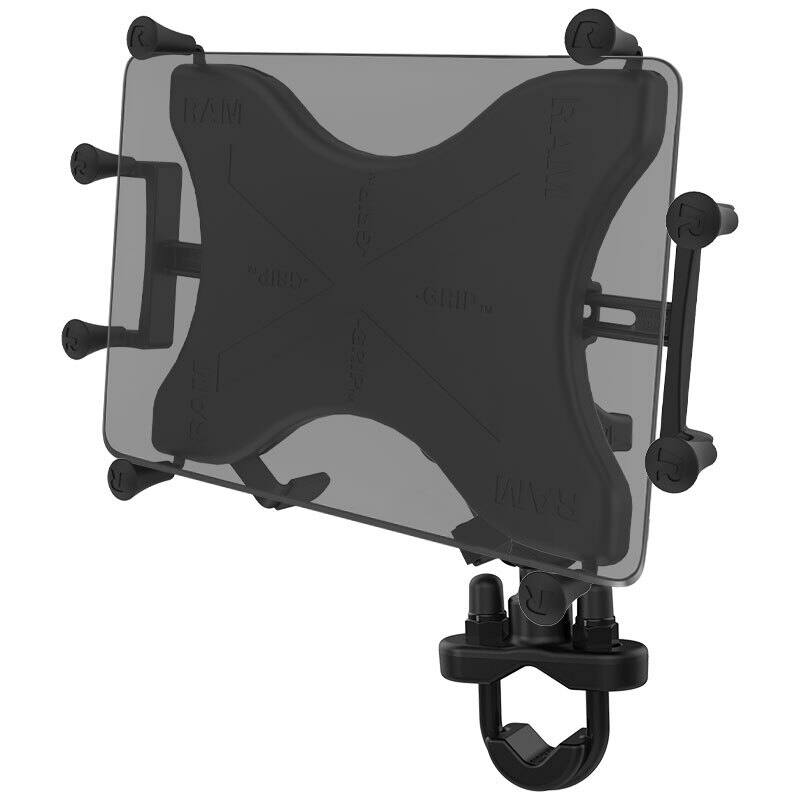

RAM-B-149Z-UN9U RAM® X-Grip® Handlebar U-Bolt Mount for 9"-10" Tablets
Features
* Spring-loaded 'X' design with rubber caps sports great holding power without hiding your tablet; fits most 9"-10" tablets
* Includes U-bolt base that accommodates rails from 12.7 to 32mm in diameter
* Medium length, B size RAM® double socket arm with ball and socket technology allows for near-infinite adjustability
* Made of powder-coated, marine-grade aluminum and high-strength composite for durability and reliability in the most demanding environments
* Backed by a lifetime warranty

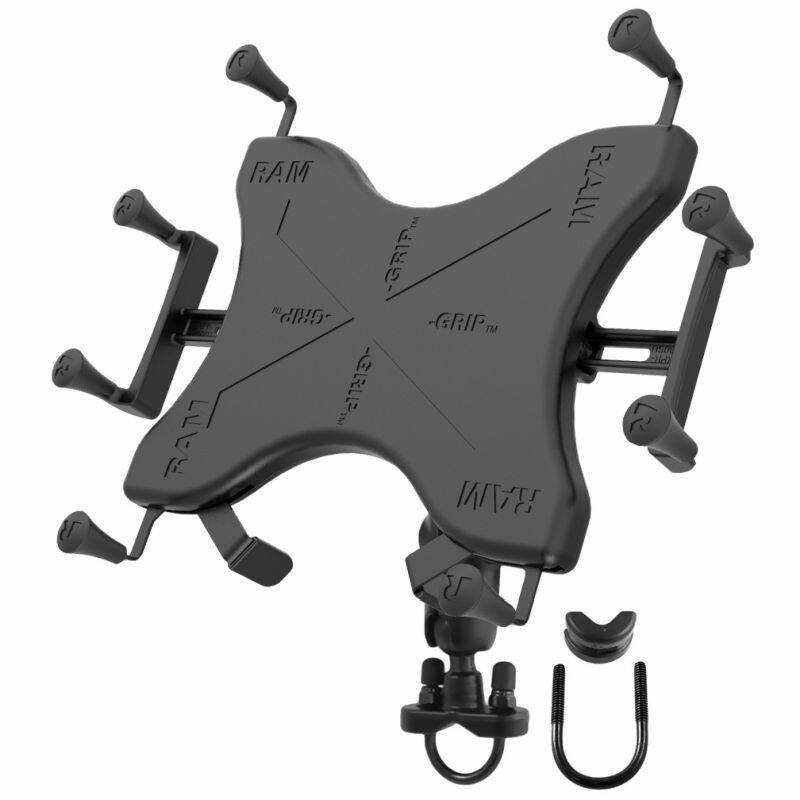

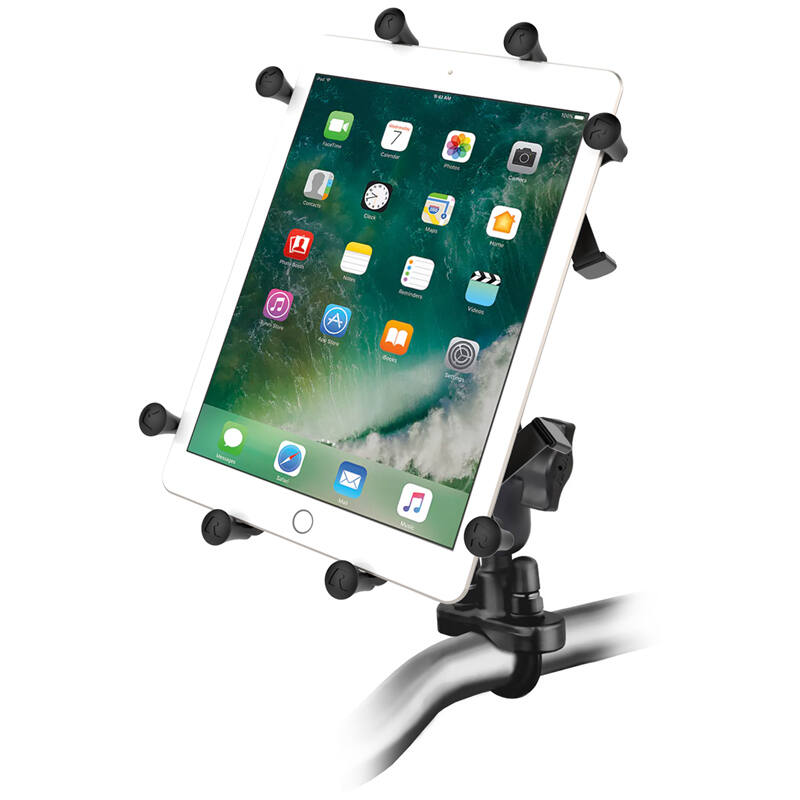

The Rail Base with Zinc Coated U-Bolt consists of a 1" rubber ball designed to sit at right angles to the mounting rail and a U-bolt mounting. The U-bolt fits rails from 12.7 to 32mm in diameter includes black cover caps to cover the exposed ends of the U-bolt and a composite adapter that can narrow the rail to the minimum width.

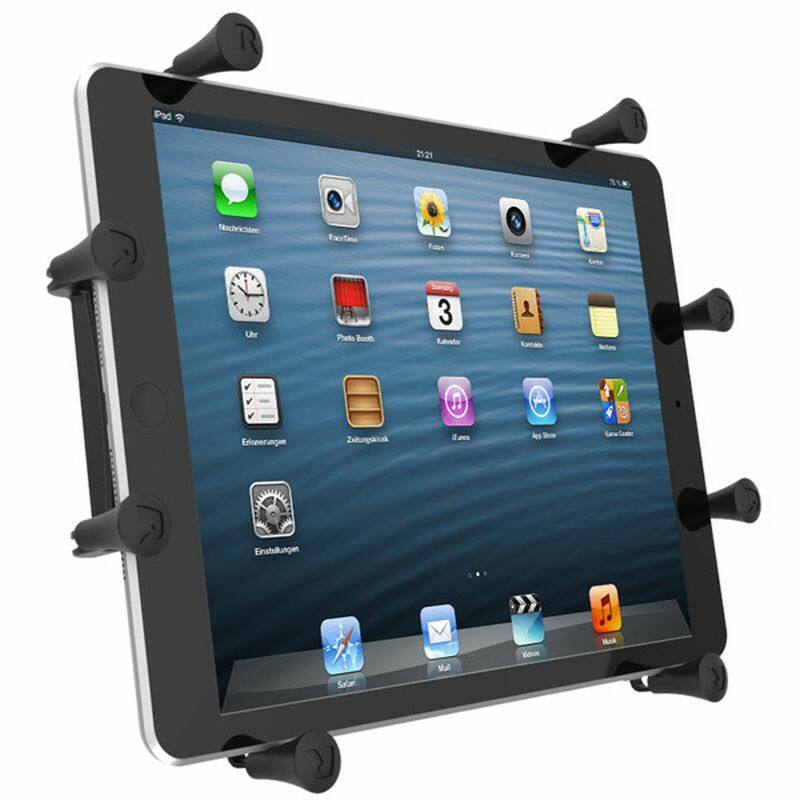

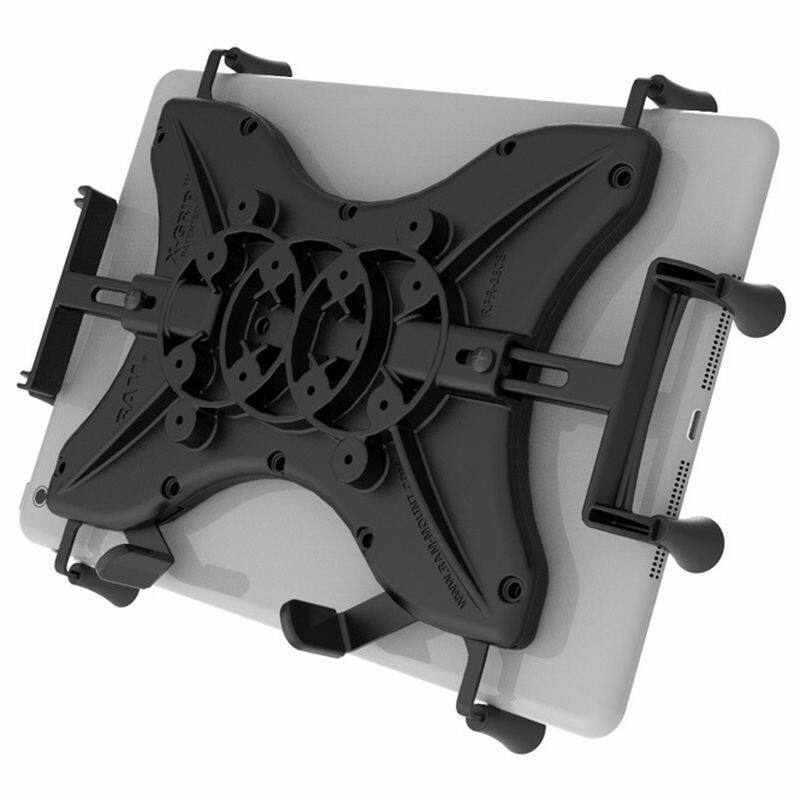

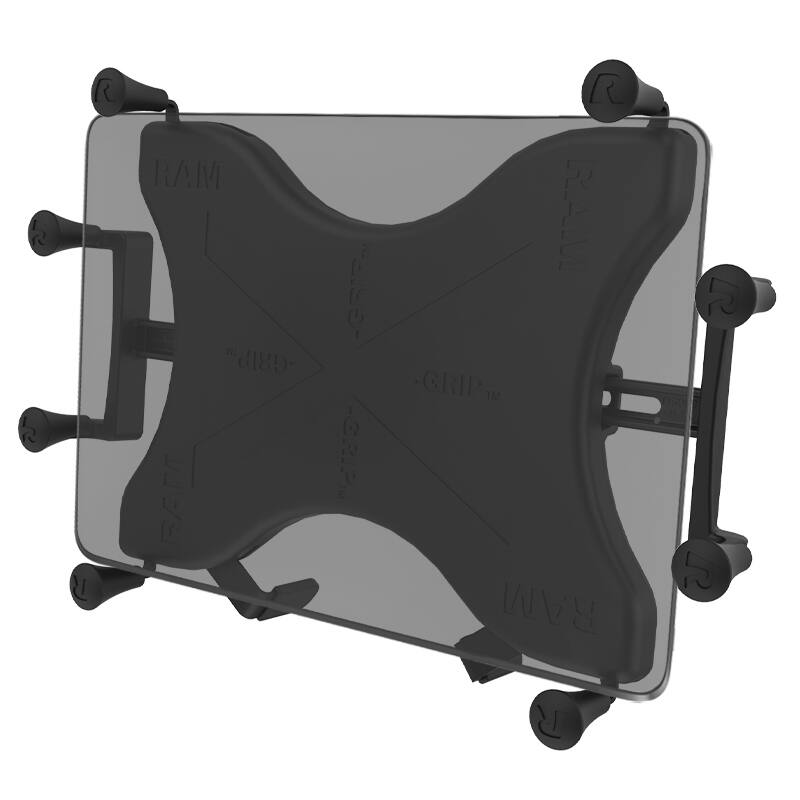

The X-Grip is a composite spring-loaded cradle with expandable grip arms and additional bottom support keeper. Included are extra easy access grip knobs, located on the back of the cradle for quick release of your tablet. It expands and contracts for perfect fit of most 10" tablets with or without sleeves, as well as some smaller tablets.
The cradle is compatible with devices that will fit the dimensions listed below. Check the dimensions of your device with a case/sleeve/skin when determining the overall size.
Cradle Dimensions
Min Width = 158.75mm / 6.25”
Max Width = 205.7mm / 8.1”
Max length = 260.4mm / 10.25” with support - unlimited without supports
Max Thickness = 22.2mm / 0.875"
Compatible Devices
For a list of many of the compatible devices for this cradle go to our listing for the RAM-HOL-UN9U
U-Bolt Dimensions:
12.7 - 32mm (0.5 to 1.25") diameter.
Arm Dimensions:
Overall Length:
94mm (3.69")
Socket-To-Socket Length:
76mm (3")
Weight
785 grams (1.73 lbs )
Components:
RAM-B-231ZU RAIL BASE W/ U-BOLT
RAM-HOL-UN9U X-GRIP UNIVERSAL 10" TABLET HOLDER
RAM-B-201U DOUBLE SOCKET ARM
RAM-B-202U 62mm DIA.BASE
