RAM X-Grip Universal Cradle for 10" Tablets with Wheelchair Seat Track Mount

RAM X-Grip Universal Cradle for 10" Tablets with Wheelchair Seat Track Mount

SKU:RAM-238-WCT-9-UN9-v

Regular price $543.16 NZD
Regular price Sale price $543.16 NZD
Sale Sold out
Tax included. Shipping calculated at checkout.
View full details

RAM-238-WCT-9-UN9 - RAM® X-Grip® Wheelchair Seat Track Mount for 9"-10" Tablets

Features

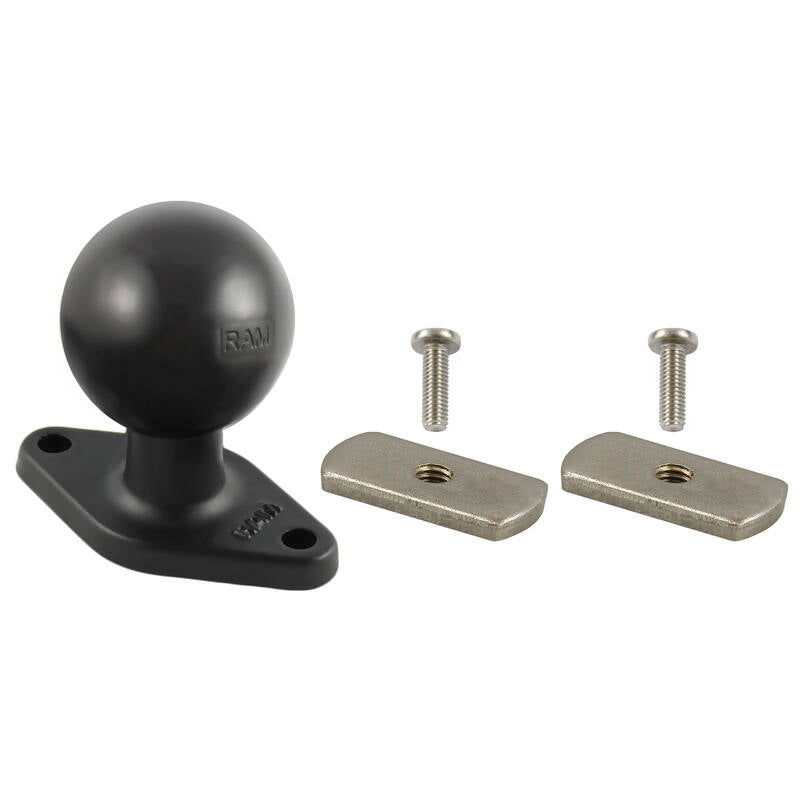

* C size RAM® diamond ball base with a universal hardware pack accommodates the seat track on most major wheelchair brands
* Includes RAM® Single Socket Arm with 1/2" NPT Threaded Hole, 482mm pipe extension, double socket arm (B to C series) and RAM® X-Grip® universal holder.
* Upper socket is B series
* Spring-loaded 'X' design with rubber caps sports great holding power without hiding your tablet; fits most 9"-10" tablets
* Easy access grip knobs on the back of the holder allow for the quick release of your tablet
* Made of marine-grade aluminium and high-strength composite with stainless steel components for durability and reliability in the most demanding environments
* Backed by a lifetime warranty

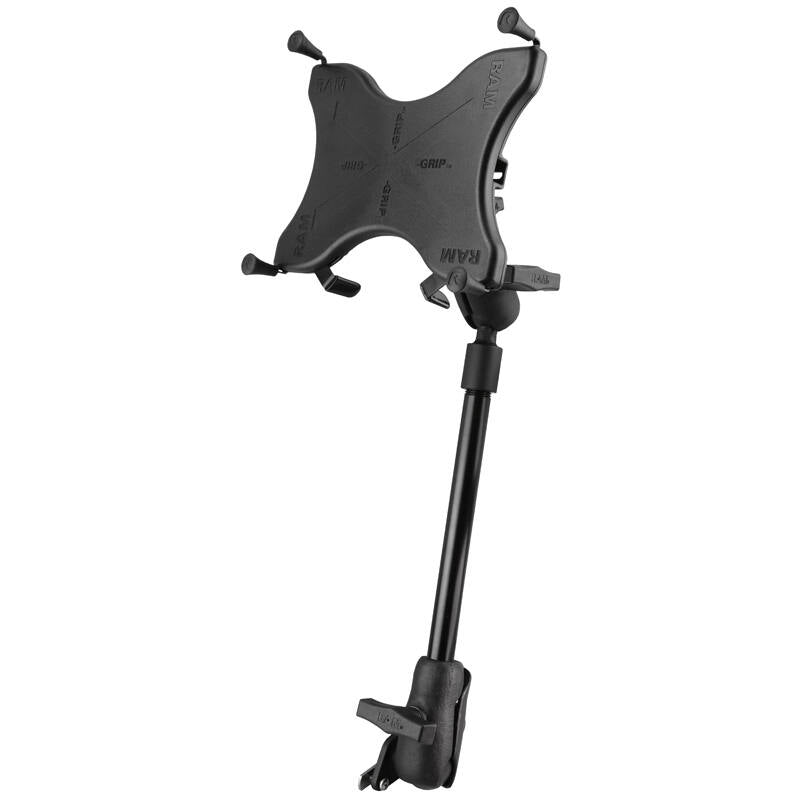

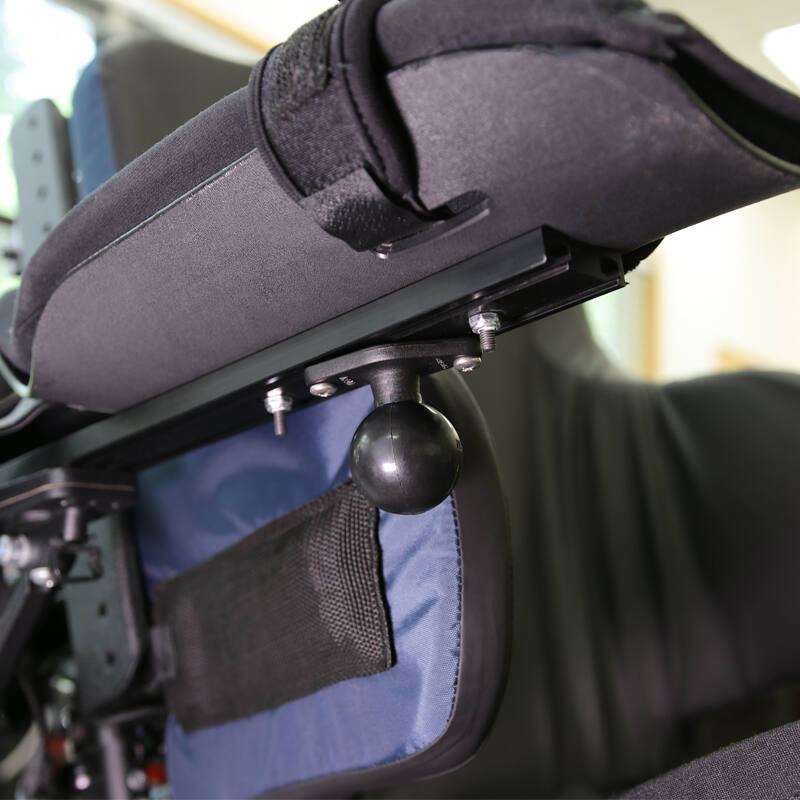

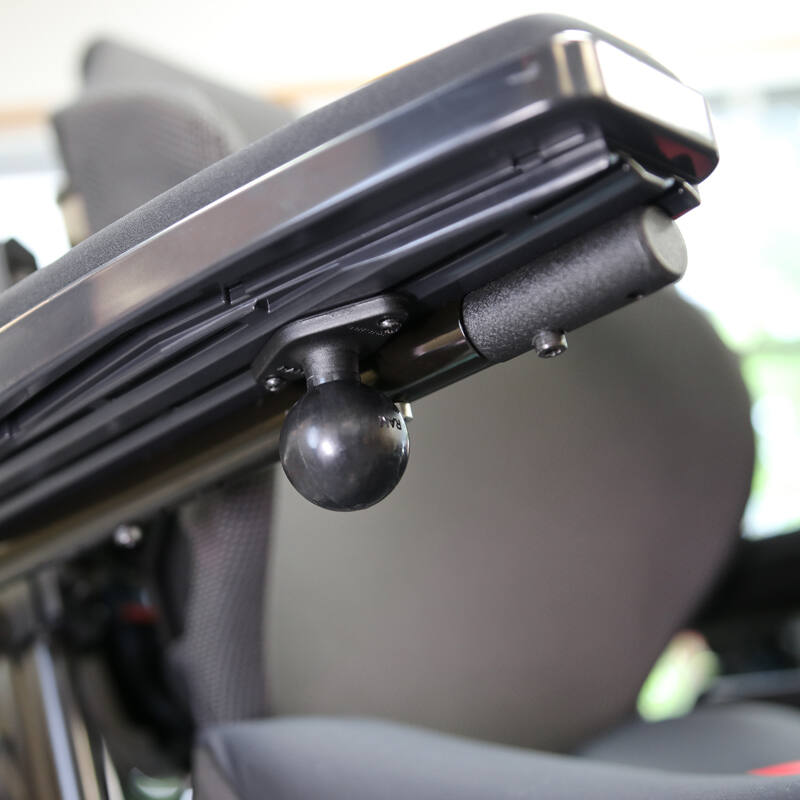

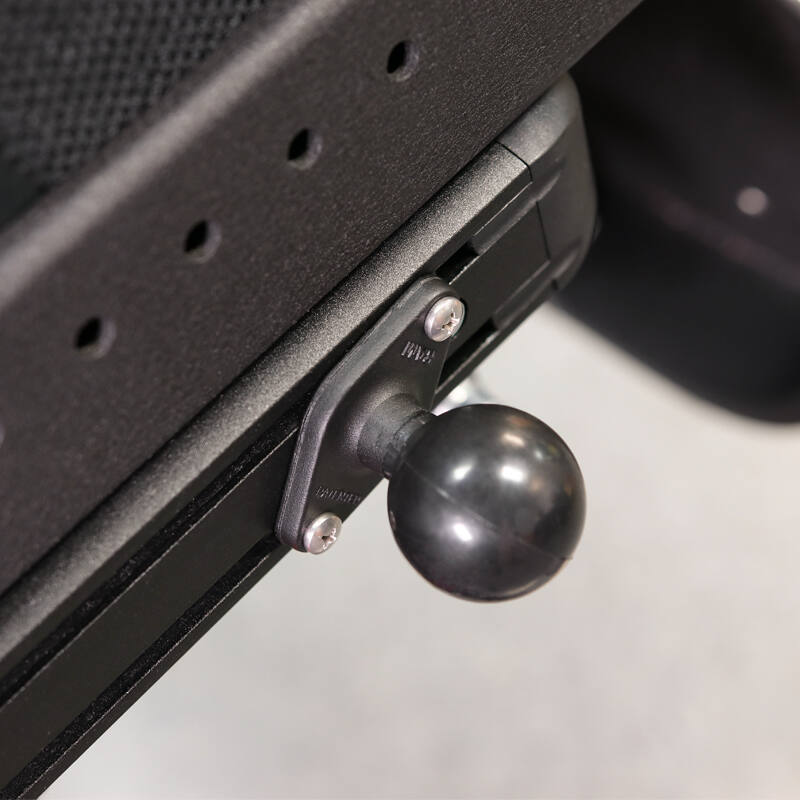

This kit includes a C size RAM® diamond ball base with a universal hardware pack that accommodates the seat track on most major wheelchair brands, including Invacare, Permobil, and Quickie. The included short single socket arm, 482mm (19") pipe extension, and double socket arm, connect the RAM® X-Grip® universal holder.

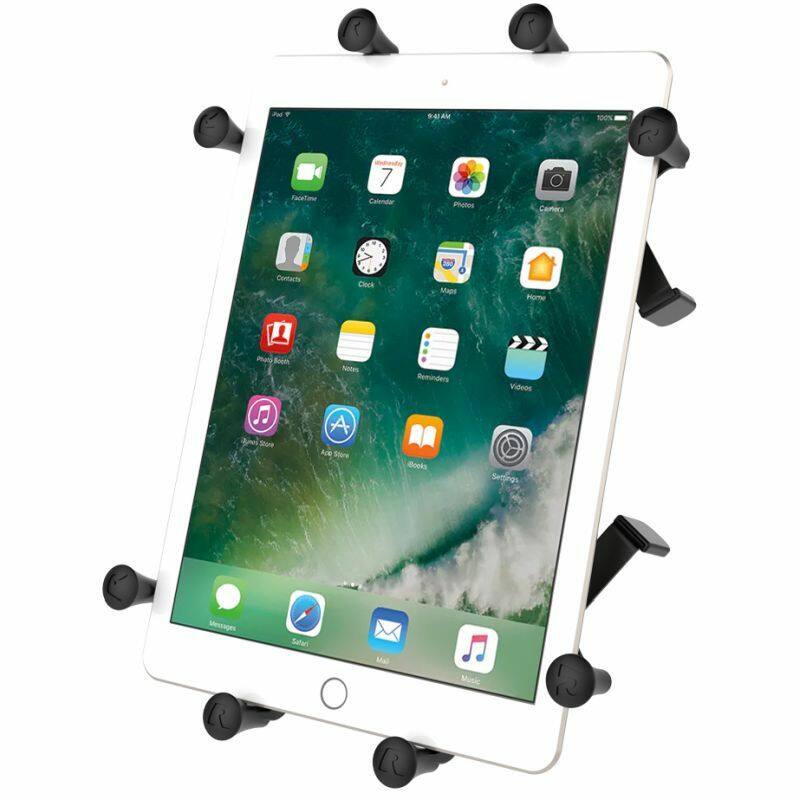

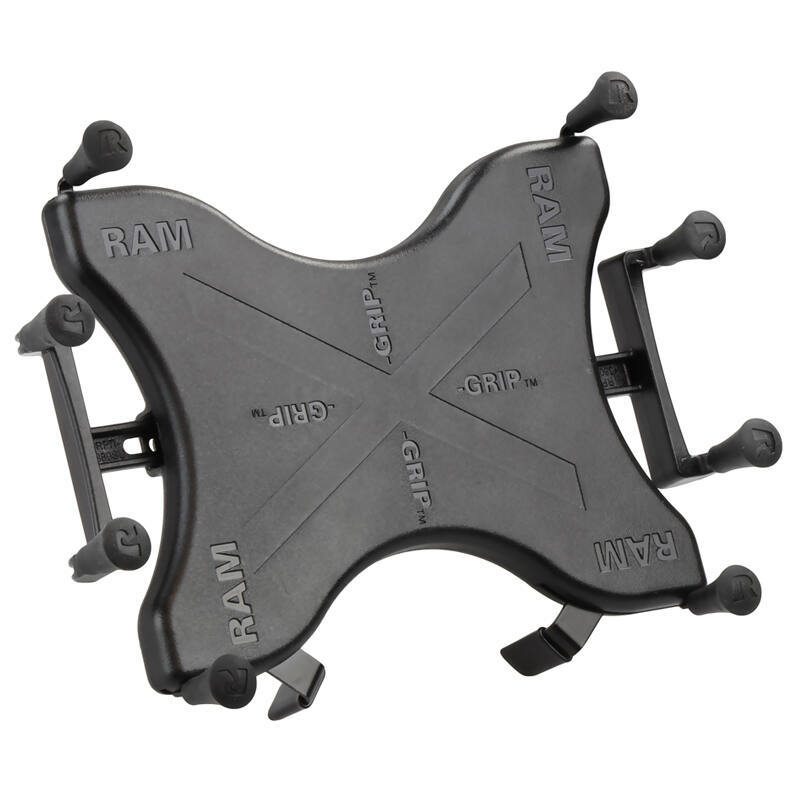

The X-Grip consists of a composite spring-loaded cradle, expandable grip arms and additional bottom support keeper. Included are extra easy access grip knobs, located on the back of the cradle for quick release of your tablet. The X-Grip expands and contracts for perfect fit of most 10" tablets with or without sleeves, as well as some smaller tablets.


The cradle is compatible with devices that will fit the dimensions listed below. It is important to verify the dimensions of your device with a case/sleeve/skin when determining the overall size.


Cradle Dimensions

Minimum Width = 158.75mm (6.25”)
Maximum Width = 205.7mm (8.1”)
Max length with supports 260.4mm (10.25”) (unlimited without supports)
Maximum Thickness = 22.2mm (0.875")

Compatible Devices:

For a list of many of the compatible devices for this cradle go to our listing for the RAM-HOL-UN9U


T-Bolt Dimensions
Large:
12.19mm x 24.13mm (.48" x .95")
Small:
9.52mm x 15.06mm (.375" x .593")

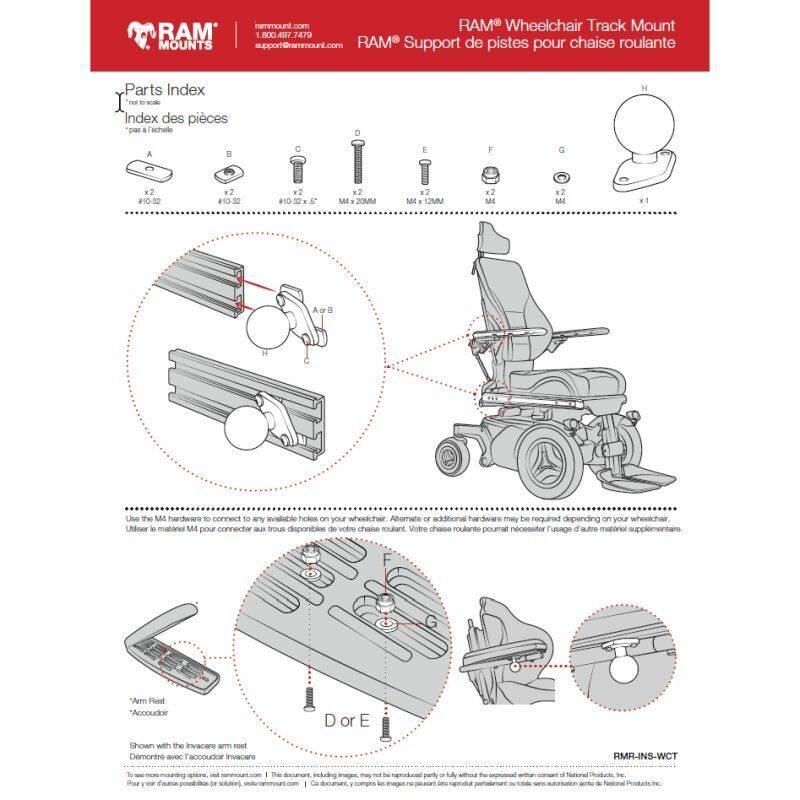

Hardware Included
Assembly Hardware
(2) #10-32 T-Nuts
(2) #10-32 Flat Weld Nuts
(2) #10-32 x 1/2" Machine Screws
(2) M4 x 12mm Machine Screws
(2)M4 x 20mm Machine Screws
(2) M4 Stainless Steel Washers
(2) M4 Nylock Nuts

Weight:
1.27kg (2.81 lbs)


Weight Capacity
1.814kg (1 lbs)

Pipe Length
483mm (19")

B to C Series Connecting Arm Length
Overall:
133mm (5.24")


Ball size
Bottom of Arm: C Size (1.5")
Top of Arm: B Size (1")


Materials
Marine-grade aluminium
High strength composite


Components:
RAM-HOL-UN9U X-GRIP UNIVERSAL 10" TABLET HOLDER
RAM-B-202U 62mm DIA.BASE WITH 1" BALL

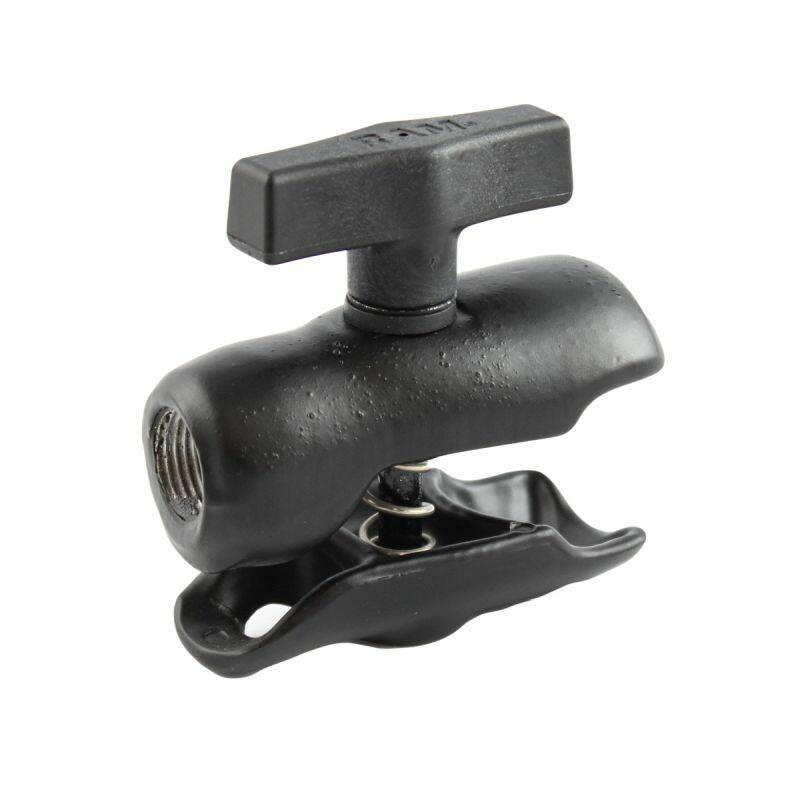

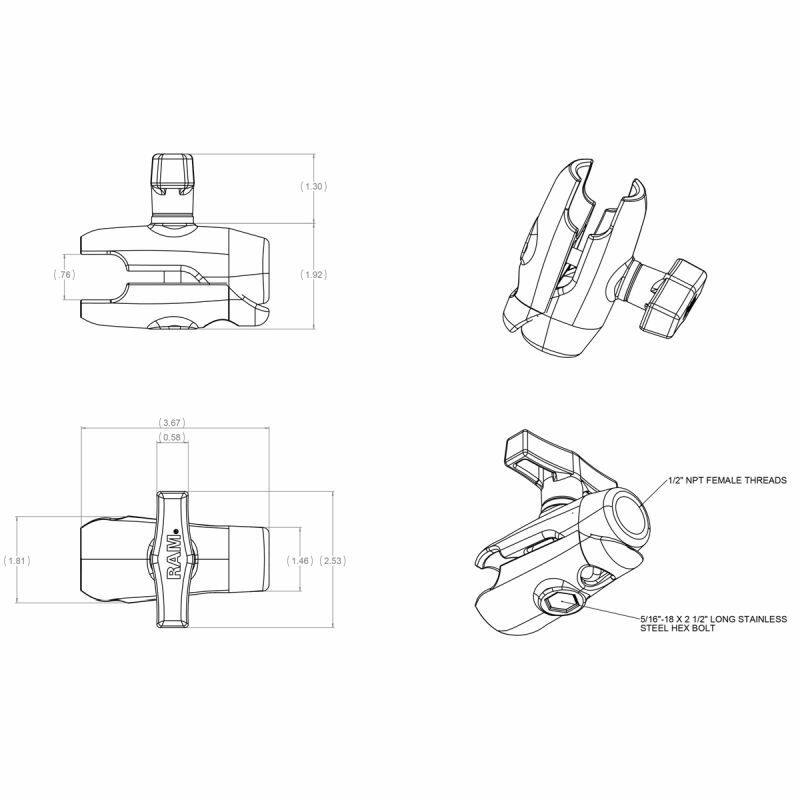

RAM-200-1U Single Socket Arm with 1/2" NPT Female Hole for C Size 1.5" Balls
RAM-PA8209 1/2" X 9" LONG PIPE NIPPLE aluminium
RAM-218-1U BASE WITH 1/2" NPT THREADED HOLE
RAP-BC-201U Composite Swivel Double Socket Arm for 1" & 1.5" Balls
RAM-238-WCT Universal Wheelchair Ball Base
