RAM Mounts

RAM X-Grip Universal Cradle for 10" Tablets with Wheelchair Tough-Claw Mount

RAM X-Grip Universal Cradle for 10" Tablets with Wheelchair Tough-Claw Mount

SKU:RAM-B-201U-C-UN8-400U-v

Regular price $331.55 NZD
Regular price Sale price $331.55 NZD
Sale Sold out
Tax included. Shipping calculated at checkout.
View full details

RAM-B-201U-C-UN8-400U - Universal RAM® X-Grip® Cradle for 7-8" Tablets with Double Socket Arms & Small Tough-Claw Base

Features

* Spring-loaded 'X' design with rubber caps sports great holding power without hiding your tablet; fits most 7"-8" tablets

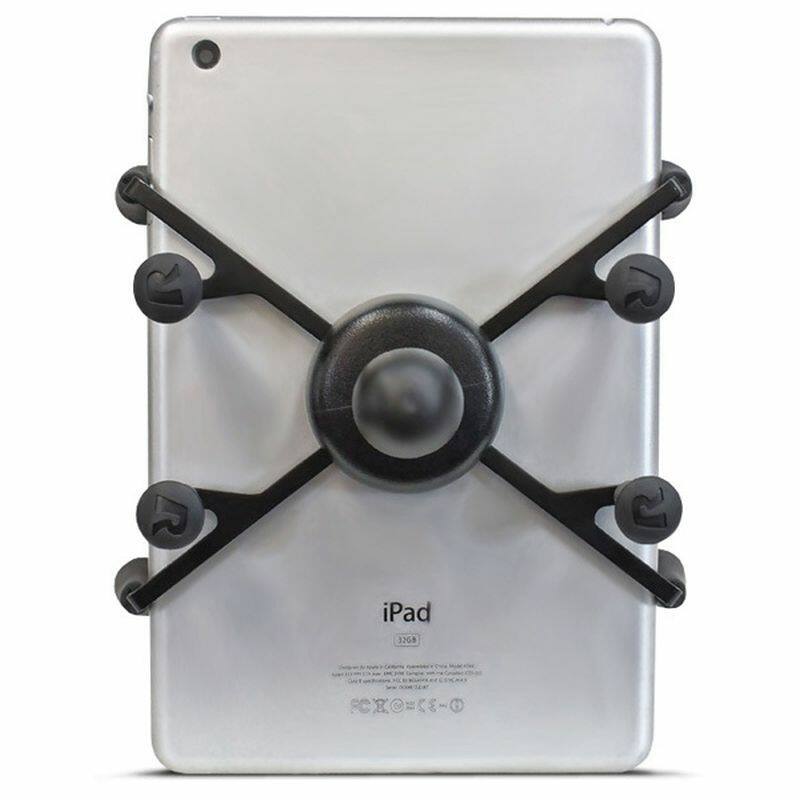

* Easy access grip knobs on the back of the holder allow for the quick release of your tablet
* Rubber coated tips will hold your tablet firm and stable

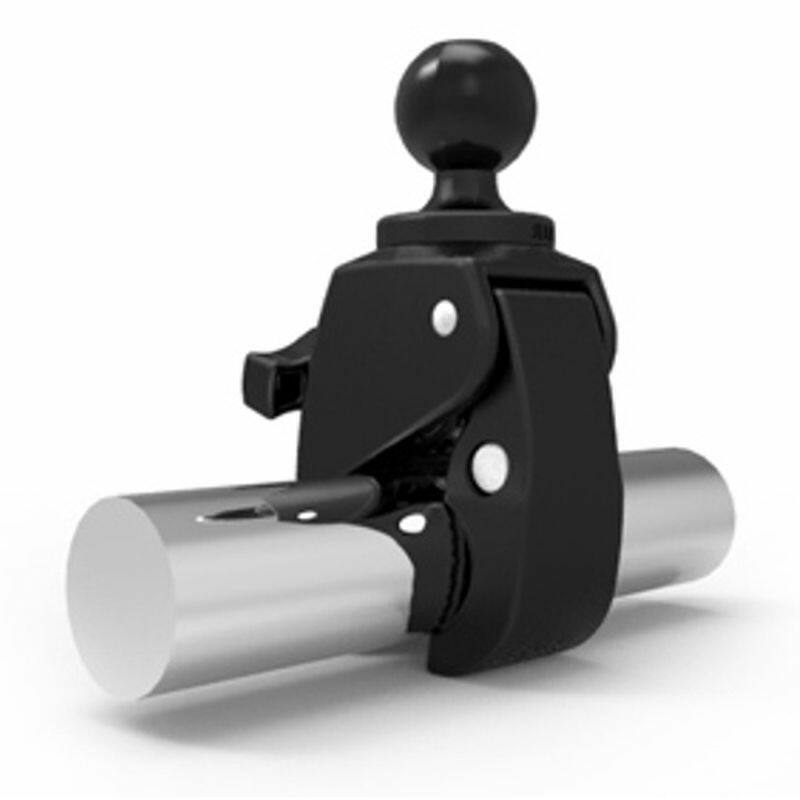

* Tough Claw base allows for fast tool-less installation and removal on rails / tubes 16-28mm diameter
* Backed by a lifetime warranty

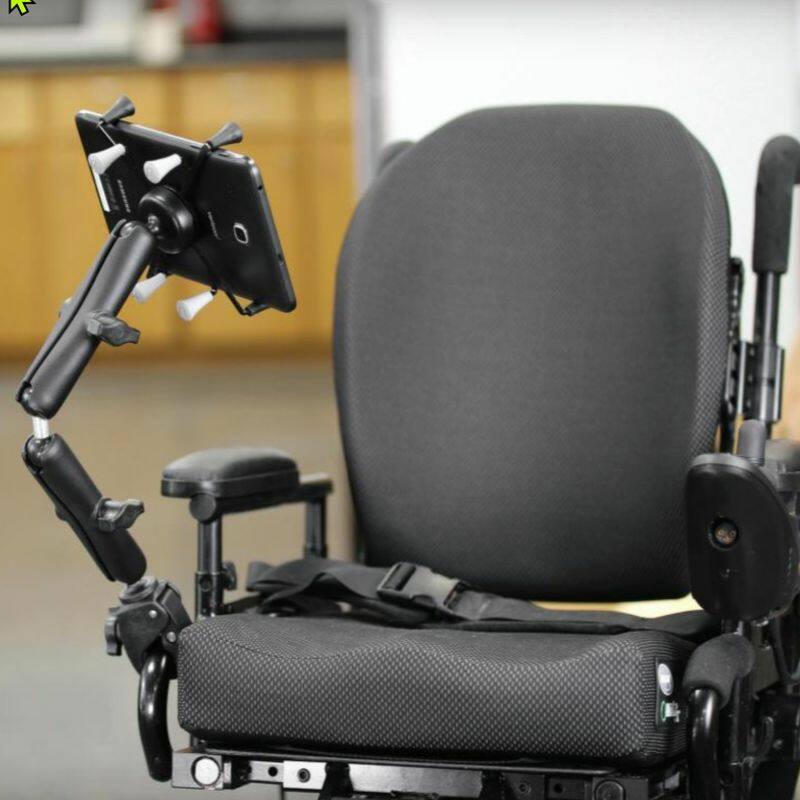

We have put together a wheelchair base for the X-Grip that simply and easily mounts to the bars of any mobility device without tools. Removal is also fast and simple with no tools required. The two long double socket arms (152mm each) allow for maximum adjust-ability to find the perfect viewing position.

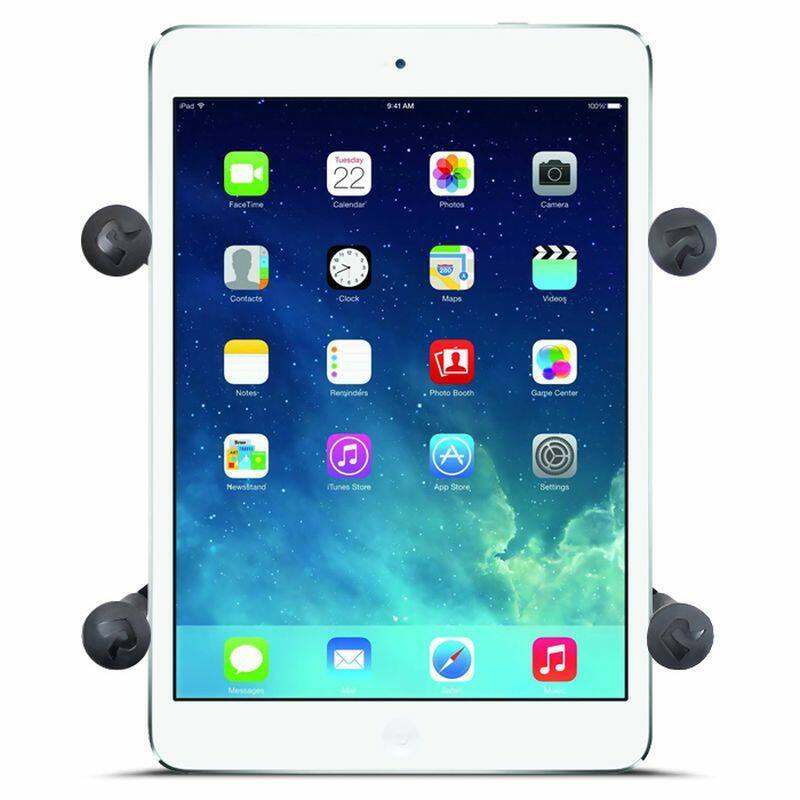

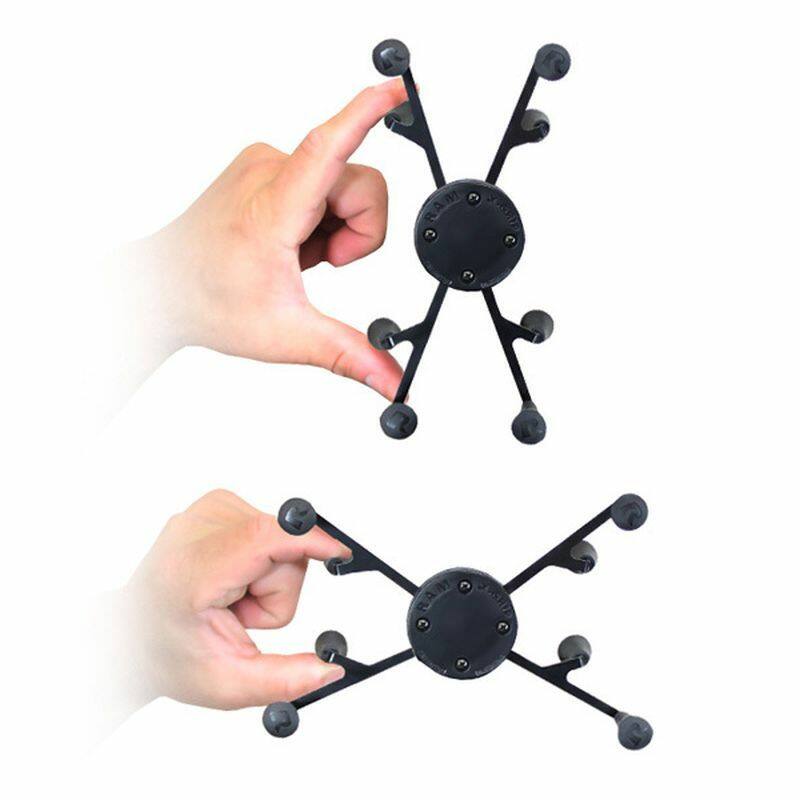

The X-Grip cradle is a composite and spring-loaded with expandable grip arms and additional bottom support keeper. Included are extra easy access grip knobs, located on the back of the cradle for quick release of your tablet which expands and contracts for perfect fit of most 7-8" tablets with or without sleeves, as well as some smaller tablets.


The cradle is compatible with devices that will fit the dimensions listed below. Check the dimensions of your device with its case/sleeve/skin


Cradle Dimensions
Minimum Width = 63.5mm (2.5") (Minimum Height = 177.8mm / 7")
Maximum Width = 146mm (5.75") (Minimum Height = 101.6mm / 4")
Depth = 22.22mm (0.875")

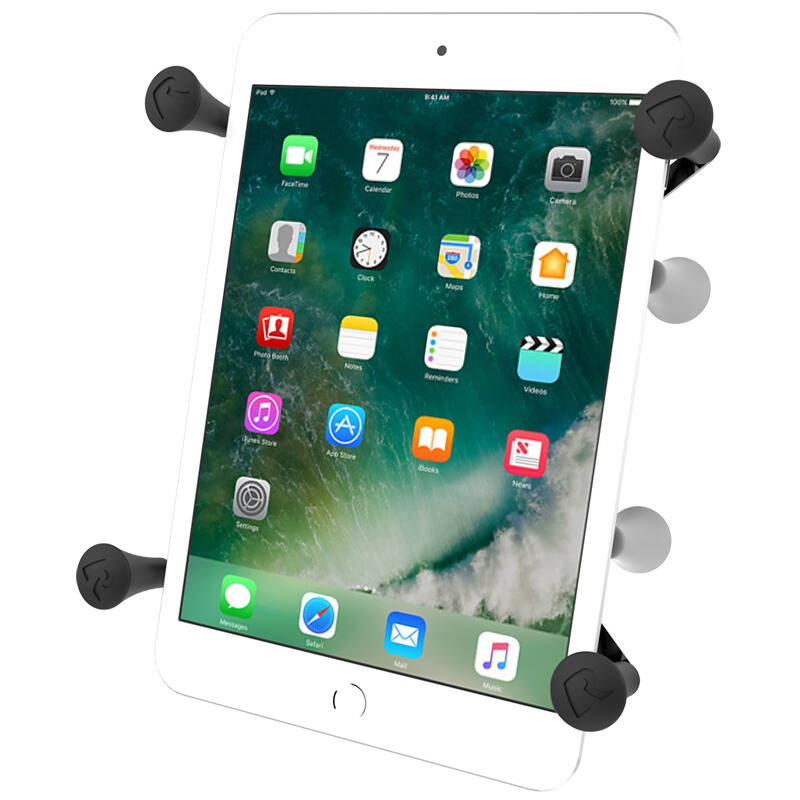

Compatible Devices include iPad Mini, Galaxy Tab 7.0 /8.0 (For a list of many of the compatible devices see RAM-HOL-UN8BU)

Rail/Tube Surfaces:
16mm to 28mm (0.625" to 1.14")
Flat Surfaces:
0 to 29mm (1.14")

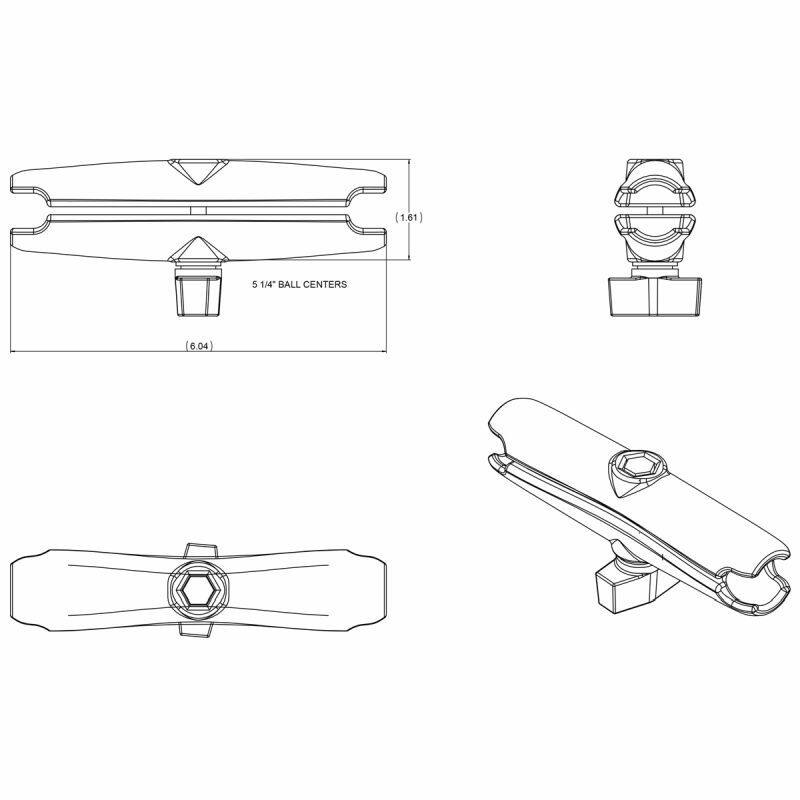

Arm Dimensions (Each):
Overall Length:
152 mm (6”)
Socket-To-Socket Length:
134 mm (5.25”)



Materials
Marine Grade Aluminium
Marine Grade Stainless Steel Components
High Strength Composite


Weight Capacity
Standard Use:
907 grams (2 lbs)
Heavy-Duty Use:
454 grams (1 lb)


Components:

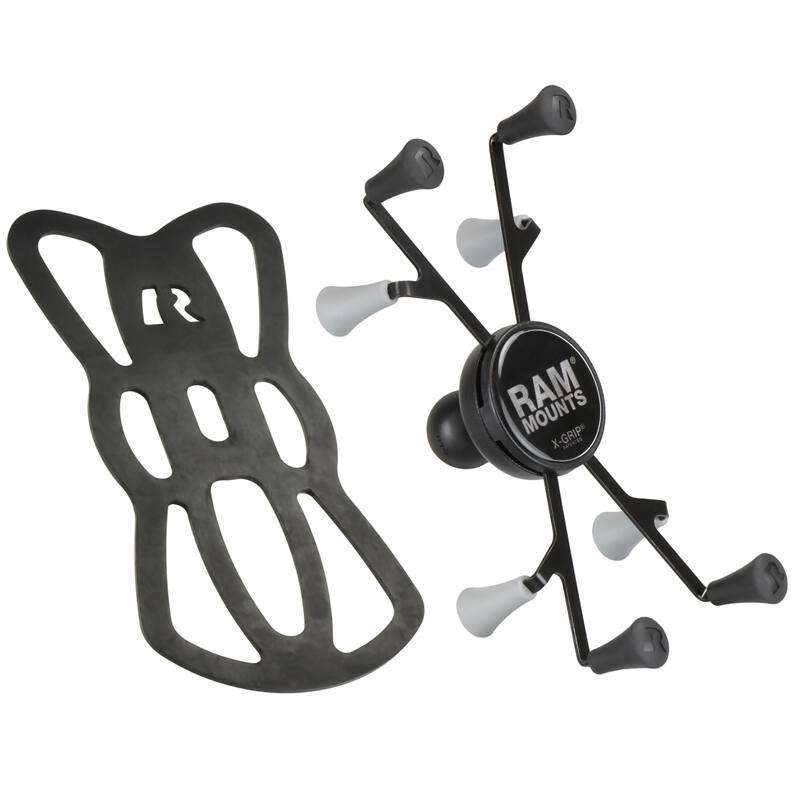

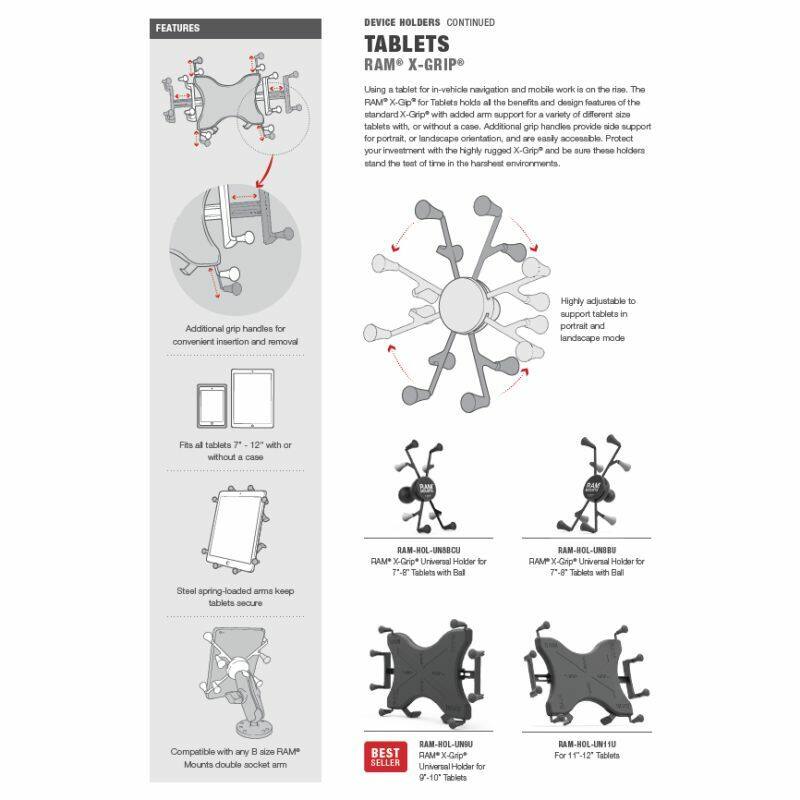

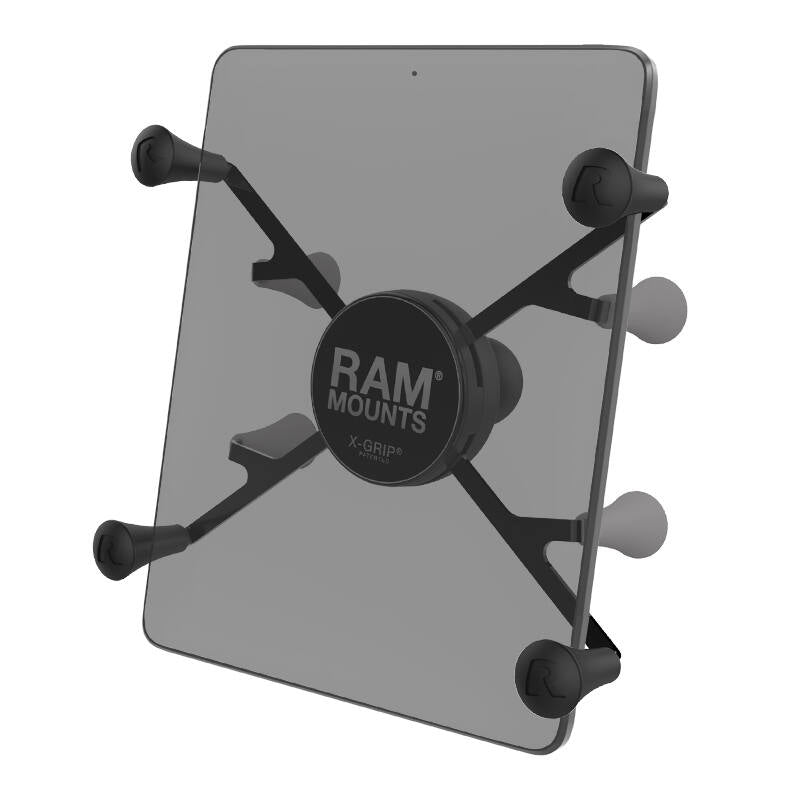

RAM-HOL-UN8BU UNIVERSAL X GRIP II TABLET HOLDER

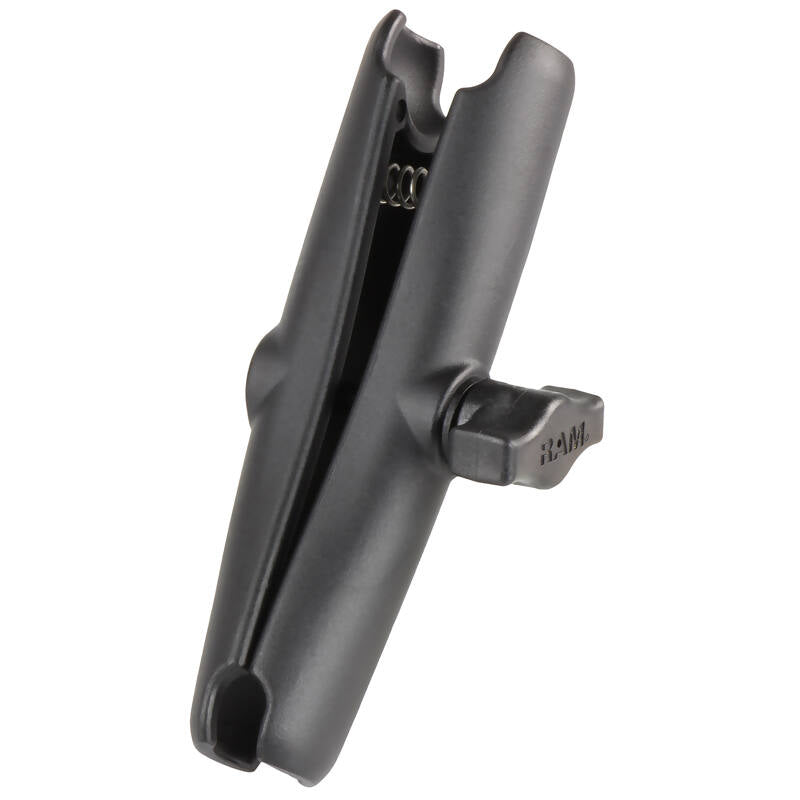

RAM-B-201U-C DBL SOCKET ARM B BALL C LENGTH

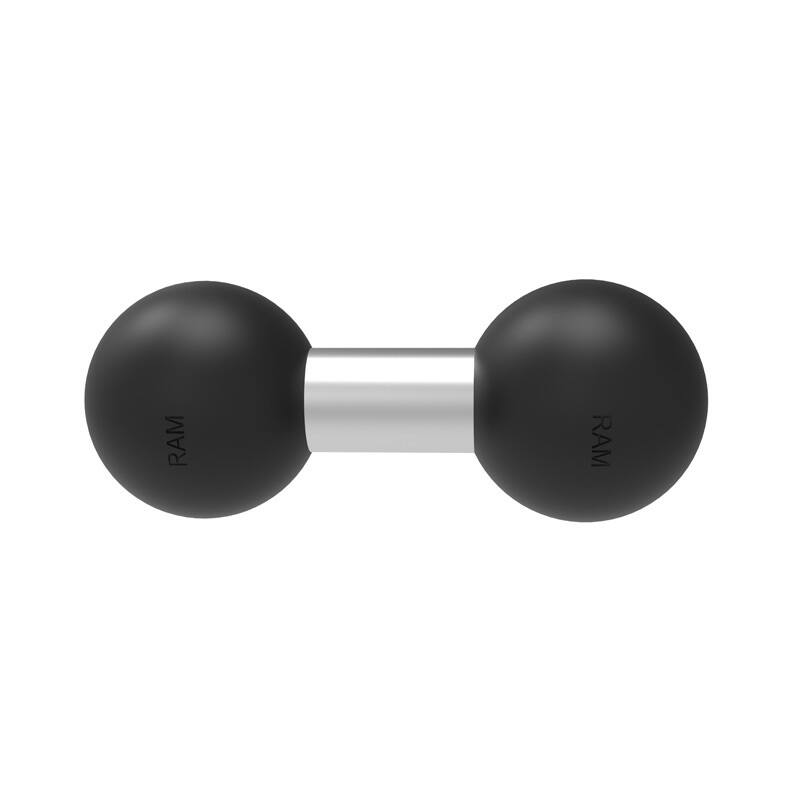

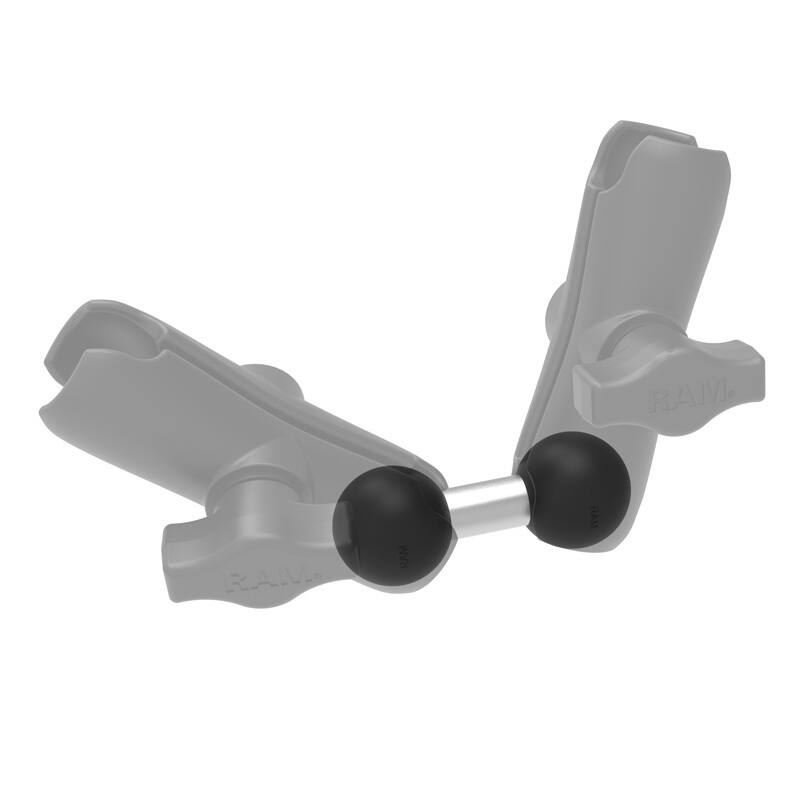

RAM-B-230U 1" BALL ADAPTER

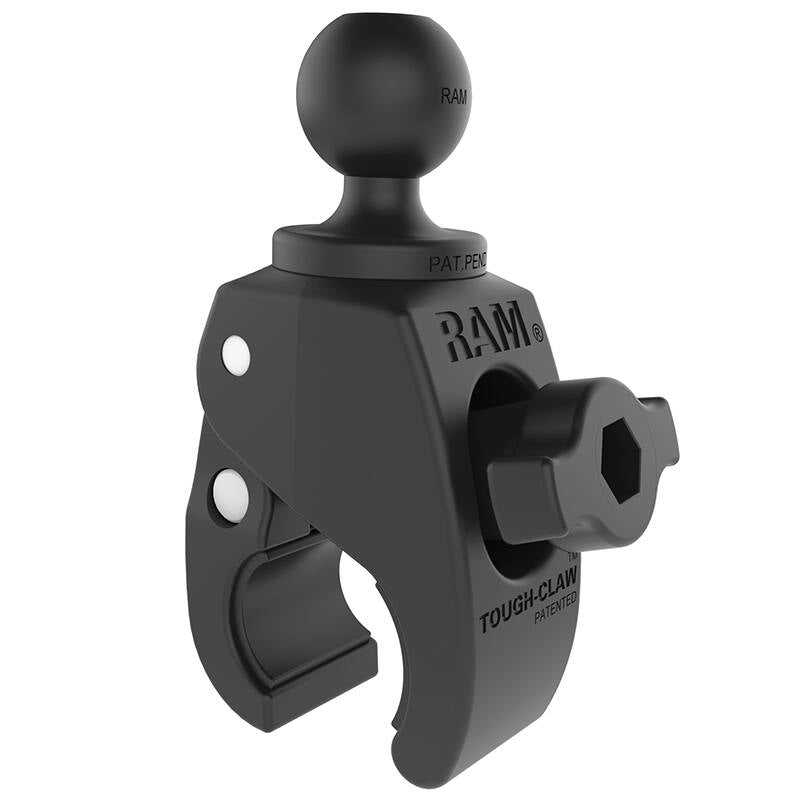

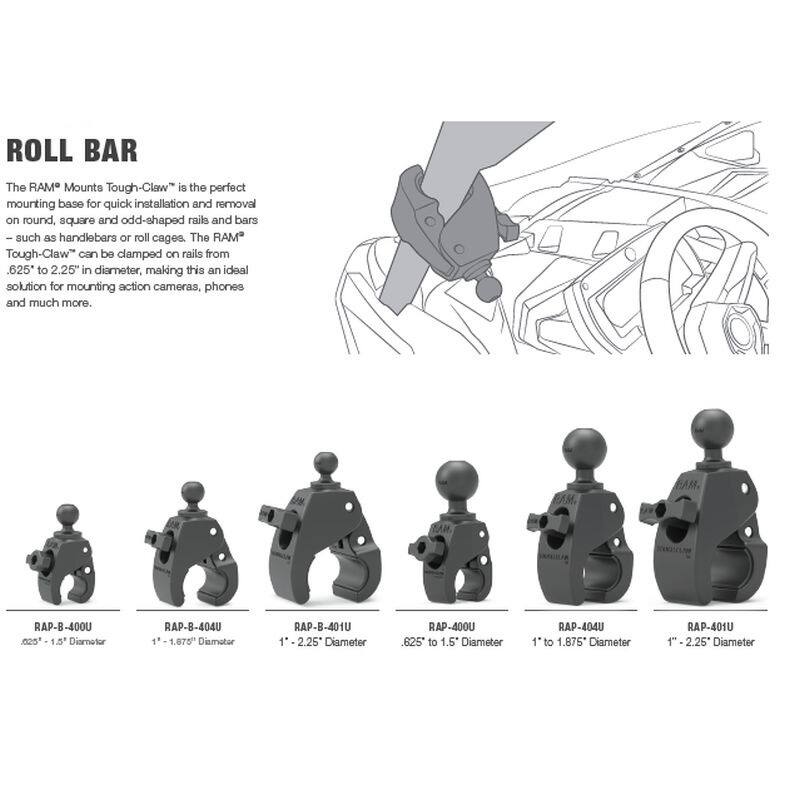

RAP-B-400U SMALL TOUGH CLAW WITH 1" BALL
