RAM-B-121-UN9U Yoke Clamp Mount with Universal RAM® X-Grip® Cradle for 10" Large Tablets
Features
* X-Grip® III clamping cradle expands and contracts for perfect fit for most 10" larger tablets
* Easy access grip knobs on the back of the holder allow for the quick release of your tablet
* Yoke clamp fits yokes, rails and other surfaces from 15.9 to 31.8mm diameter
* RAM® Mounts double socket arm with ball and socket technology allows for near-infinite adjustability
* High Strength Composite, Powder Coated Marine Grade Aluminium & Marine Grade Stainless Steel construction for maximum longevity
* Backed by a lifetime warranty

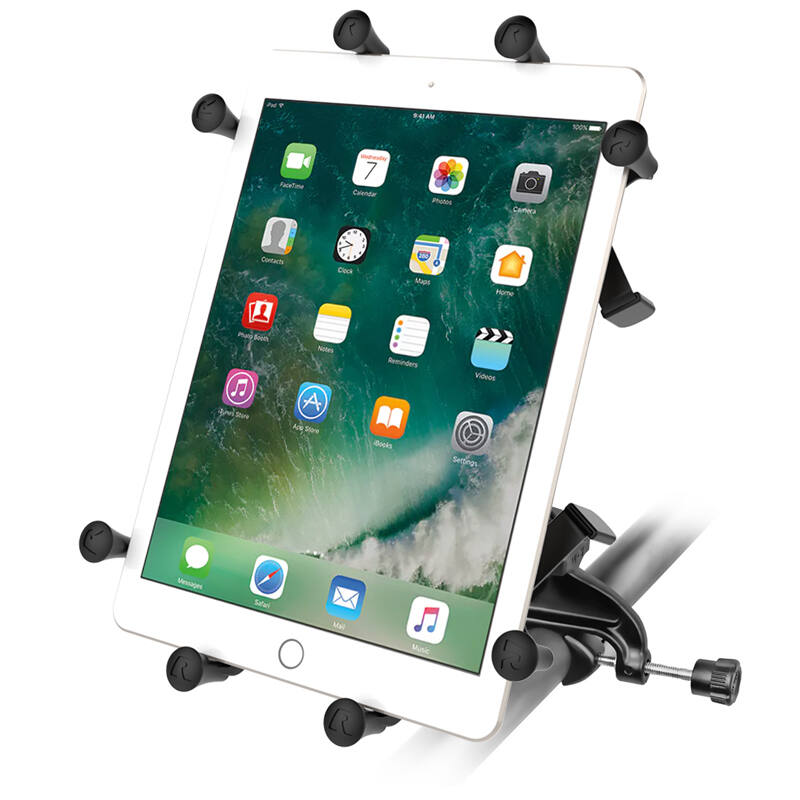

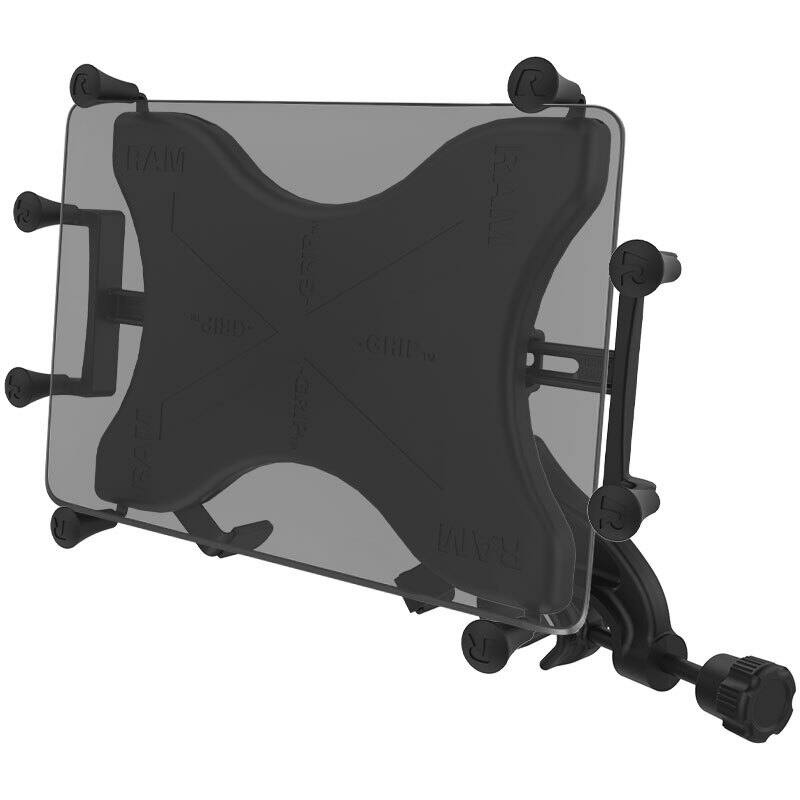

The RAM-B-121-UN9U consists of a yoke clamp base, double socket arm, round adaptor base and universal X-Grip® III clamping cradle for 10" tablets.

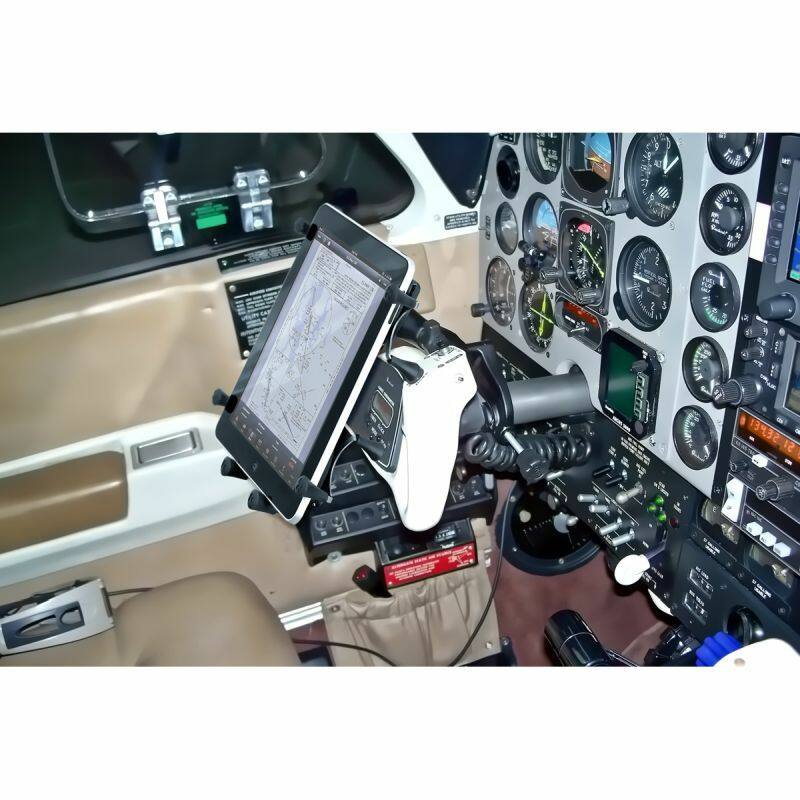

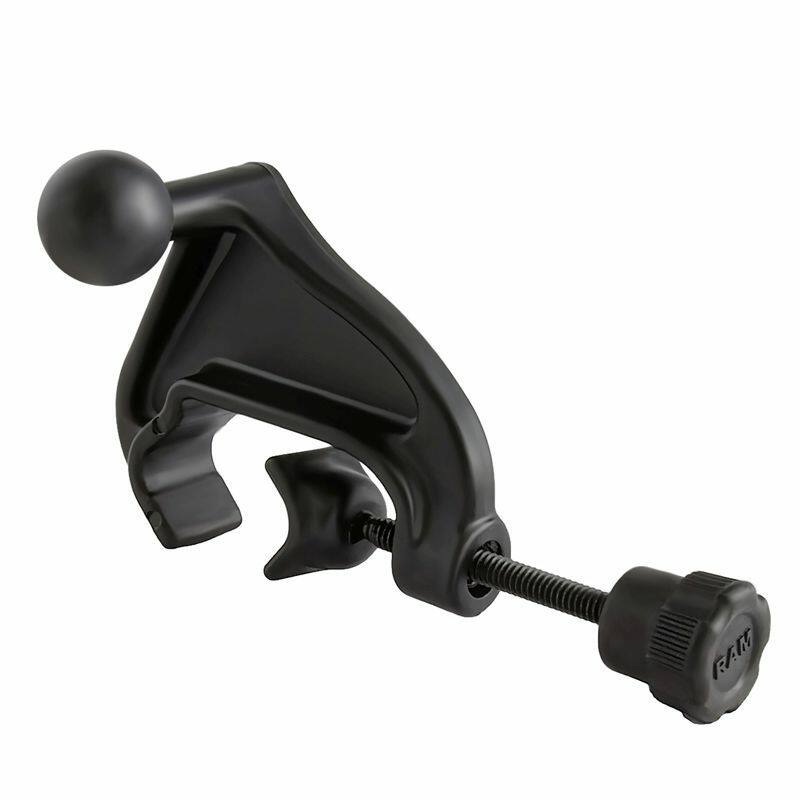

The RAM yoke clamp mount will fit rails from 15.9 to 31.8mm. The 1" rubber ball is at a right angle to the plane of the mount; when connected to a rail, the ball sits parallel to the rail. This G-clamp style mount attaches to a round or near round bar such as a control column yoke but could also fit roll bars or posts. The patented rubber ball and socket system allows for almost infinite adjustment and perfect viewing angles.

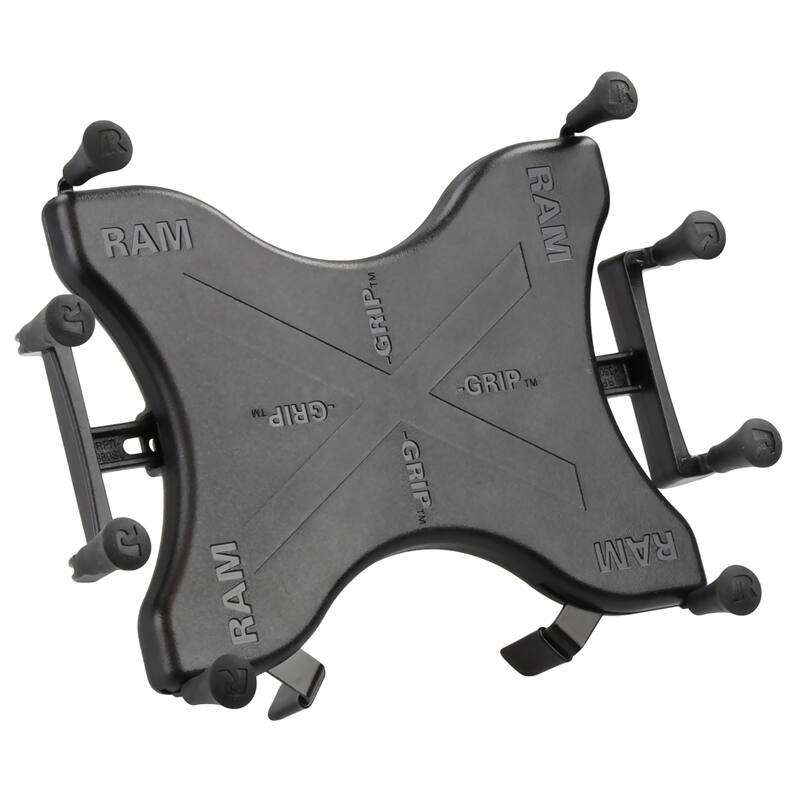

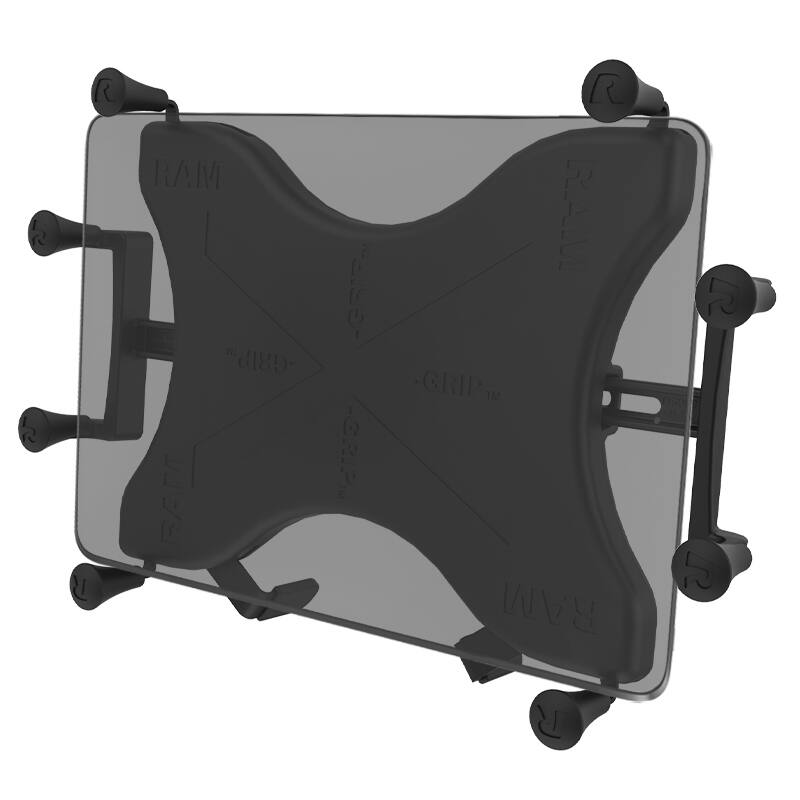

The X-Grip composite spring-loaded cradle has expandable grip arms and additional bottom support keeper. Extra easy access grip knobs are located on the back of the cradle for quick release of your tablet. It expands and contracts for perfect fit of most 10" tablets with / without sleeves, as well as some smaller tablets.
The cradle is compatible with devices that will fit the dimensions listed below.
Cradle Dimensions
Min Width = 158.75mm
Max Width = 205.7mm
Max length with supports 260.4mm (unlimited without supports)
Max Thickness = 22.2mm
Compatible Devices
For a list of many of the compatible devices for this cradle go to our listing for the RAM-HOL-UN9U
Materials
Powder Coated Marine Grade Aluminium
Marine Grade Stainless Steel Component
High Strength Composite
Arm Dimensions:
Overall Length:
94mm (3.69")
Socket-To-Socket Length:
76mm (3")
Weight:
816 grams (1.8 lbs.)

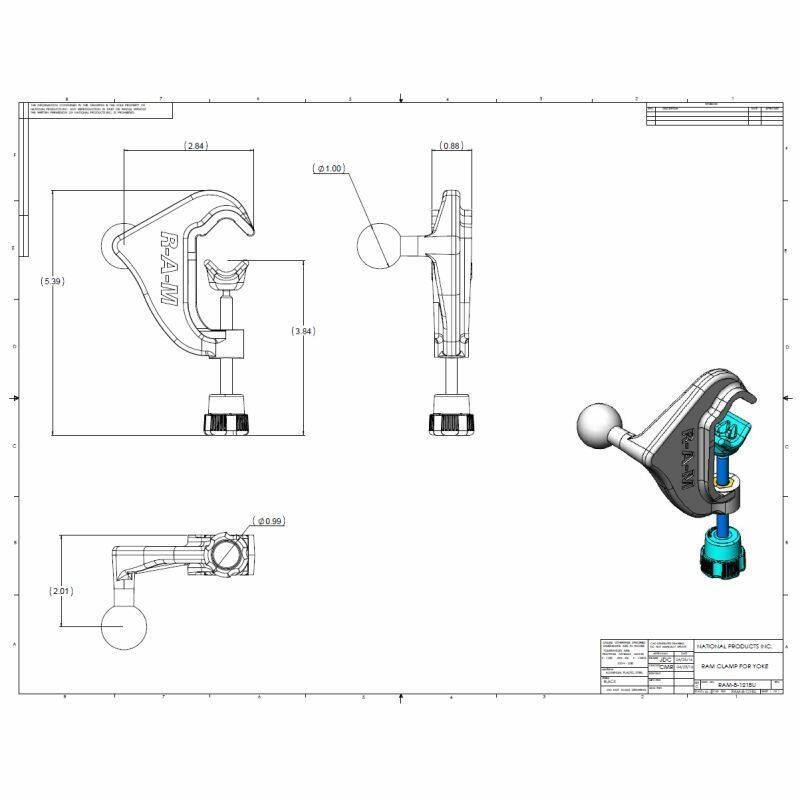

Yoke Clamp Dimensions:
15.9mm to 31.8mm (0.625" to 1.25")
Components:
RAM-B-202U 62mm DIA.BASE
RAM-HOL-UN9U X-GRIP 10" TABLET HOLDER
RAM-B-201U DOUBLE SOCKET ARM
RAM-B-121BAU YOKE CLAMP MOUNT
