RAM X-Grip Universal Cradle for 12-13" Tablets - iPad Pro / Surface Pro with 1" Ball

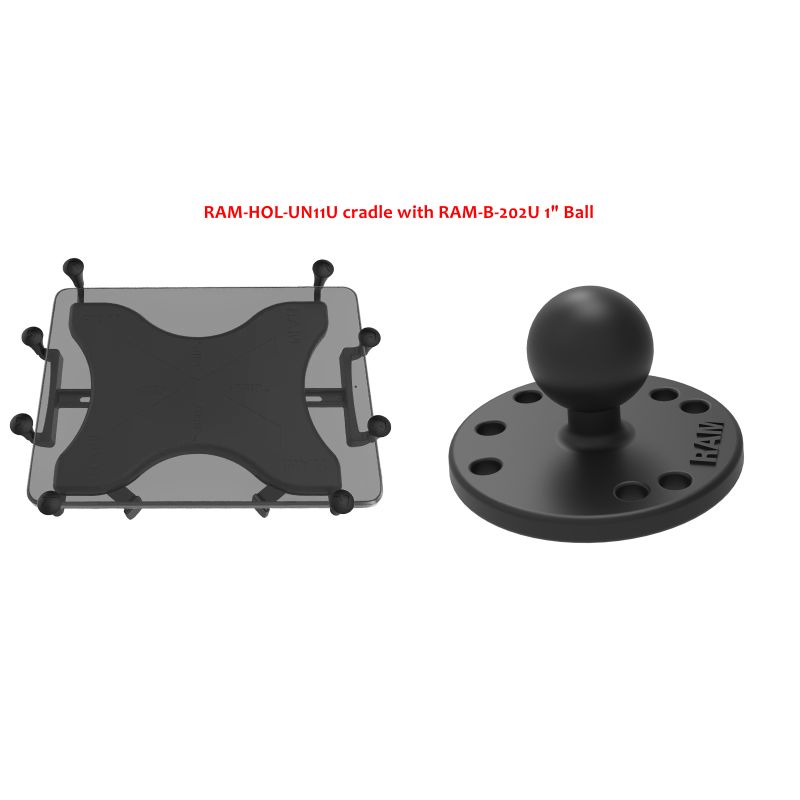

RAM-B-202-UN11U RAM® X-Grip® Universal Holder for 12-13" Tablets with Round Ball Base and 1" Ball

RAM-B-202-UN11U is the RAM® X-Grip® cradle for 12-13" tablets with a B size (1") round ball base pre-attached, ready to connect to any RAM® B-series arm.

Key Features

• Spring-loaded 'X' design with rubber caps grips tablets securely without hiding the screen; fits most 12-13" tablets
• Easy-access grip knobs on the back of the holder allow quick release of the tablet
• Includes a round B-series ball base for connection to any RAM B-series arm
• Made of powder-coated, marine-grade aluminium, stainless steel components, and high-strength composite for durability and reliability in demanding environments
• Backed by a lifetime warranty

The included round base with a 1" ball uses RAM® ball-and-socket technology, allowing near-infinite adjustability to achieve the ideal viewing angle while also extending the life of the device by providing shock and vibration damping. Always check the dimensions of your device with its case, sleeve, or skin against the figures below.

Dimensions & Specifications

• Min width: 184.2mm (7.25")
• Max width: 222.3mm (8.75")
• Max length with optional side supports: 260.4mm (10.25") — unlimited without supports
• Max thickness: 22.2mm (0.875")
• Weight: 543g (1.22 lbs)
• Materials: high-strength composite
• Hole pattern: 4-hole AMPS, 75 x 75mm VESA
• Hardware included: (4) #8-32 x 1/2" sheet metal screws, (2) #8-32 x 5/8" sheet metal screws
• Ball size: B series, 1" — RAM-B-202U

Compatible Devices

12-13" tablets including:

Apple

• iPad Air 13 (M2, M3, M4)
• iPad Pro 12.9 (1st - 6th Gen)
• iPad Pro 13 (M4 & M5)

Dell

• Latitude 5285
• Latitude 7320

Google

• Pixelbook

HP

• Elite X2 1012 G1
• Elite X2 1012 G2
• Pro X2 612
• Pro X2 612 G1

Lenovo

• IdeaTab Lynx K3011
• Miix 720
• Yoga A12

Microsoft

• Surface 3
• Surface Book
• Surface Pro (2017)
• Surface Pro 3
• Surface Pro 4
• Surface Pro 5
• Surface Pro 6
• Surface Pro 7
• Surface Pro 8
• Surface Pro X

Samsung

• Galaxy Book 12"
• Galaxy Pro 12.2
• Galaxy Tab S10 FE
• Galaxy Tab S10 Lite Plus
• Galaxy Tab S10 Ultra
• Galaxy Tab S8 Ultra
• Galaxy TabPro S

Zebra

• R12 XSLATE

Videos

• X-Grip® cradle overview

FAQs

I don't see my tablet listed under Compatible Devices — how do I know if it'll fit?
Measure your tablet (with its case, sleeve, or skin) against the dimensions in the Dimensions & Specifications section above. If it falls within those ranges, it'll fit.

The spec sheet shows a 10.25" max height — can I use a taller tablet?
Yes. The 260.4mm (10.25") max height only applies when the optional side support arms are fitted. Leave one arm off and the cradle can accommodate a taller tablet.

Can I mount this to an existing bicycle mount?
Yes — this kit includes the RAM-B-202U round plate with B size (1") ball pre-attached. As long as your existing mount uses a B size attachment, you can connect it directly.

If I leave off the optional side support arms, can I still use the tablet in portrait orientation?
In light-duty or static setups, yes. For anything more demanding, keep at least one support arm under the tablet in portrait mode to stop it sliding down over time.
