RAM X-Grip Universal Cradle for 12-13" Tablets - iPad Pro / Surface Pro with 2.25" Ball

RAM-D-254-UN11U RAM® X-Grip® Universal Holder for 12-13" Tablets with D Series Ball

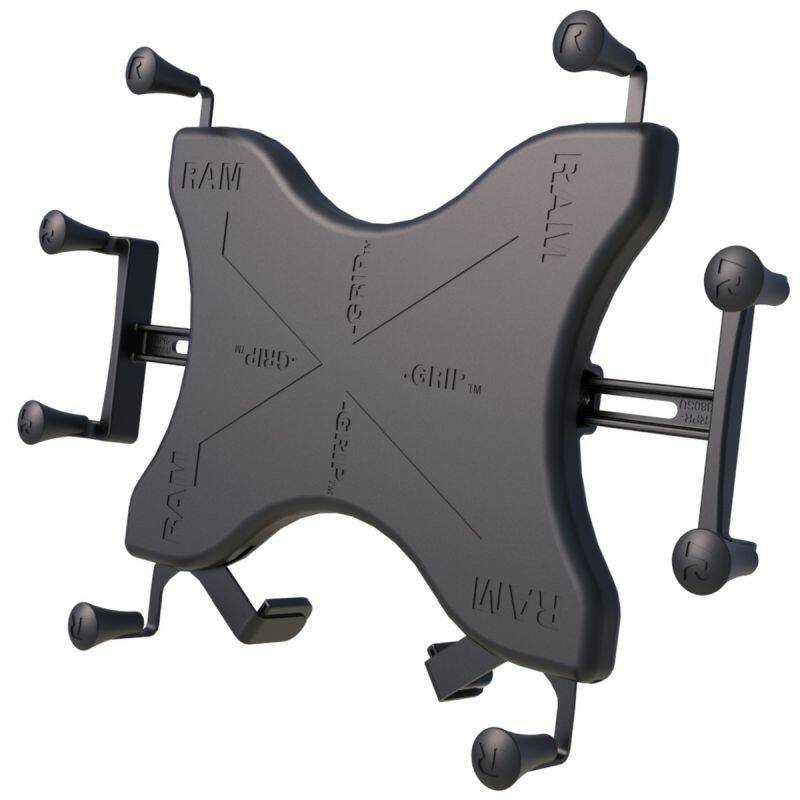

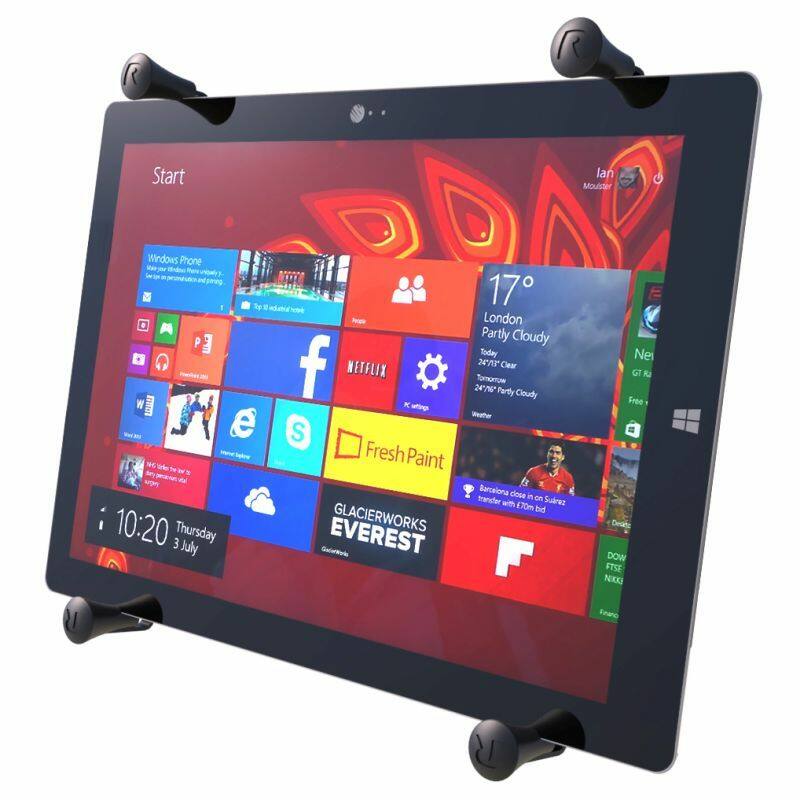

The RAM-D-254-UN11U is a spring-loaded X-Grip® cradle for 12-13" tablets, fitted with a round base and D Series 2.25" rubber ball. The expanding 'X' design holds your tablet securely without covering the screen, even with a case on, and connects to any D size RAM® double socket arm.

Key Features

• Spring-loaded X-Grip® design with rubber caps, fits most 12-13" tablets without hiding the screen

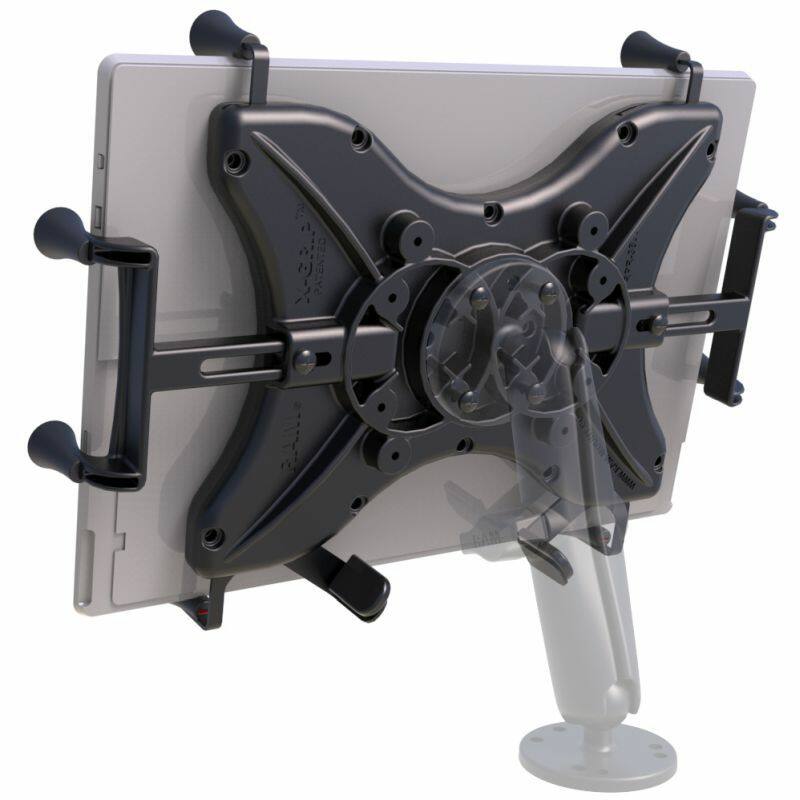

• Easy-access grip knobs on the back of the holder for quick tablet release
• Round base with D Series 2.25" ball connects to any D size RAM® double socket arm
• RAM® ball-and-socket technology for near-infinite adjustability, with shock and vibration damping
• Powder-coated marine-grade aluminium, stainless steel components and high-strength composite
• Backed by a lifetime warranty

Dimensions & Specifications

• Min width: 184.2mm (7.25")
• Max width: 222.3mm (8.75")
• Max length with supports: 260.4mm (10.25"); unlimited without supports
• Max thickness: 22.2mm (0.875")
• Hole patterns: 4-hole AMPS, 75 x 75mm VESA
• Ball size: D Series 2.25"
• Material: high-strength composite, marine-grade aluminium, stainless steel
• Weight: 747 grams (1.67 lb)

Hardware Included

• (4) #8-32 x 1/2" sheet metal screws
• (2) #8-32 x 5/8" sheet metal screws

Compatible Devices

Check your device's dimensions, including any case, sleeve or skin, against the measurements above before ordering.

Apple

• iPad Pro 12.9 (1st–6th Gen)

Dell

• Latitude 5285

Google

• Pixelbook

HP

• Elite X2 1012 G1, G2
• Pro X2 612, 612 G1

Lenovo

• IdeaTab Lynx K3011
• Miix 720
• Yoga A12

Microsoft

• Surface 3
• Surface Book
• Surface Pro (2017)
• Surface Pro 3
• Surface Pro 4
• Surface Pro 5
• Surface Pro 6
• Surface Pro 7
• Surface Pro 8
• Surface Pro X

Samsung

• Galaxy Book 12"
• Galaxy Pro 12.2
• Galaxy TabPro S
• Galaxy Tab S8 Ultra

Zebra

• R12 XSLATE

FAQs

How fast does it ship? If it's shown in stock here, it ships from our Auckland warehouse, normally within one business day. If it's shown as out of stock, get in touch and we may be able to get it in for you.

I don't see my tablet listed. How do I check it will fit?
Measure your tablet (with any case, sleeve or skin) against the dimensions in the Dimensions & Specifications section above. If it falls within that range, it will fit.

The maximum length is listed as 10.25". Can I use a taller tablet?
Yes — that limit only applies when using the optional side support arms. Leave at least one arm off and the holder can support taller tablets.

Can I mount this to an existing bicycle mount?
The D Series ball is designed for industrial use. A B Series mount is better suited to a cycling environment.

If I leave off the side support arms, can I still use the tablet in portrait orientation?
In a light-duty or static setup, yes. Otherwise we'd recommend at least one support arm positioned under the tablet in portrait mode, to stop it sliding down over time.

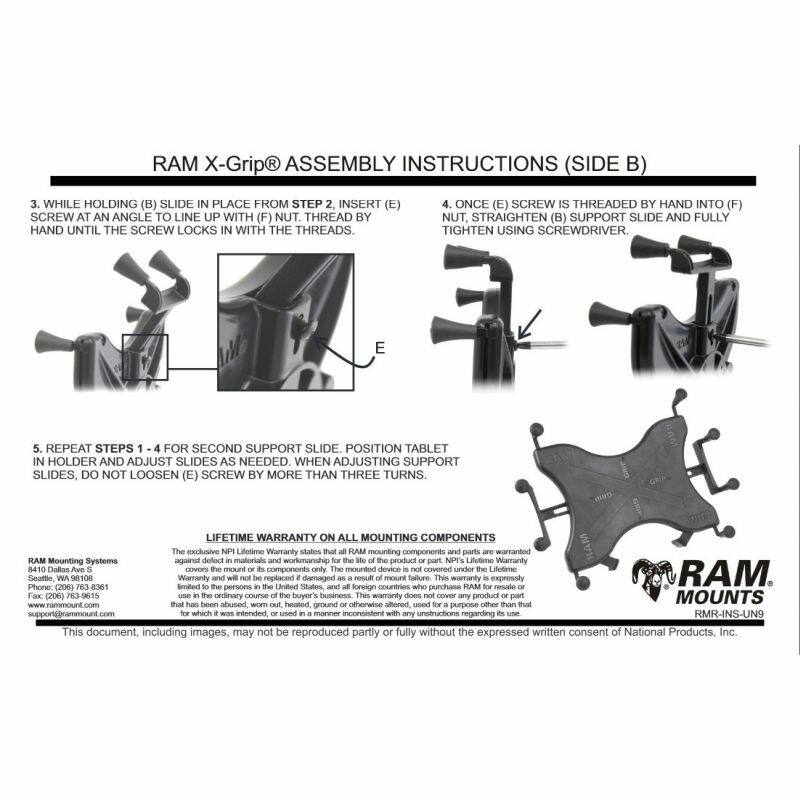

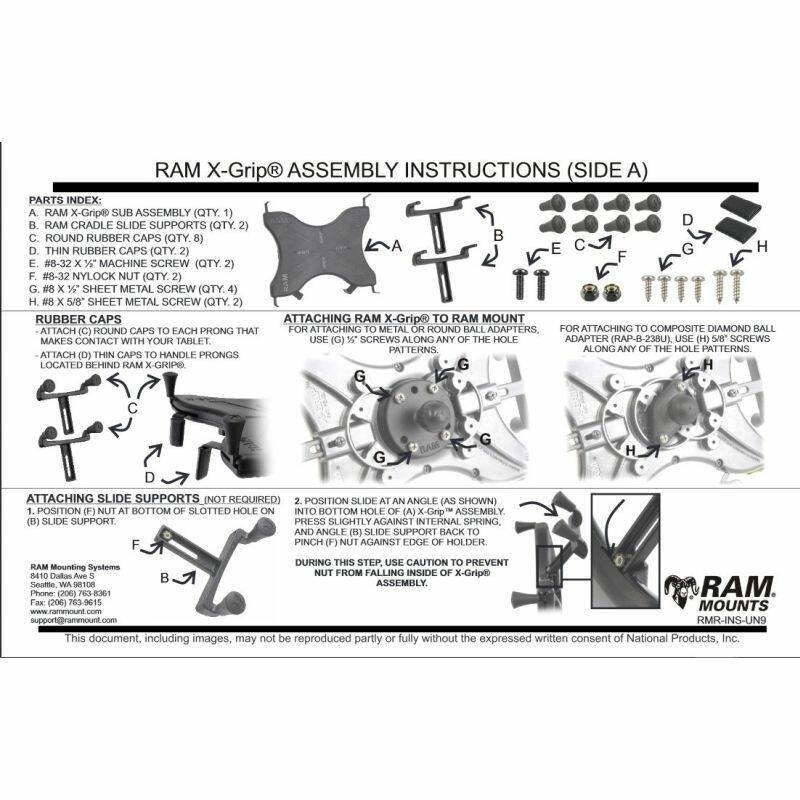

Installation Video
