RAM-HOL-UN11U RAM® X-Grip® Universal Holder for 12" Tablets
Features
* Spring-loaded 'X' design with rubber caps sports great holding power without hiding your tablet; fits most 12" tablets

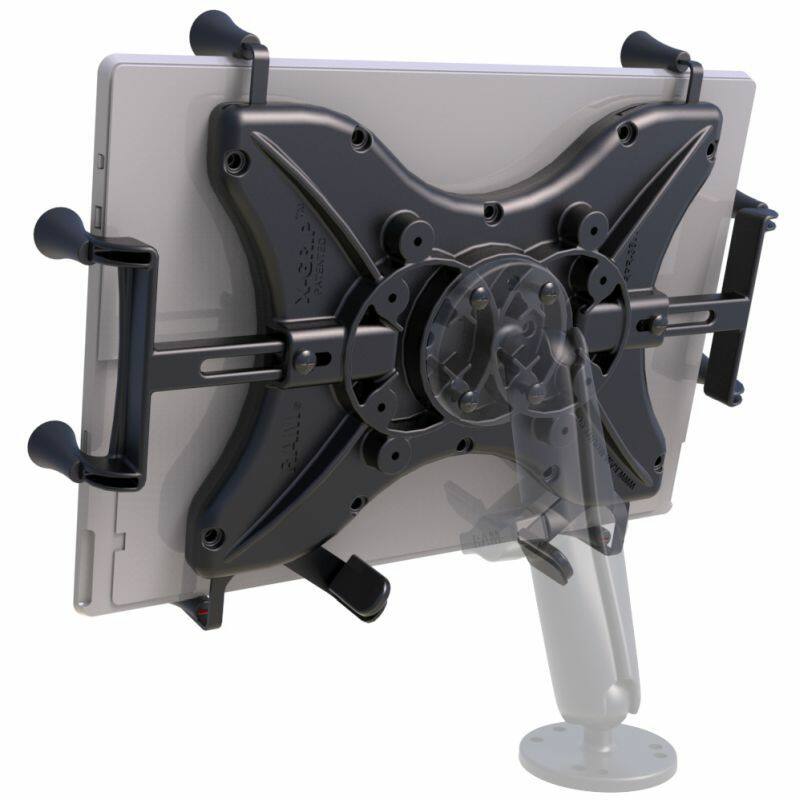

* Easy access grip knobs on the back of the holder allow for the quick release of your tablet
* Made of powder-coated, marine-grade aluminium, stainless steel components, and high-strength composite for durability and reliability in the most demanding environments
* Backed by a lifetime warranty
The RAM® X-Grip® universal holder for 12" tablets features an 'X' design that expands and contracts to provide a perfect fit for your device – even if it's in a case. Included are easy access grip knobs located on the back of the cradle for quick release of your tablet. he RAM® ball and socket technology allows for near-infinite adjustability to achieve the ideal viewing angle – while also extending the life of your phone by providing shock and vibration damping. This version of the RAM® X-Grip® holder is compatible with tablets that will fit the dimensions listed below.
Please check the dimensions of device with its case, sleeve, or skin when determining the overall size.
Cradle Dimensions
Min Width = 184.2mm (7.25”)
Max Width = 222.3mm (8.75”)
Max Length with supports 260.4mm (10.25”) (unlimited without supports)
Max Thickness = 22.2mm (0.875")
Compatible Devices
12" Tablets including:
Apple
iPad Pro 12.9 (1st - 6th Gen)
Dell
Latitude 5285
Google
Pixelbook
HP
Elite X2 1012 G1, G2
Pro X2 612, 612 G1
Lenovo
IdeaTab Lynx K3011
Miix 720
Yoga A12
Microsoft
Surface 3
Surface Book
Surface Pro (2017)
Surface Pro 3
Surface Pro 4
Surface Pro 5
Surface Pro 6
Surface Pro 7
Surface Pro 8
Surface Pro X
Samsung
Galaxy Book 12"
Galaxy Pro 12.2
Galaxy TabPro S
Galaxy Tab S8 Ultra
Zebra
R12 XSLATE

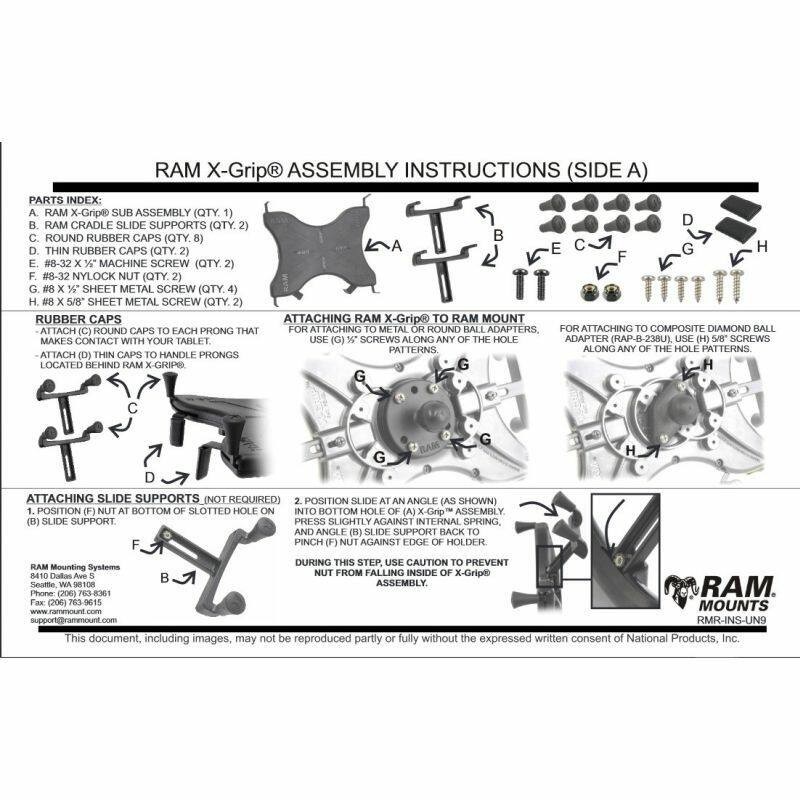

Hardware included
Assembly Hardware
(4) #8-32 x 1/2" Sheet Metal Screws
(2) #8-32 x 5/8" Sheet Metal Screws
Hole Patterns
4-Hole AMPS
75 x 75mm VESA
Materials
High strength composite
Weight:
485 grams (1.07lbs)
YouTube:
https://www.youtube.com/watch?v=EmCOIzDwOxI&t=1s
QUESTIONS & ANSWERS
Q: I don't see my tablet listed in the compatibility section for this cradle. How can I make sure my tablet is compatible before placing an order?
A: You can find a list of compatible dimensions for this holder in the product information section. If you want to make sure your tablet will fit in this holder you can measure your tablet to make sure it falls within the compatible dimensions.
Q: This part says it has a maxium height of 10.25". Is it possible to use this cradle with a tablet that is taller than that?
A: Yes, the maximum height that is listed only applies if you are using the option side support arms. If you leave at least one of those arms off of the mount it will be able to support taller tablets.
Q: Can I mount this to an existing bicycle mount?
A: The RAM-HOL-UN11U typically requires a B or C size round plate with ball to be screwed into it to serve as an attachment point. As long as your current mount uses either the B or C size components then yes, you can attach the X-Grip for large tablets to that mount.
Q: Is the B-size ball included or does this need to be ordered separately?
A: The RAM-HOL-UN11U does not come with a RAM-B-202U, the round plate with B size ball must be purchased separately.
Q: If I leave off the optional side support arms, can I still use the tablet in the portrait orientation?
A: If it is in a very light duty or static environment then it should work fine with out the support arms, but otherwise there would need to be at least one support arm positioned under the tablet while in tablet mode to keep it from moving downward over time.
