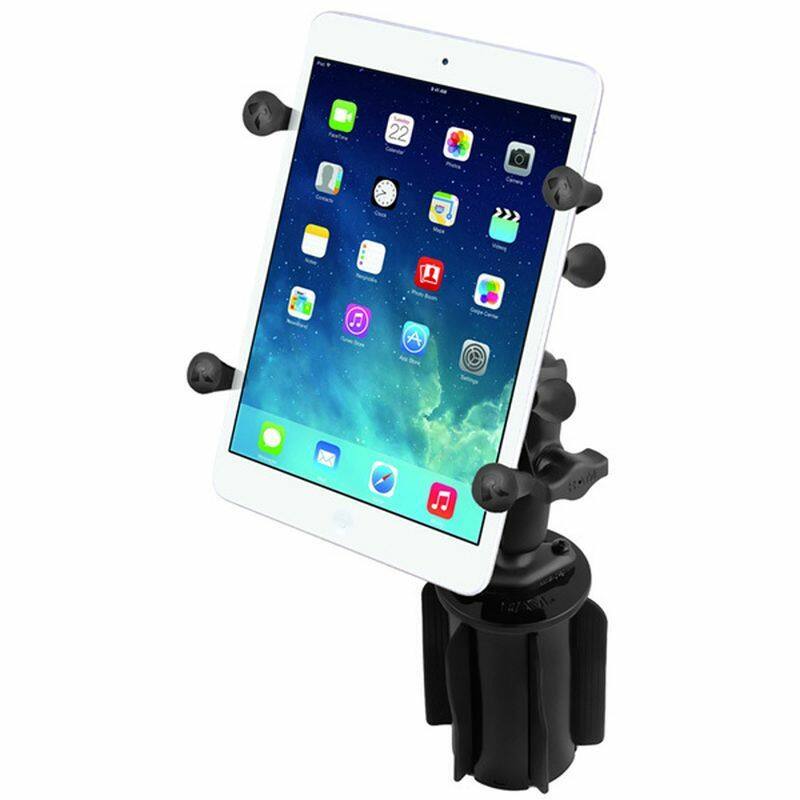

RAP-299-3-UN8U RAM-A-CAN™ II Universal Cup Holder Mount with Universal X-Grip® Cradle for 7"-8" Tablets
Features
* Spring-loaded 'X' design with rubber caps sports great holding power without hiding your tablet; fits most 7"-8" tablets
* Easy access grip knobs on the back of the holder allow for the quick release of your tablet
* RAM-A-CAN base allows for fast installation / removal
* Stable and secure base which is clear of windscreen
* RAM® Mounts double socket arm; ball and socket technology allows for near-infinite adjustability
* Backed by a lifetime warranty

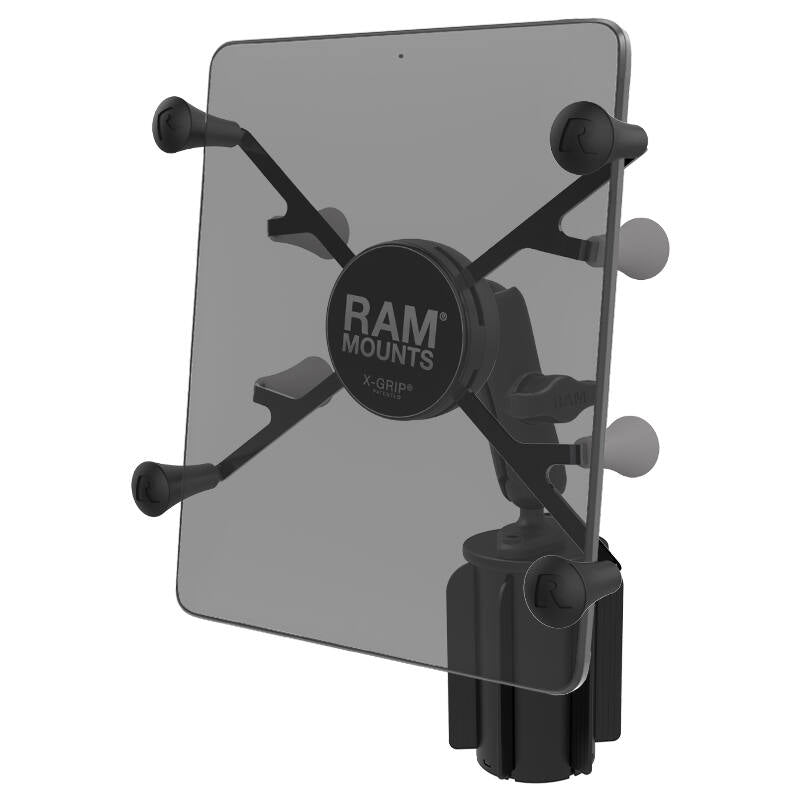

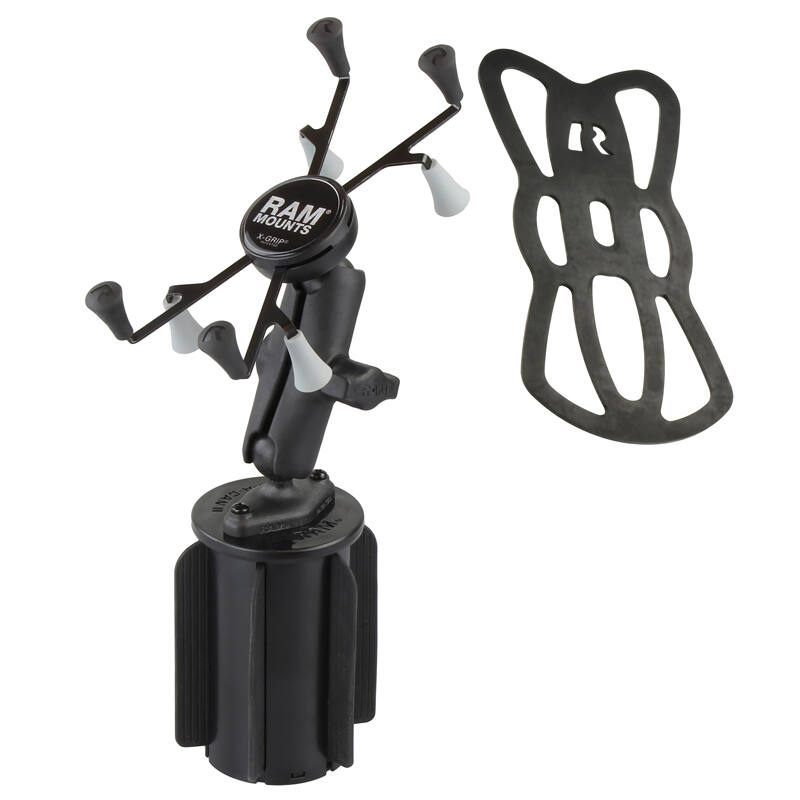

This mount consists of the RAM-A-CAN™ cup holder base, composite double socket system and universal spring loaded X-Grip® cradle.

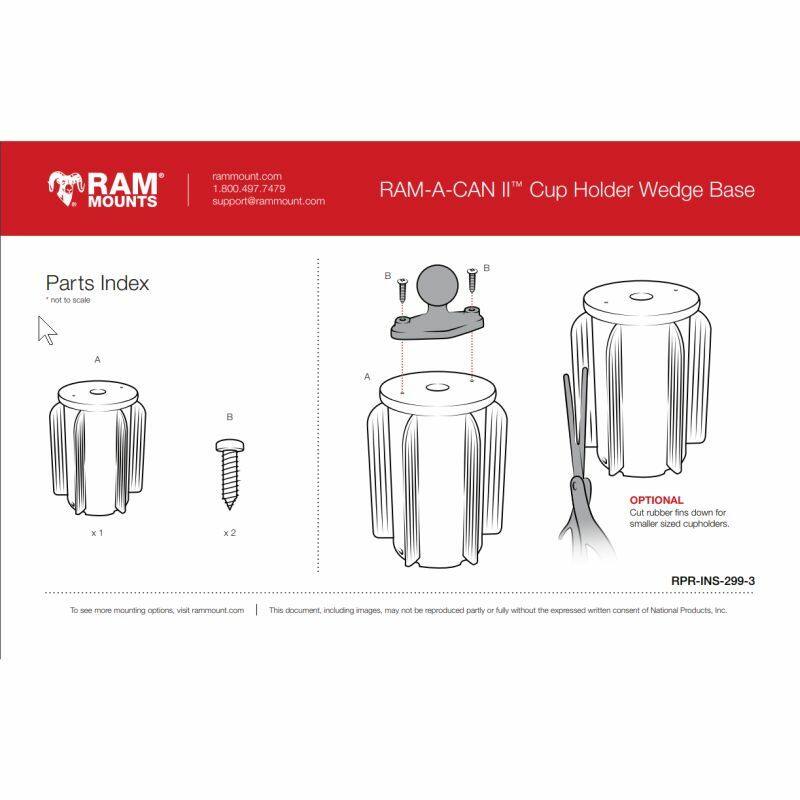

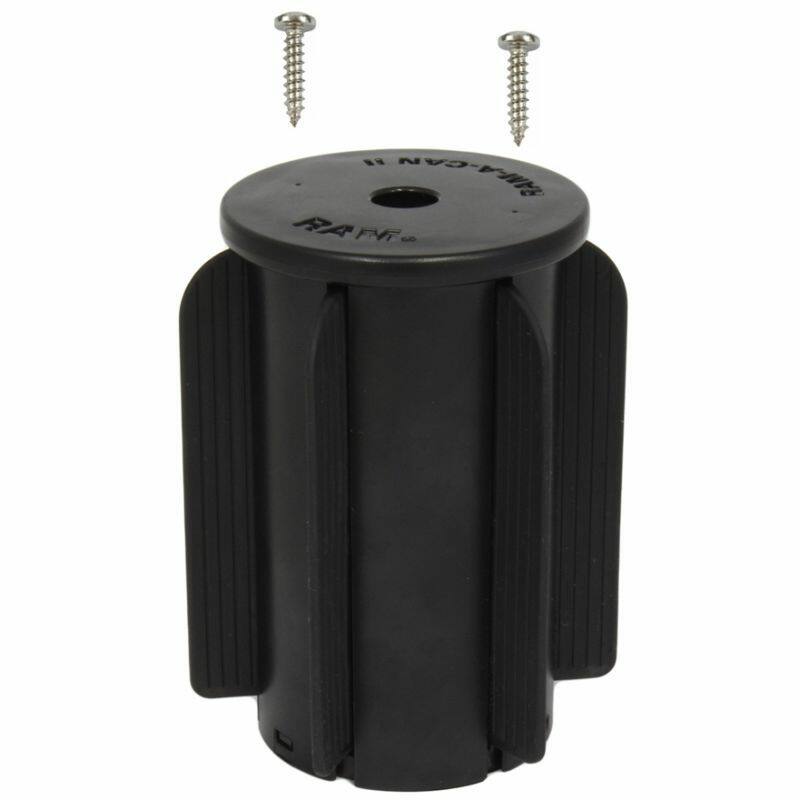

The cup holder base includes a 6" flex mounting feature. A durable composite shell construction and soft fins that can be trimmed to fit makes the cup holder mount one of the most portable and versatile “Go Anywhere” products offered. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles.

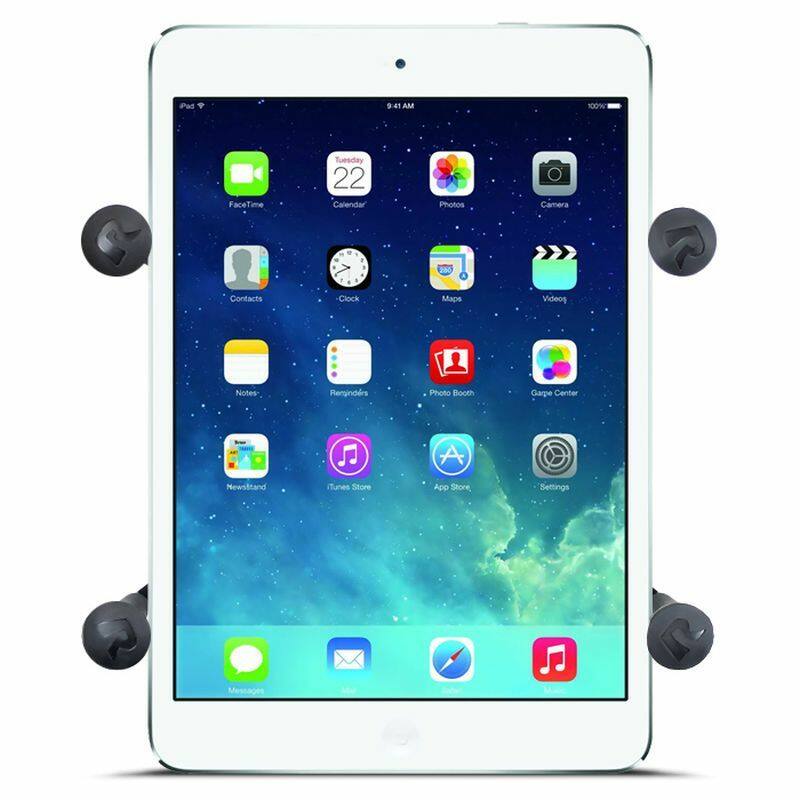

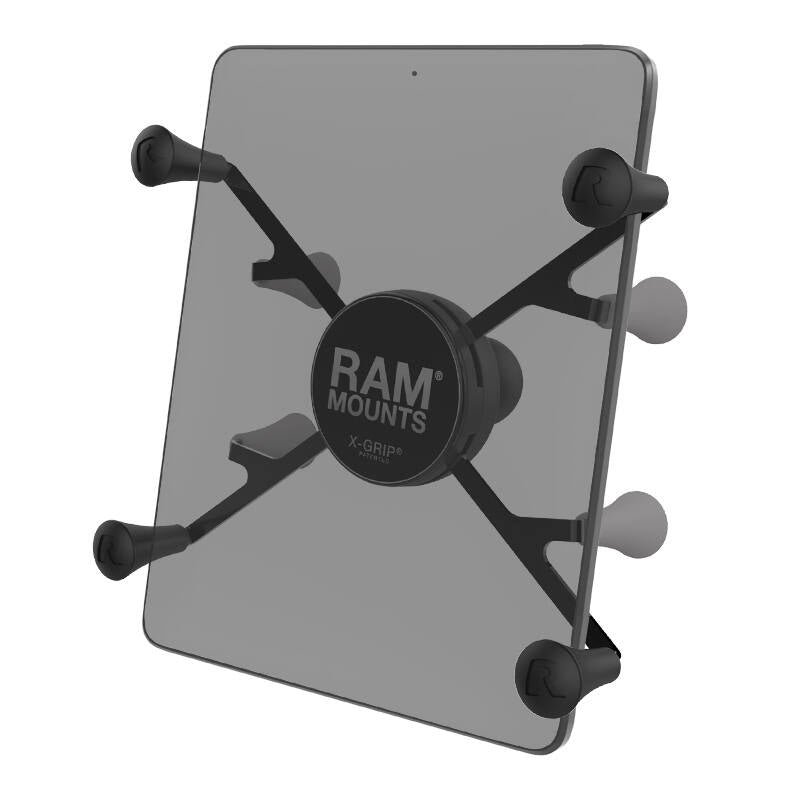

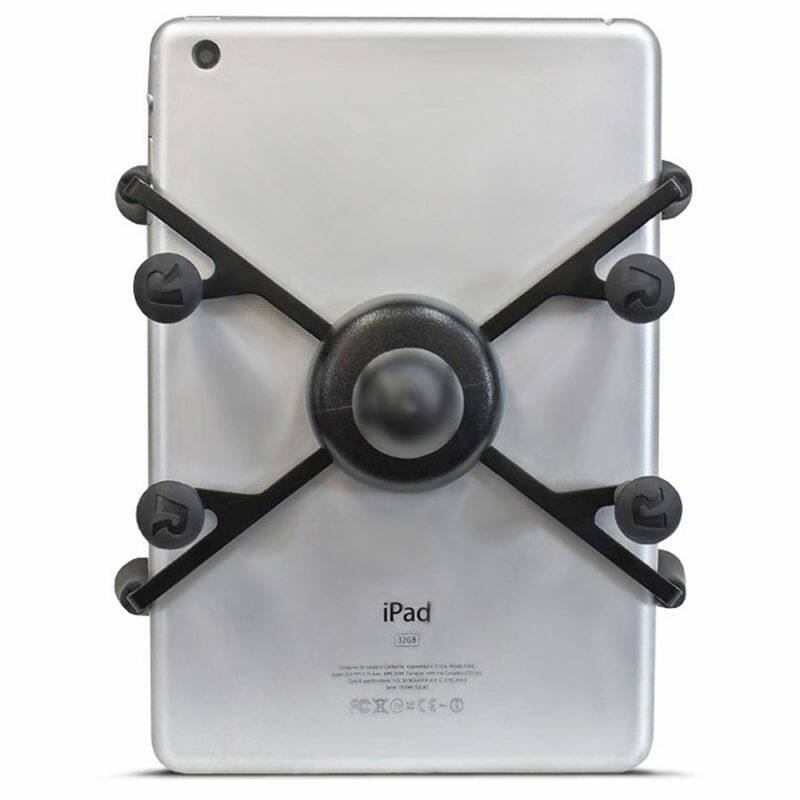

The included -UN8 X-Grip consists of a spring-loaded cradle and 1" rubber ball connected to the back of the base. Included are extra easy access grip knobs, located on the back of the cradle for quick release of your tablet.

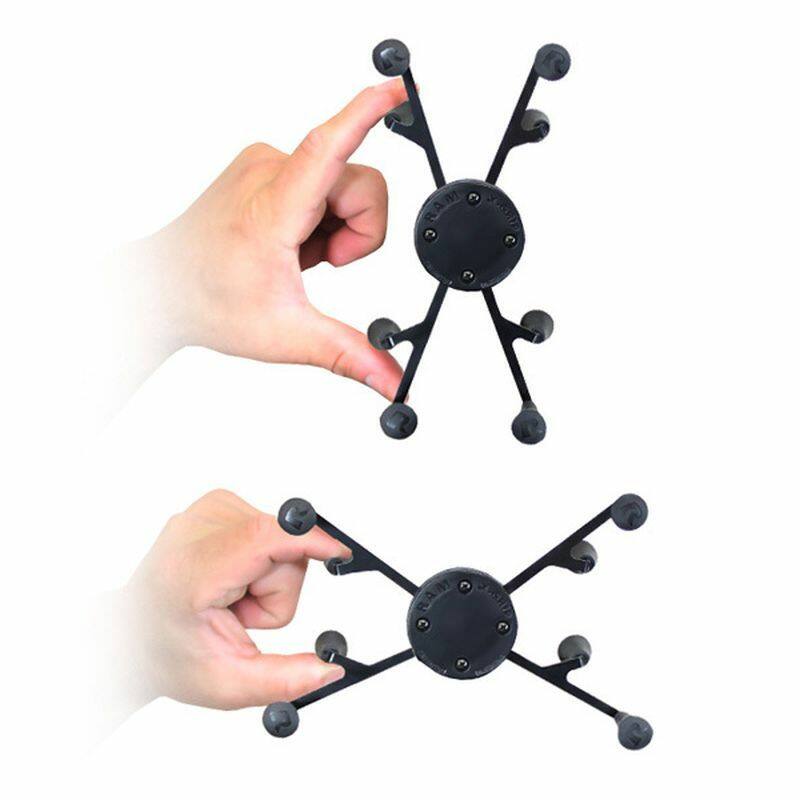

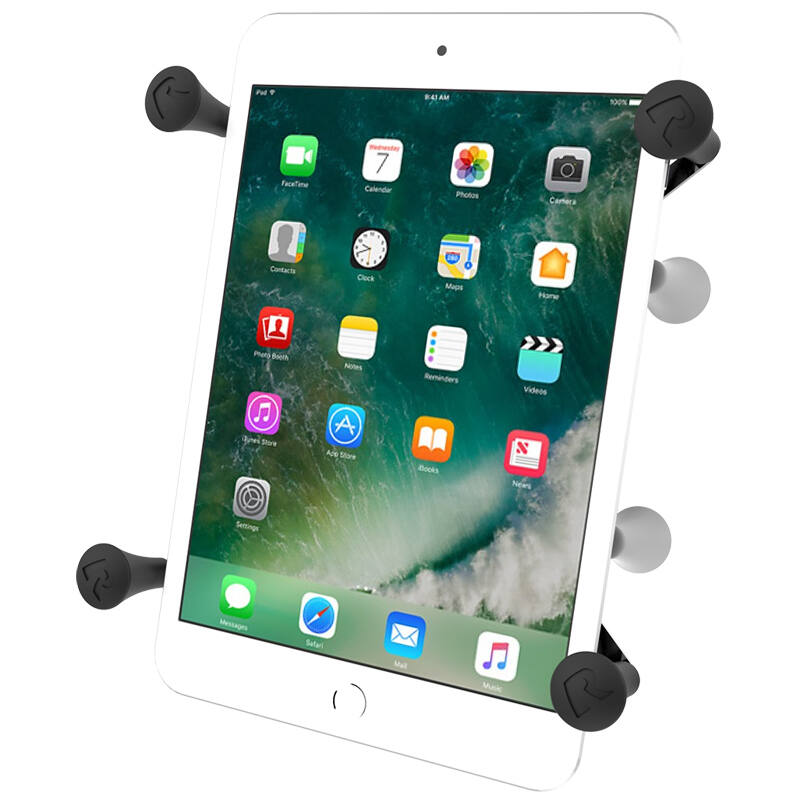

The cradle expands and contracts for perfect fit of most 7"-8" tablets.

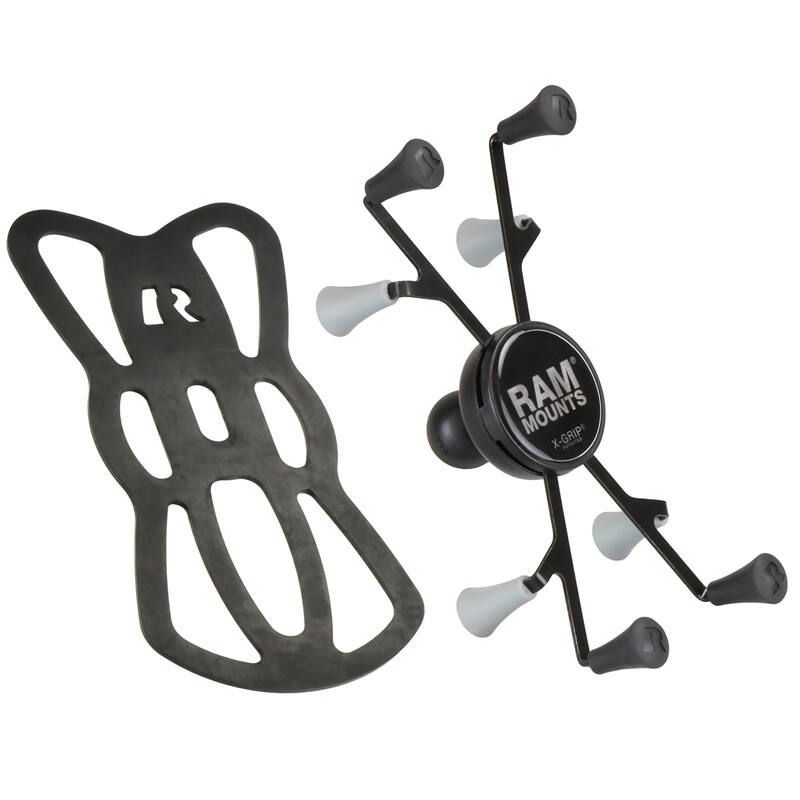

The X-Grip® includes a device tether recommended for outdoor applications.
The cradle is compatible with devices that will fit the dimensions listed below. It is important to verify the dimensions of your device with a case/sleeve/skin when determining the overall size.
Cradle Dimensions

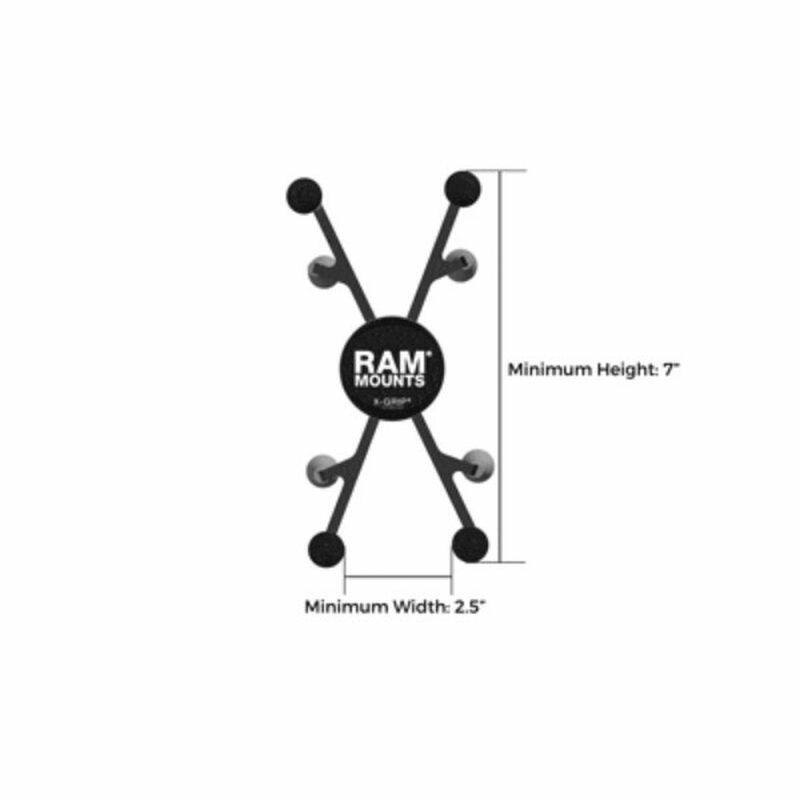

Minimum Width = 63.5mm (2.5") (Minimum Height = 177.8mm / 7")

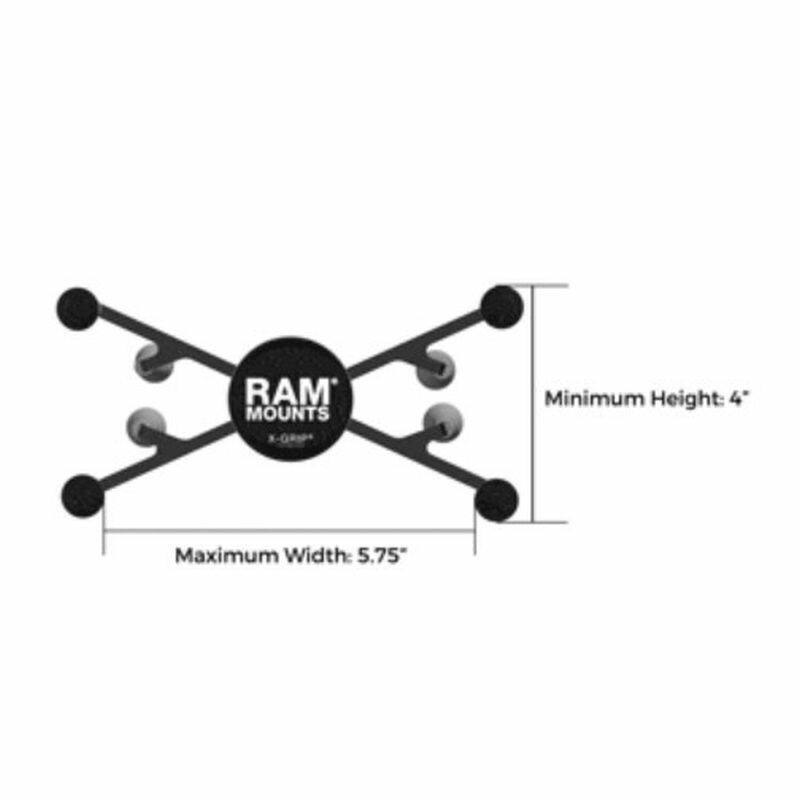

Maximum Width = 146mm (5.75") (Minimum Height = 101.6mm / 4")
Depth = 22.22mm (0.875")
Compatible Devices (WITH OR WITHOUT CASE):
7"-8" Tablets - For a list of many of the compatible devices for this cradle go to our listing for the RAM-HOL-UN8BU
Arm Dimensions:
Overall Length:
94mm (3.69")
Socket-To-Socket Length:
76mm (3")
Cup Holder Base Dimensions
Fits cup holders between 65.2 to 88.9mm (2.57 - 3.5") inside diameter
Material:
Marine Grade Stainless Steel Components
High Strength Composite
Ball Size:
1" Rubber Ball "B" Size
Weight:
830 grams (1.83 lbs.)
Components:
RAM-HOL-UN8BU - X Grip
RAP-B-201U - Composite double socket arm
RAP-B-238U - Composite diamond base
RAP-299-3U - RAM-A-CAN base
