RAM-B-138-UN8U RAM® X-Grip® Universal Drill-Down Mount for 7"-8" Tablets
Features
* Spring-loaded 'X' design features rubber caps and sports great holding power without hiding your tablet; fits most 7"-8" tablets
* Includes drill-down 2.5" round base and medium length, B size RAM® double socket arm; ball and socket technology allows for near-infinite adjustability
* Made of powder-coated, marine-grade aluminum, stainless steel components, and high-strength composite for durability and reliability in the most demanding environments
* Backed by a lifetime warranty

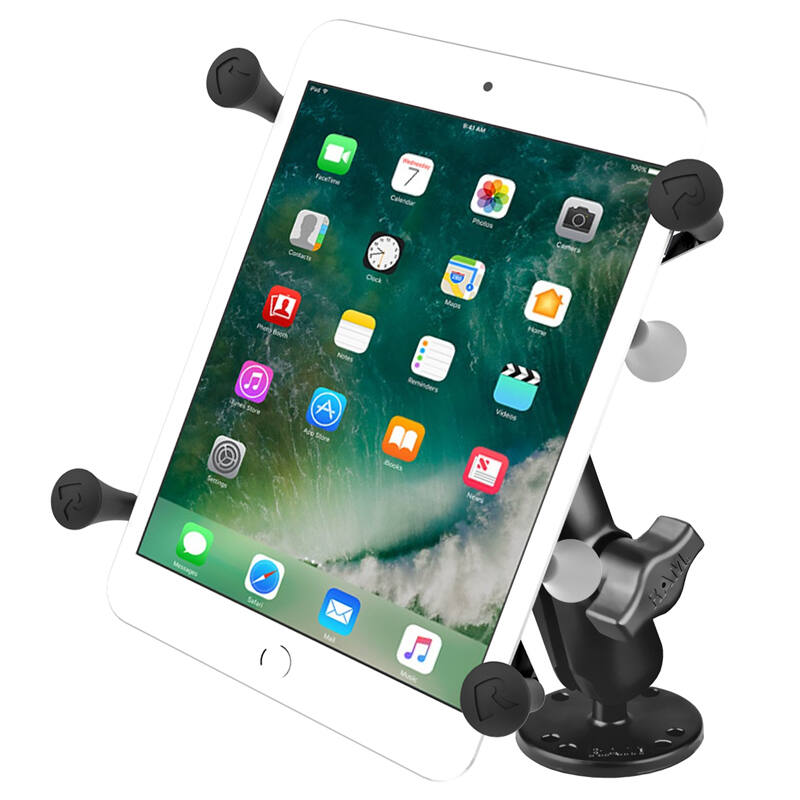

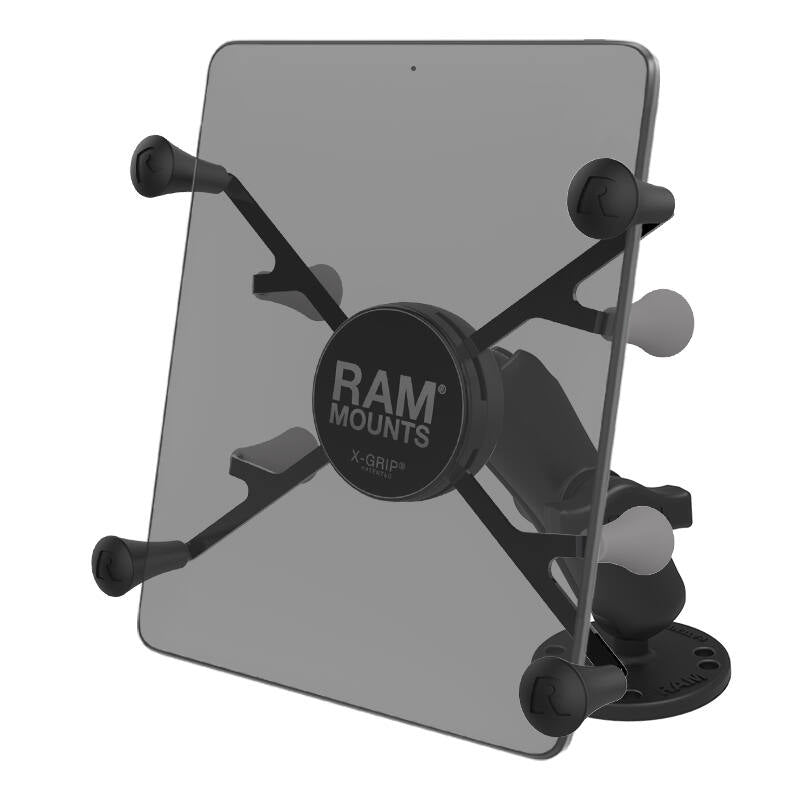

The RAM-B-138-UN8 consists of a 64mm diameter round base with double socket arm and universal RAM® X-Grip® for 7"-8" tablets. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm which allows for almost infinite adjustment and perfect viewing angles.

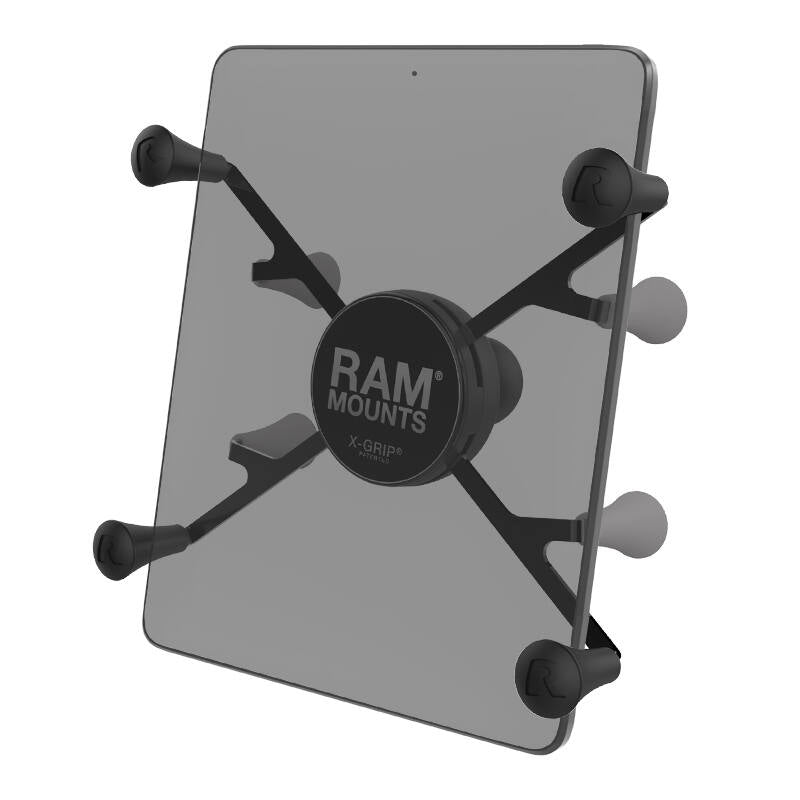

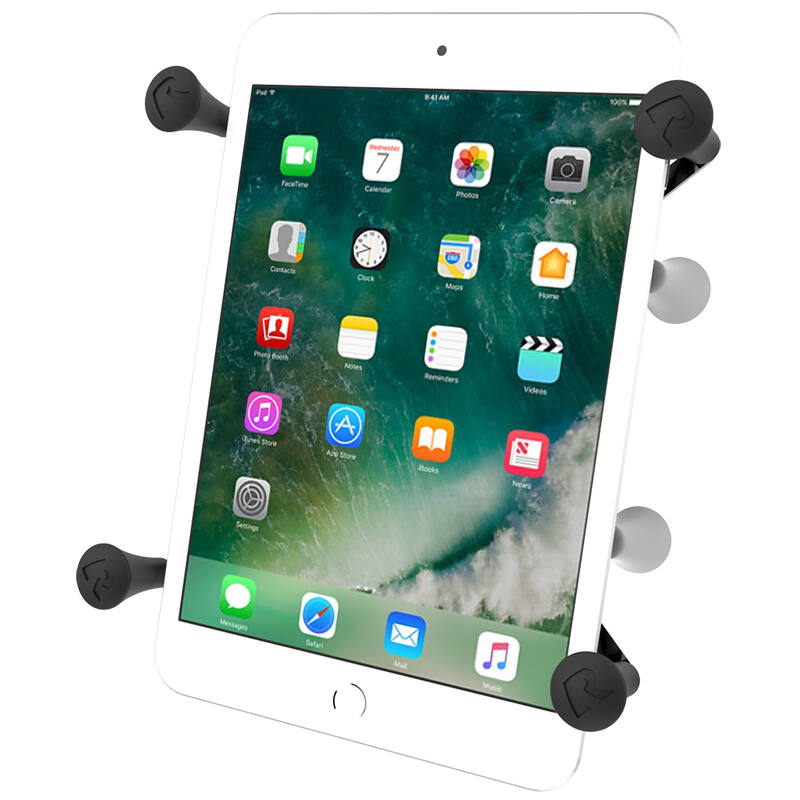

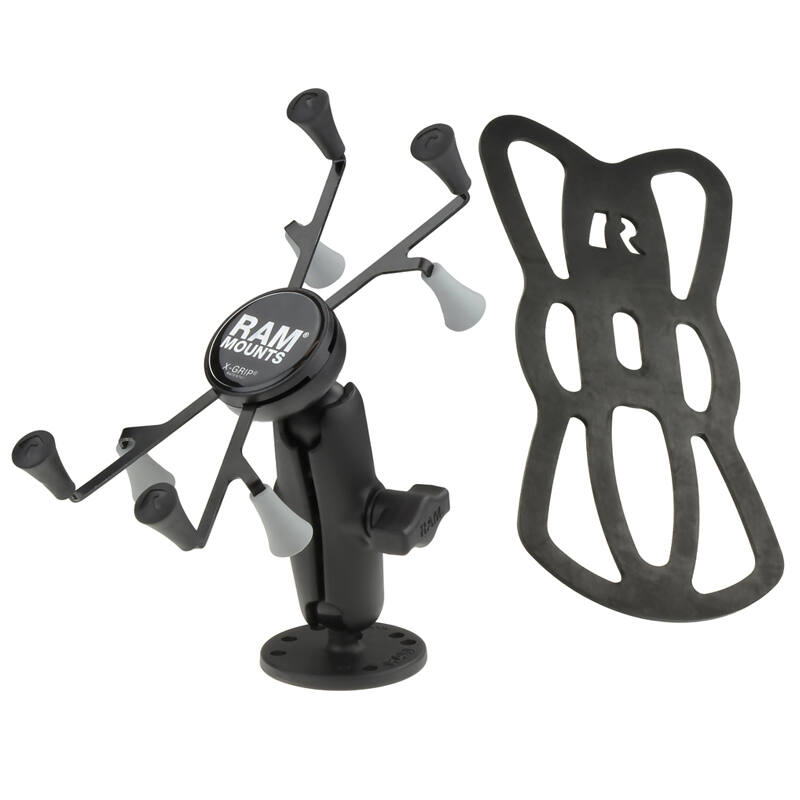

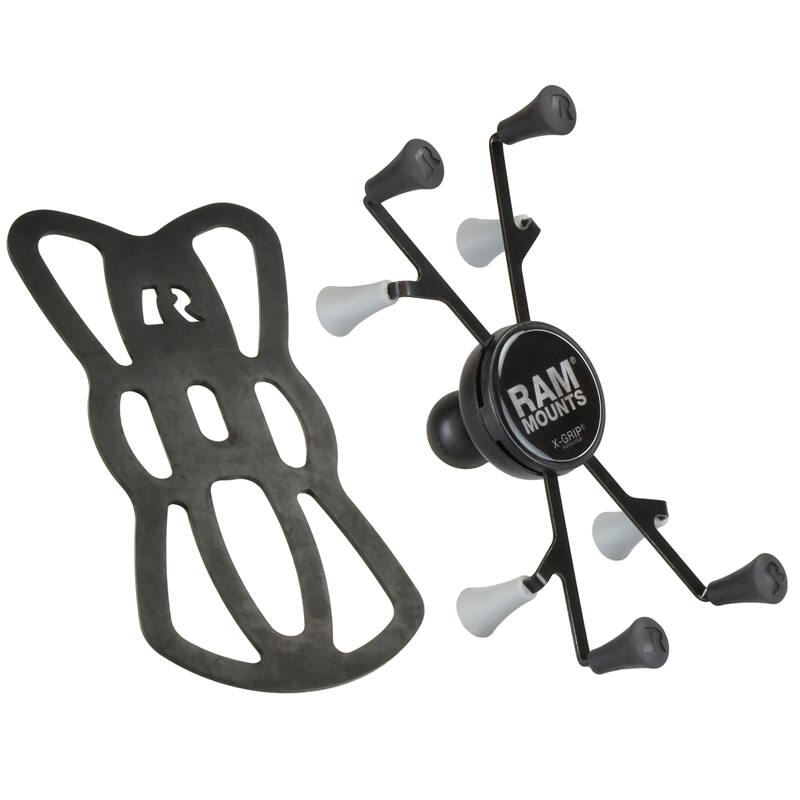

The X-Grip® spring-loaded cradle includes extra easy access grip knobs, located on the back of the cradle for quick release of your tablet. The X-Grip® expands and contracts for perfect fit of most 7"-8" tablets and includes a device tether recommended for outdoor applications.
The cradle is compatible with devices that will fit the dimensions listed below. Check the dimensions of your device with a case/sleeve/skin when determining the overall size.

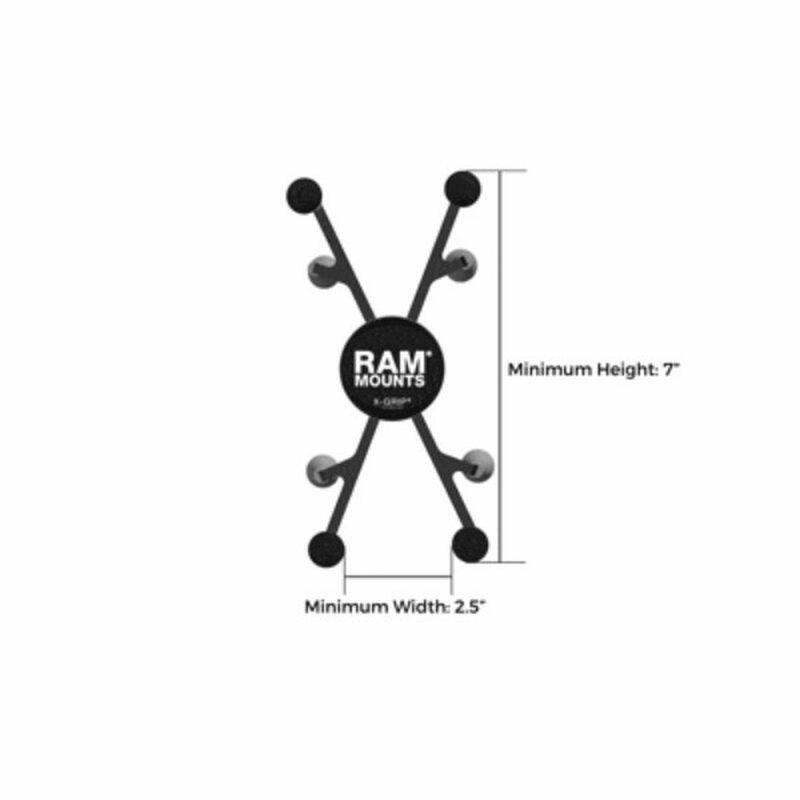

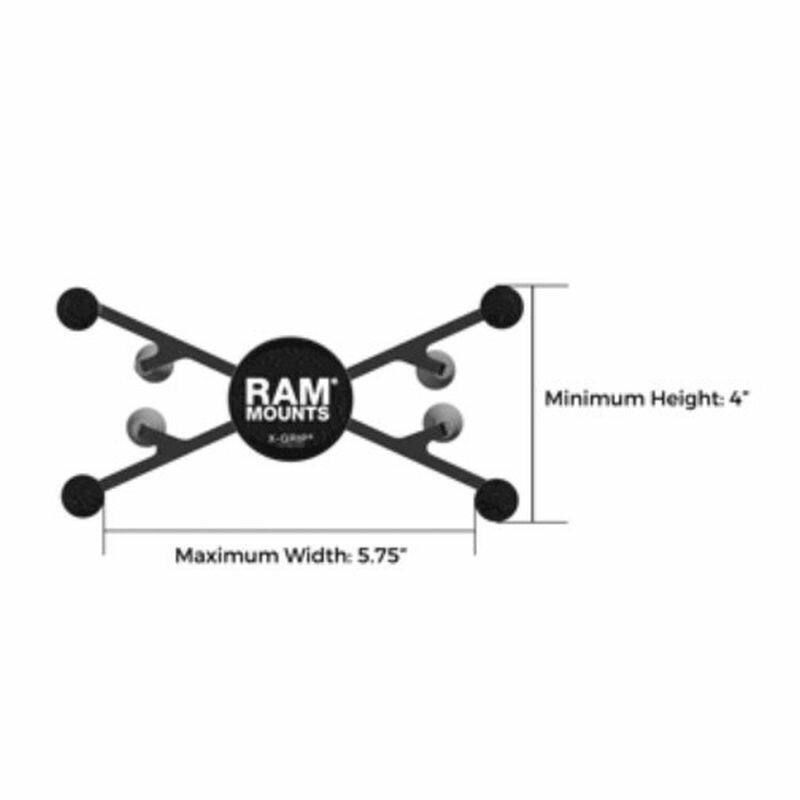

Cradle Dimensions
Min Width = 63.5mm / 2.5” – (if min width then min height = 177.8mm / 7")
Max Width = 146.05mm / 5.75" – (if max width then min height = 101.6mm / 4")
Max Thickness = 22.2mm / 0.875"
Compatible Devices
For a list of many of the compatible devices for this cradle go to our listing for the RAM-HOL-UN8BU
Arm Dimensions:
Overall: 94mm (3.69")
Socket-To-Socket: 76mm (3")

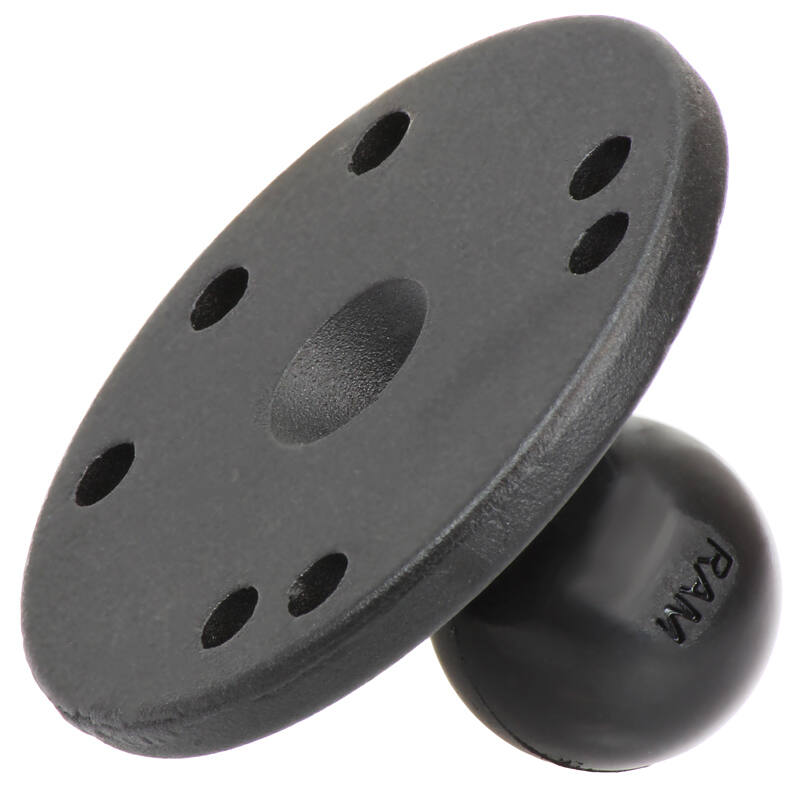

Base Plate Dimensions:
63mm (2.5") diameter
Base Hole Pattern
4-Hole AMPS:
1.181" x 1.496" (30mm x 38mm)
3-Hole AMPS 120- Degree
1.812” (46.0mm)
Weight:
303 grams / 0.67 lbs.
Components:
RAM-HOL-UN8BU X Grip Holder

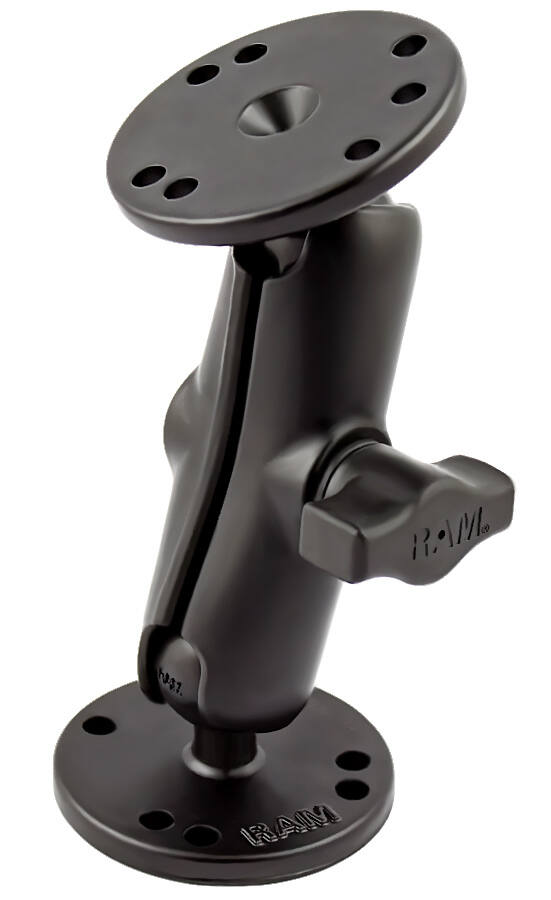

RAM-B-201U double socket arm
RAM-B-202U Round base
