RAP-B-378-UN8U RAM® X-Grip® with Flex Adhesive Base for 7"-8" Tablets
Features
* Spring-loaded 'X' design with rubber caps sports great holding power without hiding your tablet - fits most 7"-8" tablets
* Includes optional device tether for peace of mind during rugged use
* Easy access grip knobs on the back of the holder allow for the quick release of your tablet
* Flexible adhesive base with small footprint allows for mounting in a wide range of locations
* B size RAM® double socket arm with ball and socket technology allows for near-infinite adjustability
* Backed by a lifetime warranty

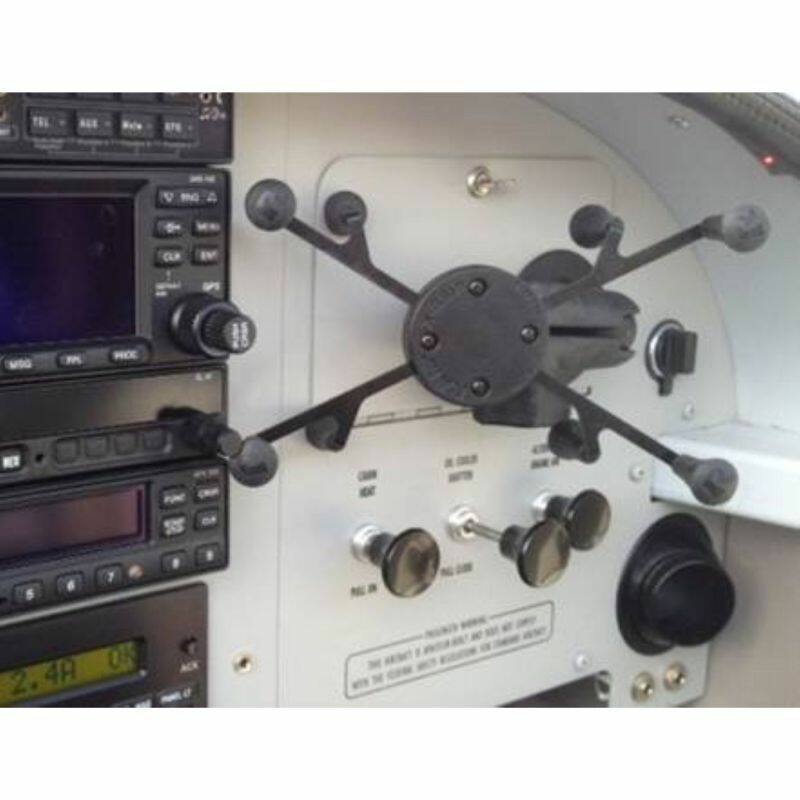

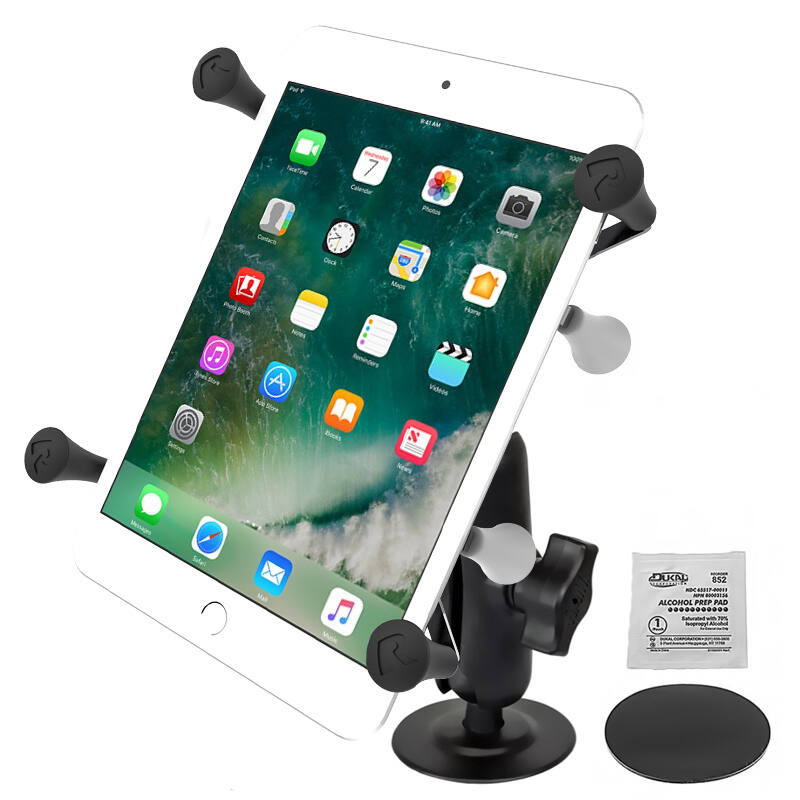

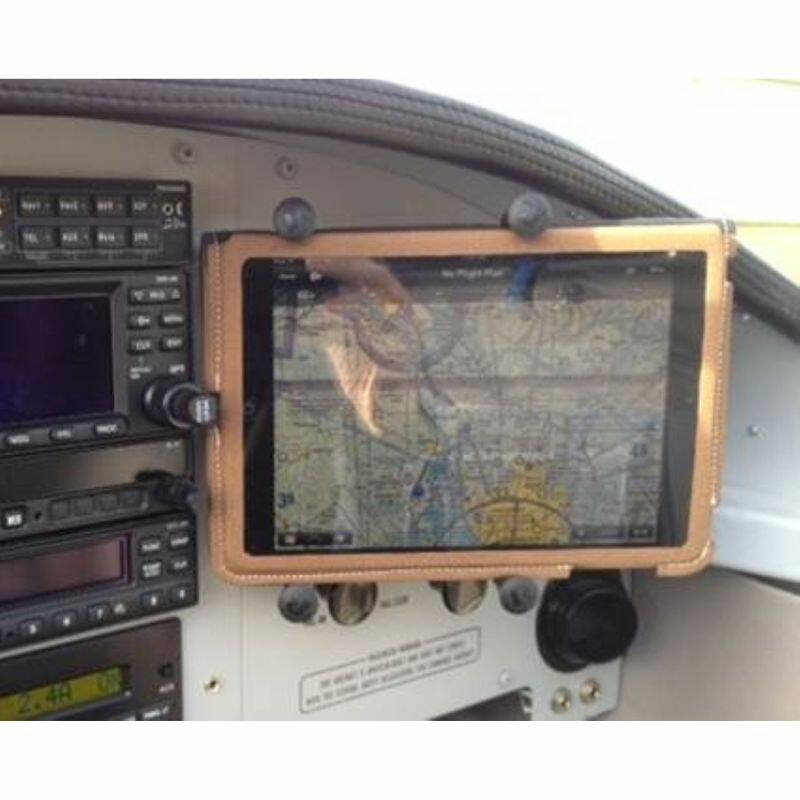

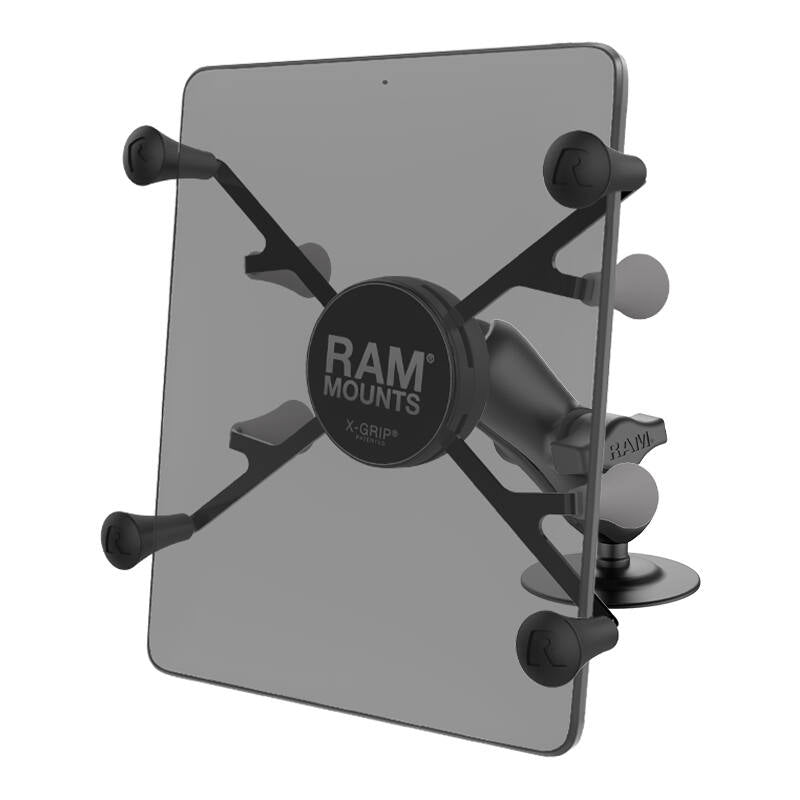

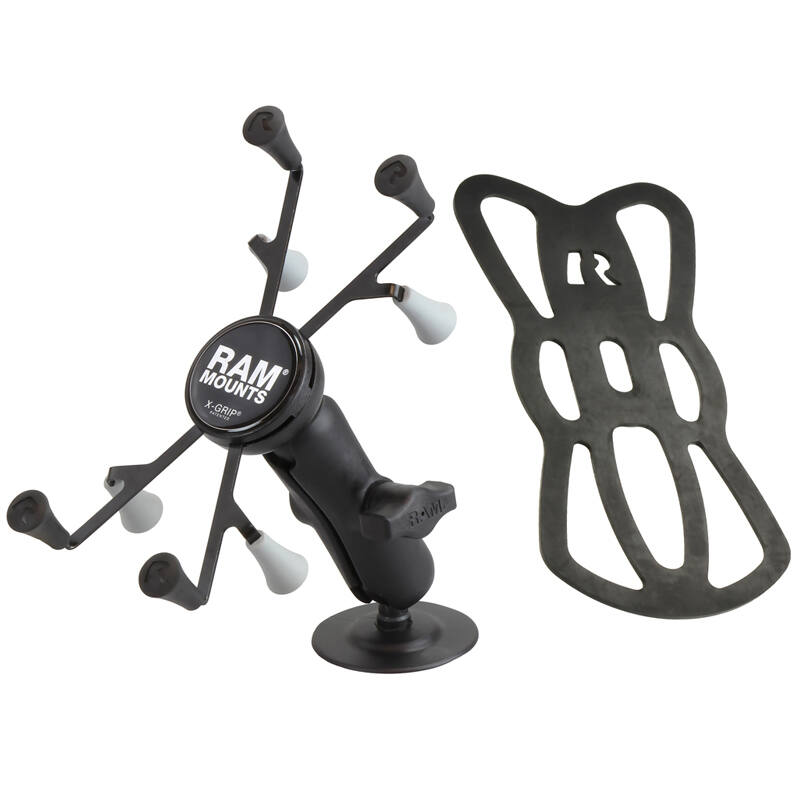

This complete mounting solution consists of a flex adhesive base with 1" ball, double socket arm and universal spring loaded X-Grip® cradle for 7"-8" tablets. Using a PSA stick pad, put the flex adhesive mount practically anywhere you want to keep your portable electronics easy to see and always within your reach. Designed with a very small foot print, finding a home on your scooter, motorcycle, kayak, boat or vehicle dash is easy. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles.

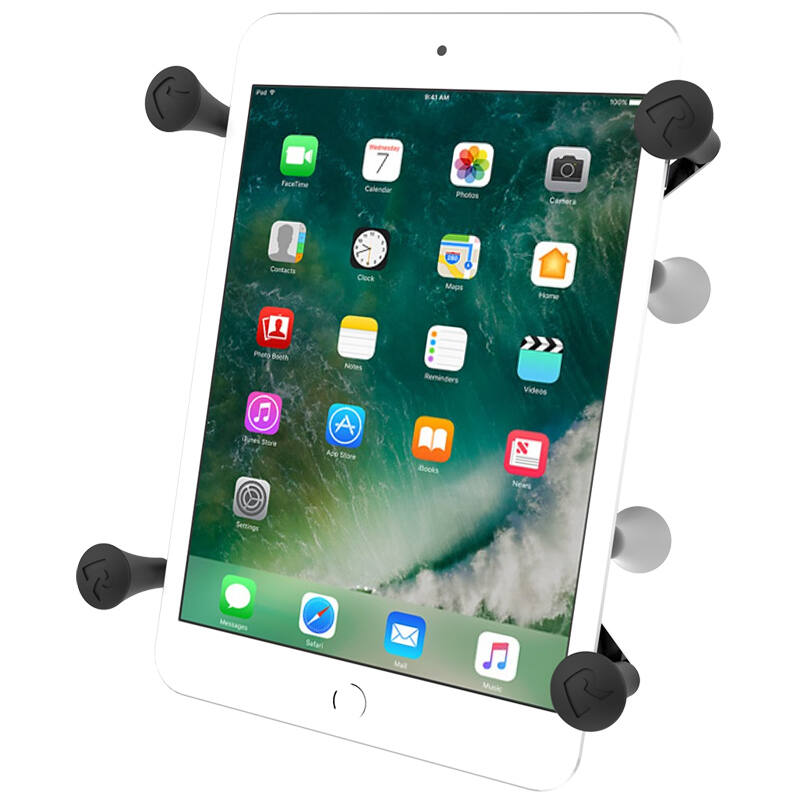

The X-Grip® consists of a spring-loaded cradle and 1" rubber ball connected to the back of the base. Included are extra easy access grip knobs, located on the back of the cradle for quick release of your tablet. The X-Grip® expands and contracts for perfect fit of most 7"-8" tablets and includes a device tether recommended for outdoor applications.
The cradle is compatible with devices that will fit the dimensions listed below. Check the dimensions of your device with a case/sleeve/skin when determining the overall size.
Cradle Dimensions

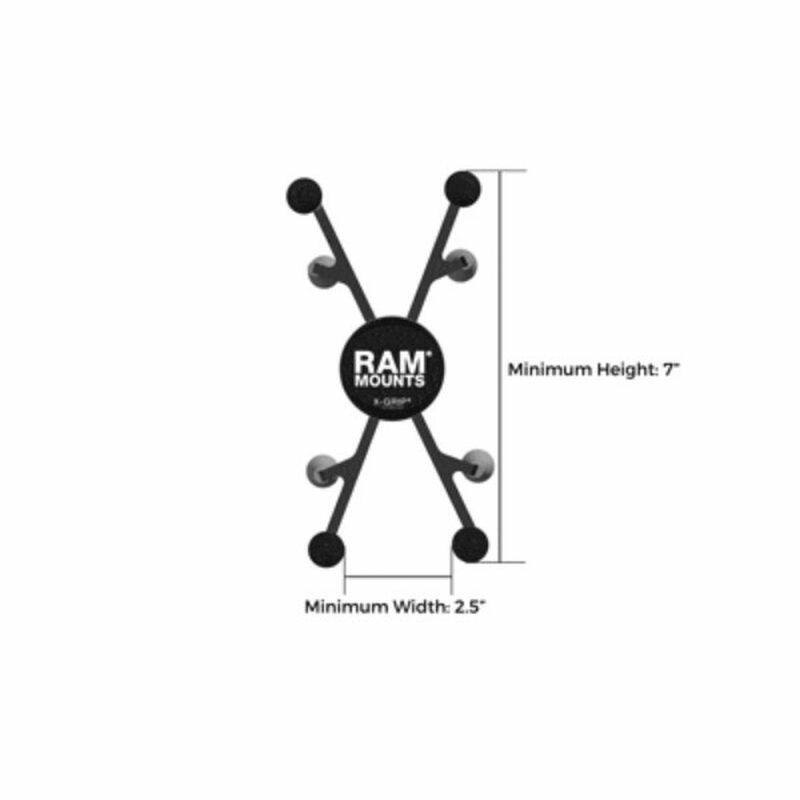

Min Width = 63.5mm / 2.5” – (if min width then the min height = 177.8mm / 7")

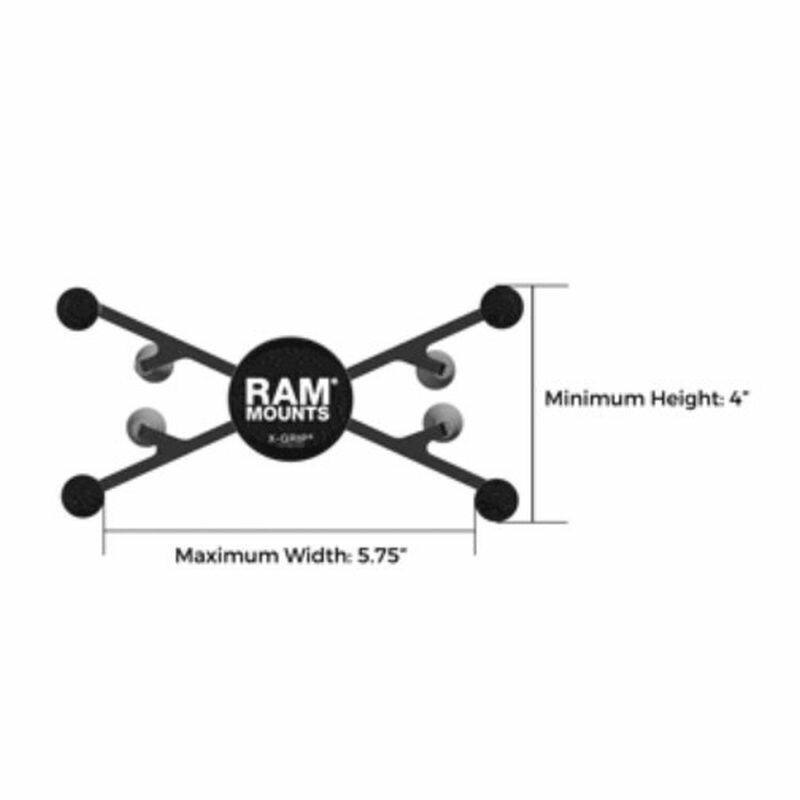

Max Width = 146.05mm / 5.75" – (if max width then the min height = 101.6mm / 4")
Max Thickness = 22.2mm / 0.875"
Compatible Devices
For a list of many of the compatible devices for this cradle see the RAM-HOL-UN8BU
Arm Dimensions:
Overall:
94mm (3.69")
Socket-To-Socket:
76mm (3")
Hardware Included
(1) Optional Tether
(1) Glue Tube for Rubber Caps
(1) 2.5" Double Sided Adhesive Disc
(1) Alcohol Prep Pad
Components:

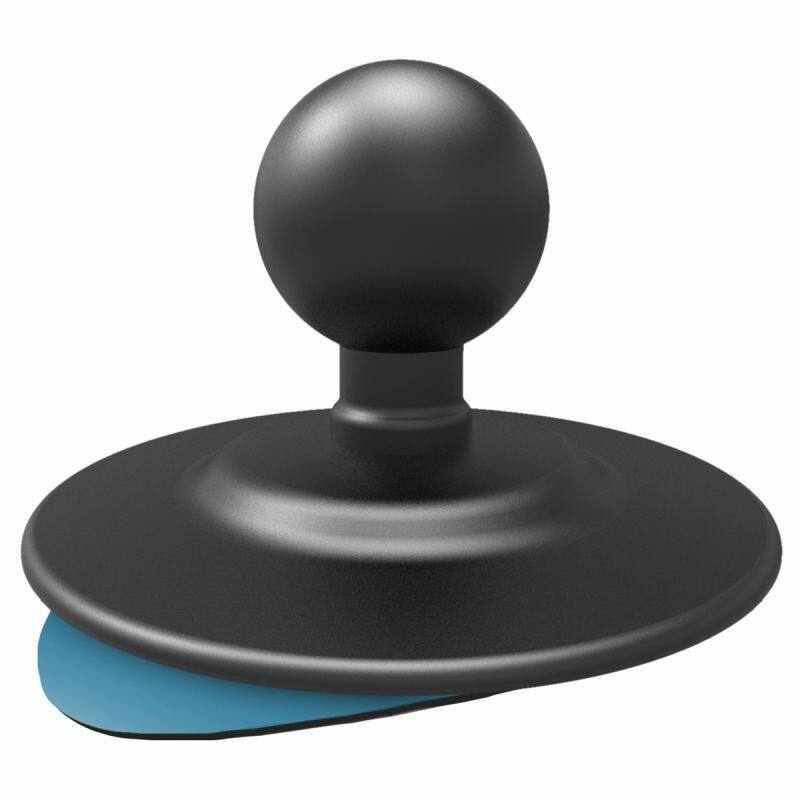

RAP-B-378U FLEX ADHESIVE MNT SYST 1" BALL

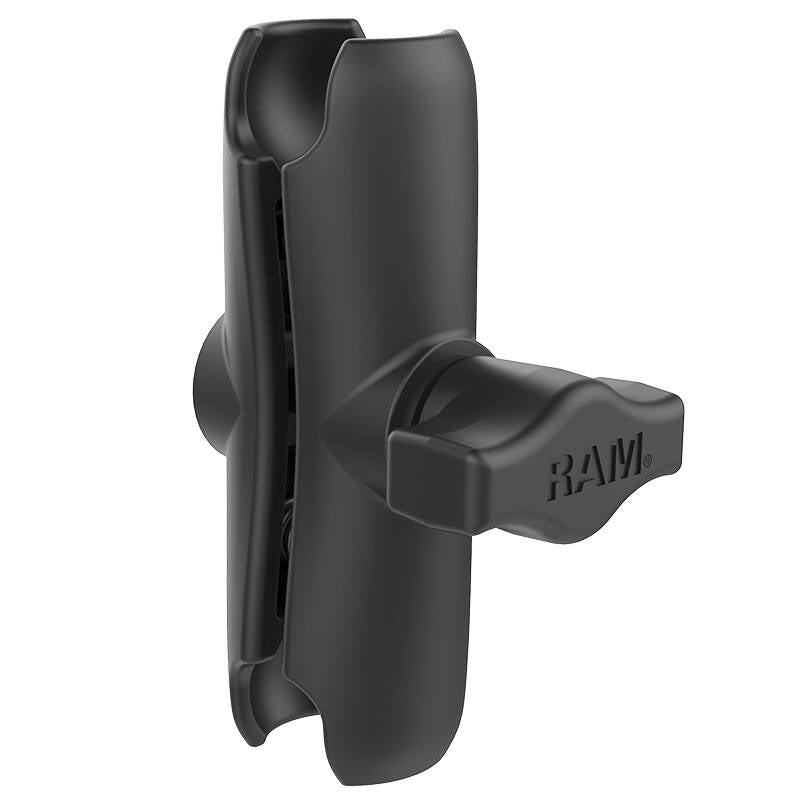

RAM-B-201U DOUBLE SOCKET ARM FOR 1" BALL
RAM-HOL-UN8BU UNIVERSAL X GRIP II TABLET HOLDER
