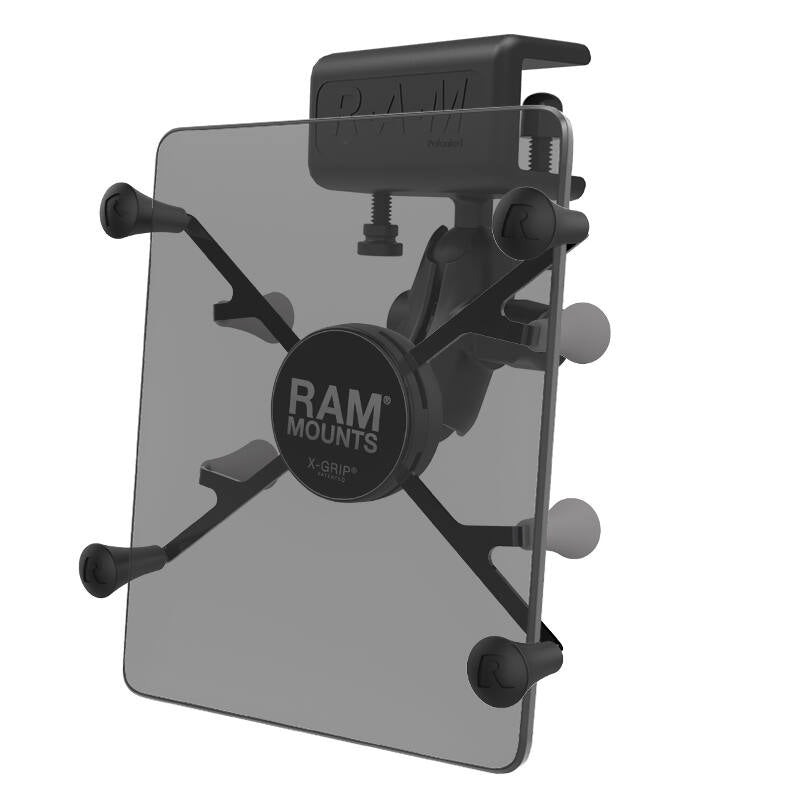

RAM-B-177-UN8U RAM® X-Grip® Mount with Glare Shield Clamp Base for 7"-8" Tablets
Features

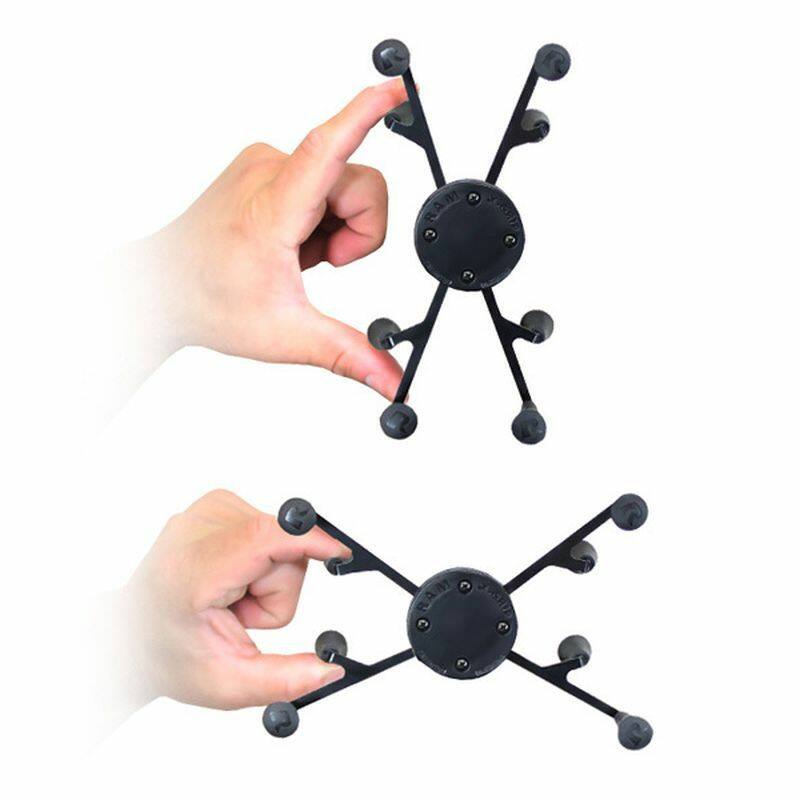

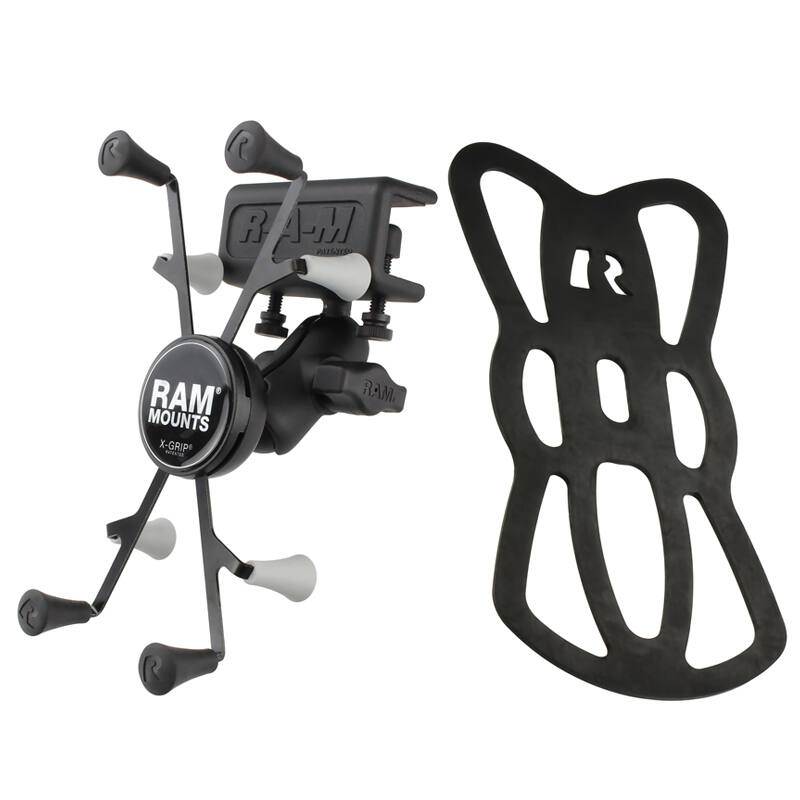

* Spring-loaded 'X' design with rubber caps sports great holding power without hiding your tablet; fits most 7"-8" tablets and includes optional device tether for peace of mind during rugged use
* Easy access grip knobs on the back of the holder allow for the quick release of your tablet

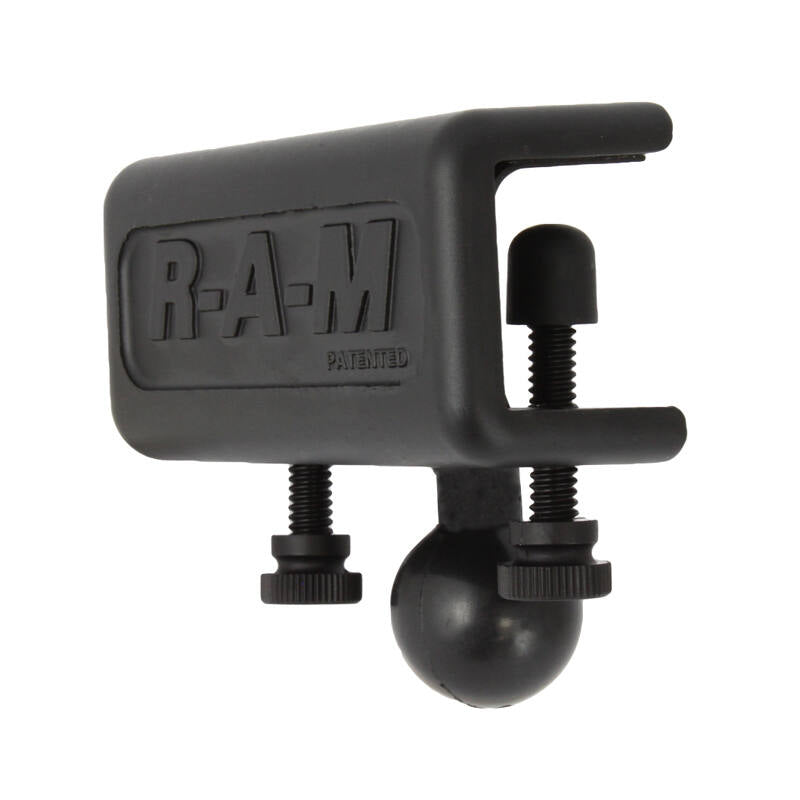

* Flat surface clamp provides stable base on surfaces such as aircraft glare shields, boat windscreen frames etc from 0 - 15.9mm thick
* RAM® Mounts double socket arm with ball and socket technology allows for near-infinite adjustability
* Backed by a lifetime warranty

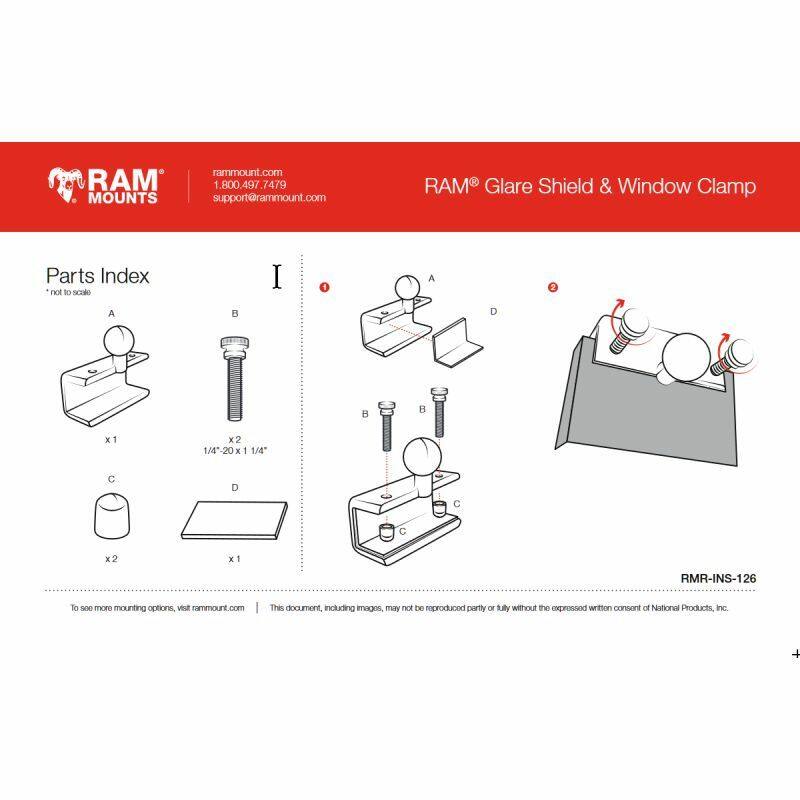

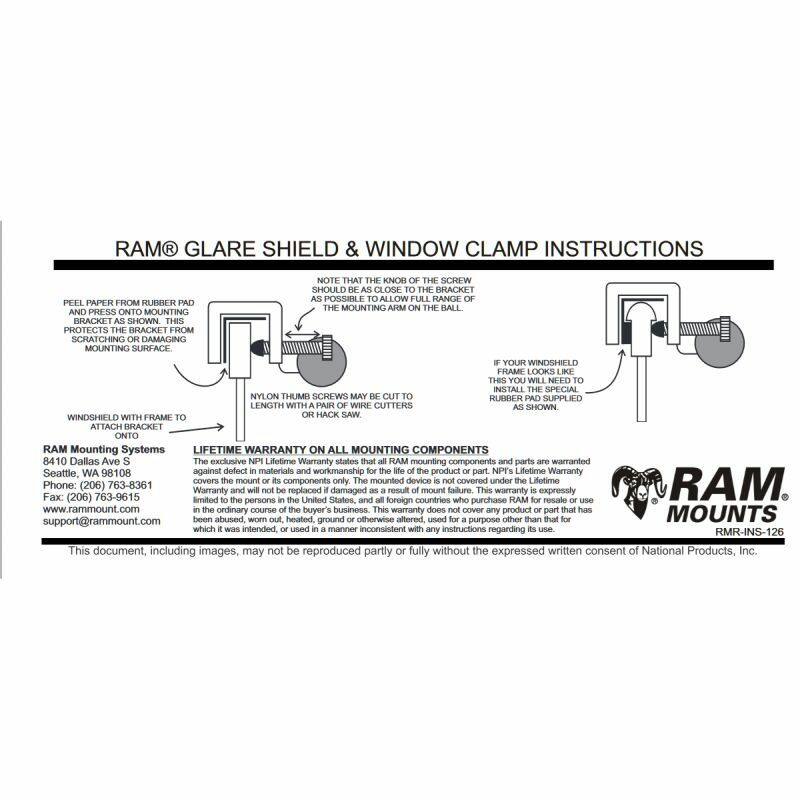

The glare-shield mount is simply located by the clamp on any clamping surface up to 15.9mm (5/8") thick and gently snug the nylon thumb screws. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles.
This glare-shield mount will attach to flat surfaces with the following dimensions:
0 mm - 15.875mm (Imperial 0 to 0.625" (5/8"))

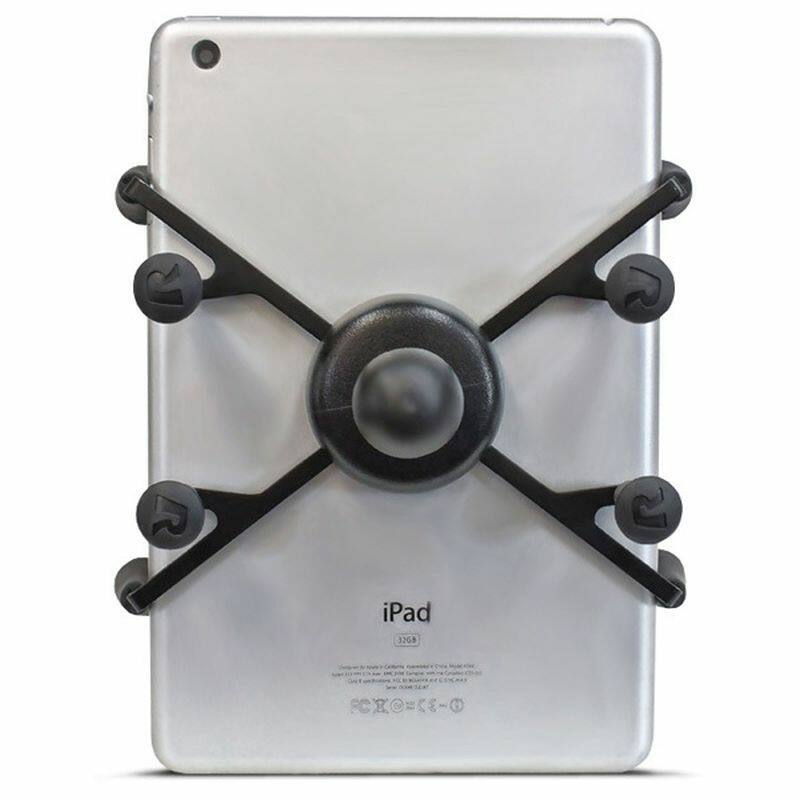

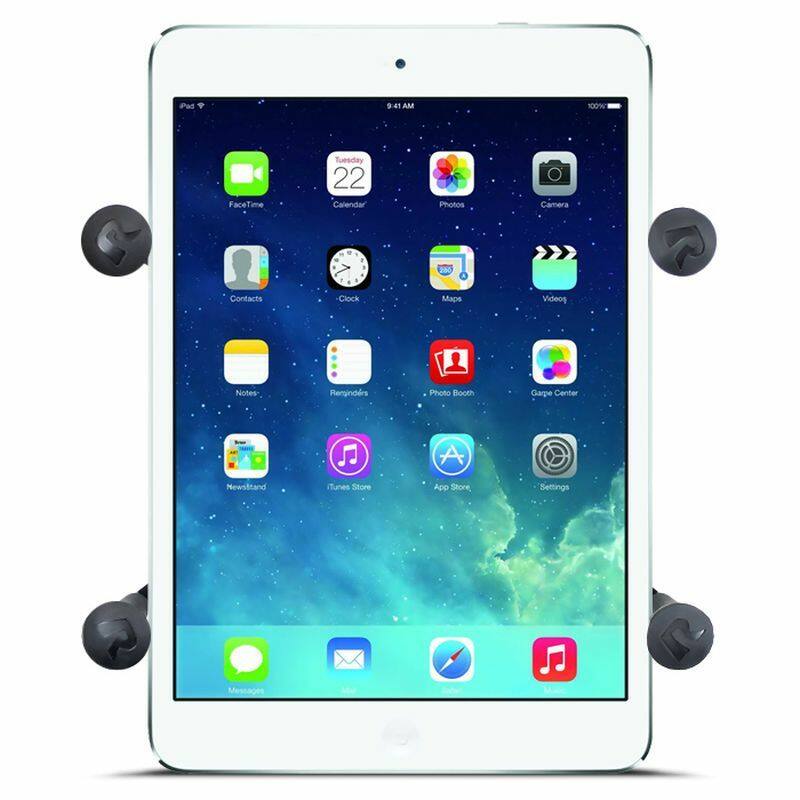

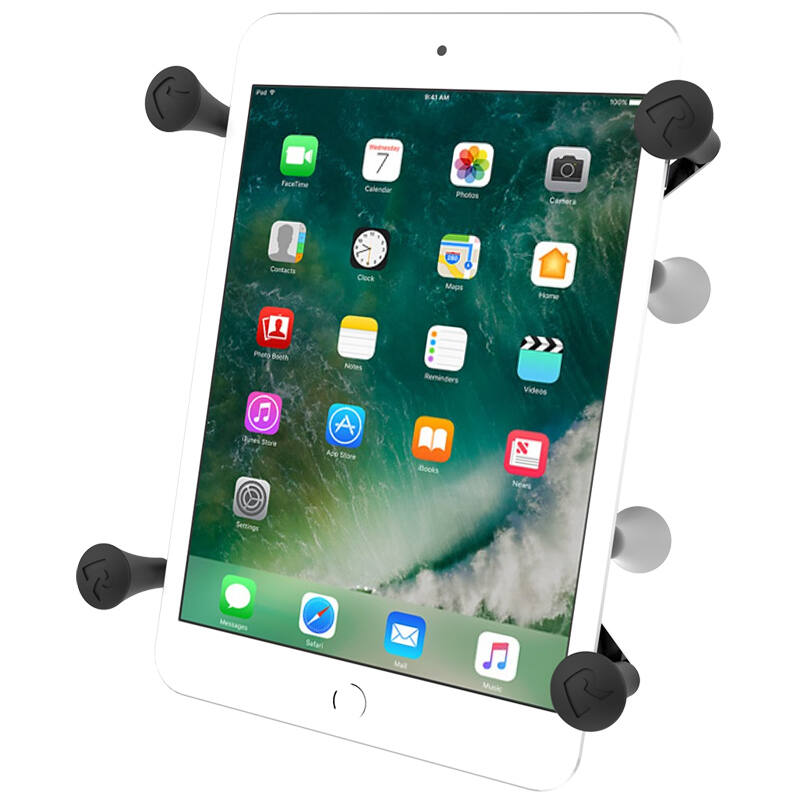

The X-Grip® expands and contracts for perfect fit of most 7"-8" tablets and includes a device tether recommended for outdoor applications. The cradle is compatible with devices that will fit the dimensions listed below. It is important to verify the dimensions of your device with a case/sleeve/skin when determining the overall size.
Cradle Dimensions

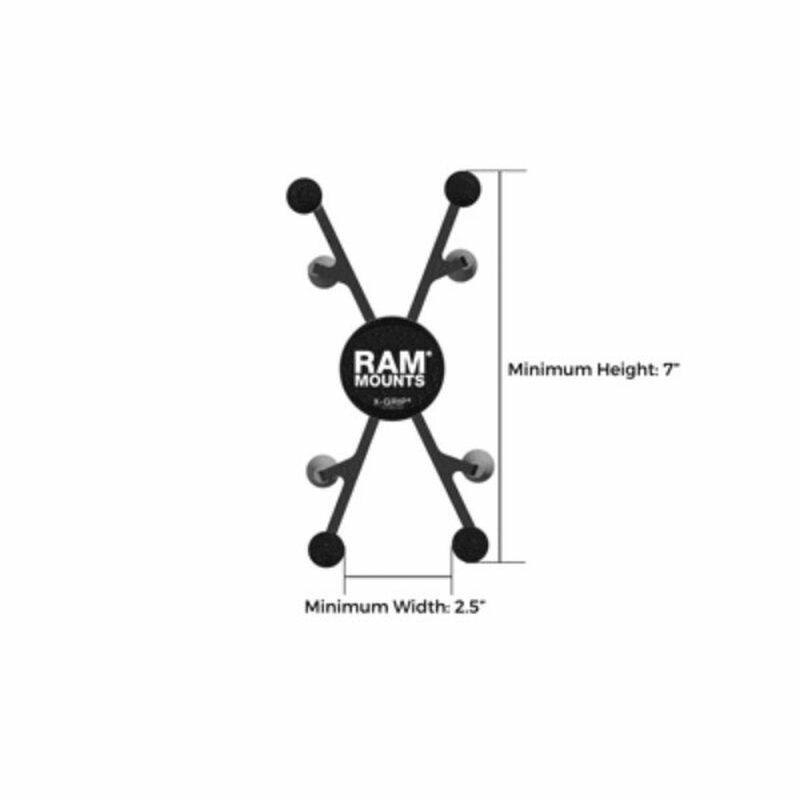

Minimum Width = 63.5mm / 2.5" (Minimum Height = 177.8mm / 7")

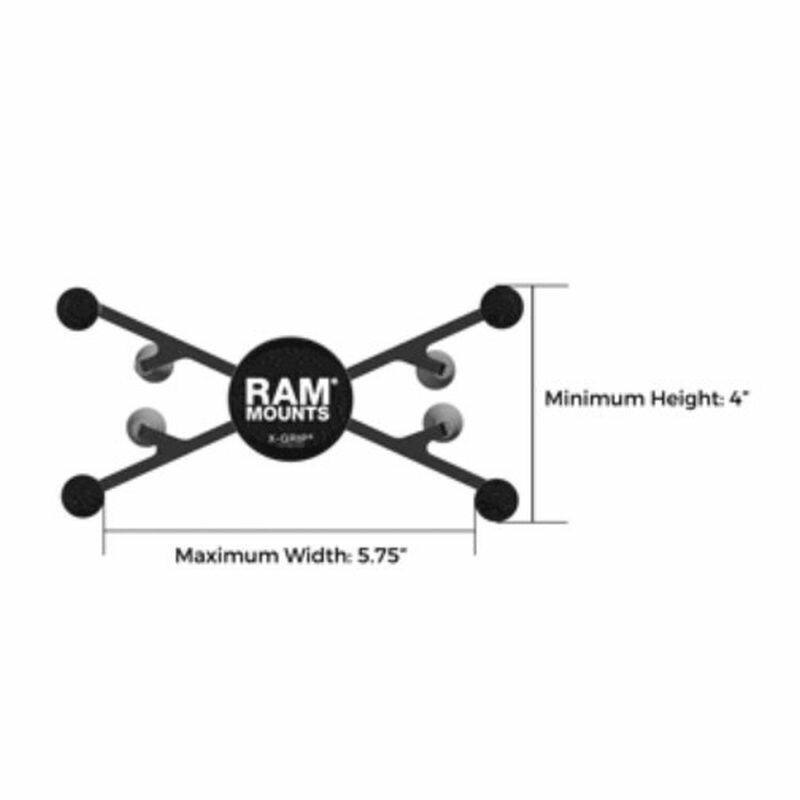

Maximum Width = 146mm / 5.75" (Minimum Height = 101.6mm / 4")
Depth = 22.22mm / 0.875"
The cradle is compatible with hand-held devices that will fit the dimensions listed below.
Compatible Devices (WITH OR WITHOUT CASE):
7"-8" Tablets
For a list of many of the compatible devices for this cradle go to our listing for the RAM-HOL-UN8BU
Glareshield Clamp Range
0 - 15.875mm (0 to 0.625" (5/8)") max
Arm dimensions:
Overall:
60.5mm (2.38")
Socket-To-Socket:
51mm (2")
Weight:
331 grams
Components:

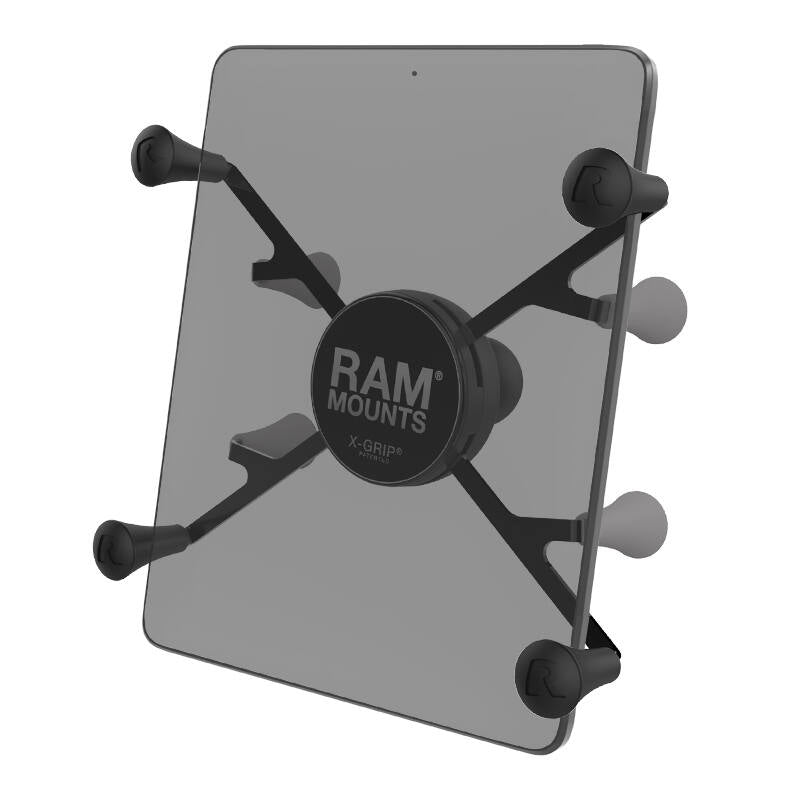

RAM-HOL-UN8BU - Universal X Grip
RAM-B-259U - Glare shield Mount
RAM-B-201U-A - Short double socket arm
