RAM-B-367-UN8U RAM® X-Grip® with Motorcycle Handlebar Clamp Base for 7"-8" Tablets
Features
* Spring-loaded 'X' design features rubber caps and sports great holding power without hiding your tablet; fits most 7"-8" tablets
* Grab handle base is a stable base which works with any grab handle with an M8 threaded bolt - and keeps your field of vision clear
* RAM® double socket arm; ball and socket technology allows for near-infinite adjustability
* Made of powder-coated, marine-grade aluminum, stainless steel components, and high-strength composite for durability and reliability in the most demanding environments
* Backed by a lifetime warranty

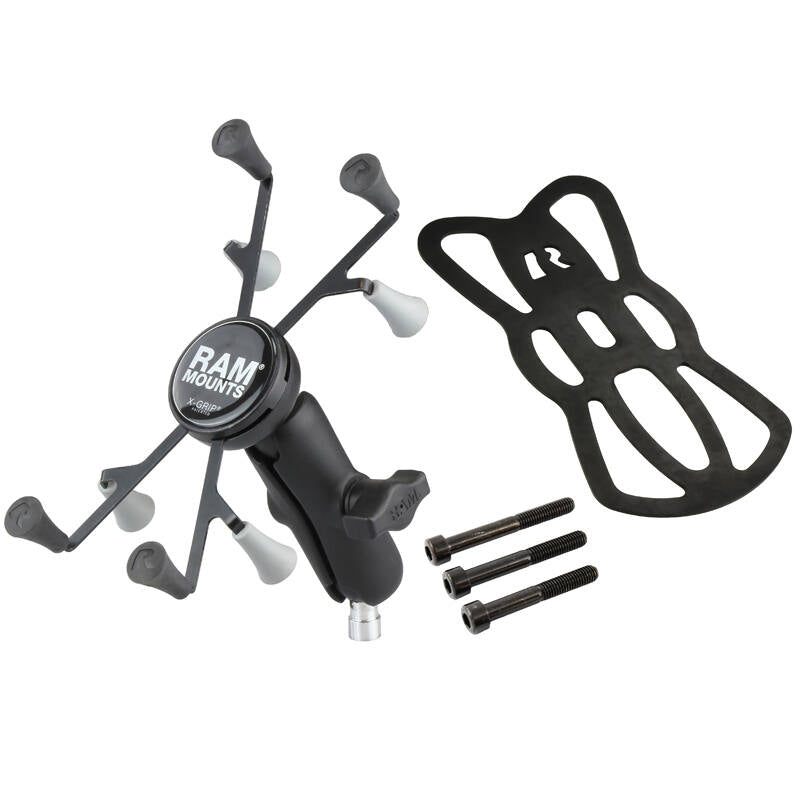

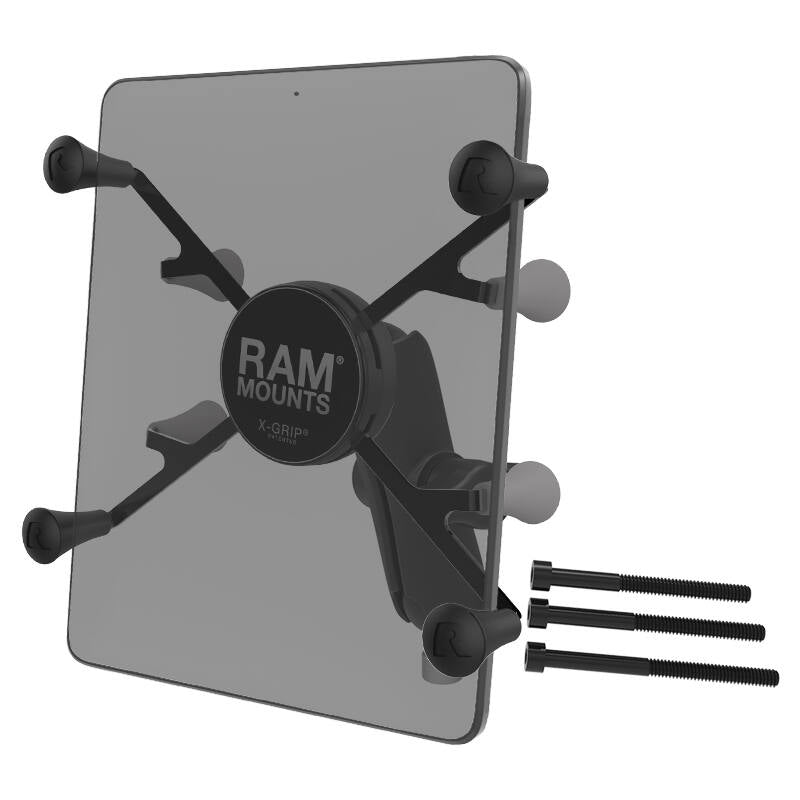

This consists of a motorcycle handlebar clamp base with M8 threads, double socket arm and universal X-Grip® cradle.

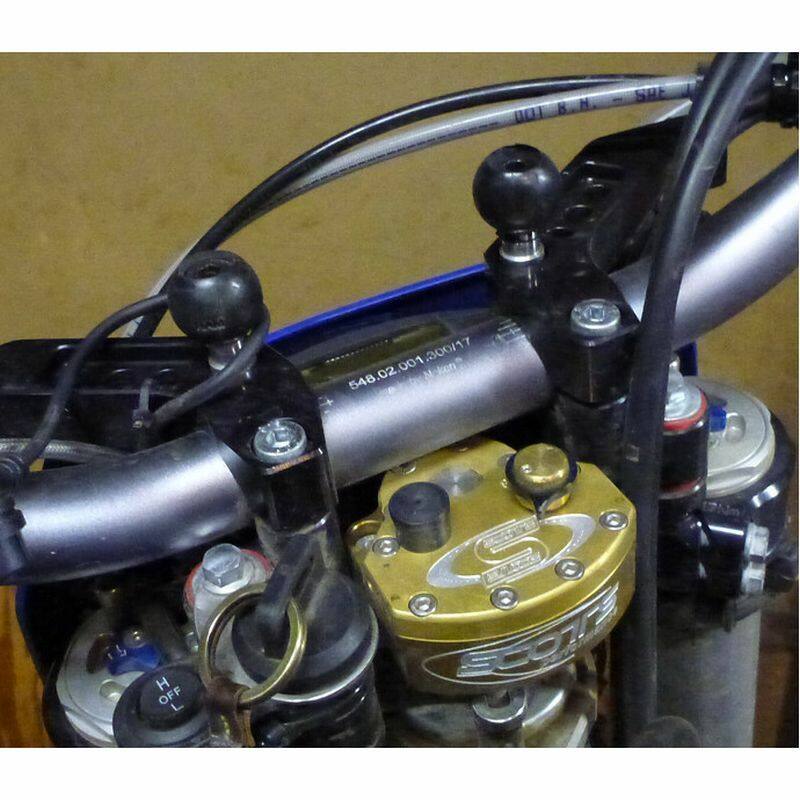

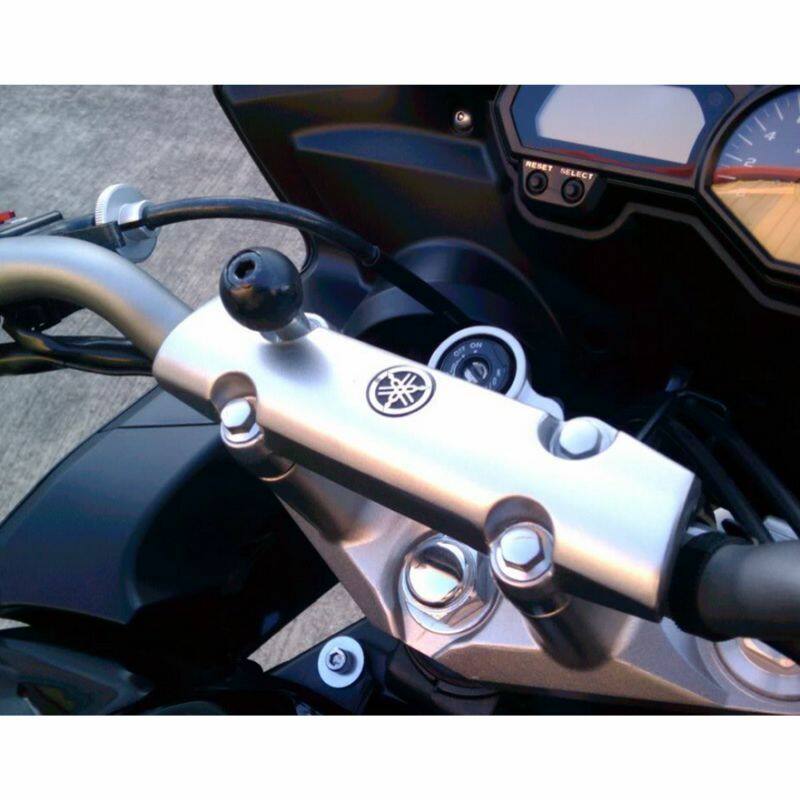

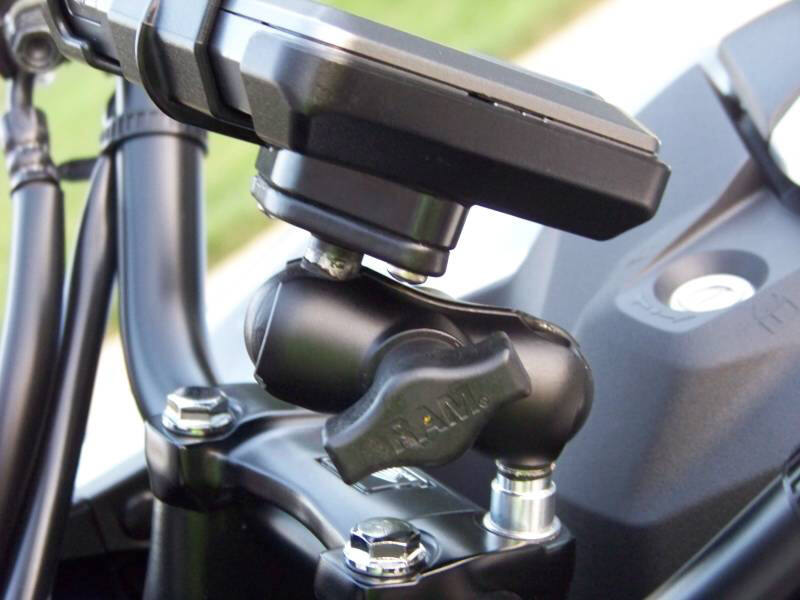

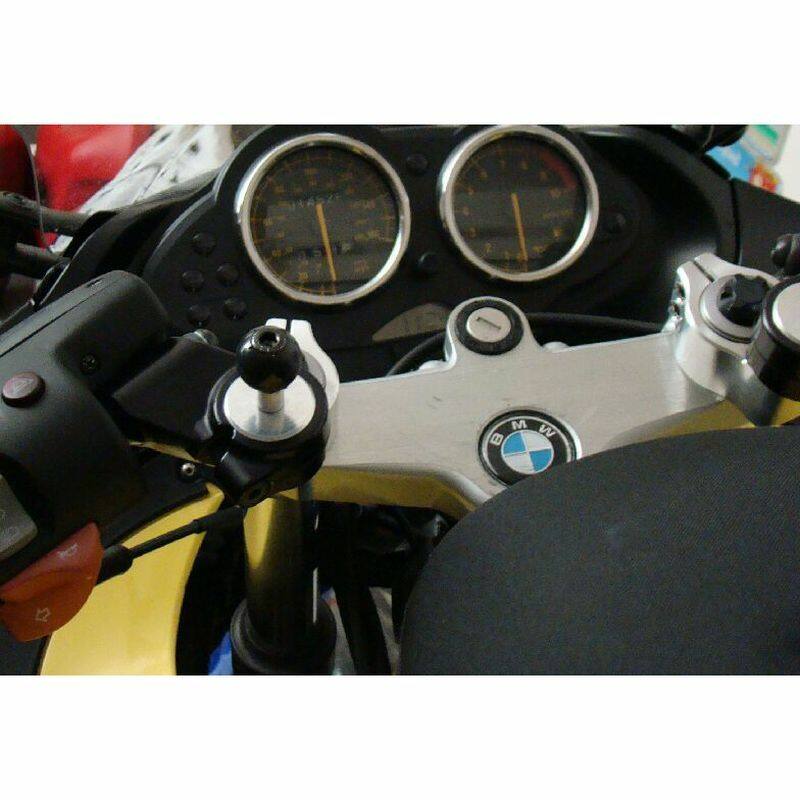

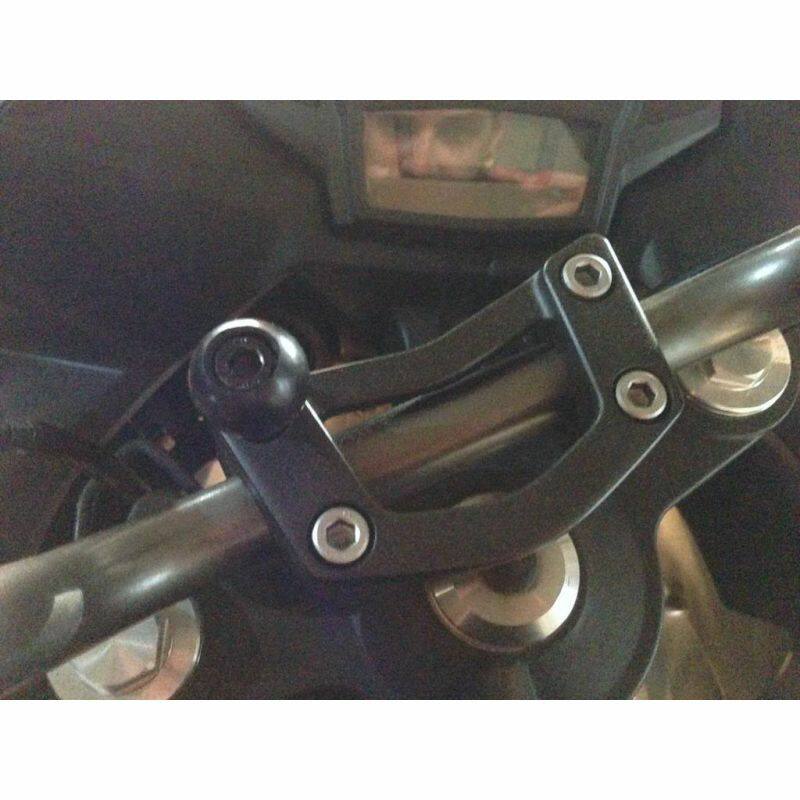

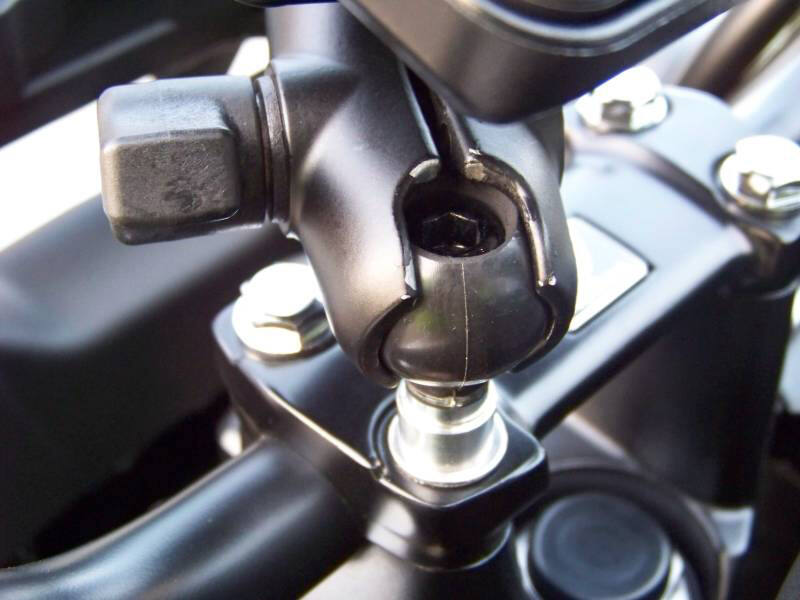

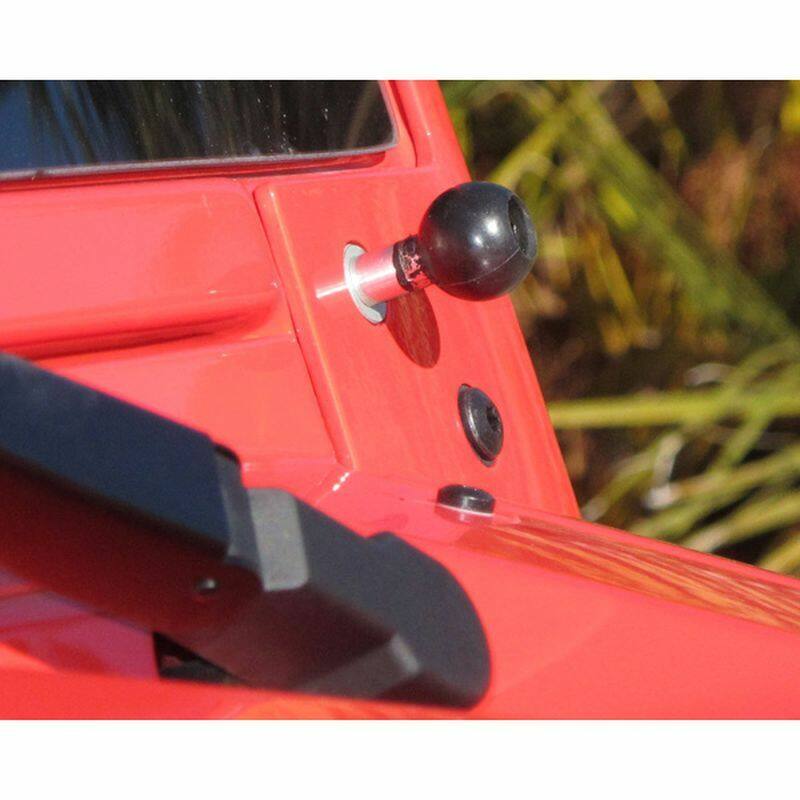

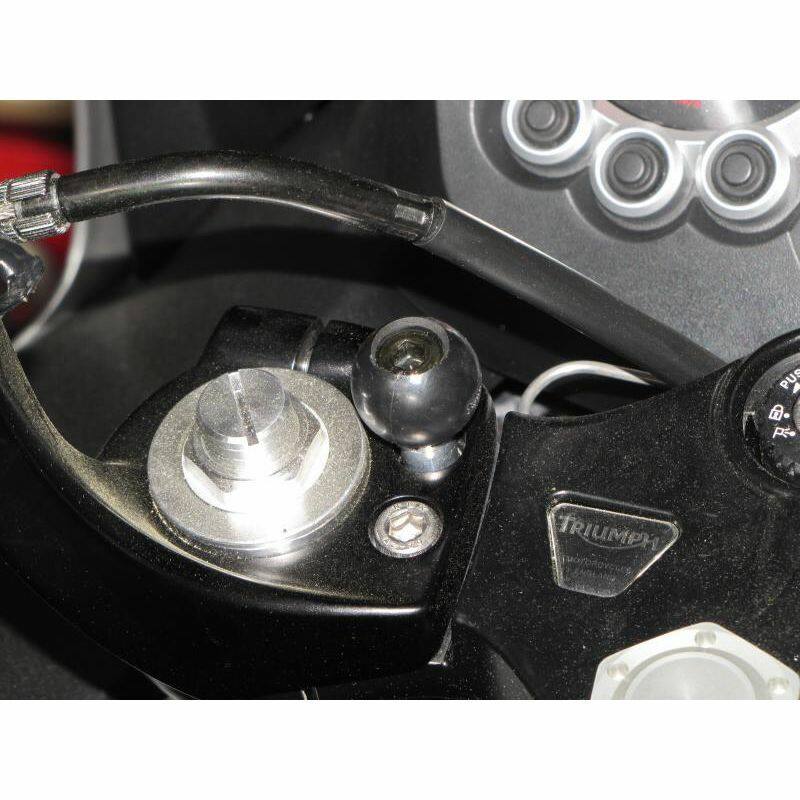

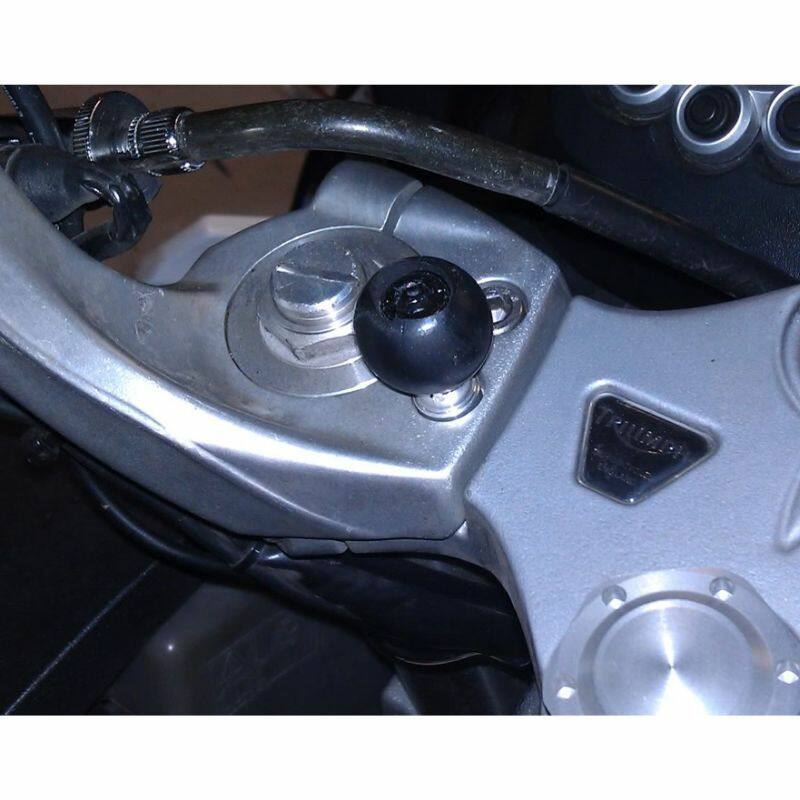

The ball base will replace one of the M8 bolt heads on your handlebar clamp system, positioning your device clean in the centre. The mount is designed with a RAM B size 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles.

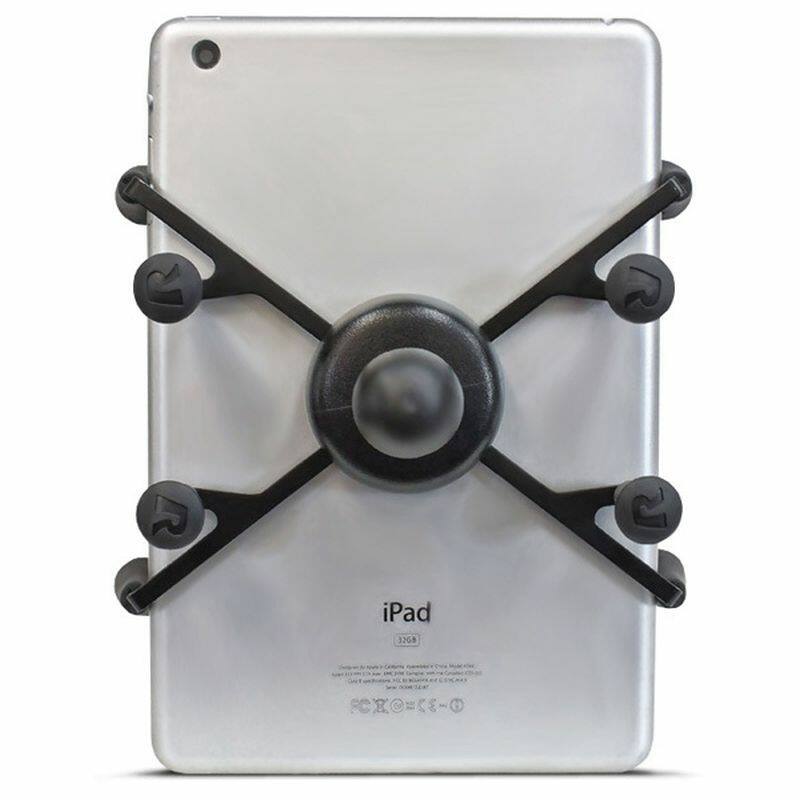

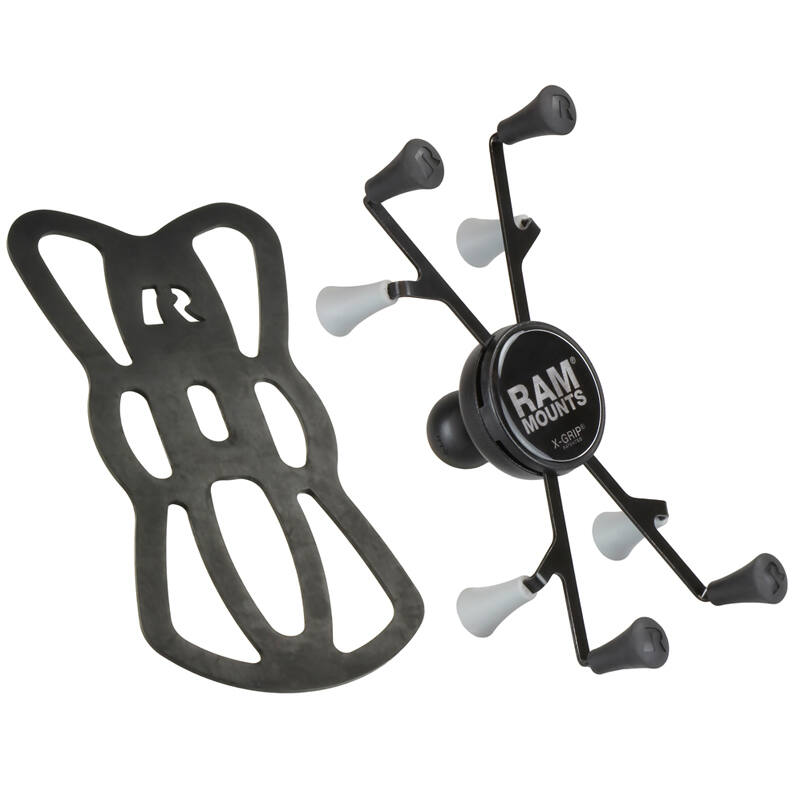

The X-Grip consists of a spring-loaded cradle and 1" rubber ball connected to the back of the base. Included are extra easy access grip knobs, located on the back of the cradle for quick release of your tablet. It expands and contracts for perfect fit of most 7"-8" tablets and includes a device tether recommended for outdoor applications.
The cradle is compatible with devices that will fit the dimensions listed below. Check the dimensions of your device with a case/sleeve/skin when determining the overall size.
Cradle Dimensions
Min Width = 63.5mm (2.5”) – (if it is min width then the min height = 177.8mm / 7")
Max Width = 146.05mm (5.75") – (if it is max width then the min height = 101.6mm / 4")
Max Thickness = 22.2mm (0.875")
Compatible Devices
For a list of many of the compatible devices for this cradle go to our listing for the RAM-HOL-UN8BU

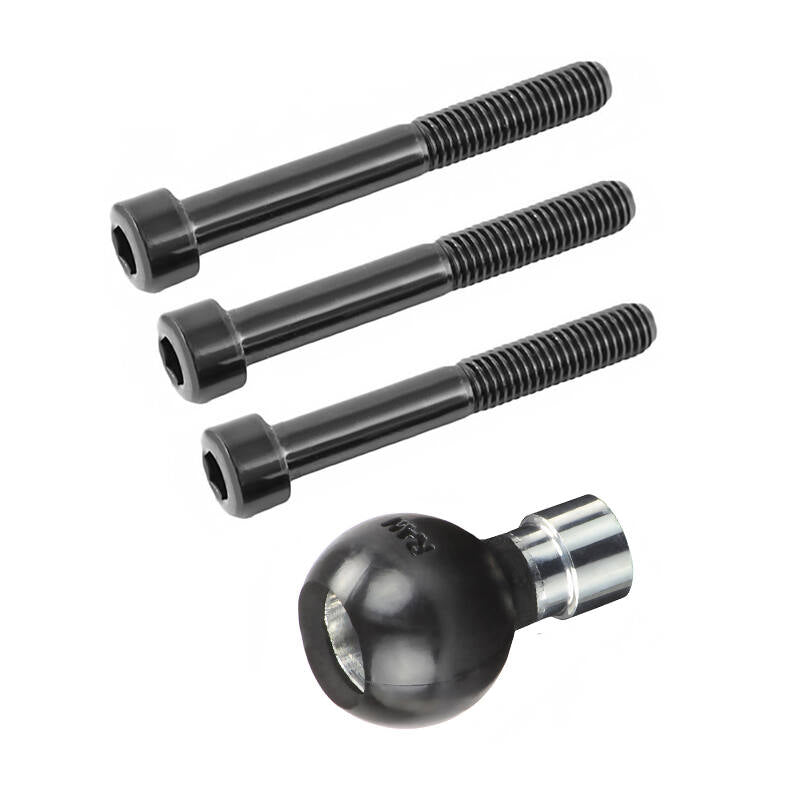

Hardware included:
1" Rubber ball
M8 x 55 bolt (1.25 thread pitch)
M8 x 60 bolt (1.25 thread pitch)
M8 x 65 bolt (1.25 thread pitch)
Material:
Powder Coated Marine Grade Aluminium
Marine Grade Stainless Steel Components
High Strength Composite
Ball Size:
B Size 1" Rubber Ball
Arm Dimensions:
Overall Length:
94mm (3.69")
Socket-To-Socket Length:
76mm (3")
Components
RAM-B-201U DOUBLE SOCKET ARM FOR 1" BALL
RAM-B-367U MOTORCYCLE BASE W HOLE M8 SCREW
RAM-HOL-UN8BU X-GRIP UNIVERSAL CRADLE
