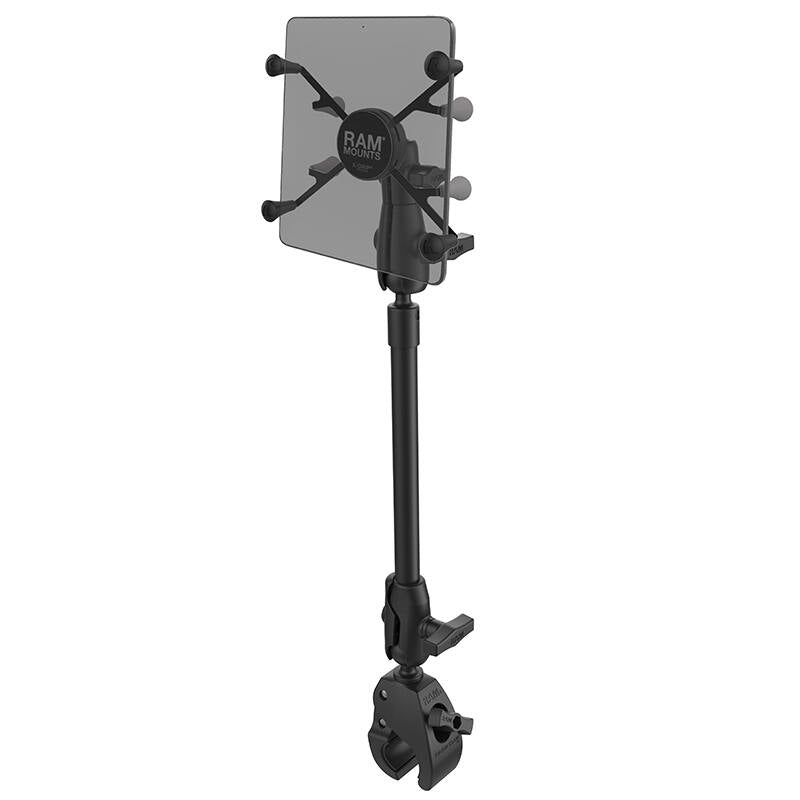

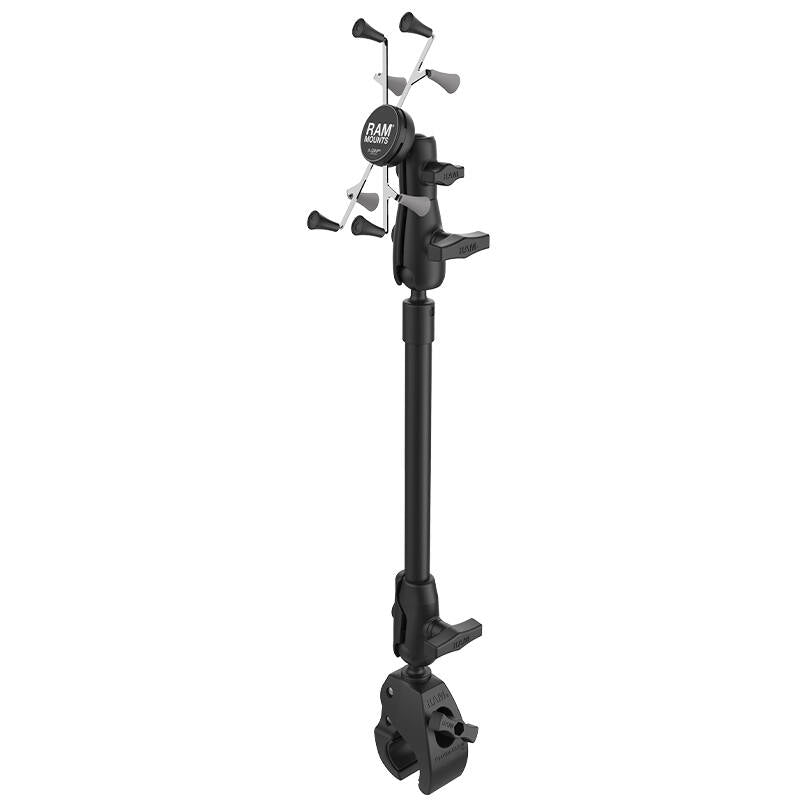

RAP-401-9-BC-UN8U – RAM® X-Grip® 7-8" Tablet Bedside & Wheelchair Mount with Tough-Claw™ and 9" Pipe

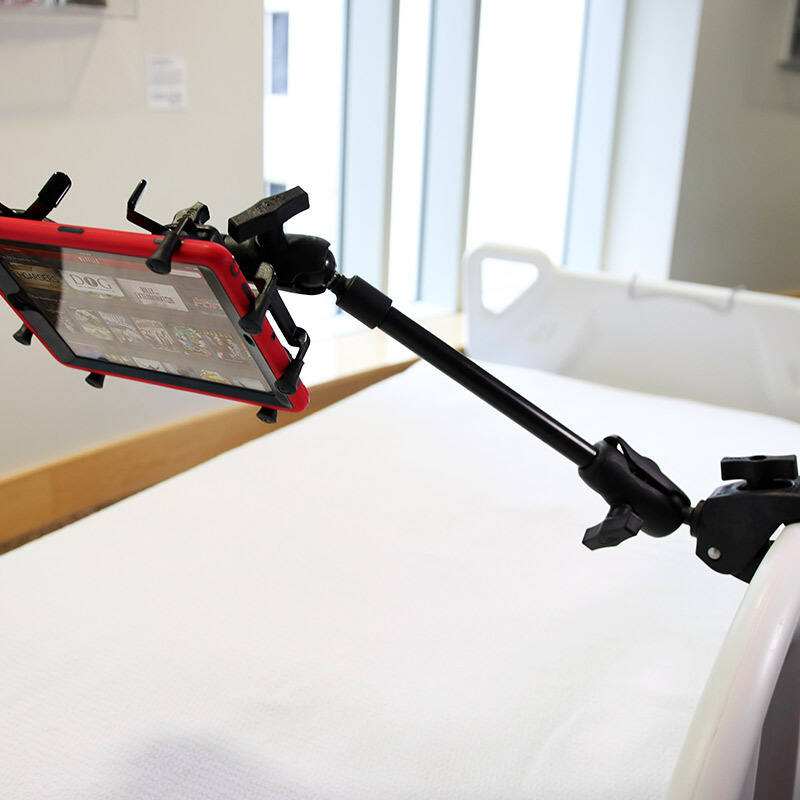

The RAP-401-9-BC-UN8U is a complete bedside or wheelchair tablet mount pairing the RAM® X-Grip® universal cradle for 7-8" tablets with a large Tough-Claw™ clamp base, a 9" (228mm) extension pipe, and a swivelling double socket arm. The Tough-Claw™ clamps tool-free to bed rails, chair frames, and bars, and the pipe and arm position the tablet for comfortable viewing; swing it away when it's not in use.
Key Features
- Spring-loaded X-Grip design with rubber caps and rear quick-release grip knobs holds most 7-8" tablets securely; includes an optional device tether for rugged use
- Large Tough-Claw™ clamp base installs tool-free on rails and bars from 25mm to 56mm (1" to 2.2") in outer diameter, or flat surfaces up to 56mm (2.2") thick

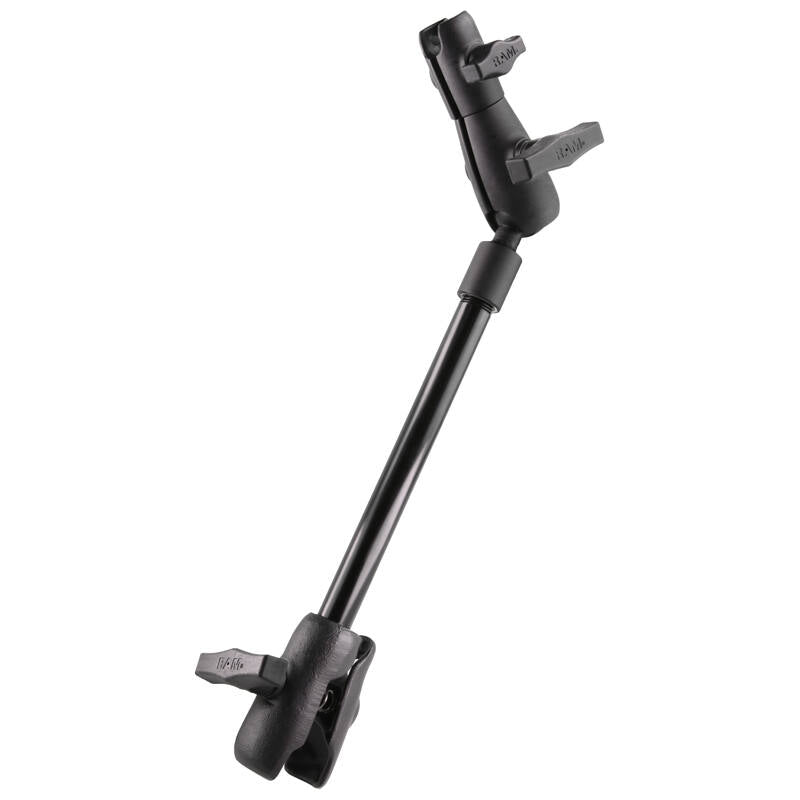

- 9" (228mm) extension pipe plus swivelling double socket arm position the tablet and fold away when not needed
- Constructed from marine-grade aluminium and high-strength composite
- Backed by a lifetime warranty
What's Included
- RAP-401U large Tough-Claw™ base with 1.5" ball

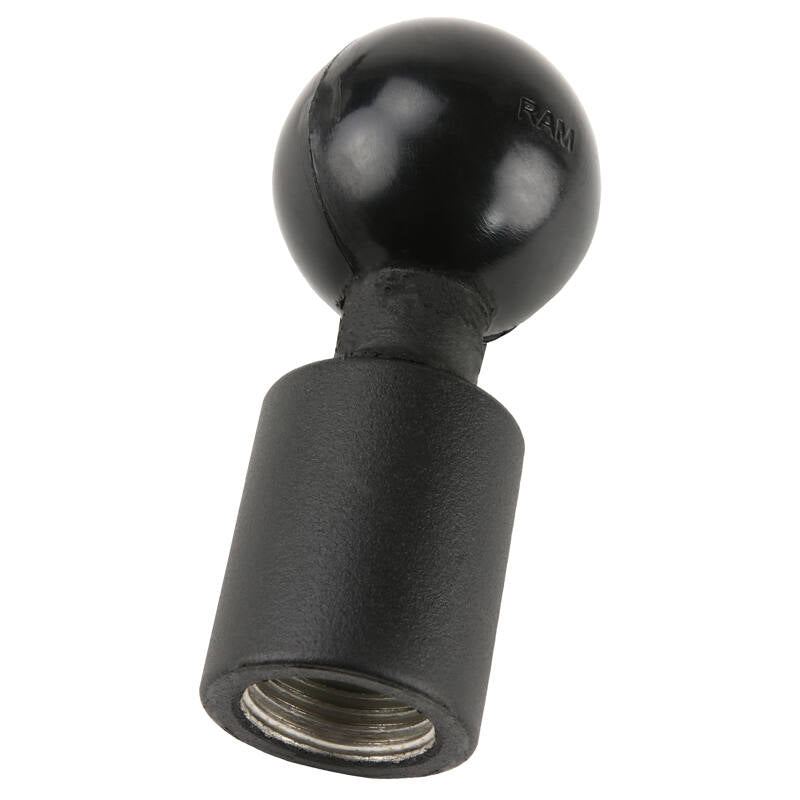

- RAM-218-1U base with 1/2" NPT threaded hole
- RAM-PA8209 1/2" x 9" pipe

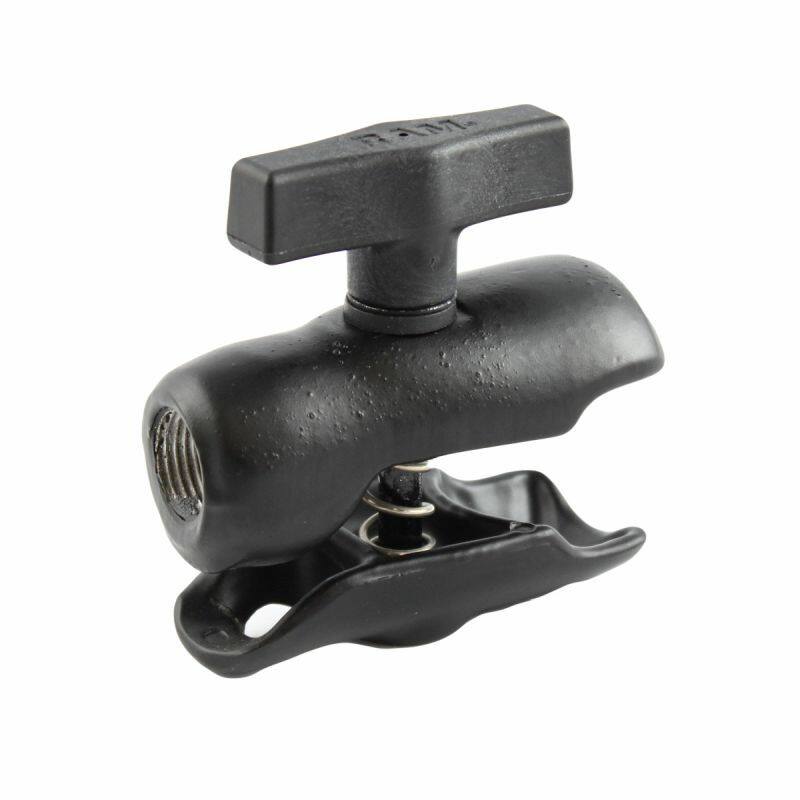

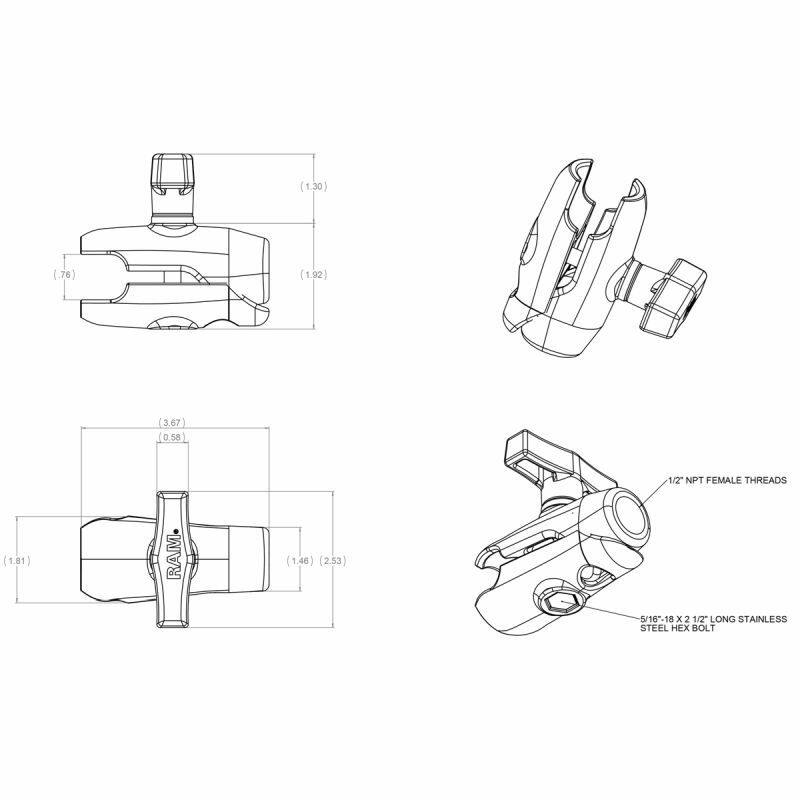

- RAM-200-1U single socket arm with 1/2" NPT female hole (C size)

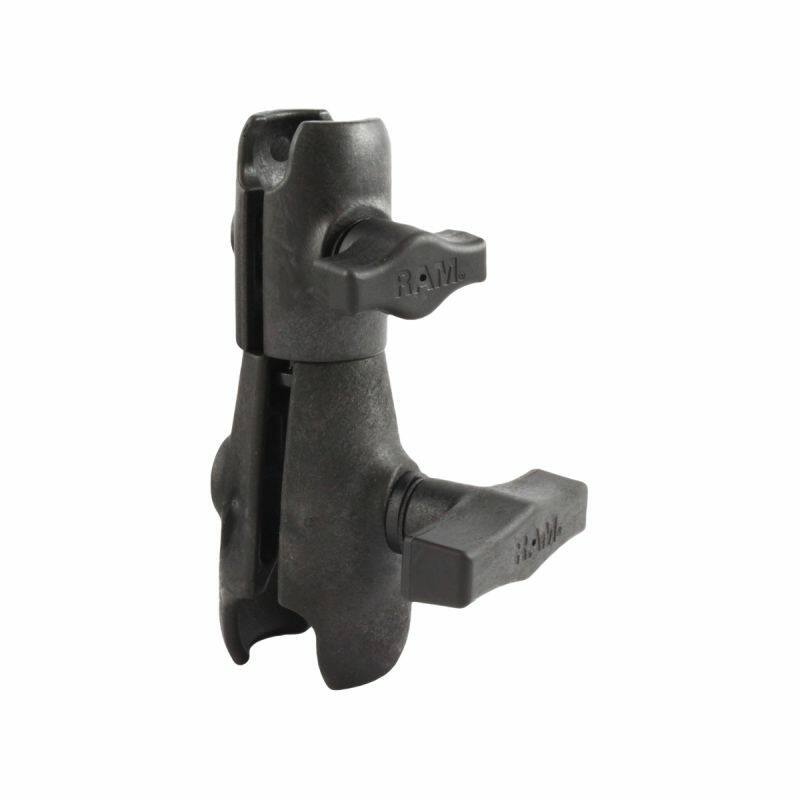

- RAP-BC-201U composite swivel double socket arm for 1" and 1.5" balls

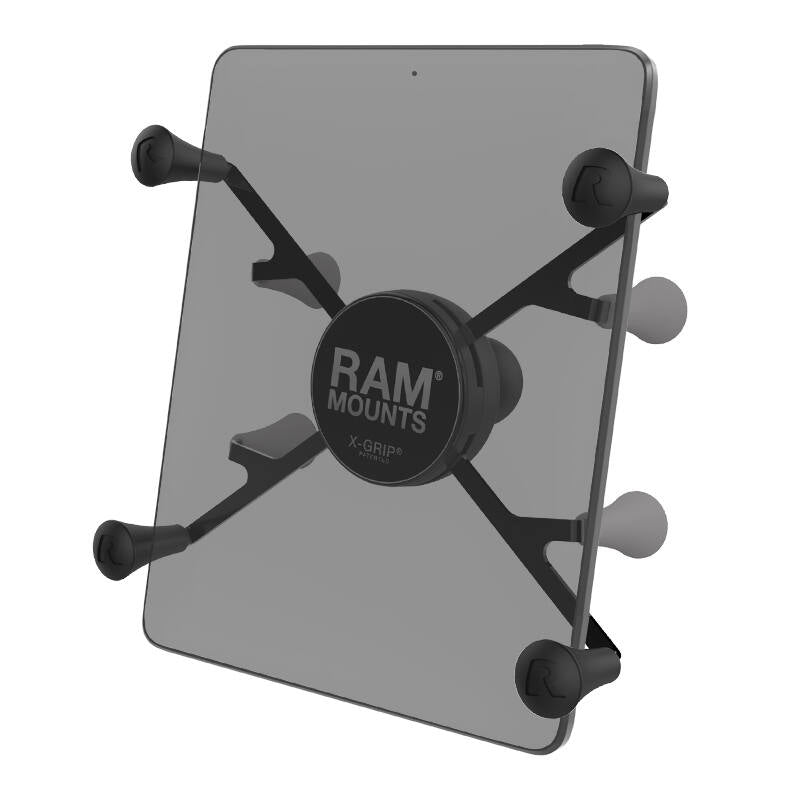

- RAM-HOL-UN8BU X-Grip® universal 7-8" tablet cradle
Dimensions & Specifications
- Rail/tube clamping range: 25mm to 56mm (1" to 2.2") outer diameter
- Flat surface clamping range: 0mm to 56mm (2.2") thick
- Overall height: 660mm (26")
- Ball sizes: 1.5" C size and 1" B size
- Load capacity: 900g (2 lb)
- Weight: 1.63kg (3.6 lb)
- Cradle minimum device width: 63.5mm (2.5") — requires minimum device height 177.8mm (7")
- Cradle maximum device width: 146mm (5.75") — requires minimum device height 101.6mm (4")
- Cradle maximum device depth: 22.2mm (0.875")
Compatible Devices
Fits 7-8" tablets within the cradle dimensions above, with or without a case. For the full list of compatible models, see our RAM-HOL-UN8BU listing.
Videos
FAQs
Is this a complete mount? Yes. The large Tough-Claw base, 9" pipe, socket arms and X-Grip tablet cradle are all included — the only thing you add is the tablet.

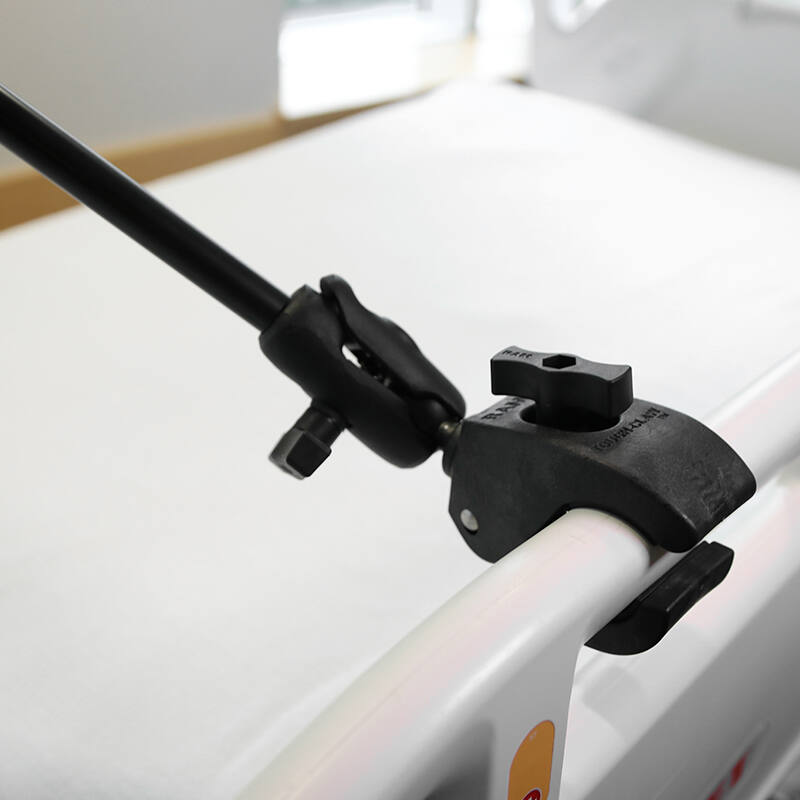

Will the Tough-Claw fit my bed rail or wheelchair frame? The large Tough-Claw clamps tool-free to round, square and odd-shaped tube from 25mm to 56mm outer diameter, and to flat surfaces up to 56mm thick. Most hospital bed rails and wheelchair frames sit inside that range — measure yours before ordering.

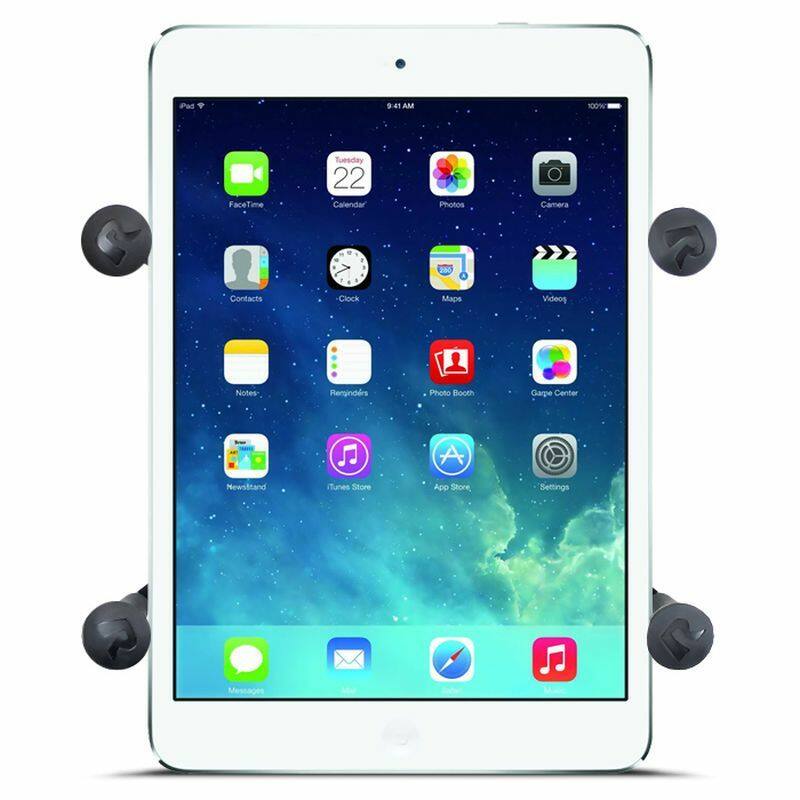

Will my tablet fit with a case on? Measure the width of your tablet with the case, sleeve or skin fitted. The cradle opens from 63.5mm to 146mm wide and takes devices up to 22.2mm thick.
Is the tether included? Yes. It's worth fitting if the chair sees outdoor or rough-ground use.
Can it be swung out of the way? Yes. The swivelling double socket arm and the pipe let you push the tablet aside for transfers, meals or sleeping, then bring it back to the same position without re-setting anything.
How much weight will it hold? The mount is rated to 900g (2 lb), which covers any 7-8" tablet in a case.
