RAM-B-407-UN8BU – RAM® X-Grip® 7-8" Tablet Mount with Tough-Wedge™ Base (Alloy)

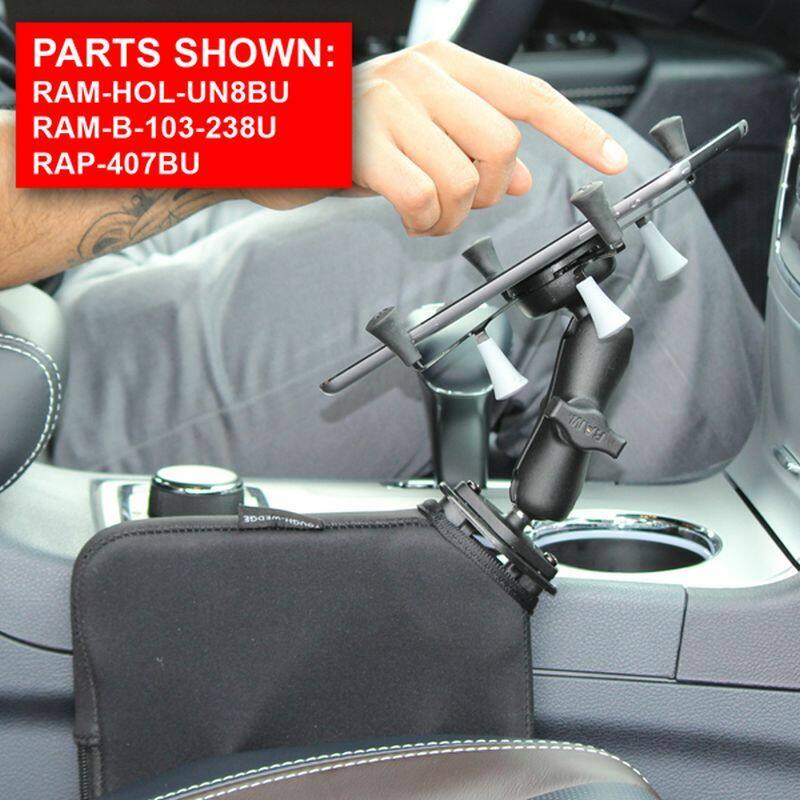

The RAM-B-407-UN8BU mounts most 7"-8" tablets on RAM's Tough-Wedge™ seat-gap base, which wedges into the gap between a vehicle seat and centre console with no drilling or gluing required and moves easily between vehicles. The spring-loaded X-Grip® cradle holds the tablet securely via a medium double socket arm.
Key Features
- Tough-Wedge™ base wedges into the seat/console gap for a rugged, drill-free mount that moves between vehicles

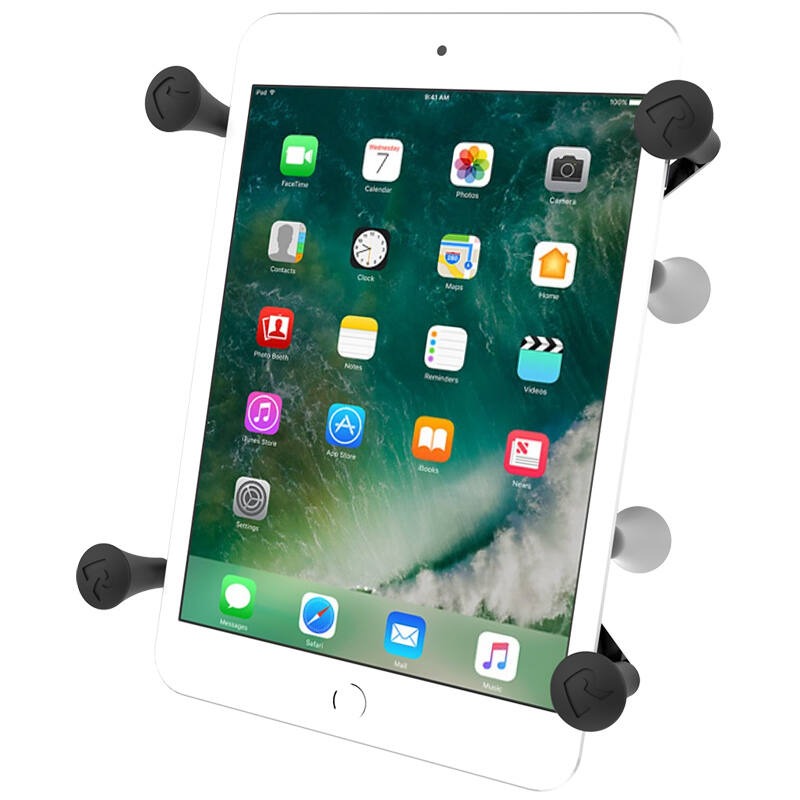

- Spring-loaded X-Grip® cradle expands and contracts for a custom fit, with rear grip knobs for quick release
- Includes an optional device tether for extra security during rugged use
- Medium double socket arm with 1" B-size rubber balls for near-infinite adjustment
- Powder-coated marine-grade aluminium, stainless steel hardware and high-strength composite construction
- Backed by RAM Mounts' lifetime warranty
What's Included
-

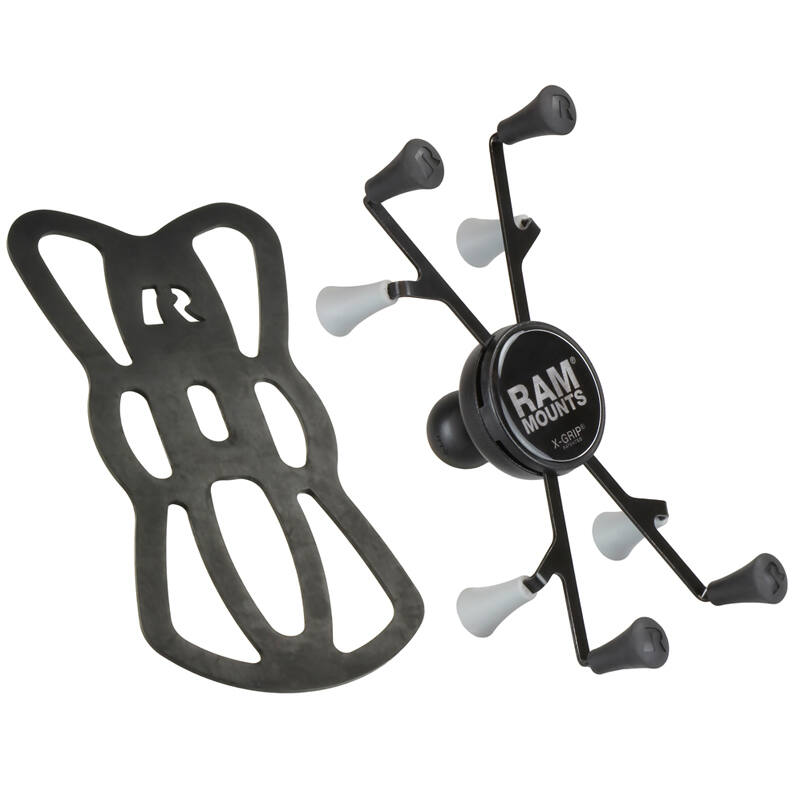

RAM-HOL-UN8BU X-Grip® cradle for 7-8" tablets
-

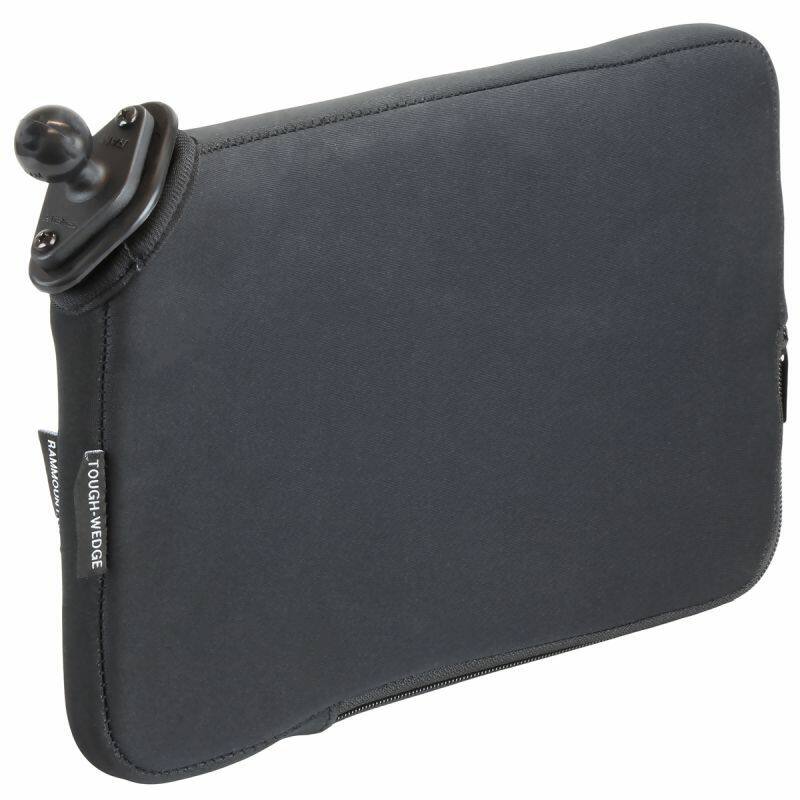

RAP-407BU Tough-Wedge™ seat-gap base
-
RAM-B-238U diamond base with 1" B-size ball
-

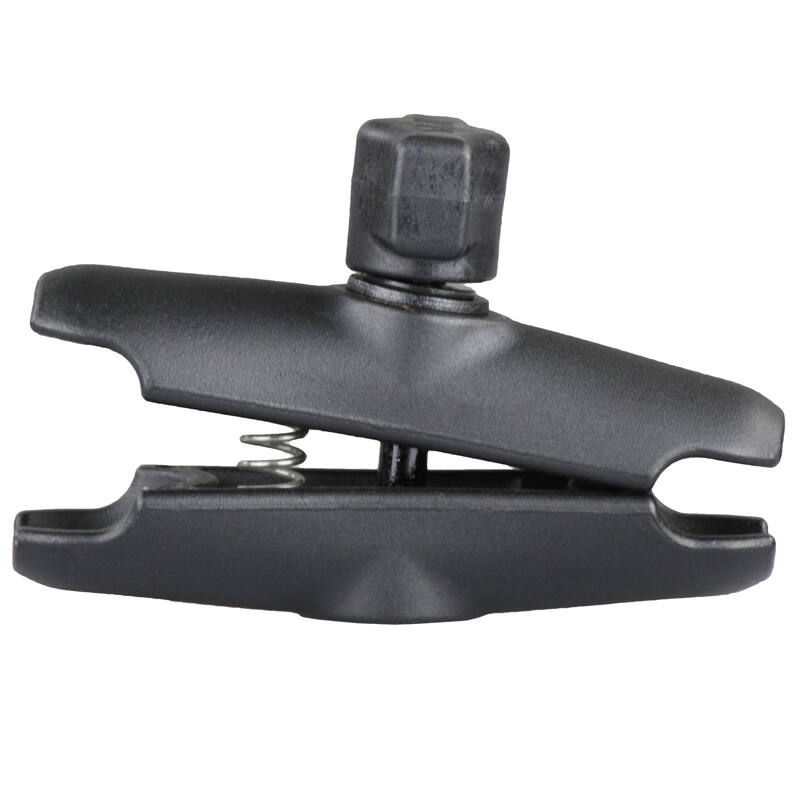

RAM-B-201U medium double socket arm for 1" ball
Dimensions & Specifications
- Tough-Wedge dimensions: 336mm (L) x 209mm (H) x 25mm (D); inside wedge depth 9.5-22mm
- Arm overall length: 94mm (3.69"); socket-to-socket 76mm (3")
- Cradle min width: 63.5mm (2.5") – at min width, min device height 177.8mm (7")
- Cradle max width: 146.05mm (5.75") – at max width, min device height 101.6mm (4")
- Cradle max device thickness: 22.2mm (0.875")
- Ball size: B size, 1" rubber ball
- Material: high-strength composite; neoprene; marine-grade stainless steel; powder-coated marine-grade aluminium
Fits most 7"-8" tablets within the cradle dimensions above; check your device (with case) against these figures before ordering. A composite (non-alloy) version is also available as RAP-B-407-UN8U. The tablet itself is not included.
Videos
FAQs
Is this a complete mount? Yes. The Tough-Wedge base, diamond ball base, medium arm and X-Grip cradle are all included — the only thing you add is the tablet.
Will the Tough-Wedge fit my vehicle? It wedges into the gap between the seat and the centre console and suits gaps from 9.5mm to 22mm. There's no drilling or adhesive, so it lifts out and moves to another vehicle in seconds.
Will my tablet fit with a case on? Measure the width of your tablet with the case, sleeve or skin fitted. The cradle opens from 63.5mm to 146.05mm wide and takes devices up to 22.2mm thick.
Is the tether included? Yes. We'd recommend fitting it for off-road, marine and any other high-vibration use — it's cheap insurance if the tablet is ever knocked loose.

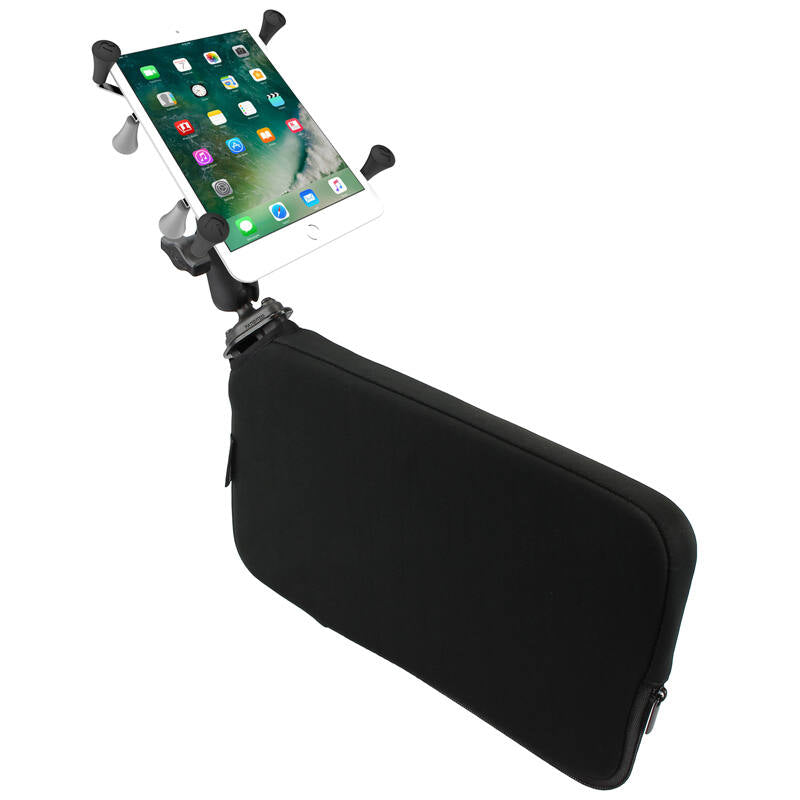

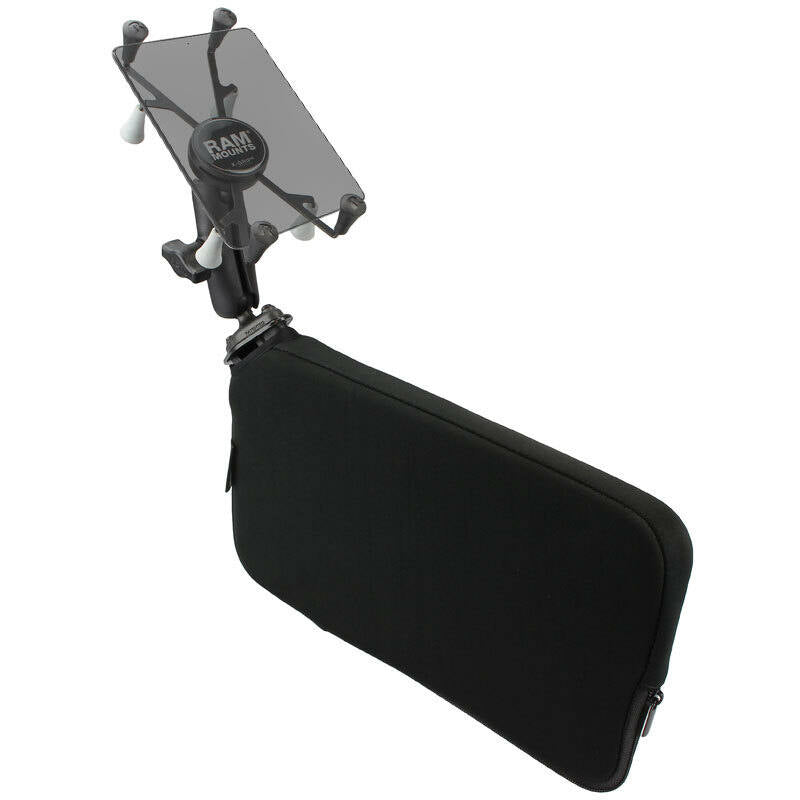

What's the difference between this and RAP-B-407-UN8U? This version uses a powder-coated marine-grade aluminium arm and diamond base. RAP-B-407-UN8U is the composite equivalent — same cradle and same Tough-Wedge base.
