RAM Mounts

RAM X-Grip Universal Cradle for 7"- 8" Tablets with Tough-Wedge & Long Arm

RAM X-Grip Universal Cradle for 7"- 8" Tablets with Tough-Wedge & Long Arm

SKU:RAM-B-407-201-C-UN8U-v

Regular price $289.75 NZD
Regular price Sale price $289.75 NZD
Sale Sold out
Tax included. Shipping calculated at checkout.
View full details

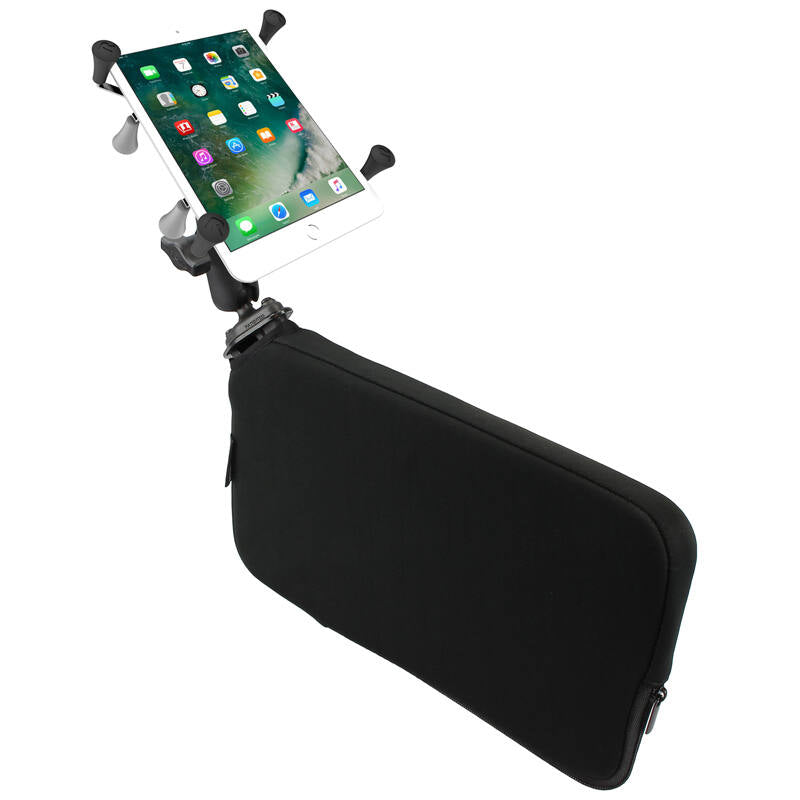

RAM-B-407-201-C-UN8U RAM® X-Grip® 7-8" Tablet Mount with RAM® Tough-Wedge™ Base - Long

Features

* Spring-loaded 'X' design with rubber caps sports great holding power without hiding your tablet; fits most 7"-8" tablets and includes optional device tether for peace of mind during rugged use
* Tough-Wedge™ seat wedge fits in the gap between the vehicle seat and center console; allowing easy access and operation of your mobile device
* B size RAM® LONG double socket arm with ball and socket technology allows for near-infinite adjustability
* Made of stainless steel components, powder coated marine grade aluminium and high-strength composite for durability and reliability in the most demanding environments
* Backed by a lifetime warranty

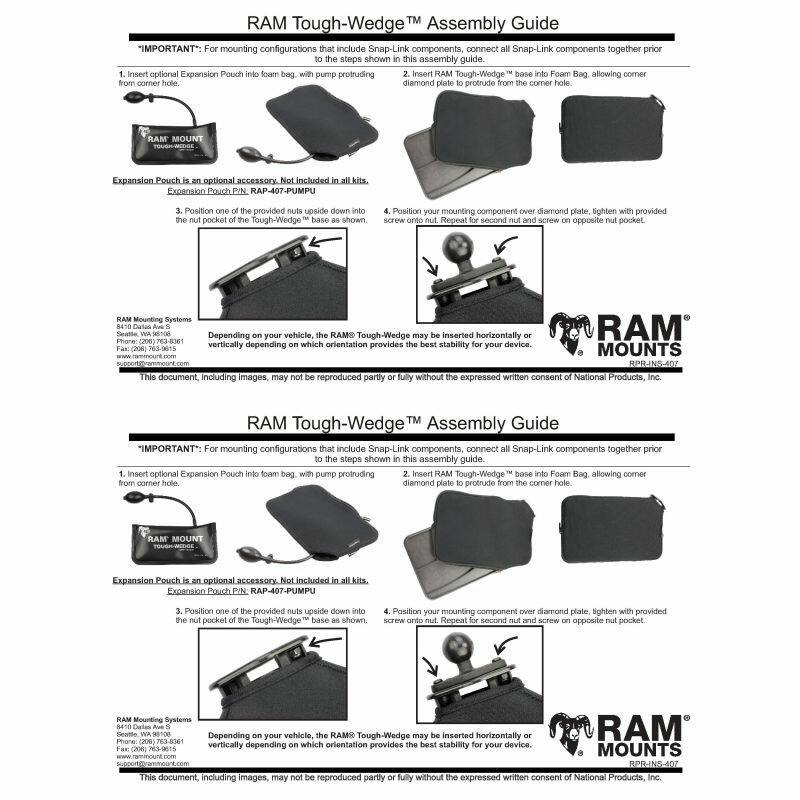

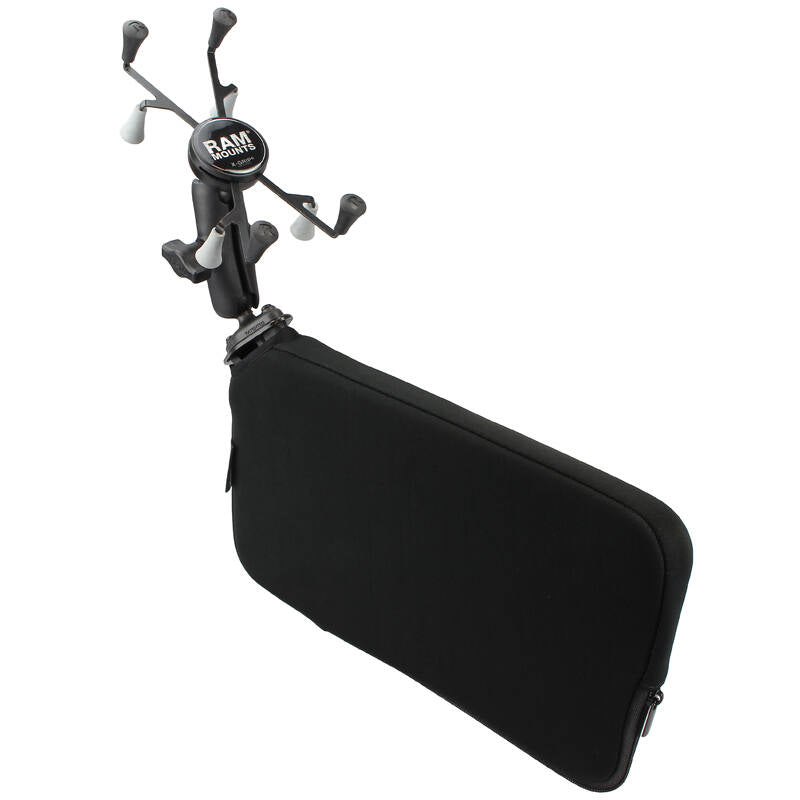

The "Tough-Wedge" provides a base for any RAM mount - and you can move it easily between vehicles! This is a seat wedge mount that fits in the gap between your vehicle seat and the centre console, allowing easy access and operation of your mobile device without the need to drill or glue.

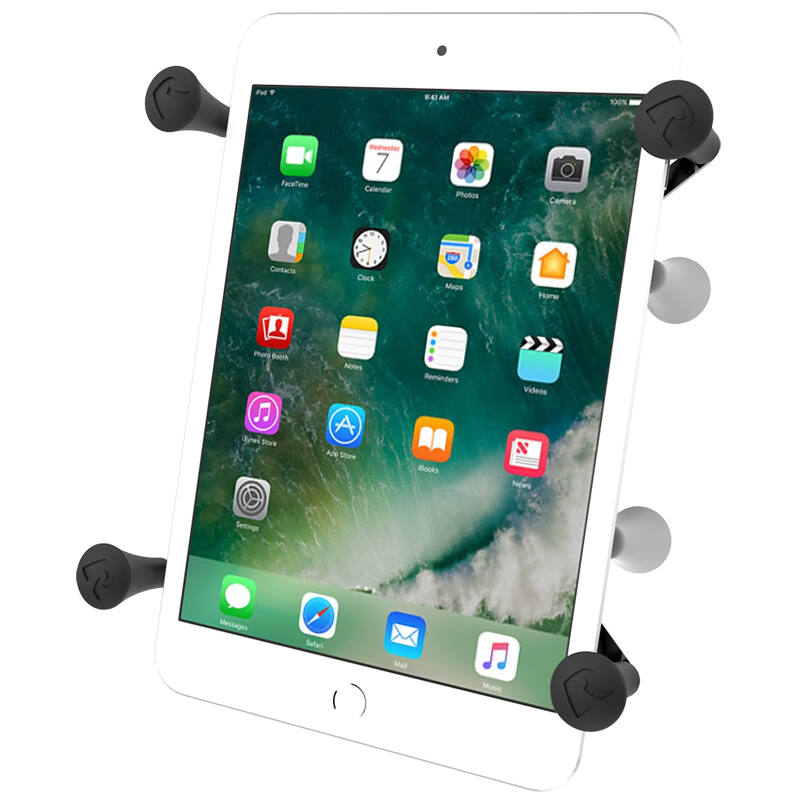

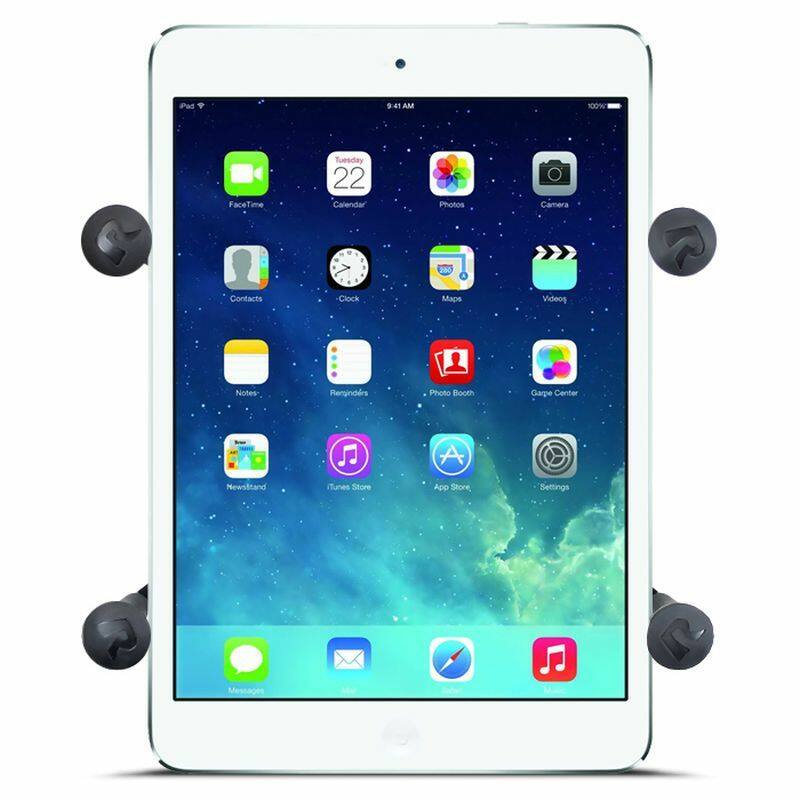

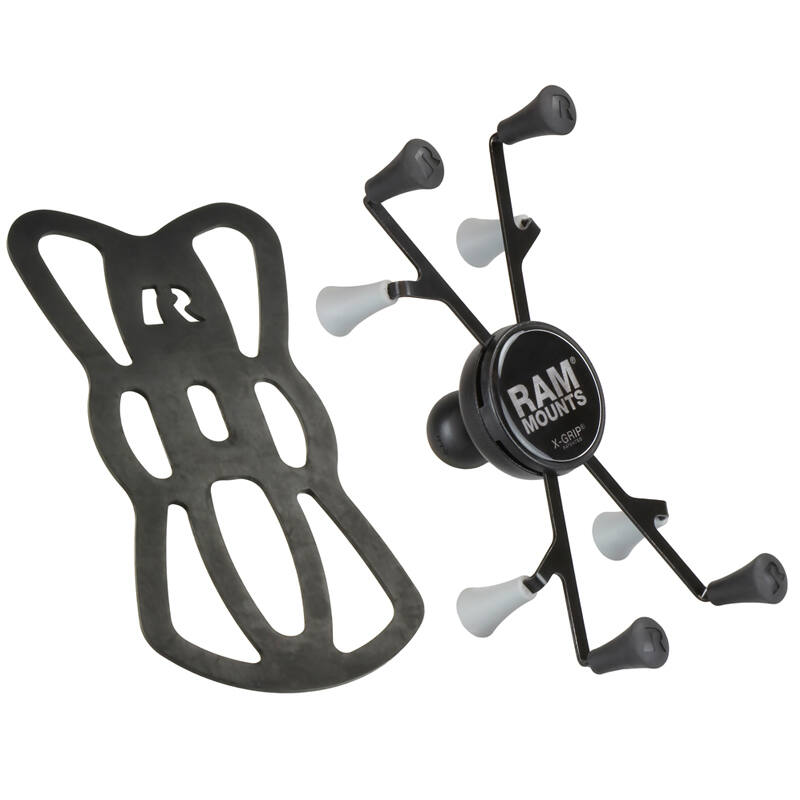

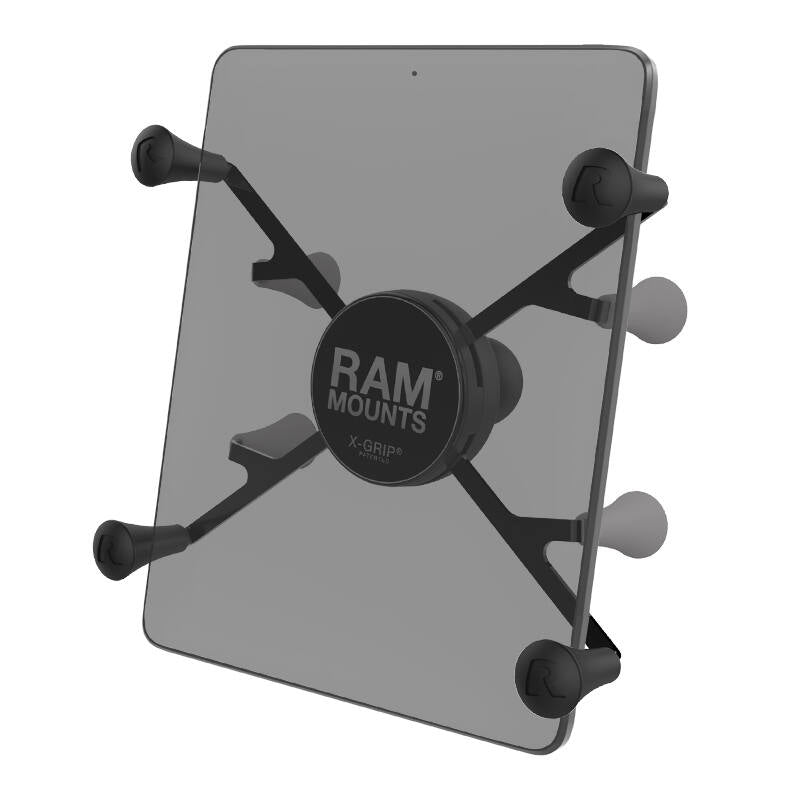

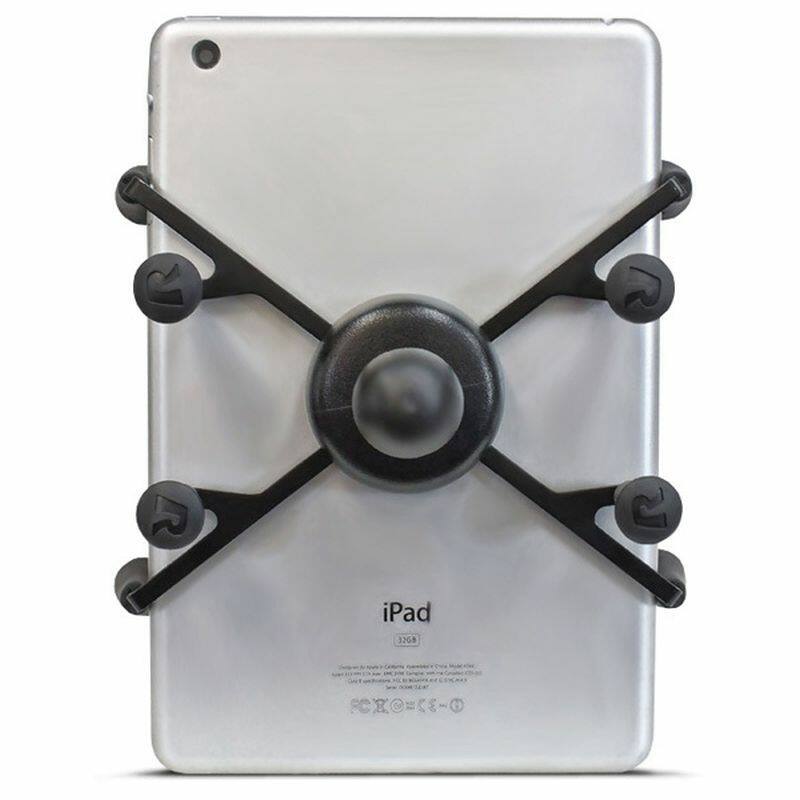

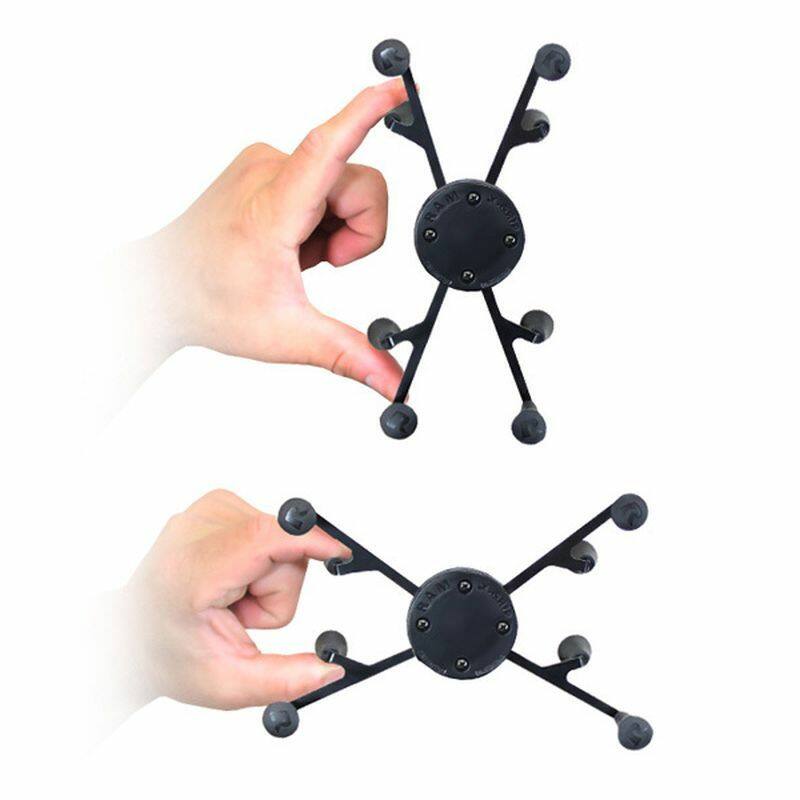

The X-Grip® consists of a spring-loaded cradle and 1" rubber ball connected to the back of the base. Included are extra easy access grip knobs, located on the back of the cradle for quick release of your tablet. The X-Grip® expands and contracts for perfect fit of most 7"-8" tablets and includes a device tether recommended for outdoor applications.


The cradle is compatible with devices that will fit the dimensions listed below. It is important to verify the dimensions of your device with a case/sleeve/skin when determining the overall size.

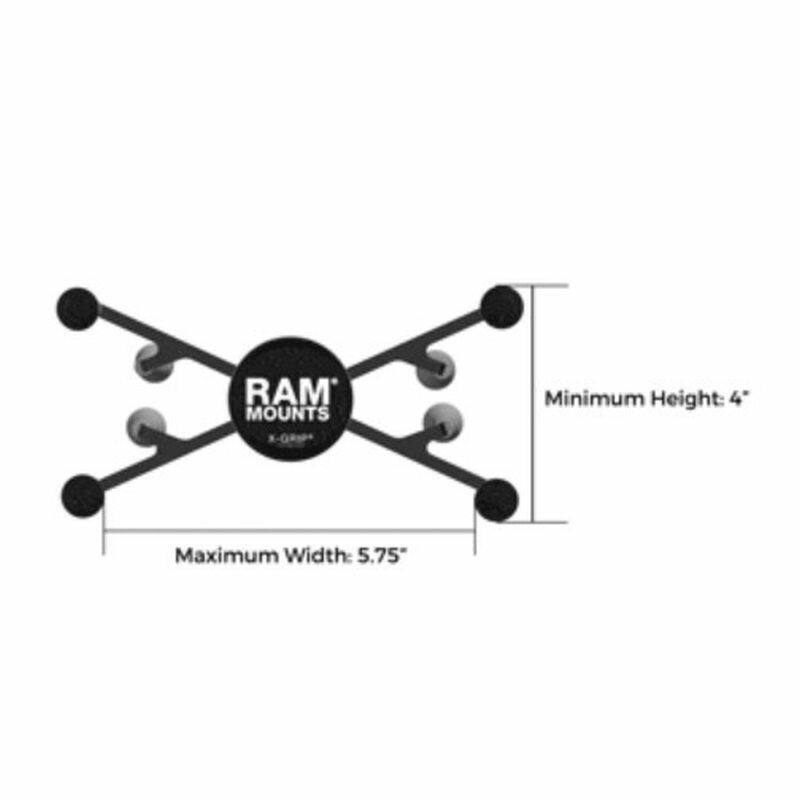

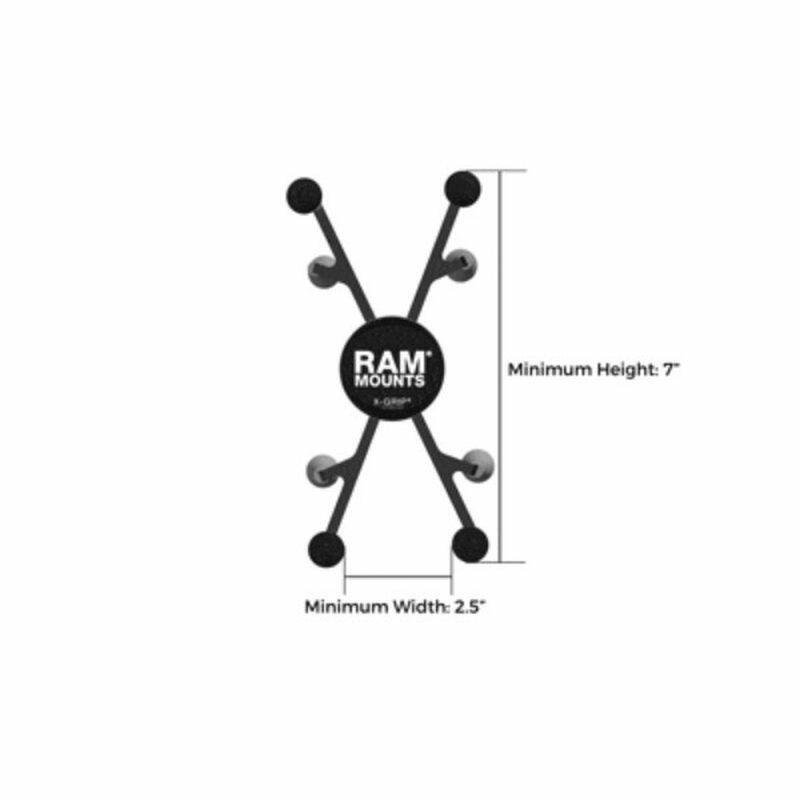

Cradle Dimensions
Min Width = 63.5mm (if min width then min height = 177.8mm)
Max Width = 146.05mm (if max width then min height = 101.6mm)
Max Thickness = 22.2mm


Compatible Devices
For a list of many of the compatible devices for this cradle go to our listing for the RAM-HOL-UN8BU

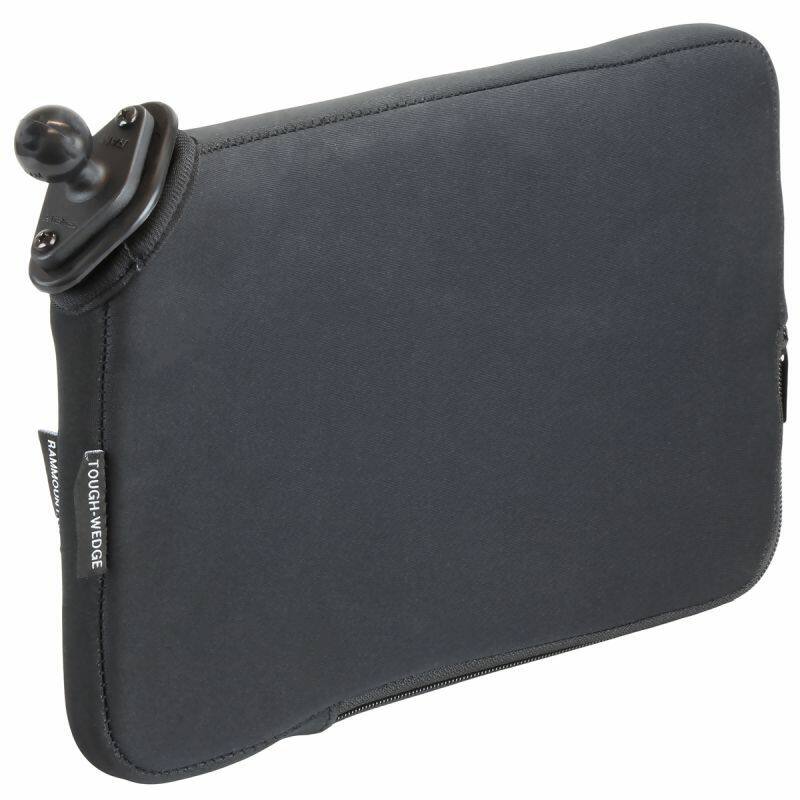

Tough-Wedge Dimensions:
L: 336mm
H: 209mm
D: 25mm
Inside Wedge Depth: 9.5mm - 22mm

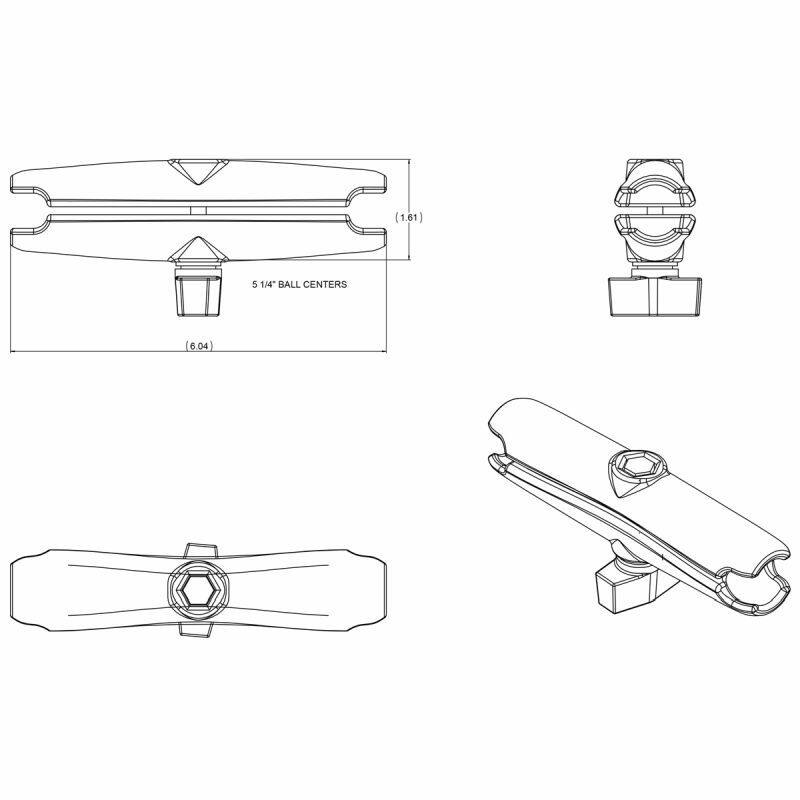

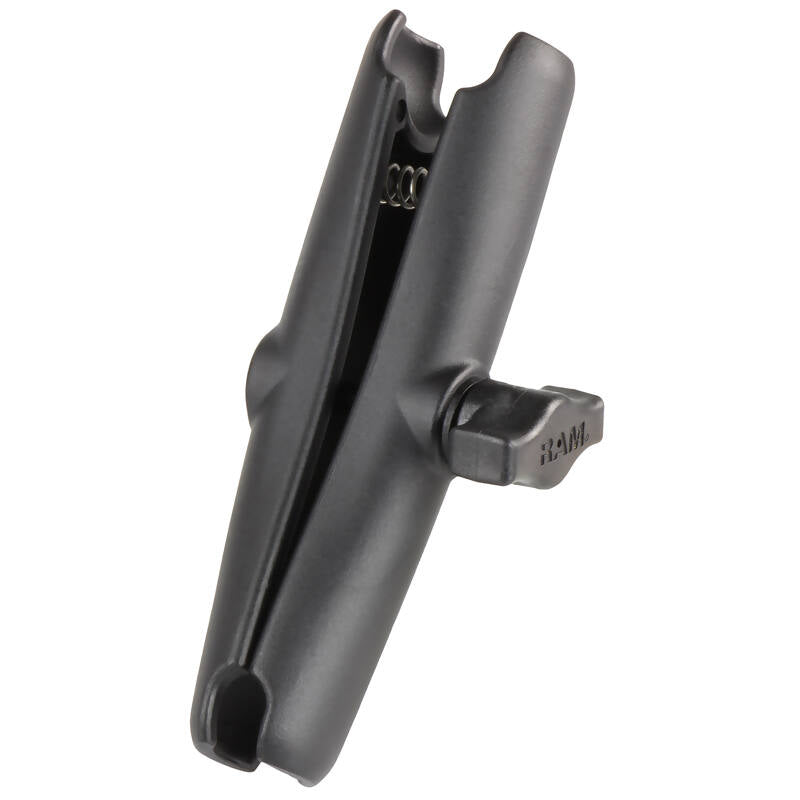

Arm Dimensions:
Overall Length:
152 mm (6 inches)
Socket-To-Socket Length:
134 mm (5.25 inches)



Material:
High Strength Composite
Neoprene
Marine Grade Stainless Steel Components
Powder coated marine grade aluminium


Components:
RAM-B-238U 62 X 33mm DIAMOND BASE W/ 1 BALL
RAP-407BU Seat Tough-Wedge
RAM-B-201U-C DBL SOCKET ARM B BALL C LENGTH
RAM-HOL-UN8BU UNIVERSAL X GRIP II TABLET HOLDER
