RAM X-Grip Universal Cradle for 7"- 8" Tablets with Triple Suction Cup Base

RAP-B-365-224-C-UN8 – RAM® X-Grip® Universal Cradle for 7"–8" Tablets with Triple Suction Cup Base & Long Arm

The RAP-B-365-224-C-UN8 mounts most 7"–8" tablets to a windscreen or smooth surface in a high-vibration environment. It pairs the spring-loaded RAM® X-Grip® cradle with a triple twist-lock suction base and a long double socket arm for maximum reach. The three-cup base is the answer for aircraft, tractors and other vehicles where a single or dual suction cup won't hold against the vibration.

Key Features

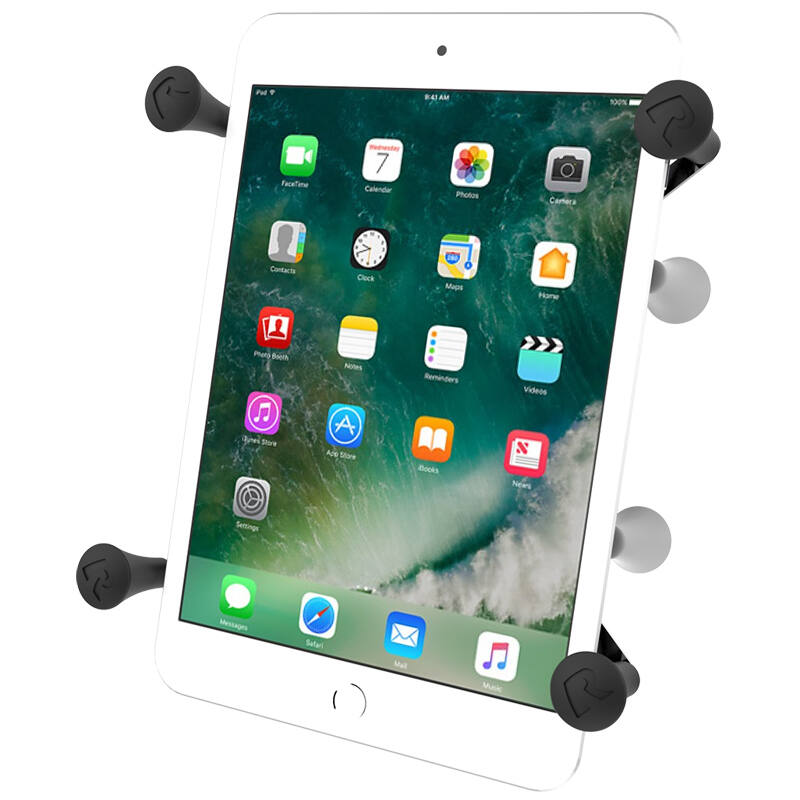

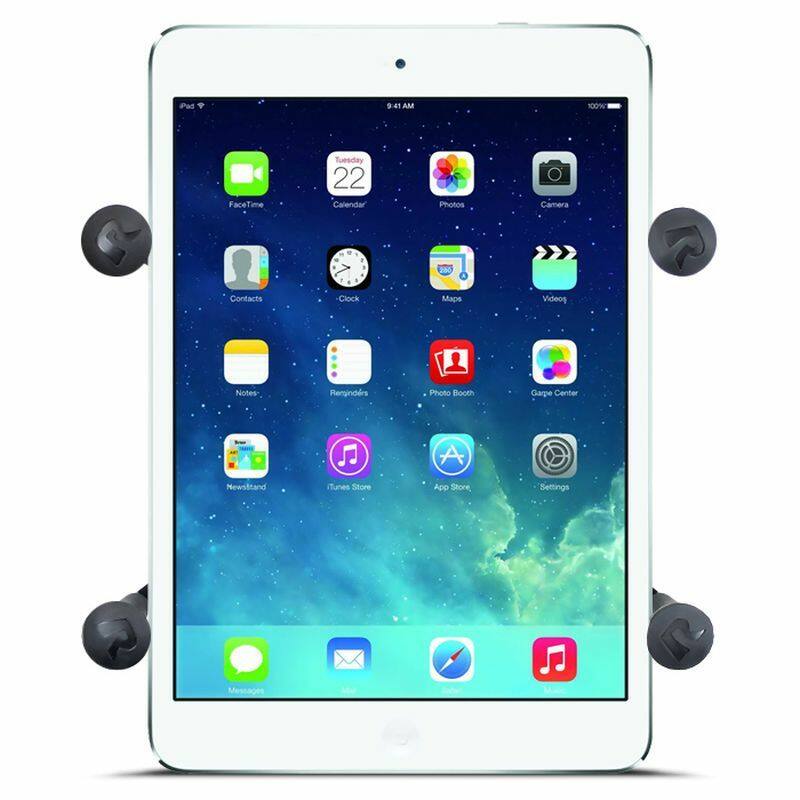

• Spring-loaded X-Grip® cradle grips most 7"–8" tablets without hiding the screen; includes a device tether for outdoor use
• Easy-access grip knobs on the back release the tablet quickly
• Triple twist-lock suction base built for high-vibration use, aircraft, tractors and other vehicles
• Long double socket arm gives extra reach; RAM ball-and-socket design adjusts to almost any angle
• High-strength composite, powder-coated aluminium alloy and steel; backed by a lifetime warranty

Works With

Most 7"–8" tablets that fit the cradle dimensions below. The suction base mounts to glass and other smooth, non-porous surfaces. Verify your device's size with any case or sleeve fitted before ordering.

Dimensions & Specifications

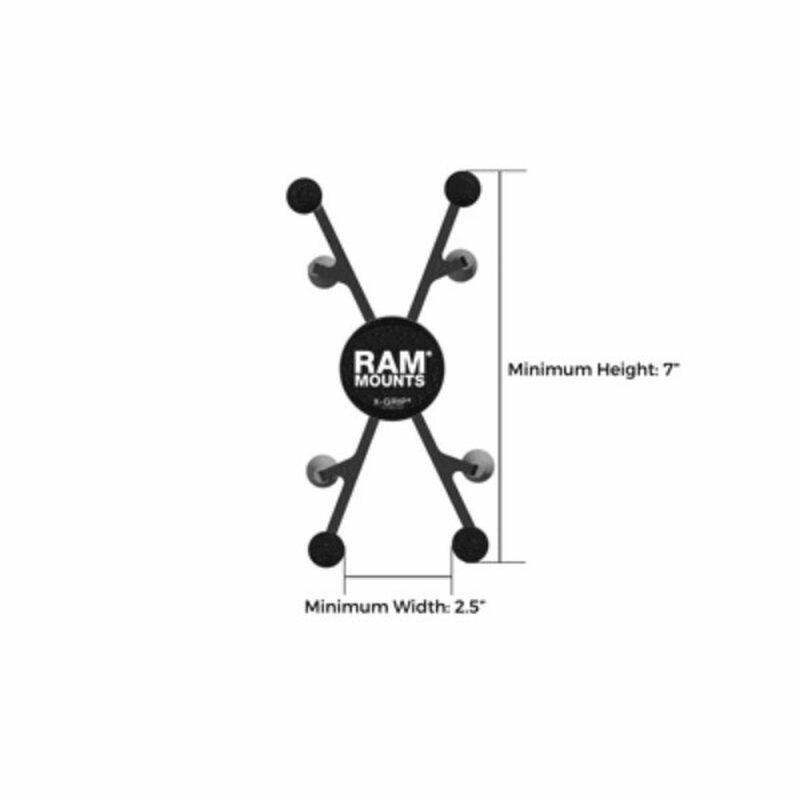

• Cradle minimum width: 63.5mm (2.5"), at which the minimum height is 177.8mm (7")

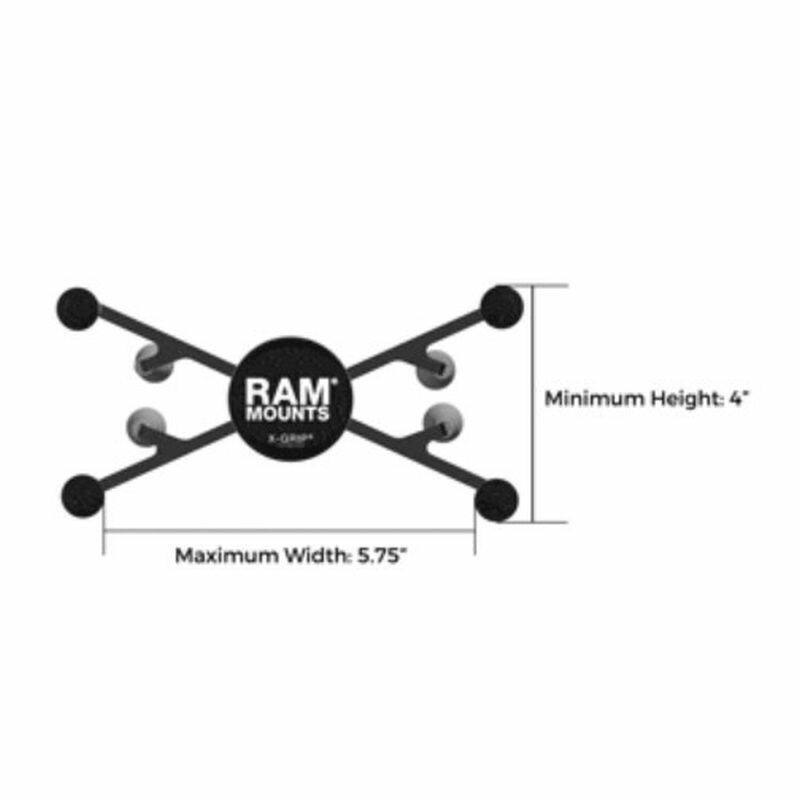

• Cradle maximum width: 146.05mm (5.75"), at which the minimum height is 101.6mm (4")
• Cradle maximum thickness: 22.2mm (0.875")

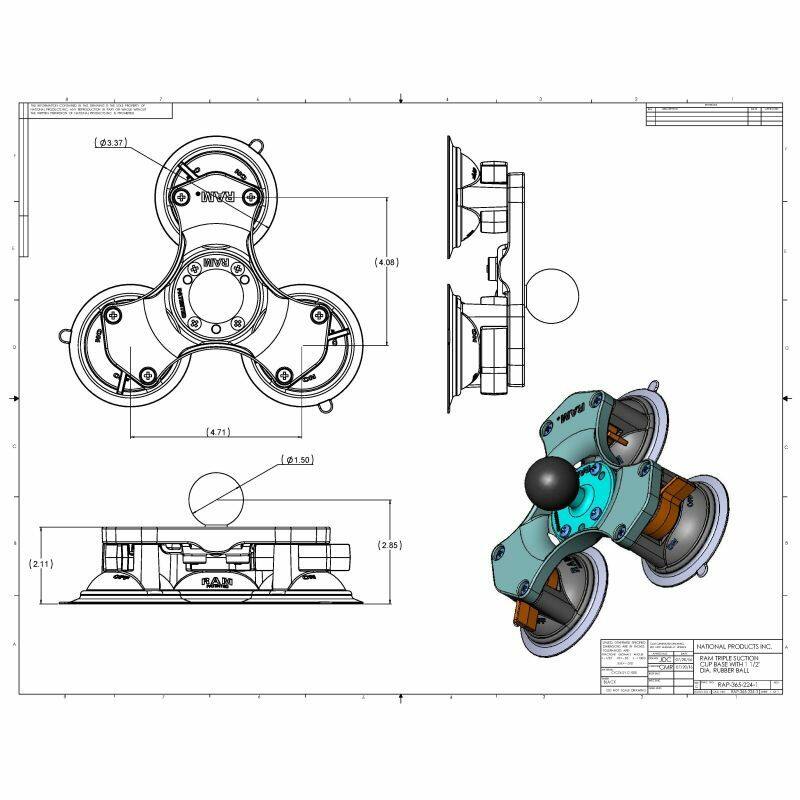

• Suction cups: three 83.8mm (3.3") diameter bases, total width 201.9mm (7.95")
• Arm overall length: 152mm (6"); socket-to-socket 134mm (5.25")
• Materials: high-strength composite, powder-coated aluminium alloy, steel

Compatible Devices

Fits most 7"–8" tablets within the cradle dimensions above. For a fuller device list, see our RAM-HOL-UN8BU listing for the cradle on its own.

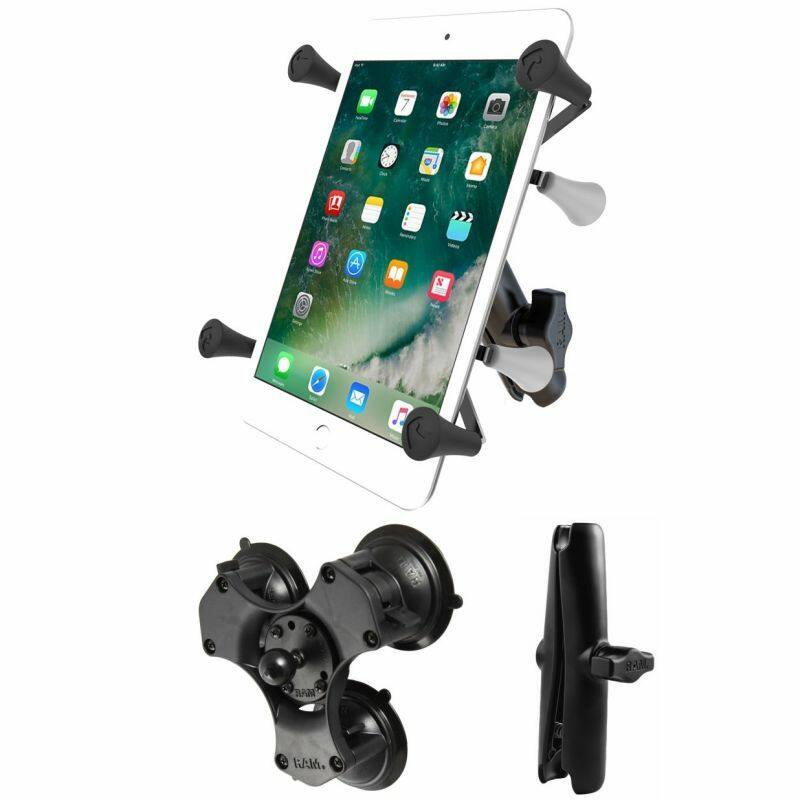

What's Included

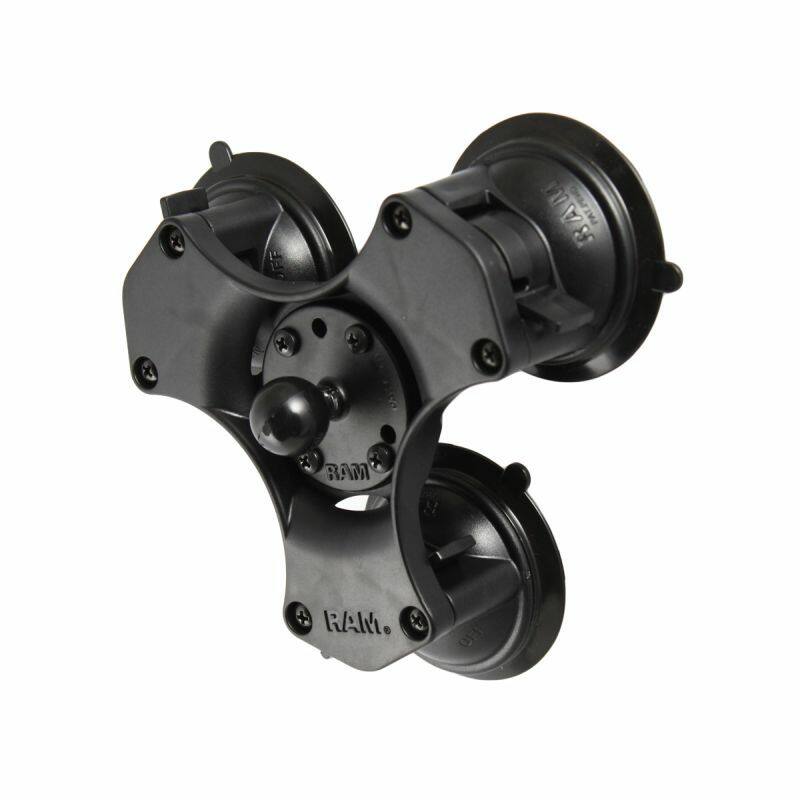

• RAP-365-224-1BU triple twist-lock suction base with AMPS hole pattern
• RAM-B-202U 63.5mm round base with 1" ball
• RAM-B-201U-C long double socket arm

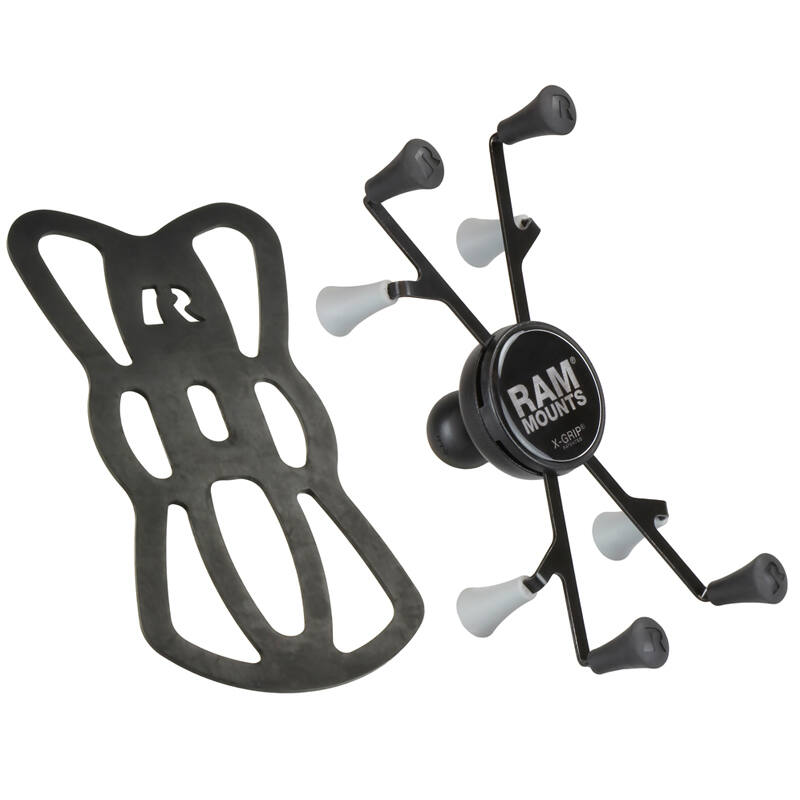

• RAM-HOL-UN8BU X-Grip® spring-loaded cradle with device tether and spare grip knobs

Videos

• RAM X-Grip cradle overview

FAQs

Is this a complete mount? Yes. The triple suction base, round base, long arm and X-Grip tablet cradle are all included; there's nothing else to buy to get your tablet onto the glass.

Why a triple suction base? Three cups hold where one or two would let go under sustained vibration, which makes this the go-to for aircraft, tractor and other high-vibration windscreens.

Will my tablet fit with a case on? Measure the width of your tablet with the case, sleeve or skin fitted. The cradle opens from 63.5mm to 146.05mm wide and takes devices up to 22.2mm thick.

Is the tether included? Yes. We'd recommend fitting it for aviation, agricultural and any other high-vibration use; it's cheap insurance if the tablet is ever knocked loose.

What surfaces will the cups stick to? Glass and other smooth, non-porous surfaces. Textured dashboards, matte plastic and any surface with a grain won't hold; clean both the cup and the surface before mounting.

Is the long arm the right choice? The 152mm arm gives extra reach for pushing a 7-8" tablet clear of instruments or controls. If you want the tablet held closer to the glass, a shorter-arm suction kit suits better.
