RAM-B-149Z-UN8U RAM® X-Grip® Handlebar U-Bolt Mount for 7"-8" Tablets
Features

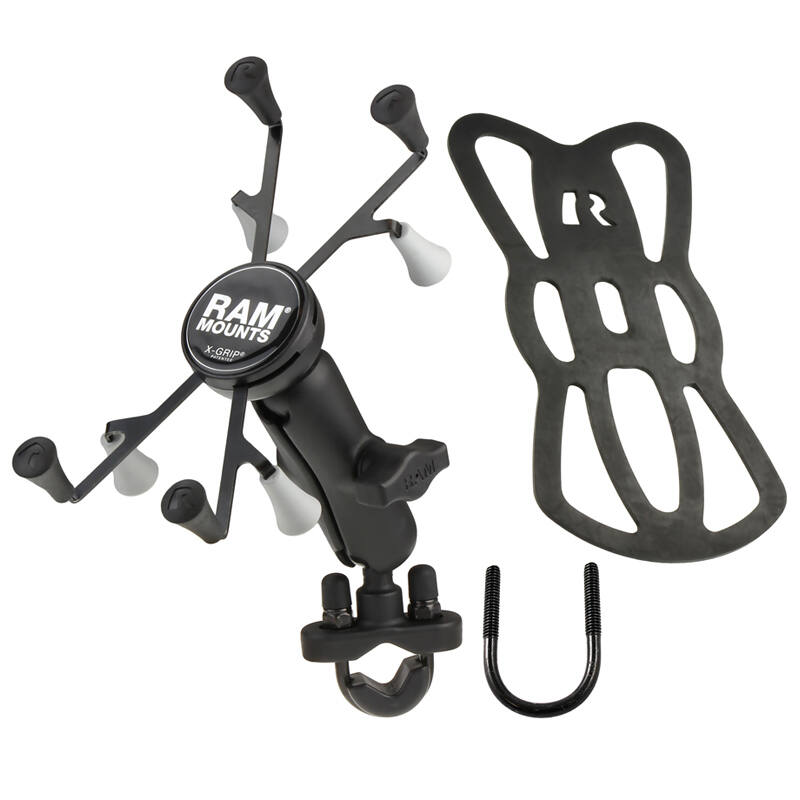

* Spring-loaded 'X' design with rubber caps sports great holding power without hiding your tablet; fits most 7"-8" tablets
* Includes optional device tether for peace of mind during rugged use
* U-bolt base fits rails / bars from 12.7 to 32mm in diameter
* Medium length, B size RAM® double socket arm with ball and socket technology allows for near-infinite adjustability
* Made of powder-coated, marine-grade aluminum, stainless steel components, and high-strength composite for durability and reliability in the most demanding environments
* Backed by a lifetime warranty
The RAM-B-231ZU Rail Base consists of a 1" rubber ball designed to sit at right angles to the mounting rail and a zinc-coated U-bolt mounting which fits rails from 12.7 to 31.8mm in diameter and will fit all common motorcycle and bicycle handlebars. Includes black cover caps to cover the exposed ends of the U-bolt and a composite adapter that can narrow the rail to a minimum width of 12.7mm (1/2").

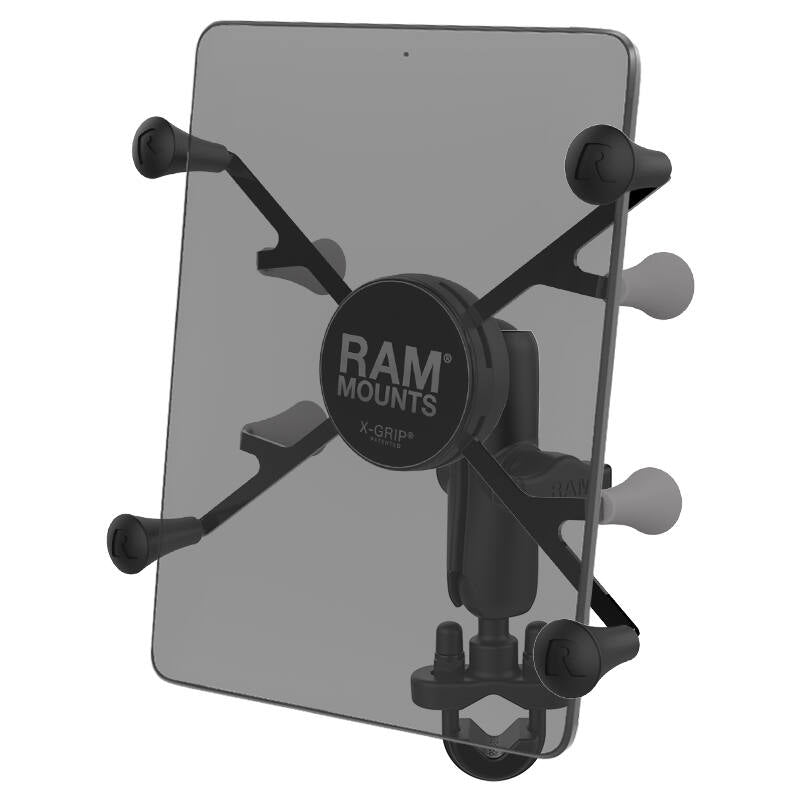

The X-Grip® spring-loaded cradle includes extra easy access grip knobs, located on the back of the cradle for quick release of your tablet. The X-Grip® expands and contracts for perfect fit of most 7"-8" tablets and includes a device tether recommended for outdoor applications.
The cradle is compatible with devices that will fit the dimensions listed below. It is important to verify the dimensions of your device with a case/sleeve/skin when determining the overall size.
Cradle Dimensions
Min Width = 63.5mm (2.5”) – (if min width then min height = 177.8mm / 7")
Max Width = 146.05mm (5.75") – (if max width then min height = 101.6mm / 4")
Max Thickness = 22.2mm (0.875")
Compatible Devices
For a list of many of the compatible devices for this cradle go to our listing for the RAM-HOL-UN8BU
Arm Dimensions:
Overall:
94mm (3.69")
Socket-To-Socket:
76mm (3")
U-Bolt Dimensions:
12.7 to 31.8mm (0.5" to 1.25")
Components:
RAM-B-231ZU RAM RAIL BASE W/ U-BOLT FOR 13 - 32MM BARS
RAM-B-201U RAM DOUBLE SOCKET ARM FOR 1" BALL

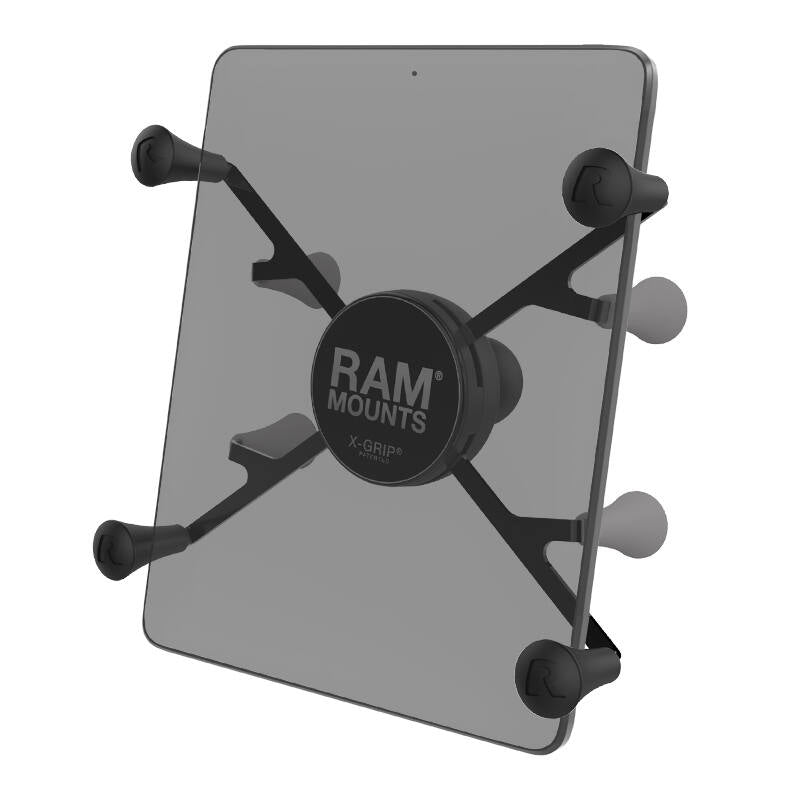

RAM-HOL-UN8BU RAM UNIVERSAL X GRIP II TABLET HOLDER
YouTube:
https://www.youtube.com/watch?v=mITLn9R2Ybc
https://www.youtube.com/watch?v=S8ky_uKTw98
