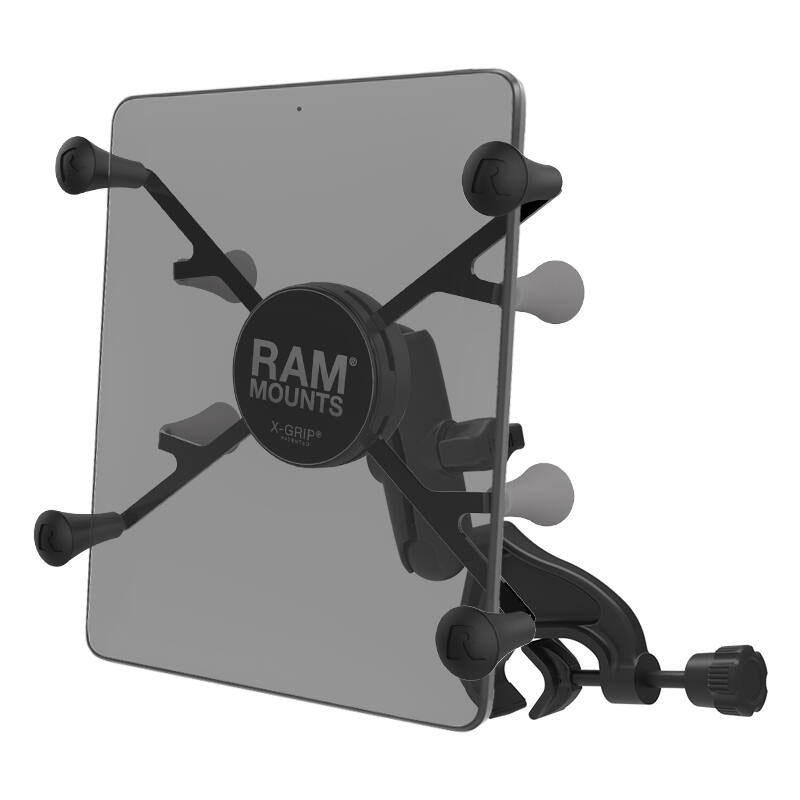

RAM-B-121-UN8U RAM® X-Grip® Mount with Yoke Clamp Base for 7"-8" Tablets
Features
* Spring-loaded 'X' design with rubber caps sports great holding power without hiding your tablet; fits most 7"-8" tablets
* Includes optional device tether for peace of mind during rugged use
* Easy access grip knobs on the back of the holder allow for the quick release of your tablet
* Yoke clamp fits yokes, rails and other surfaces from 15.9 to 31.8mm diameter
* RAM® Mounts double socket arm with ball and socket technology allows for near-infinite adjustability
* High Strength Composite, Powder Coated Marine Grade Aluminium & Marine Grade Stainless Steel construction for maximum longevity
* Backed by a lifetime warranty
This is a yoke clamp base, double socket arm system and universal spring loaded X-Grip cradle for 7" tablets.
The yoke clamp base has a 1" rubber ball positioned at a right angle to the plane of the mount; when connected to a rail, the ball sits parallel to the rail. The patented rubber ball and socket system with adjustment points at the both ends of the socket arm. With a twist of the arm knob you can move the mount to your optimum viewing position.
The X-Grip® spring-loaded cradle includes extra easy access grip knobs, located on the back of the cradle for quick release of your tablet. The X-Grip® expands and contracts for perfect fit of most 7"-8" tablets and includes a device tether recommended for outdoor applications.
The cradle is compatible with devices that will fit the dimensions listed below. It is important to verify the dimensions of your device with a case/sleeve/skin when determining the overall size.
Cradle Dimensions
Min Width = 63.5mm (2.5”) – (if min width then min height = 177.8mm / 7")
Max Width = 146.05mm (5.75") – (if max width then min height = 101.6mm / 4")
Max Thickness = 22.2mm (0.875")
Compatible Devices
For a list of many of the compatible devices for this cradle go to our listing for the RAM-HOL-UN8BU
Clamp Range
15.9 to 31.8mm (.625" - 1.25")
Arm Dimensions:
Overall Length:
94mm (3.69")
Socket-To-Socket Length:
76mm (3")
Components:
RAM-HOL-UN8BU X-Grip® Cradle

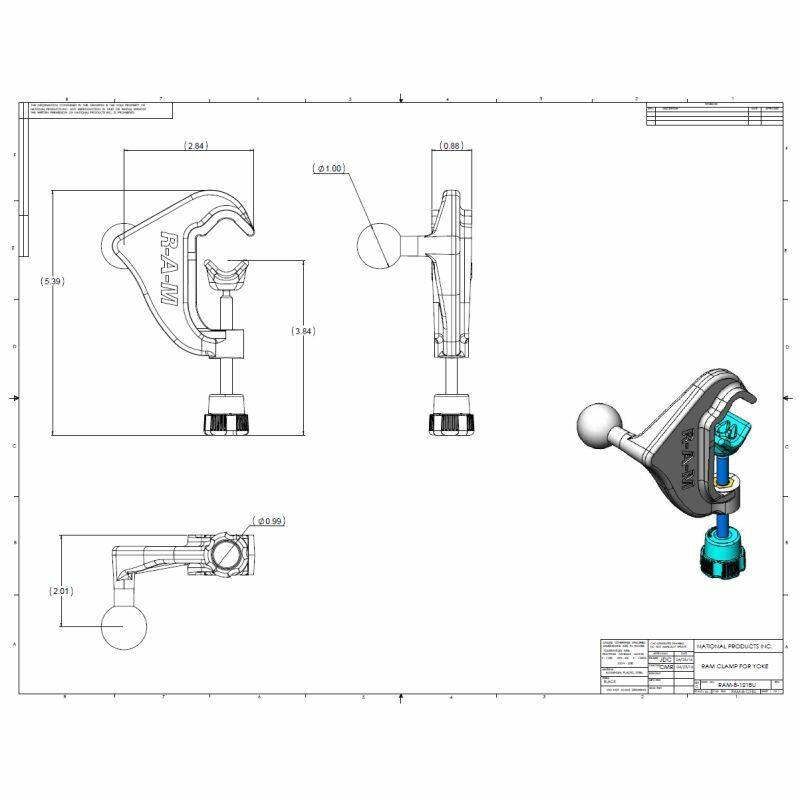

RAM-B-121BU Yoke Clamp Base
RAM-B-201U Double Socket Arm
