RAM X-Grip Universal Phablet Cradle with Brake/Clutch Clamp / U-Bolt Mount

RAM X-Grip Universal Phablet Cradle with Brake/Clutch Clamp / U-Bolt Mount

SKU:RAM-B-174-UN10-v

Regular price $187.87 NZD
Regular price Sale price $187.87 NZD
Sale Sold out
Tax included. Shipping calculated at checkout.
View full details

RAM-B-174-UN10U RAM® X-Grip® Large Phone Mount with Brake/Clutch Reservoir Base - Short

Features

* Spring-loaded 'X' design for large phones and phablets with rubber caps sports great holding power without hiding your phone
* Includes optional device tether for peace of mind during rugged use

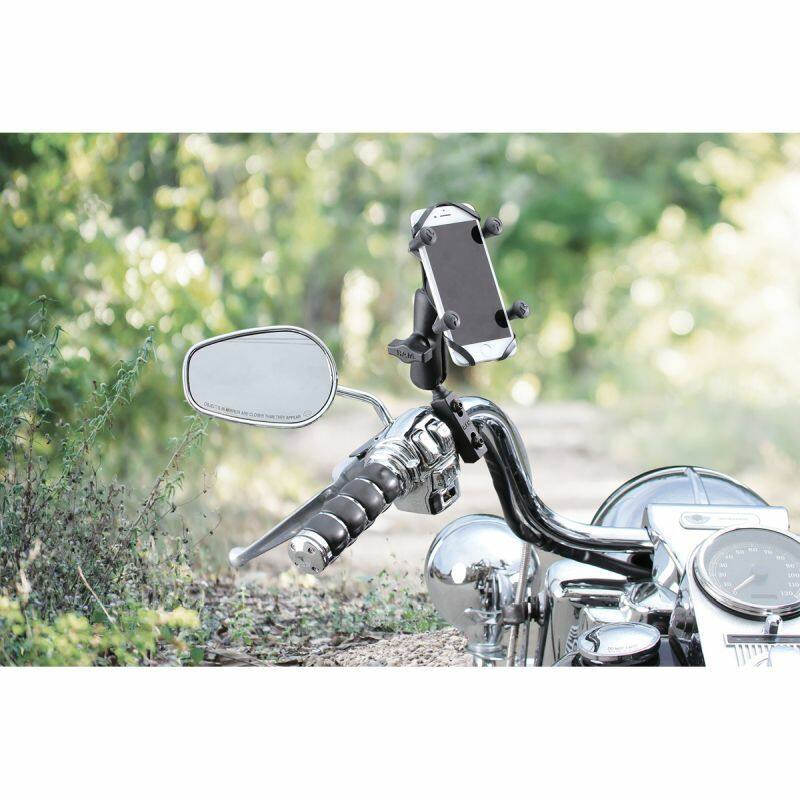

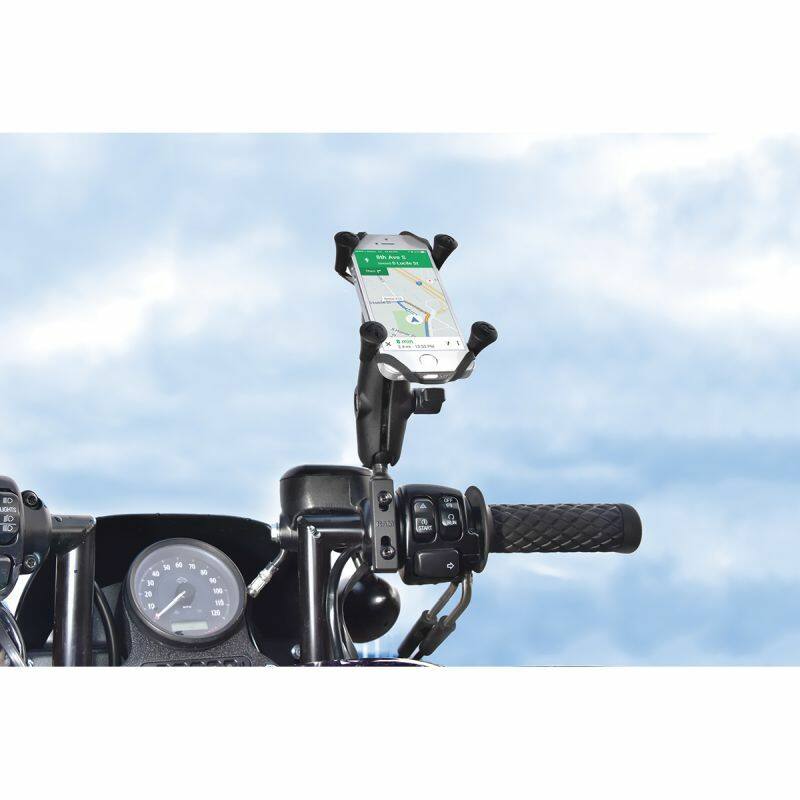

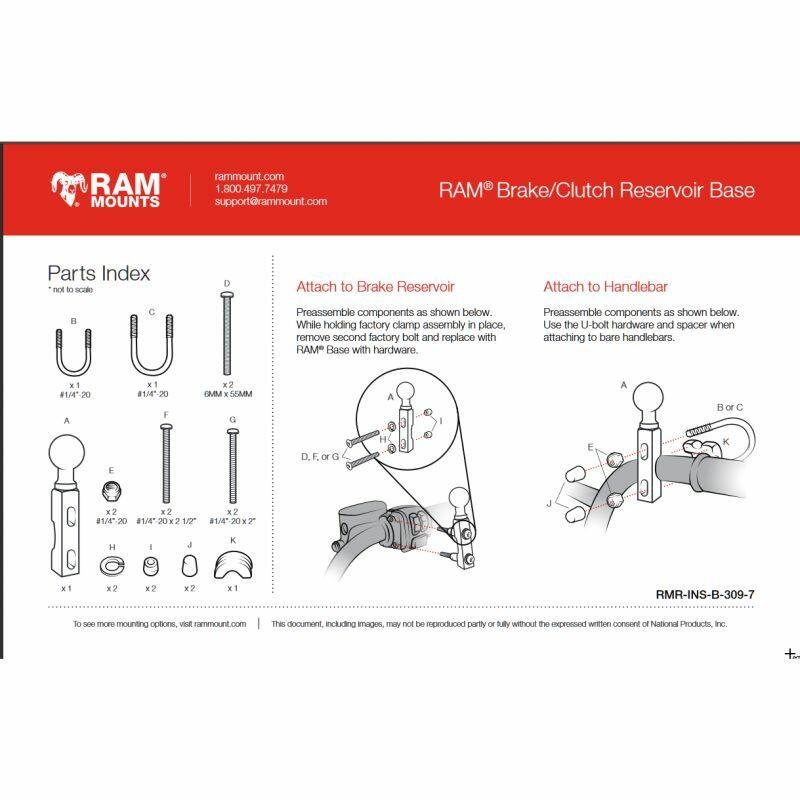

* Combination handlebar and brake/clutch reservoir base for motorcycles; includes U-bolt hardware
* Included B size 1" RAM® double socket arm with ball and socket technology which allows for near-infinite adjustability
* Made of powder-coated, marine-grade aluminum, stainless steel components, and high-strength composite for durability and reliability in the most demanding environments
* Backed by a lifetime warranty

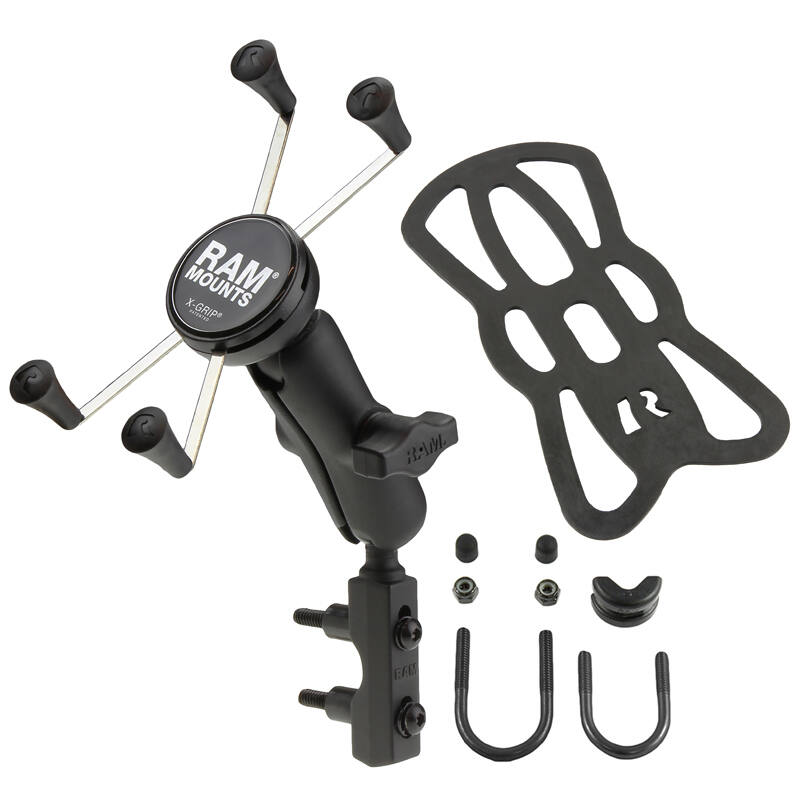

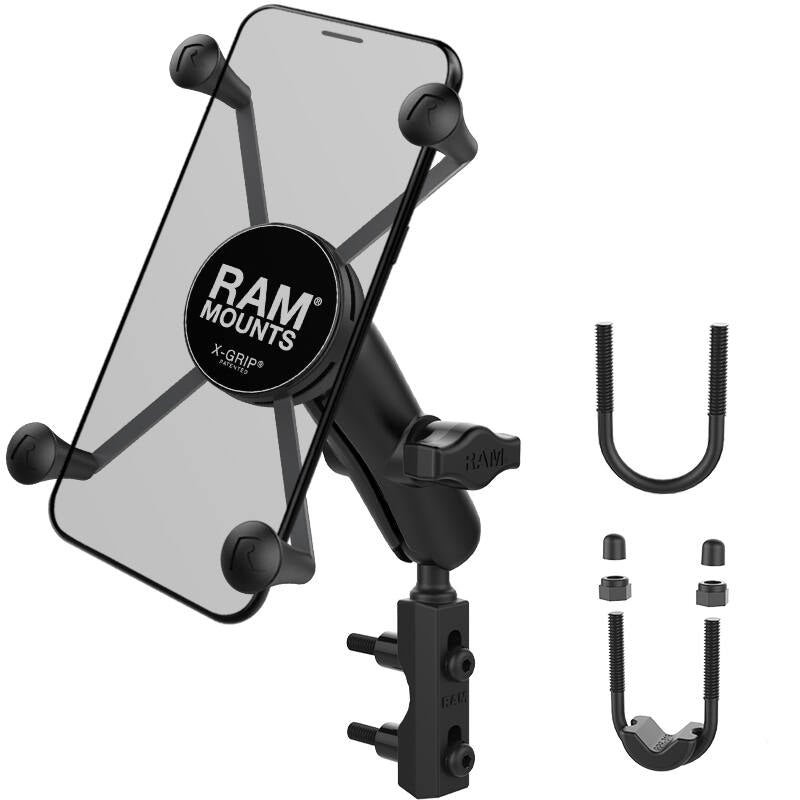

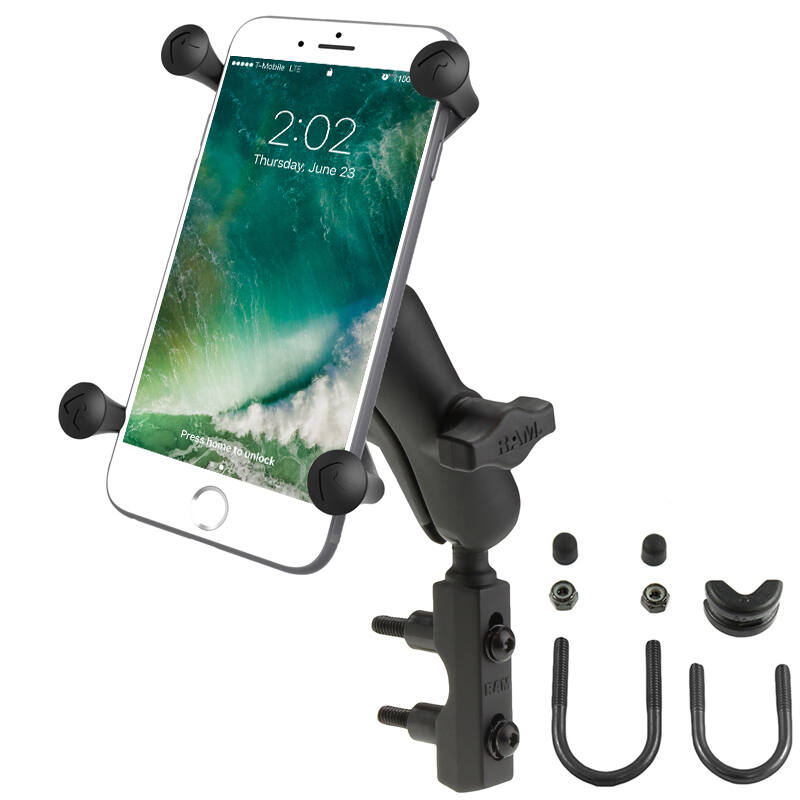

This motorcycle mount for phablets includes a reservoir / U-Bolt combination base, medium arm and X-Grip phablet holder.

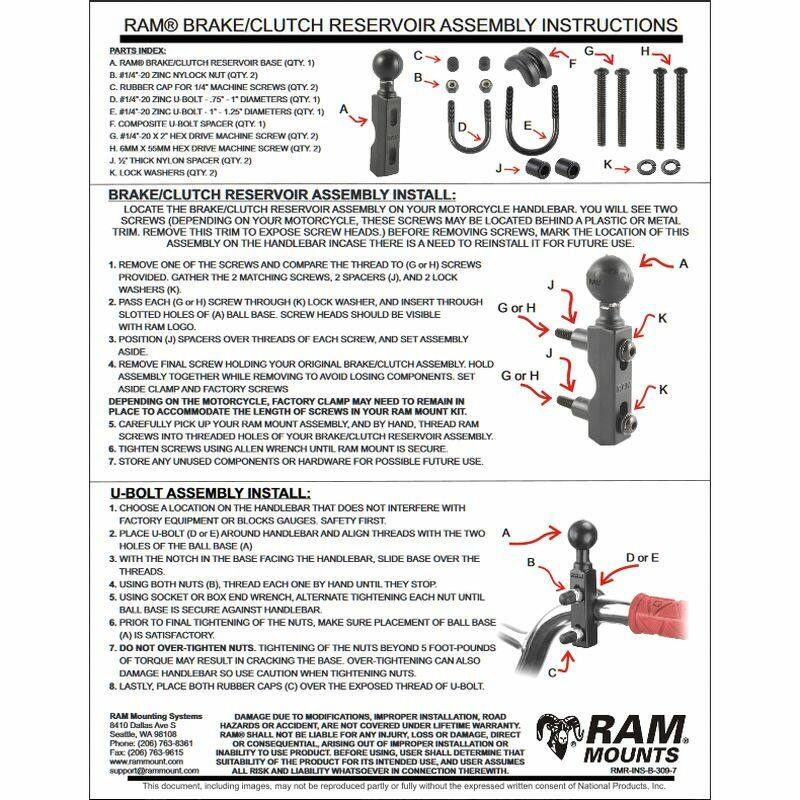

To see if this will mount to your motorcycle, check the hole spacing of the base against your clutch/brake reservoir (minimum 23.9mm and maximum of 40.1"). The included U-Bolt option allows for direct connection to rails that are 12.7mm to 40.1mm in diameter.

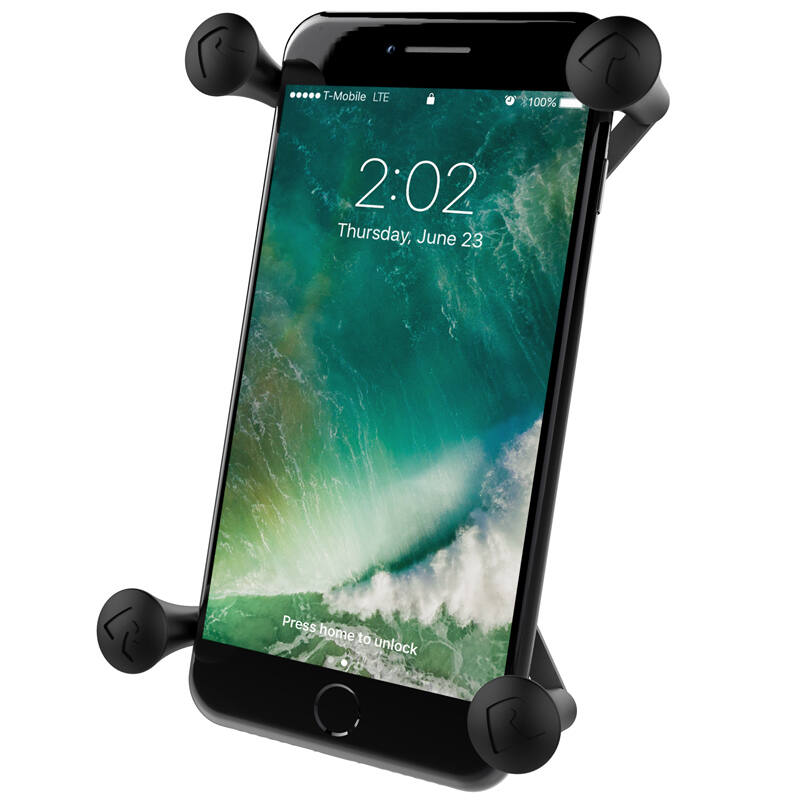

The included -UN10 X-Grip cradle has a clean and clever four leg design that sports great holding power without hiding your phone behind foam pads and plastic. The spring loaded X-Grip holder expands and contracts, allowing for a perfect custom fit of your cell phone and includes a device tether recommended for outdoor applications. It is compatible with devices that will fit the dimensions listed below. Check the dimensions of your device with a case/sleeve/skin when determining the overall size


Cradle Dimensions
Min Width = 44.45mm (1.75”) – (if it is min width then the min height = 139.7mm / 5.5")
Max Width = 114.3mm (4.5") – (if it is max width then the min height = 82.55mm / 3.25")
Max Thickness = 22.2mm (0.875")


Compatible Devices
For a list of many of the compatible devices for this cradle go to our listing for the RAM-HOL-UN10BU


Arm Dimensions:
Overall Length:
94mm (3.69")
Socket-To-Socket Length:
76mm (3")


Weight:
399 grams

Components:

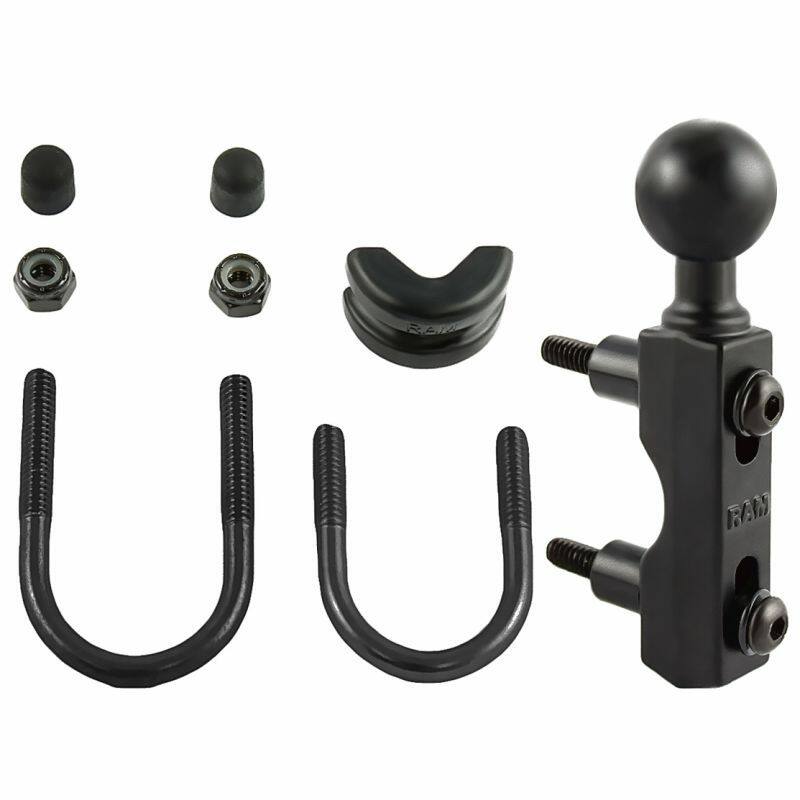

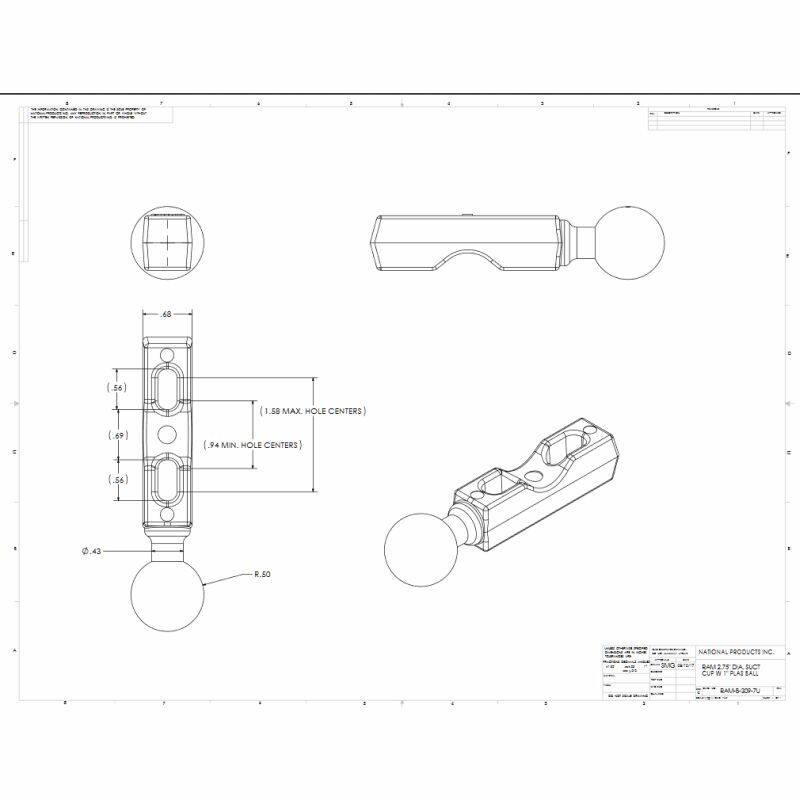

RAM-B-309-7U Combination Brake/Clutch Clamp / U-Bolt Mount
RAM-B-201U DOUBLE SOCKET ARM
RAM-HOL-UN10U X-GRIP CRADLE
