RAM-B-174-A-UN10U RAM® X-Grip® Large Phone Mount with Brake/Clutch Reservoir Base (Short Arm)

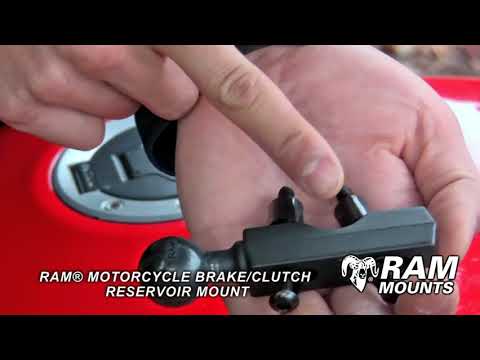

The RAM-B-174-A-UN10U pairs the RAM® X-Grip® large phone cradle with a combination brake/clutch reservoir base and a short double socket arm. The base mounts to a motorcycle brake or clutch reservoir, and the included U-bolt also lets it clamp directly to handlebars and rails from 12.7mm to 31.75mm (0.5" to 1.25").
Key Features
Spring-loaded 'X' design with rubber caps grips large phones and phablets without covering the screen, camera, or buttons
Mounts to a brake/clutch reservoir, or to handlebars and rails 12.7mm to 31.75mm (0.5" to 1.25") using the included U-bolt

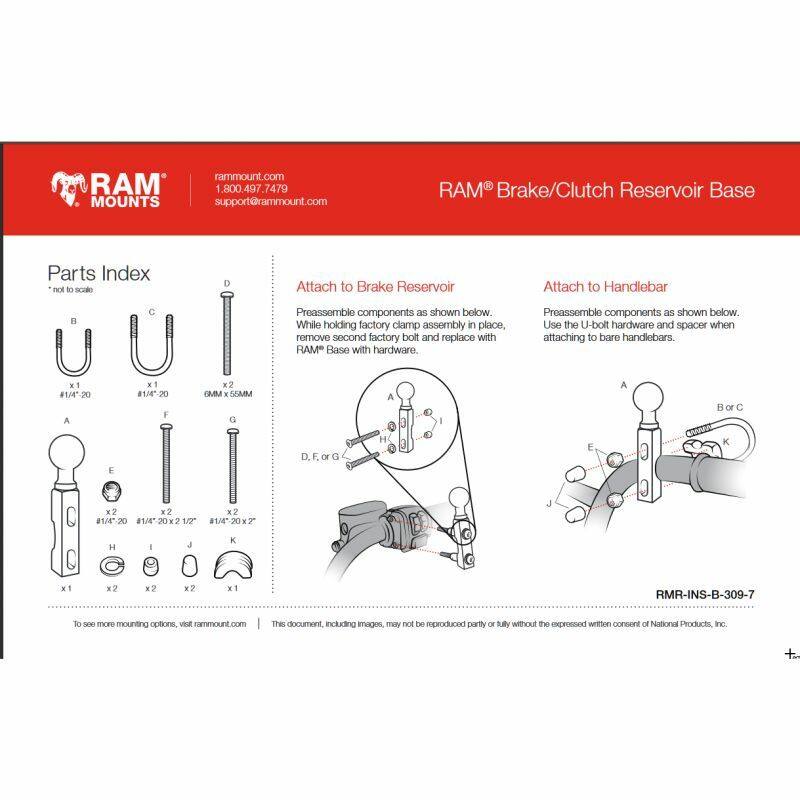

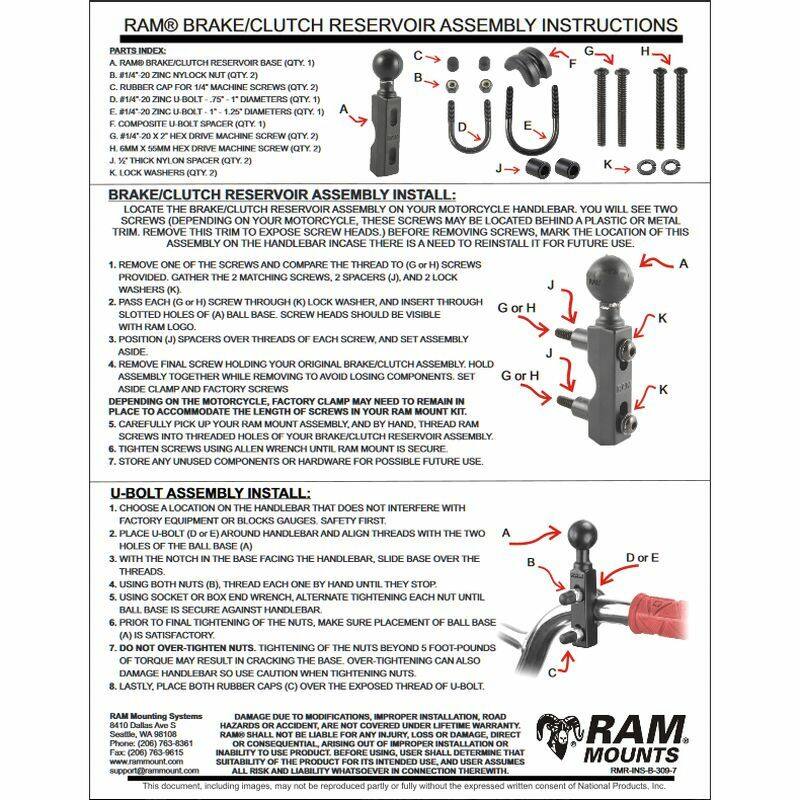

Standard and metric mounting bolts included; check your reservoir hole spacing against the base before ordering
Short double socket arm with ball-and-socket design allows near-infinite positioning
Includes an optional device tether; powder-coated marine-grade aluminium, stainless steel hardware, and high-strength composite; backed by a lifetime warranty

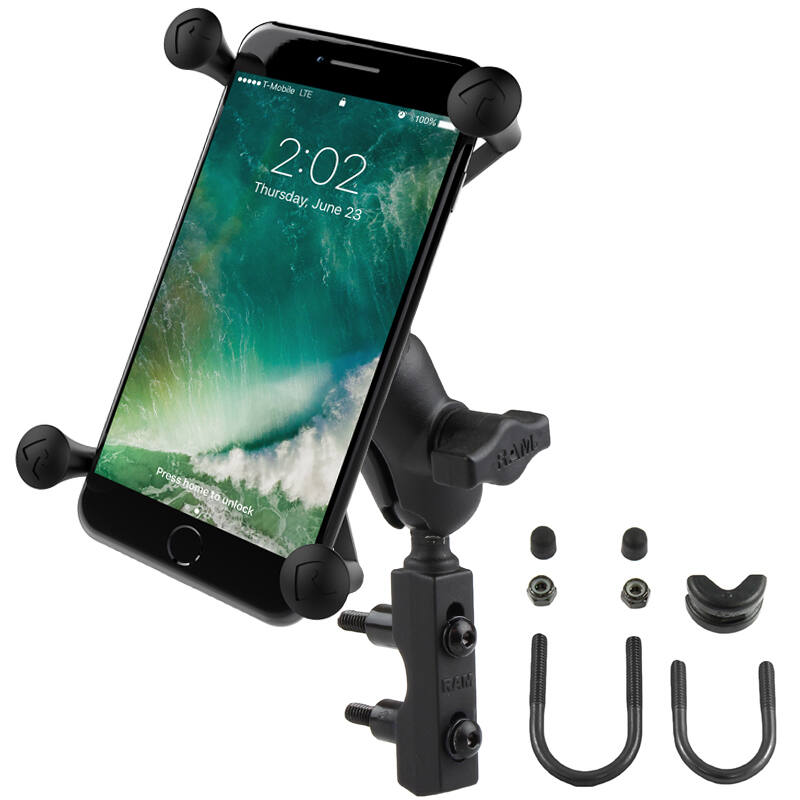

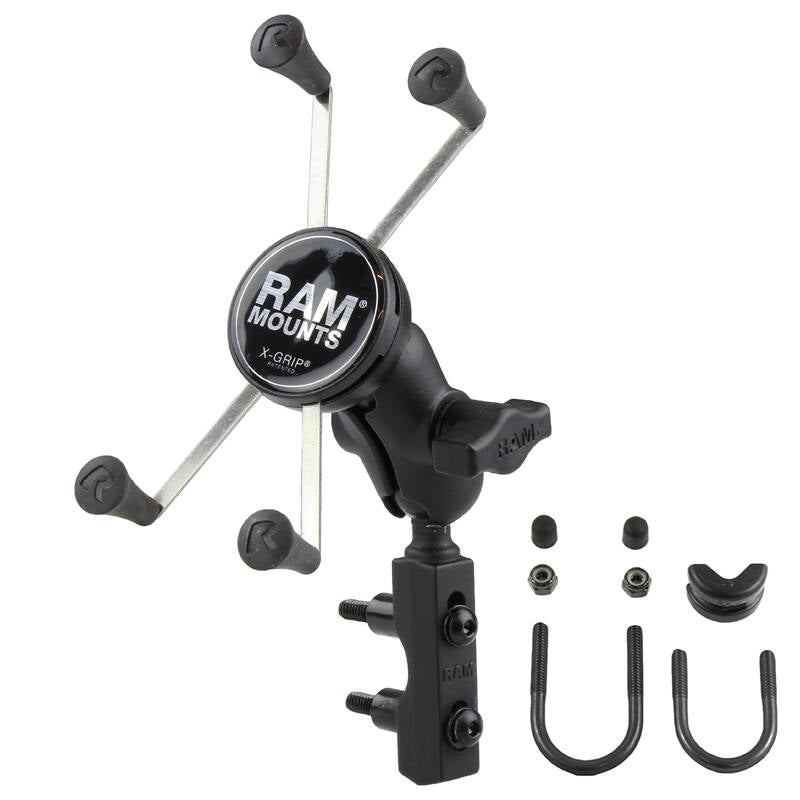

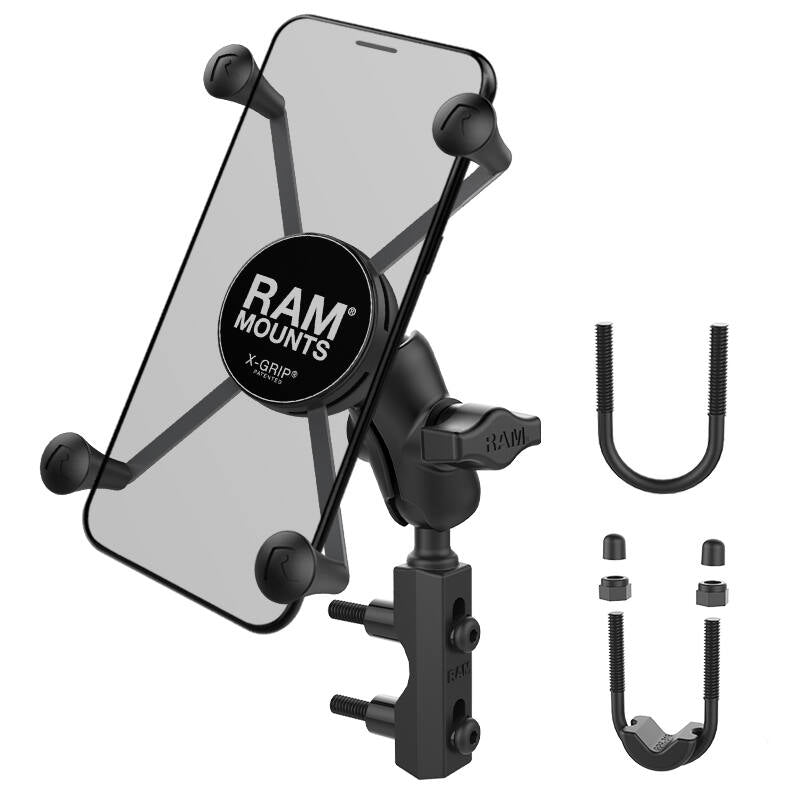

What's Included

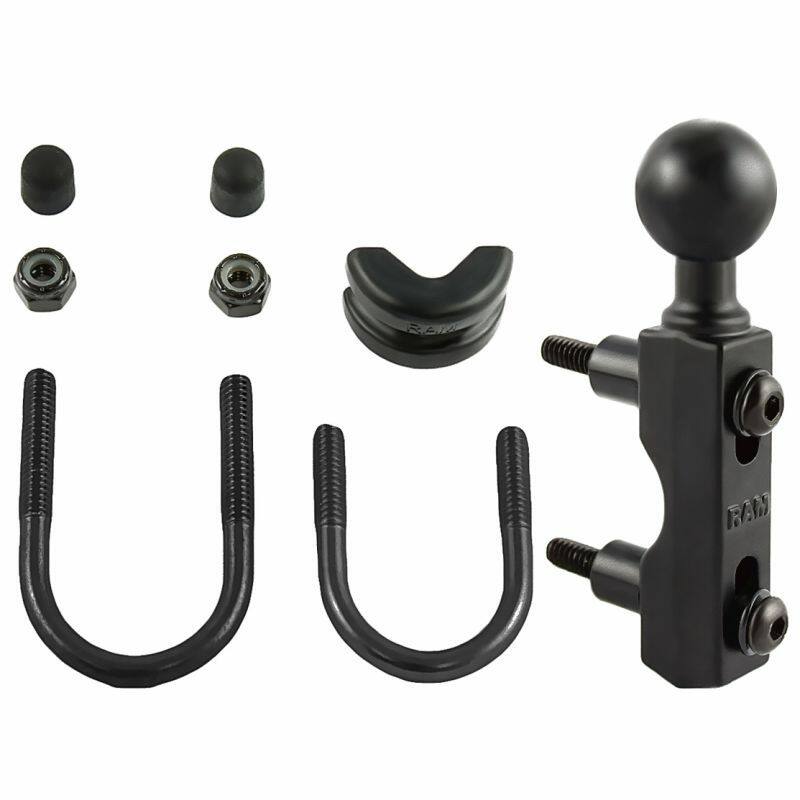

RAM-B-309-7U combination brake/clutch clamp and U-bolt base with 1" B-size ball
RAM-B-201U-A short double socket arm

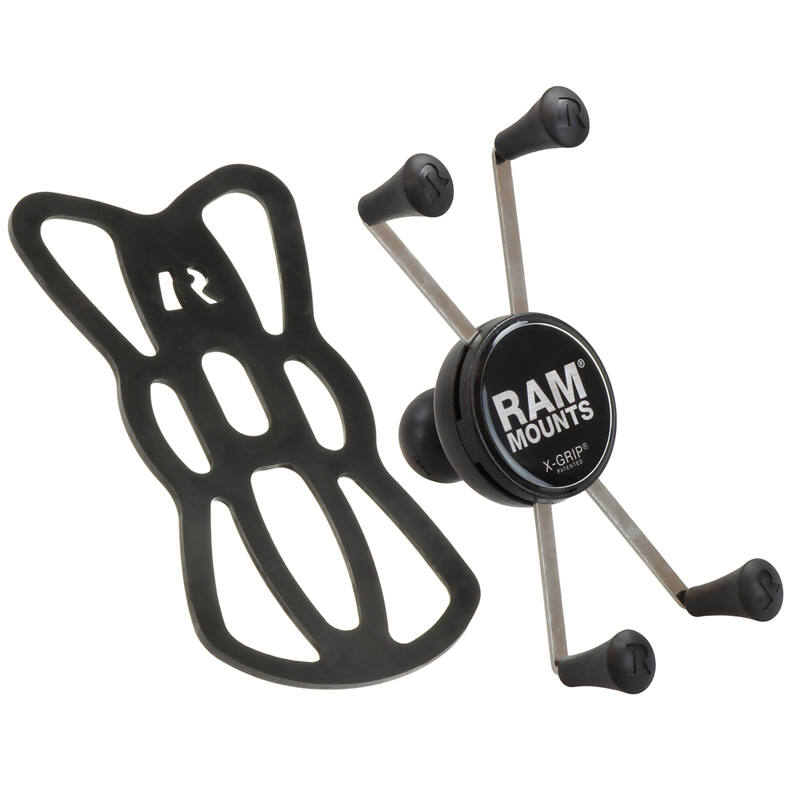

RAM-HOL-UN10U X-Grip® cradle
Dimensions & Specifications

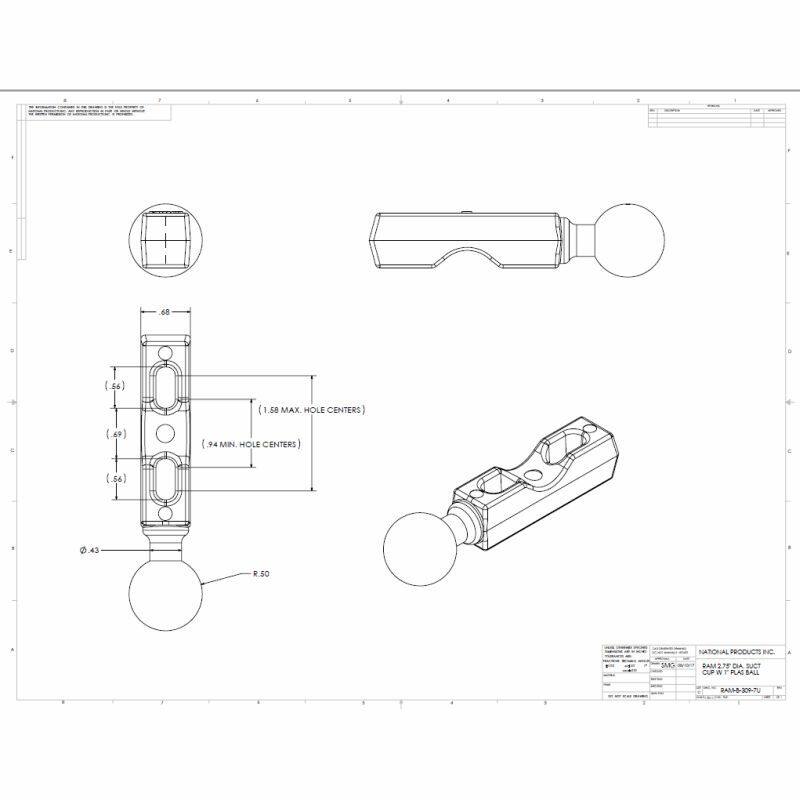

Reservoir hole-centre spacing: 23.9mm to 40.1mm (0.94" to 1.58")
U-bolt rail diameter: 12.7mm to 31.75mm (0.5" to 1.25")
Arm overall length: 60.5mm (2.38"); socket-to-socket 51mm (2")
Cradle minimum device width 44.45mm (1.75"), which needs a minimum height of 139.7mm (5.5")
Cradle maximum device width 114.3mm (4.5"), which needs a minimum height of 82.55mm (3.25")
Cradle maximum device thickness: 22.2mm (0.875")
Ball size: B-Size, 1" rubber ball
Weight: 399g (0.88 lb)
Compatible Devices
The X-Grip cradle fits hand-held devices within the width and thickness ranges above. Always measure your device with any case, sleeve, or skin fitted before ordering. See our RAM-HOL-UN10BU cradle listing for the full compatible device list.
