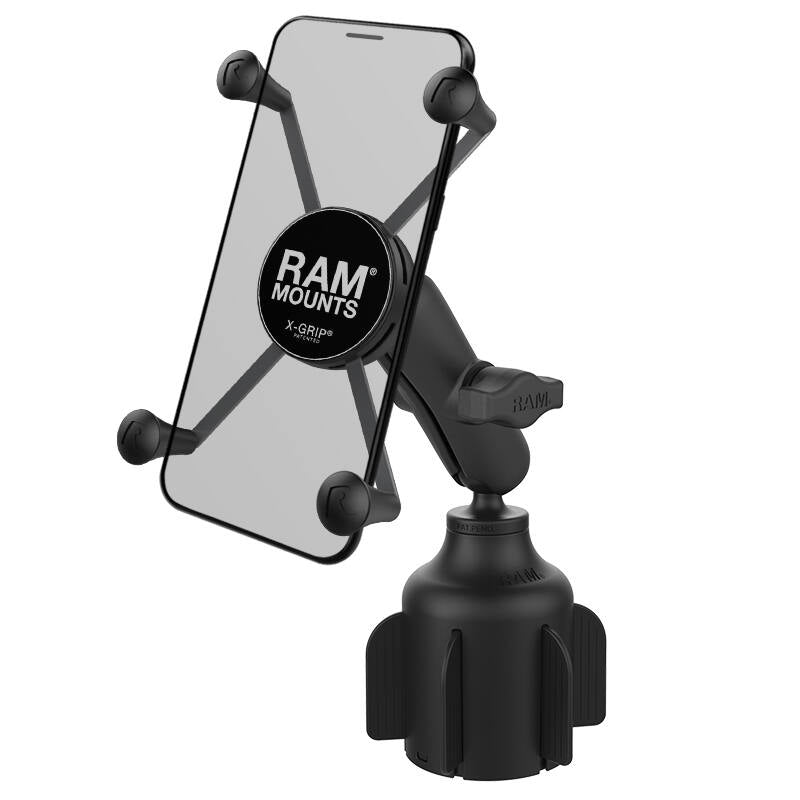

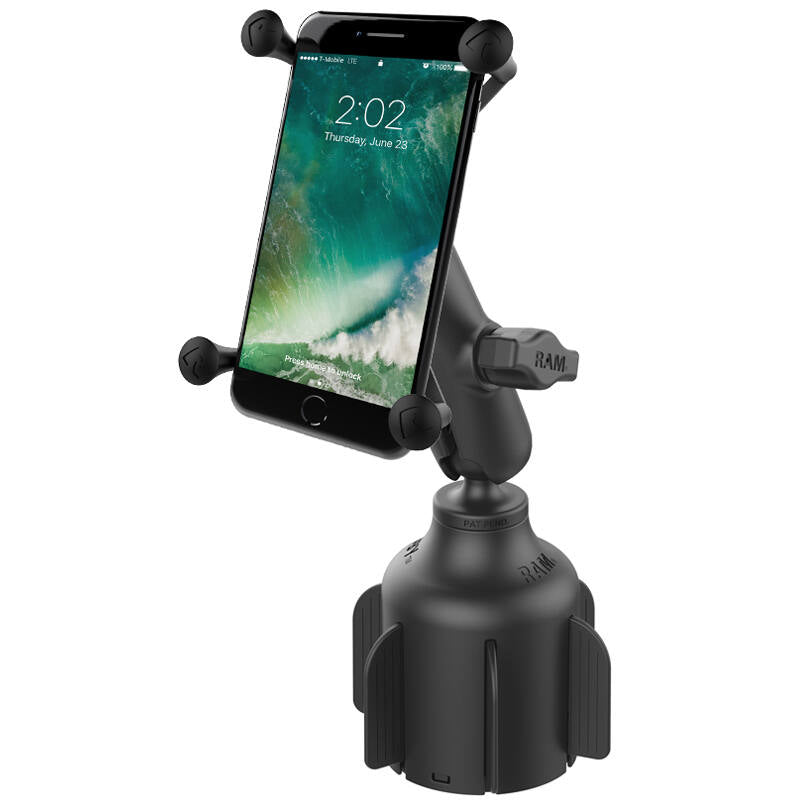

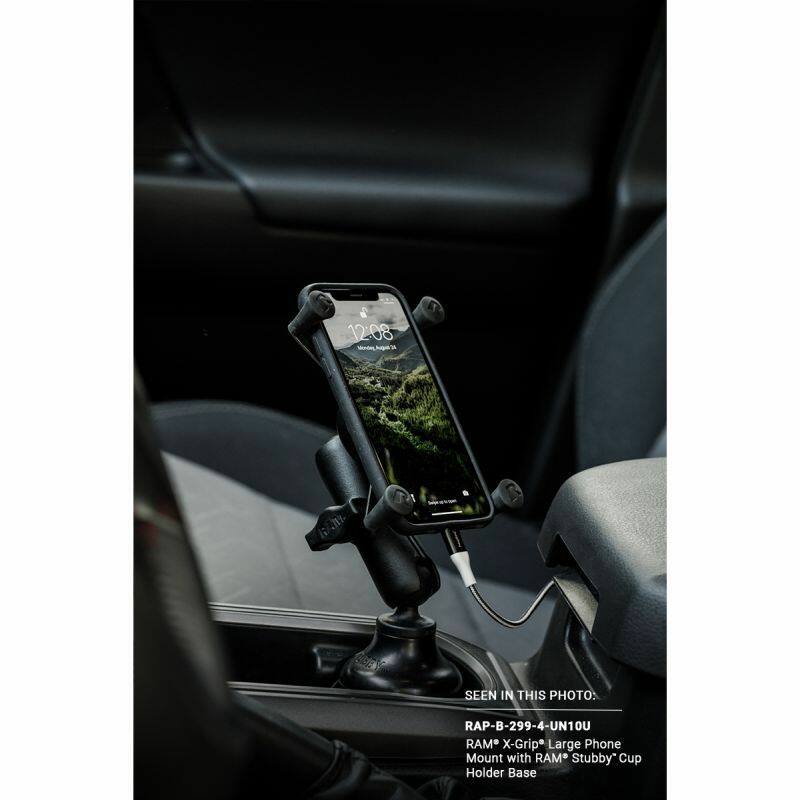

RAP-B-299-4-UN10U RAM® X-Grip® Large Phone / Phablet Mount with RAM® Stubby™ Cup Holder Base
Features
* Includes RAM® Stubby™ cup holder ball base, medium length B size RAM® double socket arm, and large RAM® X-Grip® phone holder
* Spring-loaded 'X' design for large phones with rubber caps sports great holding power without hiding your phone

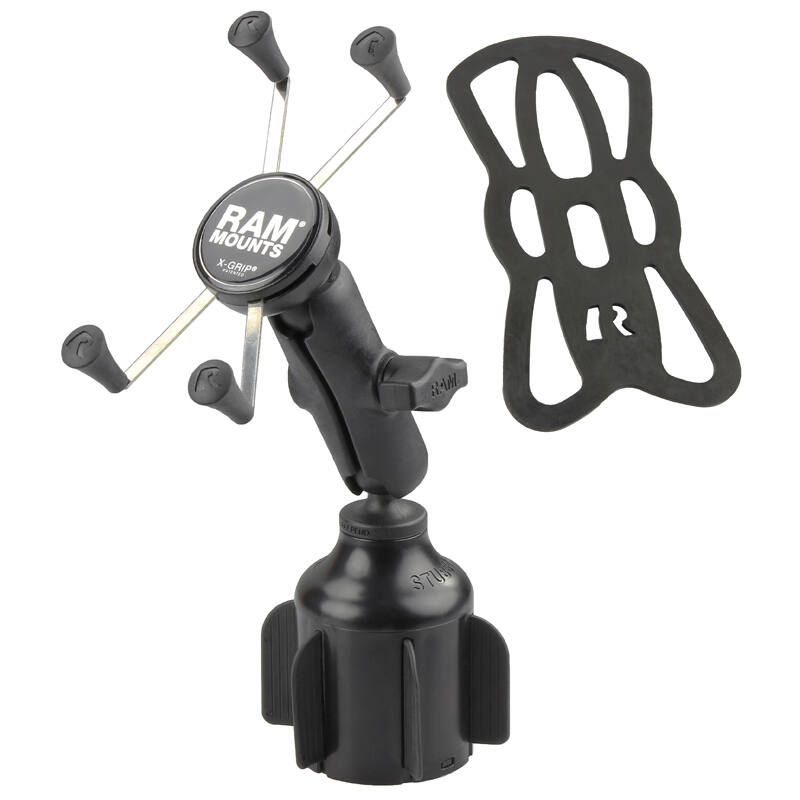

* Includes optional device tether for peace of mind during rugged use
* Made of powder-coated, marine-grade aluminum, stainless steel, and high-strength composite for durability and reliability in the most demanding environments
* Backed by a lifetime warranty
If you move from vehicle to vehicle this is an excellent option for a phablet mount. It combines a Stubby Cup holder base, composite arm and large X-Grip cradle.

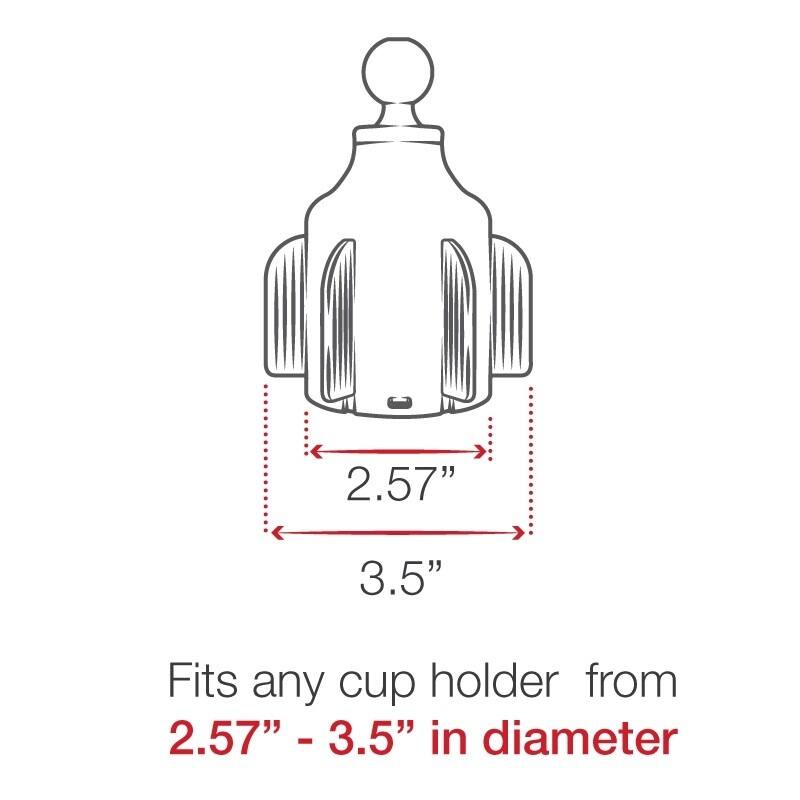

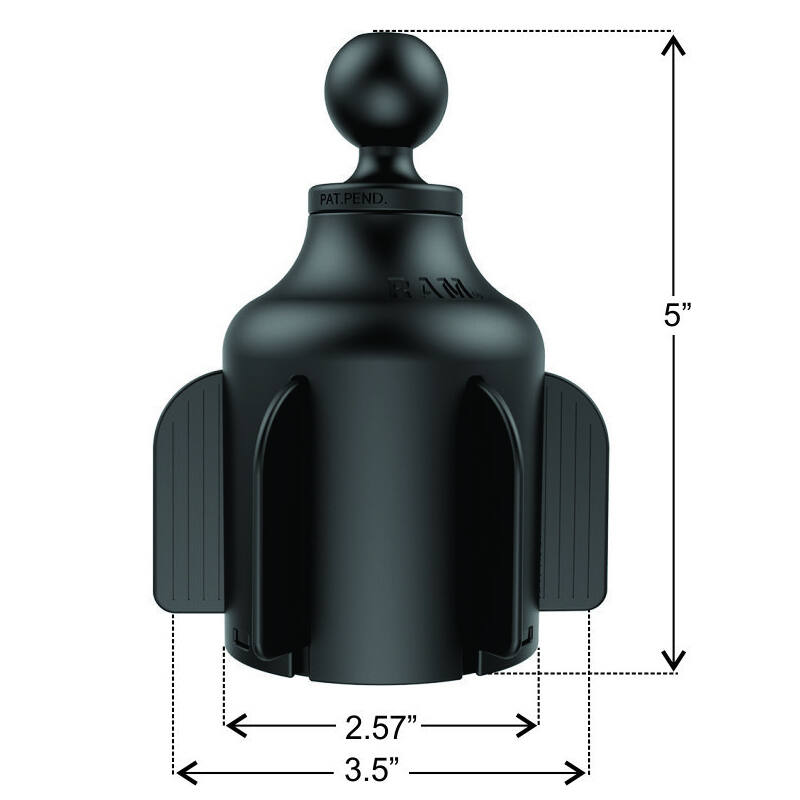

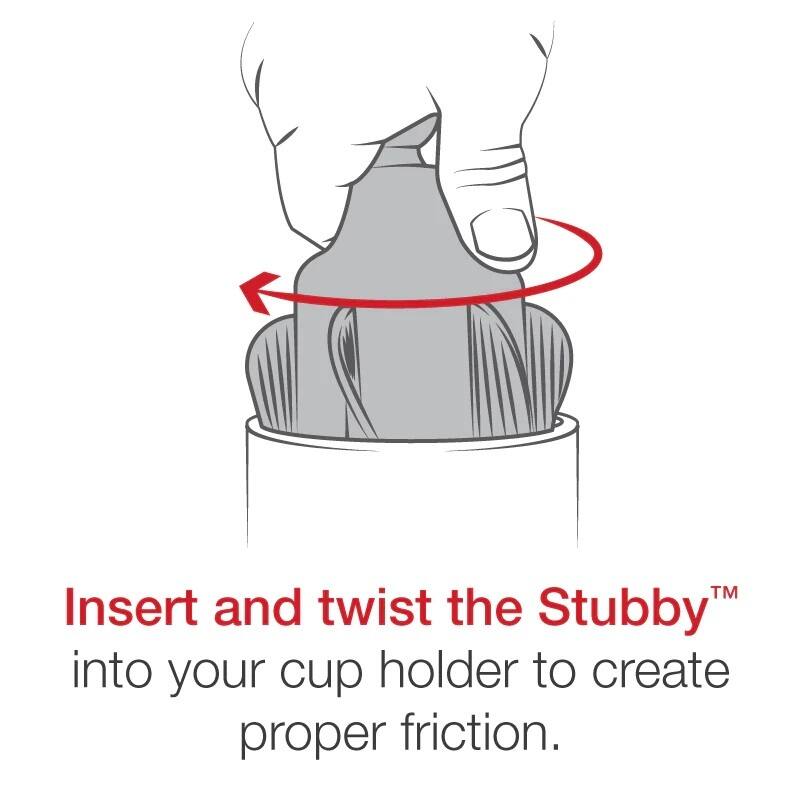

The Stubby cup holder base offers a lower profile mounting base than the RAM-A-CAN II universal Cup Holder Mount. The durable composite shell construction and flexible support fins can be trimmed to size so compatible with any vehicle cup holder with an inside diameter range of 65.3mm to 88.9mm (2.57" to 3.5")
NOTE - FOR THIS TO PROVIDE A STURDY BASE THE CUP-HOLDER MUST BE CIRCULAR

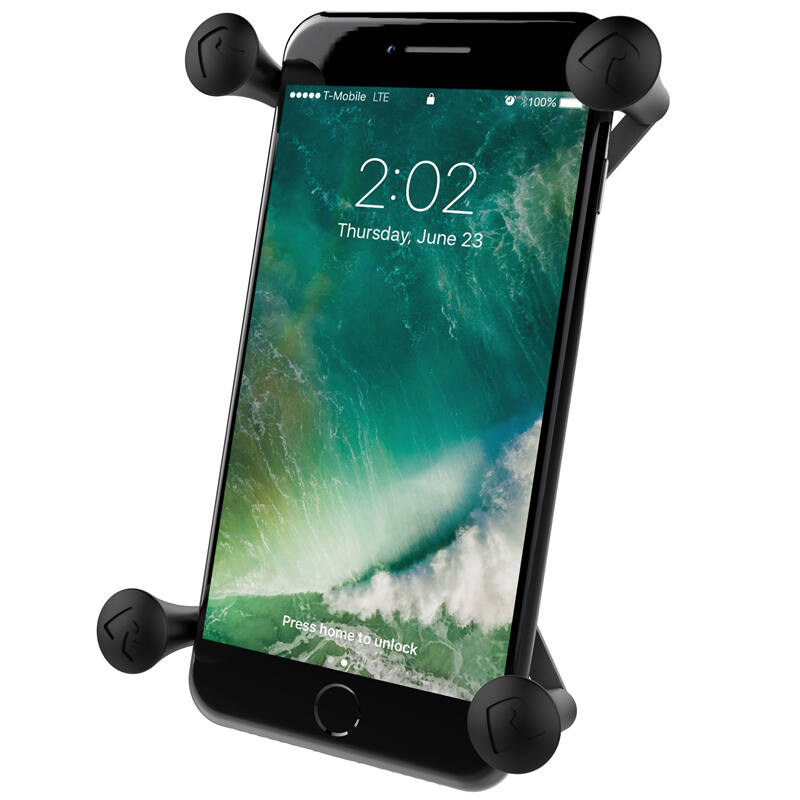

The X-Grip cradle has a clean and clever four leg design that sports great holding power without hiding your phone behind foam pads and plastic. The spring loaded X-Grip holder expands and contracts, allowing for a perfect custom fit of your phone and includes a device tether recommended for outdoor applications.
The cradle is compatible with hand-held devices that will fit the dimensions listed below. Please check the dimensions of your hand-held device with a case/sleeve/skin when determining the overall size
Cradle Dimensions
Min Width = 44.45mm (1.75”) – (if it is min width then the min height = 139.7mm / 5.5")
Max Width = 114.3mm (4.5") – (if it is max width then the min height = 82.55mm / 3.25")
Max Thickness = 22.2mm (0.875")
Compatible Devices
For a list of many of the compatible devices for this cradle go to our listing for the RAM-HOL-UN10BU
Arm Dimensions:
Overall Length:
94mm (3.69")
Socket-To-Socket Length:
76mm (3")
Components:
RAP-B-299-4U STUBBY DRINK CUP BASE
RAP-B-201U DOUBLE SOCKET ARM
RAM-HOL-UN10BU X-GRIP IV UNIVERSAL CRADLE
