RAM-B-102-UN10U RAM® X-Grip® Large Phone Mount with Diamond Base
Features

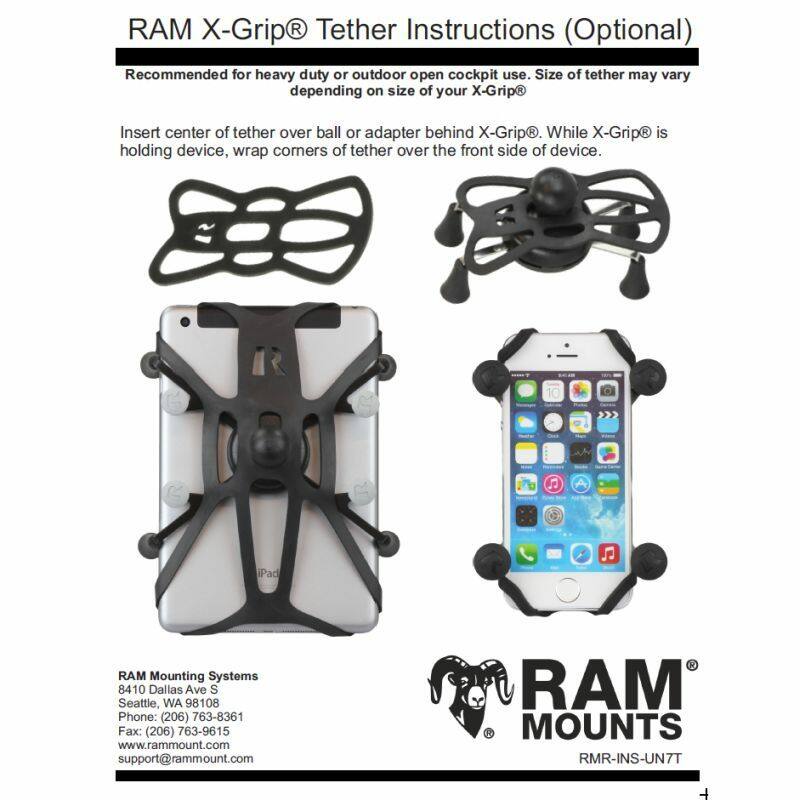

* Spring-loaded 'X' design for large phones with rubber caps sports great holding power without hiding your phone; includes optional device tether for peace of mind during rugged use
* Diamond ball base featuring universal AMPS hole pattern included; ball and socket technology allows for near-infinite adjustability
* Made of powder-coated, marine-grade aluminum, stainless steel components, and high-strength composite for durability and reliability in the most demanding environments
* Backed by a lifetime warranty

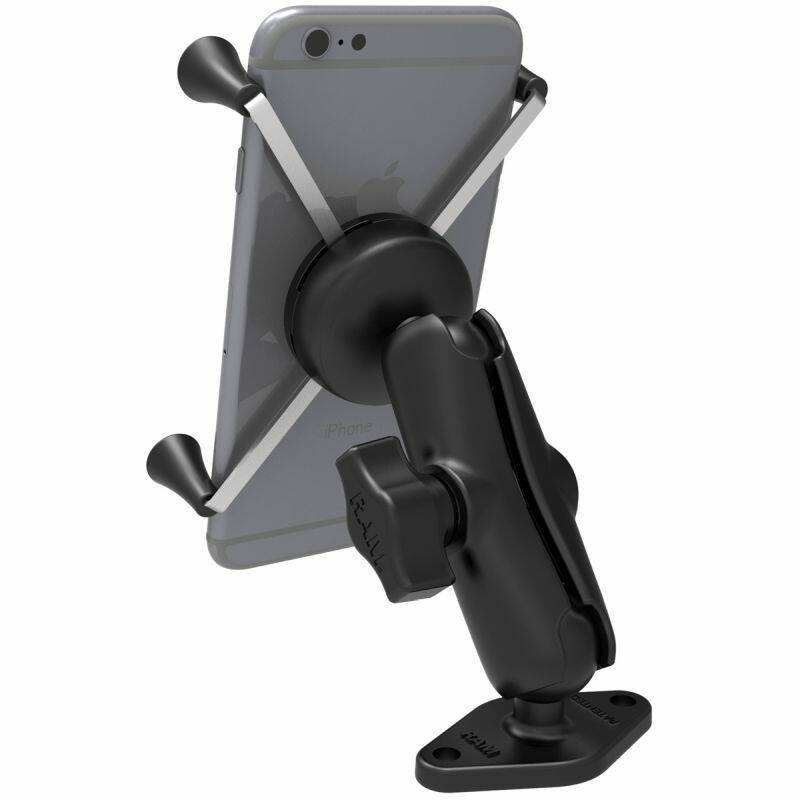

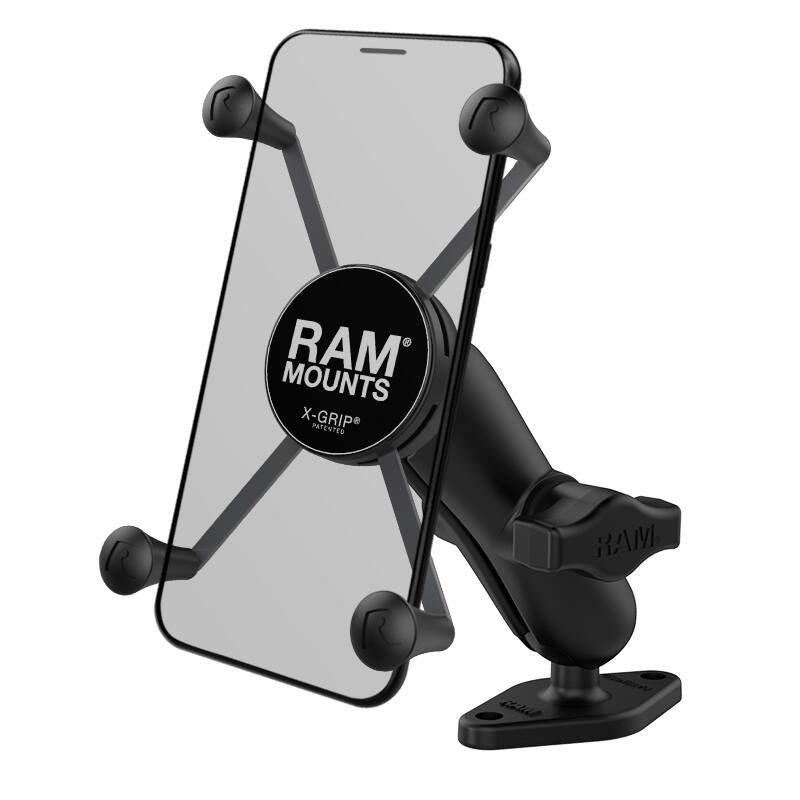

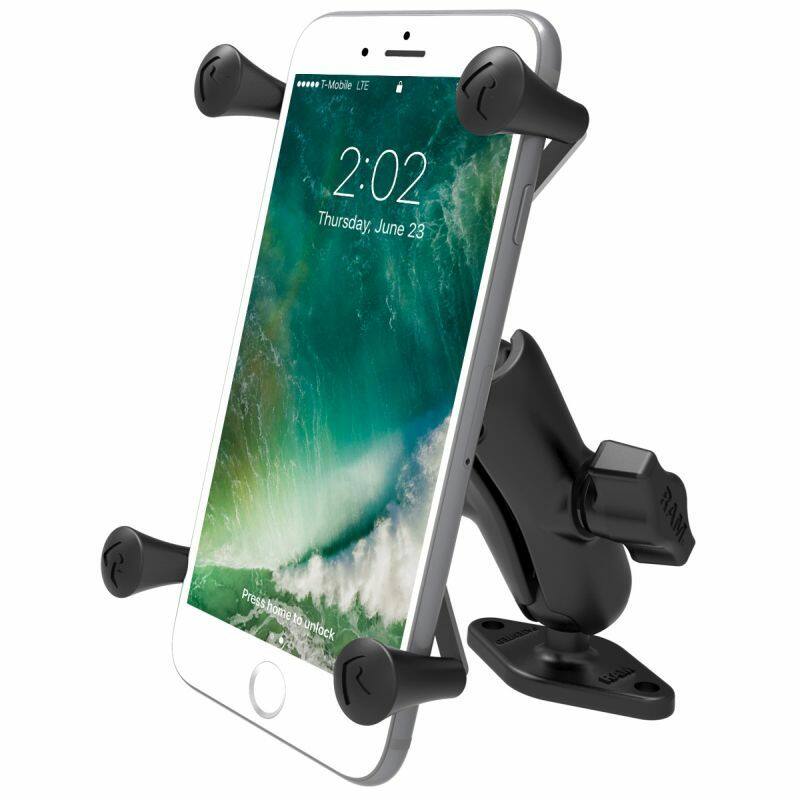

This consists of a diamond base, 94mm double socket arm and universal X-Grip® cradle for large phones and phablets. Designed into the mount is a B size 1" diameter patented rubber ball and socket system allows you can move the RAM® X-Grip® mount to your optimum viewing position.

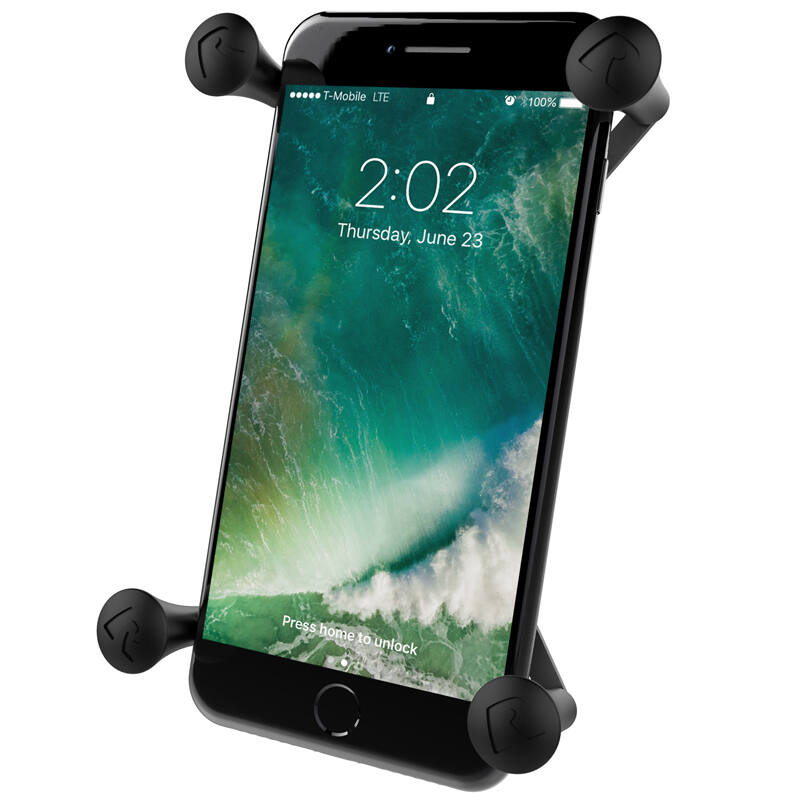

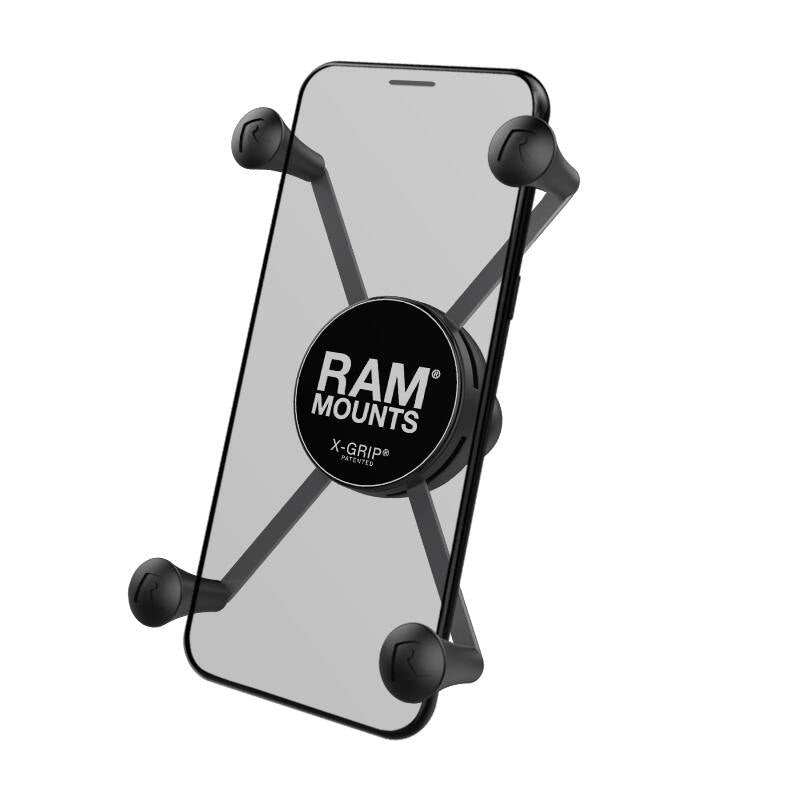

The included -UN10 X-Grip cradle has a clean and clever four leg design that sports great holding power without hiding your phone behind foam pads and plastic. The spring loaded X-Grip holder expands and contracts, allowing for a perfect custom fit of your cell phone. The cradle is compatible with hand-held devices that will fit the dimensions listed below. Check the dimensions of your hand-held device with a case/sleeve/skin when determining the overall size
Cradle Dimensions
Min Width = 44.45mm (1.75”) – (if it is min width then the min height = 139.7mm / 5.5")
Max Width = 114.3mm (4.5") – (if it is max width then the min height = 82.55mm / 3.25")
Max Thickness = 22.2mm (0.875")
Arm Dimensions:
Overall Length:
94mm (3.69")
Socket-To-Socket Length:
76mm (3")

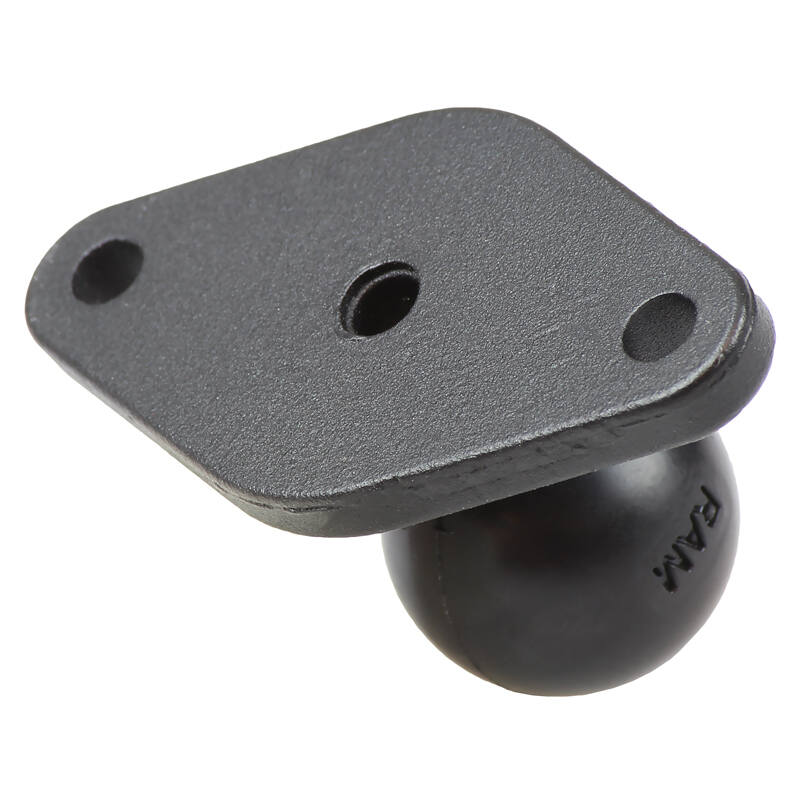

Diamond Base Dimensions
61.7mm x 33.3mm (2.43" x 1.31")
HOLE PATTERN:
2-Hole AMPs:
1.912” (48.5mm)

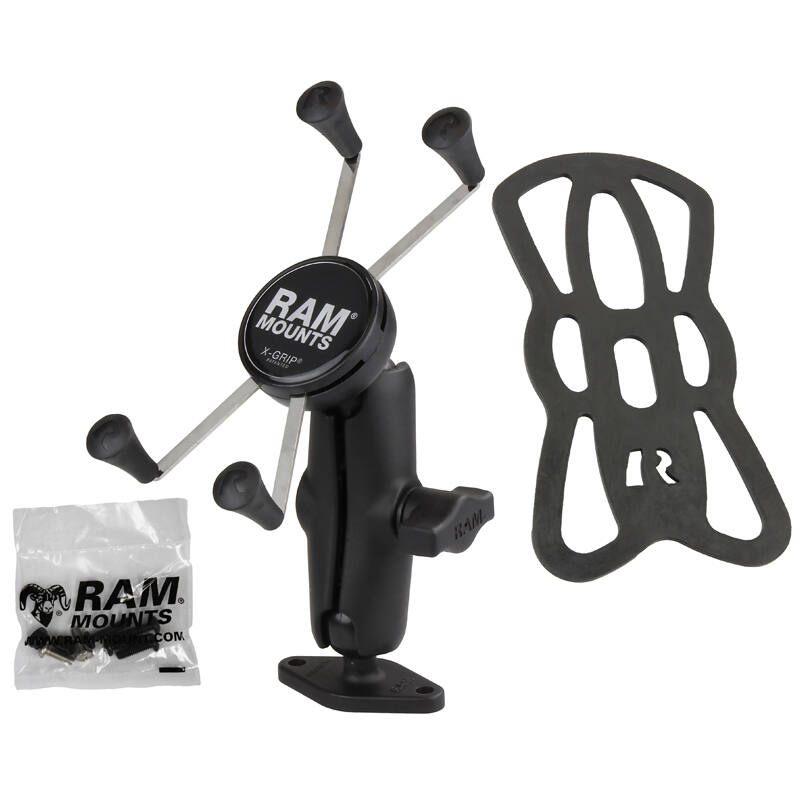

Components:
RAM-HOL-UN10BU X-Grip cradle
RAM-B-201U Double socket arm
RAM-B-238U Diamond base
