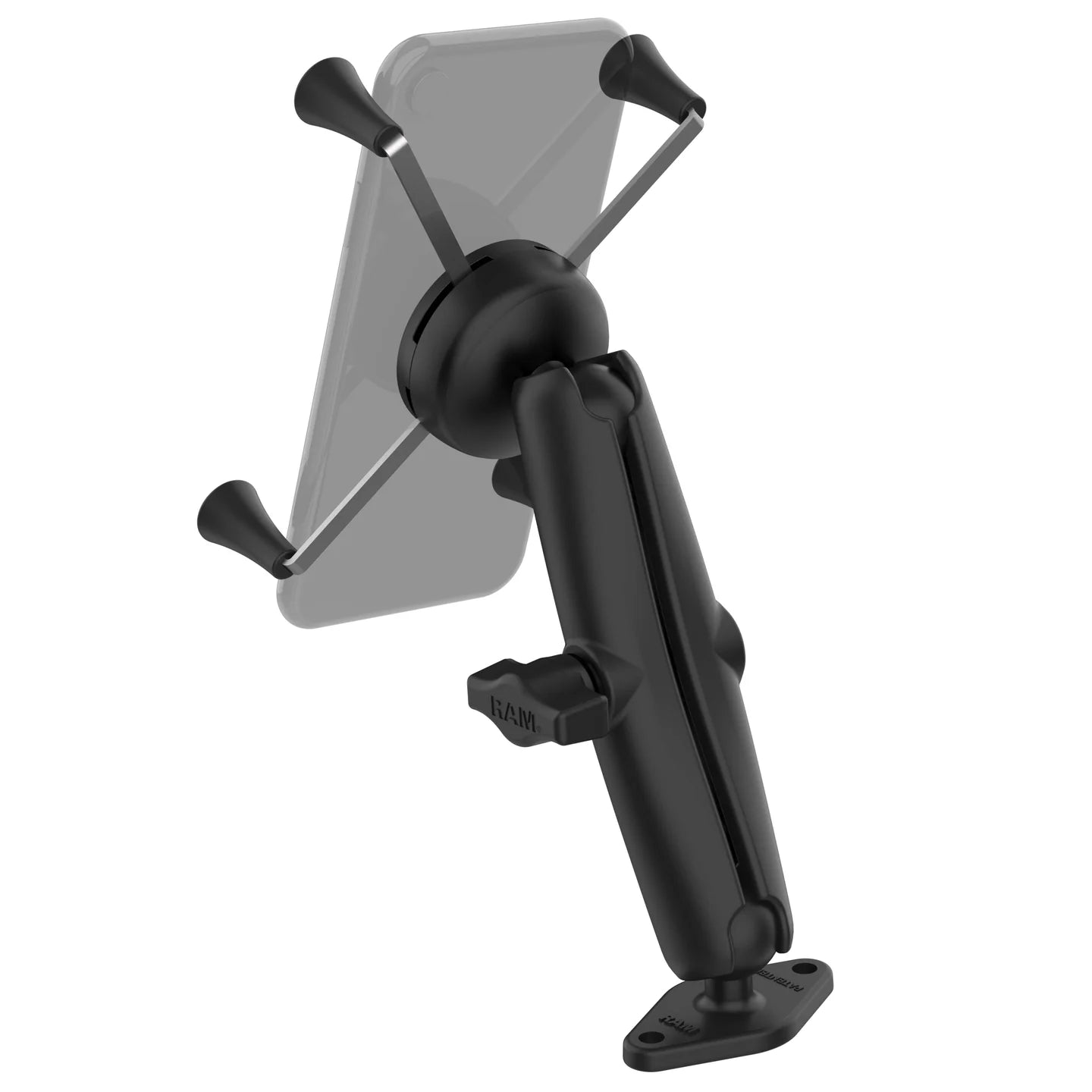

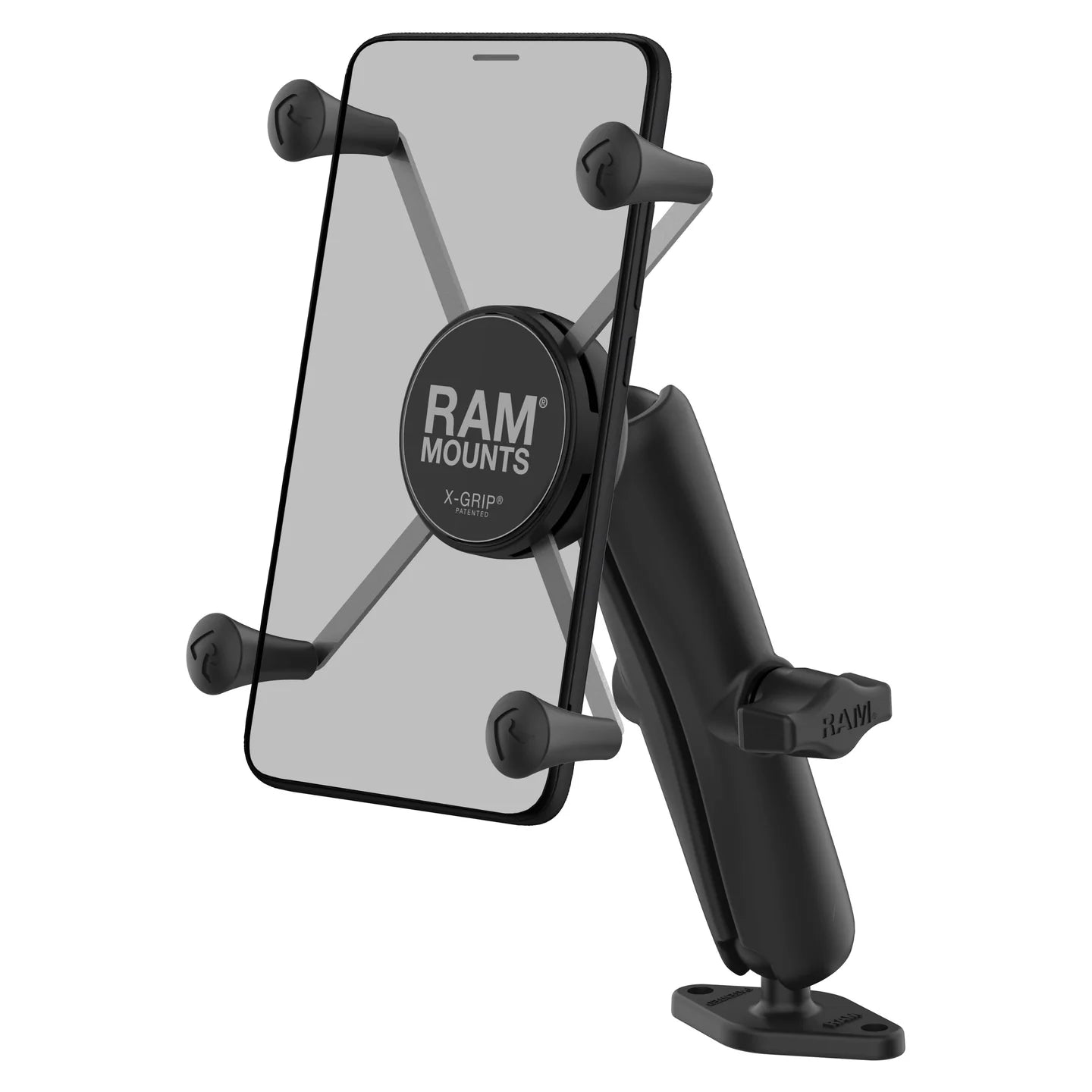

RAM-B-102-C-UN10U RAM® X-Grip® Phablet Mount with Diamond Base, Long Arm
The RAM-B-102-C-UN10U pairs the RAM® X-Grip® large phone/phablet cradle with a diamond ball base and a long 152mm arm, using the industry-standard 2-hole AMPS pattern to bolt to a wide range of mounting surfaces.
Key Features

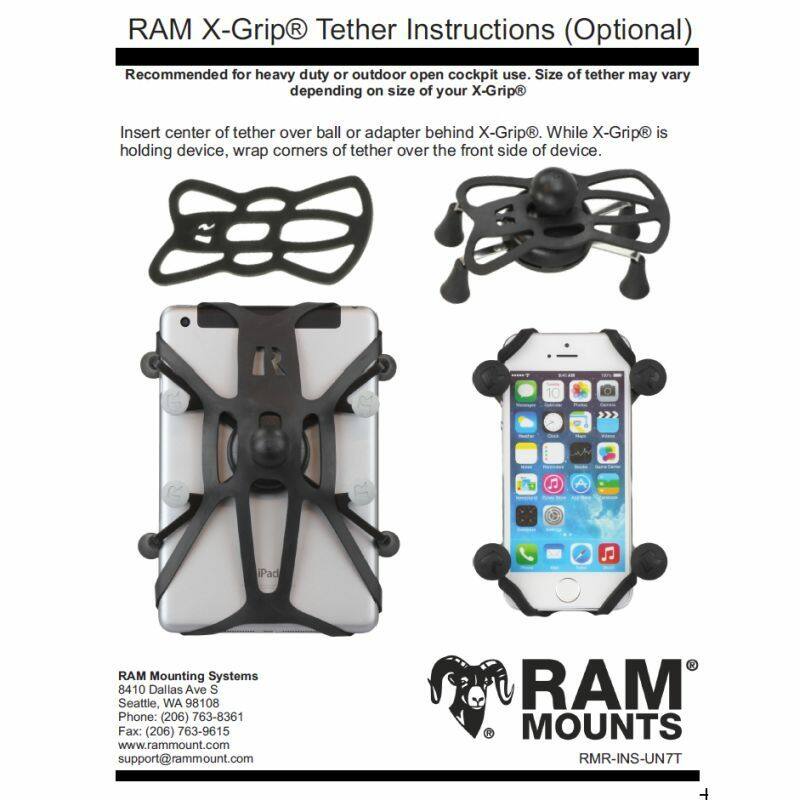

Spring-loaded X-Grip® design with rubber caps holds large phones and phablets securely without covering the screen, camera, or buttons; includes an optional device tether for rugged use
Diamond ball base uses the industry-standard 2-hole AMPS pattern; ball-and-socket design allows near-infinite positioning
Long 152mm (6") arm for extra reach
Powder-coated marine-grade aluminium, stainless steel hardware, and high-strength composite construction
Backed by a lifetime warranty
What's Included

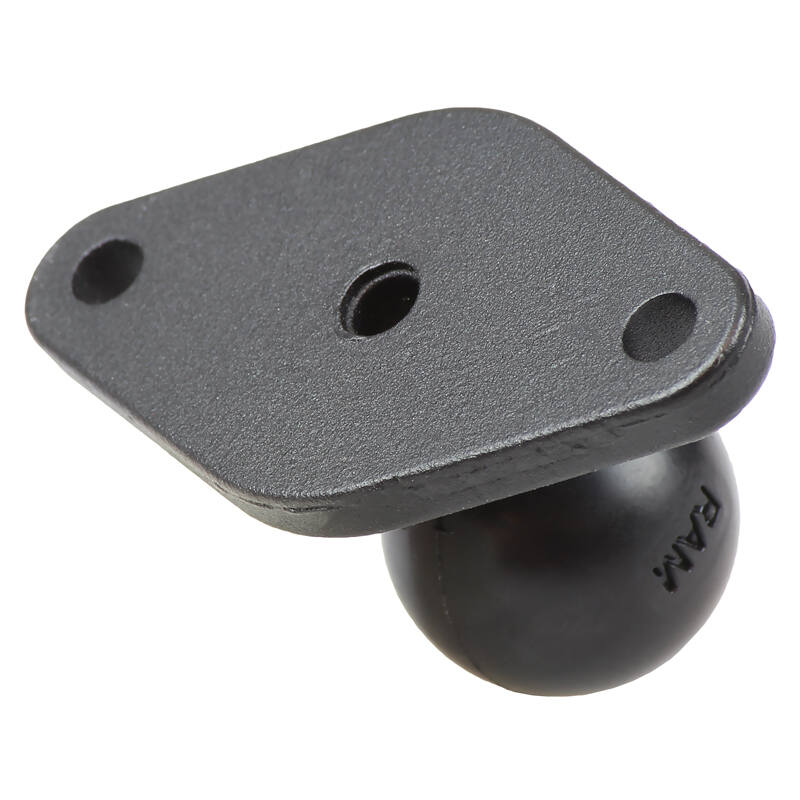

RAM-B-238U diamond base, 61.7mm x 33.3mm (2.43" x 1.31"), with 1" B-size ball
RAM-B-201U-C long double socket arm

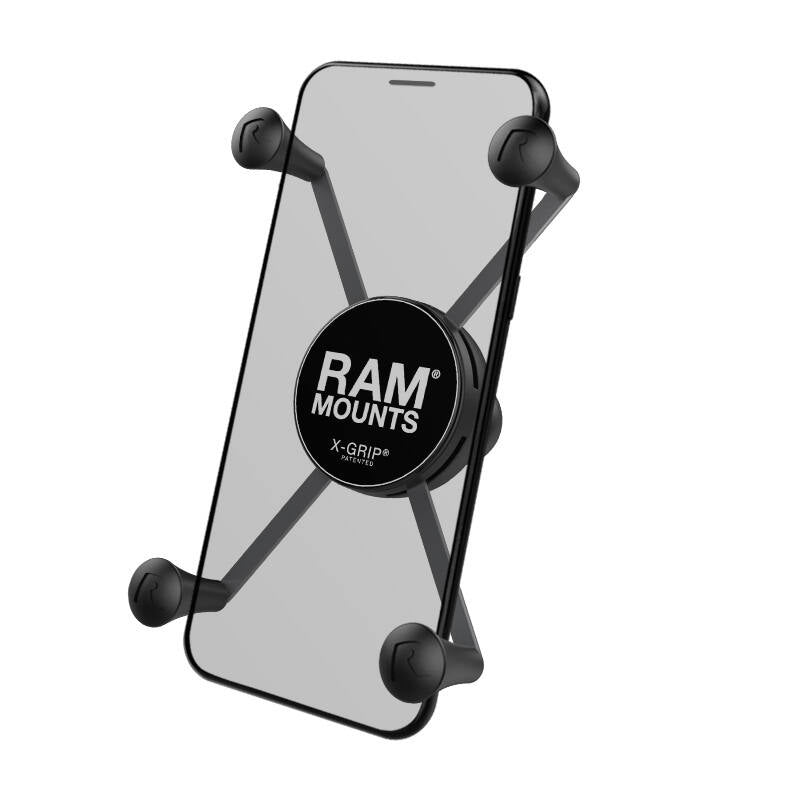

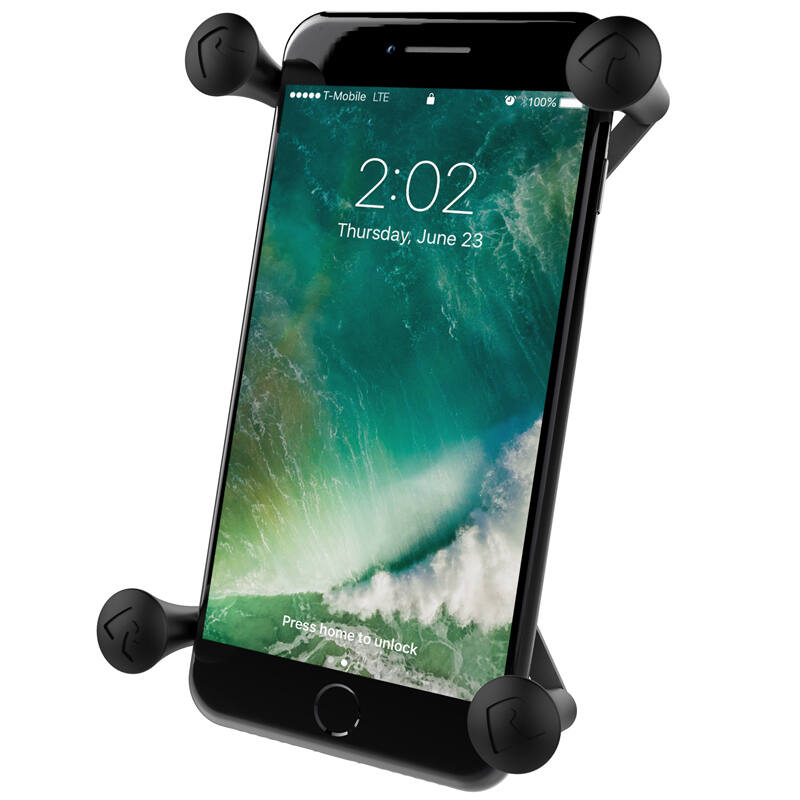

RAM-HOL-UN10BU X-Grip® universal phablet cradle
Dimensions & Specifications

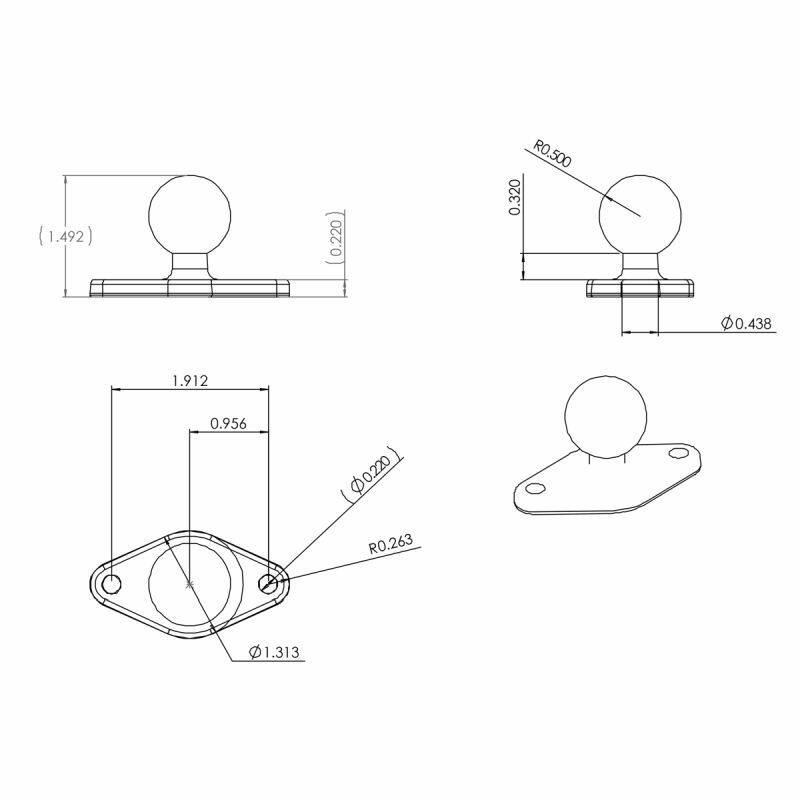

Diamond plate size: 61.7mm x 33.3mm (2.43" x 1.31")
Hole pattern: 2-hole AMPS, 48.5mm (1.912") centre to centre
Arm length, overall: 152mm (6"); socket-to-socket: 134mm (5.25")
Cradle min width: 44.45mm (1.75") — at min width, min device height 139.7mm (5.5")
Cradle max width: 114.3mm (4.5") — at max width, min device height 82.55mm (3.25")
Fits large phones and phablets within the cradle dimensions above, with or without a case. For the full list of compatible models, see our RAM-HOL-UN10BU cradle listing.
