RAM Mounts

RAM X-Grip Universal Phablet Cradle with Flat Surface Mount

RAM X-Grip Universal Phablet Cradle with Flat Surface Mount

SKU:RAM-B-138-UN10-v

Regular price $148.63 NZD
Regular price Sale price $148.63 NZD
Sale Sold out
Tax included. Shipping calculated at checkout.
View full details

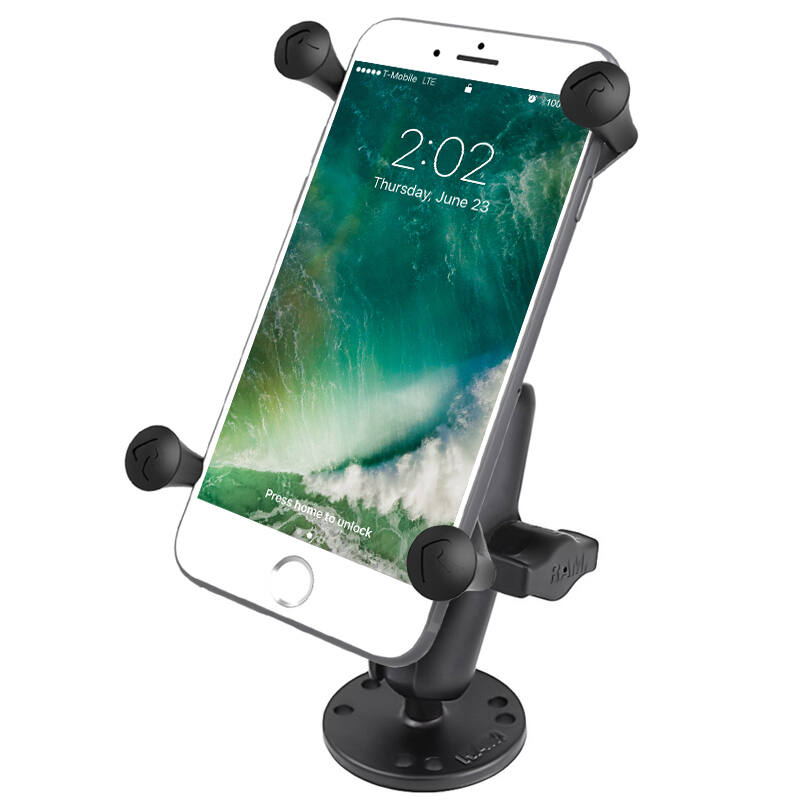

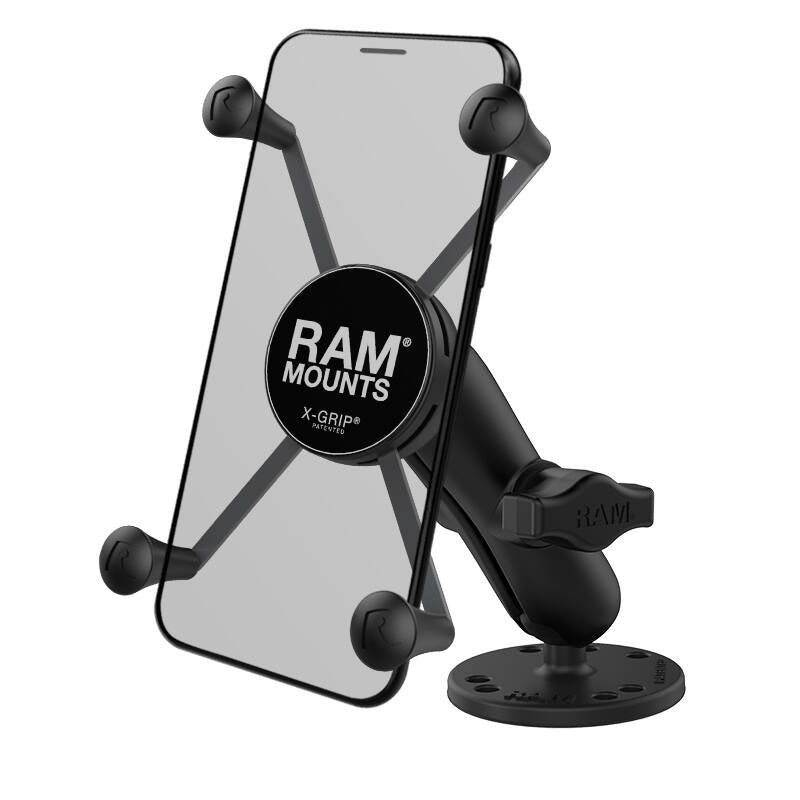

RAM-B-138-UN10 RAM® X-Grip® Large Phone Mount with Drill-Down Base


Features

* Spring-loaded 'X' design for large phones features rubber caps and sports great holding power
* Includes optional device tether for peace of mind during rugged use
* Includes drill-down 2.5" round base and medium length, B size RAM® double socket arm
* RAM ball and socket technology allows for near-infinite adjustability
* Made of powder-coated, marine-grade aluminum, stainless steel components, and high-strength composite for durability and reliability in the most demanding environments
* Backed by a lifetime warranty

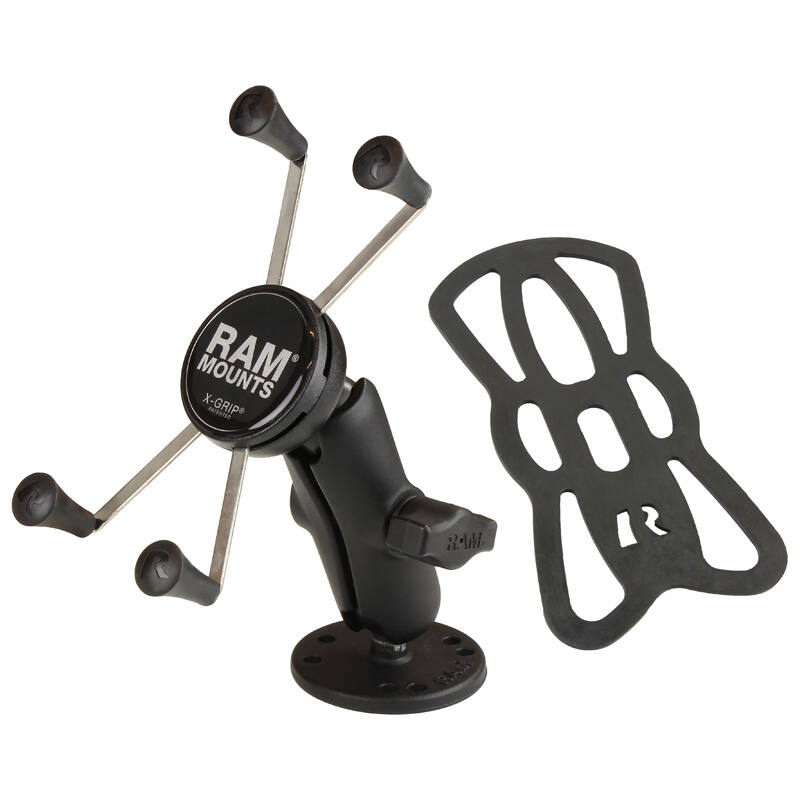

This mount consists of a 63mm diameter round base with the universal AMPS hole pattern, double socket arm and universal spring loaded large X-Grip® cradle for phones / phablets. The rubber ball and socket system with adjustment points allows you to move the mount to your optimum viewing position.

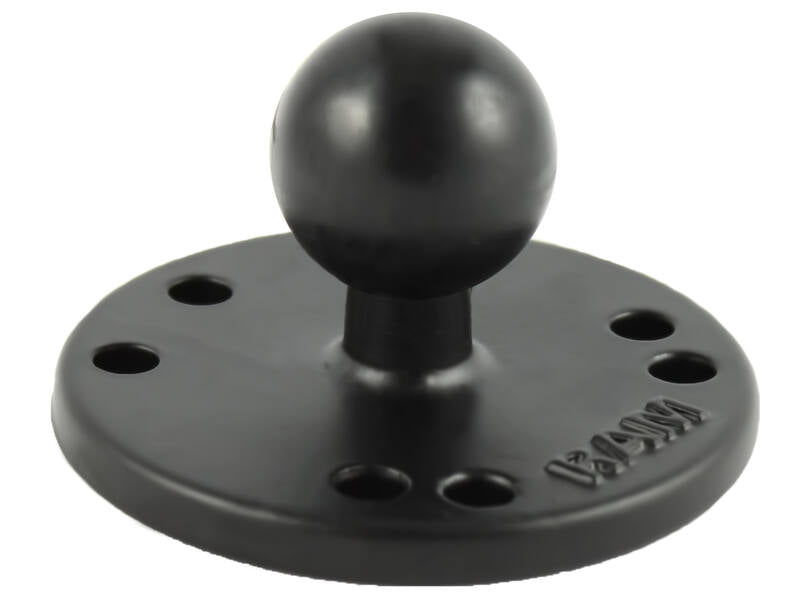

The round flat base measures 63mm (2.5") diameter and incorprates the 4-Hole and 3-hole AMPS patterns.

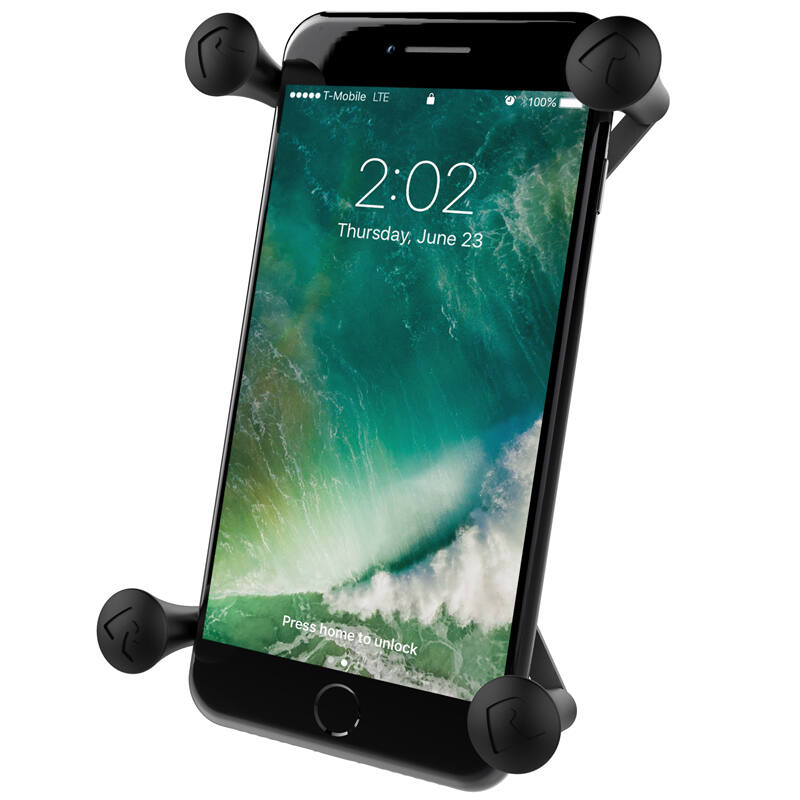

The included X-Grip cradle has a clean and clever four leg design that sports great holding power without hiding your phone behind foam pads and plastic. The spring loaded X-Grip holder expands and contracts, allowing for a perfect custom fit of your cell phone, the RAM X-Grip is the cell phone holder evolved.


The X-Grip includes a device tether recommended for outdoor applications.


The cradle is compatible with hand-held devices that will fit the dimensions listed below. It is important to verify the dimensions of your hand-held device with a case/sleeve/skin when determining the overall size


Cradle Dimensions

Min Width = 44.45mm (1.75”) – (if it is minimum width then the minimum height = 139.7mm / 5.5")
Max Width = 114.3mm (4.5") – (if it is maximum width then the minimum height = 82.55mm / 3.25")
Max Thickness = 22.2mm (0.875")


Compatible Devices

For a list of many of the compatible devices for this cradle go to our listing for the RAM-HOL-UN10BU



Material:
Powder Coated Marine Grade Aluminium
Marine Grade Stainless Steel Components
High Strength Composite


Ball Size:
1" Rubber Ball "B" Size

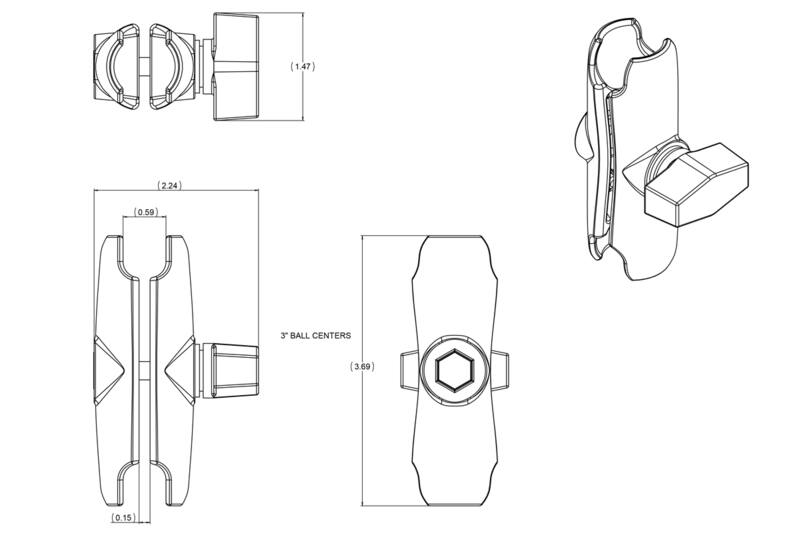

Arm Dimensions:
Overall Length:
94mm (3.69")
Socket-To-Socket Length:
76mm (3")

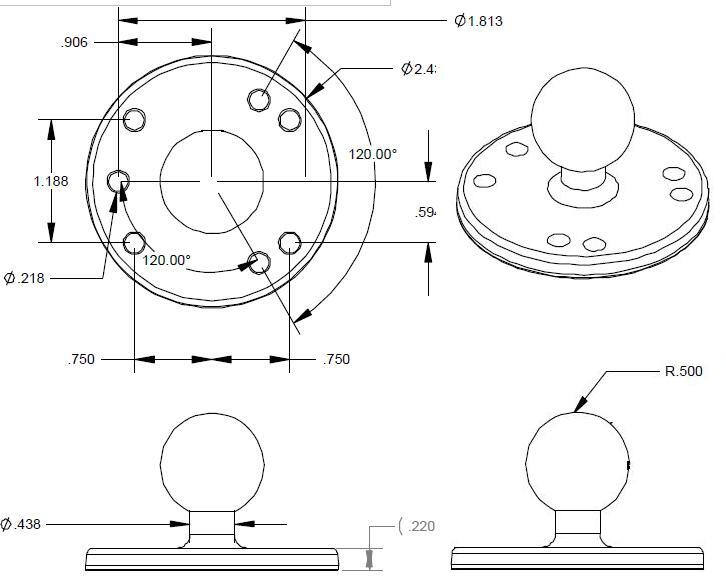

Round Plate Hole Pattern
4-Hole AMPS:
1.181" x 1.496"
3-Hole 120-Degree:
1.812" Diameter


Plate Size
63.5mm (2.5") Diameter


Weight:
336 grams (0.74 lbs.)

Components:
RAM-HOL-UN10BU - X Grip Holder

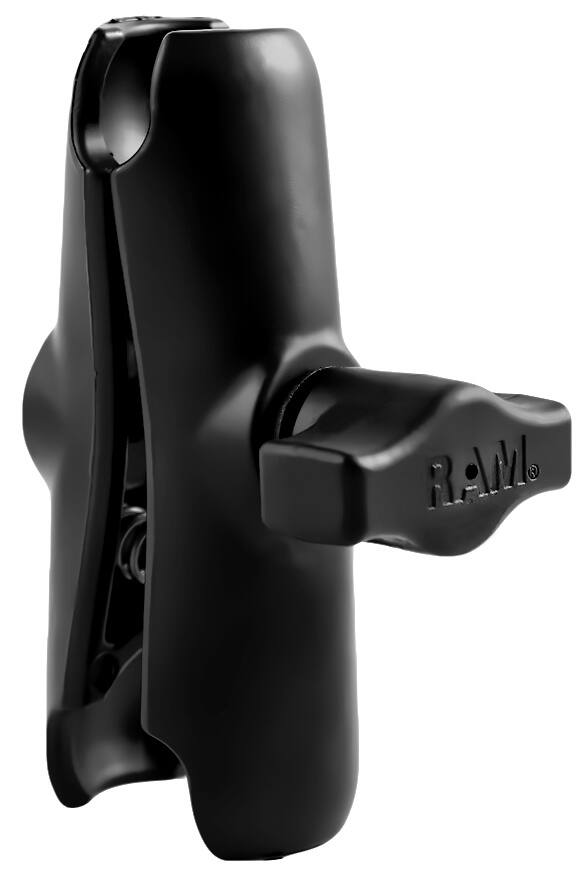

RAM-B-201U - standard double socket arm
RAM-B-202U - Round base
