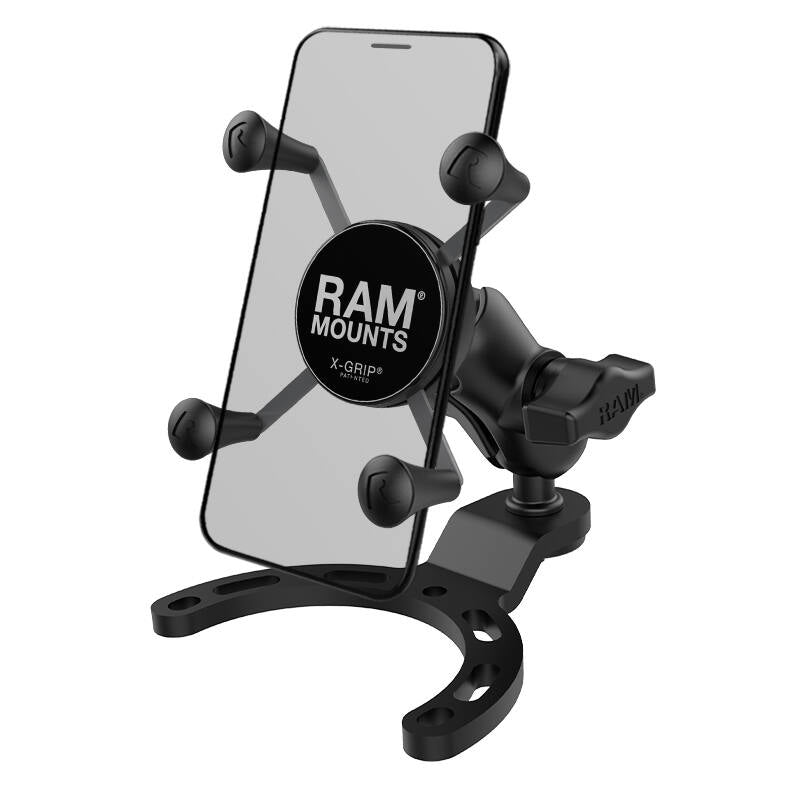

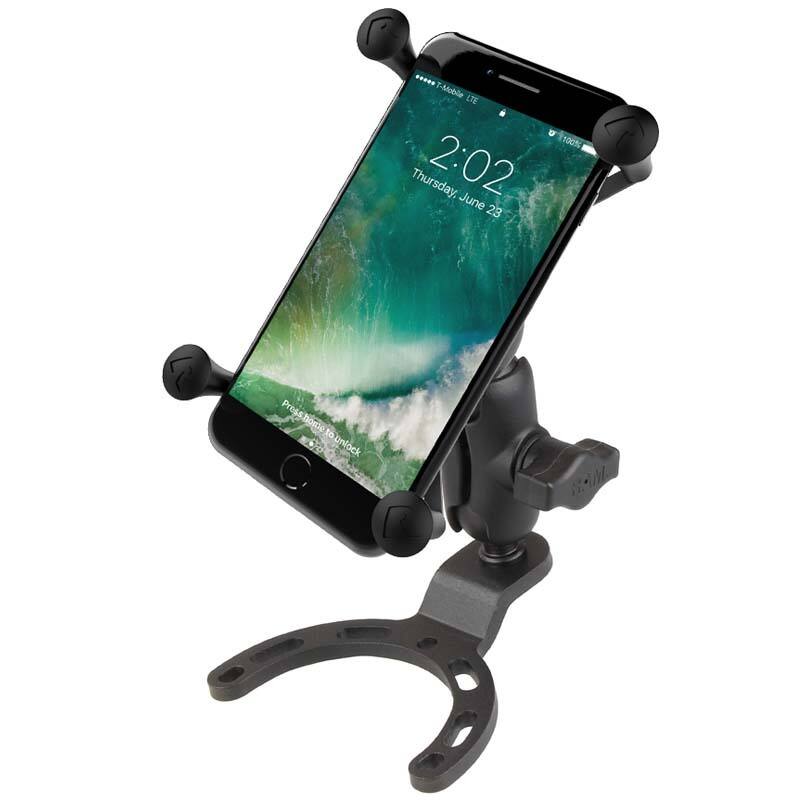

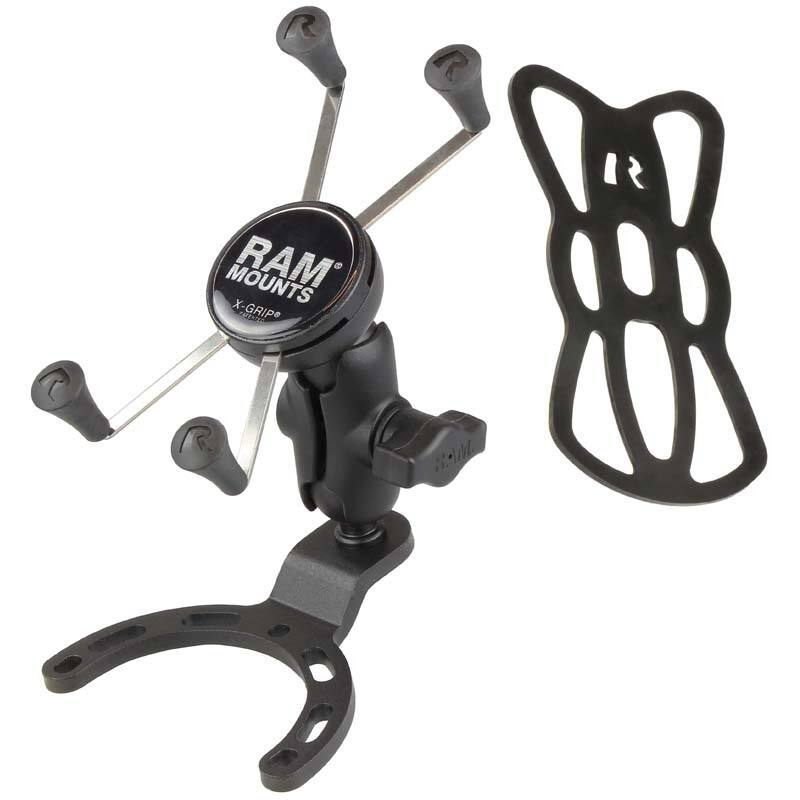

RAM-B-410-A-UN10BU RAM® X-Grip® Large Phone Mount with Small Gas Tank Base (Short Arm)

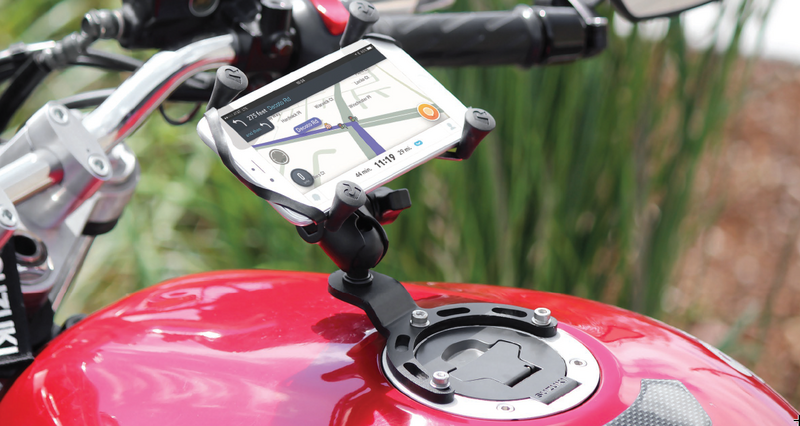

The RAM-B-410-A-UN10BU mates a low-profile RAM® small gas tank base with a short double socket arm and the X-Grip® cradle for large phones and phablets, mounting directly to the fuel tank of many motorcycles.
Key Features
Spring-loaded X-Grip® design with rubber caps holds the phone securely without covering the screen, camera, or buttons; includes an optional device tether for rugged use

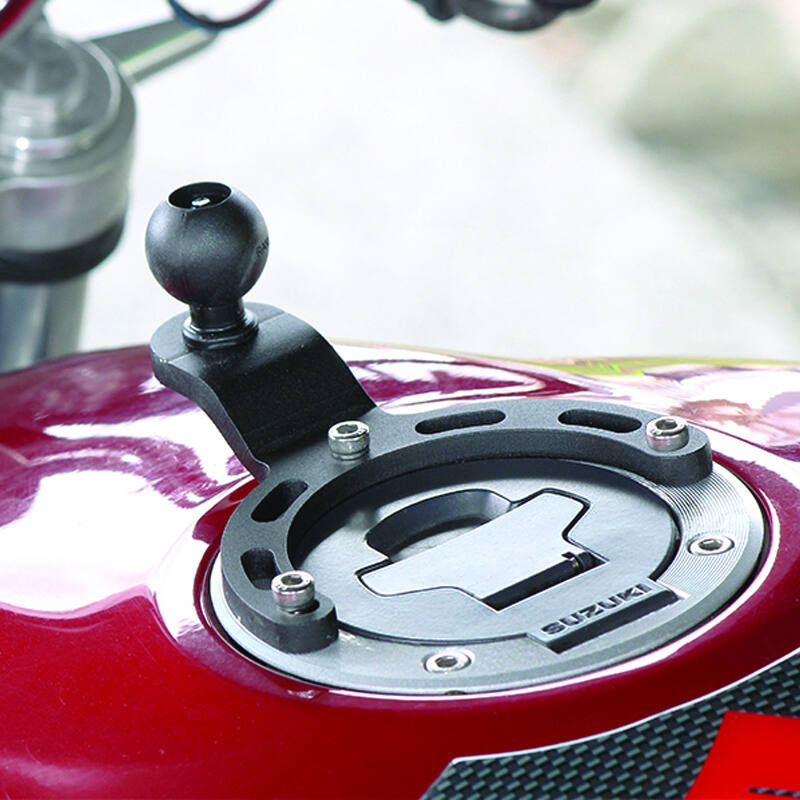

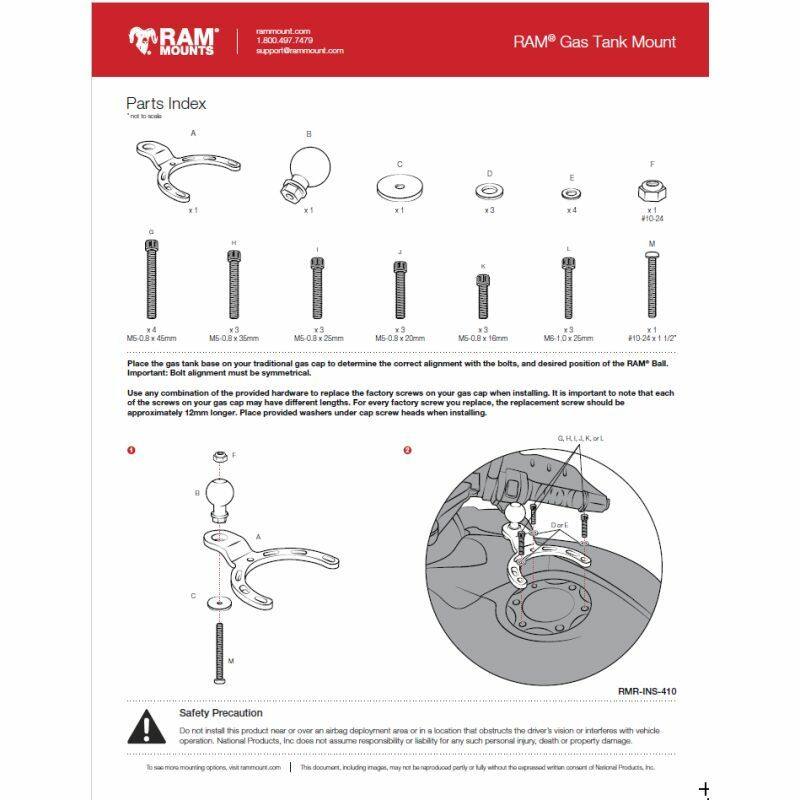

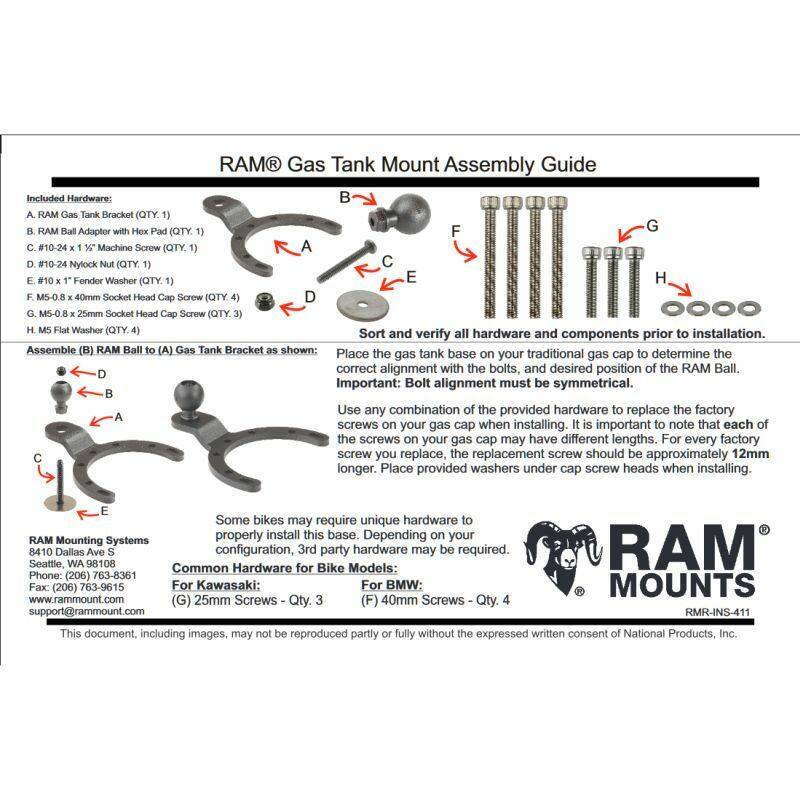

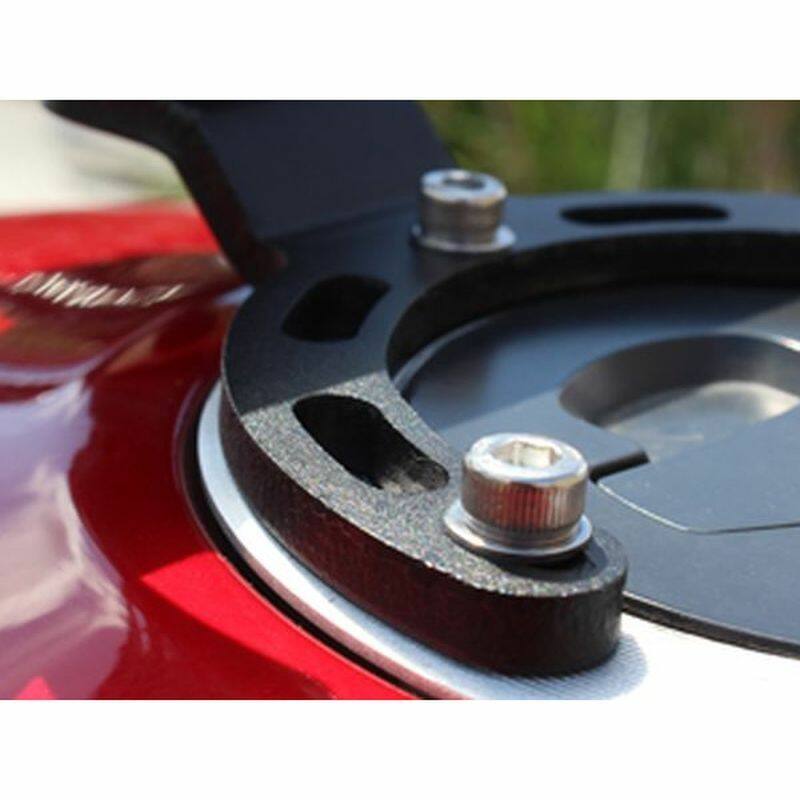

Low-profile powder-coated aluminium gas tank base mounts directly to the fuel tank; mounting hardware included
Short double socket arm keeps the device close to the tank; ball-and-socket design allows near-infinite positioning
Powder-coated marine-grade aluminium construction
Backed by a lifetime warranty
Works With

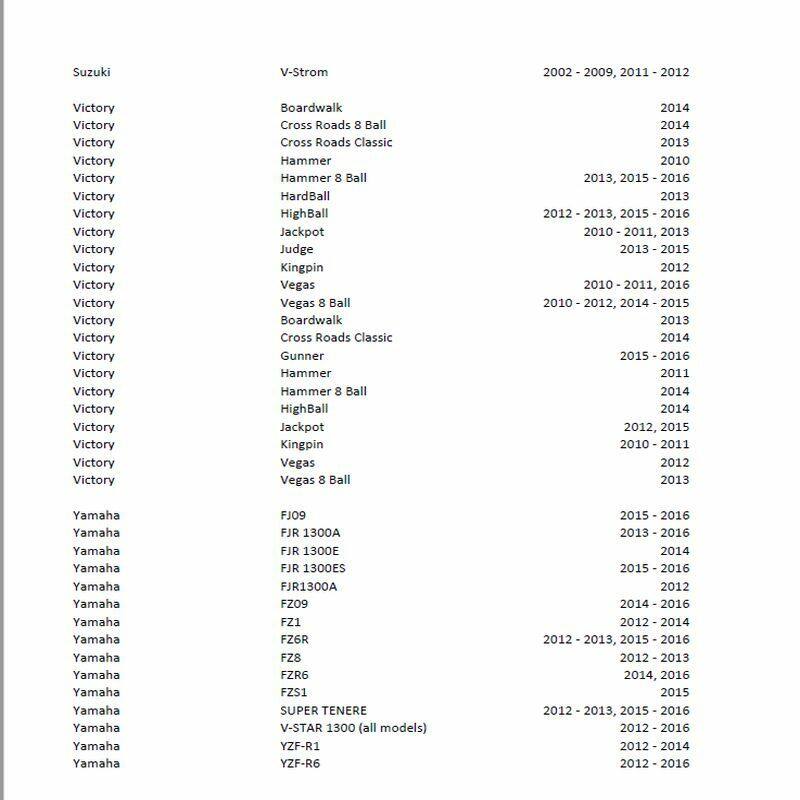

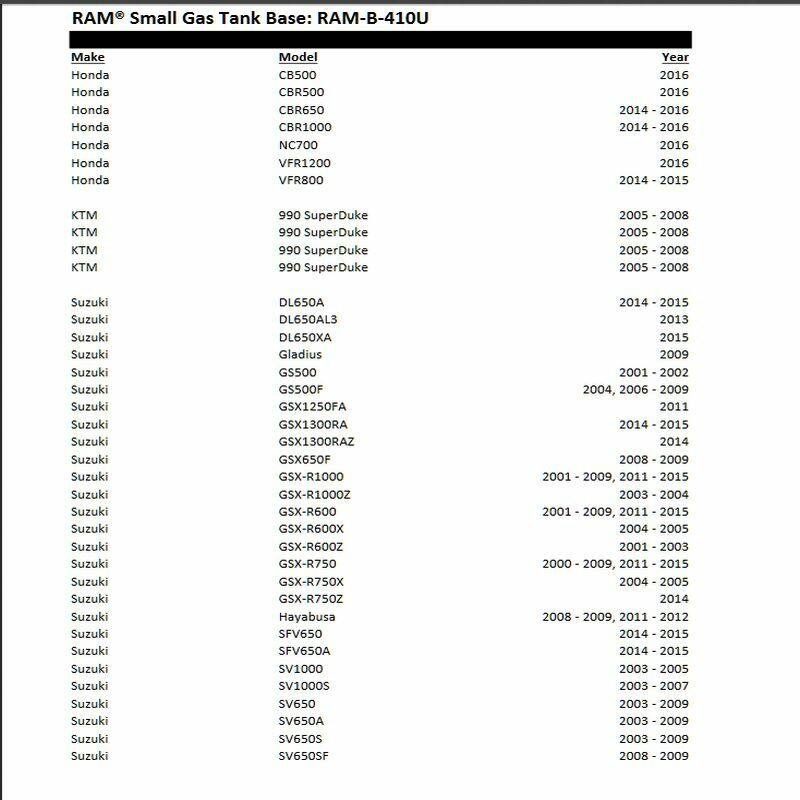

Fits a range of motorcycles including Honda, KTM, Suzuki, Victory, and Yamaha models with a compatible tank bolt pattern.
What's Included

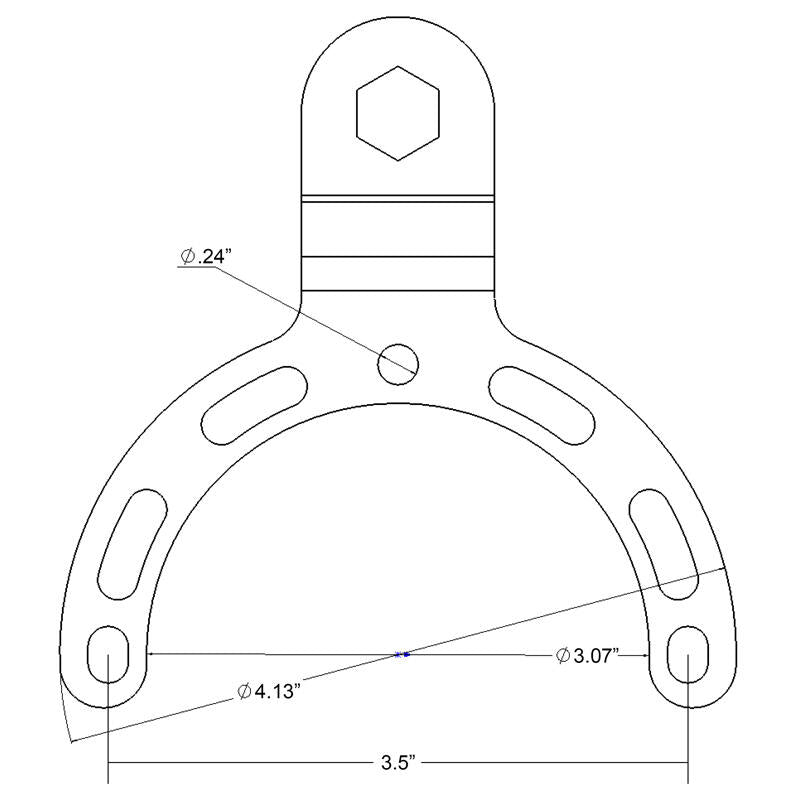

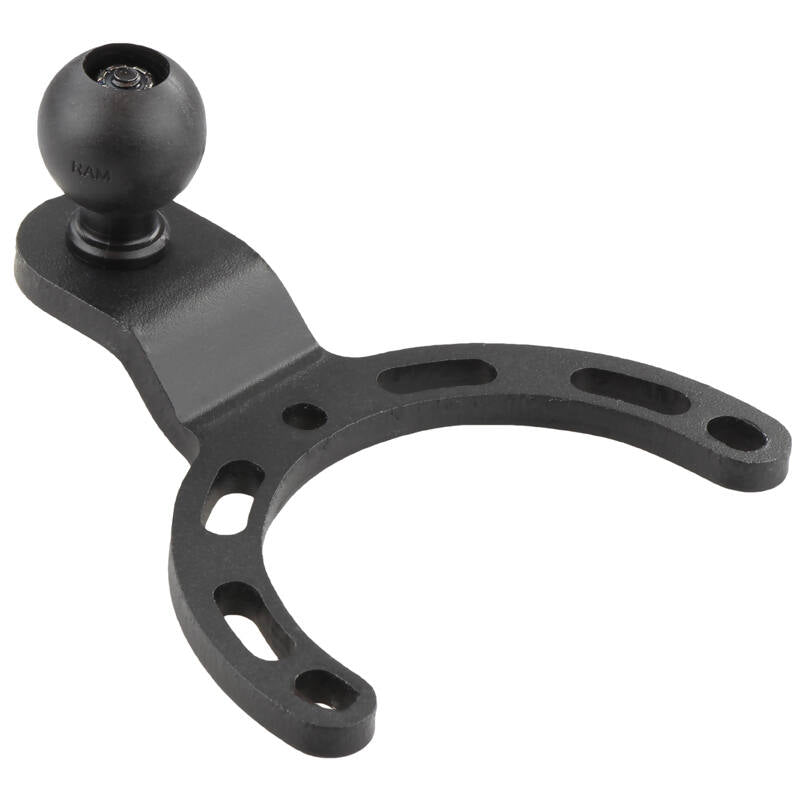

RAM-B-410U small gas tank mount
RAM-B-201U-A short double socket arm

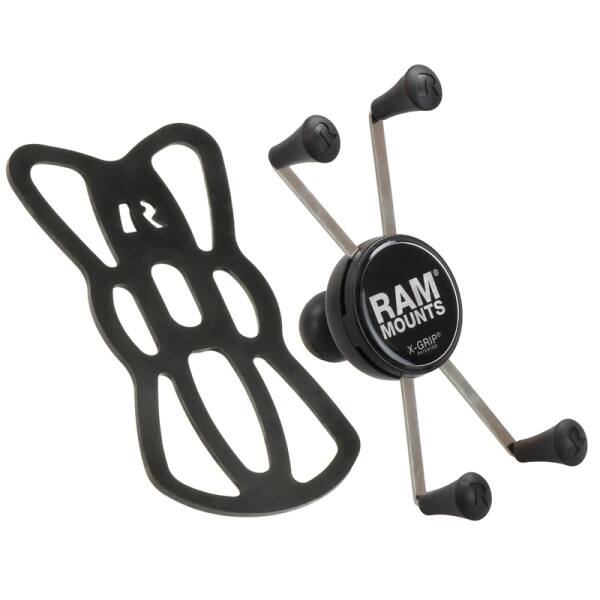

RAM-HOL-UN10BU X-Grip® universal phablet cradle
Dimensions & Specifications
Arm overall length: 60.5mm (2.38"); socket-to-socket 51mm (2")
Cradle minimum device width 44.45mm (1.75"), which needs a minimum height of 139.7mm (5.5")
Cradle maximum device width 114.3mm (4.5"), which needs a minimum height of 82.55mm (3.25")
Cradle maximum device thickness: 22.2mm (0.875")
Ball size: B-Size, 1" rubber ball
Weight: 268g (0.59 lb)
Compatible Devices
Fits hand-held devices within the cradle dimensions above, with or without a case. See our RAM-HOL-UN10BU cradle listing for the full compatible device list.
FAQs
Can I get a different arm length? Yes — this can also be built with a medium (94mm) or long (152mm) arm on request.
How fast does this ship? If this item shows as being in stock then it will usually ship from our Auckland warehouse in 1 business day. If it says to enquire then please get in touch as we may be able to get this back in for you.
