RAM-B-367B-UN10U RAM® X-Grip® Large Phone Mount with Vehicle Grab Handle Base
Features
* Spring-loaded 'X' design for large phones with rubber caps sports great holding power without hiding your phone
* Includes optional device tether for peace of mind during rugged use
* RAM® double socket arm; ball and socket technology allows for near-infinite adjustability
* Grab handle base will install on any grab handle with an M8 threaded bolt
* Made of powder-coated, marine-grade aluminum, stainless steel components, and high-strength composite for durability and reliability in the most demanding environments
* Backed by a lifetime warranty

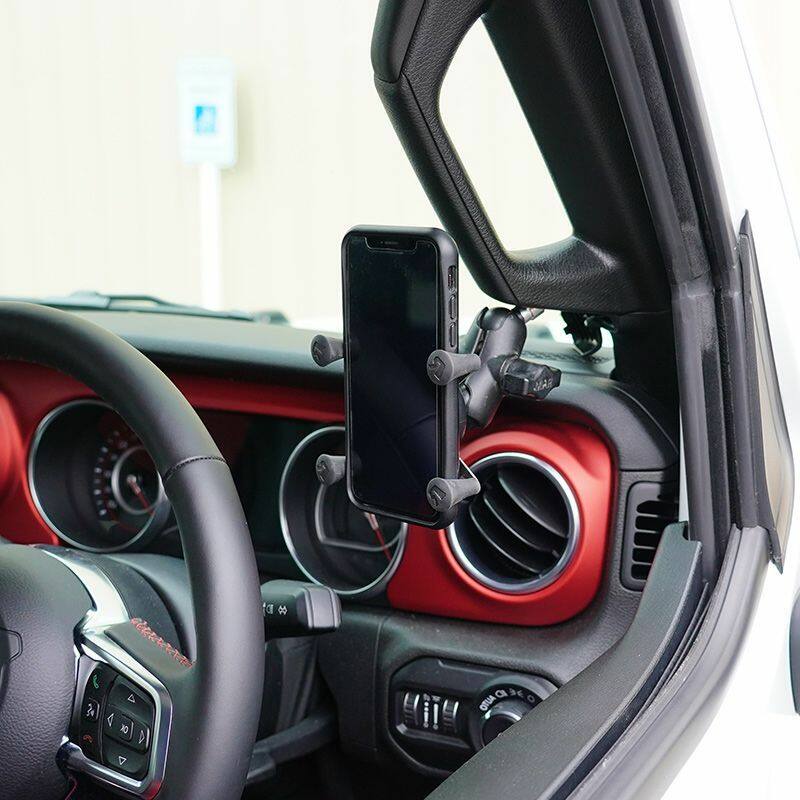

This is a car/truck grab handle base, double socket arm and universal X-Grip® cradle for large phones / phablets.

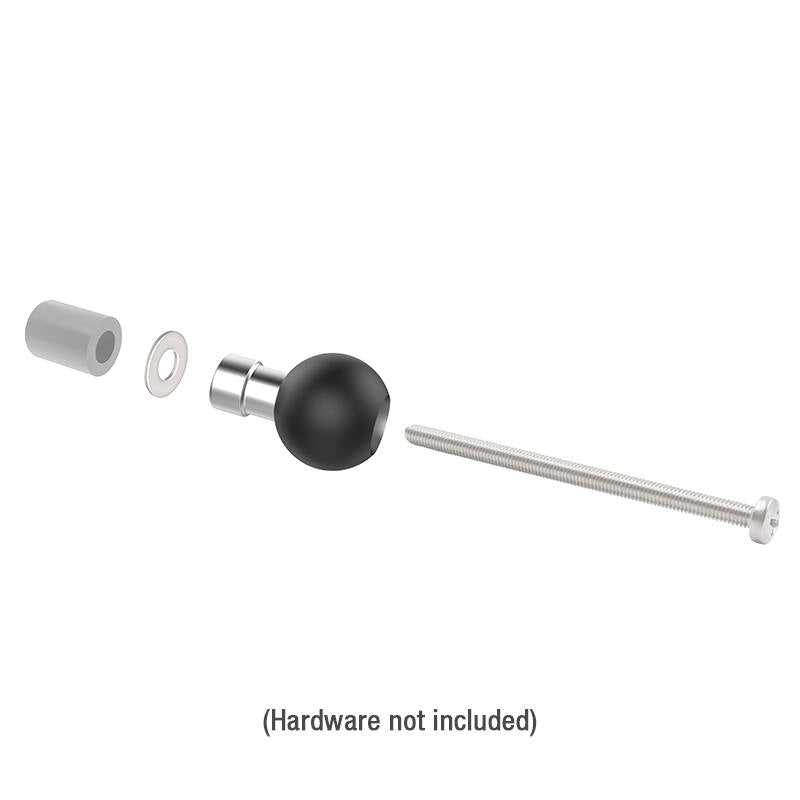

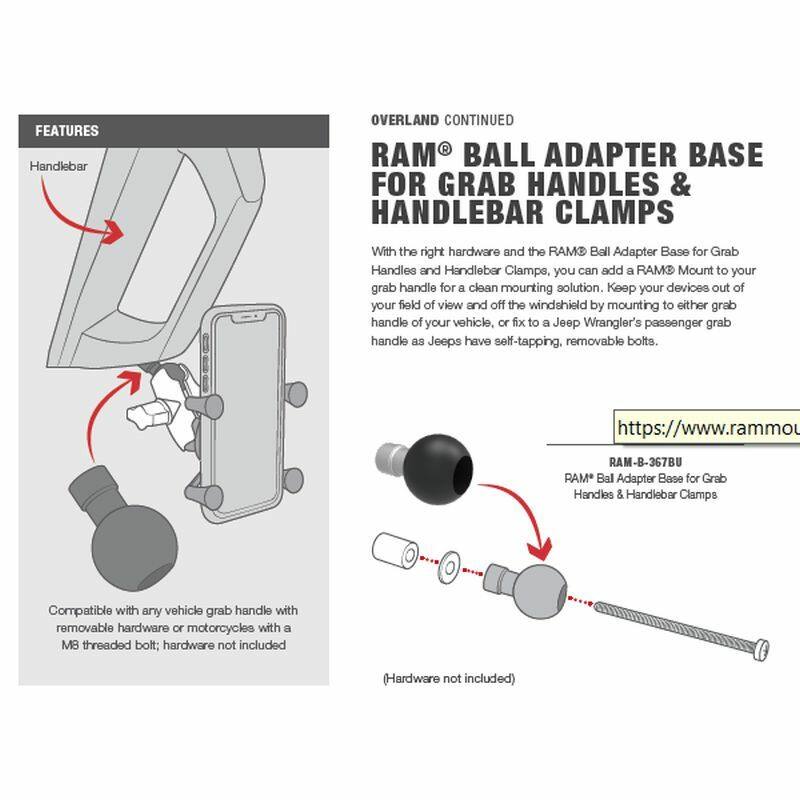

The RAM® Grab Handle Bolt Adapter Base is the ideal base for installing RAM® Mounts on a grab handle with an M8 threaded bolt. With a hollow center, you are able to feed an 8mm bolt or smaller to screw into your vehicle's grab handle for a stable mounting base with no drilling required. Keep your windshield clean. Any vehicle, which employs an 8mm bolt or smaller on its structure is compatible with this product. A smaller bolt can be used, though the load capacity decreases with the bolt size.
The included -UN10 X-Grip cradle has a clean and clever four leg design that sports great holding power without hiding your phone behind foam pads and plastic. The spring loaded X-Grip holder expands and contracts, allowing for a perfect custom fit of your cell phone, the RAM X-Grip is the cell phone holder evolved and includes a device tether recommended for outdoor applications.
The cradle is compatible with hand-held devices that will fit the dimensions listed below. Check dimensions of your hand-held device with a case/sleeve/skin when determining the overall size
Cradle Dimensions
Min Width = 44.45mm (1.75”) – (if min width then the min height = 139.7mm / 5.5")
Max Width = 114.3mm (4.5") – (if max width then the min height = 82.55mm / 3.25")
Max Thickness = 22.2mm (0.875")
Compatible Devices
For a list of many of the compatible devices see the RAM-HOL-UN10BU
Material:
Powder Coated Marine Grade Aluminium
Marine Grade Stainless Steel Components
High Strength Composite
Ball Size:
B Size 1" Rubber Ball
Arm Dimensions:
Overall Length:
94mm (3.69")
Socket-To-Socket Length:
76mm (3")
Components
RAM-B-201U UNPKD RAM DOUBLE SOCKET ARM

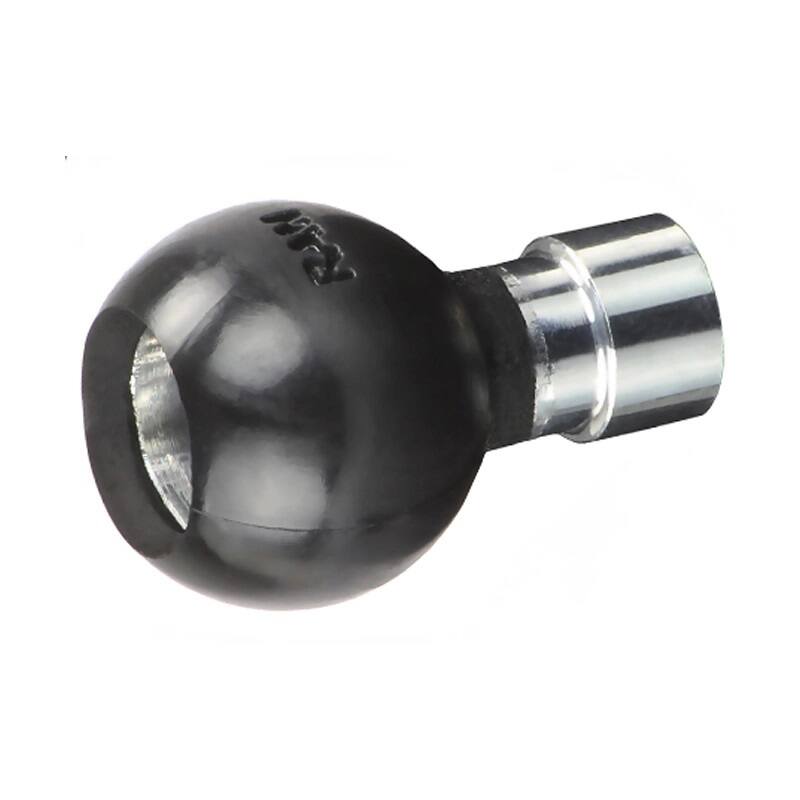

RAM-B-367BU Grab Handle Ball Base
RAM-HOL-UN10BU X-GRIP IV UNIVERSAL CRADLE
YouTube:
https://www.youtube.com/watch?v=gSplxuUrtmQ
https://www.youtube.com/watch?v=S8ky_uKTw98
