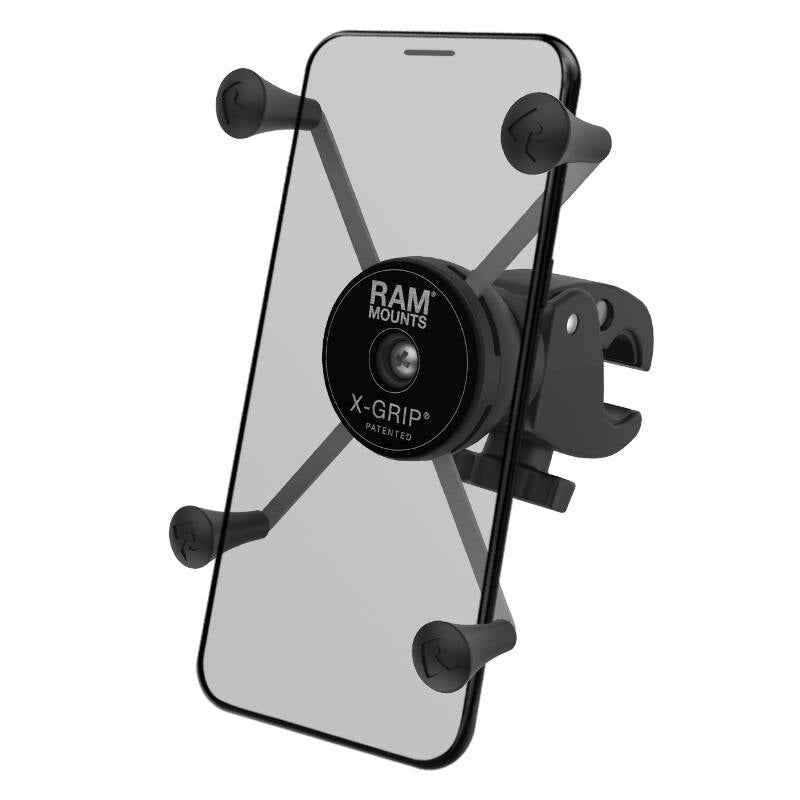

RAM-HOL-UN10-400-1U RAM® X-Grip® Large Phone Mount with Low-Profile RAM® Tough-Claw™
Features
- Lowest profile large phone mount clamps to your handlebar with the turn of a single knob
- Small RAM® Tough-Claw™ base clamps quickly to rails and bars
- Rubber pads provide stable gripping and protection of mounting surface
- Made of high-strength composite and stainless steel hardware for durability and reliability

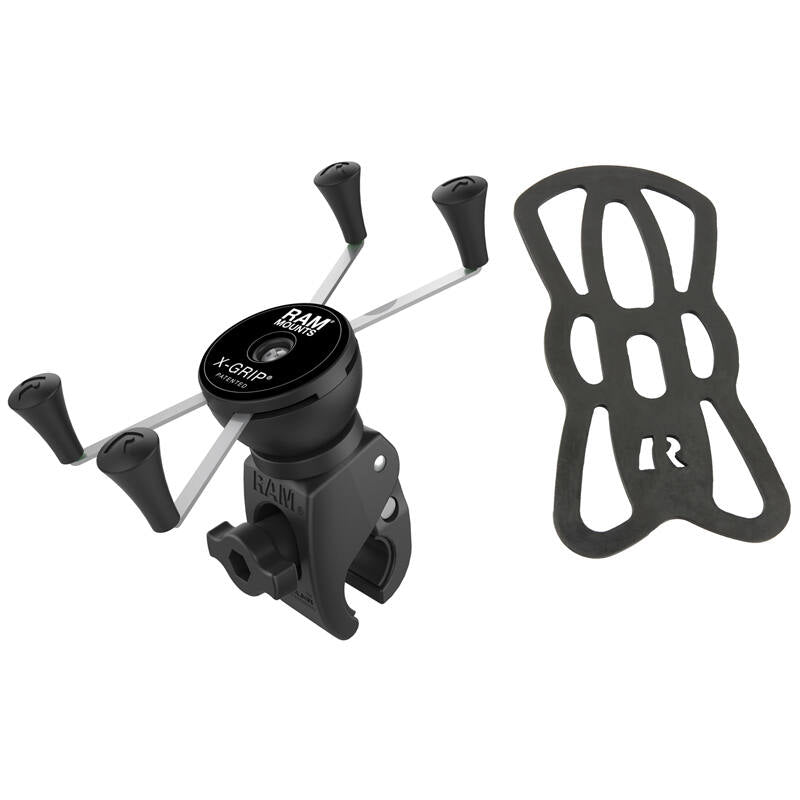

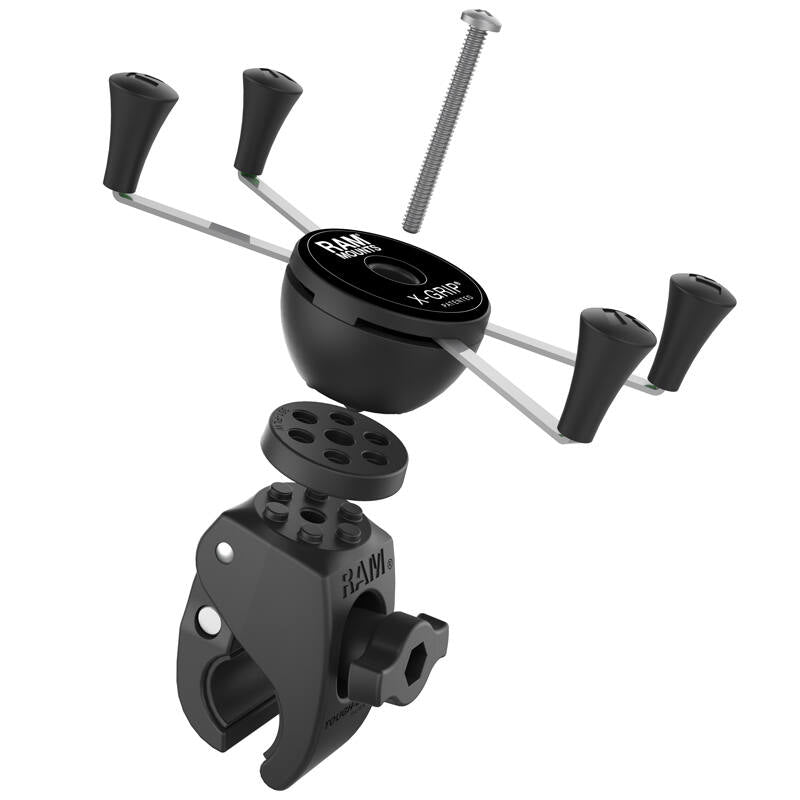

This consists of the small RAM® Tough-Claw™ base and large RAM® X-Grip® phone holder, connected by the RAM® Pin-Lock™ washer.
The RAM® Tough-Claw™ base clamps on round, square, and odd-shaped rails and bars ranging from 16-38mm in outer diameter. Just place the clamp over the rail or post and then tighten with the attached knob - no tools required. Also an ideal base for wheelchairs and other mobility devices and it can be quickly installed or moved if required.
The X-Grip cradle has a clean and clever four leg design that sports great holding power without hiding your phone behind foam pads and plastic. The spring loaded X-Grip holder expands and contracts, allowing for a perfect custom fit of your cell phone and includes a device tether recommended for outdoor applications.
The cradle is compatible with hand-held devices that will fit the dimensions listed below. Check the dimensions of your hand-held device with a case/sleeve/skin when determining the overall size
Cradle Dimensions
Min Width = 44.45mm (1.75”) – (if min width then the min height = 139.7mm / 5.5")
Max Width = 114.3mm (4.5") – (if max width then the min height = 82.55mm / 3.25")
Max Thickness = 22.2mm (0.875")
Compatible Devices
For a list of many of the compatible devices for this cradle go to our listing for the RAM-HOL-UN10BU
Clamping Range
Rails/Tubes:
16mm to 38mm (0.625" to 1.5")
Flat Surfaces:
0 to 29mm (0" to 1.14")
