RAM-B-367-UN10U RAM® X-Grip® Large Phone Mount with Motorcycle Handlebar Clamp Base
Features
* Spring-loaded 'X' design for large phones with rubber caps sports great holding power without hiding your phone
* Includes optional device tether for peace of mind during rugged use
* 1" Ball base is compatible with any motorcycle M8 threaded bolt and allows for connection to any B size RAM® double socket arm
* Made of powder-coated, marine-grade aluminium, stainless steel components, and high-strength composite for durability and reliability in the most demanding environments
* Backed by a lifetime warranty

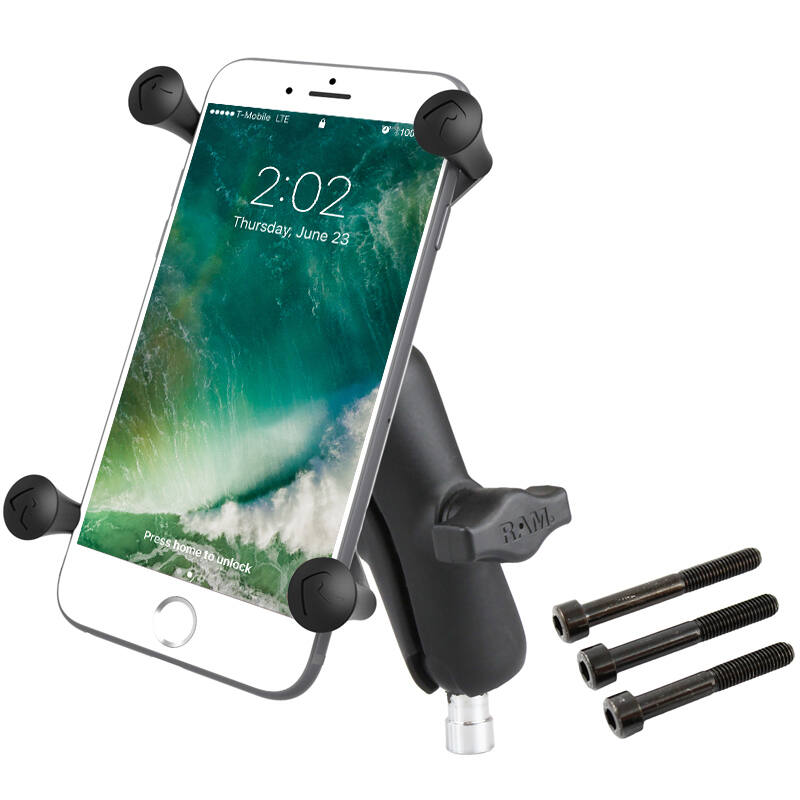

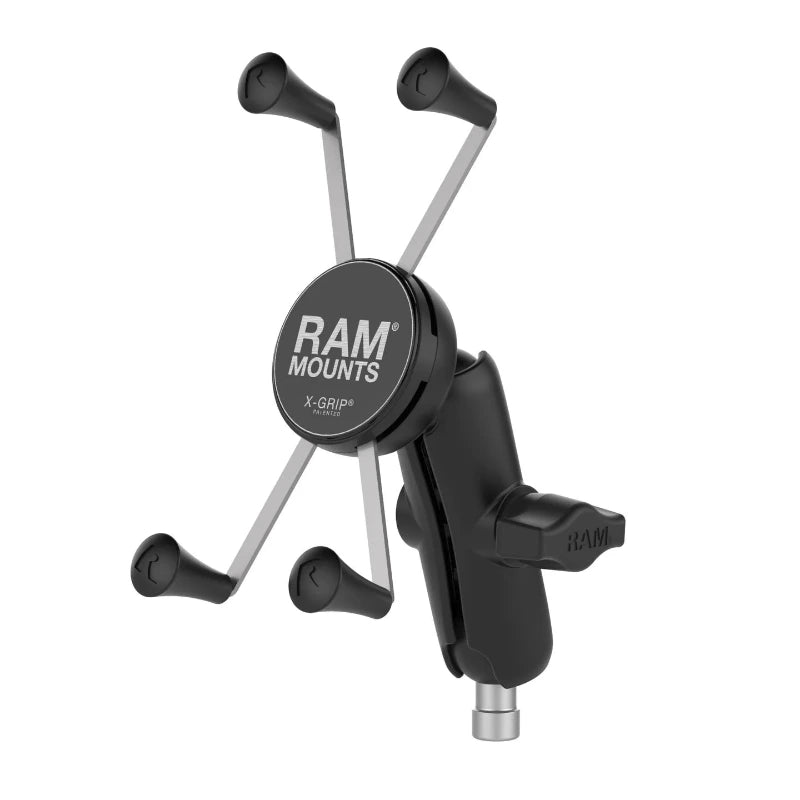

This consists of a motorcycle handlebar clamp base with M8 threads, double socket arm and universal X-Grip® cradle for large phones (5.5" screen) and phablets.

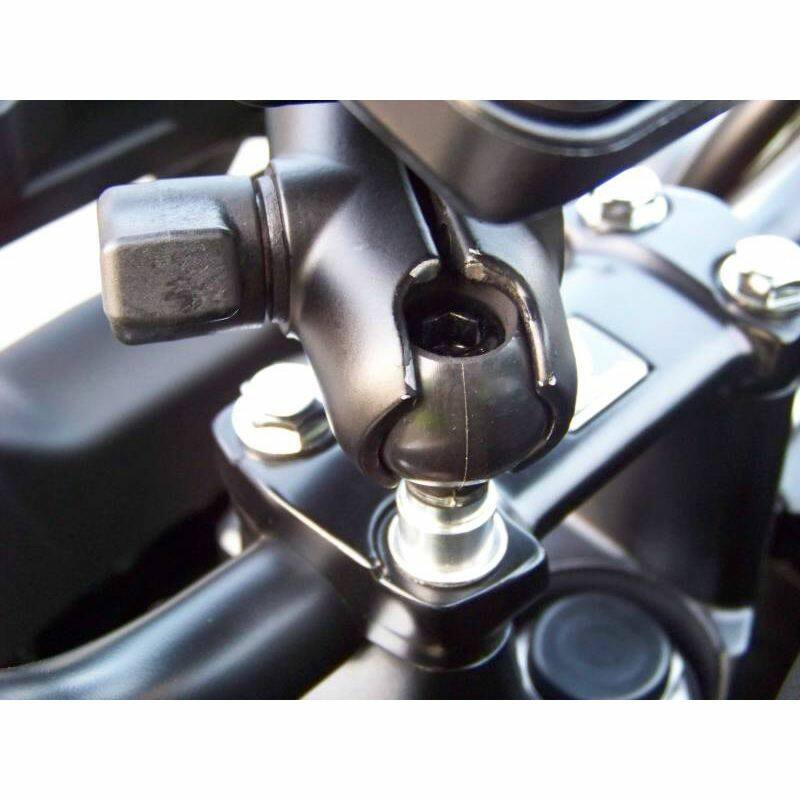

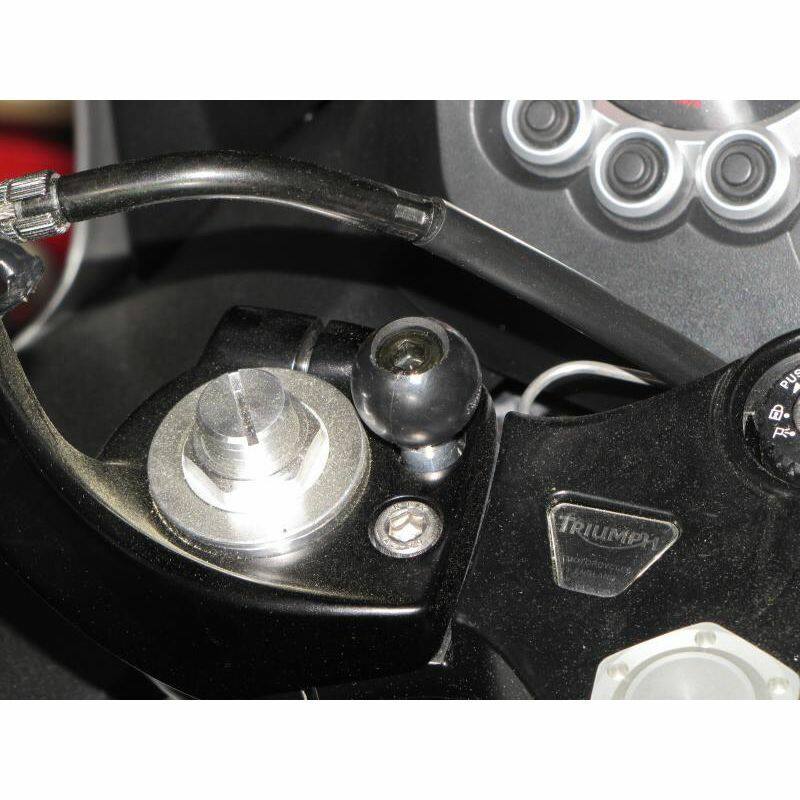

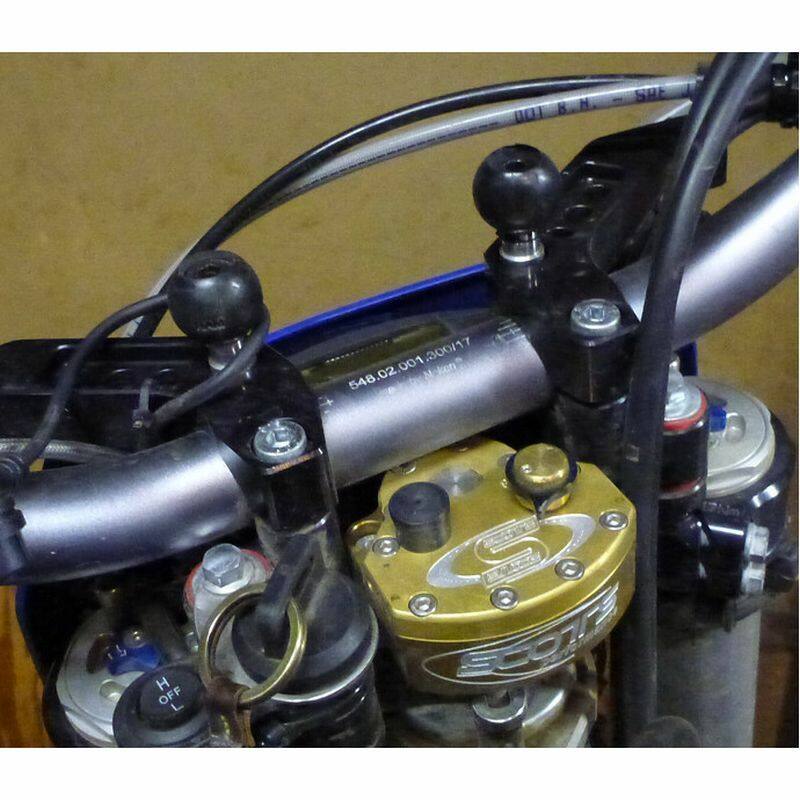

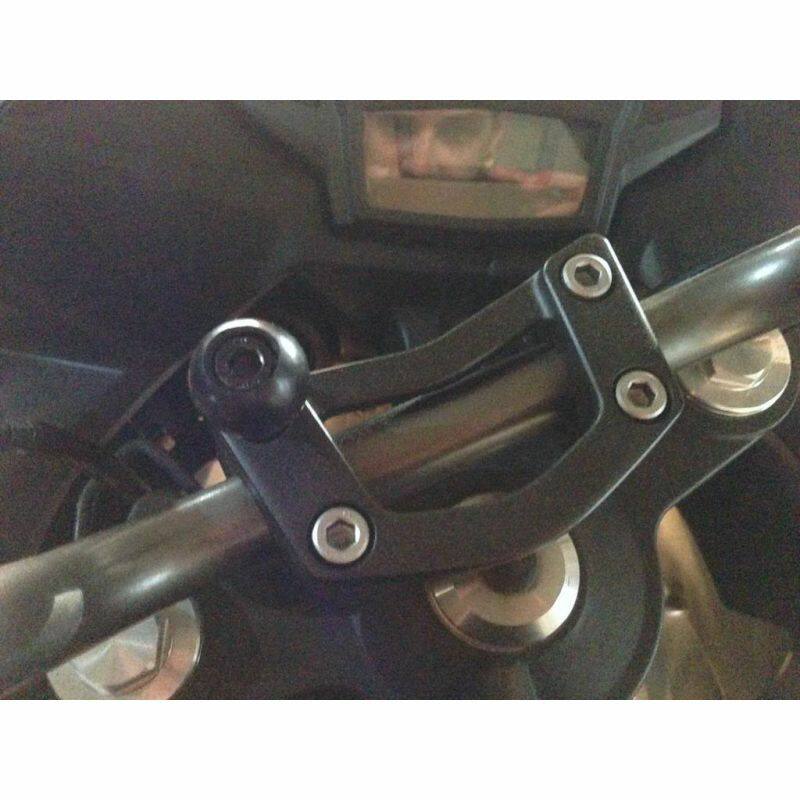

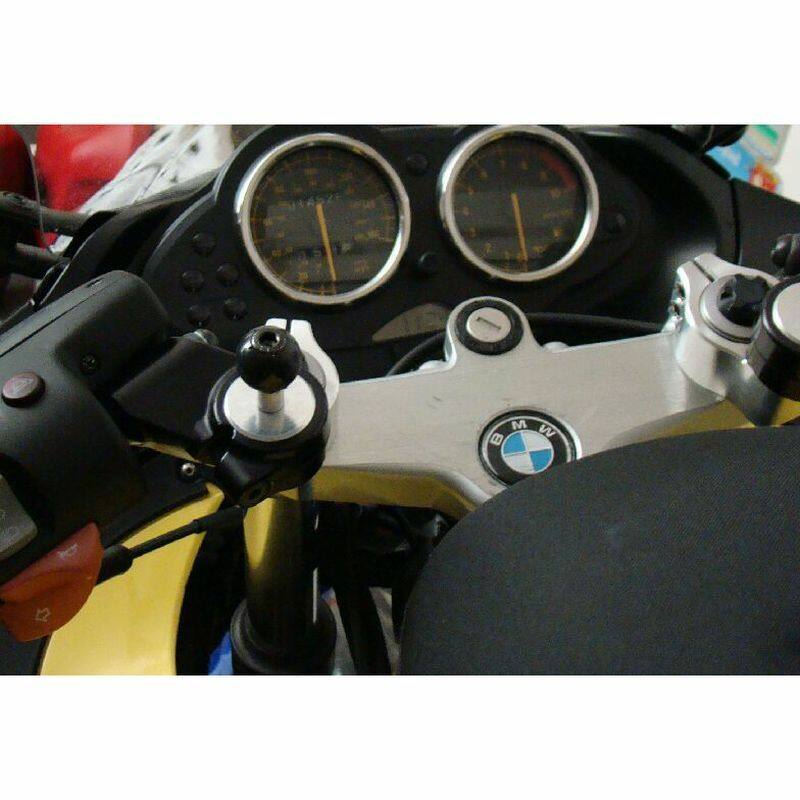

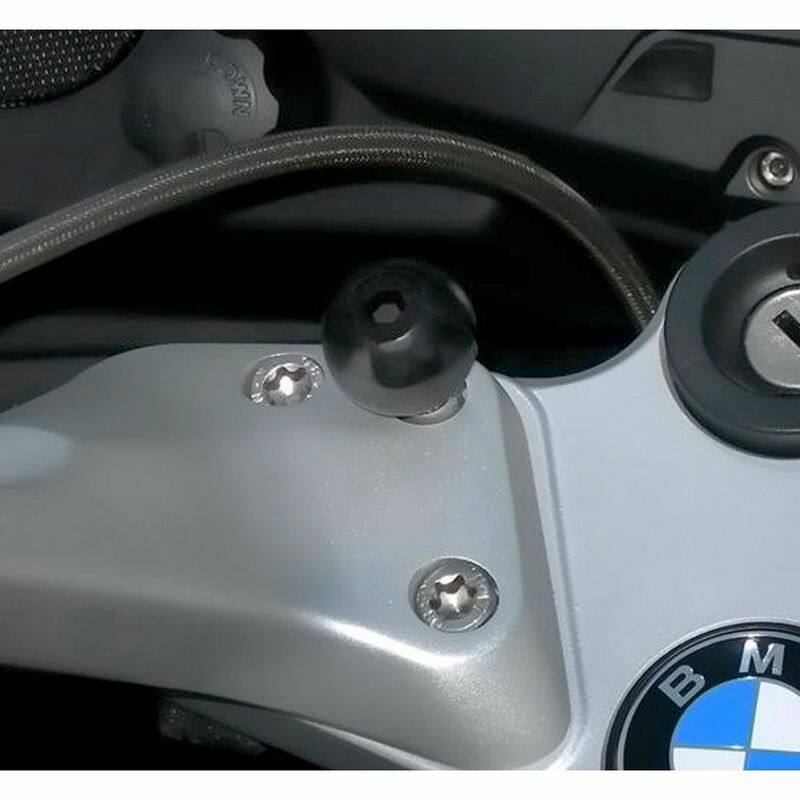

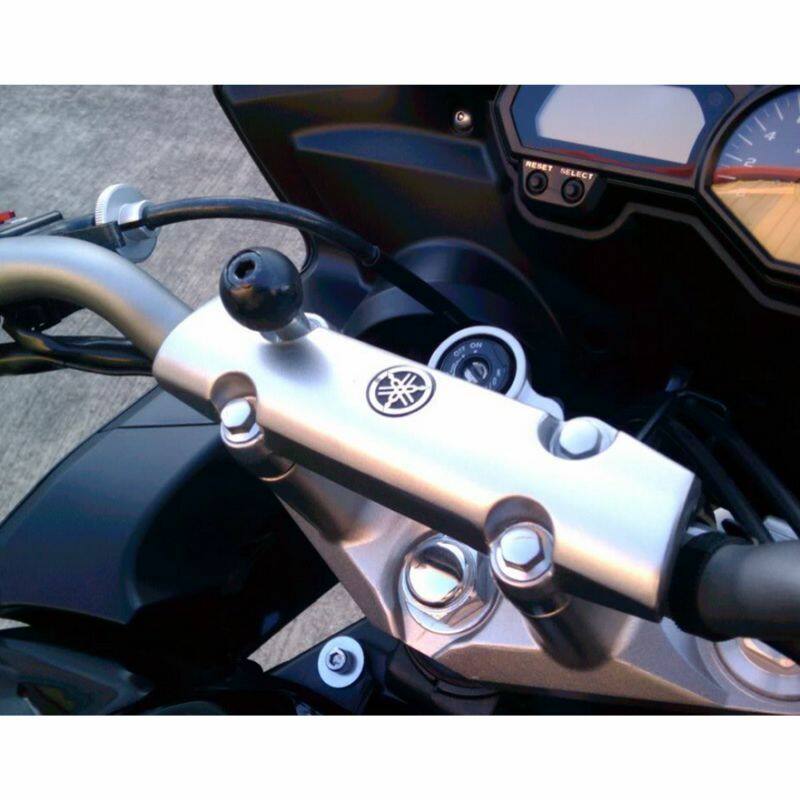

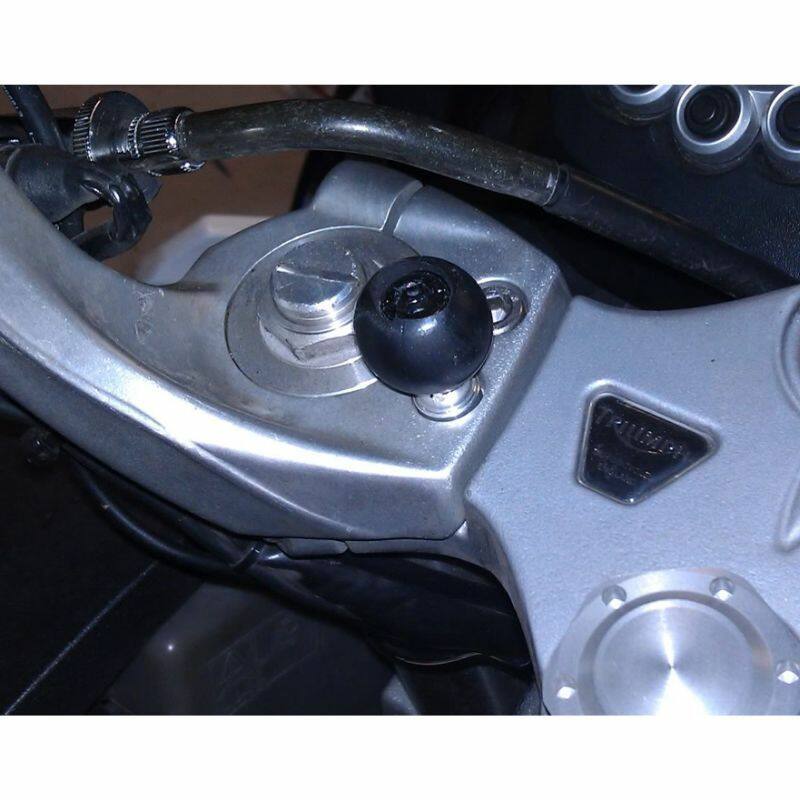

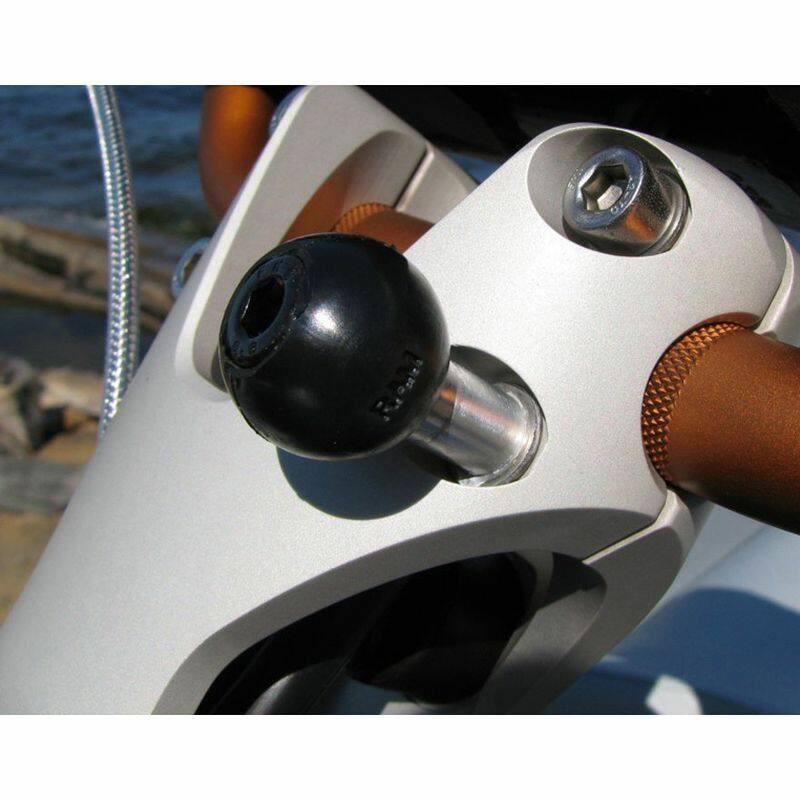

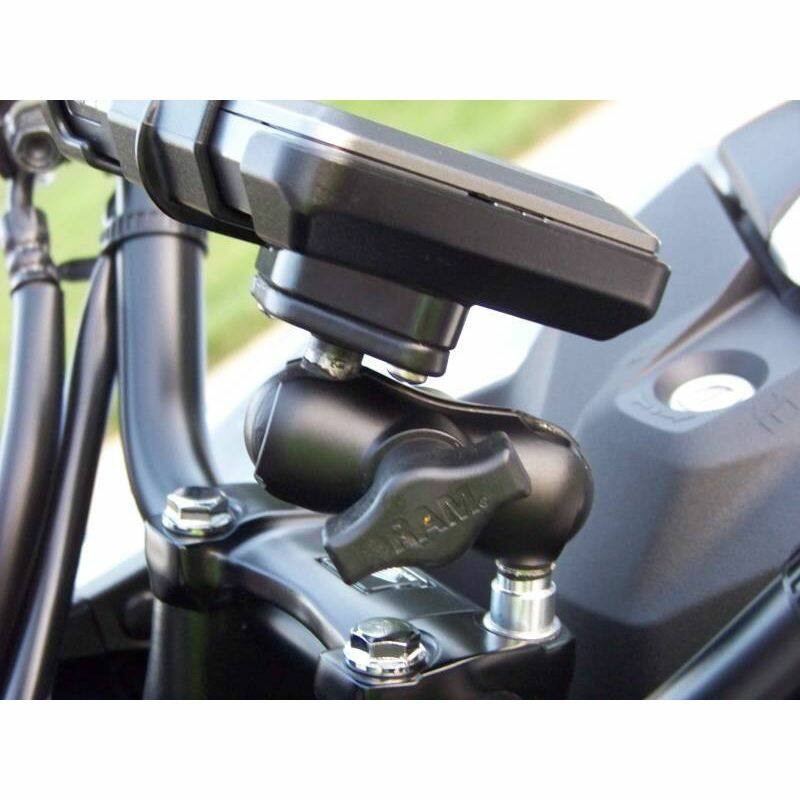

The RAM-B-367U base will replace one of the M8 bolt heads on your handlebar clamp system, positioning your device clean in the centre. The mount is designed with a RAM B size 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles.

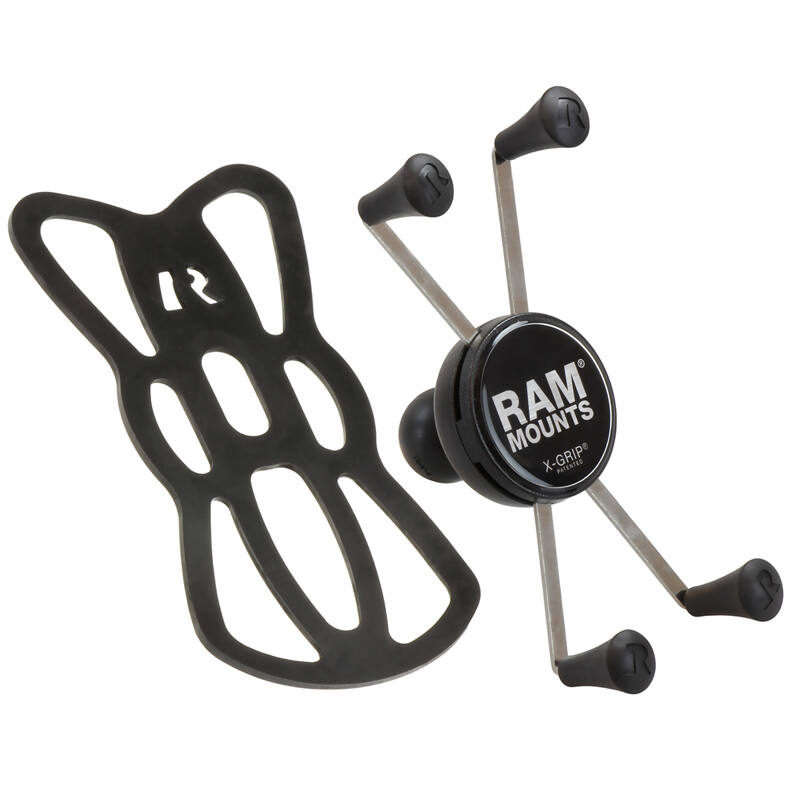

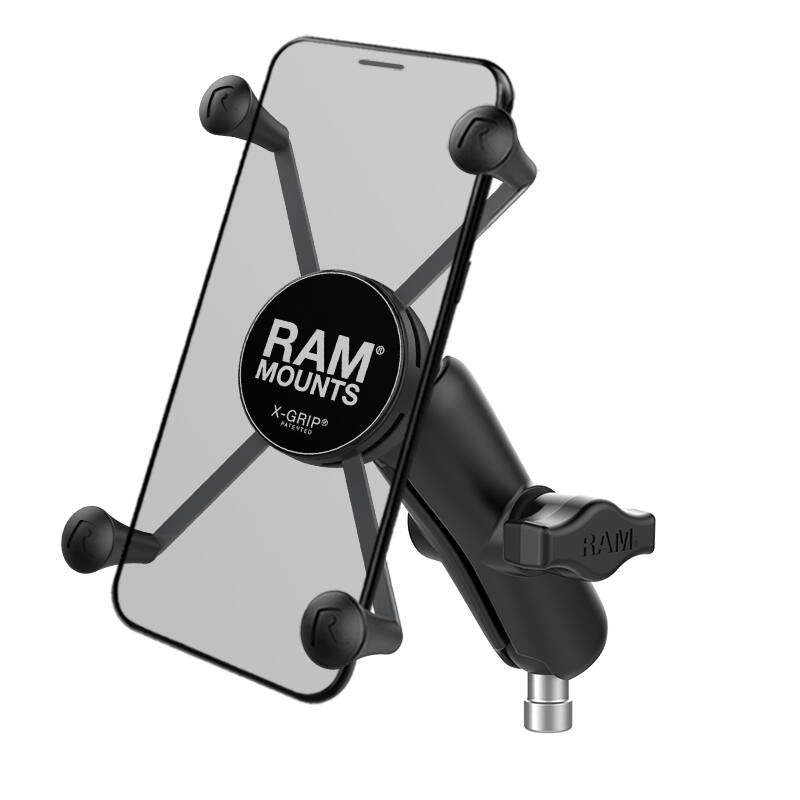

The X-Grip cradle has a clean and clever four leg design that sports great holding power without hiding your phone behind foam pads and plastic. The spring loaded X-Grip holder expands and contracts, allowing for a perfect custom fit of your cell phone, the RAM X-Grip is the cell phone holder evolved.
The X-Grip includes a device tether recommended for outdoor applications.
The cradle is compatible with hand-held devices that will fit the dimensions listed below. It is important to verify the dimensions of your hand-held device with a case/sleeve/skin when determining the overall size
Cradle Dimensions
Minimum Width = 44.45mm (1.75”) – (if it is minimum width then the minimum height = 139.7mm / 5.5")
Maximum Width = 114.3mm (4.5") – (if it is maximum width then the minimum height = 82.55mm / 3.25")
Maximum Thickness = 22.2mm (0.875")
Compatible Devices
For a list of many of the compatible devices for this cradle go to our listing for the RAM-HOL-UN10BU

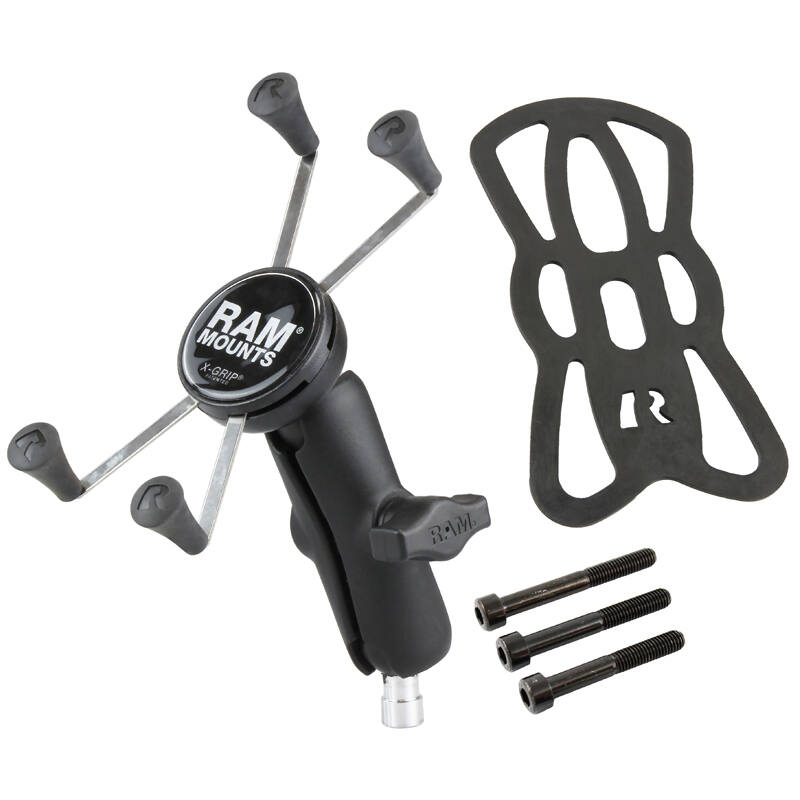

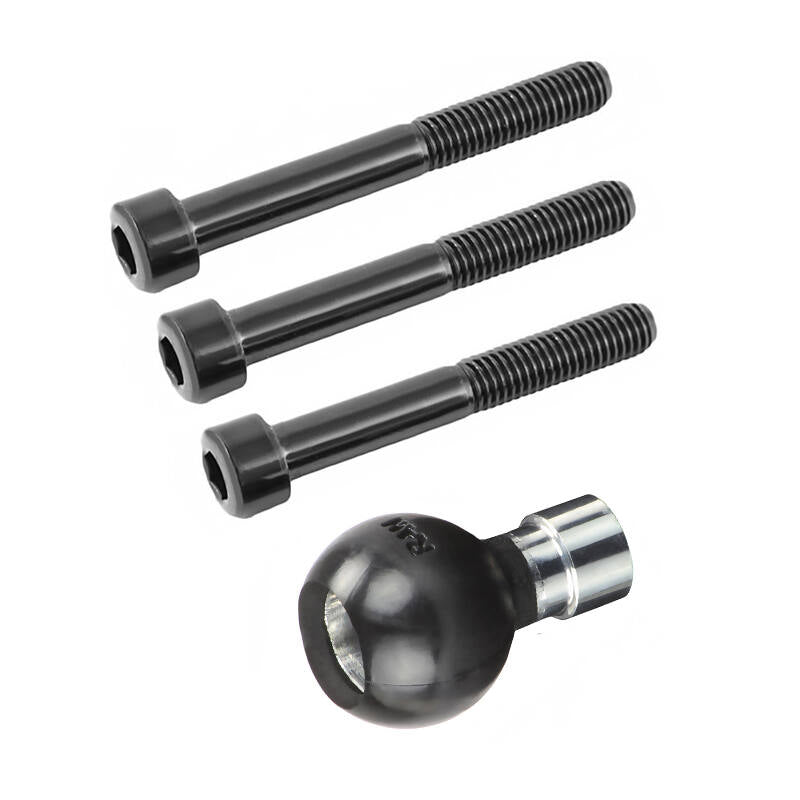

Hardware included:
1" Rubber ball
M8 x 55 bolt (1.25 thread pitch)
M8 x 60 bolt (1.25 thread pitch)
M8 x 65 bolt (1.25 thread pitch)
Arm Dimensions:
Overall Length:
94mm (3.69")
Socket-To-Socket Length:
76mm (3")
Material:
Powder Coated Marine Grade Aluminium
Marine Grade Stainless Steel Components
High Strength Composite
Ball Size:
B Size 1" Rubber Ball
Components
RAM-B-201U RAM DOUBLE SOCKET ARM FOR 1" BALL
RAM-B-367U RAM MOTORCYCLE BASE W HOLE M8 SCREW
RAM-HOL-UN10BU X-GRIP IV UNIVERSAL CRADLE
