RAM X-Grip Universal Large Phone Cradle with Suction Cup Mount (composite)

RAP-B-166-UN10U RAM® X-Grip® Large Phone Mount with Twist-Lock™ Suction Cup Base (Composite)

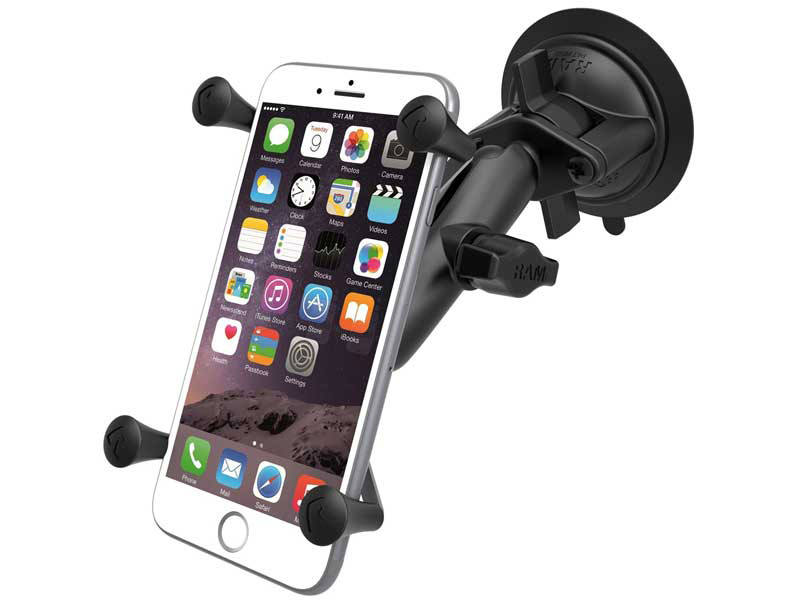

The RAP-B-166-UN10U pairs the RAM® X-Grip® large phone cradle with a composite Twist-Lock™ suction cup base and a medium composite double socket arm, for a strong hold on windscreens, dashboards, and other smooth, non-porous surfaces.

Key Features

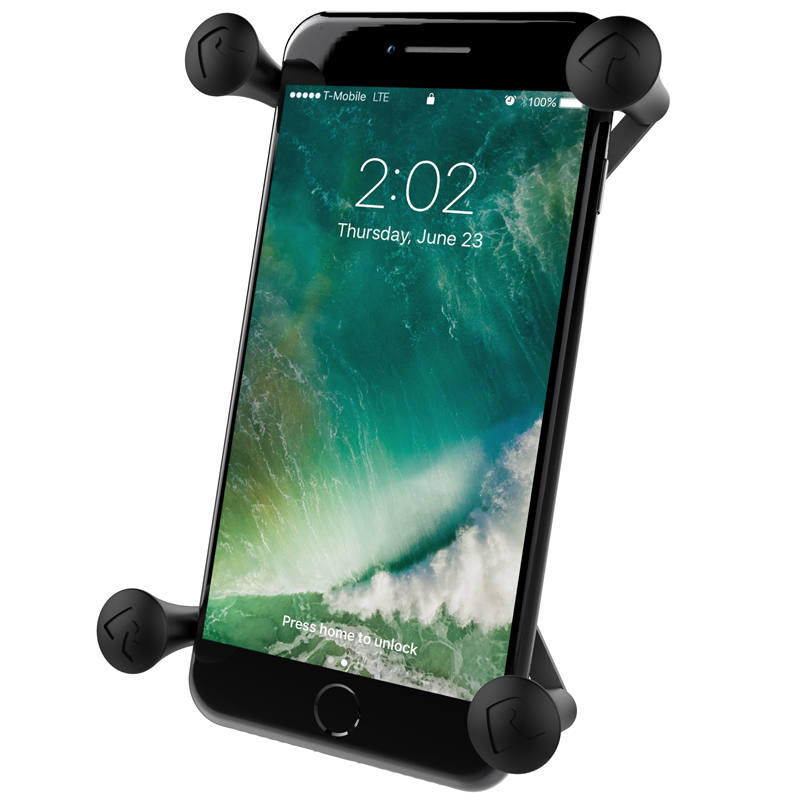

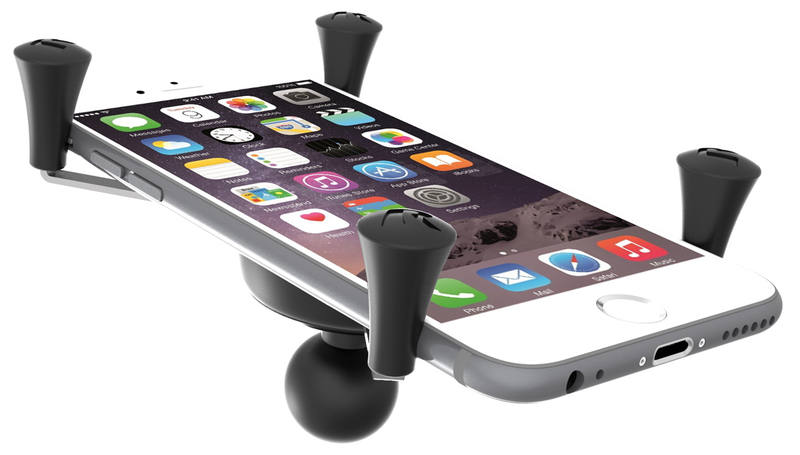

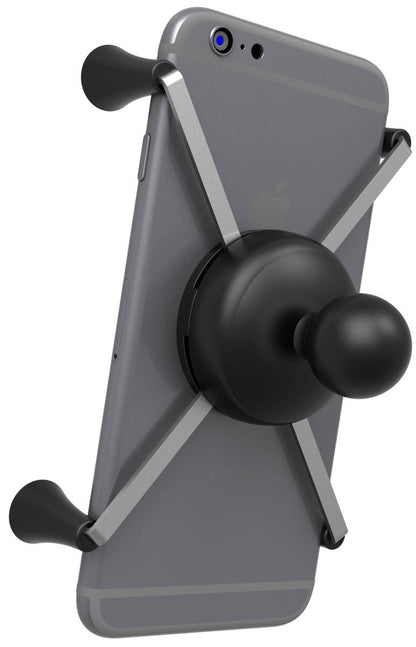

• Spring-loaded X-Grip® design with rubber caps holds large phones securely without covering the screen, camera, or buttons; includes an optional device tether for rugged use
• Composite Twist-Lock™ suction cup base, 84mm (3.3") diameter, grips glass and non-porous plastic surfaces
• Medium composite double socket arm, 94mm overall; ball-and-socket design allows near-infinite positioning
• All-composite build keeps the weight down, lighter than the aluminium equivalent
• High-strength composite and stainless steel hardware construction
• Backed by a lifetime warranty

What's Included

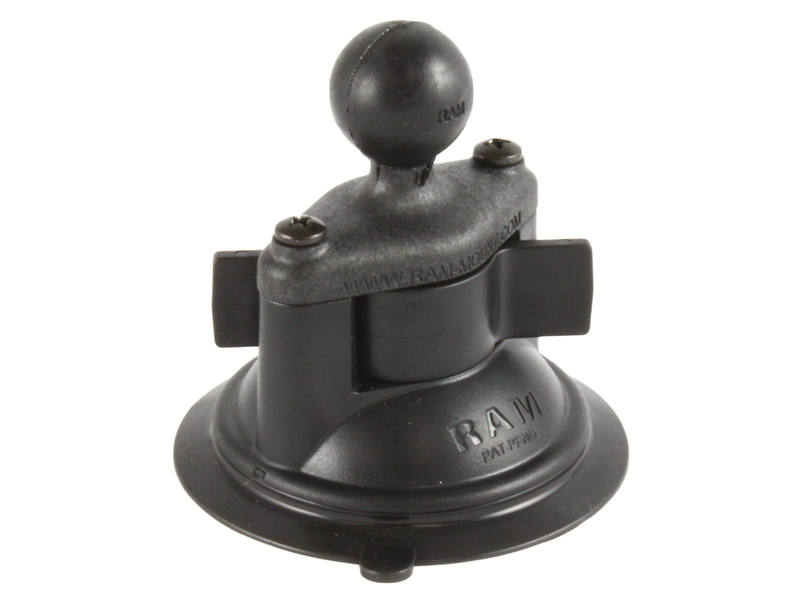

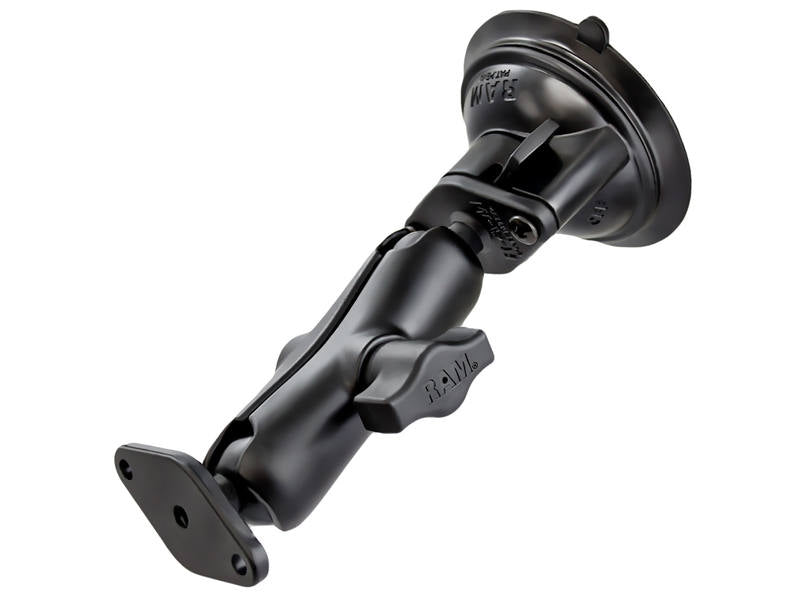

• RAP-B-224-1U composite Twist-Lock™ suction cup base, 84mm (3.3") diameter

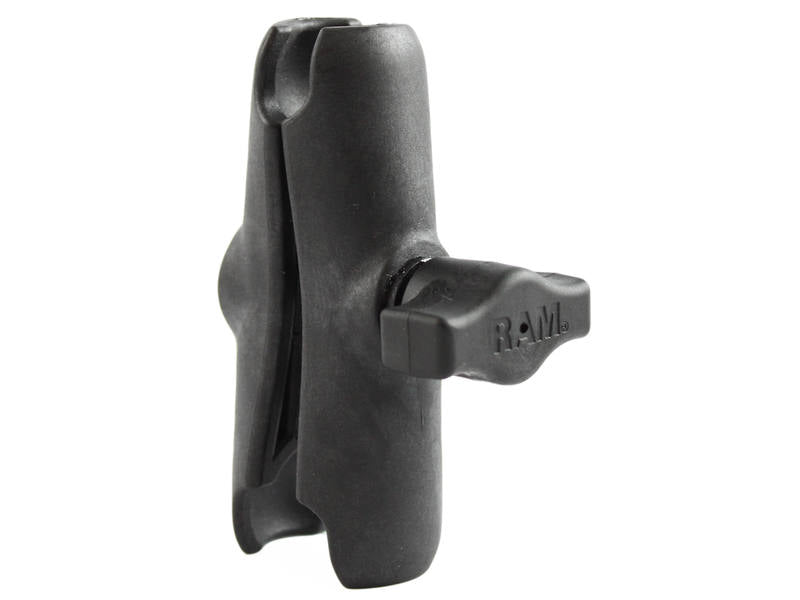

• RAP-B-201U composite double socket arm, medium length (B size)

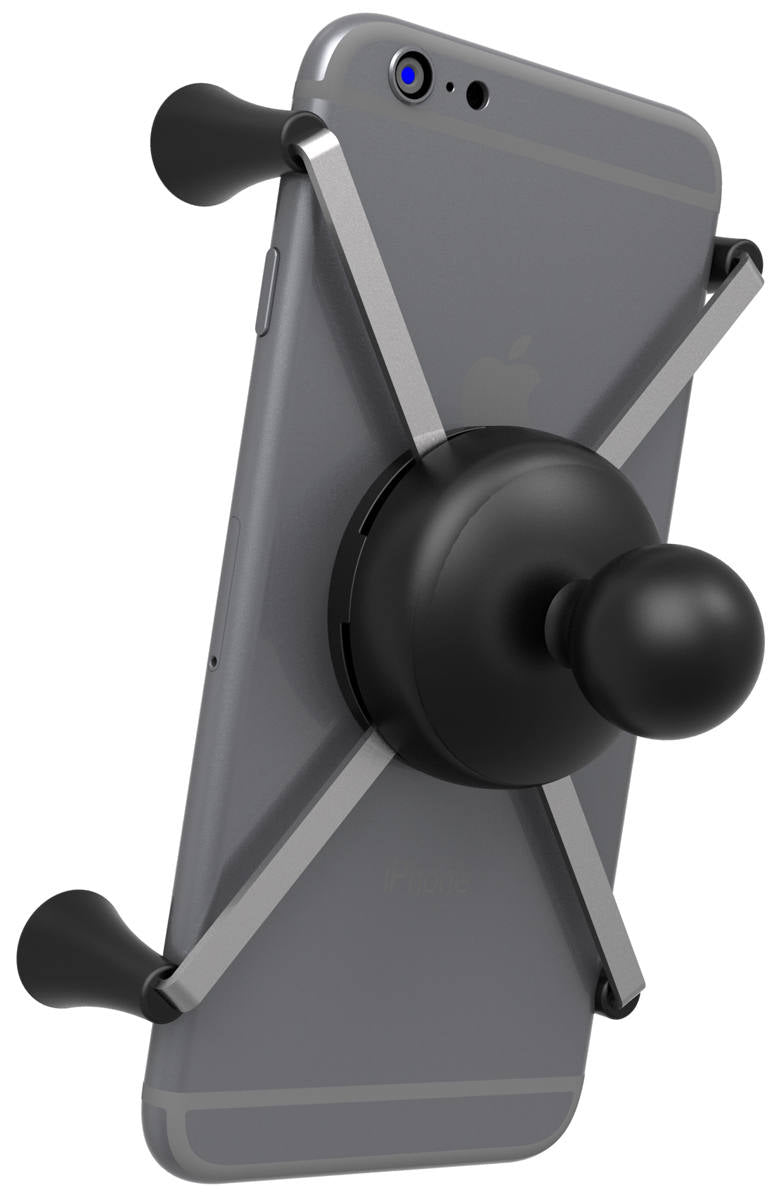

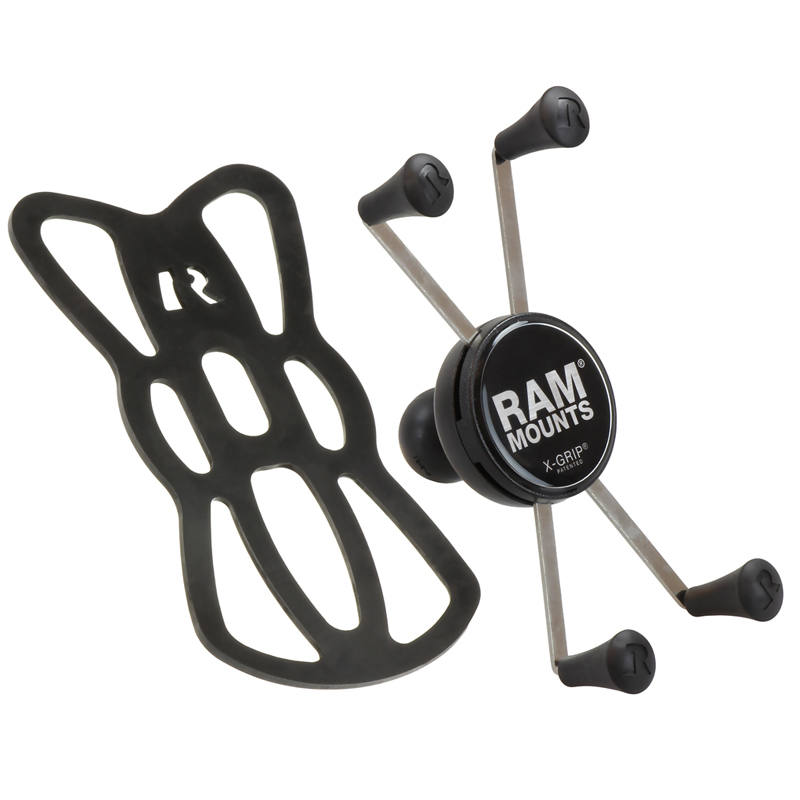

• RAM-HOL-UN10BU X-Grip® large phone cradle with device tether

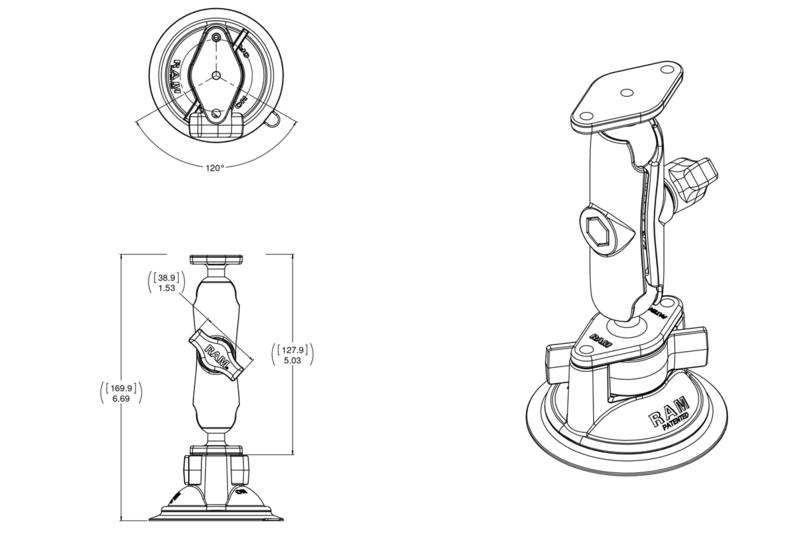

Dimensions & Specifications

• Suction cup base diameter: 83.8mm (3.3")
• Arm overall length: 94mm (3.69")
• Cradle min width: 44.45mm (1.75"), at min width, min device height 139.7mm (5.5")
• Cradle max width: 114.3mm (4.5"), at max width, min device height 82.55mm (3.25")
• Cradle max thickness: 22.2mm (0.875")
• Ball size: B size, 1" rubber ball
• Materials: high-strength composite, stainless steel

Compatible Devices

Fits large phones within the cradle dimensions above, with or without a case. For the full list of compatible models, see our RAM-HOL-UN10BU cradle listing.

Videos

• RAM X-Grip overview
• RAM X-Grip installation demo
• Suction cup base demo

FAQs

Is this a complete mount? Yes. The composite suction base, medium arm and X-Grip large phone cradle are all included; there's nothing else to buy to get your phone onto the glass.

What surfaces will the cup stick to? Glass and other smooth, non-porous surfaces. Textured dashboards, matte plastic and any surface with a grain won't hold; clean both the cup and the surface before mounting. A RAM® adhesive disk gives the cup a smooth face to grip on an otherwise unsuitable surface.

Composite or aluminium, which should I get? This kit is all composite, which makes it lighter and a little kinder on the wallet. The aluminium RAM-B-166-UN10U uses the same cradle and cup diameter but a powder-coated marine-grade aluminium arm and base, which is the better pick for permanent installs, marine use, or anywhere it will sit in the sun year-round.

Will my phone fit with a case on? Measure the width of your phone with the case fitted. This cradle opens from 44.45mm to 114.3mm wide and takes devices up to 22.2mm thick, which covers large phones in most cases, including chunkier rugged ones.

Is the tether included? Yes. We'd recommend fitting it for off-road, marine and any other high-vibration use; it's cheap insurance if the phone is ever knocked loose.

Should I get the UN10 or the UN7 version? The UN10 cradle here is the larger of the two and suits big-screen phones. If your phone is a standard size, the UN7 version of this same kit grips it more securely; a smaller phone in the UN10 cradle sits looser than it should.
