RAM X-Grip Universal Large Phone Cradle with Suction Cup Mount & Short Arm

RAM-B-166-A-UN10U RAM® X-Grip® Large Phone Mount with Twist-Lock™ Suction Cup Base, Short Arm

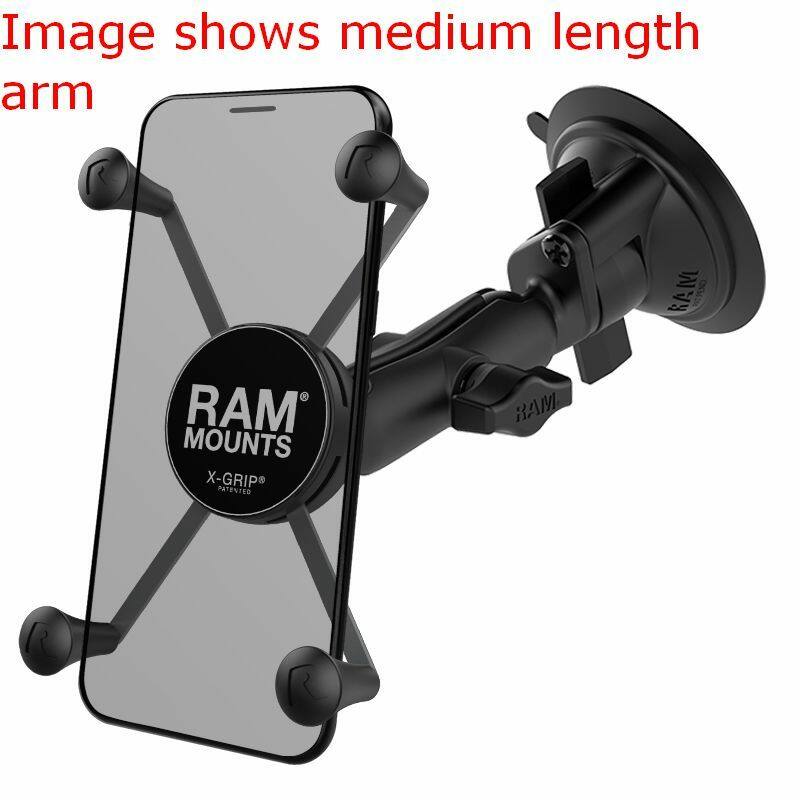

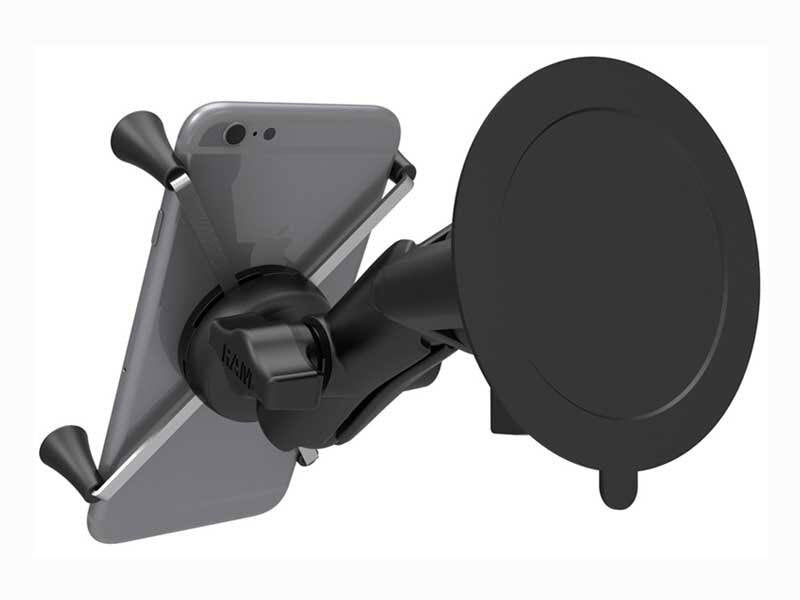

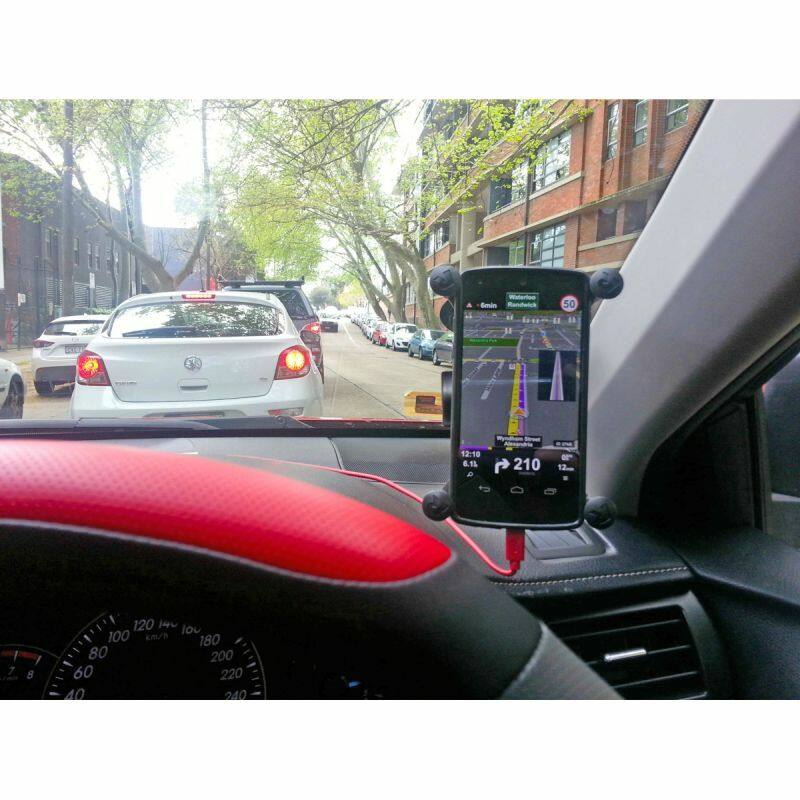

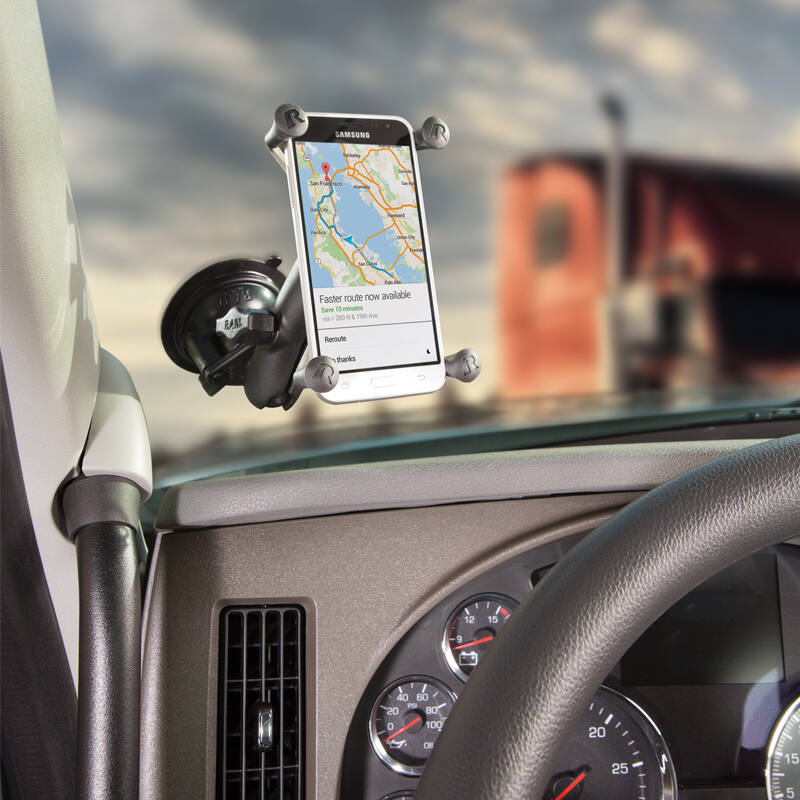

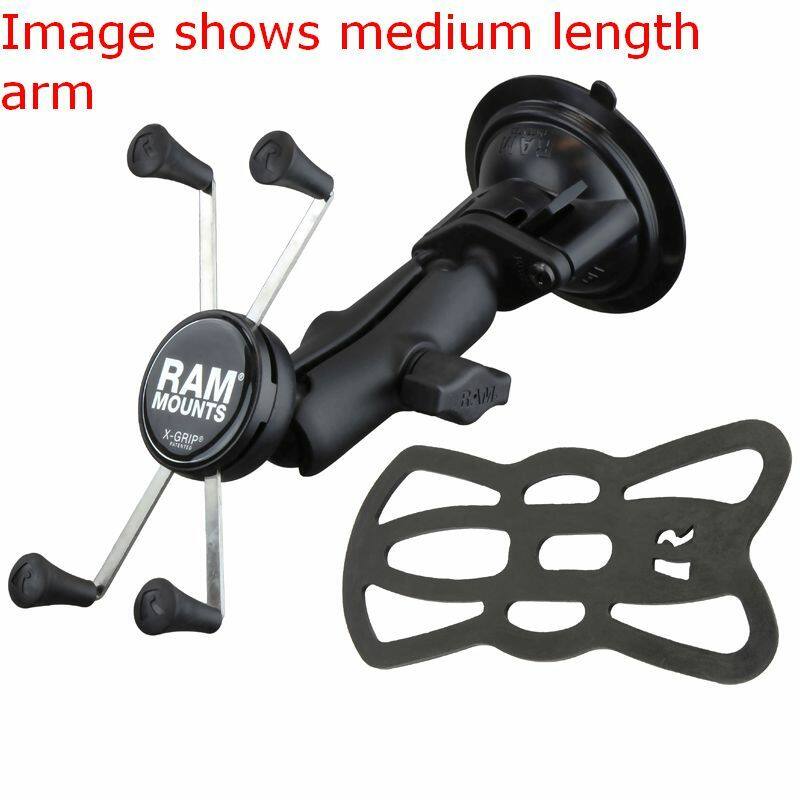

The RAM-B-166-A-UN10U mounts a large phone to a windscreen or other smooth surface. It pairs the spring-loaded RAM® X-Grip® cradle with a Twist-Lock™ suction cup base and a short double socket arm, holding the device tight in against the glass.

Key Features

• Spring-loaded four-leg X-Grip® cradle with rubber caps holds large phones firmly without hiding the screen behind foam or plastic
• Optional device tether included for extra peace of mind in rugged use
• 83.8mm (3.3") Twist-Lock™ suction cup base for windscreens and other non-porous surfaces, including RAM® adhesive disks
• Short B size double socket arm keeps the phone close to the glass — the tidiest option where dash clearance is tight
• Powder-coated marine-grade aluminium, stainless steel and high-strength composite construction
• Lifetime warranty

What's Included

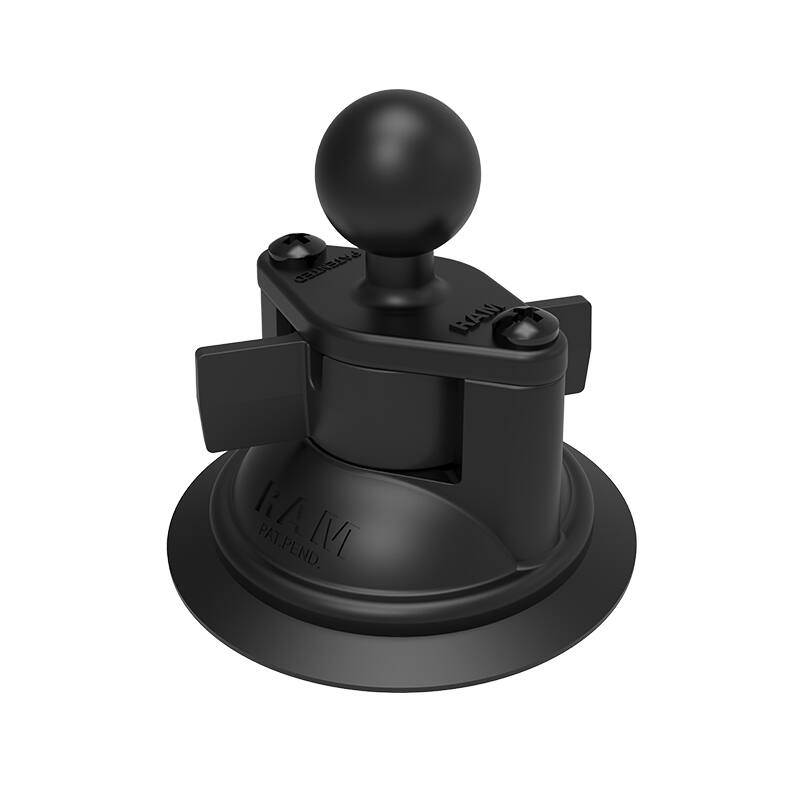

• RAM-B-224-1U Twist-Lock™ suction cup base, 83.8mm (3.3") diameter
• RAM-B-201U-A B size double socket arm, short length

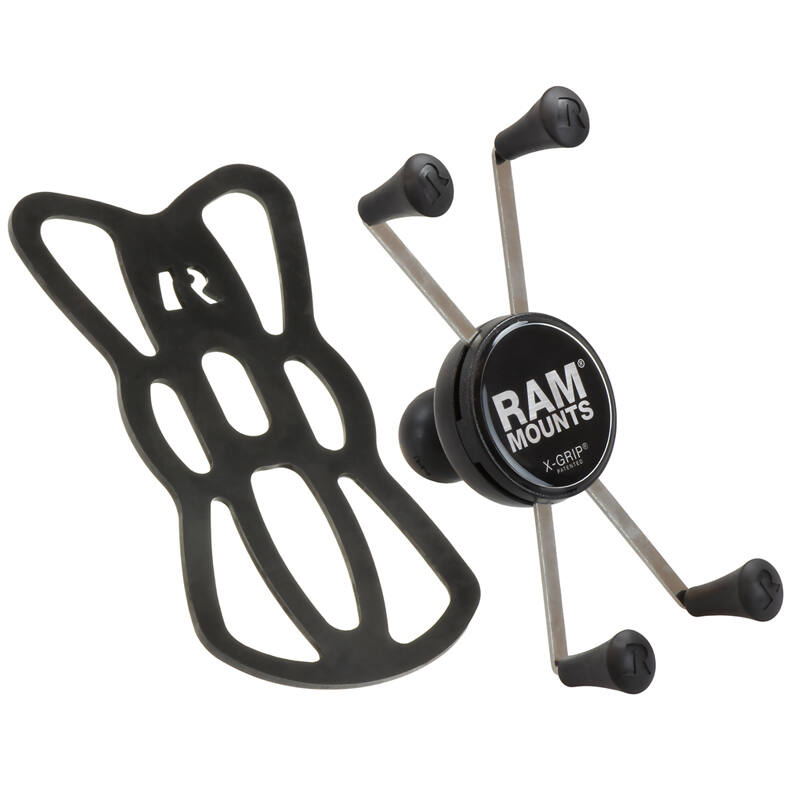

• RAM-HOL-UN10BU X-Grip® large phone cradle with device tether

Works With

The four-leg X-Grip® design grips large phones firmly without foam pads or plastic covering the screen. For best results, mount the suction cup base on glass or another non-porous plastic surface. Check your device (with case or sleeve if used) against the cradle dimensions below before ordering.

Dimensions & Specifications

• Cradle min width: 44.45mm (1.75") — pairs with min height 139.7mm (5.5")
• Cradle max width: 114.3mm (4.5") — pairs with min height 82.55mm (3.25")
• Cradle max thickness: 22.2mm (0.875")
• Suction cup diameter: 83.8mm (3.3")
• Arm overall length: 60.5mm (2.38"); socket-to-socket 51mm (2")
• Ball size: B size, 1" rubber ball
• Materials: powder-coated marine-grade aluminium, stainless steel, high-strength composite

Compatible Devices

Fits large phones within the cradle dimensions above, with or without a case. For the full list of compatible models, see our RAM-HOL-UN10BU cradle listing.

Videos

• RAM X-Grip overview
• RAM X-Grip installation demo
• RAM short double socket arm overview

FAQs

Is this a complete mount? Yes. The suction base, short arm and X-Grip large phone cradle are all included — there's nothing else to buy to get your phone onto the glass.

What surfaces will the cup stick to? Glass and other smooth, non-porous surfaces. Textured dashboards, matte plastic and any surface with a grain won't hold — clean both the cup and the surface before mounting. A RAM® adhesive disk gives the cup a smooth face to grip on an otherwise unsuitable surface.

Short, medium or long arm? The short arm here holds the phone tight in against the windscreen, which suits small cabins and anywhere the mount would otherwise foul the dash or a vent. The medium arm (RAM-B-166-UN10U) is the general-purpose choice, and the long arm (RAM-B-166-C-UN10U) reaches back across a deep dashboard in a ute or van.

Will my phone fit with a case on? Measure the width of your phone with the case fitted. This cradle opens from 44.45mm to 114.3mm wide and takes devices up to 22.2mm thick, which covers large phones in most cases, including chunkier rugged ones.

Is the tether included? Yes. We'd recommend fitting it for off-road, marine and any other high-vibration use — it's cheap insurance if the phone is ever knocked loose.

Should I get the UN10 or the UN7 version? The UN10 cradle here is the larger of the two and suits big-screen phones. If your phone is a standard size, the UN7 version of this same kit grips it more securely — a smaller phone in the UN10 cradle sits looser than it should.
