RAM-B-408-37-62-UN10 RAM® X-Grip® Large Phone Mount with RAM® Torque™ Small Rail Base
Features
* Spring-loaded 'X' design for large phones and phablets with rubber caps sports great holding power without hiding your phone
* Includes optional device tether for peace of mind during rugged use
* Small torque base with B series ball accommodates rails 9.5 - 15.5mm in diameter.
* RAM® Mounts double socket arm with ball and socket technology allows for near-infinite adjustability
* Made of Powder Coated Marine Grade Aluminium, stainless steel components, and high-strength composite for durability and reliability in the most demanding environments
* Backed by a lifetime warranty

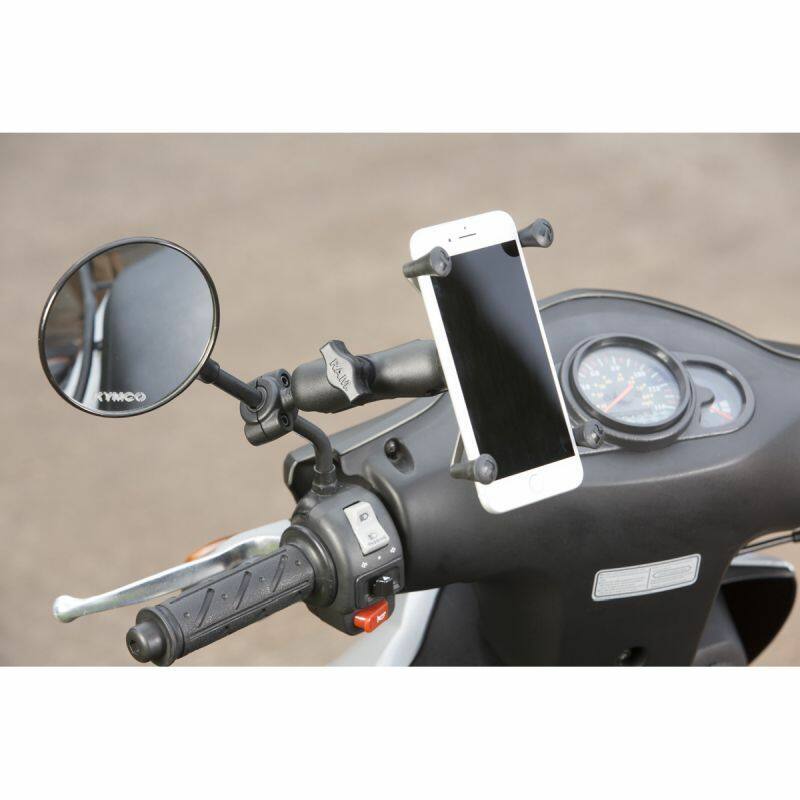

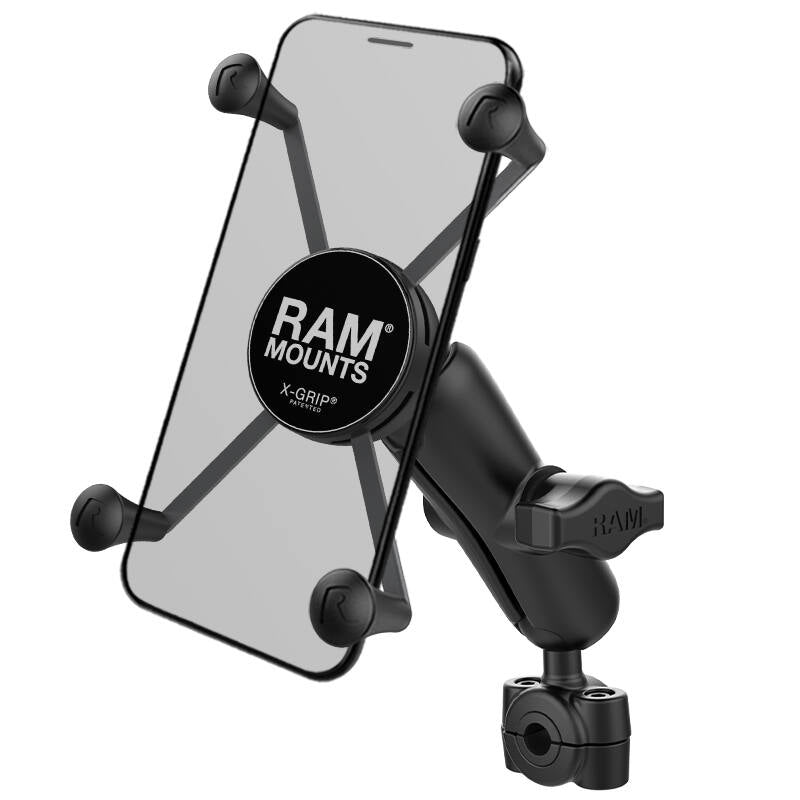

Take your mobile entertainment on the road with the new RAM® Torque™ handlebar and rail mounting base. We’ve paired a small Torque rail base with a MEDIUM length arm and the dynamic RAM® X-Grip® for larger phones and phablets.

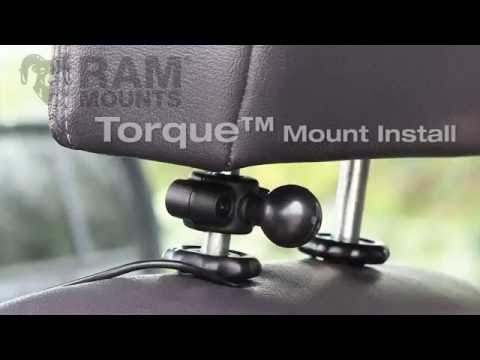

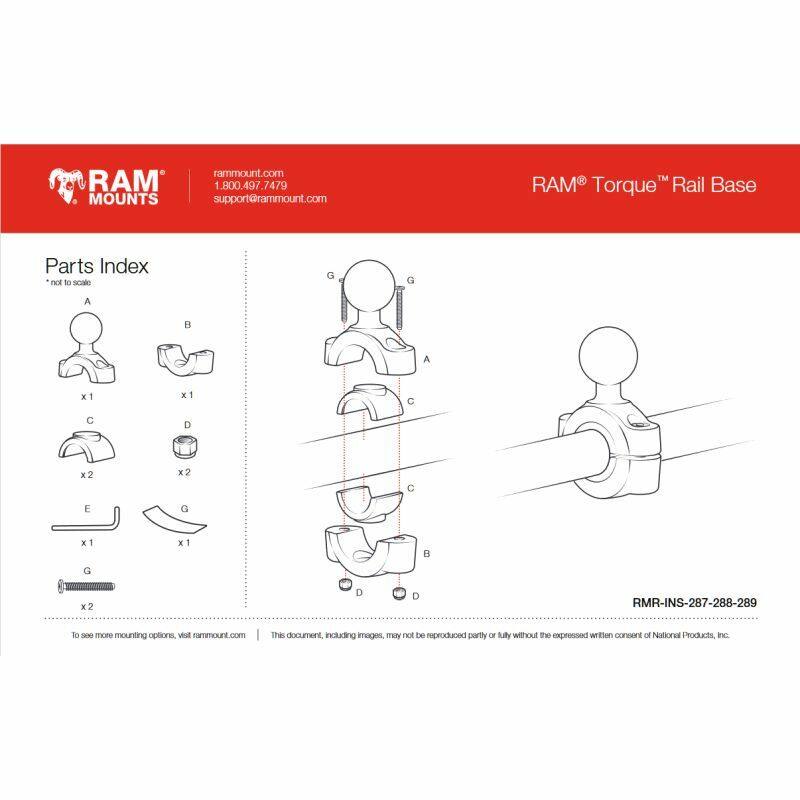

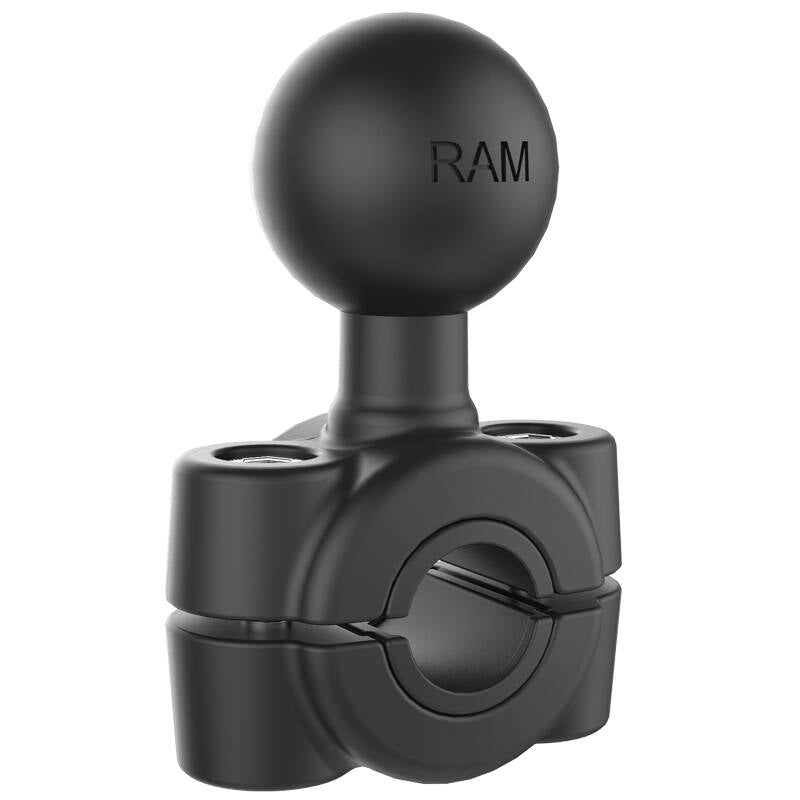

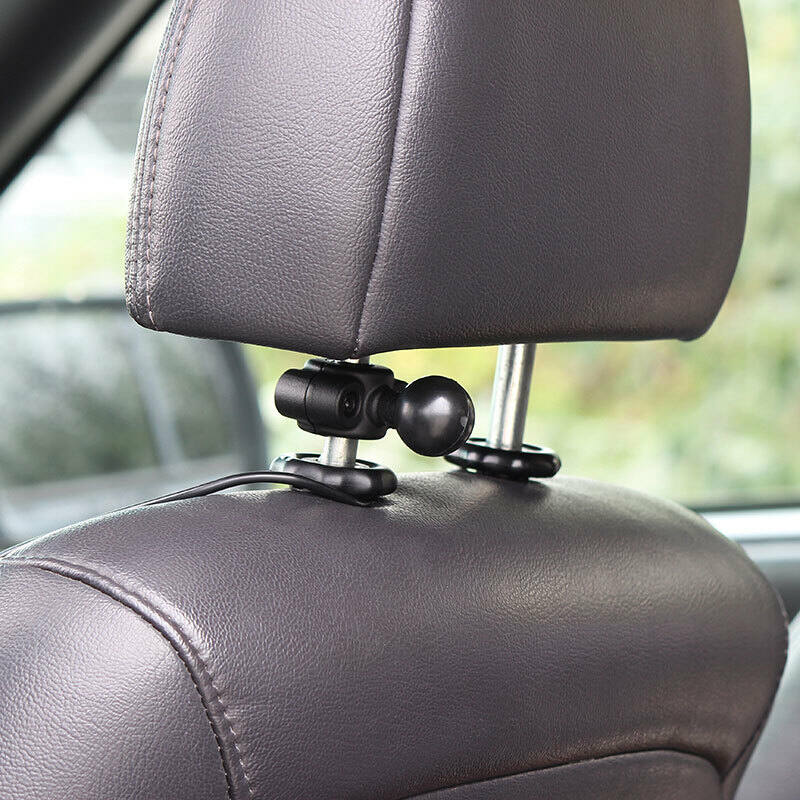

The small RAM® Torque™ bar mount has a 1” rubber ball and accommodates rails from 9.5 to 15.5mm (3/8” to ⅝”) in diameter. In practice this means items such as car headrest posts and is perfect for rear seat iPad mounts. Sizing inserts are included to provide a snug fit and protection of the rail. The mount utilizes nylon-insert lock nuts to prevent loosening in high vibration environments.

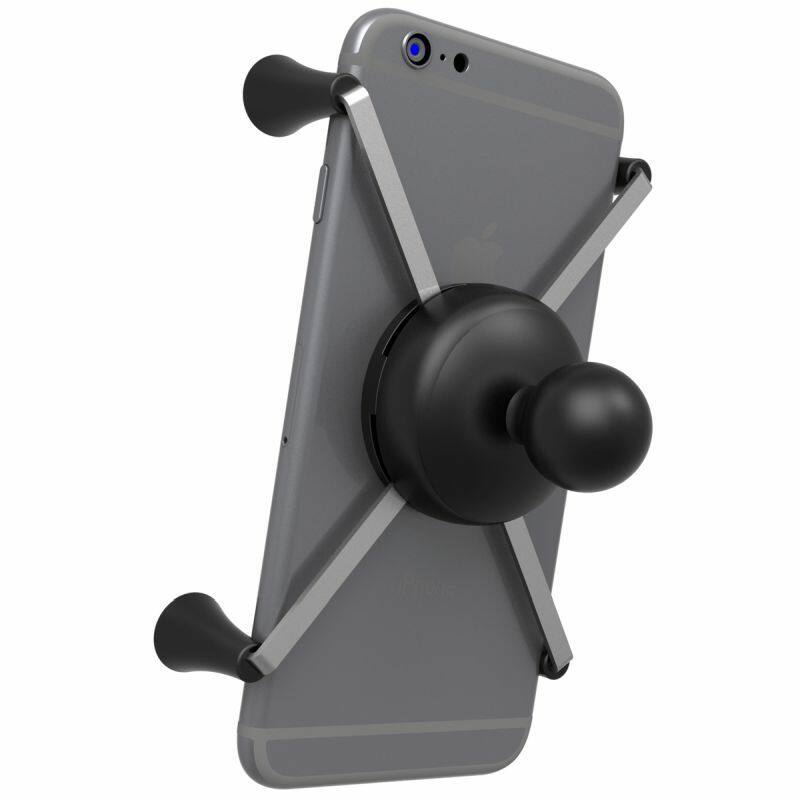

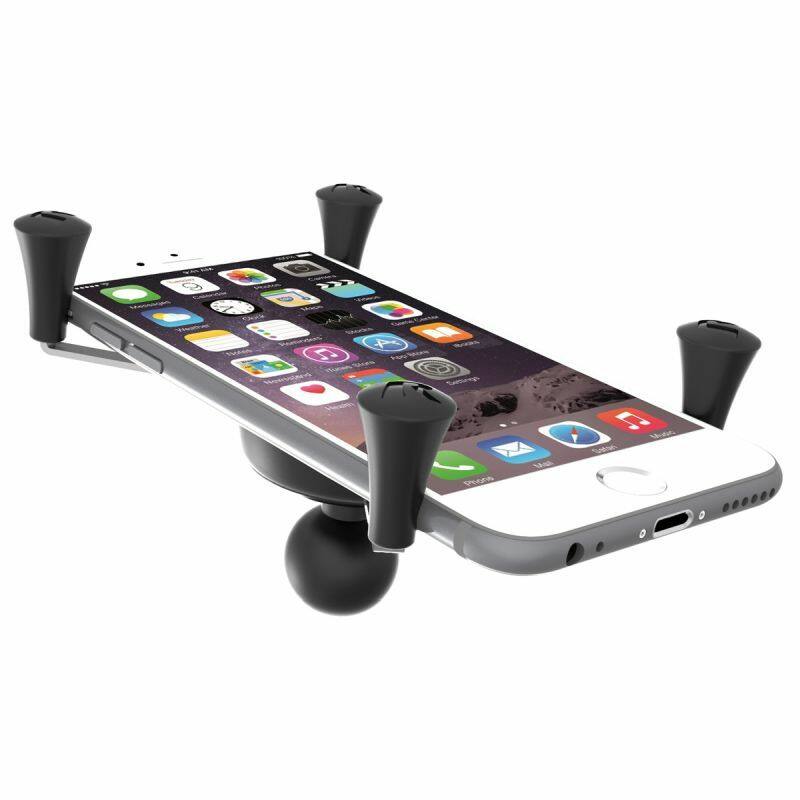

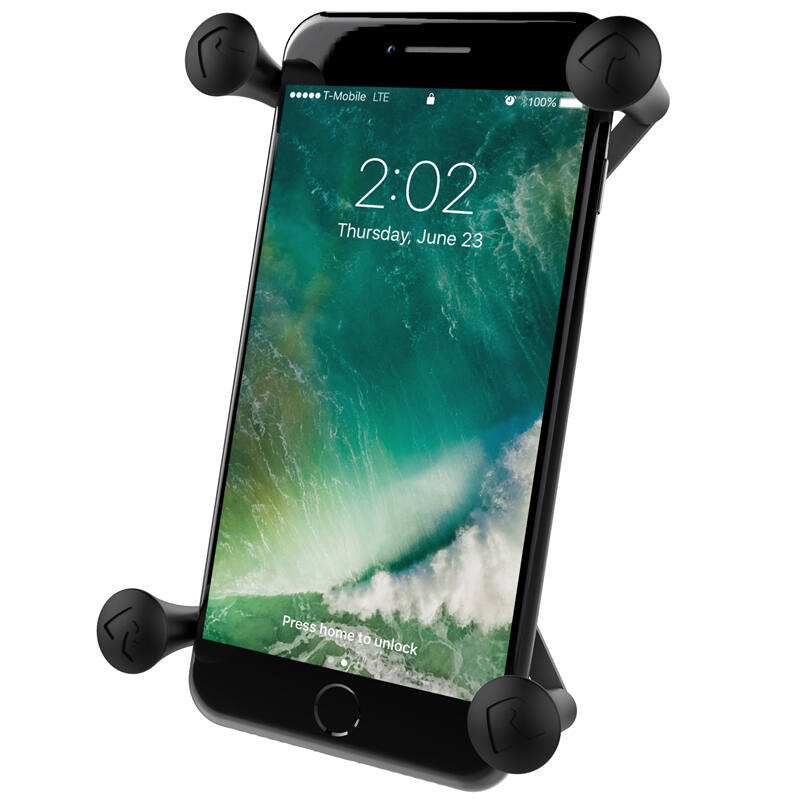

The included -UN10 X-Grip cradle has a clean and clever four leg design that sports great holding power without hiding your phone behind foam pads and plastic. The spring loaded X-Grip holder expands and contracts, allowing for a perfect custom fit of your cell phone, the RAM X-Grip is the cell phone holder evolved.

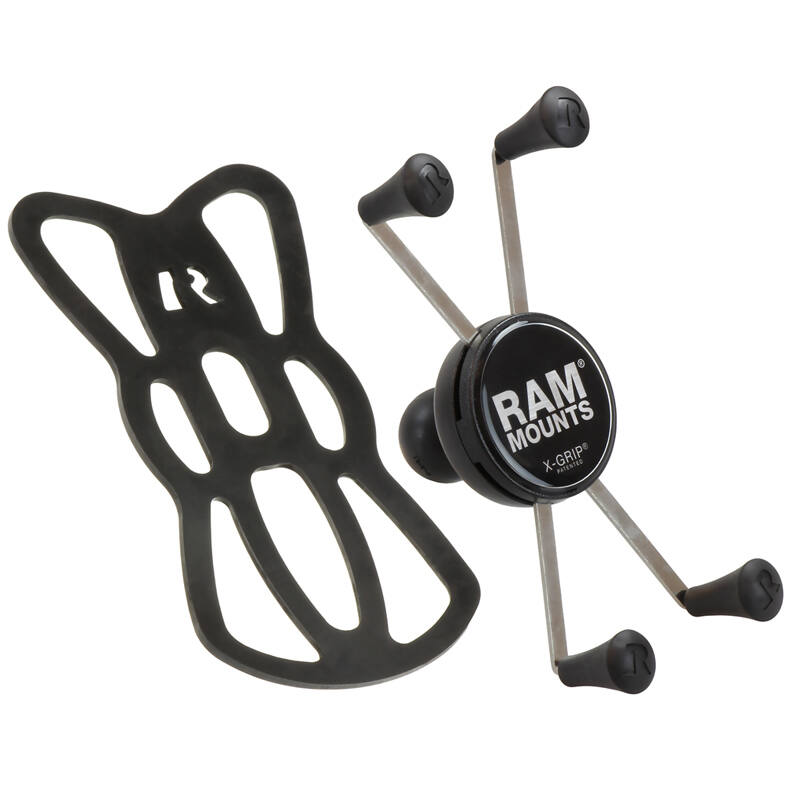

The X-Grip includes a device tether recommended for outdoor applications.
The cradle is compatible with hand-held devices that will fit the dimensions listed below. It is important to verify the dimensions of your hand-held device with a case/sleeve/skin when determining the overall size
Cradle Dimensions
Minimum Width = 44.45mm (1.75”) – (if it is minimum width then the minimum height = 139.7mm / 5.5")
Maximum Width = 114.3mm (4.5") – (if it is maximum width then the minimum height = 82.55mm / 3.25")
Maximum Thickness = 22.2mm (0.875")
Compatible Devices
For a list of many of the compatible devices for this cradle go to our listing for the RAM-HOL-UN10BU
Specs & Features
Rail Mount Dimensions:
Accommodates rails 9.5 - 15.5mm (0.375" to 0.625") in diameter.
Arm Dimensions:
Overall Length:
94mm (3.69")
Socket-To-Socket Length:
76mm (3")
Material:
Powder Coated Marine Grade Aluminium
Marine Grade Stainless Steel Components
High Strength Composite
Ball Size:
1" Rubber Ball "B" Size
Weight:
267 grams (0.59 lbs.)
Components:
RAM-B-408-37-62U Small Torque Base
RAM-HOL-UN10BU X-GRIP IV UNIVERSAL CRADLE
RAM-B-201U DOUBLE SOCKET ARM
YouTube:
https://youtu.be/5ce2Qhx6YIE
https://www.youtube.com/watch?v=gSplxuUrtmQ
https://www.youtube.com/watch?v=S8ky_uKTw98
