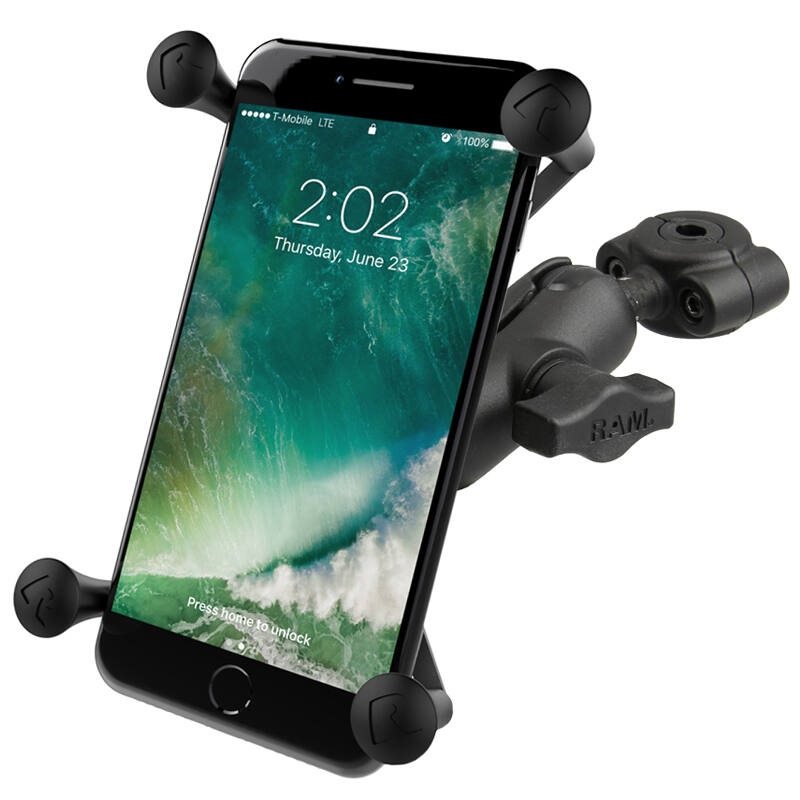

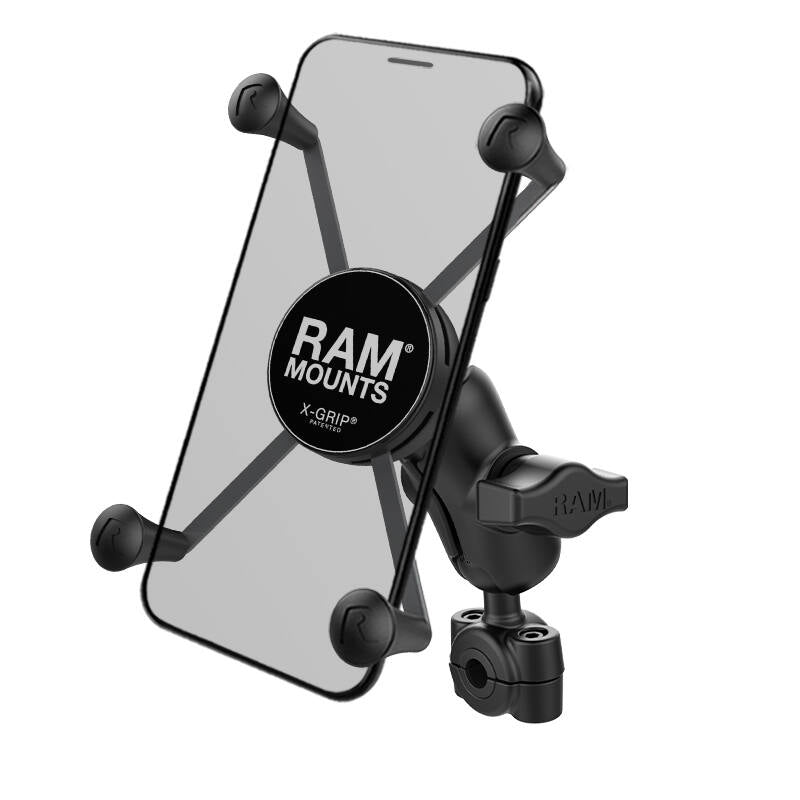

RAM-B-408-37-62-A-UN10 RAM® X-Grip® Large Phone Mount with RAM® Torque™ Small Rail Base - short arm
Features
* Spring-loaded 'X' design with rubber caps sports great holding power without hiding your phone
* Includes optional device tether for peace of mind during rugged use
* Torque base fits small rails 9.5 - 15.5mm diameter such as headrest rails and mirror posts
* B size short RAM® double socket arm with ball and socket technology allows for near-infinite adjustability
* Made of powder-coated, marine-grade aluminium, stainless steel components, and high-strength composite for durability and reliability in the most demanding environments
* Backed by a lifetime warranty

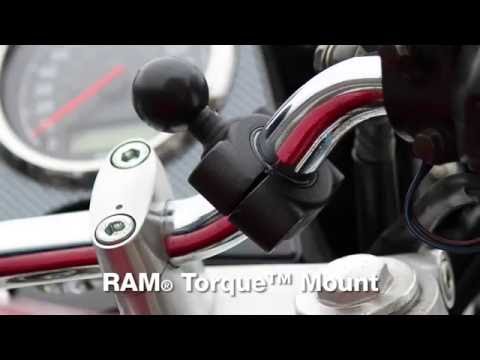

Take your mobile entertainment on the road with the new RAM® Torque™ handlebar and rail mounting base. We’ve paired a small Torque rail base with a SHORT length arm and the dynamic RAM® X-Grip® for larger phones and phablets.

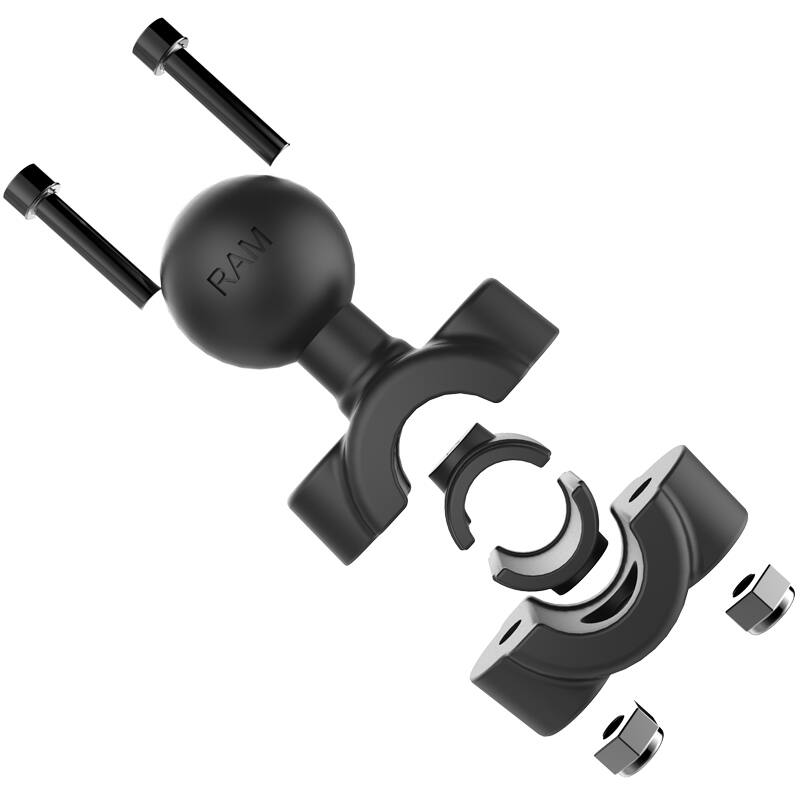

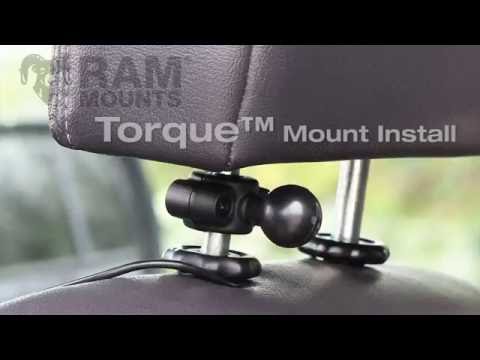

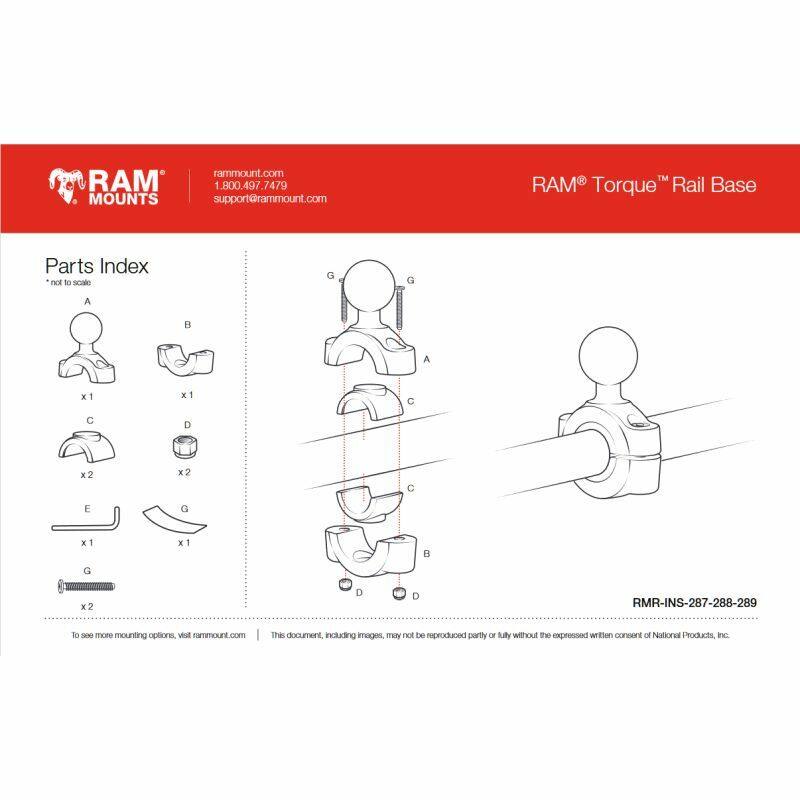

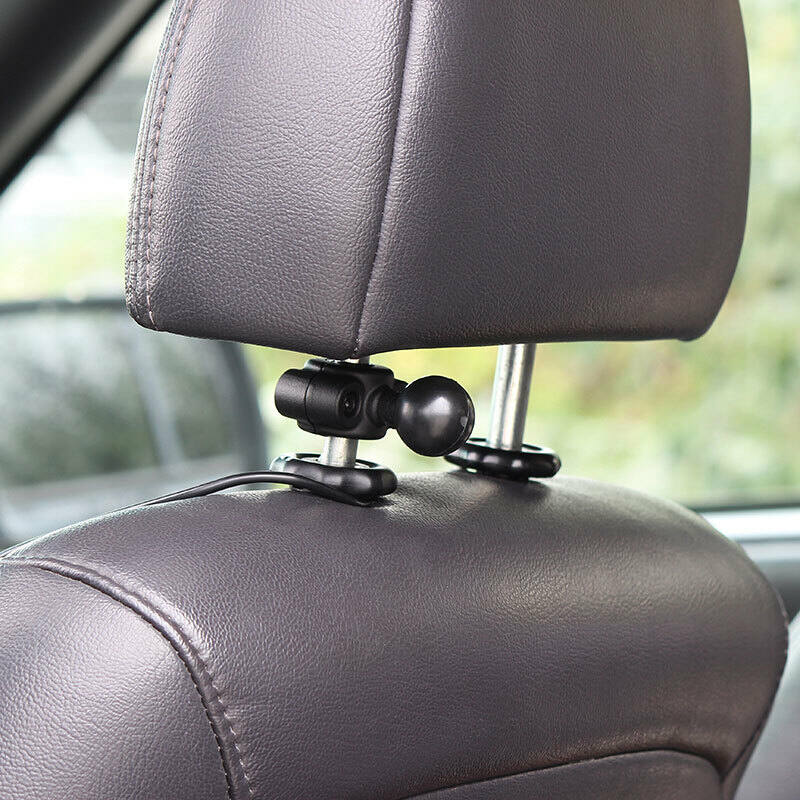

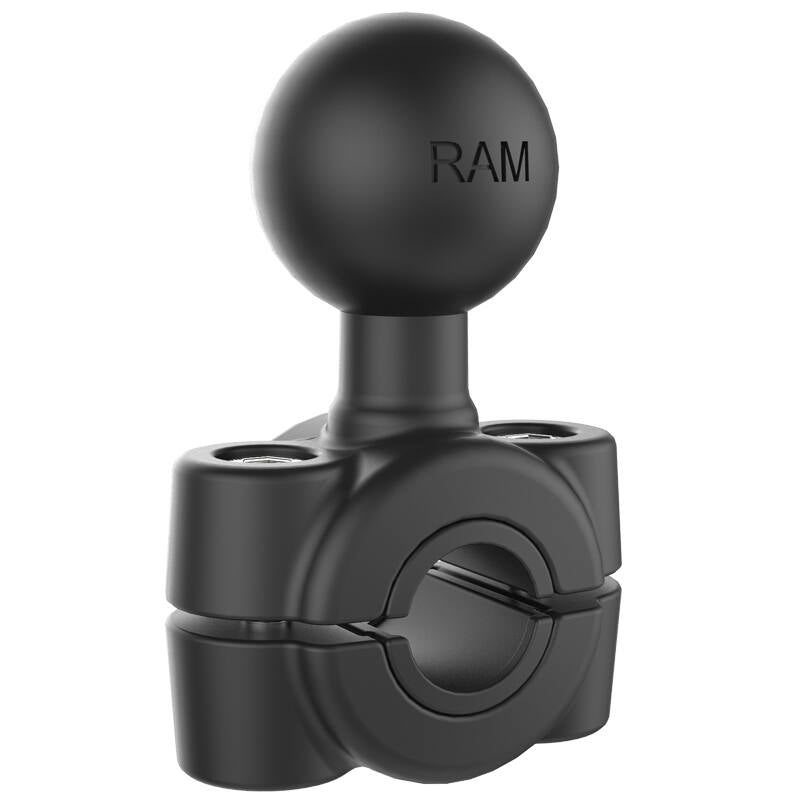

The small RAM® Torque™ bar mount has a 1” rubber ball and accommodates rails from 9.5 to 15.5mm (3/8” to ⅝”) in diameter. In practice this means items such as car headrest posts and is perfect for rear seat iPad mounts. Sizing inserts are included to provide a snug fit and protection of the rail. The mount utilizes nylon-insert lock nuts to prevent loosening in high vibration environments.

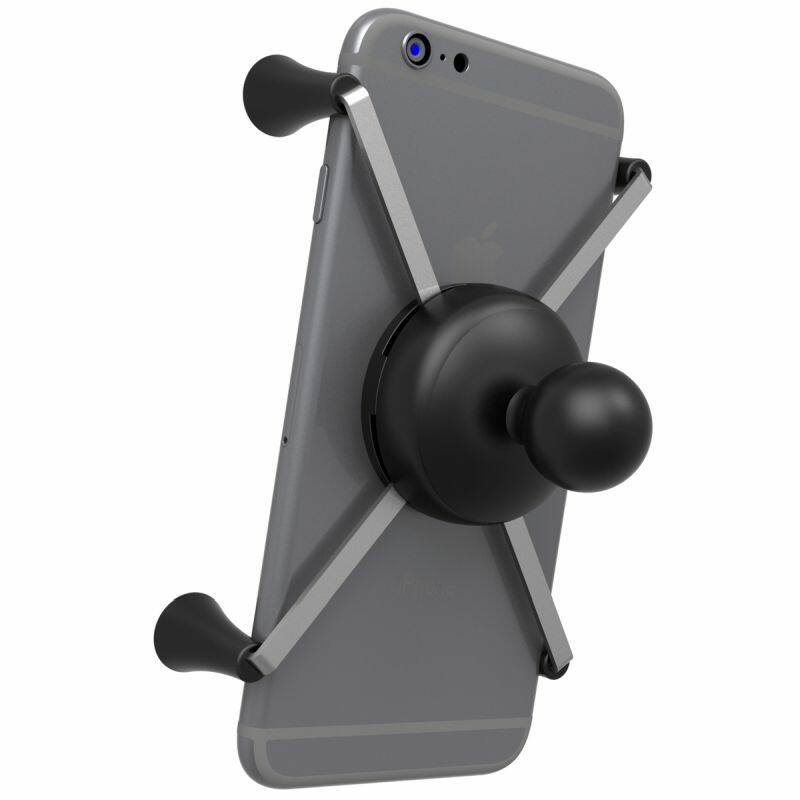

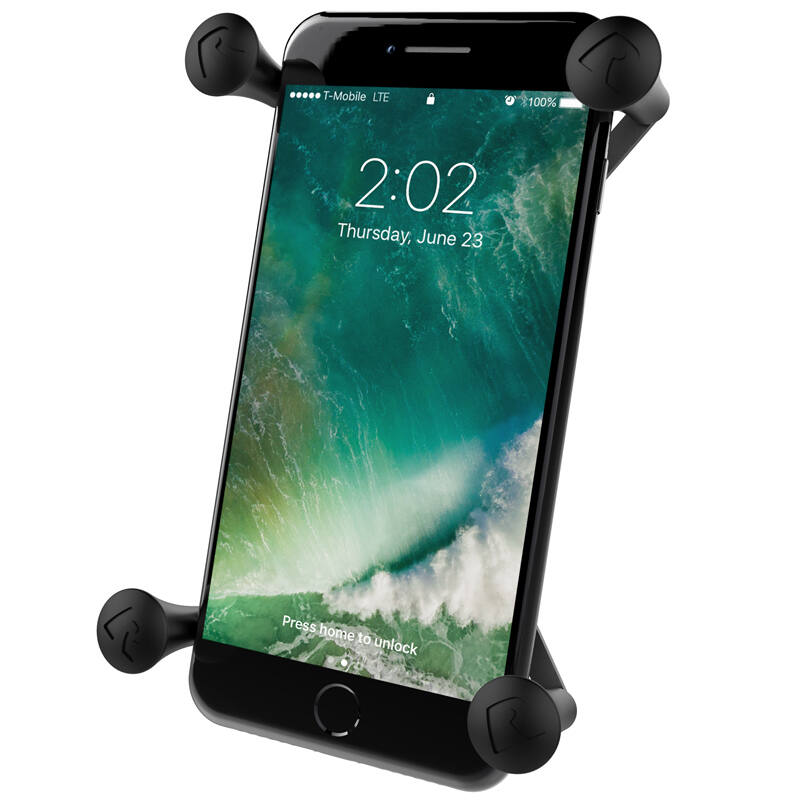

The included -UN10 X-Grip cradle has a clean and clever four leg design that sports great holding power without hiding your phone behind foam pads and plastic. The spring loaded X-Grip holder expands and contracts, allowing for a perfect custom fit of your cell phone, the RAM X-Grip is the cell phone holder evolved.

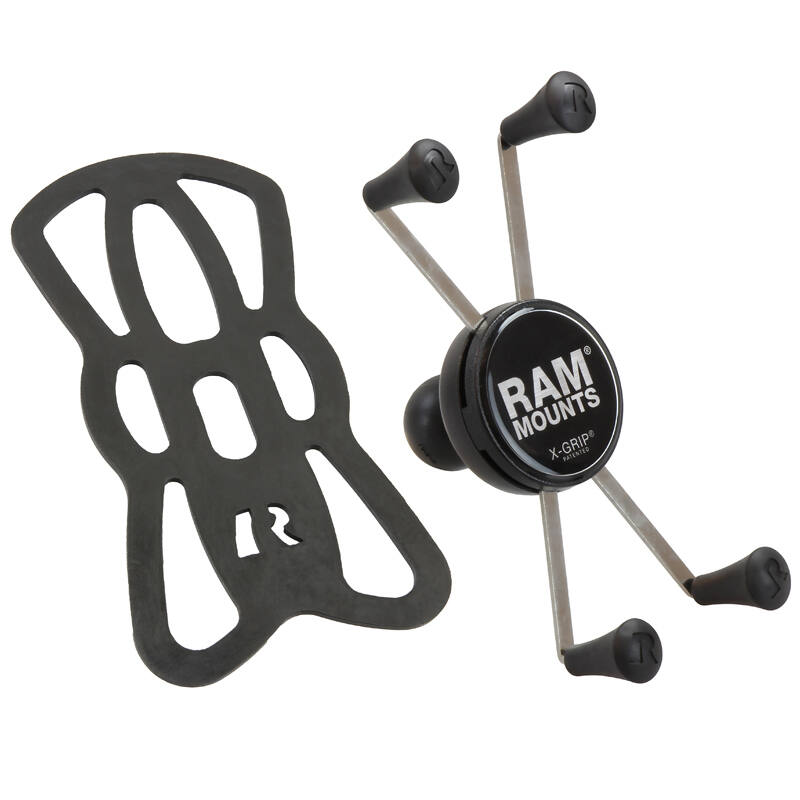

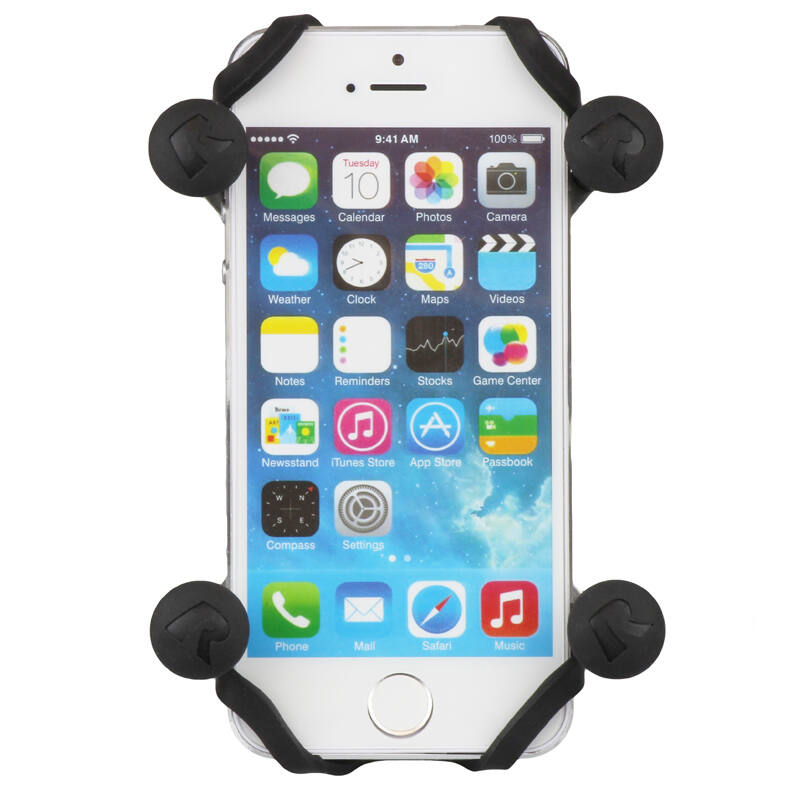

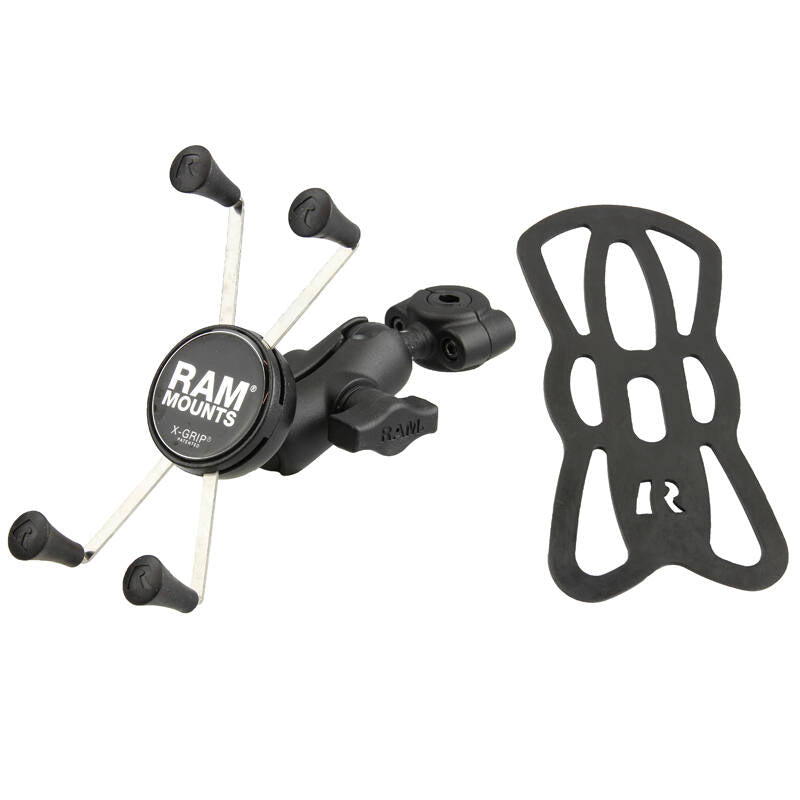

The X-Grip includes a device tether recommended for outdoor applications.
The cradle is compatible with hand-held devices that will fit the dimensions listed below. It is important to verify the dimensions of your hand-held device with a case/sleeve/skin when determining the overall size

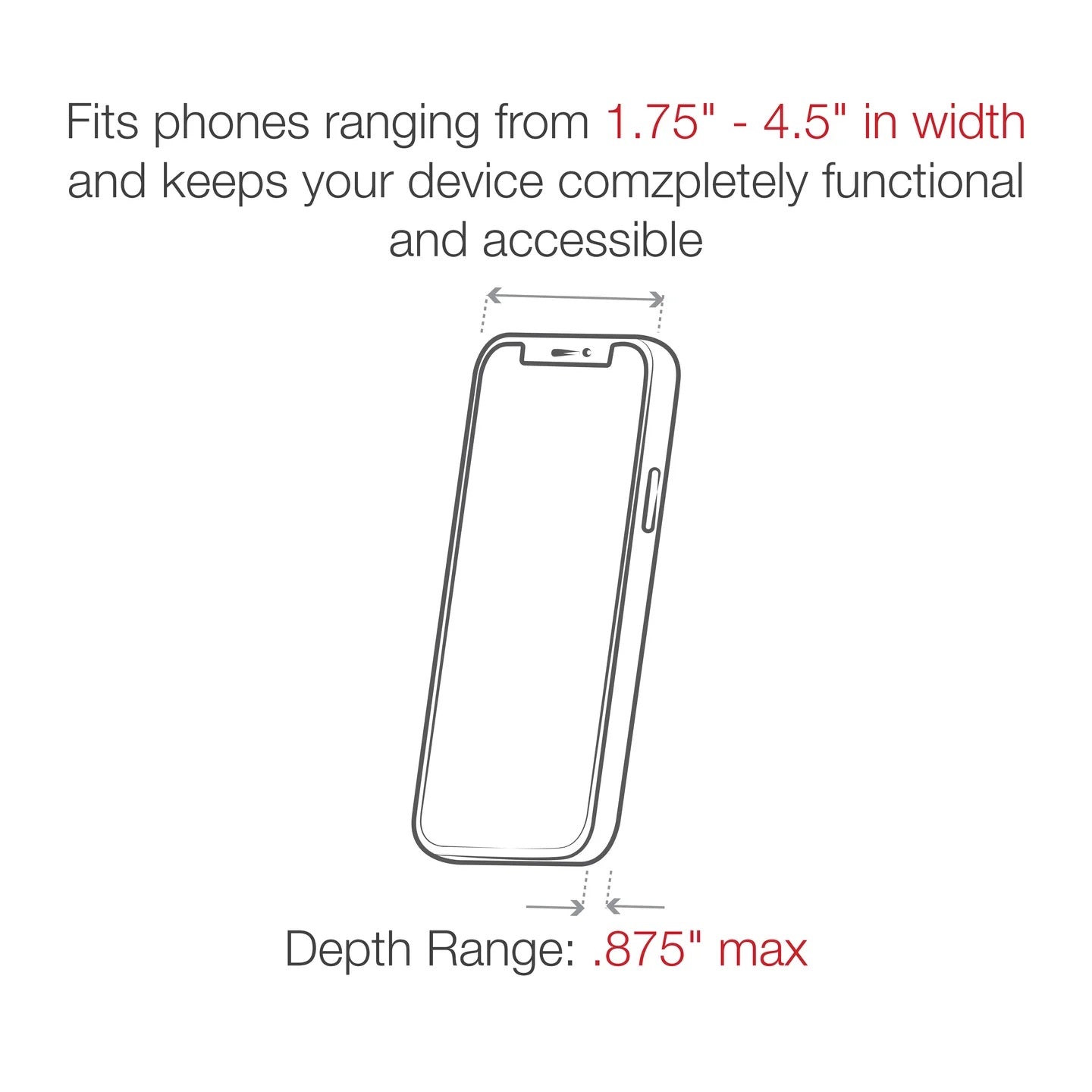

Cradle Dimensions
Minimum Width = 44.45mm / 1.75” – (if it is minimum width then the minimum height = 139.7mm / 5.5")
Maximum Width = 114.3mm / 4.5" – (if it is maximum width then the minimum height = 82.55mm / 3.25")
Maximum Thickness = 22.2mm / 0.875"
Compatible Devices
For a list of many of the compatible devices for this cradle go to our listing for the RAM-HOL-UN10BU
Rail Mount Dimensions:
9.5 - 15.5mm (0.375 to 0.625") diameter
Arm Dimensions:
Overall Length:
60.5mm (2.38")
Socket-To-Socket Length:
51mm (2")
Material:
Powder Coated Marine Grade Aluminium
Marine Grade Stainless Steel Components
High Strength Composite
Ball Size:
1" Rubber Ball "B" Size
Weight:
267 grams (0.59 lbs.)
Components:
RAM-B-408-37-62U UNPK RAM HANDLEBAR MOUNT
RAM-HOL-UN10BU X-GRIP IV UNIVERSAL CRADLE
RAM-B-201U-A SHORT DOUBLE SOCKET ARM
