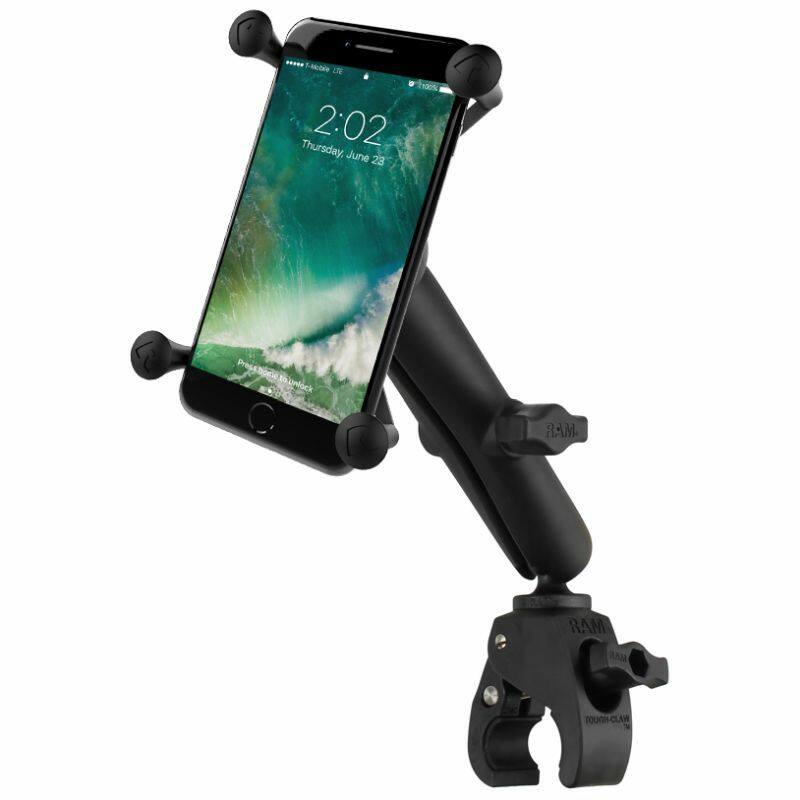

RAM-B-400-C-UN10U RAM® X-Grip® Large Phone Mount with RAM® Tough-Claw™ Small Clamp Base
Features

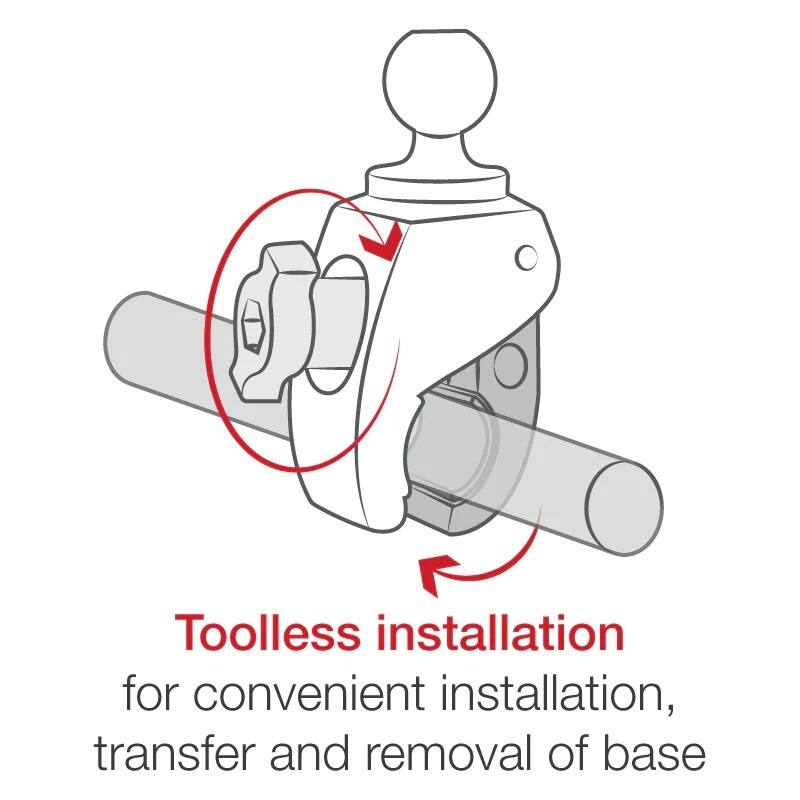

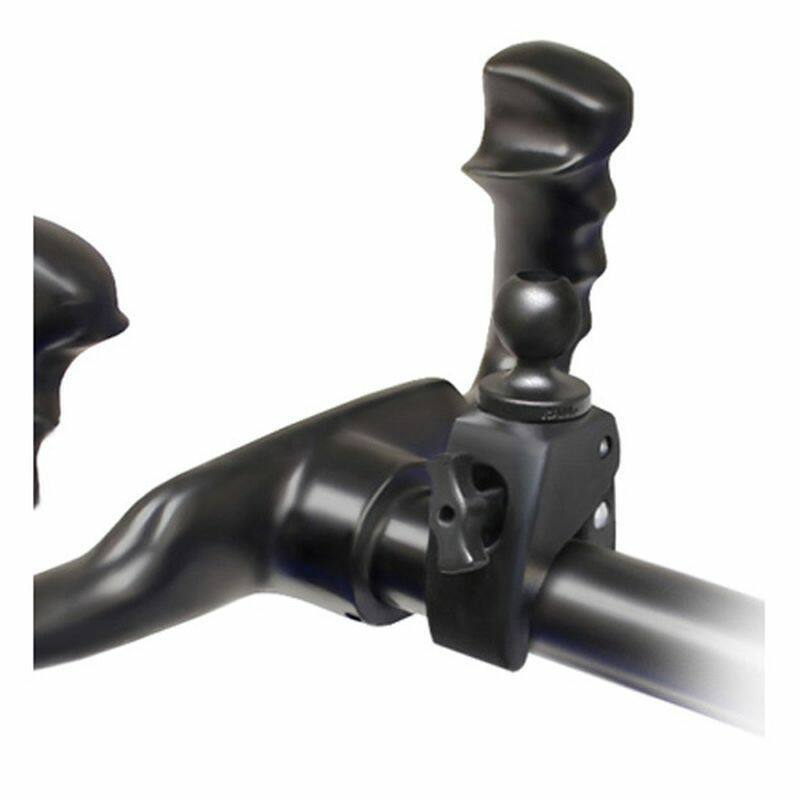

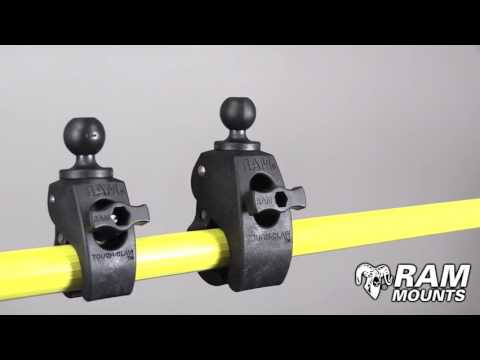

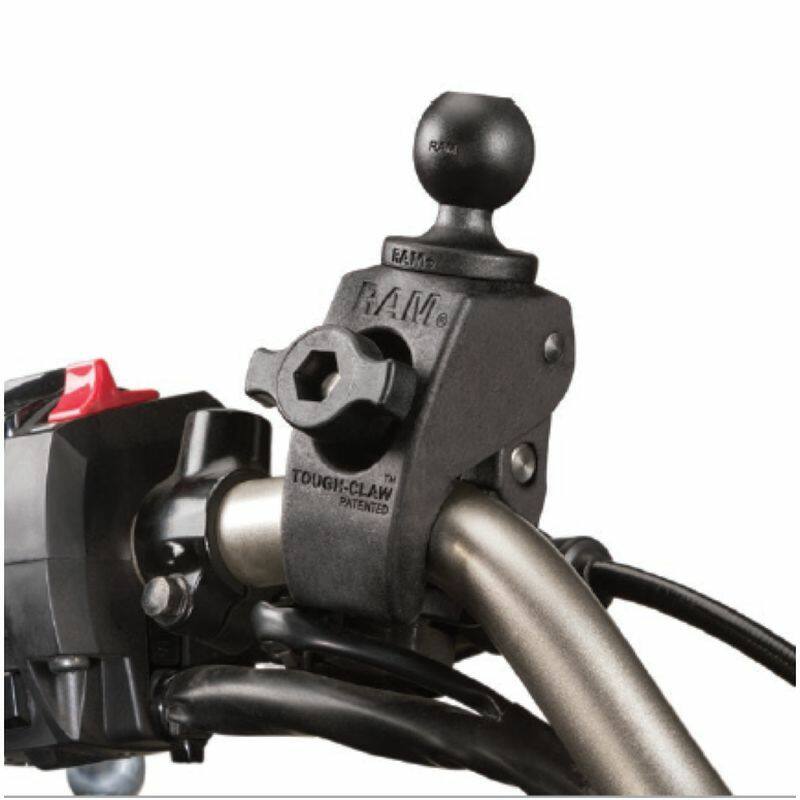

* Small version of the RAM® Tough-Claw™ base is designed to quickly clamp to round, square, and odd-shaped rails and bars ranging from 16-28mm in diameter; rubber pads provide stable gripping and protection of mounting surface

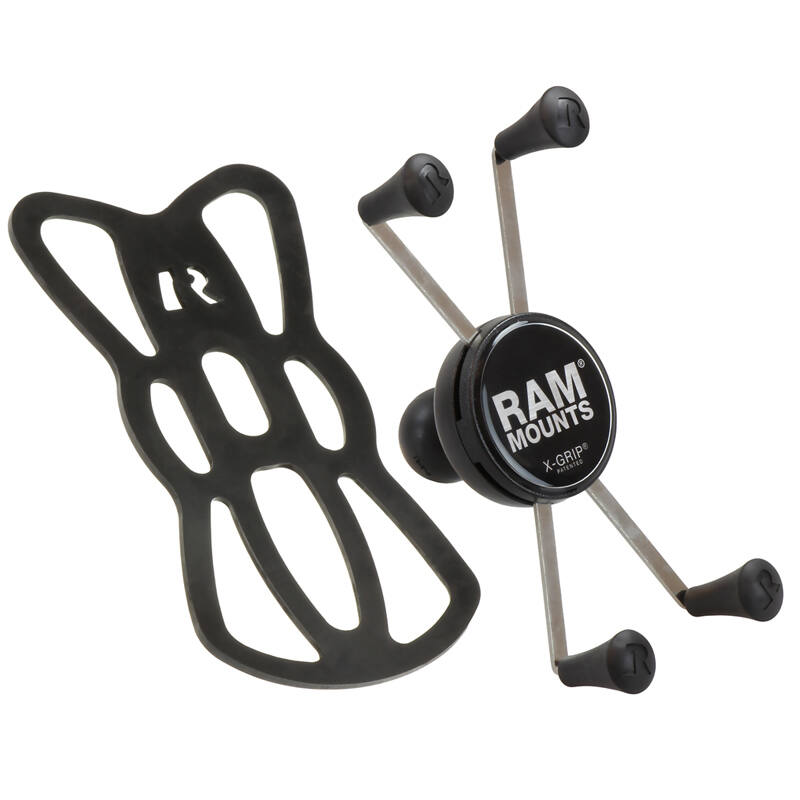

* Spring-loaded 'X' design for large phones with rubber caps sports great holding power without hiding your phone; includes optional device tether for peace of mind during rugged use
* Made of high-strength composite and stainless steel hardware for durability and reliability in the most demanding environments
* Backed by a lifetime warranty

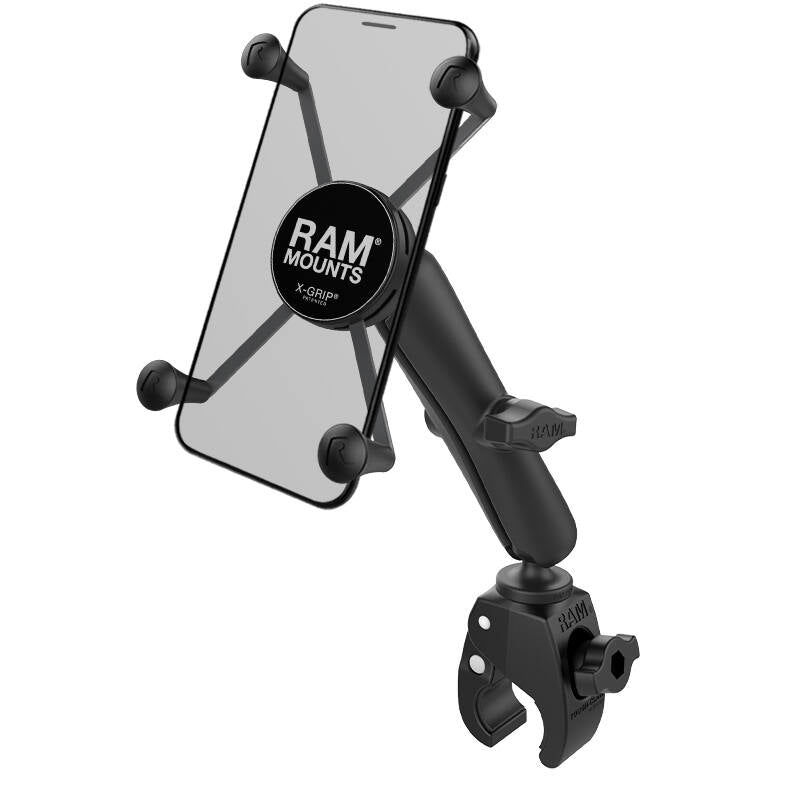

This complete mounting system consists of the Tough-Claw™ rail clamp base, LONG length double socket arm and universal spring loaded RAM® X-Grip® cradle
The -UN10 X-Grip cradle has a clean and clever four leg design that sports great holding power without hiding your phone behind foam pads and plastic. The spring loaded X-Grip holder expands and contracts, allowing for a perfect custom fit of your cell phone, the RAM X-Grip is the cell phone holder evolved. The -UN10 will fit devices within the dimensions listed below. It is important to verify the dimensions of your hand-held device with a case/sleeve/skin when determining the overall size
Cradle Dimensions
Min Width = 44.45mm (1.75”) – (if min width then min height = 139.7mm / 5.5")
Max Width = 114.3mm (4.5") – (if max width then min height = 82.55mm / 3.25")
Max Thickness = 22.2mm (0.875")
Compatible Devices
For a list of many of the compatible devices for this cradle see listing for the RAM-HOL-UN10BU

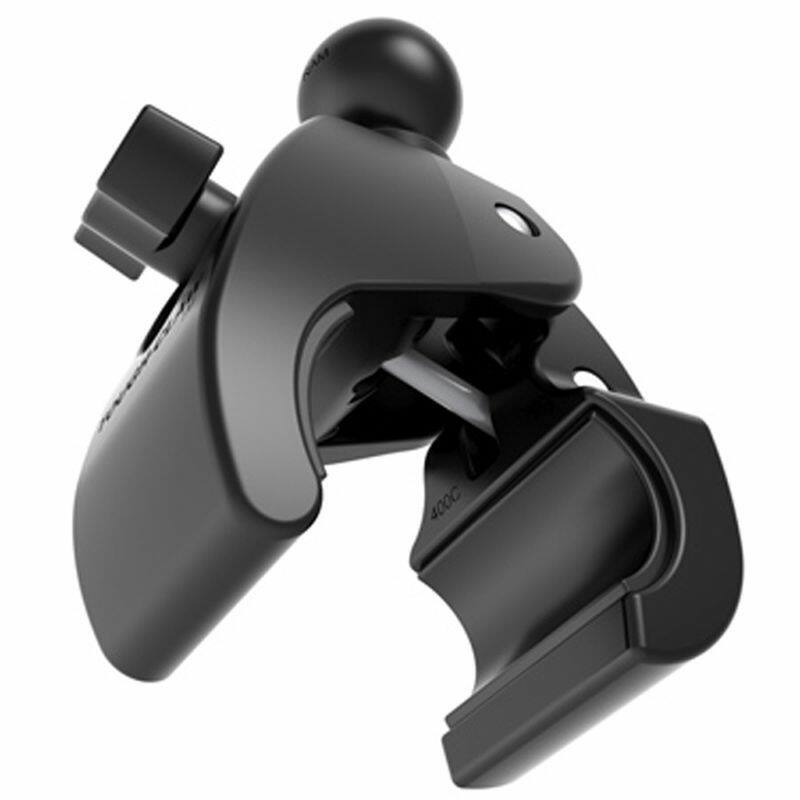

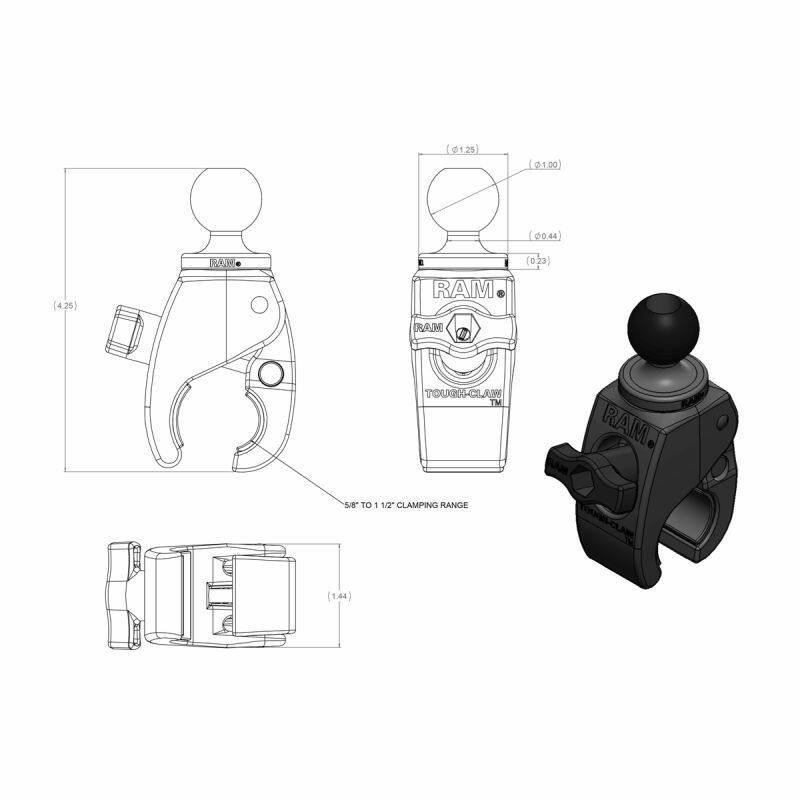

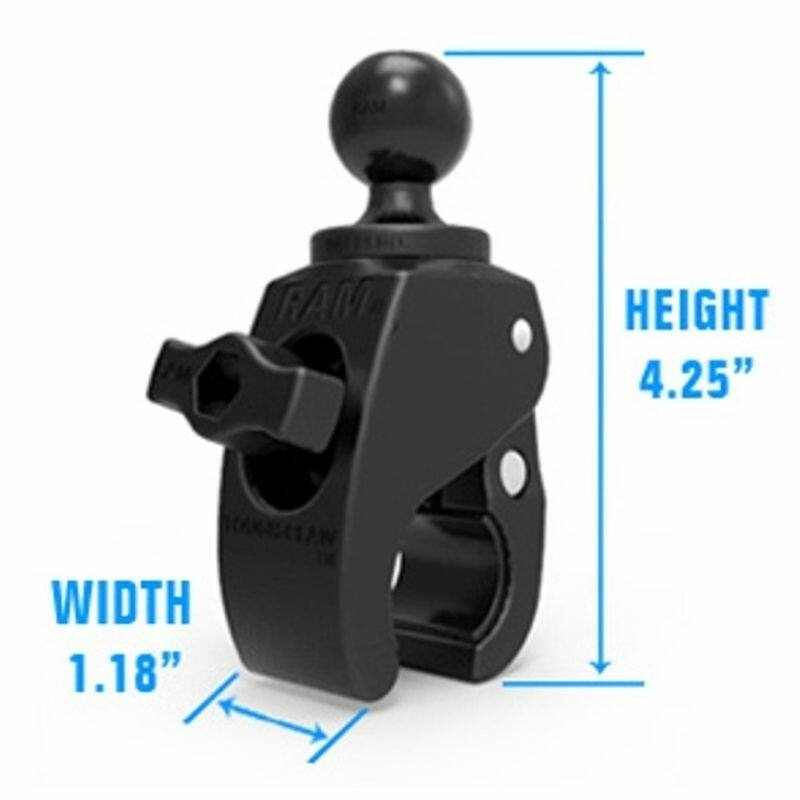

Tough-Claw Dimensions:
Rails/Tubes: 16 to 28mm
(0.625" to 1.14")
Flat Surfaces:
0 to 29mm (0" to 1.14")
Arm dimensions:
Overall:
152 mm (6")
Socket-To-Socket:
134 mm (5.25")
Weight Capacity
Standard Use:
907 grams (2 lbs)
Heavy-Duty Use:
454 grams (1 lb)
Components:
RAM-B-201U-C RAM DBL SOCKET ARM B BALL C LENGTH
RAM-HOL-UN10BU RAM X-GRIP IV UNIVERSAL CRADLE

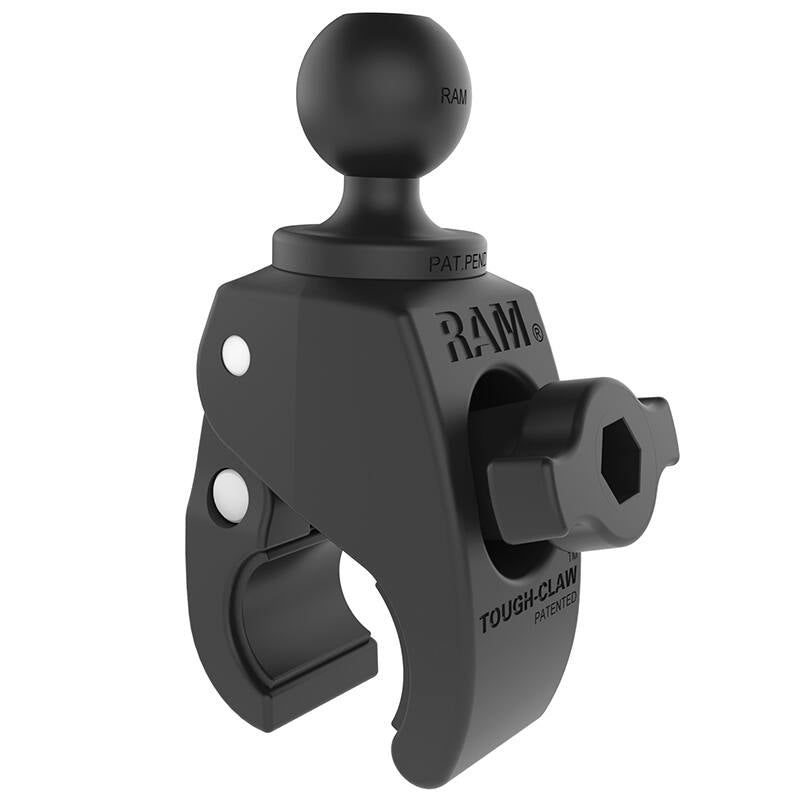

RAP-B-400U RAM SMALL TOUGH CLAW WITH 1" BALL
