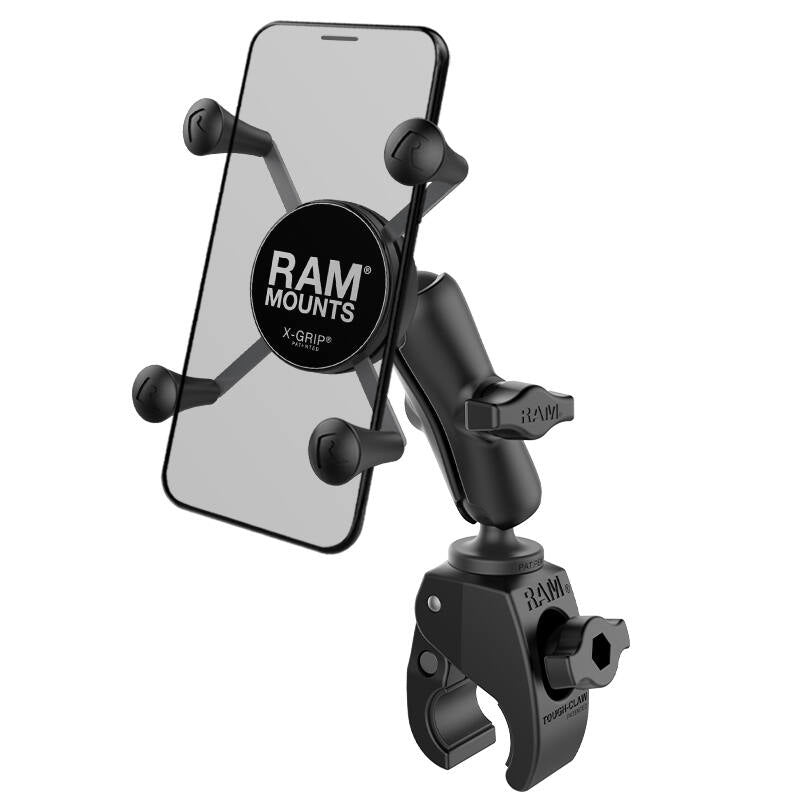

RAM-B-400-UN10U Small Tough-Claw™ Mount and Universal RAM® X-Grip® Phablet Cradle - Medium Arm
Features:

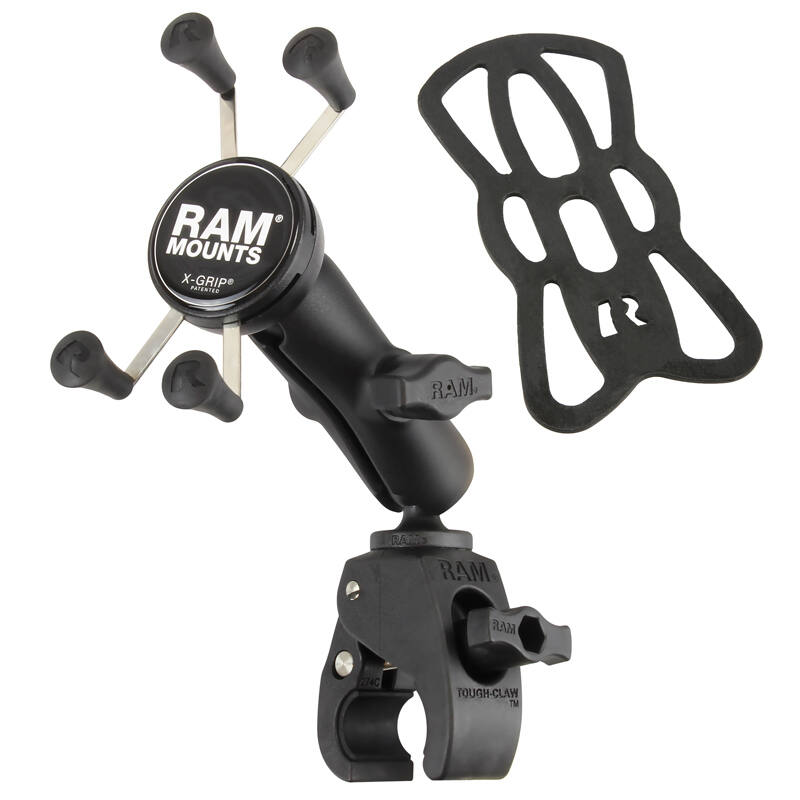

* Spring-loaded 'X' design for large phones with rubber caps sports great holding power without hiding your phone; includes optional device tether for peace of mind during rugged use
* Small version designed to quickly clamp to round, square, and odd-shaped rails and bars ranging from 16-28mm in outer diameter; rubber pads provide stable gripping and protection of mounting surface
* RAM® double socket arm with double socket arm allows for almost infinite adjustability
* Made of high-strength composite and stainless steel hardware for durability and reliability in the most demanding environments
* Backed by a lifetime warranty

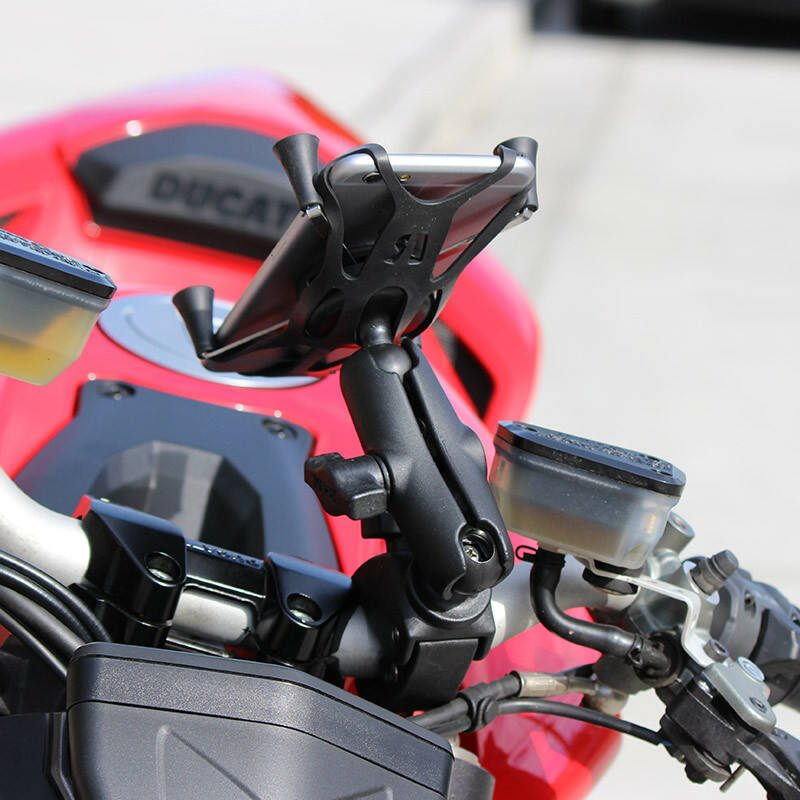

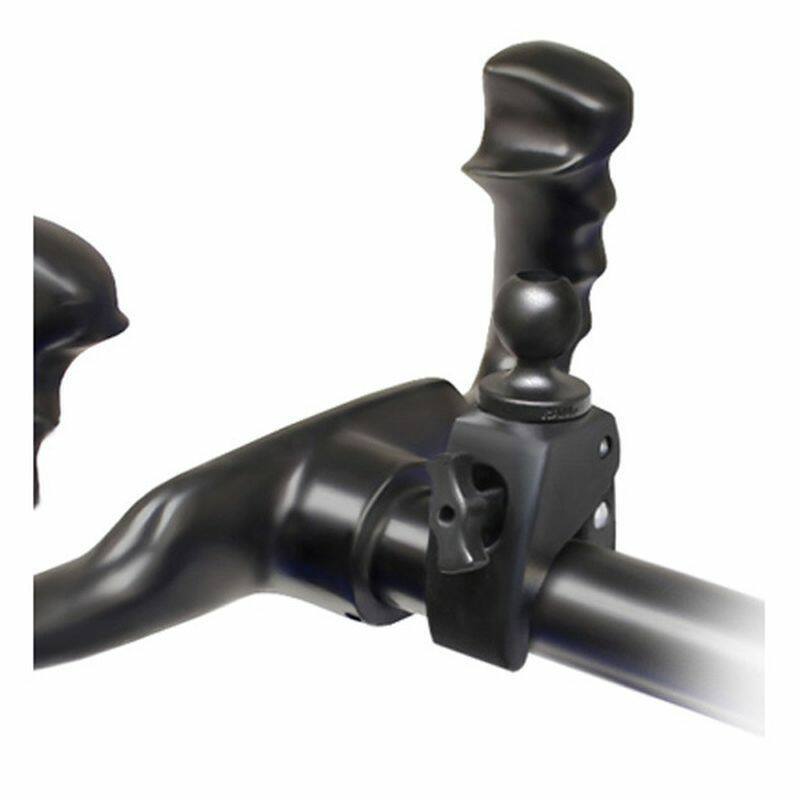

The Tough-Claw™ rail clamp base is the perfect mounting base for quick and easy tool-less installation and removal on round, square, odd shaped rails and bars. The Tough-Claw™ is perfectly suited for mounting on the yoke of an aircraft, handlebars and seat posts of bicycles, kayak rails, roll bars and much more.

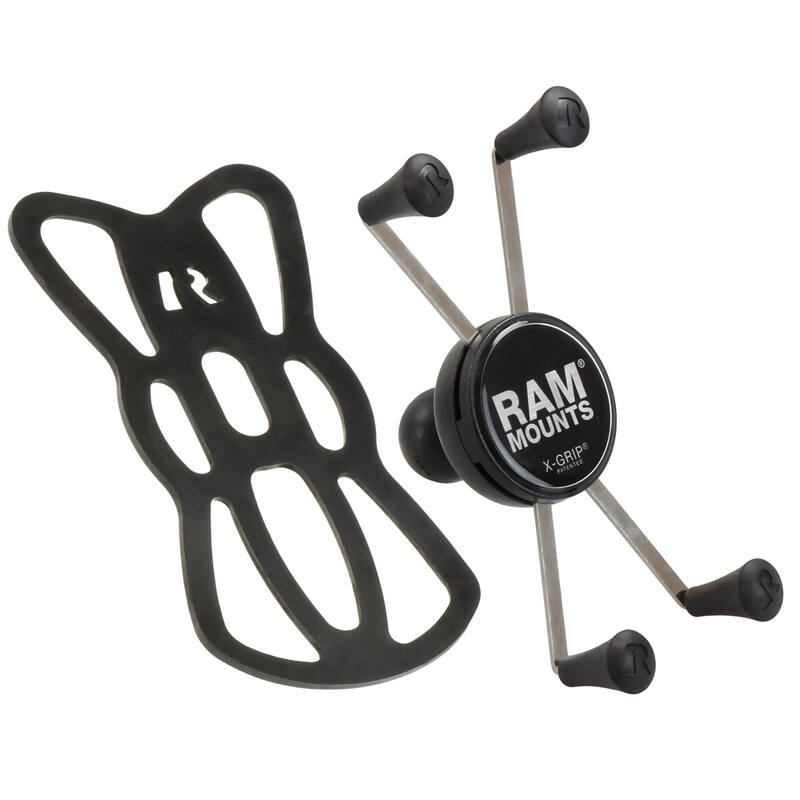

The X-Grip cradle has a clean and clever four leg design that sports great holding power without hiding your phone behind foam pads and plastic. The spring loaded X-Grip holder expands and contracts, allowing for a perfect custom fit of your cell phone, the RAM X-Grip is the cell phone holder evolved and includes a device tether recommended for outdoor applications.
The cradle is compatible with hand-held devices that will fit the dimensions listed below. It is important to verify the dimensions of your hand-held device with a case/sleeve/skin when determining the overall size
Cradle Dimensions
Min Width = 44.45mm / 1.75” – (if min width then min height = 139.7mm / 5.5")
Max Width = 114.3mm / 4.5" – (if max width then min height = 82.55mm / 3.25")
Max Thickness = 22.2mm / 0.875"
Compatible Devices
For a list of many of the compatible devices for this cradle go to our listing for the RAM-HOL-UN10BU

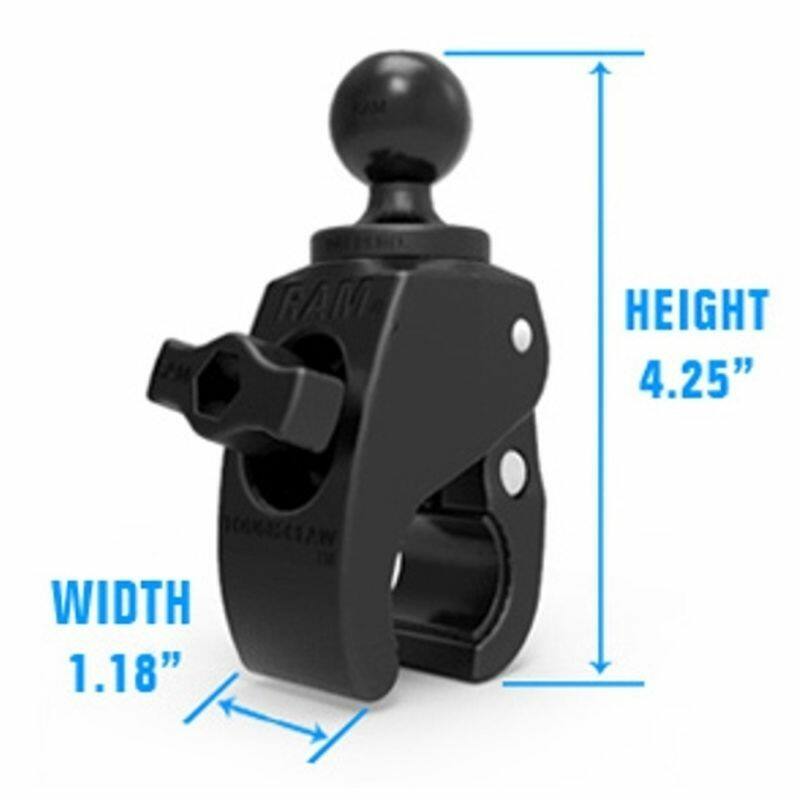

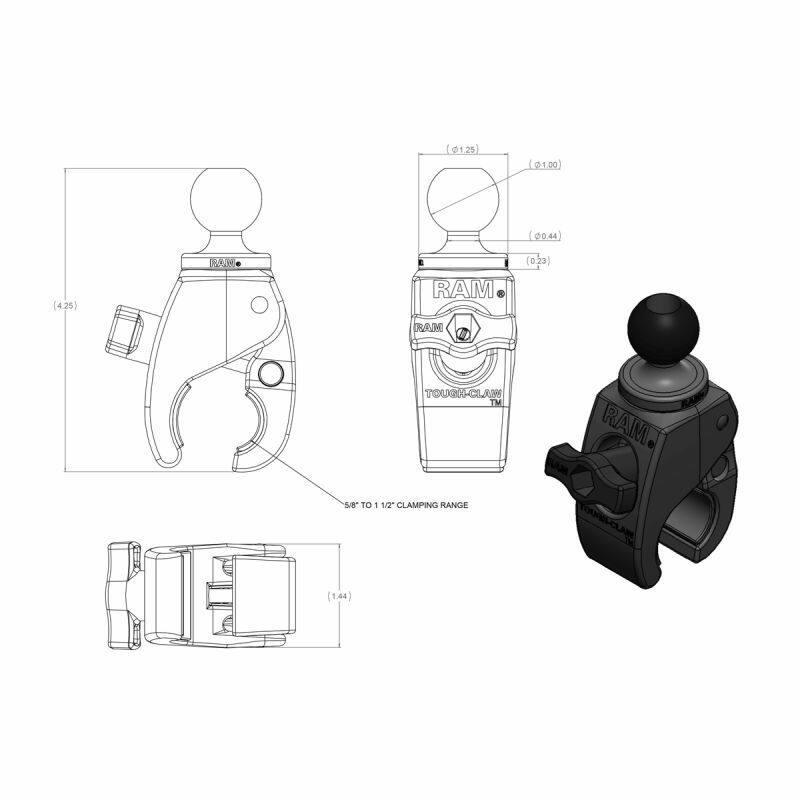

Tough-Claw Clamping Range:
Rail/Tube:
16 to 38mm (0.625" to 1.5")
Flat Surfaces:
0 to 29mm (0" to 1.14")
Arm dimensions:
Overall:
94mm (3.69")
Socket-To-Socket:
76mm (3")
Weight Capacity
Standard Use: 907 grams (2 lbs)
Heavy-Duty Use: 454 grams (1 lb)
Materials
Marine-grade aluminium
High strength composite
Stainless steel
Components:

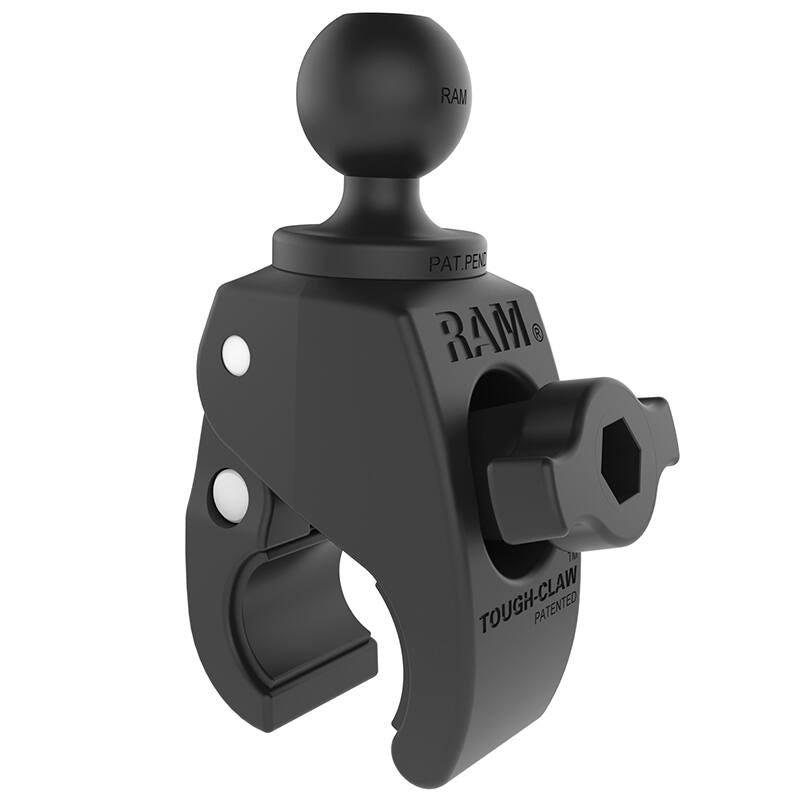

RAP-B-400U Small Tough Claw
RAM-B-201U Medium double socket arm
RAM-HOL-UN10BU X-GRIP IV UNIVERSAL CRADLE

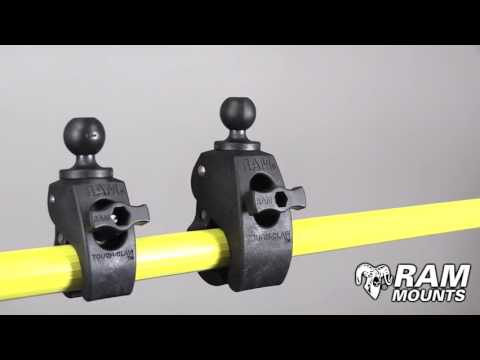

YouTube:
