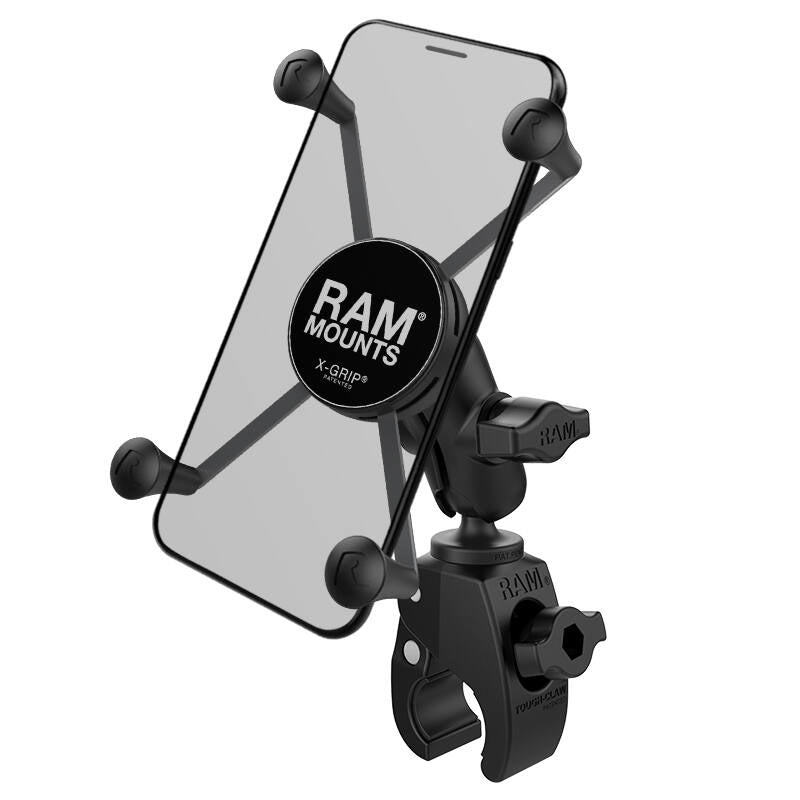

RAM-B-400-A-HOL-UN10BU – RAM® X-Grip® Large Phone Mount with Tough-Claw™ and Short Arm

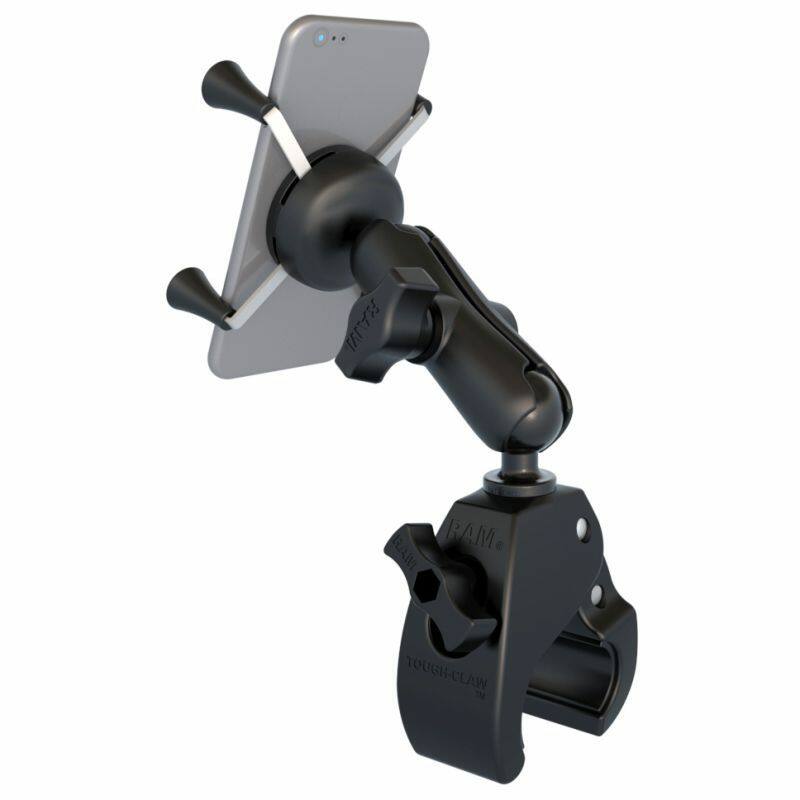

The RAM-B-400-A-HOL-UN10BU is a complete mount pairing the RAM® X-Grip® universal large phone cradle with a small Tough-Claw™ clamp base via a short RAM® double socket arm. The arm gives near-infinite angle adjustment, while the Tough-Claw™ clamps tool-free to round, square, or odd-shaped rails and bars.
Key Features

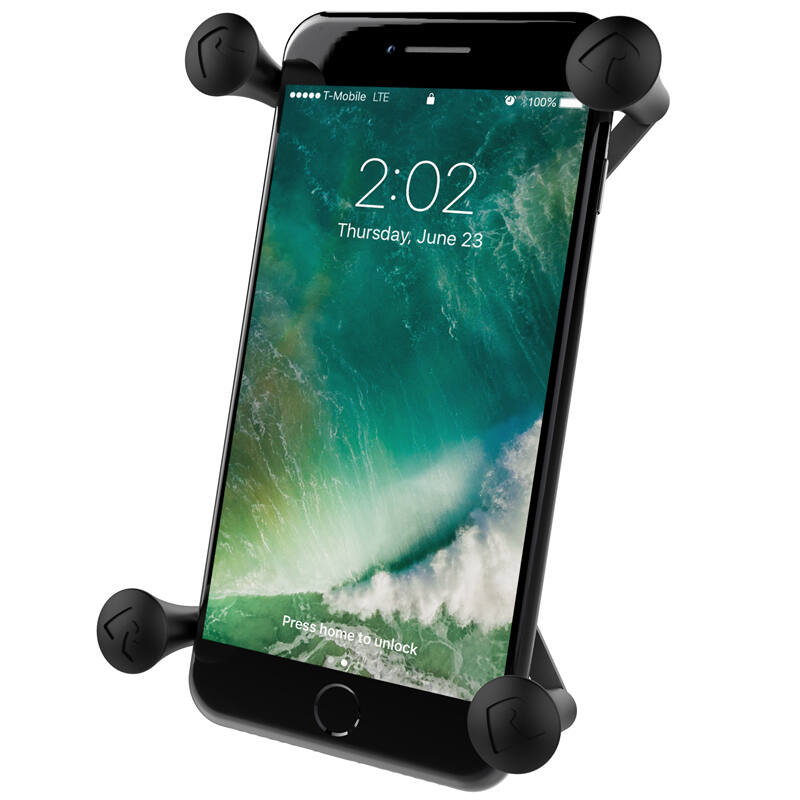

- Spring-loaded X-Grip design with rubber caps holds large phones securely without covering the screen, camera, or buttons; includes an optional device tether for rugged use
- Tough-Claw™ small clamp base installs tool-free on rails and bars from 15.9mm to 29mm (0.625" to 1.14") in outer diameter, or flat surfaces up to 29mm (1.14") thick
- Short RAM® double socket arm allows near-infinite angle adjustment between the base and cradle
- Constructed from high-strength composite and stainless steel hardware
- Backed by a lifetime warranty

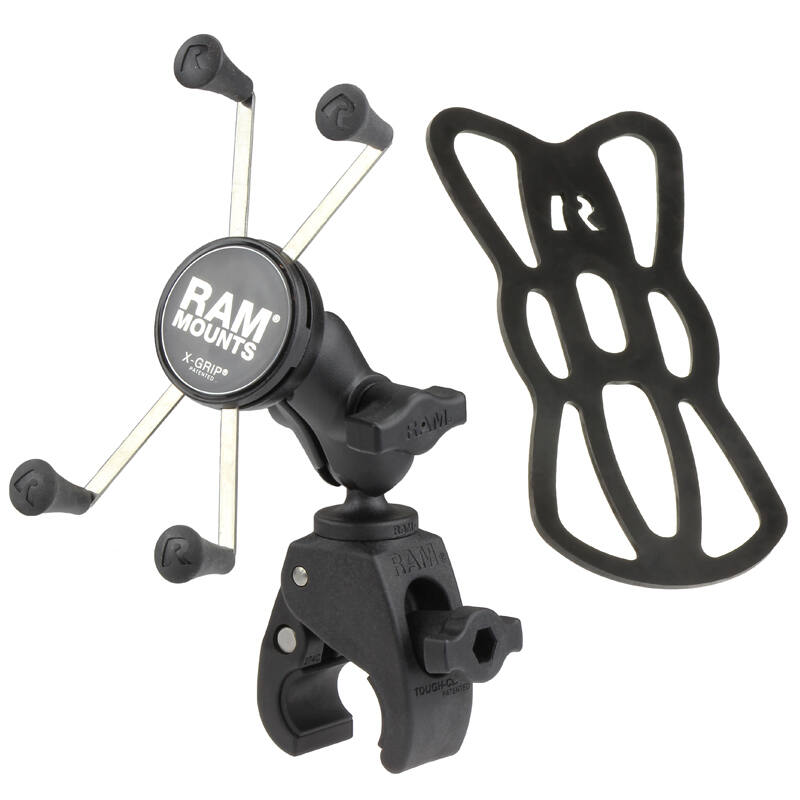

What's Included

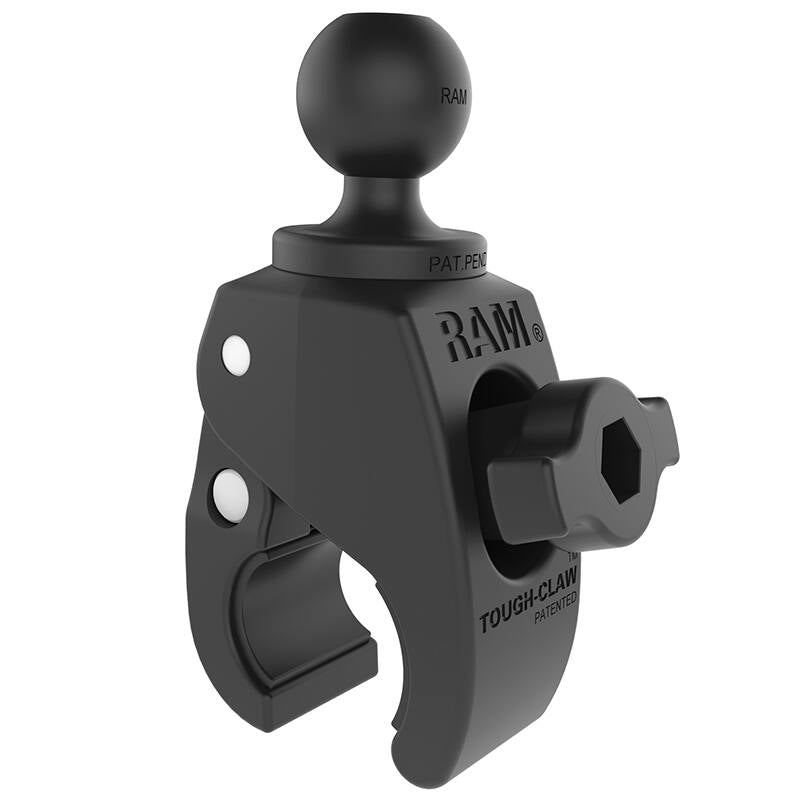

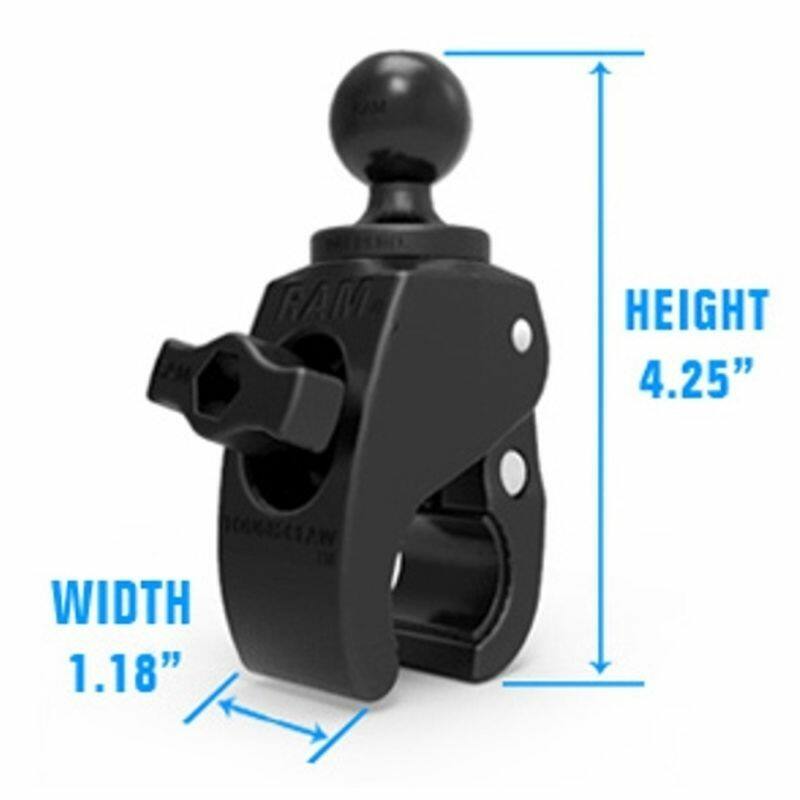

- RAP-B-400U small Tough-Claw™ base with 1" ball
- RAM-B-201U-A short double socket arm

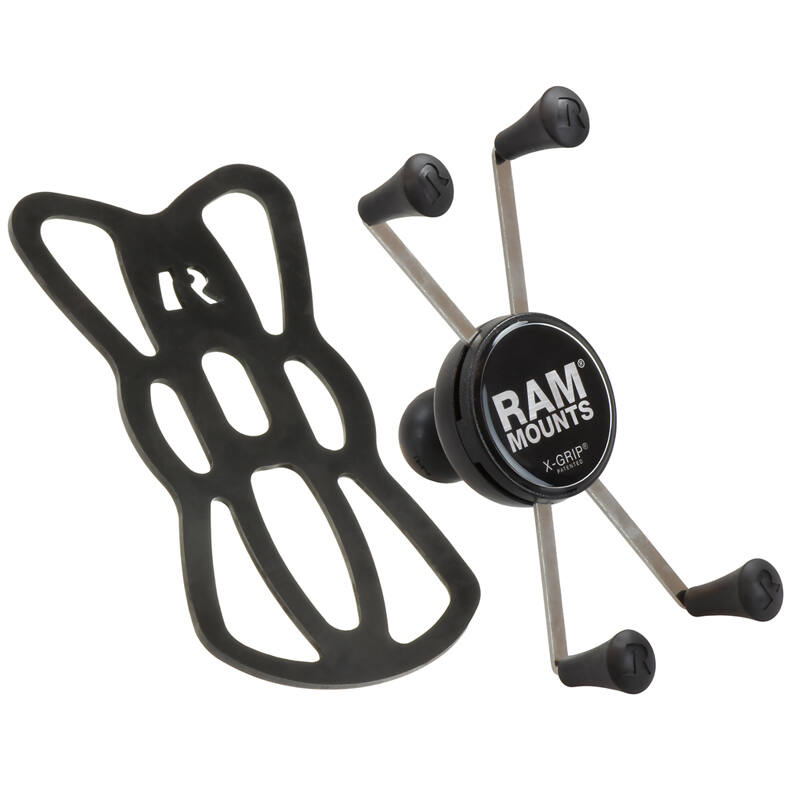

- RAM-HOL-UN10BU X-Grip® universal large phone cradle
Dimensions & Specifications

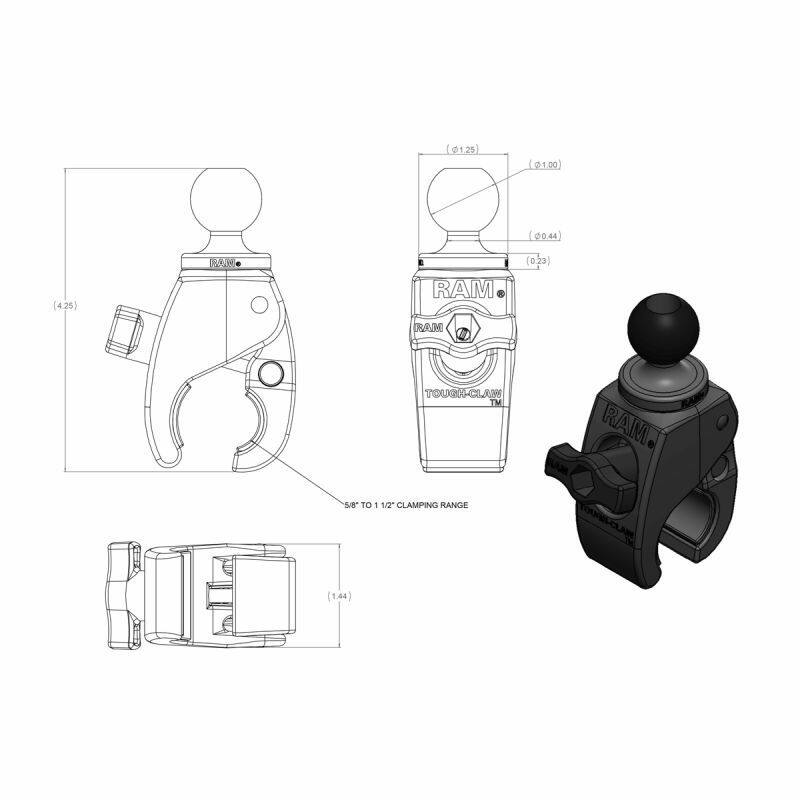

- Rail/tube clamping range: 15.9mm to 29mm (0.625" to 1.14") outer diameter
- Flat surface clamping range: 0mm to 29mm (1.14") thick
- Arm length: 60mm (2.38") overall, 50mm (2") socket-to-socket
- Weight: 331g (0.73 lb)

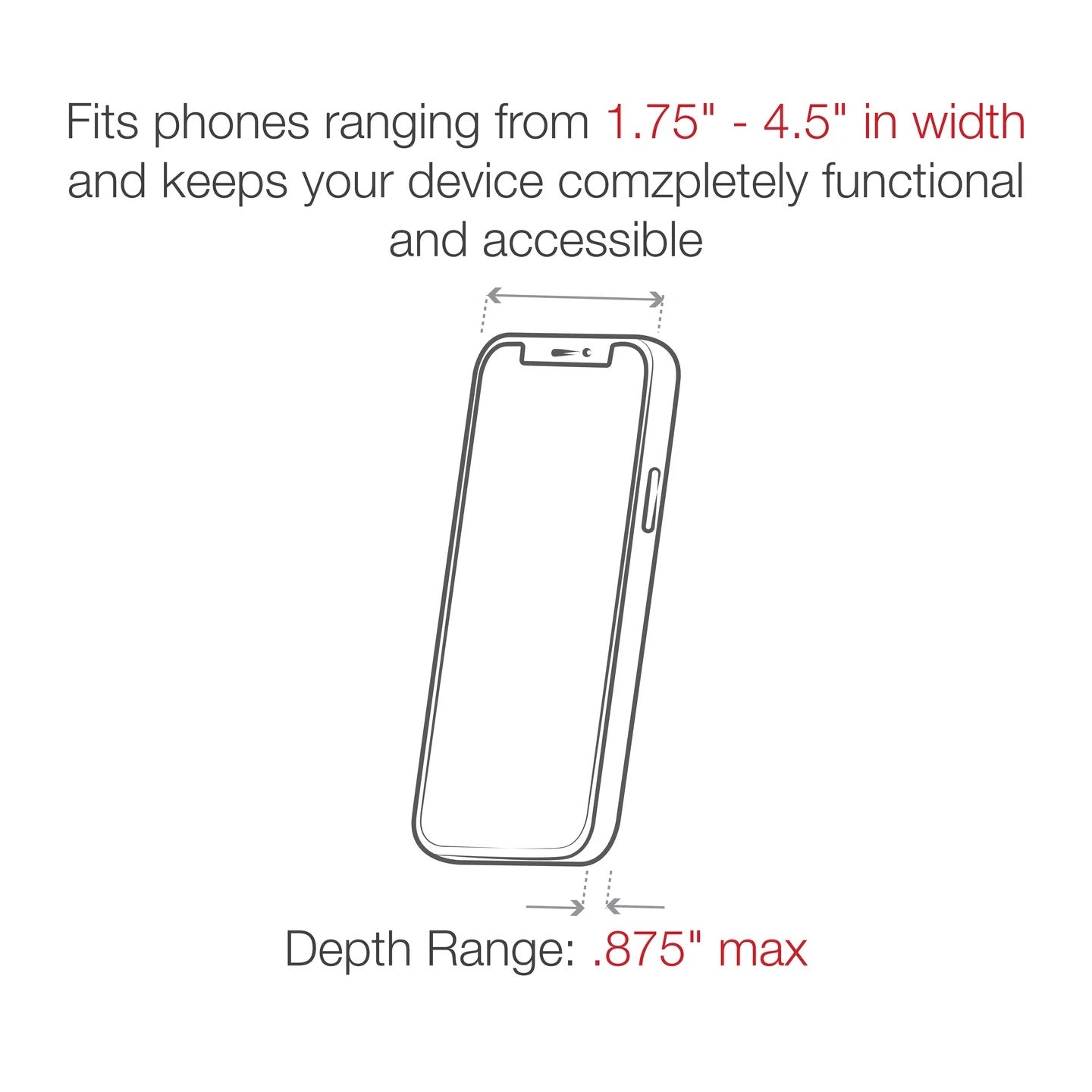

- Cradle minimum device width: 44.5mm (1.75") — requires minimum device height 140mm (5.5")
- Cradle maximum device width: 114.3mm (4.5") — requires minimum device height 82.6mm (3.25")
- Cradle maximum device depth: 22.2mm (0.875")
Compatible Devices
Fits hand-held devices within the cradle dimensions above, with or without a case. For the full list of compatible large phone models, see our RAM-HOL-UN10BU listing.

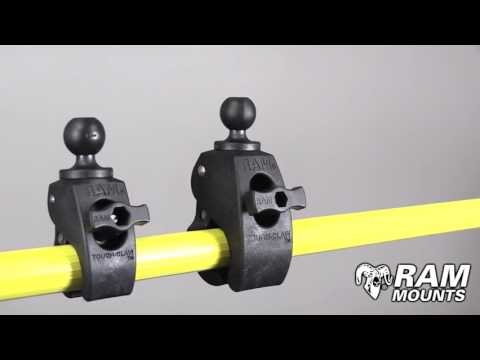

Videos
FAQs
Is this a complete mount? Yes. The Tough-Claw base, short arm and X-Grip large phone cradle are all included — there's nothing else to buy to get your phone onto the bar.

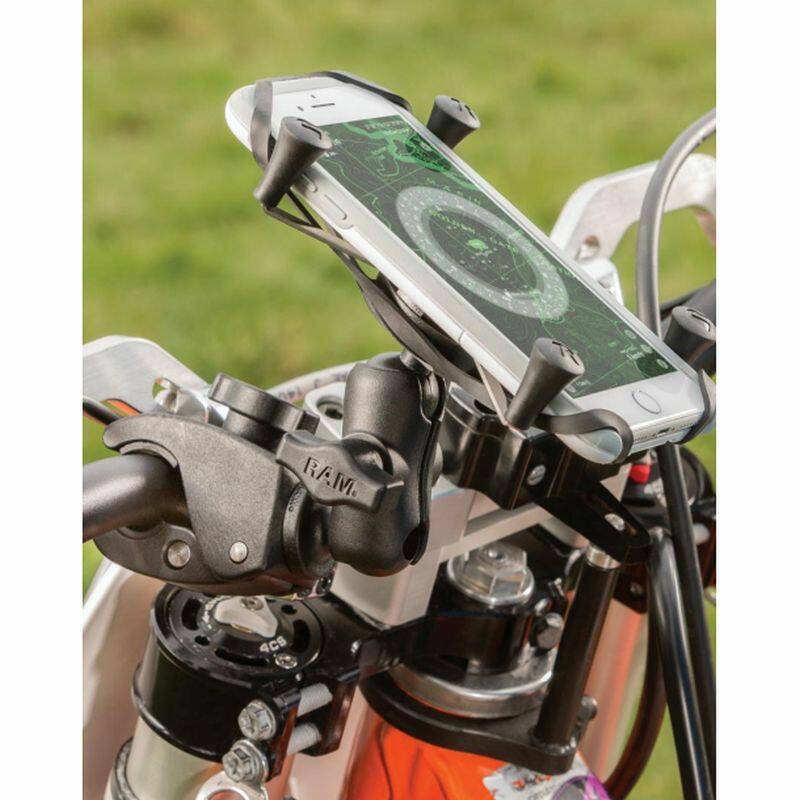

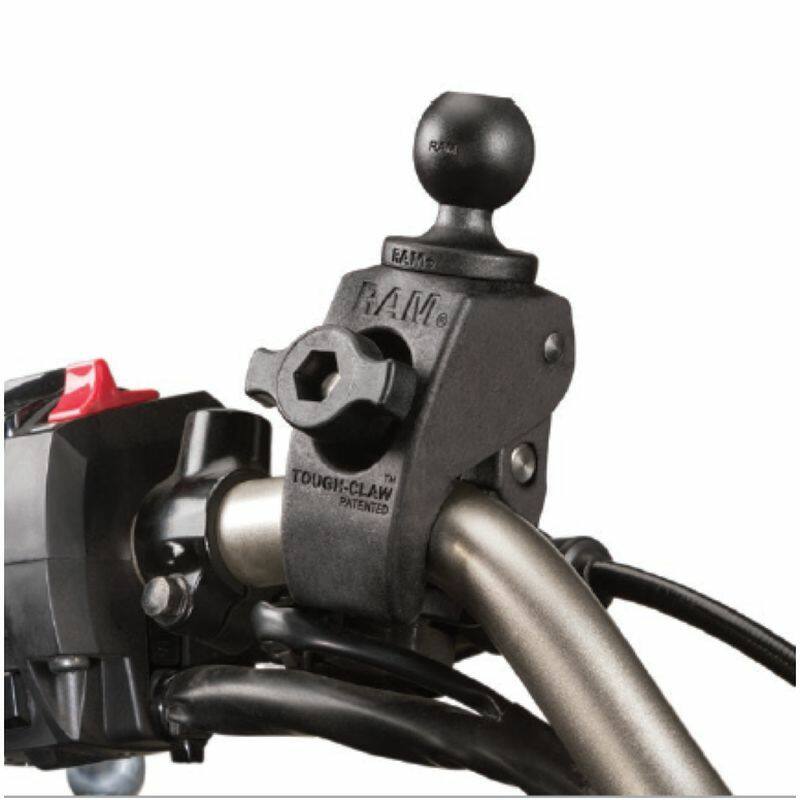

Will the Tough-Claw fit my handlebar? It clamps tool-free to round, square and odd-shaped bars from 15.9mm to 29mm outer diameter, and to flat surfaces up to 29mm thick. Most motorcycle and bicycle bars, aircraft yokes, kayak rails and roll bars sit inside that range — measure yours before ordering.
Will my large phone fit with a case on? Measure the width of your phone with the case, sleeve or skin fitted. This UN10 cradle opens from 44.5mm to 114.3mm wide, so it takes Pro Max, Ultra and similar large handsets comfortably, cased or bare.
Should I choose the UN7 or the UN10 version? The UN10 fitted here is built for large phones. If you run a standard-size handset, the UN7 version of this kit grips it more securely at the smaller end of the range.
Is the tether included? Yes. We'd recommend fitting it for motorcycle, off-road, marine and any other high-vibration use — it's cheap insurance if the phone is ever knocked loose.
