RAM Mounts

RAM X-Grip Universal Phablet Cradle with U-Bolt Rail Handlebar mount - Med Arm

RAM X-Grip Universal Phablet Cradle with U-Bolt Rail Handlebar mount - Med Arm

SKU:RAM-B-149Z-UN10U

Regular price $156.64 NZD
Regular price Sale price $156.64 NZD
Sale Sold out
Tax included. Shipping calculated at checkout.
View full details

RAM-B-149Z-UN10U RAM® X-Grip® Large Phone Mount with Handlebar U-Bolt Base - Medium


Features

* Spring-loaded 'X' design for large phones with rubber caps sports great holding power without hiding your phone

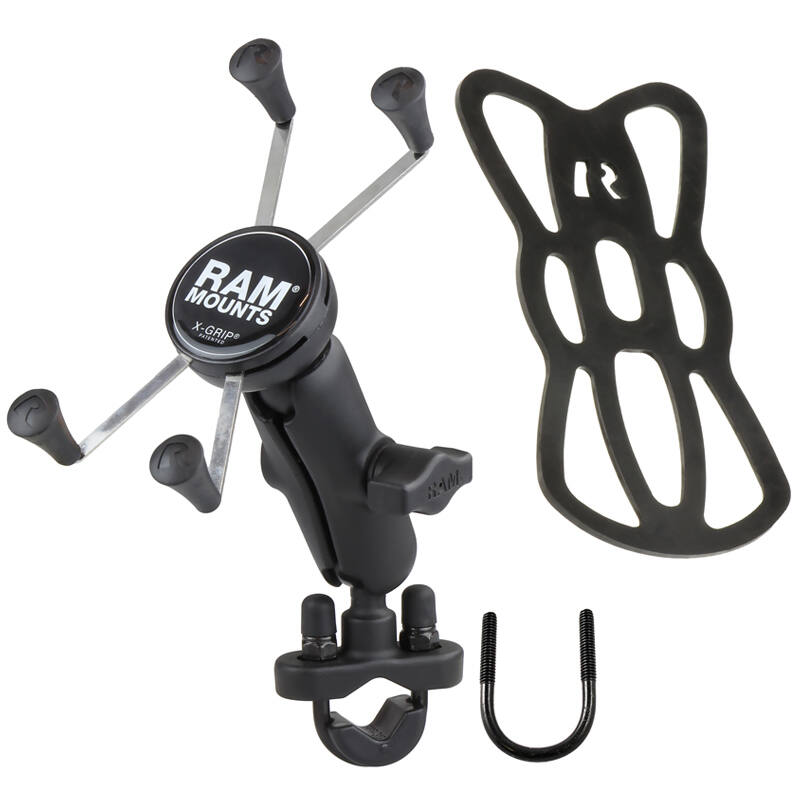

* Includes optional device tether for peace of mind during rugged use
* Includes U-bolt base that accommodates rails from 12.7 to 31.8mm in diameter and a medium length, B size RAM® double socket arm
* RAM® ball and socket technology allows for near-infinite adjustability
* Made of powder-coated, marine-grade aluminum, stainless steel components, and high-strength composite for durability and reliability in the most demanding environments
* Backed by a lifetime warranty

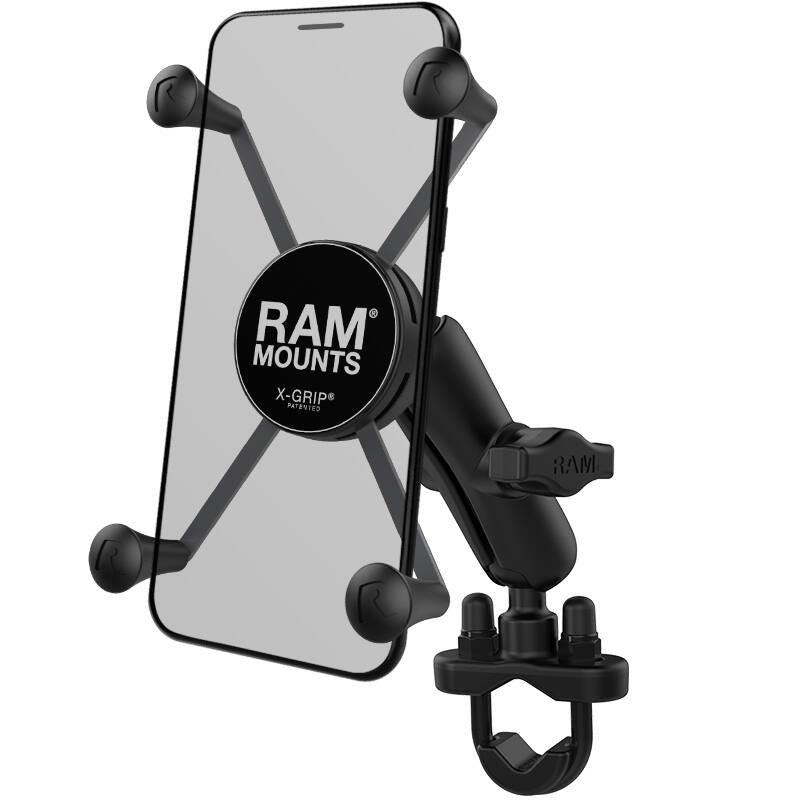

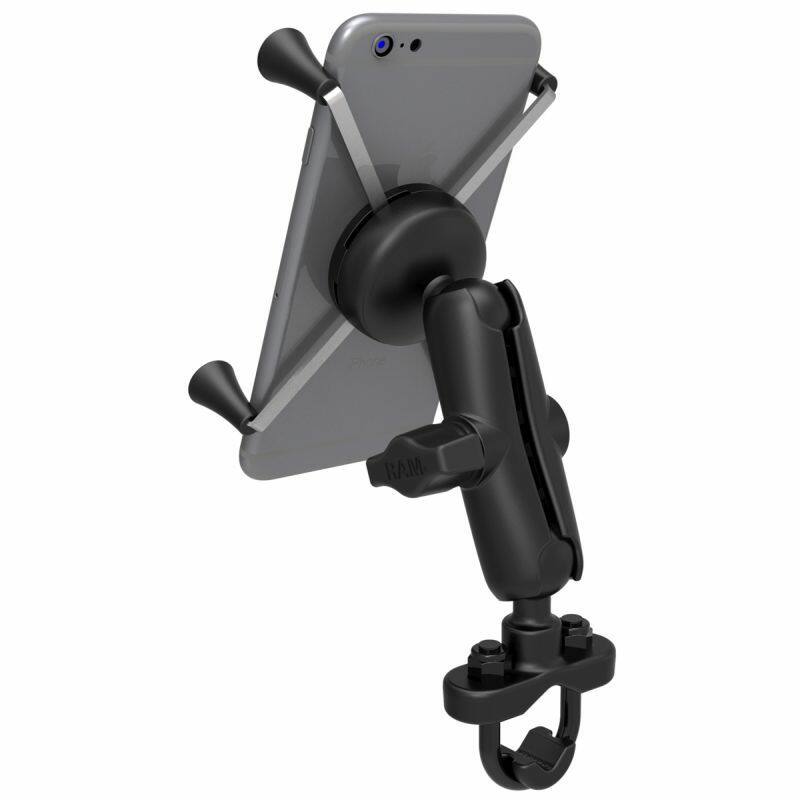

This consists of a U-bolt base, double socket arm and universal X-Grip IV cradle.

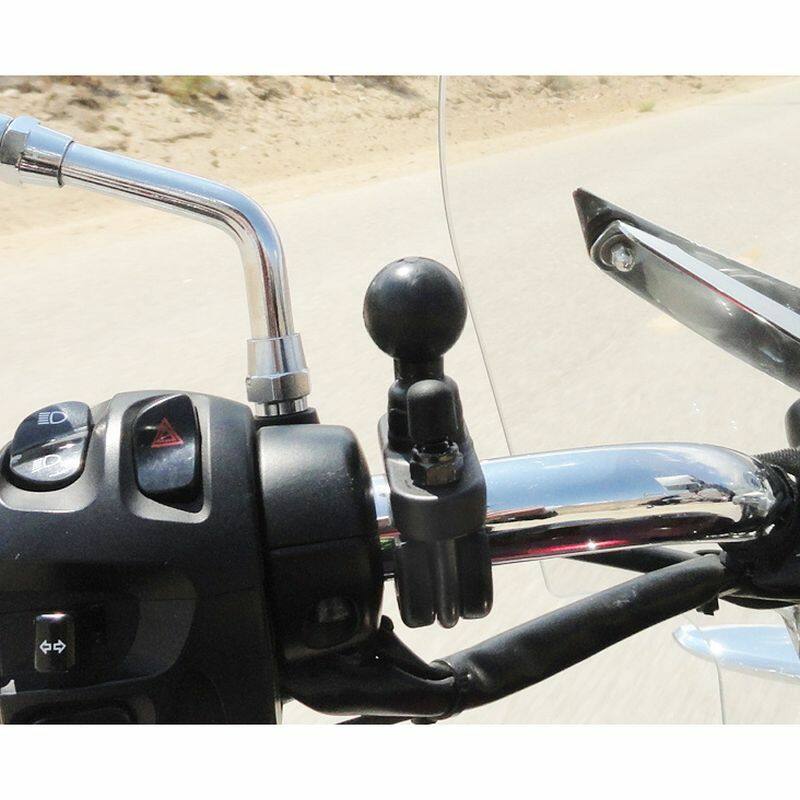

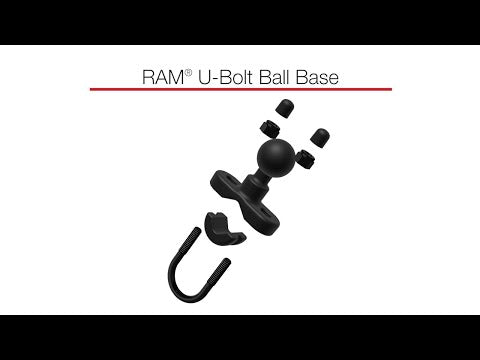

The Rail Base is a 1" rubber ball designed to sit at right angles to the mounting rail and a Zinc Coated U-bolt mounting. Includes black cover caps to cover the exposed ends of the U-bolt and a composite adapter that can narrow the rail to a minimum width of 12.7mm (0.5").


The RAM patented rubber ball and socket system allows for almost infinite adjustment and perfect viewing angles.

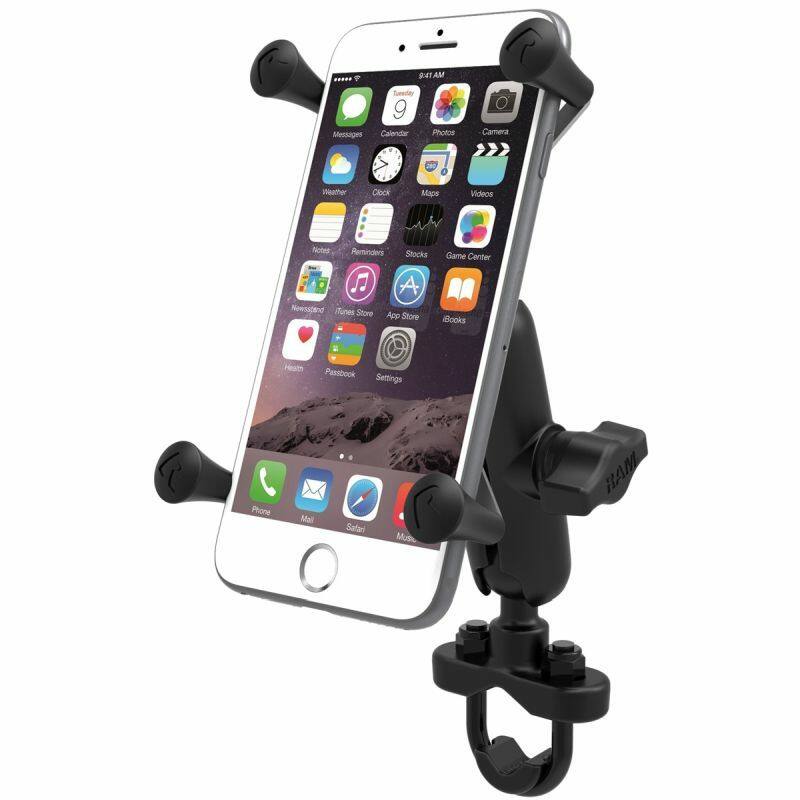

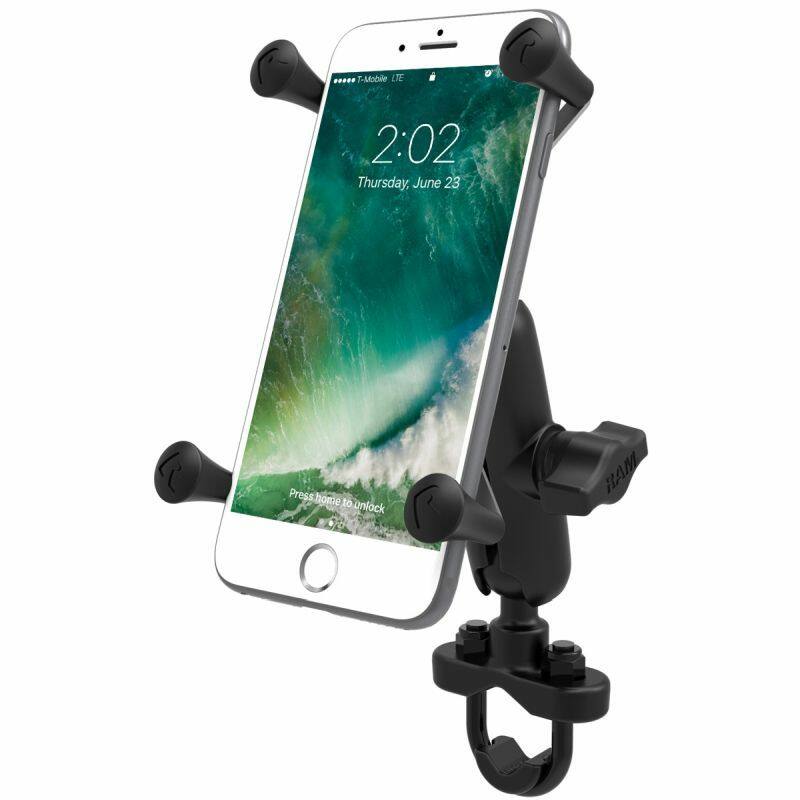

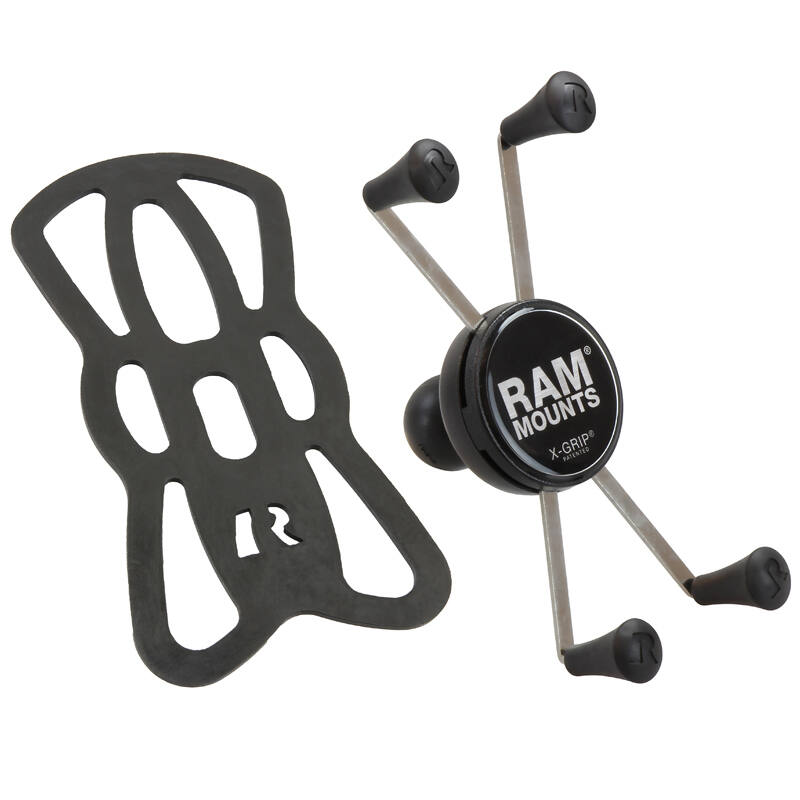

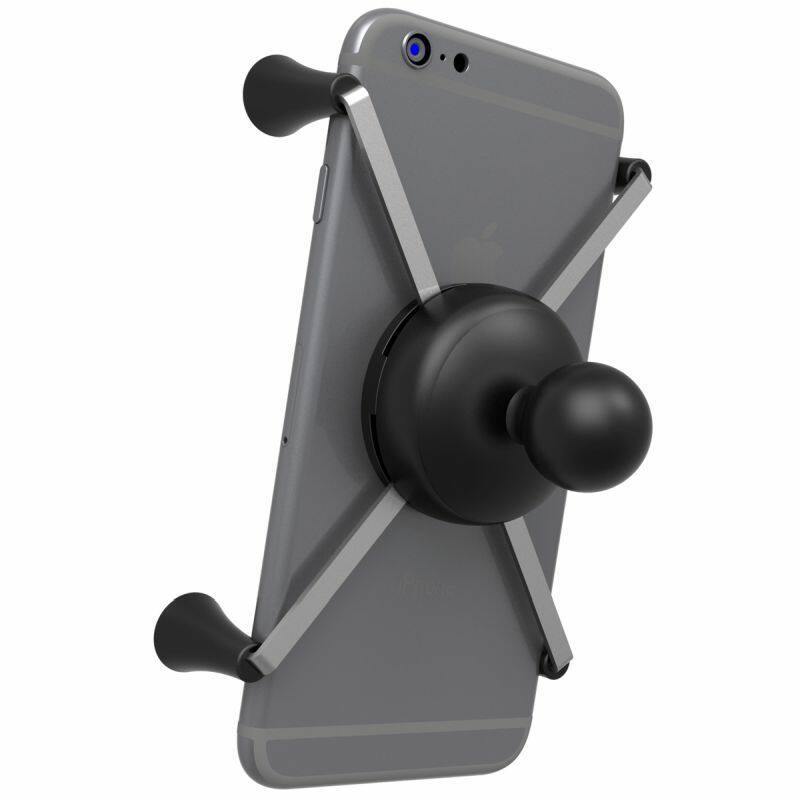

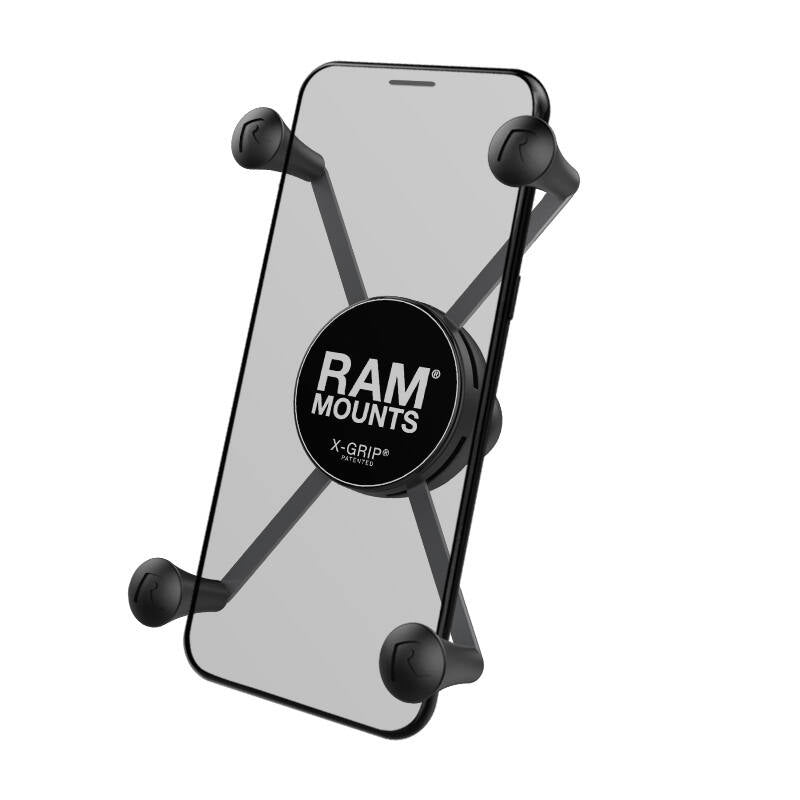

The X-Grip cradle has a clean and clever four leg design that sports great holding power without hiding your phone behind foam pads and plastic. The cradle expands and contracts, allowing for a perfect custom fit of your cell phone and includes a device tether recommended for outdoor applications.


The cradle is compatible with hand-held devices that will fit the dimensions listed below. Check the dimensions of your device with a case/sleeve/skin when determining the overall size

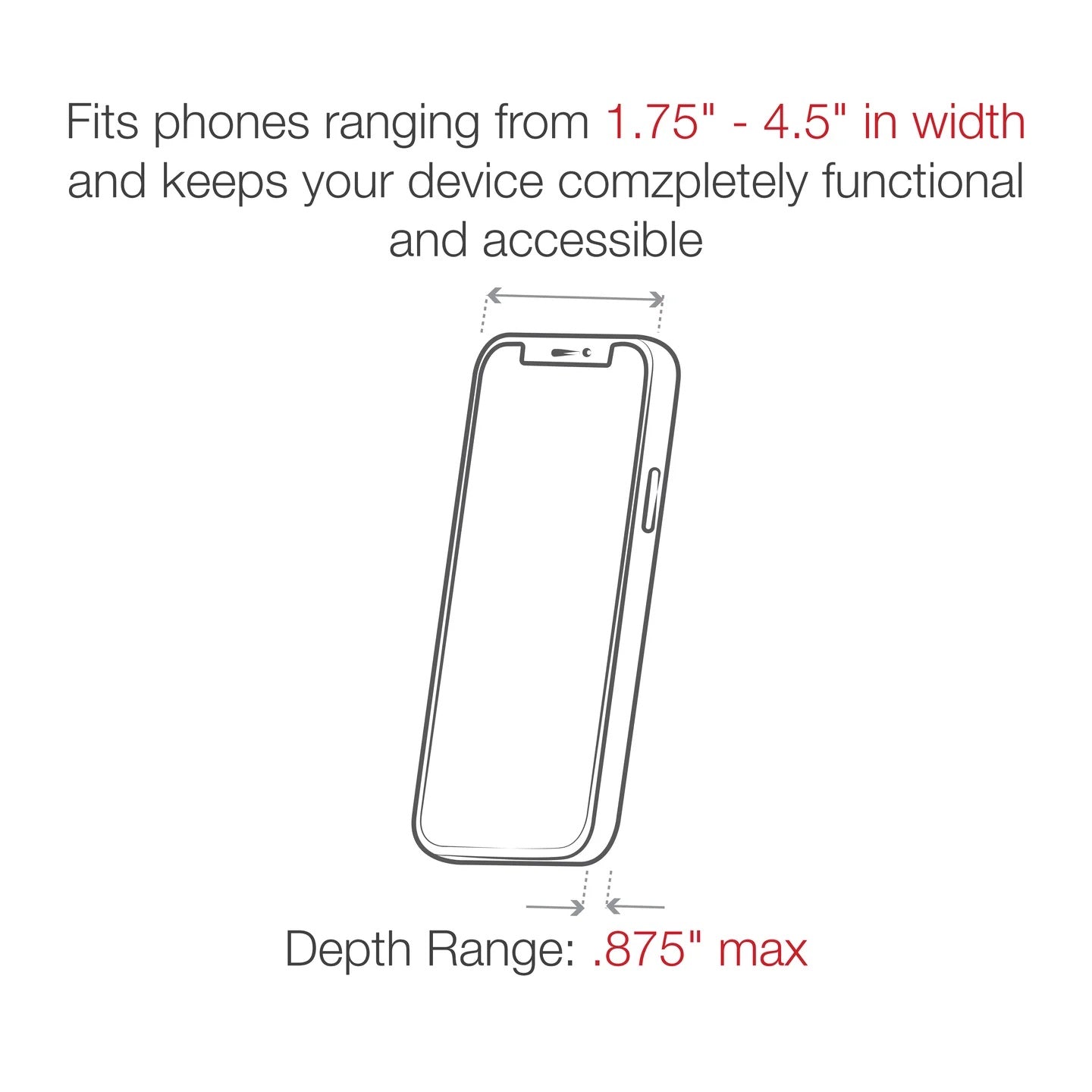

Cradle Dimensions

Min Width = 44.45mm (1.75”) – (if min width then min height = 139.7mm / 5.5")
MaxWidth = 114.3mm (4.5") – (if max width then min height = 82.55mm / 3.25")
Max Thickness = 22.2mm (0.875")


Compatible Devices
For a list of many of the compatible devices for this cradle go to our listing for the RAM-HOL-UN10BU


Materials
Powder Coated Marine Grade Aluminium
Marine Grade Stainless Steel Components
High Strength Composite


Arm Dimensions:
Overall Length:
94mm (3.69")
Socket-To-Socket Length:
76mm (3")


U-Bolt Dimensions:
12.7 - 31.8mm (0.5 to 1.25") diameter.

Ball Size:
1" "B" Size


Weight
340 grams


Components:
RAM-HOL-UN10BU X-GRIP IV UNIVERSAL CRADLE
RAM-B-231ZU RAM RAIL BASE
RAM-B-201U DOUBLE SOCKET ARM
