RAM Mounts

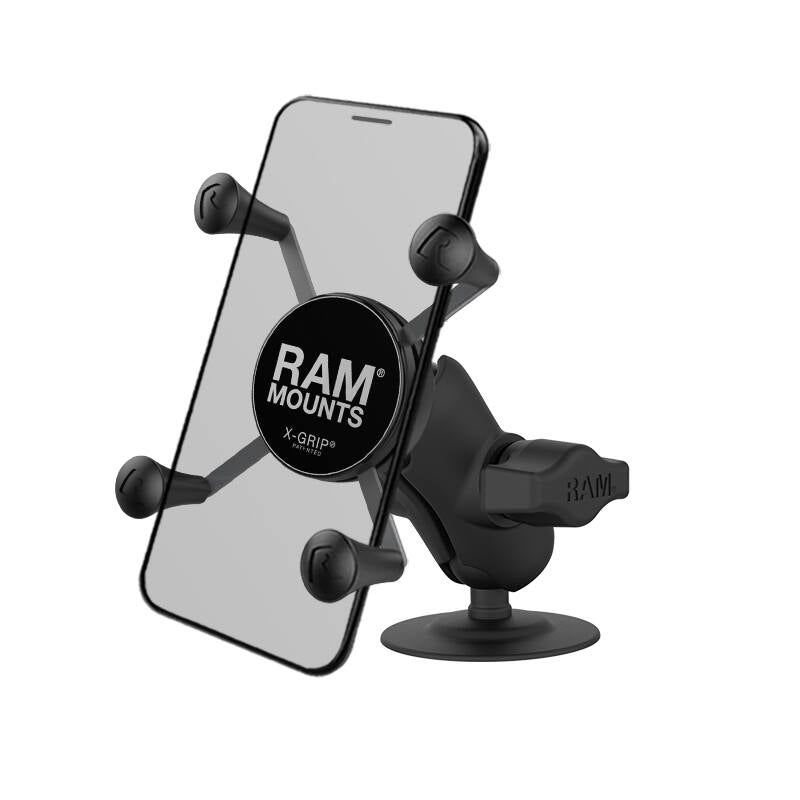

RAM X-Grip Universal SmartPhone Cradle - Adhesive Base & Short Composite Arm

RAM X-Grip Universal SmartPhone Cradle - Adhesive Base & Short Composite Arm

SKU:RAP-B-378-A-UN7U-v

Regular price $130.91 NZD
Regular price Sale price $130.91 NZD
Sale Sold out
Tax included. Shipping calculated at checkout.
View full details

RAP-B-378-A-UN7U RAM® X-Grip® Phone Mount Flex Adhesive Base - Short


Features

* Flex adhesive ball base provides a strong mounting surface in a wide variety of use cases, such as a vehicle dash
* Spring-loaded 'X' design for standard size phones with rubber caps sports great holding power without hiding your phone
* Includes optional device tether for peace of mind during rugged use
* Short B size RAM® double socket arm with ball and socket technology allows for near-infinite adjustability
* Made of powder-coated, marine-grade aluminium, stainless steel, and high-strength composite for durability and reliability in the most demanding environments
* Backed by a lifetime warranty

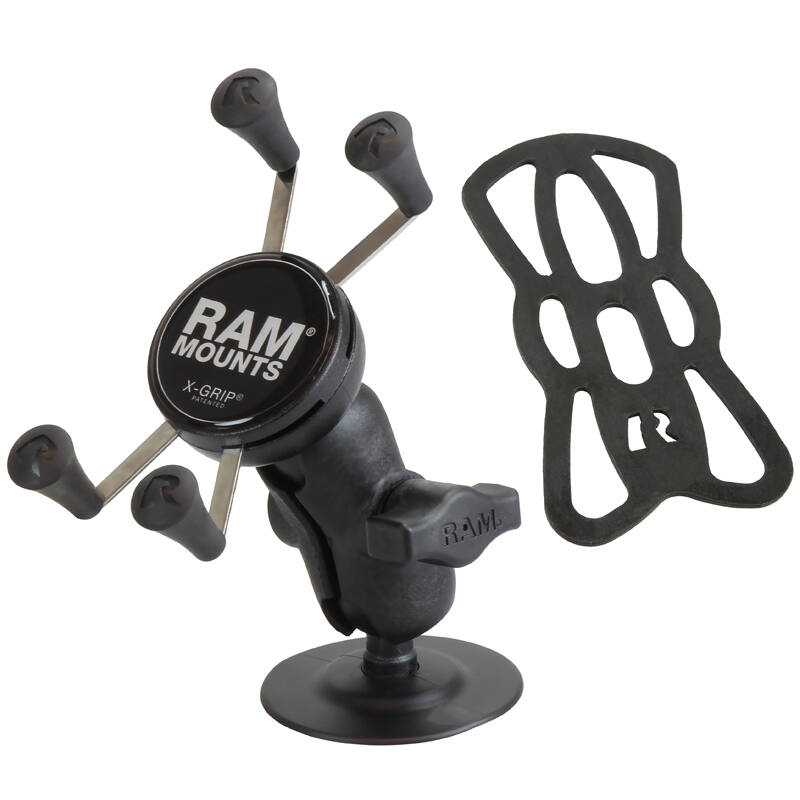

This mount consists of the flex adhesive base with 1" ball, short composite double socket arm and universal RAM® X-Grip® cradle.

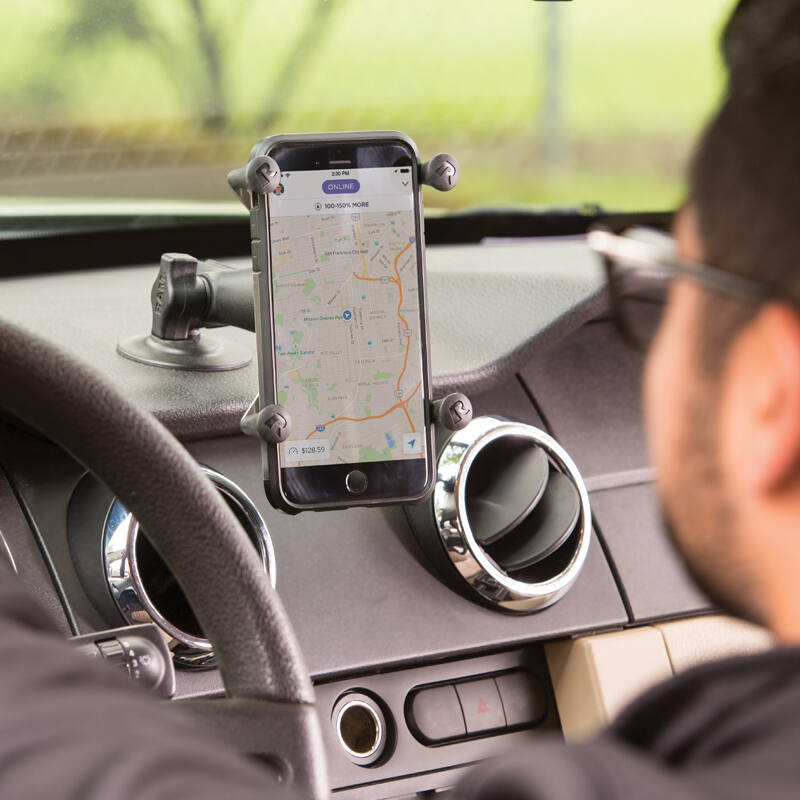

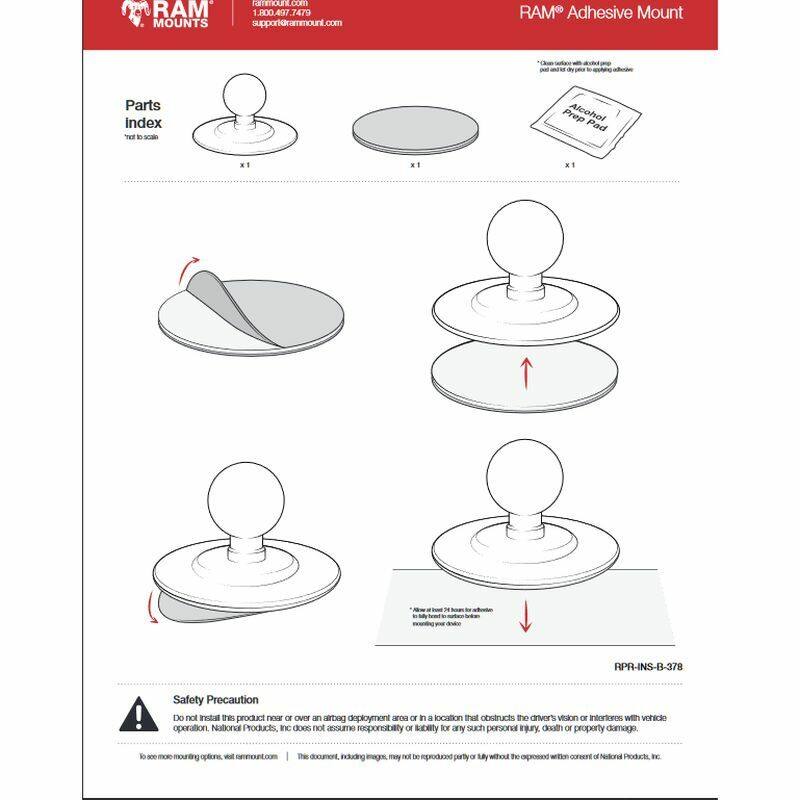

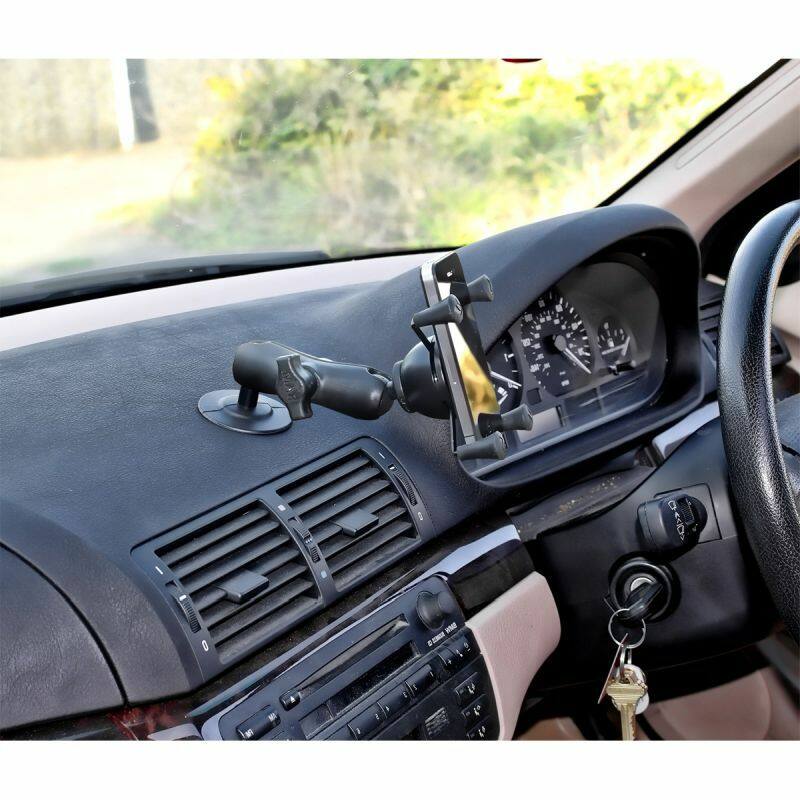

Using a PSA stick pad, put the flex adhesive mount practically anywhere you want to keep your portable electronics easy to see and always within your reach. Designed with a very small foot print, finding a home on your scooter, motorcycle, kayak, boat or vehicle dash is easy.


The RAM patented rubber ball and socket system allows for infinite adjustment and perfect viewing angles

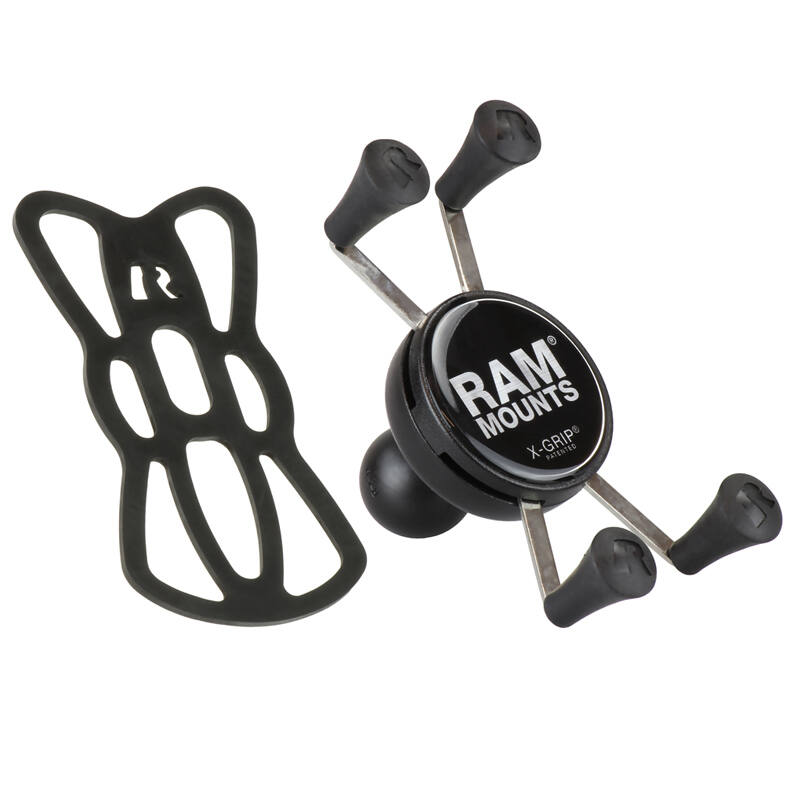

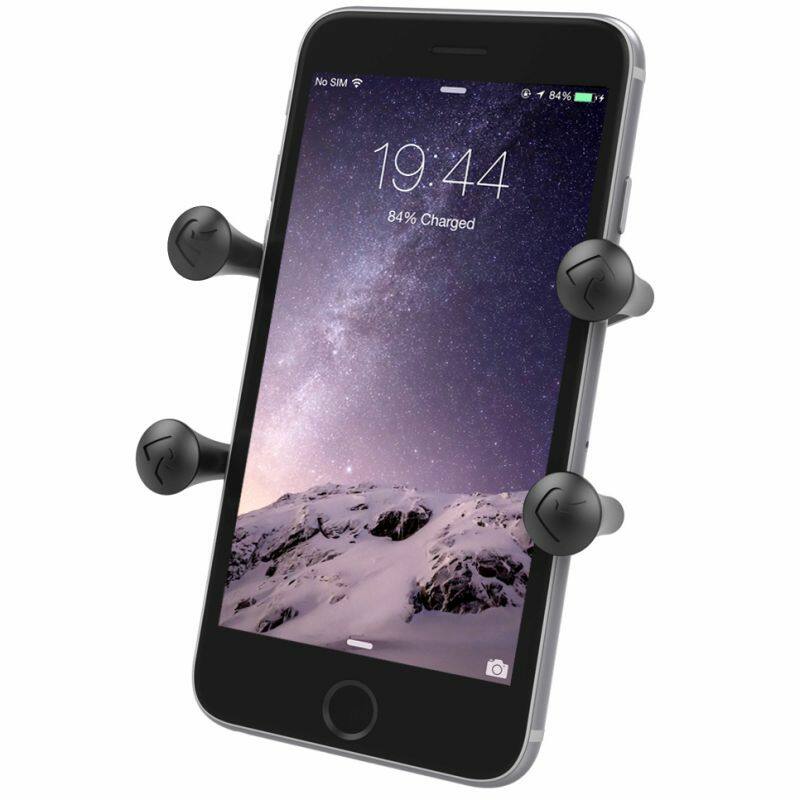

The included X-Grip cradle has a clean and clever four leg design that sports great holding power without hiding your phone behind foam pads and plastic. The spring loaded X-Grip holder expands and contracts, allowing for a perfect custom fit of your cell phone and includes a device tether recommended for outdoor applications.


The cradle is compatible with hand-held devices that will fit the dimensions listed below. It is important to verify the dimensions of your hand-held device with a case/sleeve/skin when determining the overall size


Cradle Dimensions
Min Width = 47.6mm / 1.875” – (if it is min width then the min height = 108mm / 4.25")
Max Width = 82.6mm / 3.25" – (if it is max width then the min height = 57.2mm / 2.25")
Max Thickness = 22.2mm / 0.875"


Compatible Devices
For a list of many of the compatible devices for this cradle go to our listing for the RAM-HOL-UN7BU


Materials:
Powder-coated marine-grade aluminium
Stainless steel
High-strength composite

Ball Size:
1" Rubber Ball "B" Size

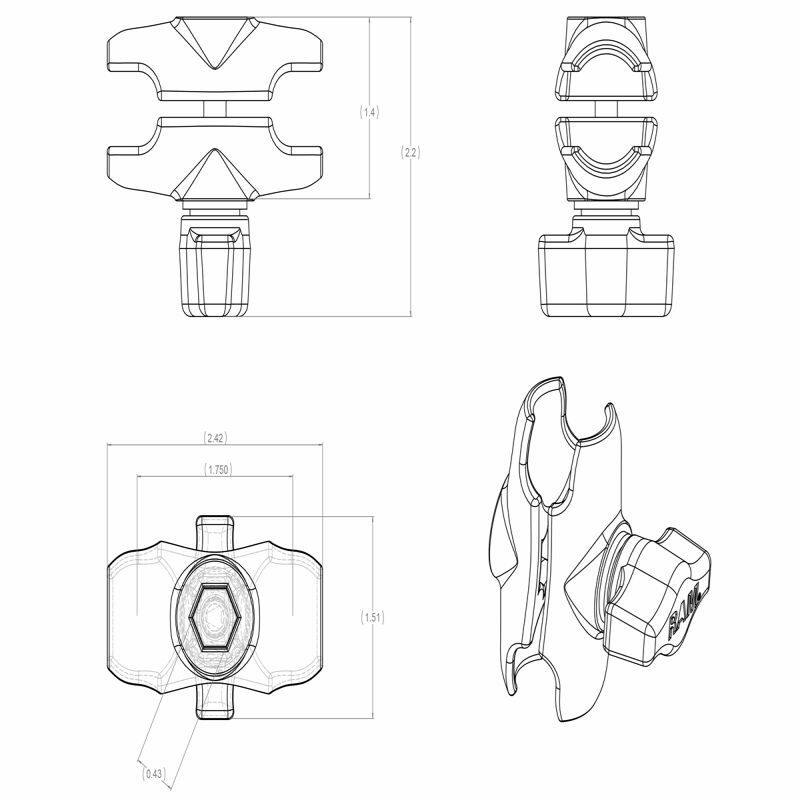

Arm Dimensions:
Overall Length:
60.5mm (2.38")
Socket-To-Socket Length:
51mm (2")


Weight:
204 grams / 0.45lbs

Components:
RAM-HOL-UN7BU X-GRIP UNIVERSAL HOLDER

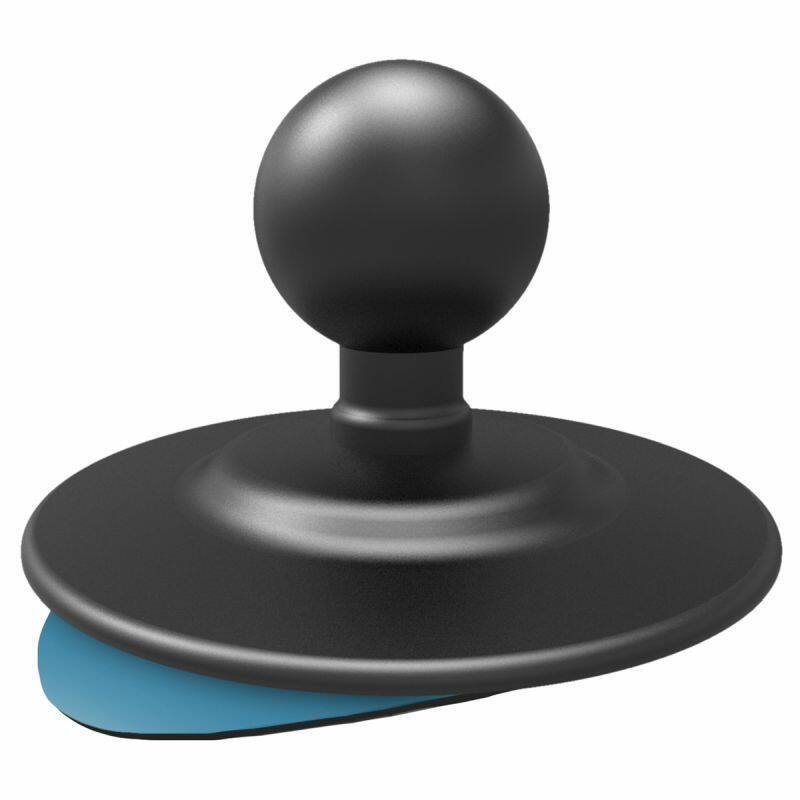

RAP-B-378U FLEX ADHESIVE MNT

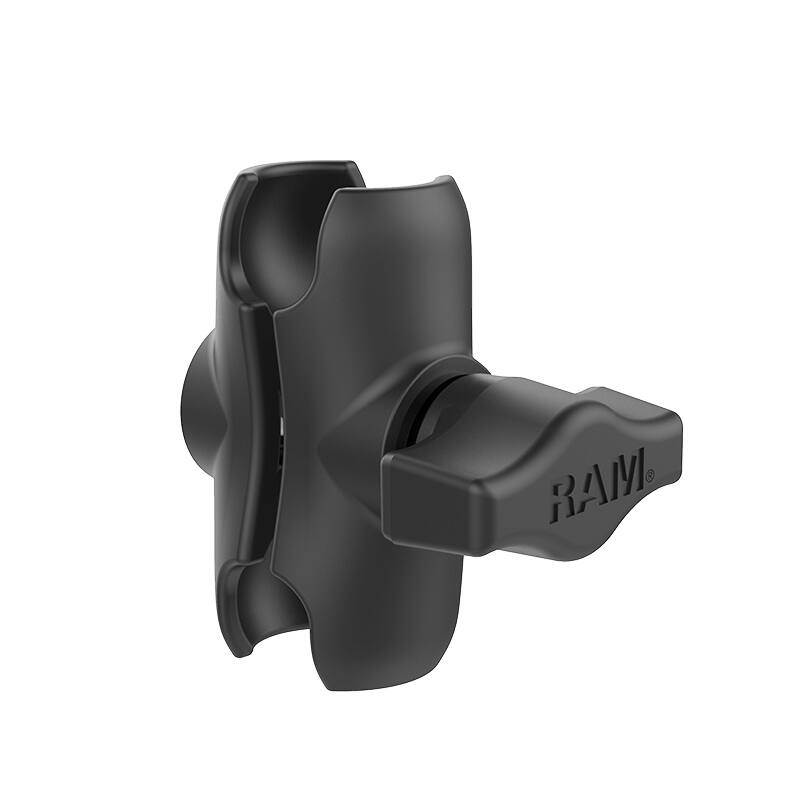

RAP-B-201U-A PLASTIC DBL SOCKET

YouTube:
https://www.youtube.com/watch?v=gSplxuUrtmQ
https://www.youtube.com/watch?v=S8ky_uKTw98
