RAP-B-272-A-UN7U – RAM® X-Grip® Phone Mount with 9mm Angled Bolt Head Base (Short Composite Arm)

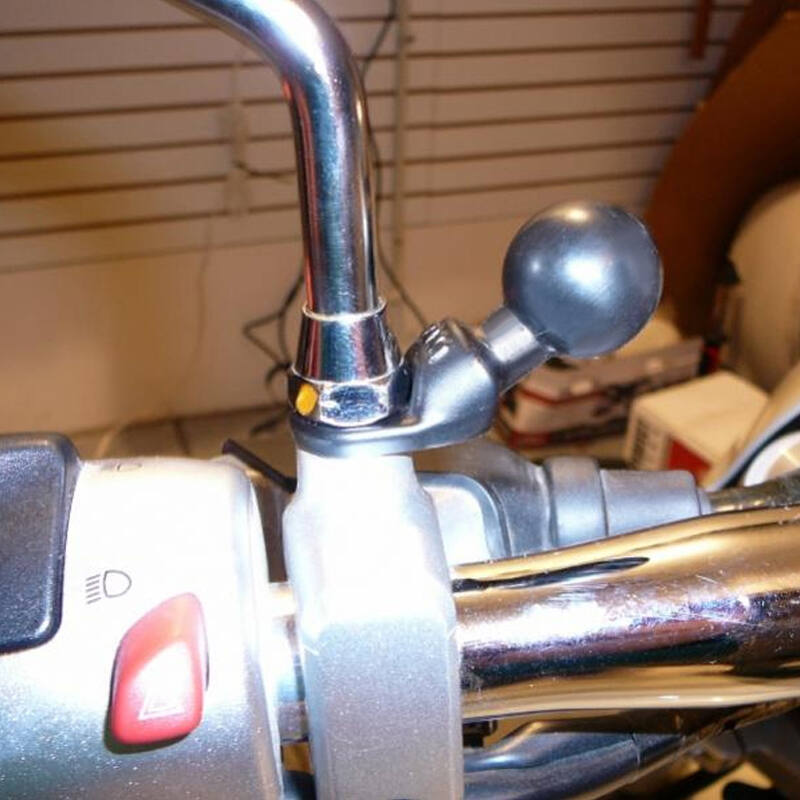

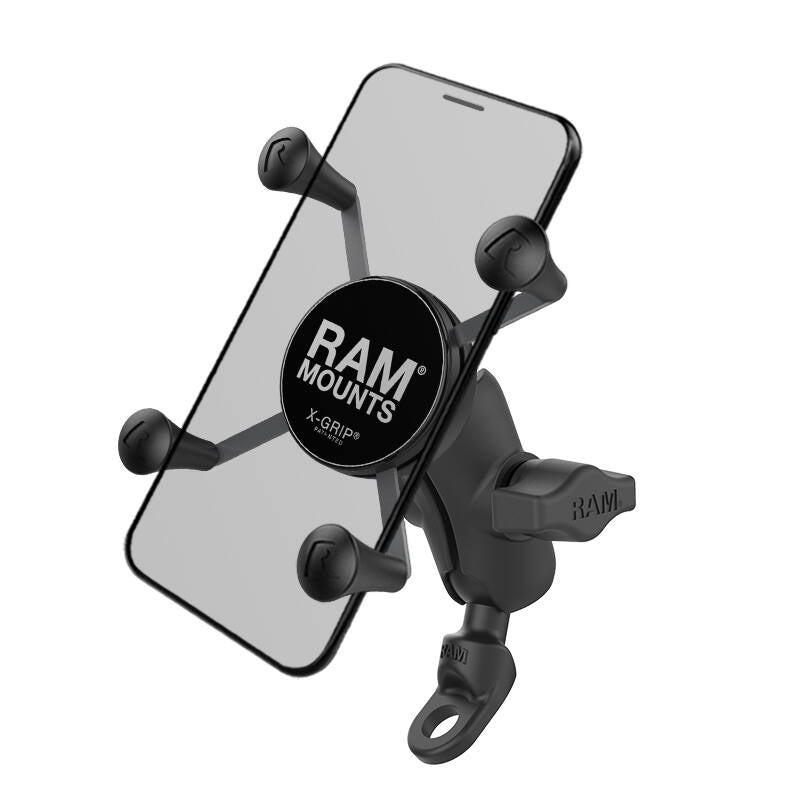

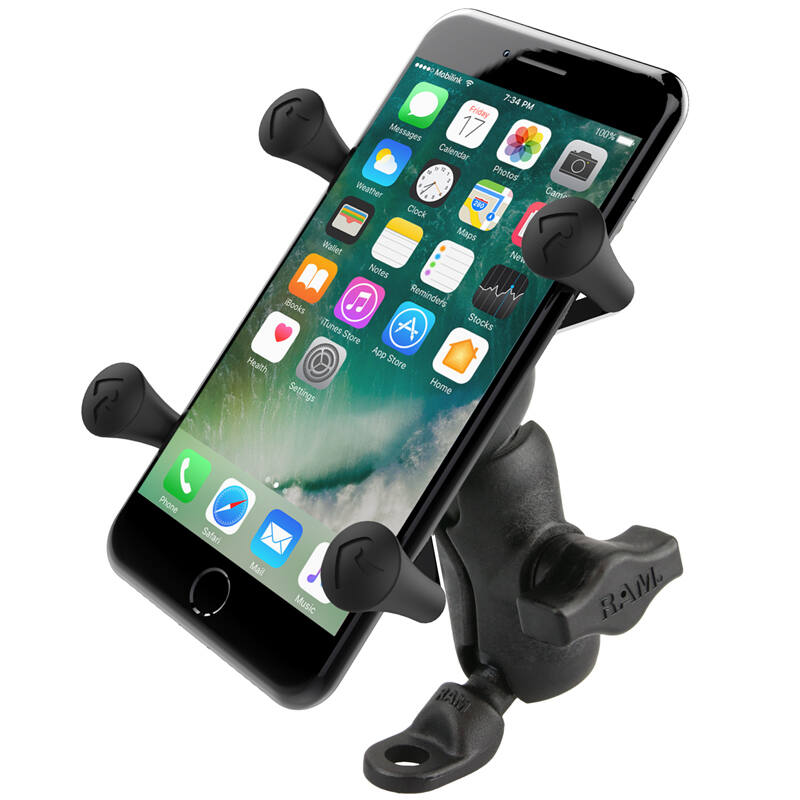

The RAP-B-272-A-UN7U pairs the RAM® X-Grip® universal phone cradle with a 9mm angled bolt-head base and a short composite double socket arm. The angled base mounts to anything with a 9mm bolt — most commonly a motorcycle mirror frame, with BMW being the typical fit — putting a 1" ball mounting point exactly where you need it.
Key Features
Spring-loaded 'X' design with rubber caps grips the phone firmly without covering the screen, camera, or buttons

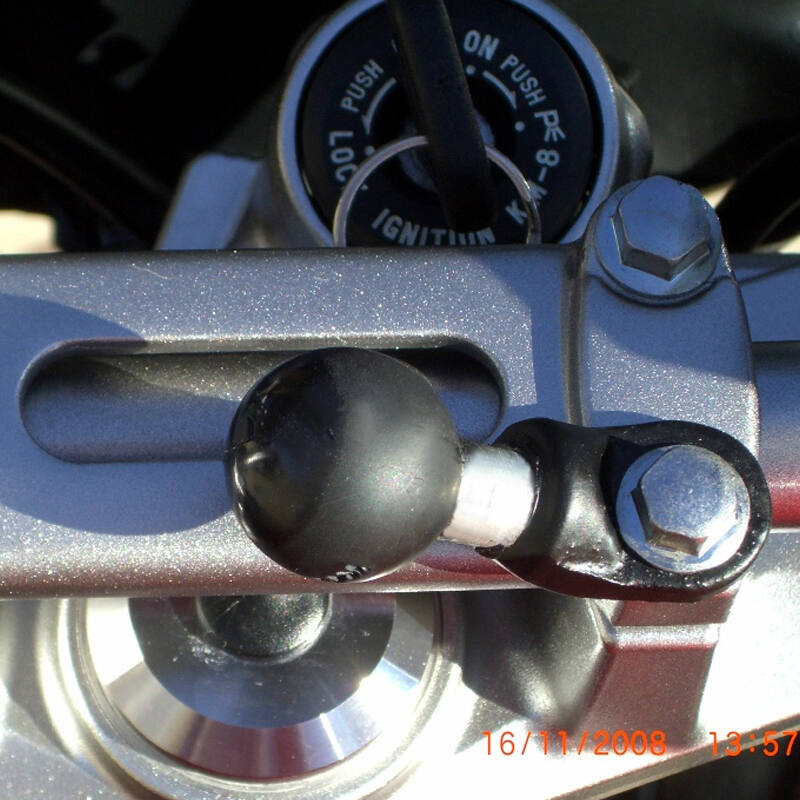

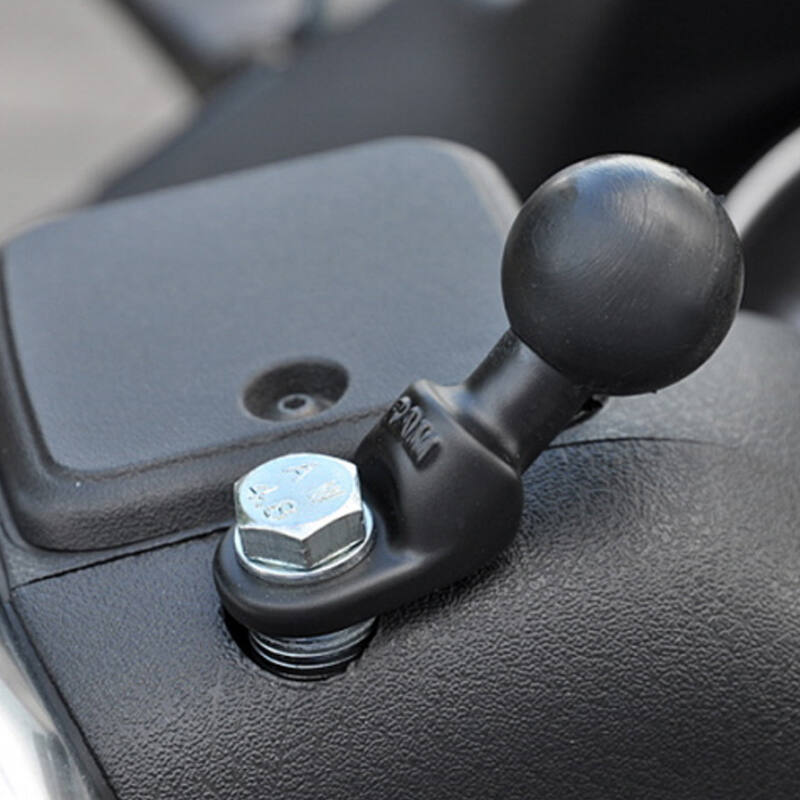

9mm angled bolt-head base connects to a 1" ball arm; popular for BMW motorcycle mirror-frame mounting
Short composite double socket arm; ball-and-socket design allows near-infinite positioning

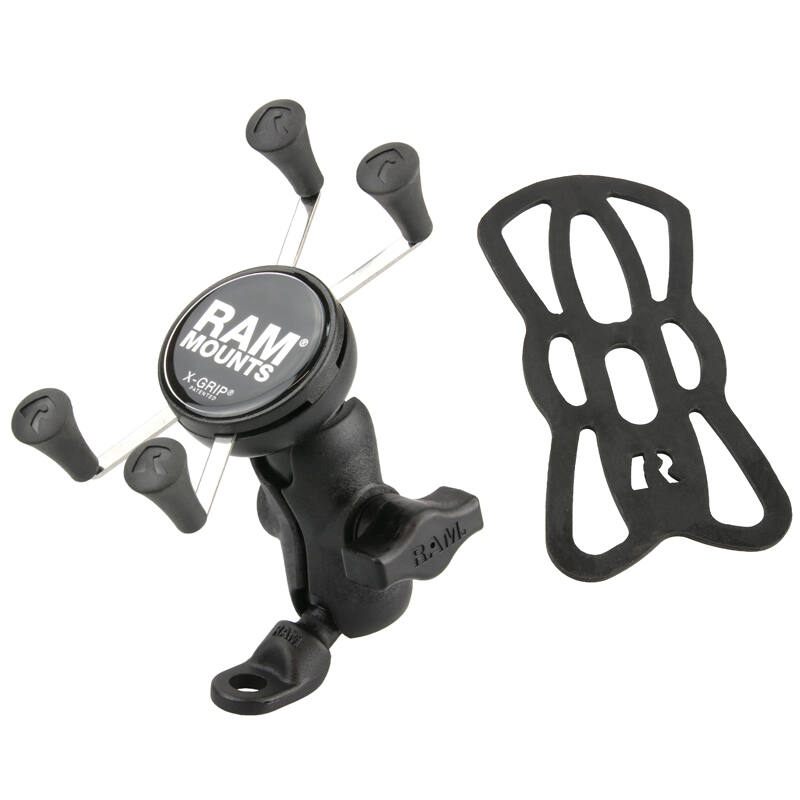

Includes an optional device tether for extra security during rugged use
Powder-coated marine-grade aluminium, stainless steel hardware, and high-strength composite; backed by a lifetime warranty
What's Included

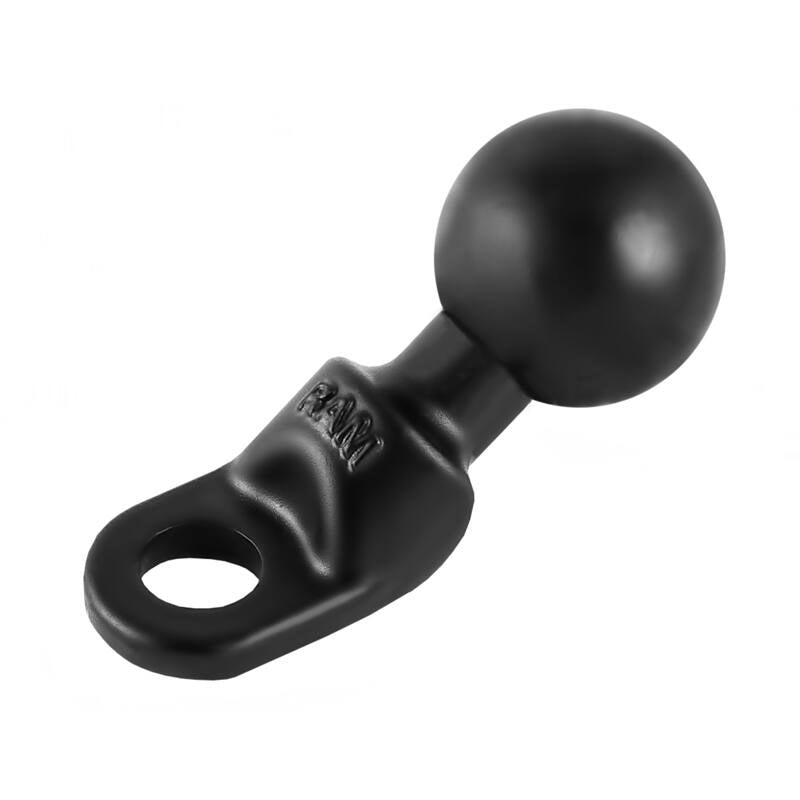

RAM-B-272U 9mm angled bolt-head base with 1" B-size ball

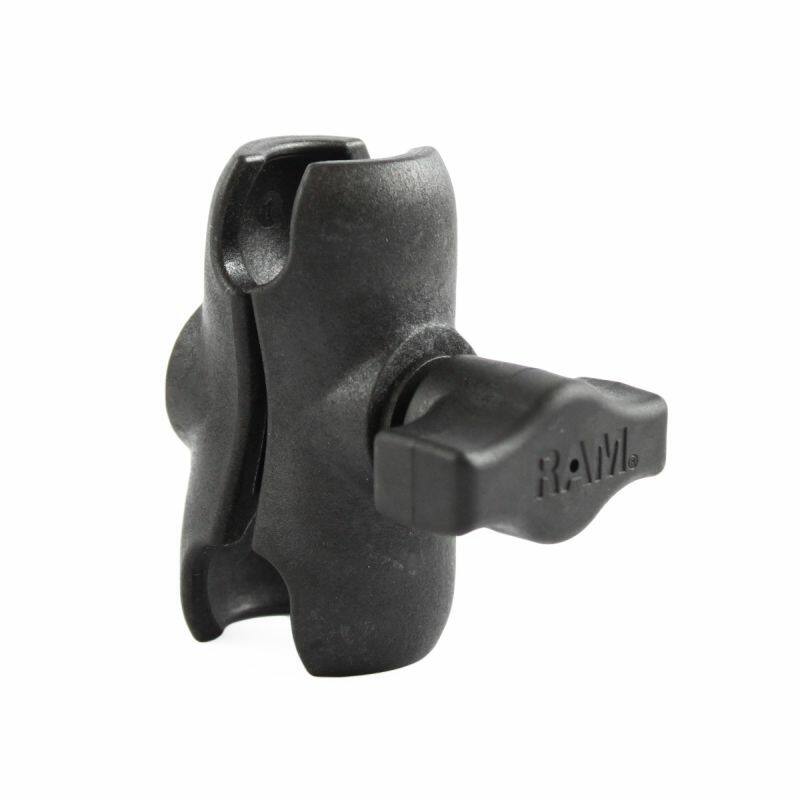

RAP-B-201U-A short composite double socket arm

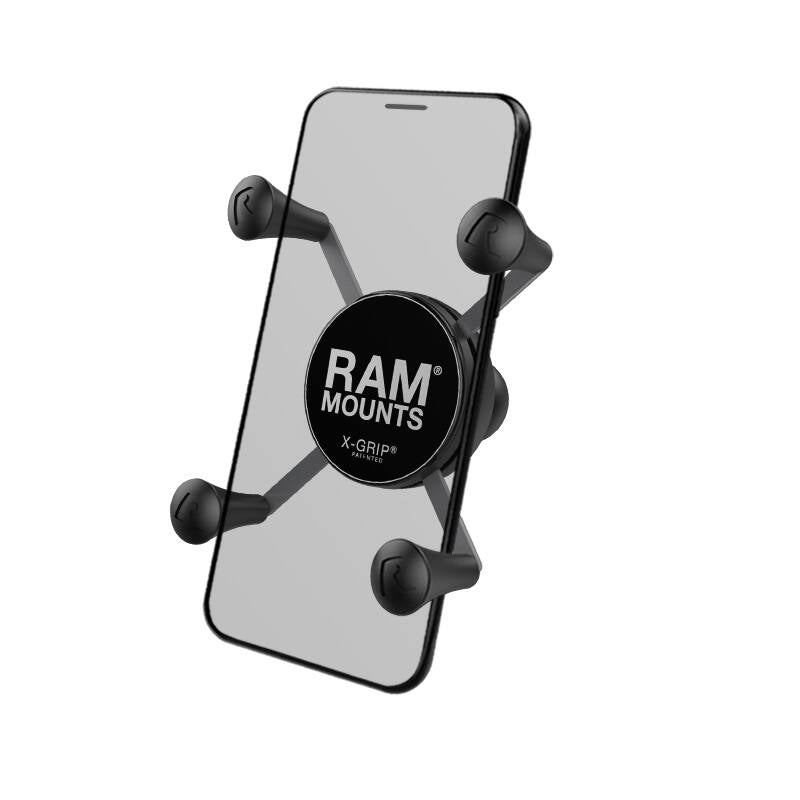

RAM-HOL-UN7BU X-Grip® universal phone cradle with device tether
Dimensions & Specifications
Base plate: 30mm x 19.05mm x 5mm (1.18" x 0.75" x 0.2"), with 9mm bolt hole
Arm overall length: 61.5mm (2.42"); socket-to-socket 44.5mm (1.75")
Cradle minimum device width 47.6mm (1.875"), which needs a minimum height of 108mm (4.25")
Cradle maximum device width 82.6mm (3.25"), which needs a minimum height of 57.2mm (2.25")
The X-Grip cradle fits hand-held devices within the width and thickness ranges above. Always measure your device with any case, sleeve, or skin fitted before ordering. For the full list of compatible models across 14 major brands, see our RAM-HOL-UN7BU cradle listing.
