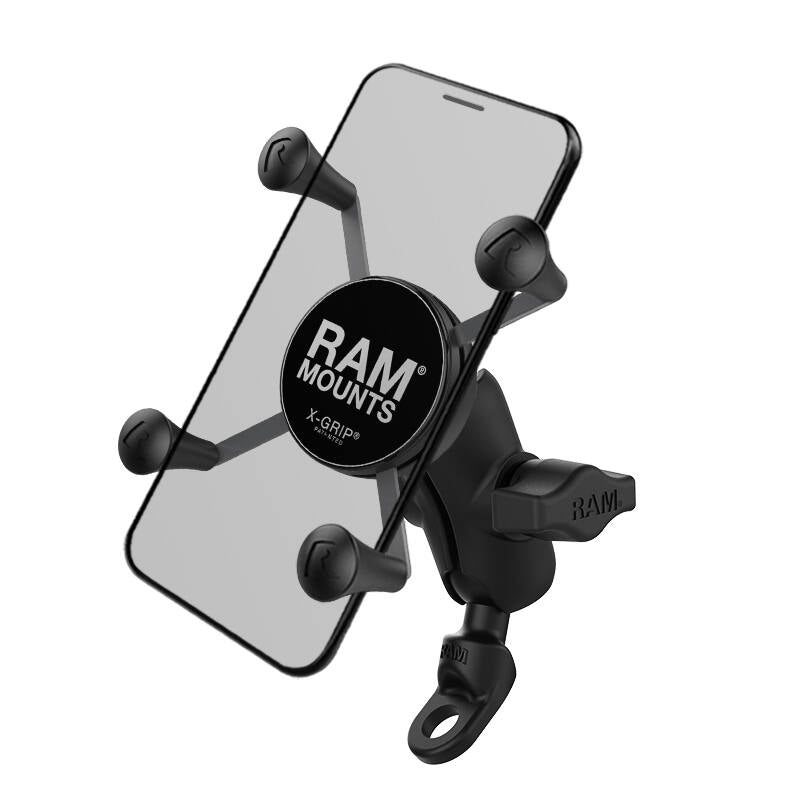

RAM-B-272-A-UN7 RAM® X-Grip® Phone Mount with 9mm Angled Bolt Head Adapter
Features
* Spring-loaded 'X' design with rubber caps sports great holding power without hiding your phone
* Includes optional device tether for peace of mind during rugged use
* Compatible with RAM® 9mm Angled Bolt Head Base for connection to any B size RAM® double socket arm
* RAM ball and socket technology allows for near-infinite adjustability
* Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
* Backed by a lifetime warranty

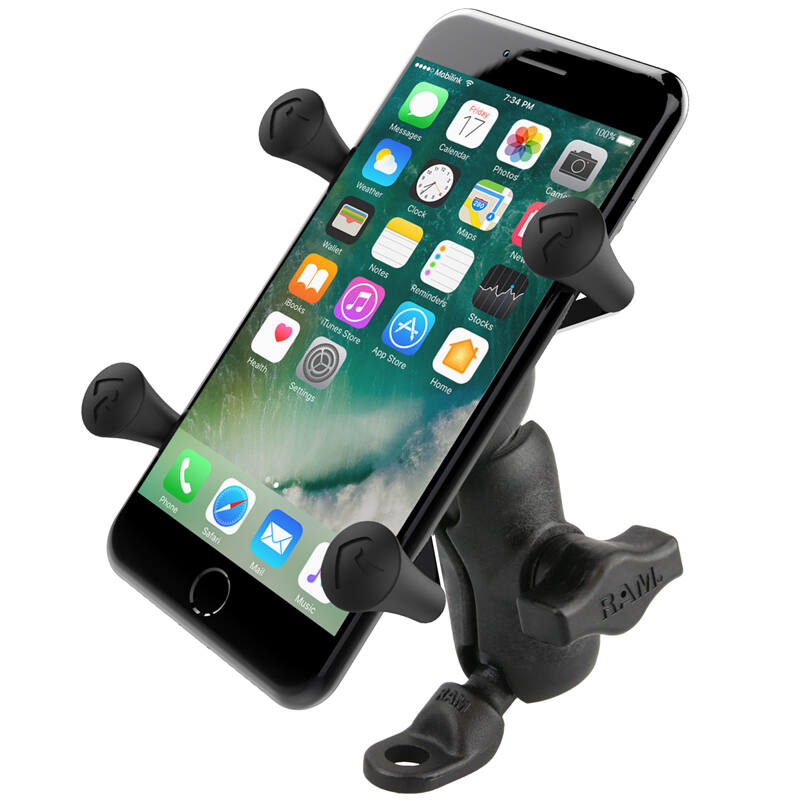

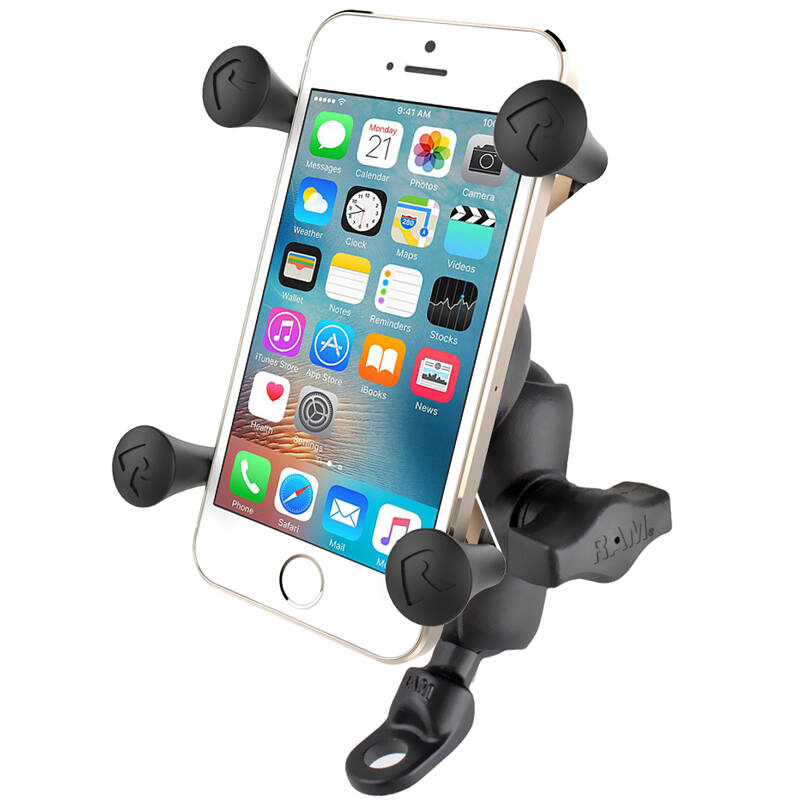

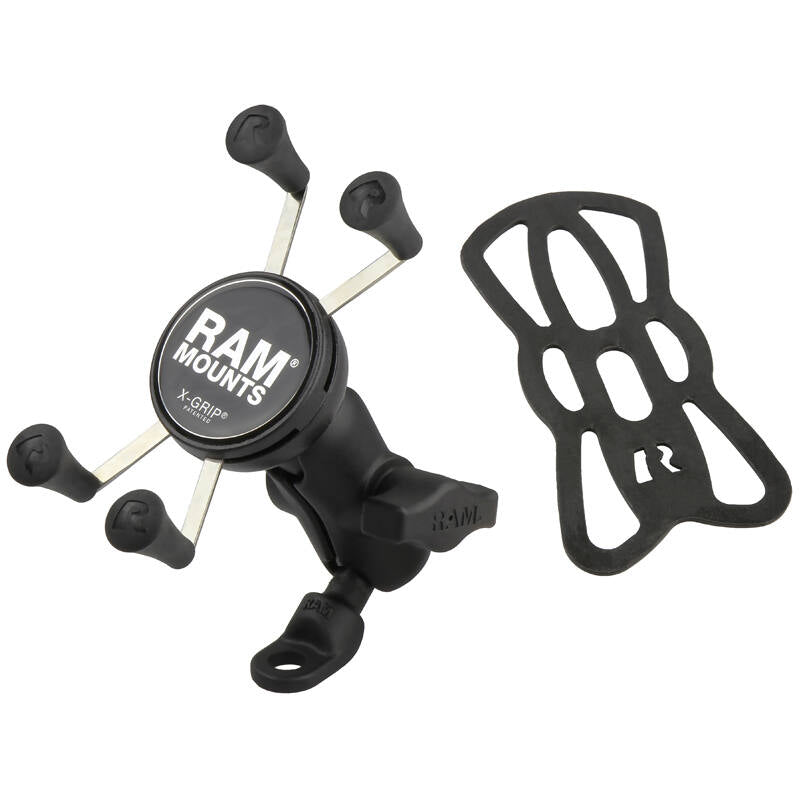

This phone mount consists of an angled base with 9mm hole, SHORT double socket arm and universal spring loaded X-Grip® cradle for cell phones.

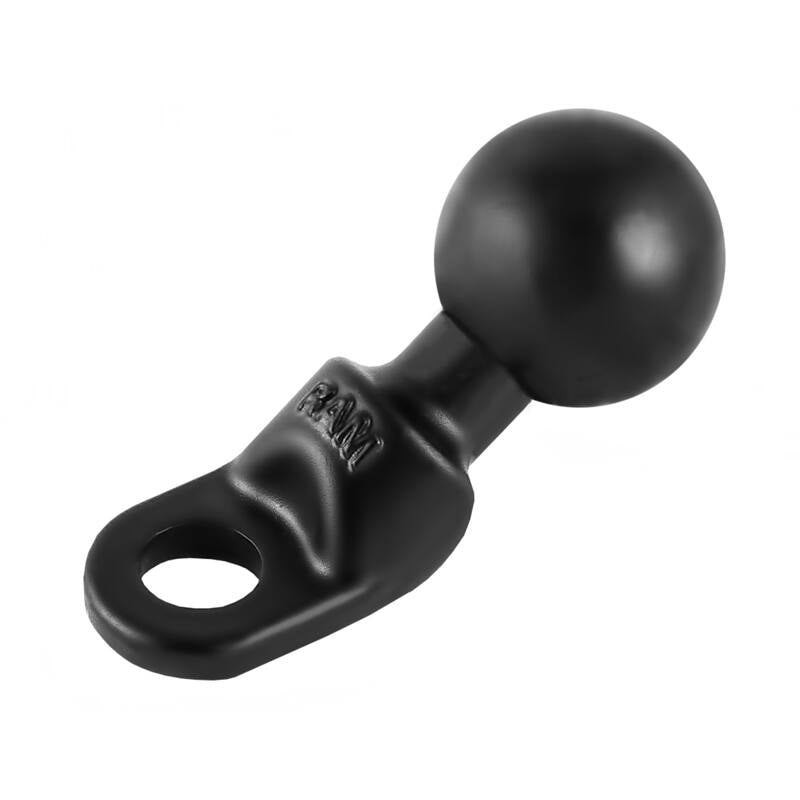

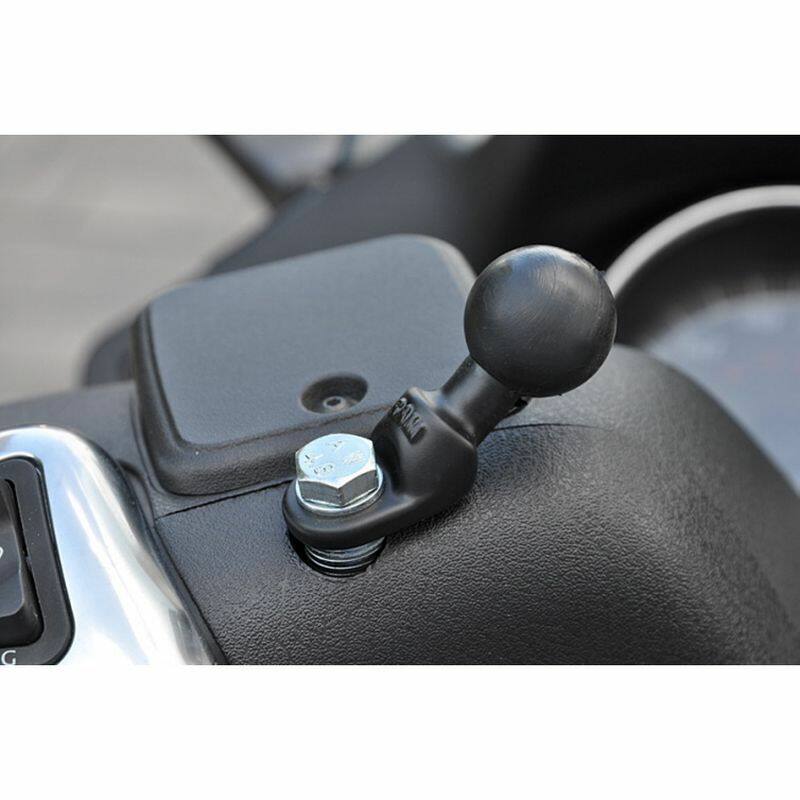

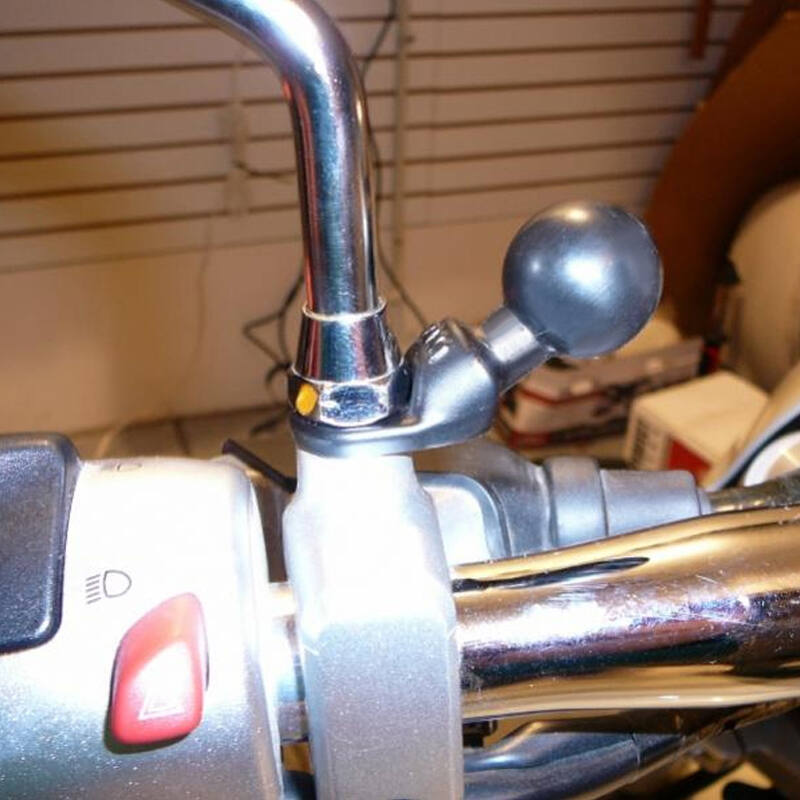

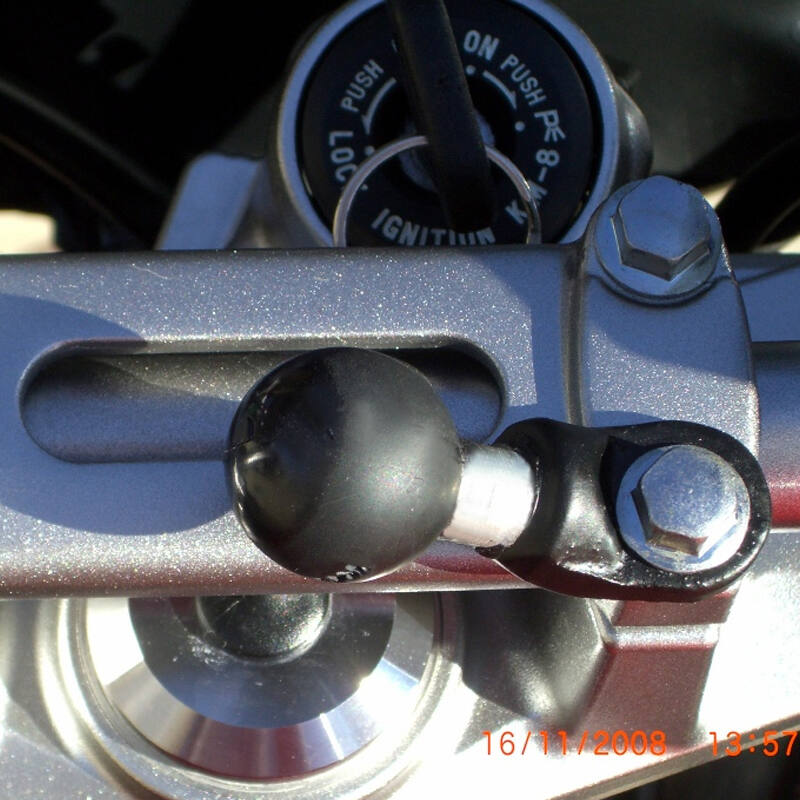

The angled base is often used on motorcycles, attaching to the mirror frame, the main brand of bike for this part is BMW. It consists of a 1" diameter ball and base with 9mm hole. This part is often used on motorcycles for attaching to the mirror post however it can be used to attach a mount to almost anything that uses a 9mm bolt.
The base plate measures 19.97mm x 19.05mm x 5mm (1.18" x .75" x .2").
The included short arm is 60mm overall length.

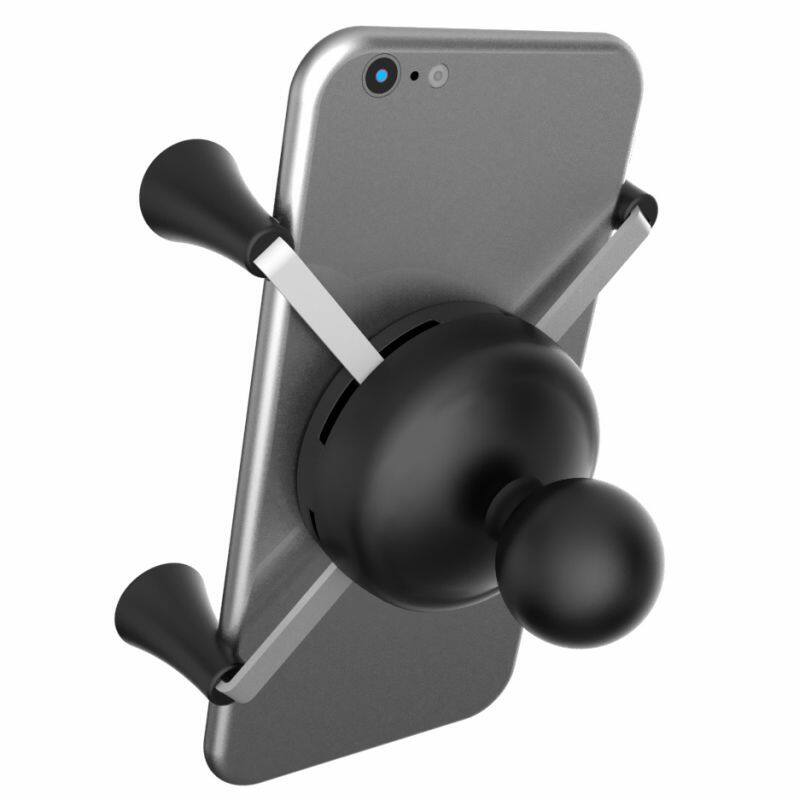

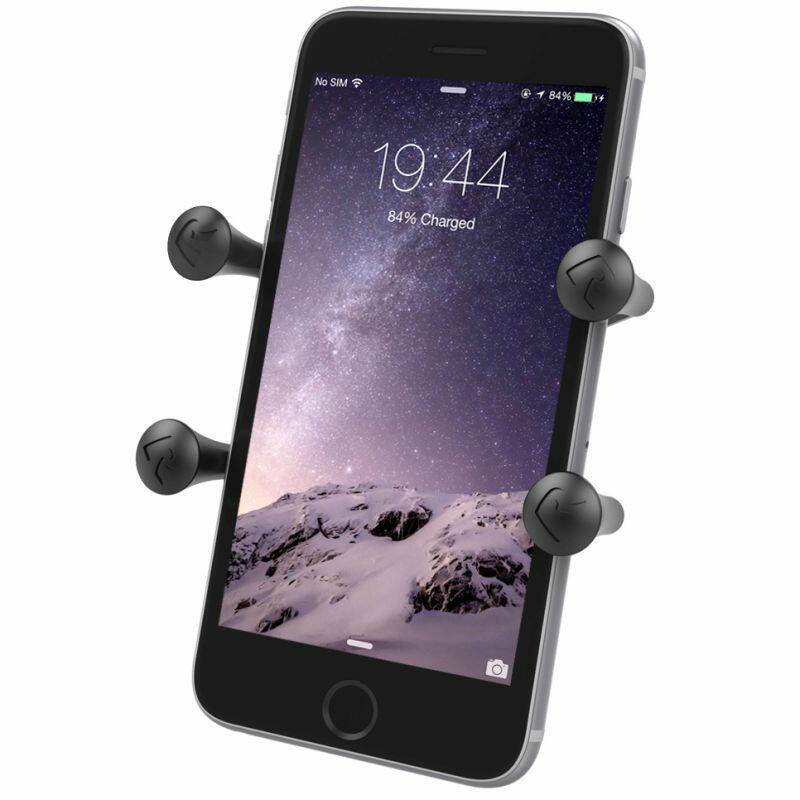

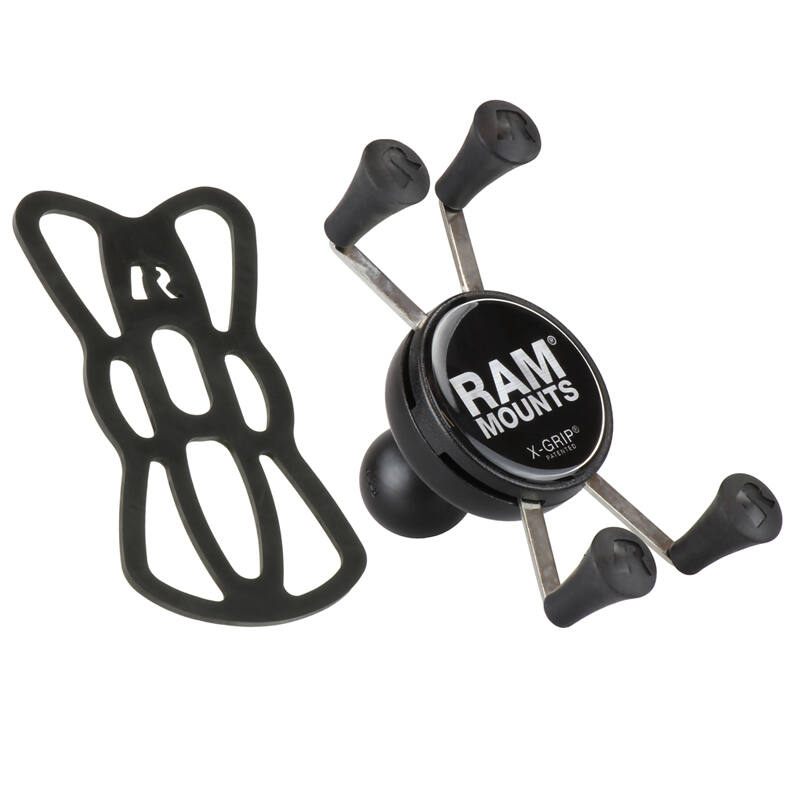

The included -UN7 X-Grip cradle has a clean and clever four leg design that sports great holding power without hiding your phone behind foam pads and plastic. The spring loaded X-Grip holder expands and contracts, allowing for a perfect custom fit of your cell phone, the RAM X-Grip is the cell phone holder evolved.

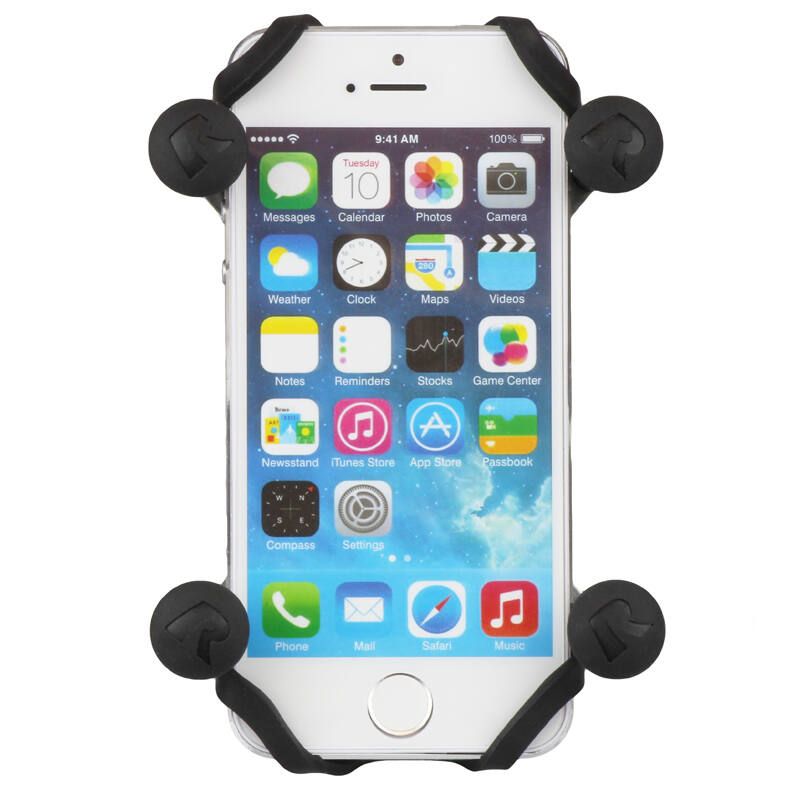

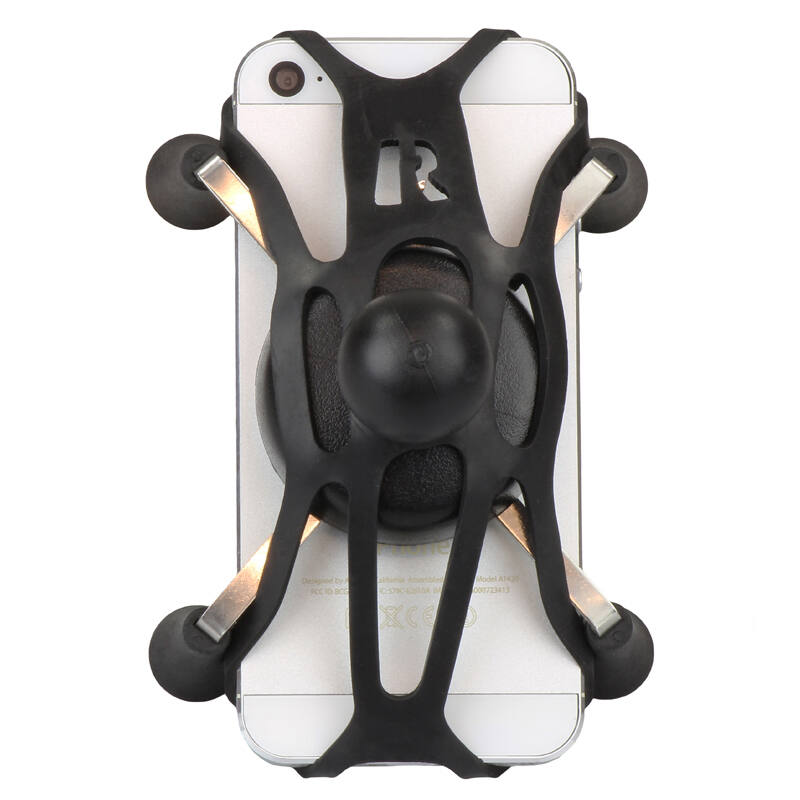

The X-Grip includes a device tether recommended for outdoor applications.
The cradle is compatible with hand-held devices that will fit the dimensions listed below. It is important to verify the dimensions of your hand-held device with a case/sleeve/skin when determining the overall size
Cradle Dimensions
Min Width = 47.6mm (1.875”) – (if min width then the min height = 108mm / 4.25")
Max Width = 82.6mm (3.25") – (if max width then the min height = 57.2mm / 2.25")
Max Thickness = 22.2mm (0.875")
Compatible Devices
For a list of many of the compatible devices for this cradle go to our listing for the RAM-HOL-UN7BU
Arm Dimensions:
Overall Length:
60.5mm (2.38")
Socket-To-Socket Length:
51mm (2")
Components
RAM-B-272U MOTORCYCLE BASE 9mm Hole
RAM-HOL-UN7BU X-GRIP UNIVERSAL HOLDER
RAM-B-201U-A SHORT DOUBLE SOCKET ARM
