RAM Mounts

RAM X-Grip Universal SmartPhone Cradle - Brake/Clutch Clamp / U-Bolt (short)

RAM X-Grip Universal SmartPhone Cradle - Brake/Clutch Clamp / U-Bolt (short)

SKU:RAM-B-174-A-UN7U-v

Regular price $158.03 NZD
Regular price Sale price $158.03 NZD
Sale Sold out
Tax included. Shipping calculated at checkout.
View full details

RAM-B-174-A-UN7 RAM® X-Grip® Phone Mount with Brake/Clutch Reservoir Base - Short

Features

* Spring-loaded 'X' design for phones with rubber caps sports great holding power without hiding your phone

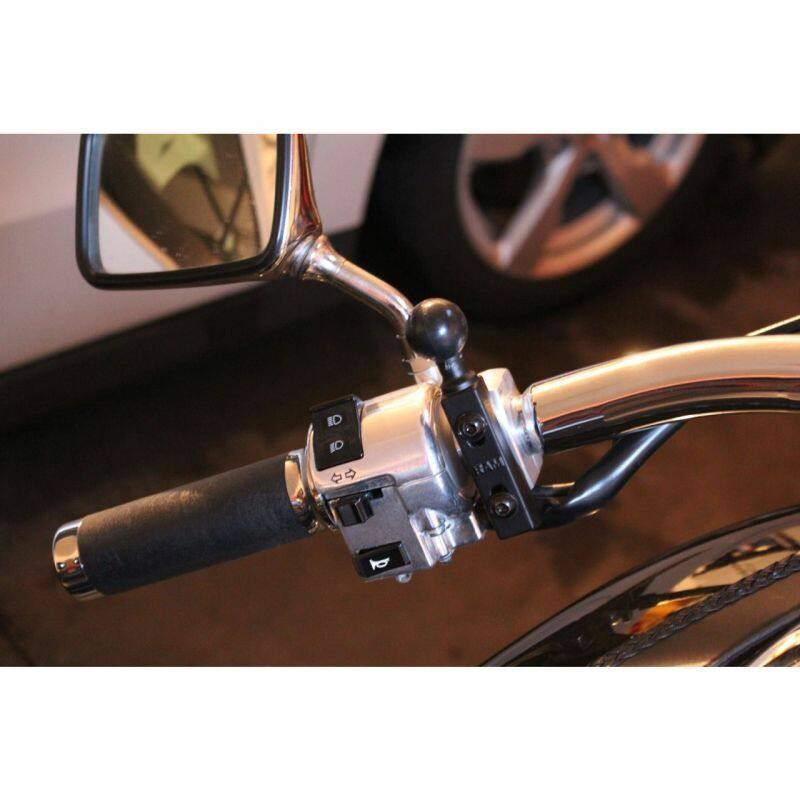

* Base allows for mounting to either brake reservoir or handlebars 12.7 to 31.75mm in diameter
* RAM short double socket arm with ball and socket technology allows for ideal positioning of the cradle
* Made of powder-coated, marine-grade aluminium, stainless steel components, and high-strength composite for durability and reliability in the most demanding environments
* Includes a device tether recommended for outdoor applications.
* Backed by a lifetime warranty

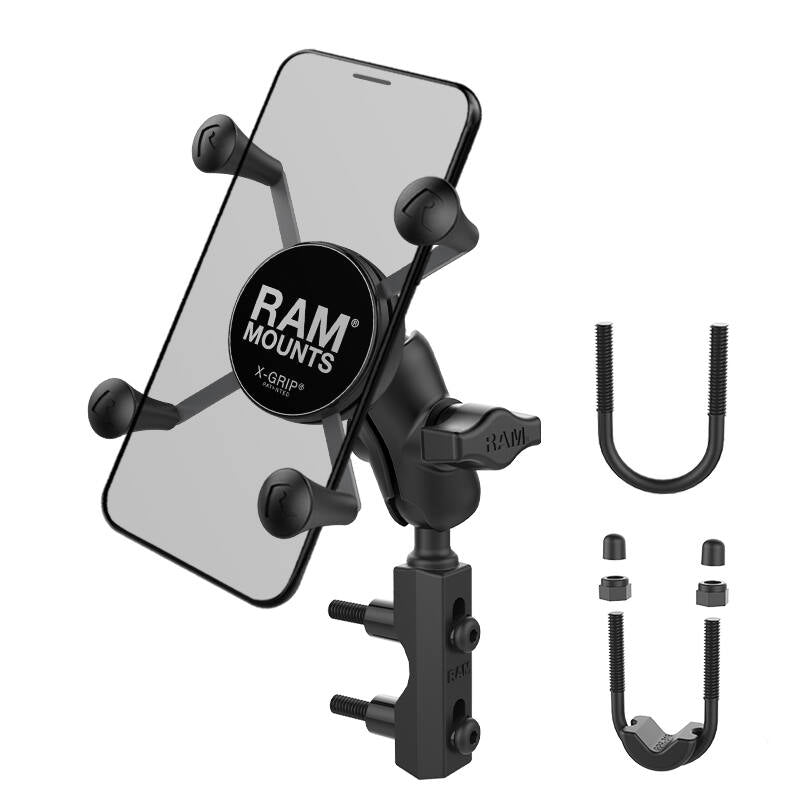

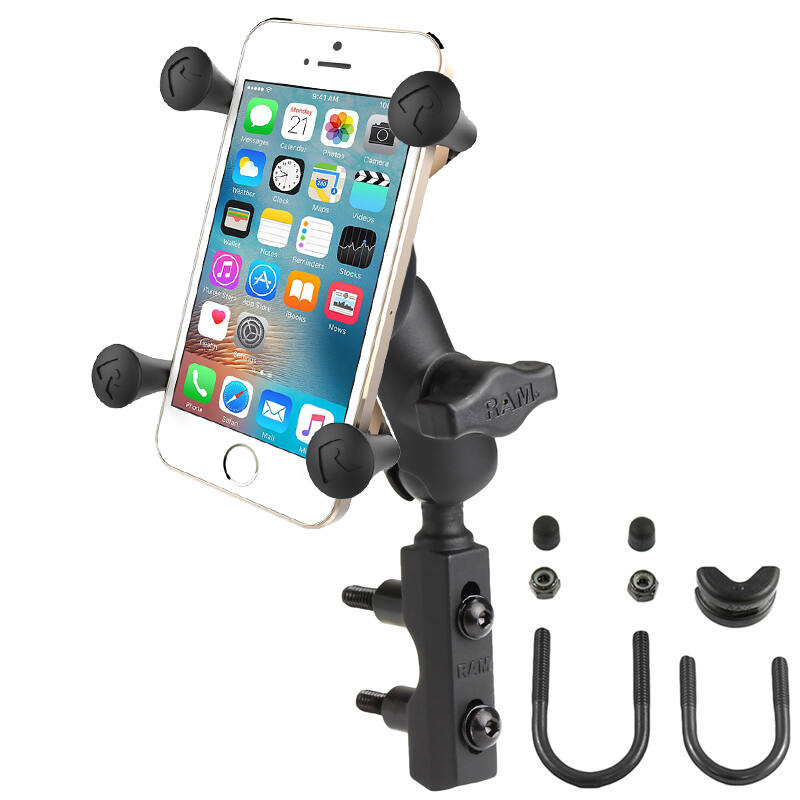

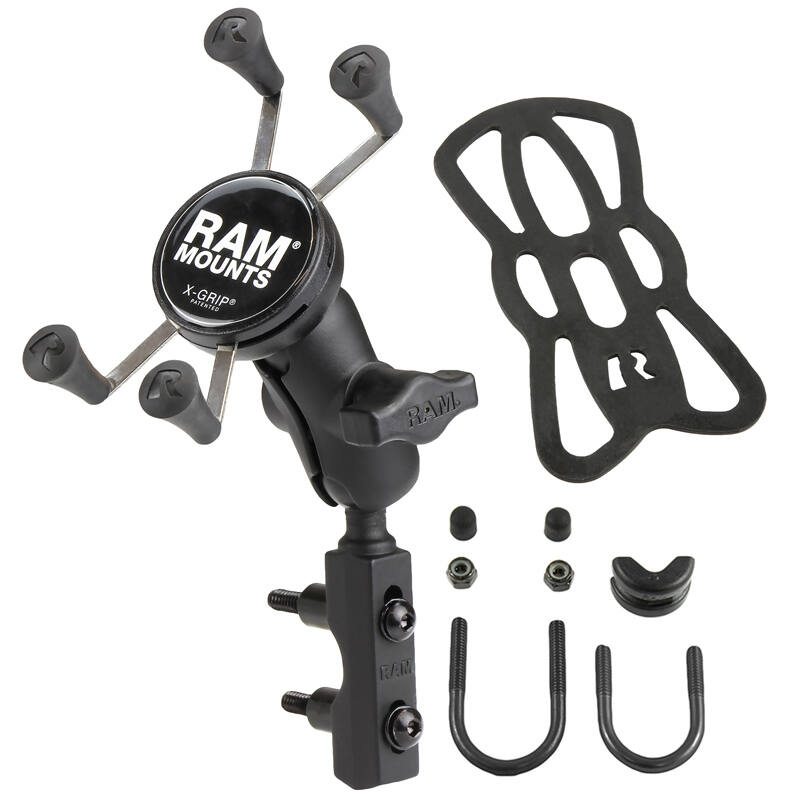

The RAM-B-174-A-UN7 consists of hardware for mounting to either brake/clutch reservoirs or handlebars / rails, short length double socket arm and universal X-Grip® cell phone cradle. Designed into the mount is a 1" diameter patented rubber ball and socket system with adjustment points at both ends of the socket arm; this with a twist of the arm knob, allows you to move the X-Grip® mount to your optimum viewing position.

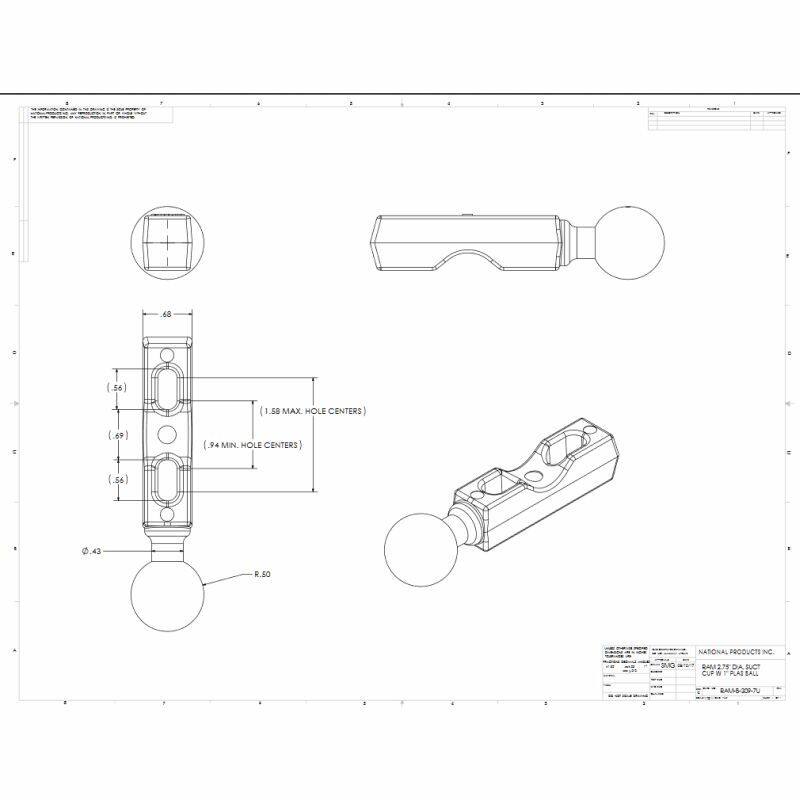

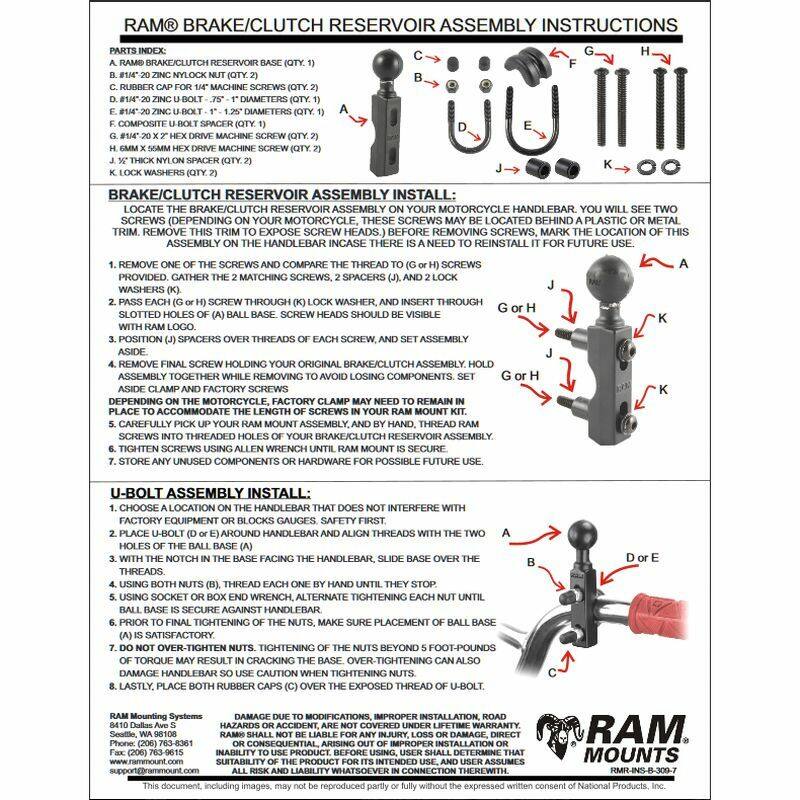

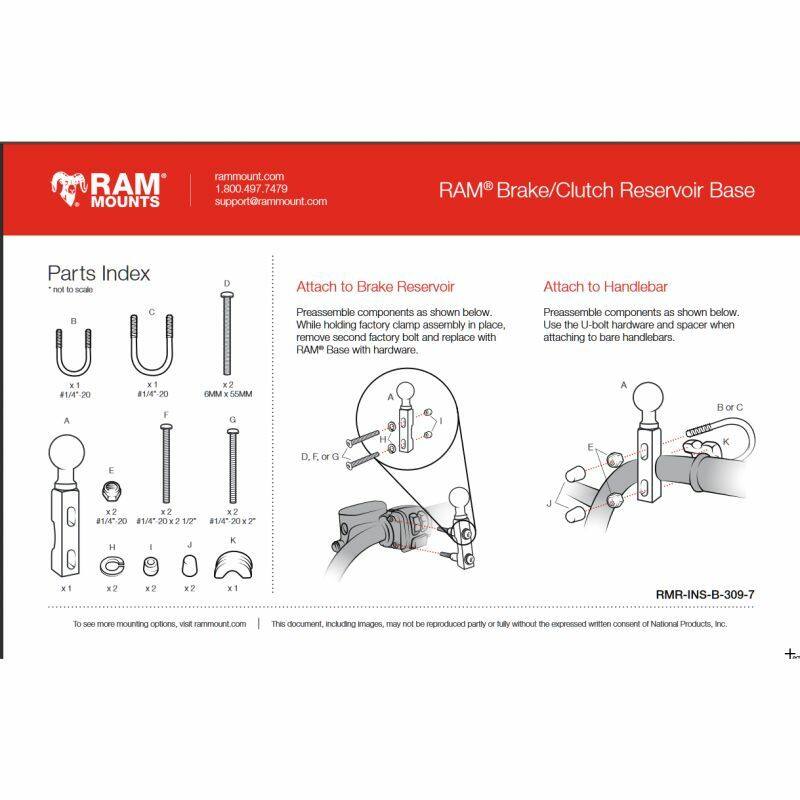

The mounting hardware includes both standard and metric mounting bolts. To see if the base will mount to your motorcycle, check the hole spacing of the base against your clutch/brake reservoir. The hole centres have a min width of 23.9 to 40.1mm (0.94" to 1.58")


The included U-Bolt option allows for direct connection to rails that are 12.7 to 31.75mm diameter.


The X-Grip cradle has a clean and clever four leg design that sports great holding power without hiding your phone behind foam pads and plastic. The spring loaded X-Grip holder expands and contracts, allowing for a perfect custom fit of your cell phone and includes a device tether recommended for outdoor applications.


The cradle is compatible with hand-held devices that will fit the dimensions listed below. Check the dimensions of your hand-held device with a case/sleeve/skin when determining the overall size


Cradle Dimensions
Min Width = 47.6mm (1.875”) – (if min width then the min height = 108mm / 4.25")
Max Width = 82.6mm (3.25") – (if max width then the min height = 57.2mm / 2.25")
Max Thickness = 22.2mm (0.875")


Compatible Devices
For a list of many of the compatible devices for this cradle go to our listing for the RAM-HOL-UN7BU


Arm Dimensions:
Overall Length:
60.5mm (2.38")
Socket-To-Socket Length:
51mm (2")


U-Bolt Base
12.7 to 31.75mm (0.5" to 1.25") in diameter

Weight:
399 grams (0.88 lbs.)


Components:

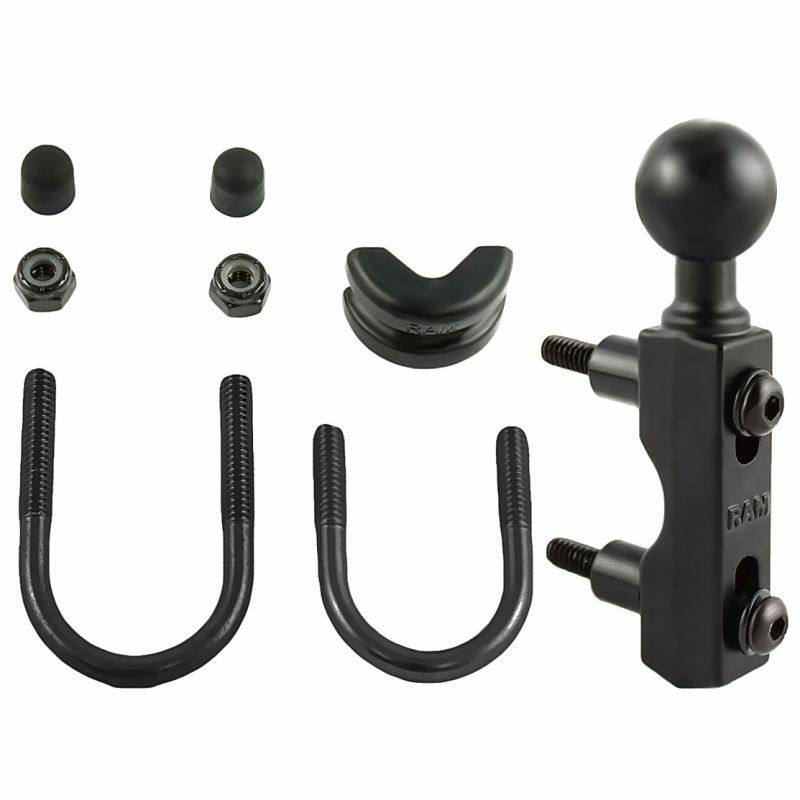

RAM-B-309-7U Combination Brake/Clutch Clamp / U-Bolt Mount
RAM-B-201U-A SHORT DOUBLE SOCKET ARM

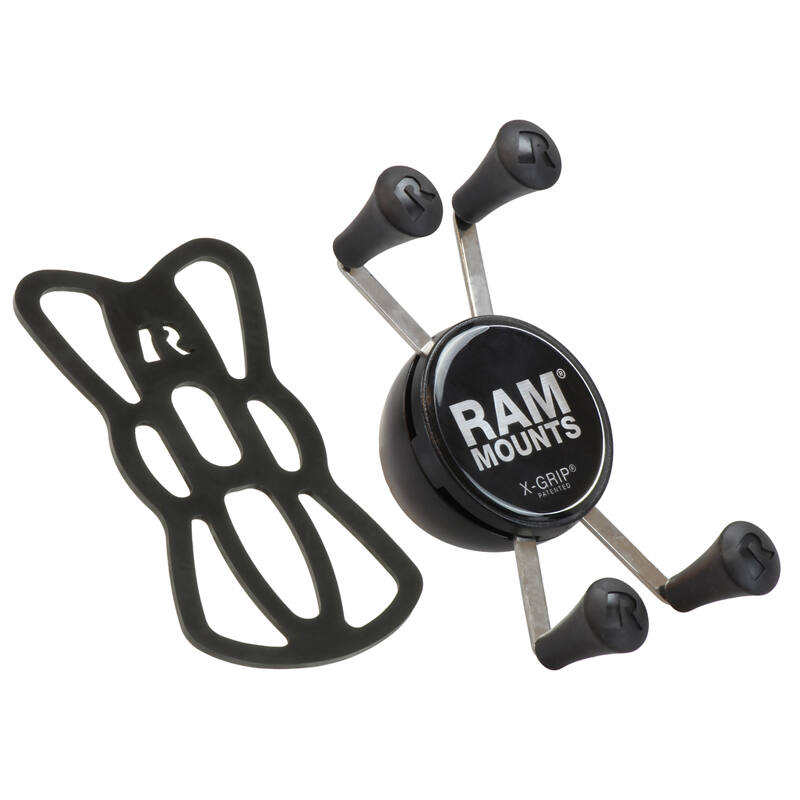

RAM-HOL-UN7BU X-GRIP UNIVERSAL HOLDER

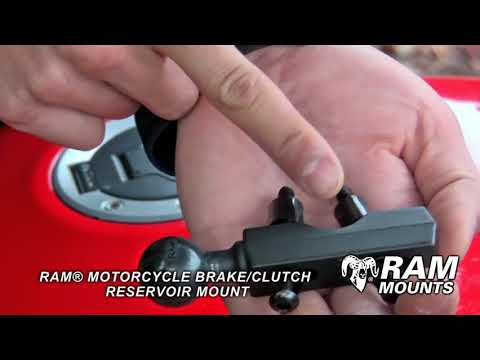

YouTube:
