RAM Mounts

RAM X-Grip Universal SmartPhone Cradle - Brake / Clutch Reservoir Base

RAM X-Grip Universal SmartPhone Cradle - Brake / Clutch Reservoir Base

SKU:RAM-B-309-1-UN7U-v

Regular price $131.10 NZD
Regular price Sale price $131.10 NZD
Sale Sold out
Tax included. Shipping calculated at checkout.
View full details

RAM-B-309-1-UN7U RAM® X-Grip® Phone Holder with Brake/Clutch reservoir Base


Features

* Spring-loaded 'X' design with rubber caps sports great holding power without hiding your phone
* Includes optional device tether for peace of mind during rugged use
* The base connects to your handlebar clutch/brake clamp, either left or right hand side
* B size RAM® double socket arm with ball and socket technology allows for near-infinite adjustability
* Made of powder-coated, marine-grade aluminium, stainless steel components, and high-strength composite for durability and reliability in the most demanding environments
* Backed by a lifetime warranty

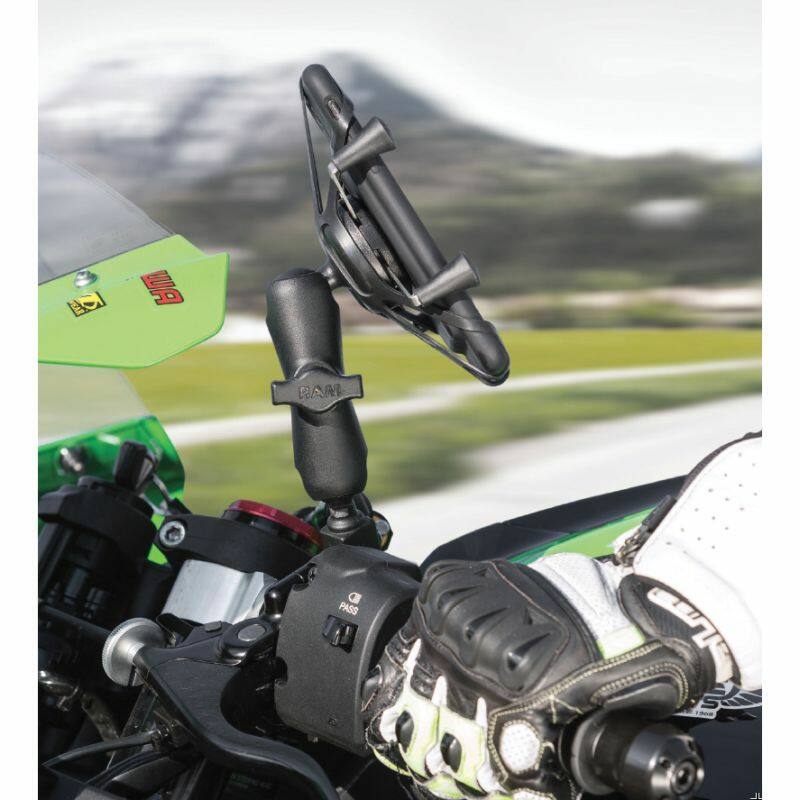

We’ve paired a brake/clutch reservoir mount and the dynamic RAM® X-Grip® for phones.

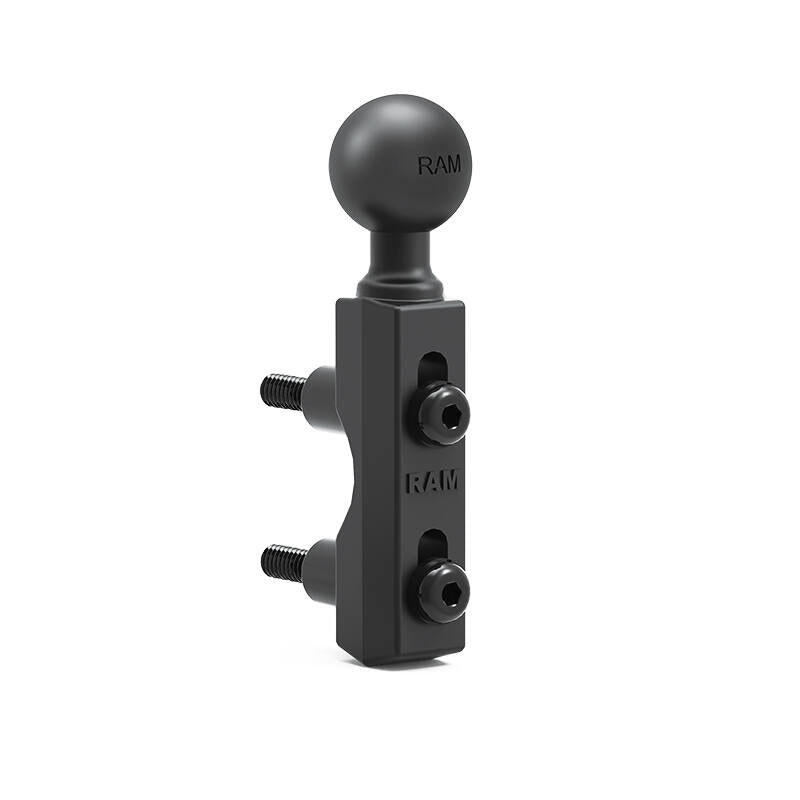

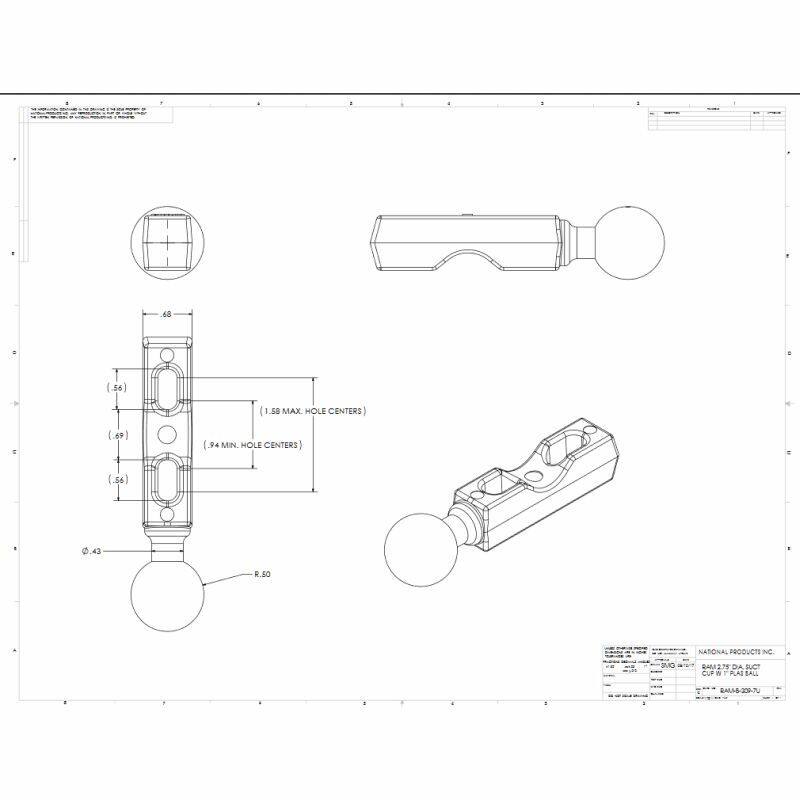

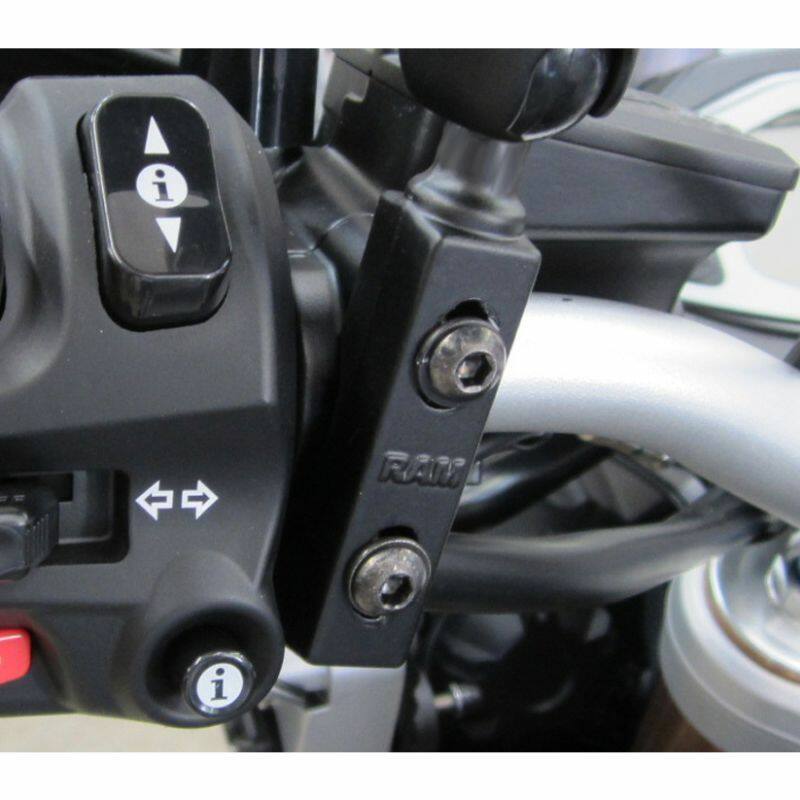

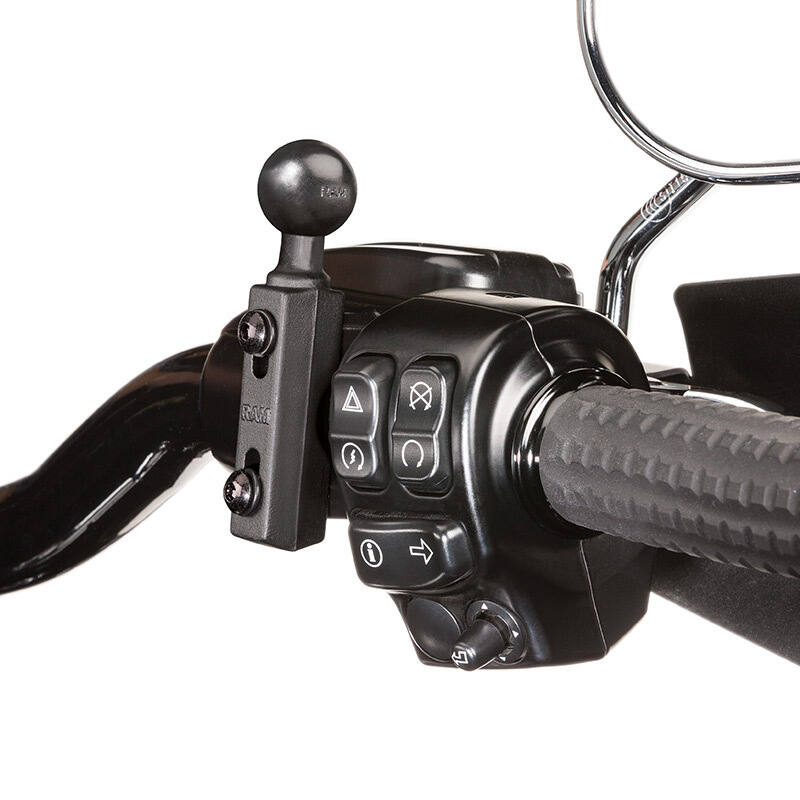

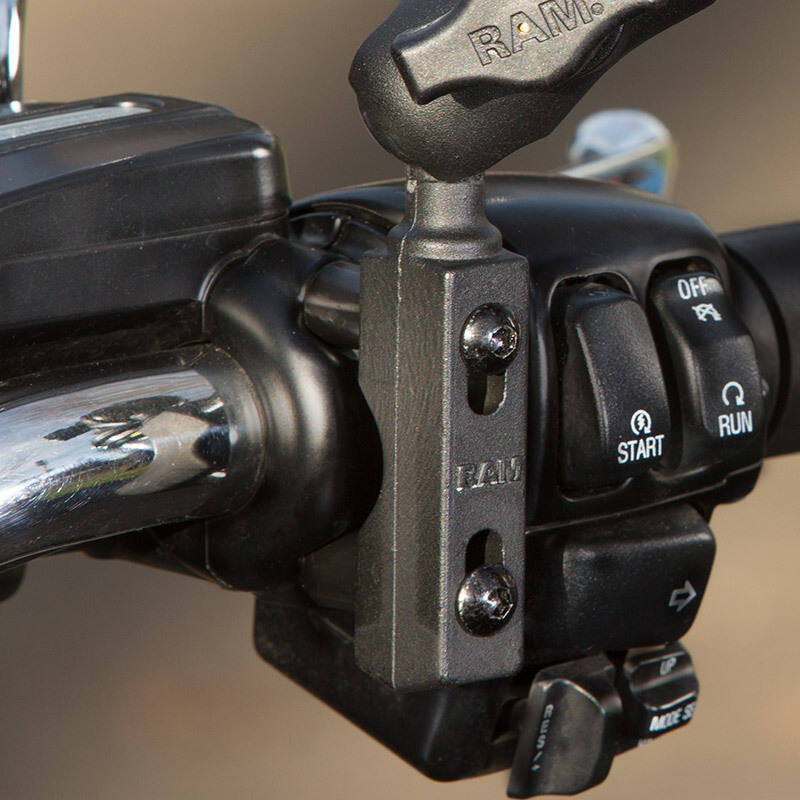

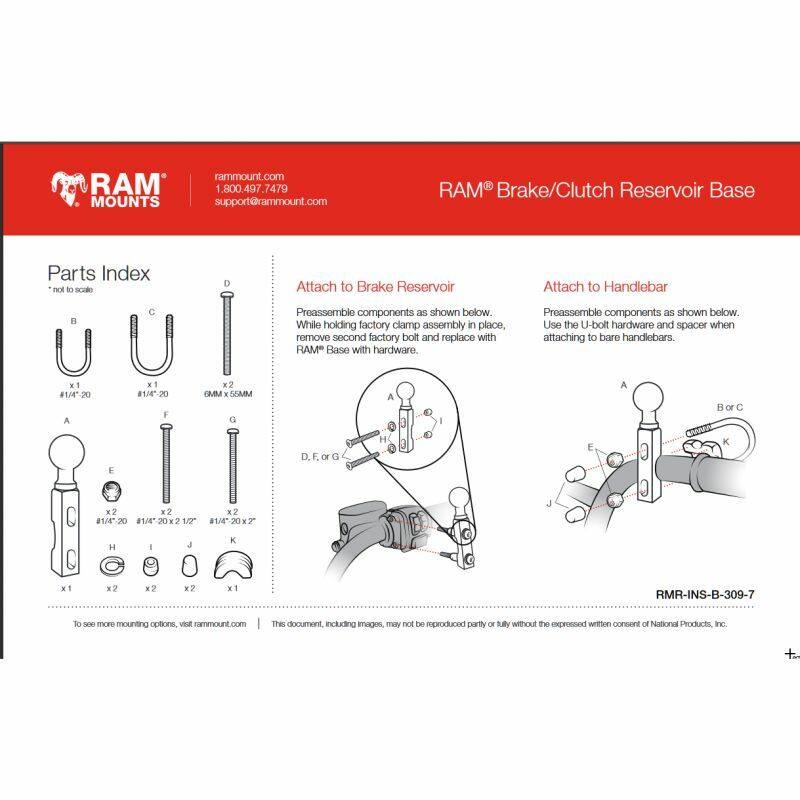

The RAM-B-309-1U base connects to your handlebar clutch/brake clamp, either left or right hand side, and has 1" diameter mounting balls. The base fits the control clamps on your motorcycle with 40mm x 6mm stainless steel hardware, provided in the kit. To see if this base will mount to your motorcycle, check the hole spacing of the base against your clutch/brake reservoir. The holes centres have a minimum width of 24mm (0.94") and a maximum of 40mm (1.58").

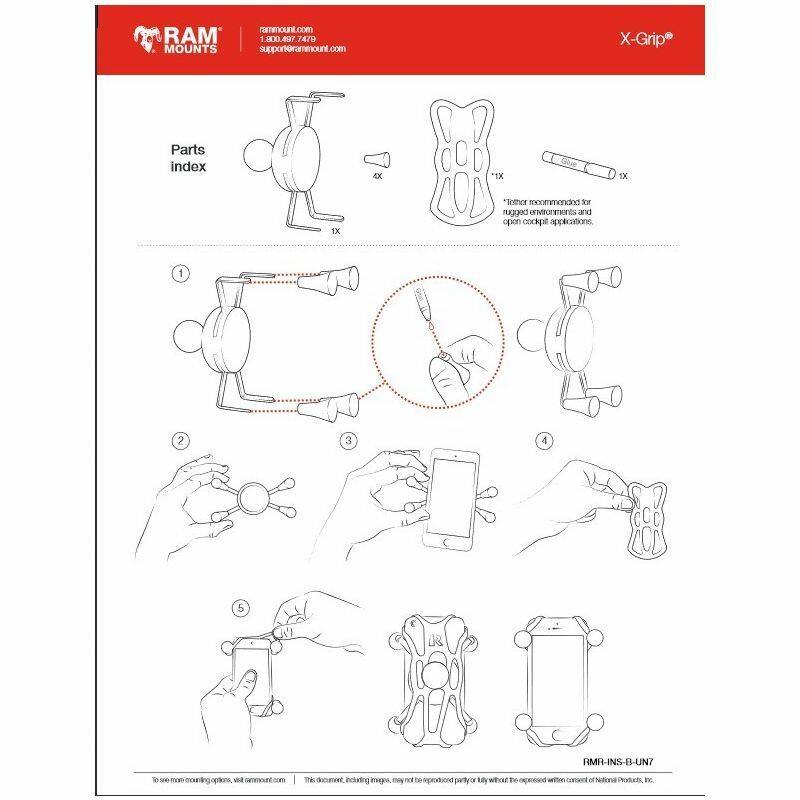

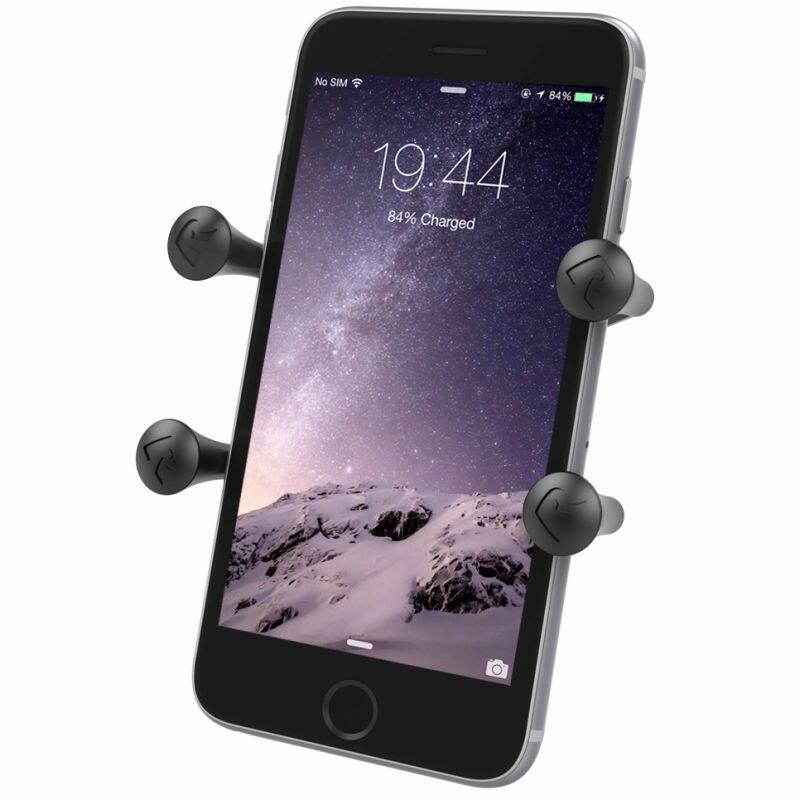

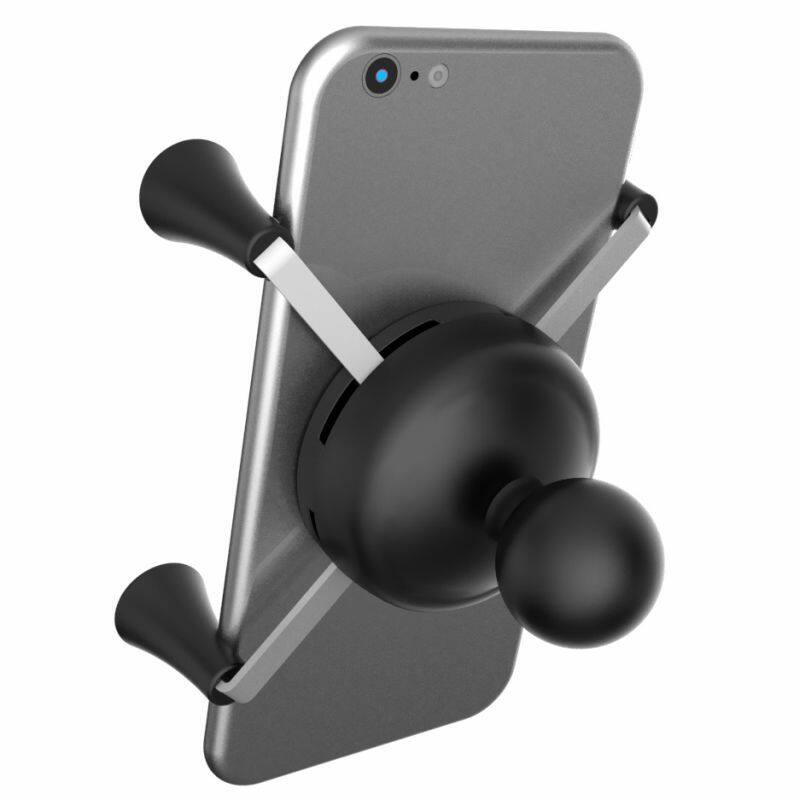

The included X-Grip cradle has a clean and clever four leg design that sports great holding power without hiding your phone behind foam pads and plastic. The spring loaded X-Grip holder expands and contracts, allowing for a perfect custom fit of your cell phone, the RAM X-Grip is the cell phone holder evolved.

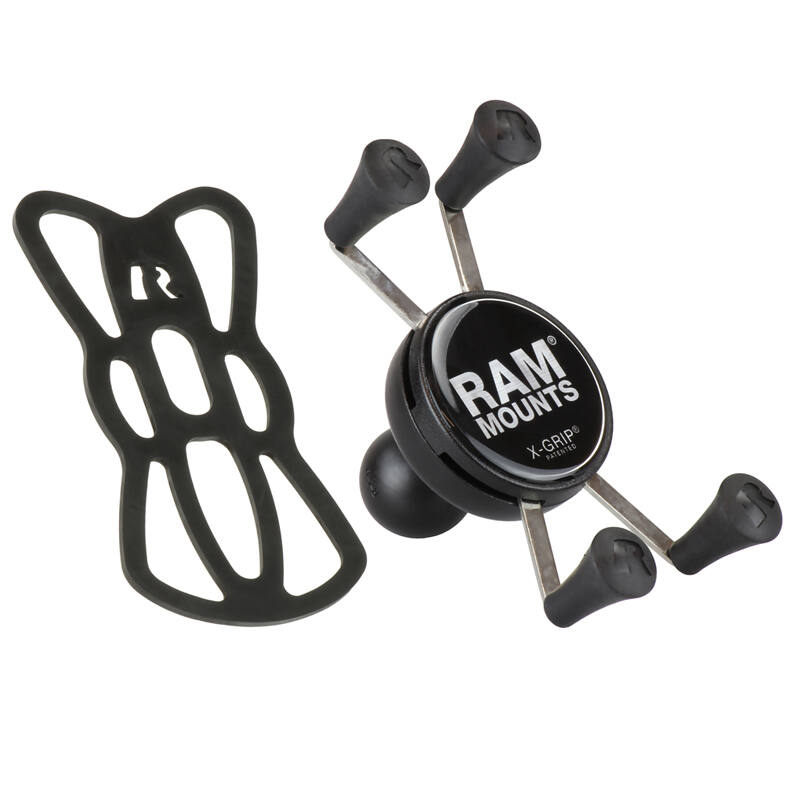

The X-Grip includes a device tether recommended for outdoor applications.


The cradle is compatible with hand-held devices that will fit the dimensions listed below. It is important to verify the dimensions of your hand-held device with a case/sleeve/skin when determining the overall size

Cradle Dimensions
Min Width = 47.6mm / 1.875” – (if min width then the min height = 108mm / 4.25")
Max Width = 82.6mm / 3.25" – (if max width then the min height = 57.2mm / 2.25")
Max Thickness = 22.2mm / 0.875"


Compatible Devices
For a list of many of the compatible devices for this cradle go to our listing for the RAM-HOL-UN7BU

Arm dimensions:
Overall:
94mm (3.69")
Socket-To-Socket:
76mm (3")


Ball Size:
1" Rubber Ball "B" Size


Weight:
267 grams (0.59 lbs.)

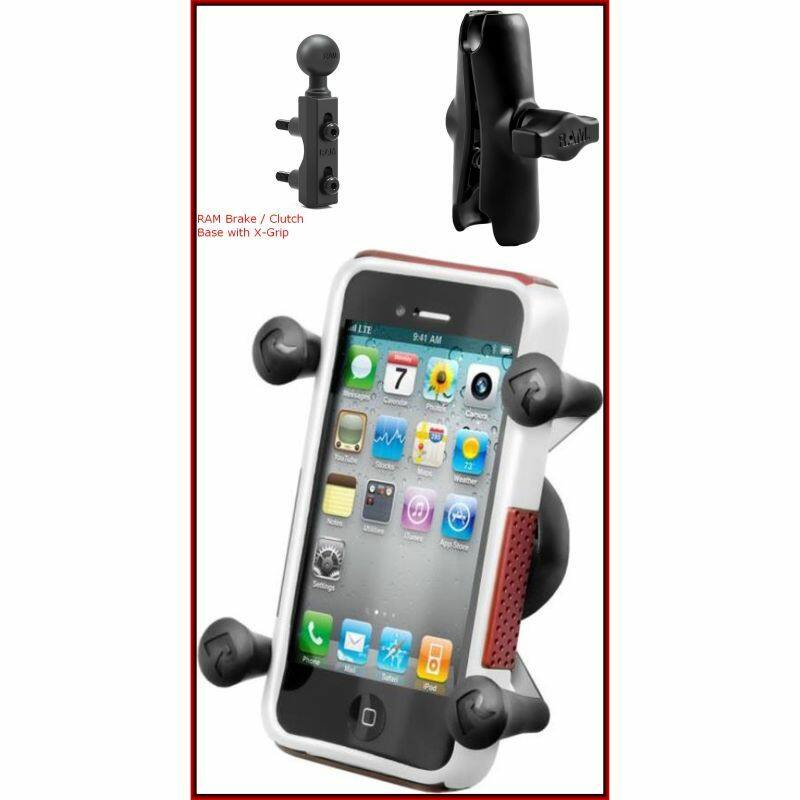

Components:
RAM-B-309-1U - Brake/Clutch Reservoir mount
RAM-HOL-UN7BU - X-Grip® Cell/iPhone Cradle
RAM-B-201U - Double Socket Arm for B Size 1" Balls
