RAM X-Grip Universal Smartphone Cradle - Diamond base and Medium arm

RAM-B-102-UN7U – RAM® X-Grip® Phone Mount with Diamond Base

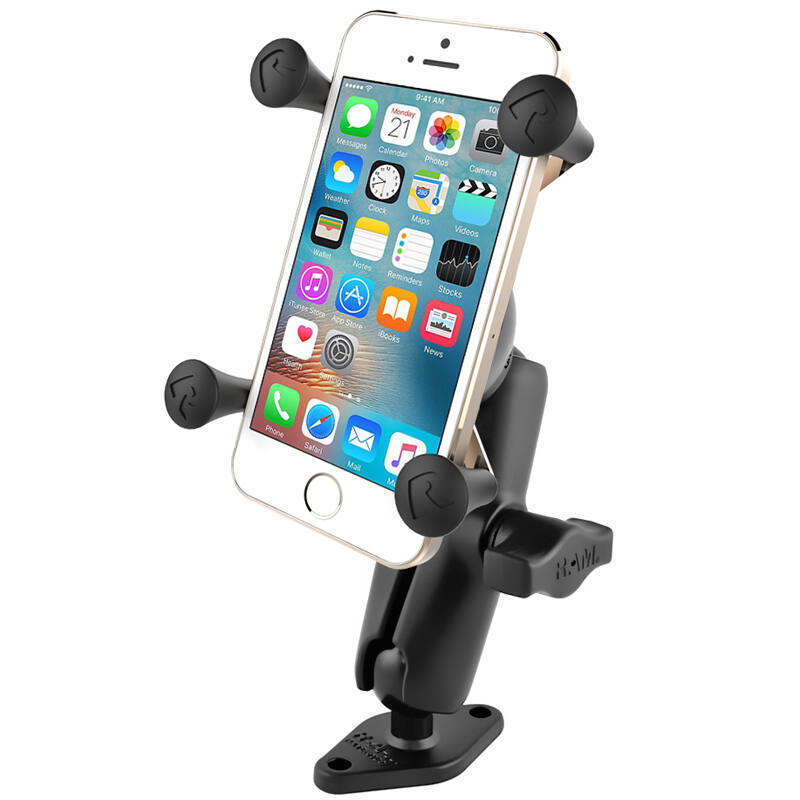

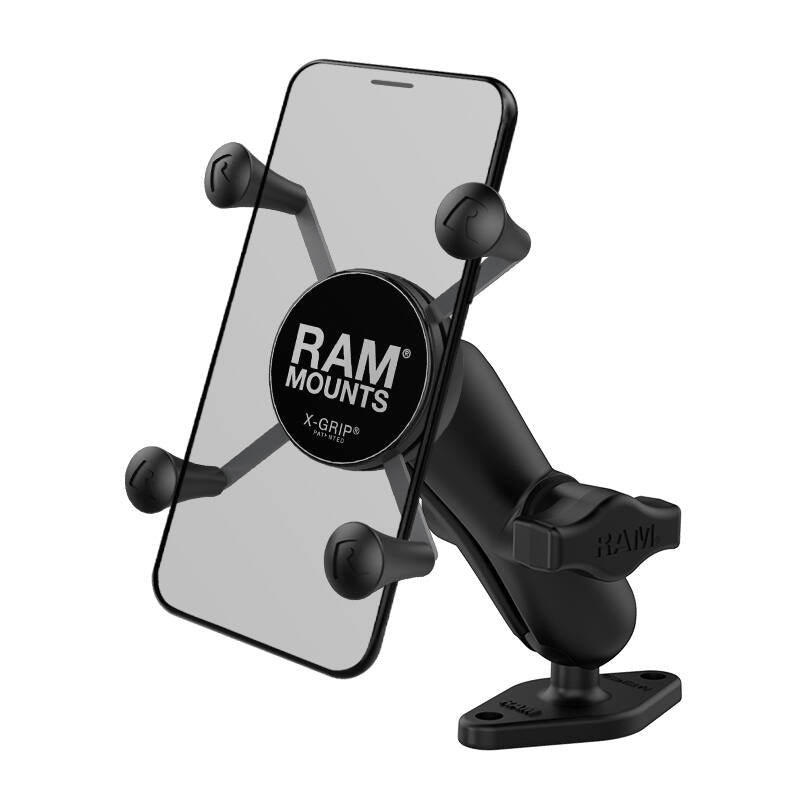

The RAM-B-102-UN7U pairs the RAM® X-Grip® universal phone cradle with a diamond ball base, using the industry-standard 2-hole AMPS pattern to bolt to a wide range of mounting surfaces.

Key Features

• Spring-loaded X-Grip design with rubber caps holds the phone securely without covering the screen, camera, or buttons; includes an optional device tether for rugged use
• Diamond ball base uses the industry-standard 2-hole AMPS pattern; ball-and-socket design allows near-infinite positioning
• Medium-length B size RAM® double socket arm
• Powder-coated marine-grade aluminium, stainless steel hardware, and high-strength composite construction
• Backed by a lifetime warranty

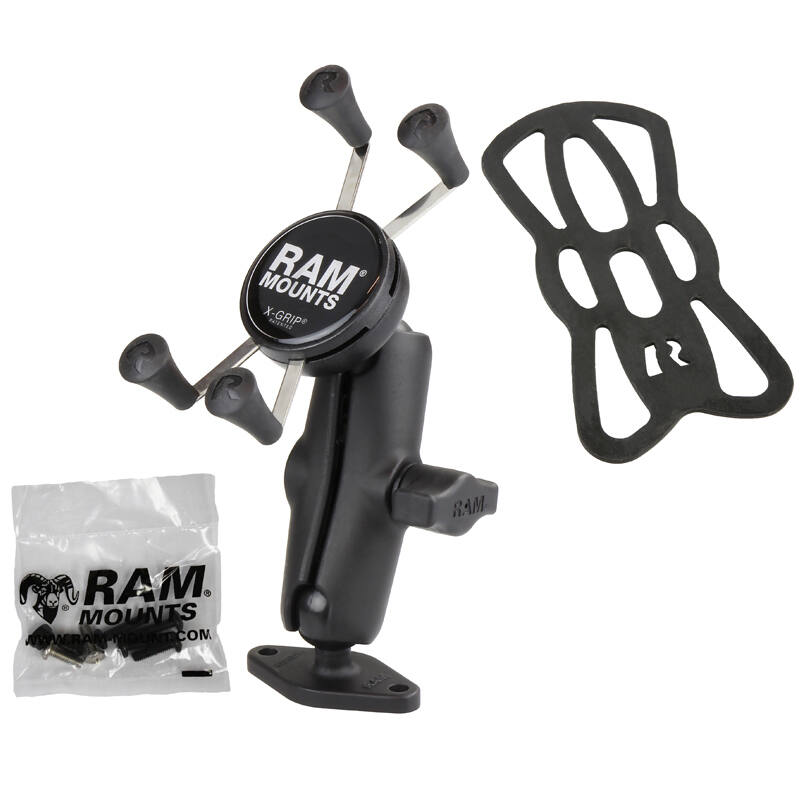

What's Included

• RAM-B-238U diamond base, 61.7mm x 33.3mm (2.43" x 1.31"), with 1" B size ball
• RAM-B-201U double socket arm
• RAM-HOL-UN7BU X-Grip® universal phone cradle

Dimensions & Specifications

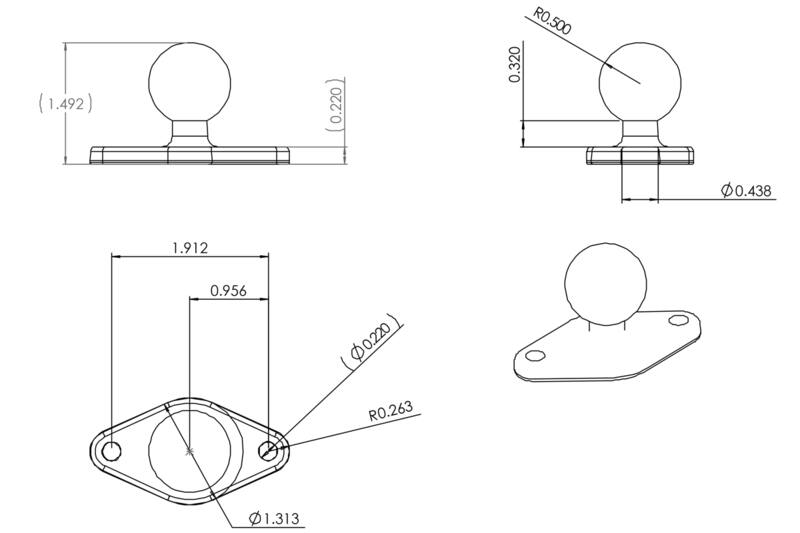

• Diamond plate size: 61.7mm x 33.3mm (2.43" x 1.31")
• Hole pattern: 2-hole AMPS, 48.6mm (1.912") centre to centre

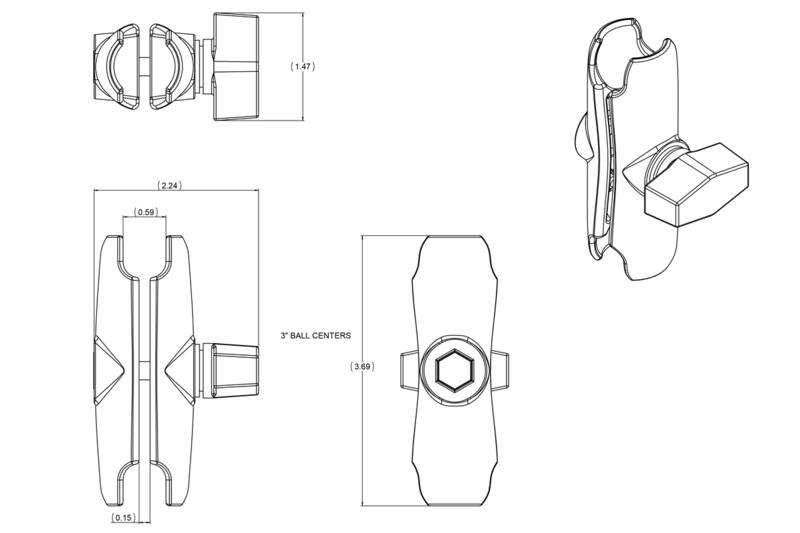

• Arm length, overall: 94mm (3.69")
• Arm length, socket-to-socket: 76mm (3")
• Cradle minimum device width: 47.6mm (1.875") — requires minimum device height 108mm (4.25")
• Cradle maximum device width: 82.6mm (3.25") — requires minimum device height 57.2mm (2.25")
• Cradle maximum device depth: 22.2mm (0.875")
• Ball size: B size, 1" rubber ball
• Weight: 286g (0.63 lb)

Compatible Devices

Fits hand-held devices within the cradle dimensions above, with or without a case. For the full list of 100+ compatible phone models across 14 brands, see our RAM-HOL-UN7BU listing.
