RAM X-Grip Universal Smartphone Cradle - EZ-ON/OFF Bicycle Mount

RAP-274-1-UN7U – RAM® X-Grip® Phone Mount with EZ-On/Off™ Bicycle Base

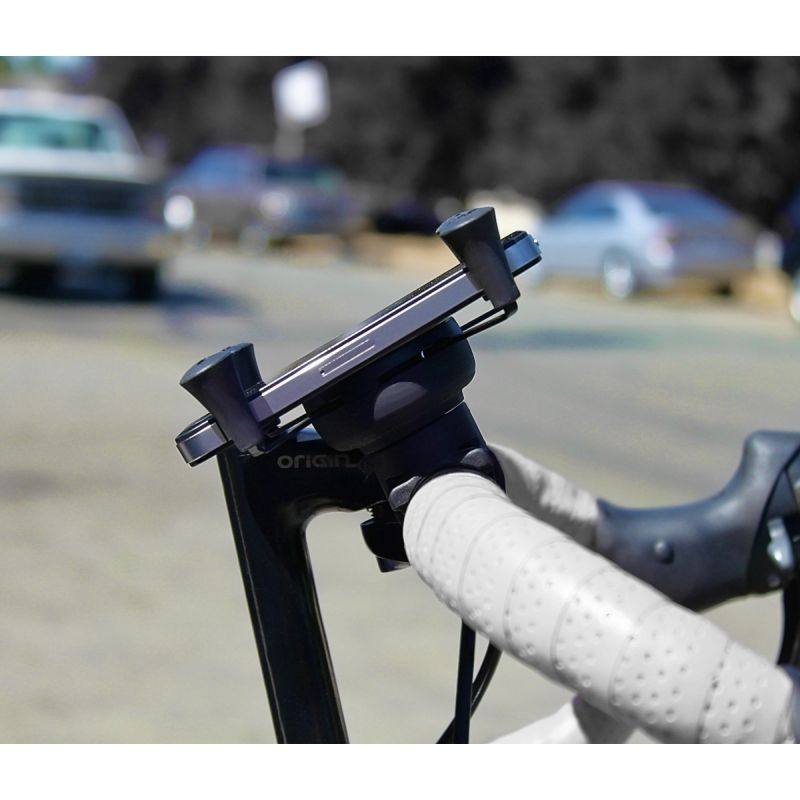

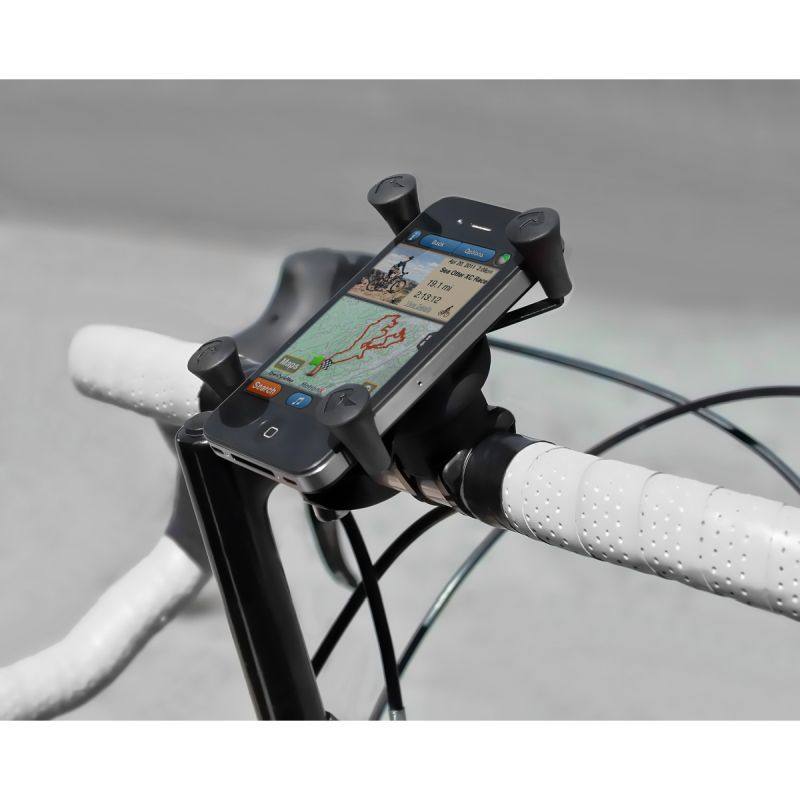

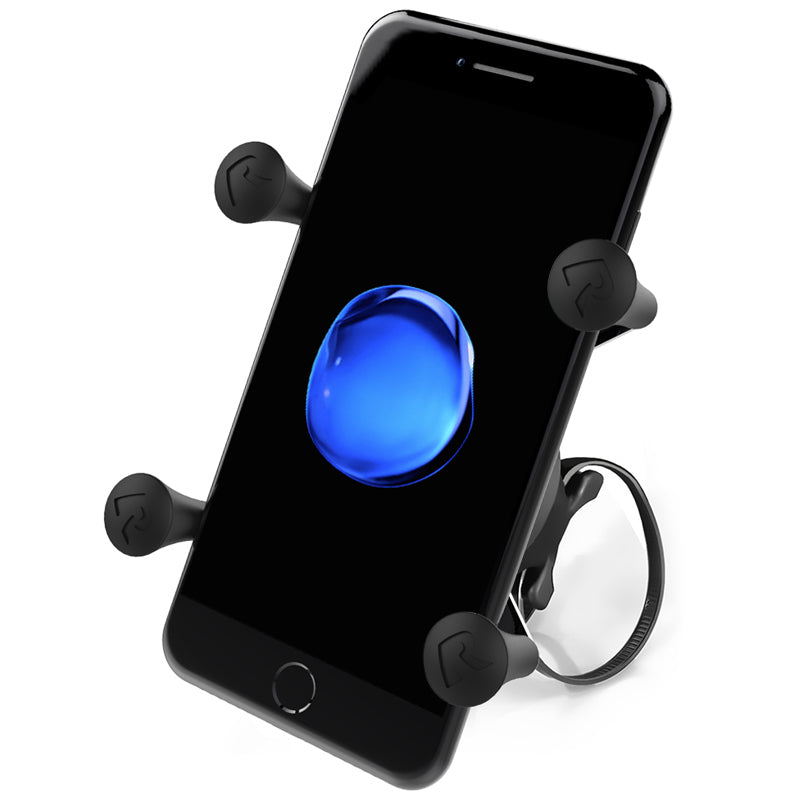

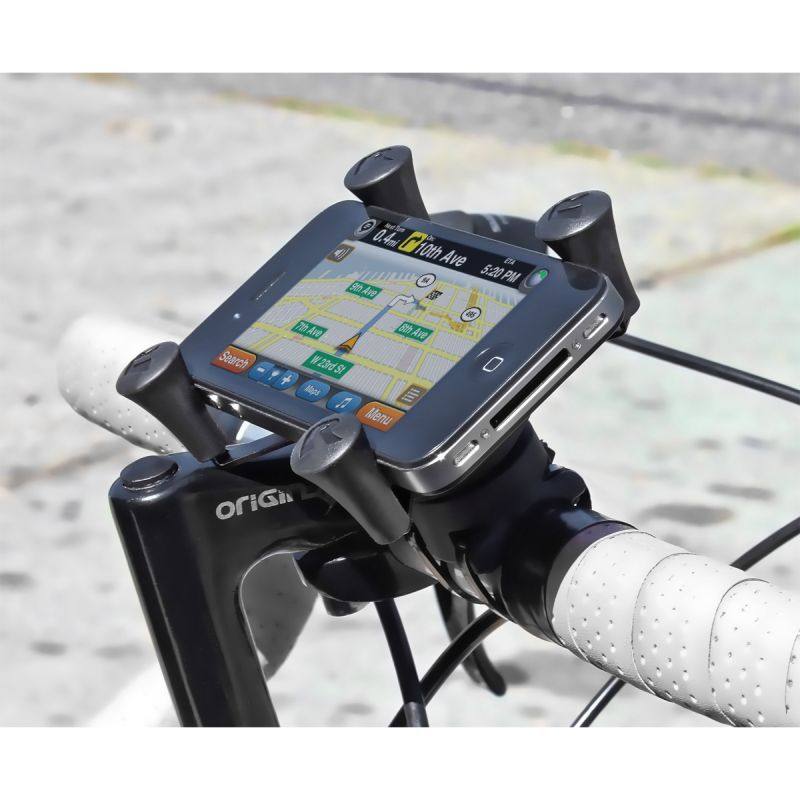

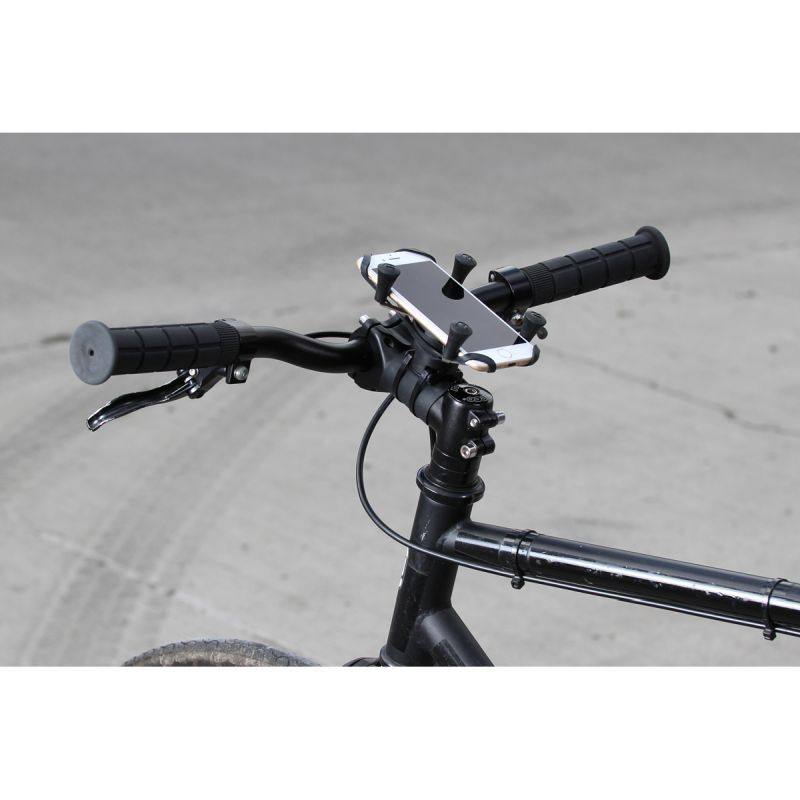

The RAP-274-1-UN7U pairs a large RAM® X-Grip® universal phone cradle with the EZ-On/Off™ bicycle base, which uses common zip ties to attach to handlebars from 12.7mm to 42.7mm (0.5" to 1.68") in diameter.

Key Features

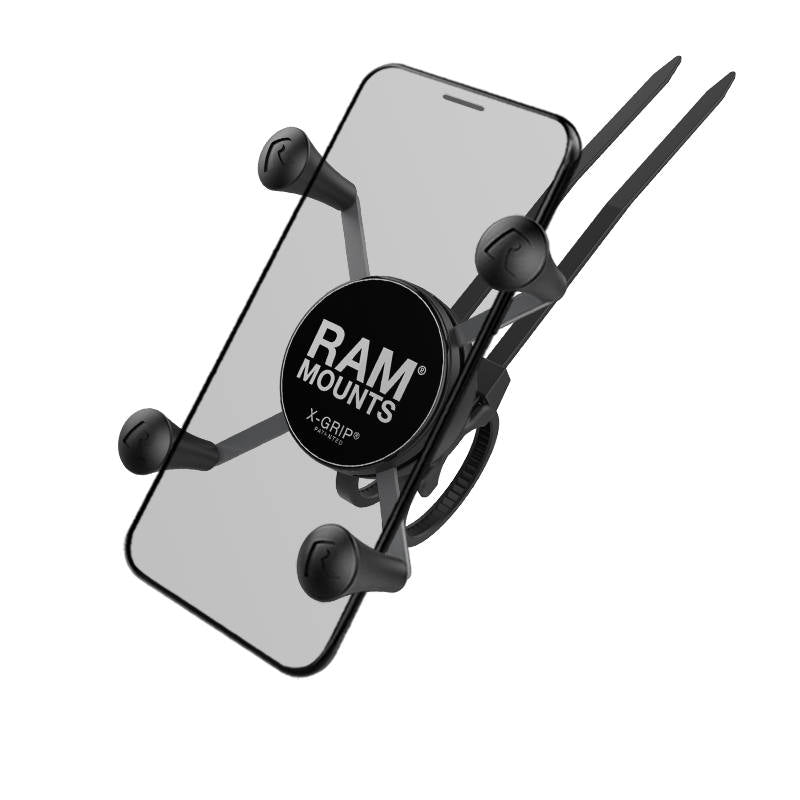

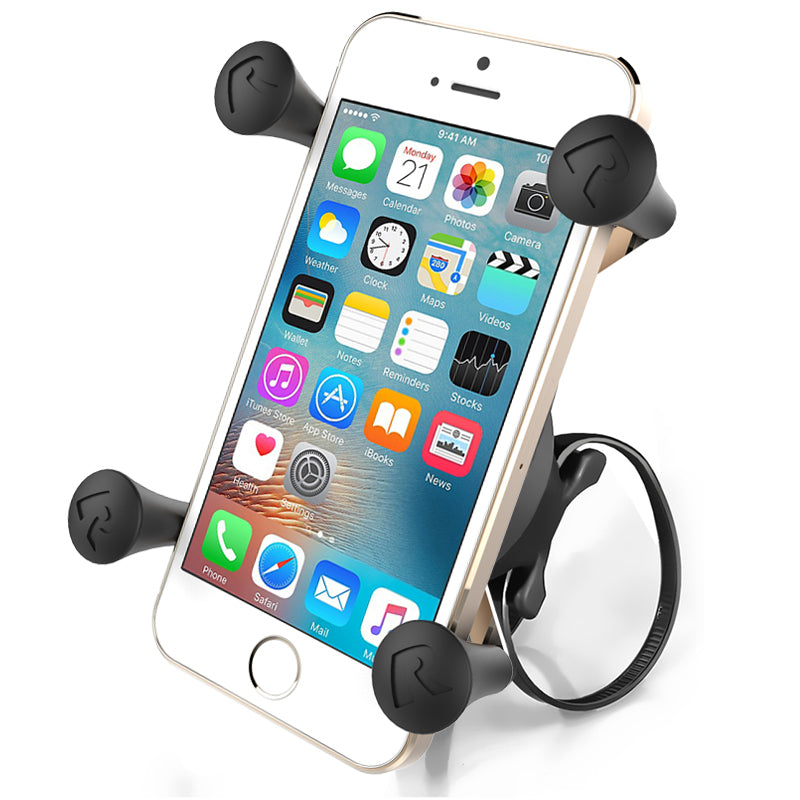

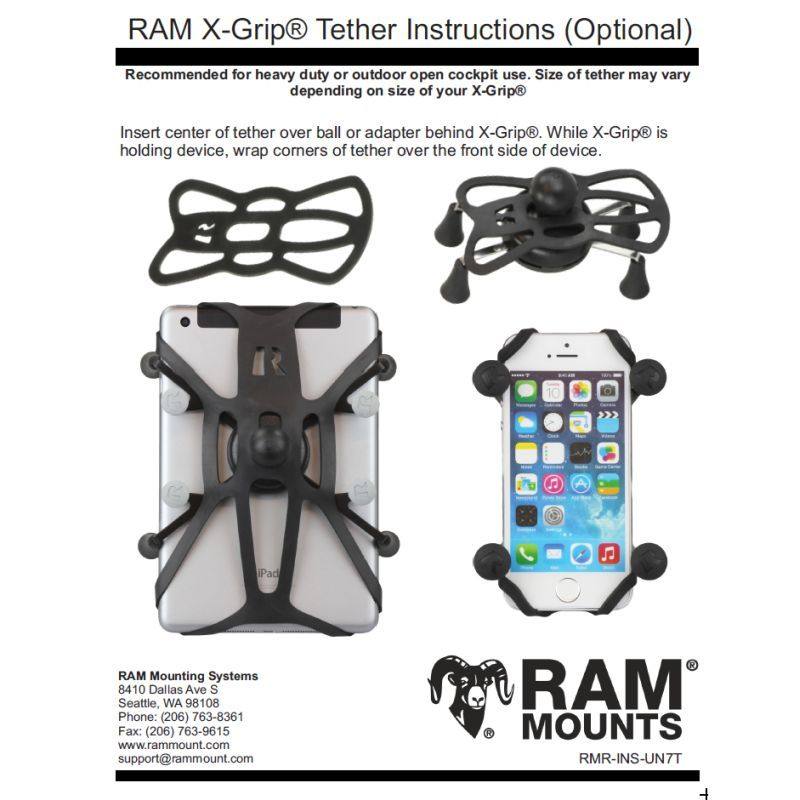

• Spring-loaded X-Grip design holds large phones securely without covering the screen, camera, or buttons; includes an optional device tether for rugged use
• EZ-On/Off™ base attaches with common zip ties to handlebars from 12.7mm to 42.7mm (0.5" to 1.68") in diameter; includes a 12-degree tapered shaft for tapered bars
• High-strength composite and stainless steel construction keeps the mount lightweight
• Backed by a lifetime warranty

What's Included

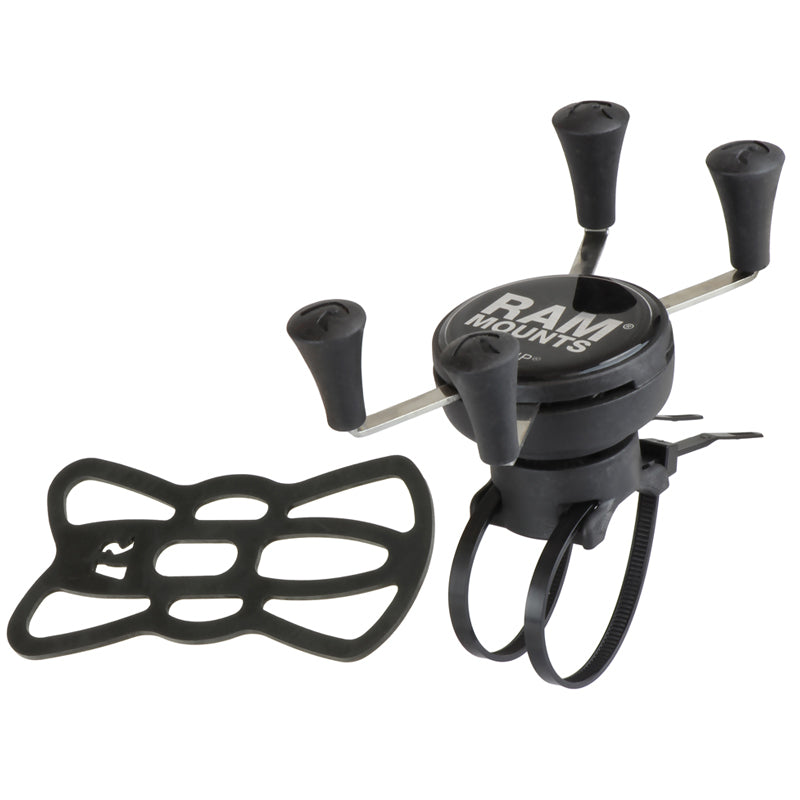

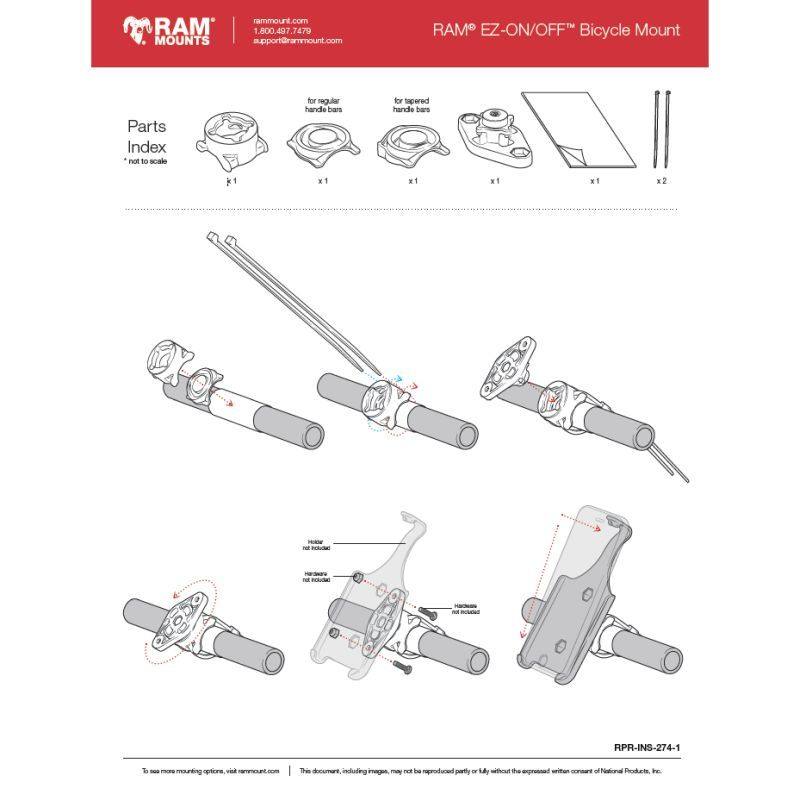

• EZ-On/Off™ bicycle base with zip ties (178mm / 7" length each) and tapered shaft adaptor
• RAM® X-Grip® universal phone cradle

Dimensions & Specifications

• Handlebar clamping range: 12.7mm to 42.7mm (0.5" to 1.68") diameter
• Zip tie length: 178mm (7") each
• Cradle minimum device width: 47.6mm (1.875") — requires minimum device height 108mm (4.25")
• Cradle maximum device width: 82.6mm (3.25") — requires minimum device height 57.2mm (2.25")
• Cradle maximum device depth: 22.2mm (0.875")
• Weight: 113g (0.25 lb)

Compatible Devices

Fits hand-held devices within the cradle dimensions above, with or without a case. For the full list of 100+ compatible phone models across 14 brands, see our RAM-HOL-UN7BU listing.

Videos

• EZ-On/Off bicycle mount overview
• RAM X-Grip overview
• RAM X-Grip installation demo
